Body Craft MA6053LP User manual

Serial Number Location Record your Serial number
and purchase date here:
S/N __________________
DATE:________________
DEALER:______________
______________________
SERIAL
12345678
Fitness Authority Industrial Co., LTD.
No. 15, Xiangxue Rd., Dali Dist.,
Taichung City 41275, Taiwan.
MA6053LP
BODYCRAFT
Model No. Elite Leg Press
INSTRUCTION MANUAL
OPTION OF ELITE GYM
LEG PRESS

Congratulations and Thank You!
Important Safety Notes
QUESTIONS?
1
Thank you for selecting the BODYCRAFT Elite Leg Press attachment.
The BODYCRAFT Elite Leg Press attachment offers an impressive array of
strength training exercises to develop every major muscle group of the body.
Whether your goal is cardiovascular fitness, a shapely, toned body or dramatic
muscle size and strength, the BODYCRAFT Elite Leg Press attachment will
help you achieve the results you want. For your safety and benefit, read this
manual and the accompanying literature before using the BODYCRAFT Elite
Leg Press attachment. Keep this manual for future reference. If you have
additional questions, please call your local BODYCRAFT Elite Leg Press
attachment Dealer.
There is a risk assumed by individuals who use this type of equipment.
Before beginning this or any other exercise program consult your physician.
This is especially important for individuals over the age of 35 or persons
with preexisting health problems. Recreation Supply, Inc. assumes no
responsibility for personal injury or property damage sustained by or
through use of this product.
1. This product must be assembled on a flat, level surface to assure its proper function.
2. Clean pads and frame on a regular basis. We recommend warm, soapy water.
Do not use harsh or abrasive chemicals.
3. Inspect and tighten all parts before every use. Replace any worn
parts immediately. Failure to do so may result in serious injury.
4. Keep children away from the BODYCRAFT Elite Leg Press attachment at all times.
5. Keep your hands away from cables and pulleys during operation.
6. Keep your hands away from moving parts other than the designated handles.
7. When adjusting the seat, make sure the spring pin is fully engaged.
If not, the seat may slip and cause serious injury.
8. Make certain all cables are seated within the pulleys before every use.
9. Exercise with care to avoid injury.
10. If you are unsure about the proper use of the BODYCRAFT Elite Leg Press
attachment call your local BODYCRAFT dealer.
As a quality home gym supplier we are committed to your complete satisfaction.
If you have questions, or find missing or damaged parts, we will guarantee your
complete satisfaction through our authorized dealer service centers or our home
office customer service department. Please call your local dealer for assistance.
Our trained technicians will provide immediate assistance to you, free of charge.
www.ibodycraft.com
www.ibodycraft.com

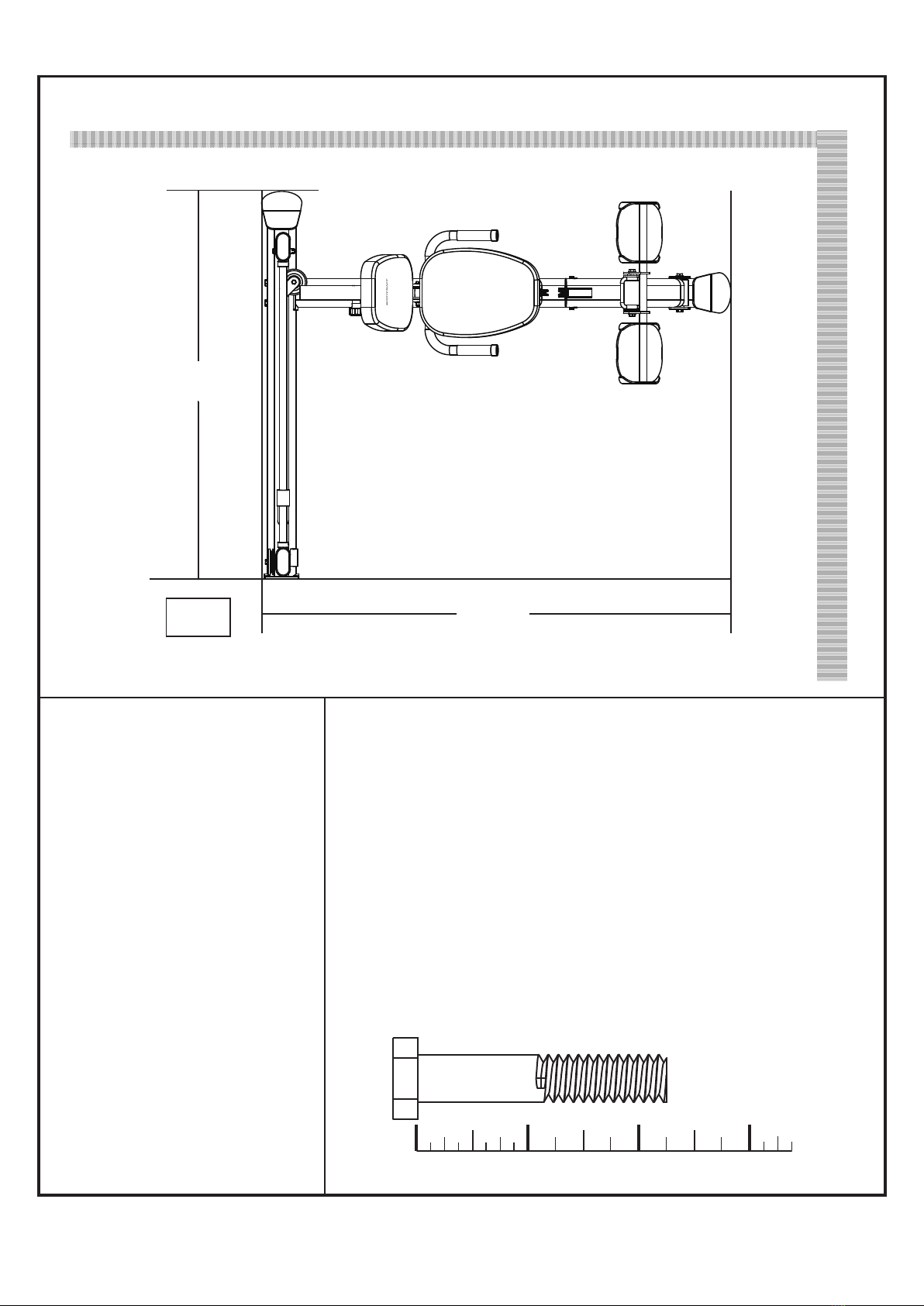

Gym Placement Planner
If possible, please take advantage of the corner fit design.
WALL
W
A
L
L
53“
HEIGHT
33" 64.2"
Important Notes and Tips:
Ratchet
9/16" Socket
3/4" Socket
9/16" Combination Wrench
3/4" Combination Wrench
Adjustable Wrench
Rubber Mallet
Metric Allen Key Set
Silicone Spray
Window Cleaner or Water
2
Recommended Tools
for Assembly
1. Do not tighten any bolts until instructed.
2. Two people are required for the safe assembly
of the gym.
3. Use window cleaner or water to assist with roller
pad installation.
4. Use silicone lubricant on guide rods prior to weight
plate installation.
5. Carefully install plastic caps using a rubber mallet.
6. For your convenlence, rulers are displayed throughout
this manual.
7. When measuring bolt lengths, only measure the shank.
i.e. 2-1/4" Hex Bolt
01/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/41" 2" 3"

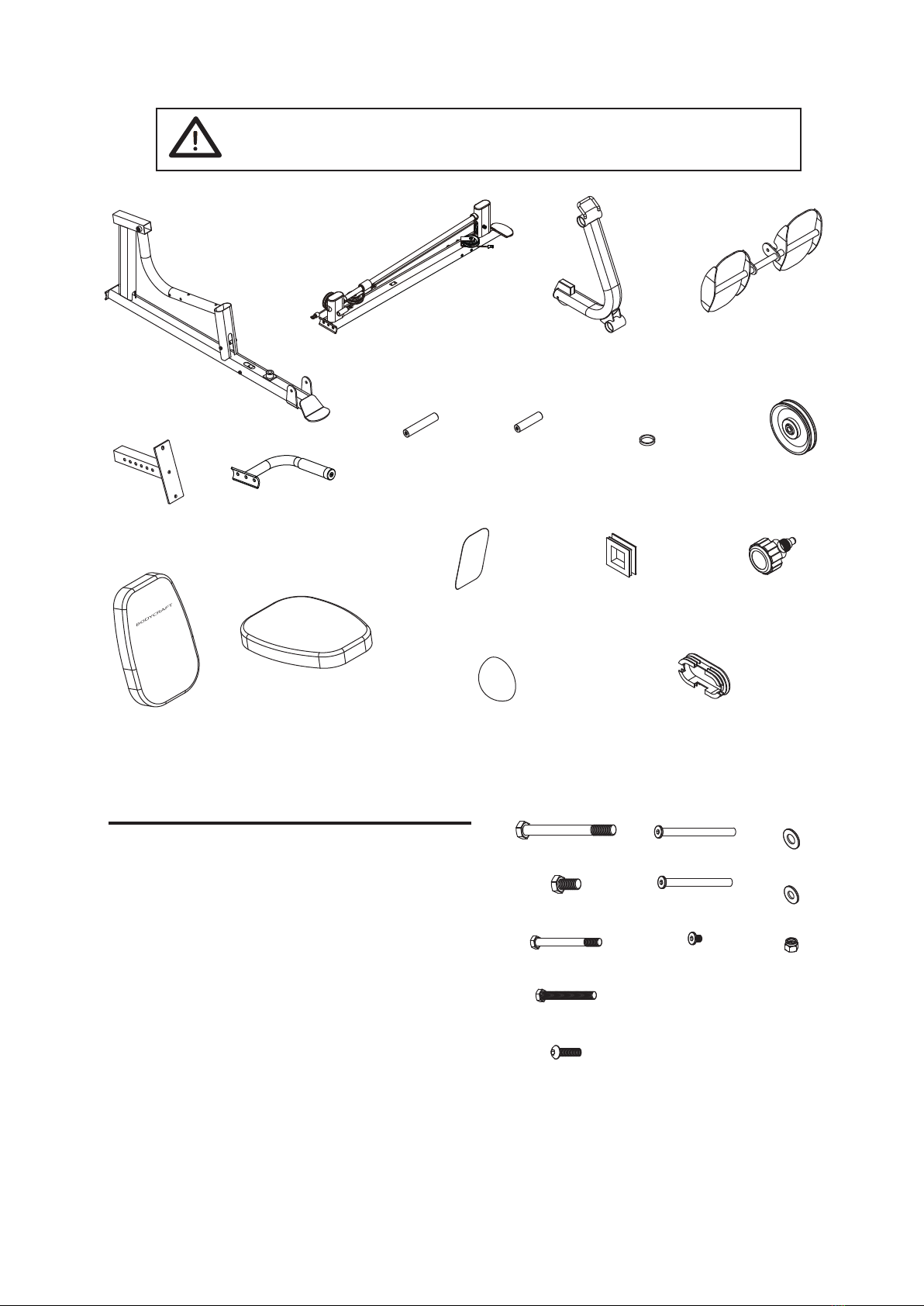

ELITE LEG PRESS PARTS LIST
3
(201) BASE FRAME
(205) BACK PAD
ADJUSTER
(210) RING
SPACER X 4pcs
(211) 114mm
PULLEY X 2pcs
(214) BACK PAD
(215) SEAT PAD
(218) 45 X 45mm
RECT. PLUG
(216) NON SLIP
X 2pcs
(222) LOCKING
SPRING KNOB
(244) 50 X 100mm
OVAL PLUG X 2pcs
(239) DOME
END CAP X 4pcs
(206) SEAT
HANDLE X 2pcs
(208) φ25mm
AXLE
(209) φ3/4"
AXLE
(202) CONNECTING
REAR STABILIZER
(203) LEG PRESS
SUPPORT
(204) FOOT PLATE
NOTE: IF YOU SEEM TO BE MISSING A PART, DO NOT WORRY, IT
LIKELY HAS BEEN PRE-INSTALLED FOR QUALITY CONTROL PURPOSES.
223
224
225
226
227
228
229
234
235
236
237
4
4
2
2
2
2
1
3
8
8
2
1/2" X 5" HEX BOLT
1/2" X 1" HEX THREADED BOLT
3/8" X 3-1/4" HEX BOLT
3/8" X 2-3/4" HEX THREADED BOLT
3/8" X 1" HEX THREADED BOLT
3/8" X 109.5mm FLAT PIN BOLT
3/8" X 99.5mm FLAT PIN BOLT
M6 X 12L MALE SCREW
1/2" WASHER
3/8" WASHER
3/8" NYLON NUT
NO. DESCRIPTION QTY.
223
224
225
226
227
228
229
234
235
236
237

202
246
246
243
207
202
246
246
243
207
213A
207
231
213A
237

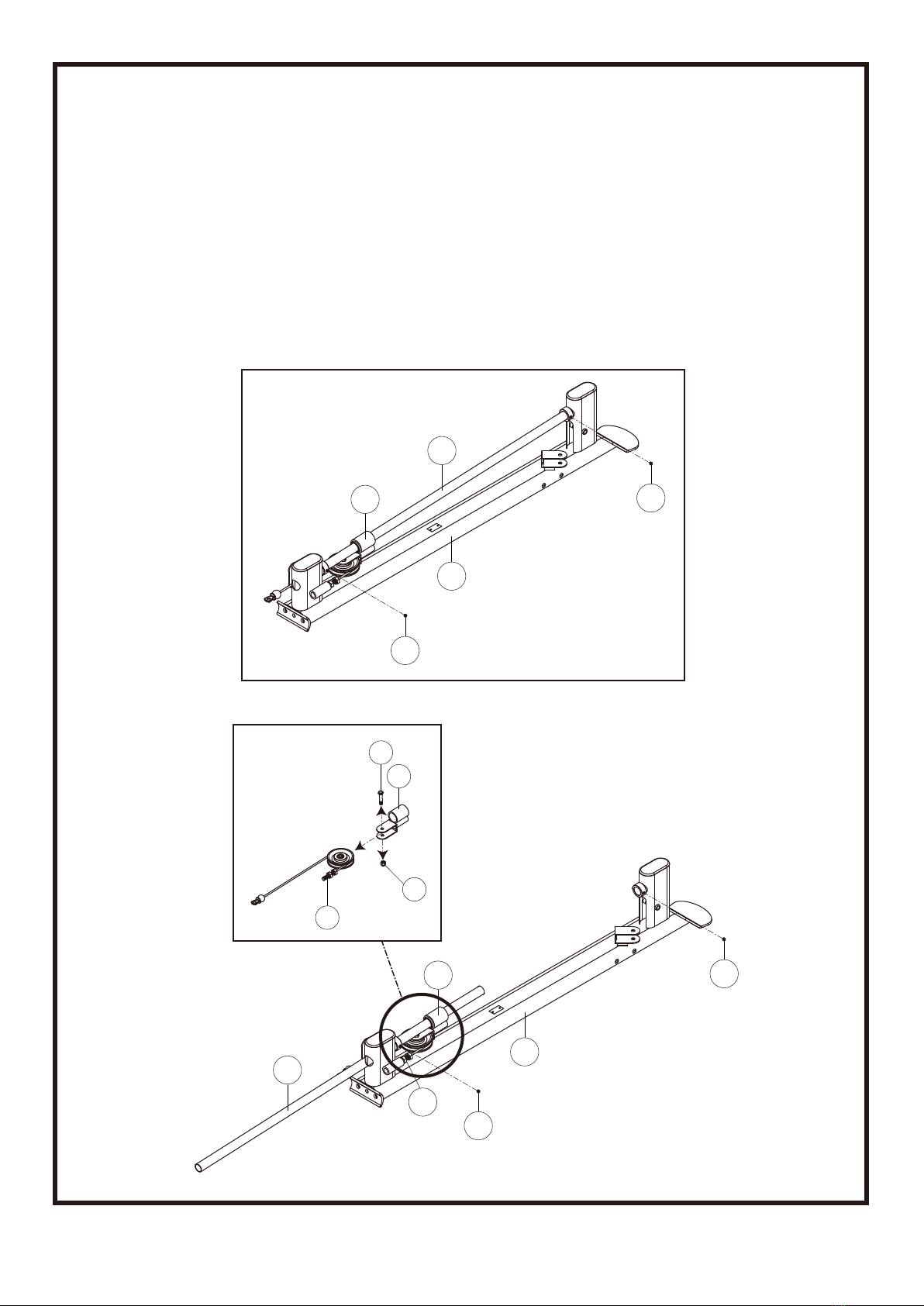

STEP 1 ASSEMBLE GUIDE ROD
4
1. Detach 5/16" X 1/4" Inner Hex Screw (246) and Guide Rod (243) from
Connecting Rear Stabilizer (202), and slide Sliding Pulley Block (207) off
Guide Rod (243). Detach 90mm Pulley (212), 3/8" Nylon Nut (237) and 3/8"
X 1-3/4" Hex Bolt (231) from Sliding Pulley Block (207).

W2
W3
W1
W4
W5
W6
144
147
101
213A
5
W1
144
147
5
101
W2
W3
101
170
134
25
C5
W4,W5,W6
245
212
213A
202
W4
W5
W6
Leg Press Low Cable (213A) Ball EndThreaded End
1. Remove the Low Cable (87) of Elite. If you have installed the
Low Cable (87), you must remove it now. This cable will be
replaced by the Leg Press Low Cable (213A).
2. Insert the Threaded End of Leg Press Low Cable (213A) into
the front of the Foot Plate Connector (5), and route underneath
pulleys W1 and W2, each mounted using 3/8" X 45L Flat Pin
Bolt (144) and M6 X 12L Male Screw (147), as shown in
W1&W2.
3. Continue routing up and around pulley W3, mounted to the
bottom of the Double Pulley Block (25), using 3/8" X 1-3/4”
Hex Bolt (134) and 3/8” Nylon Nut (170) as shown in W3.
4. Route underneath pulley W4 mounted on Connecting Rear
Stabilizer (202), using a 3/8" X 1-1/2" Hex Bolt (245). Continue
routing the cable around horizontal pulley W5 mounted on
Sliding Pulley Block (207) using 3/8” X 1-3/4” Hex Bolt (231)
and 3/8” Nylon Nut (237), then screw the Thread Bolt End of
Leg Press Low Cable (213A) into the Connecting Rear
Stabilizer (202) as shown in Fig. W4, W5, W6.
STEP 2 INSTALL LEG PRESS LOW CABLE
5

202
243
246
246
244
244
207
231
213A
237
202
243
246
246
244
244
207
213A

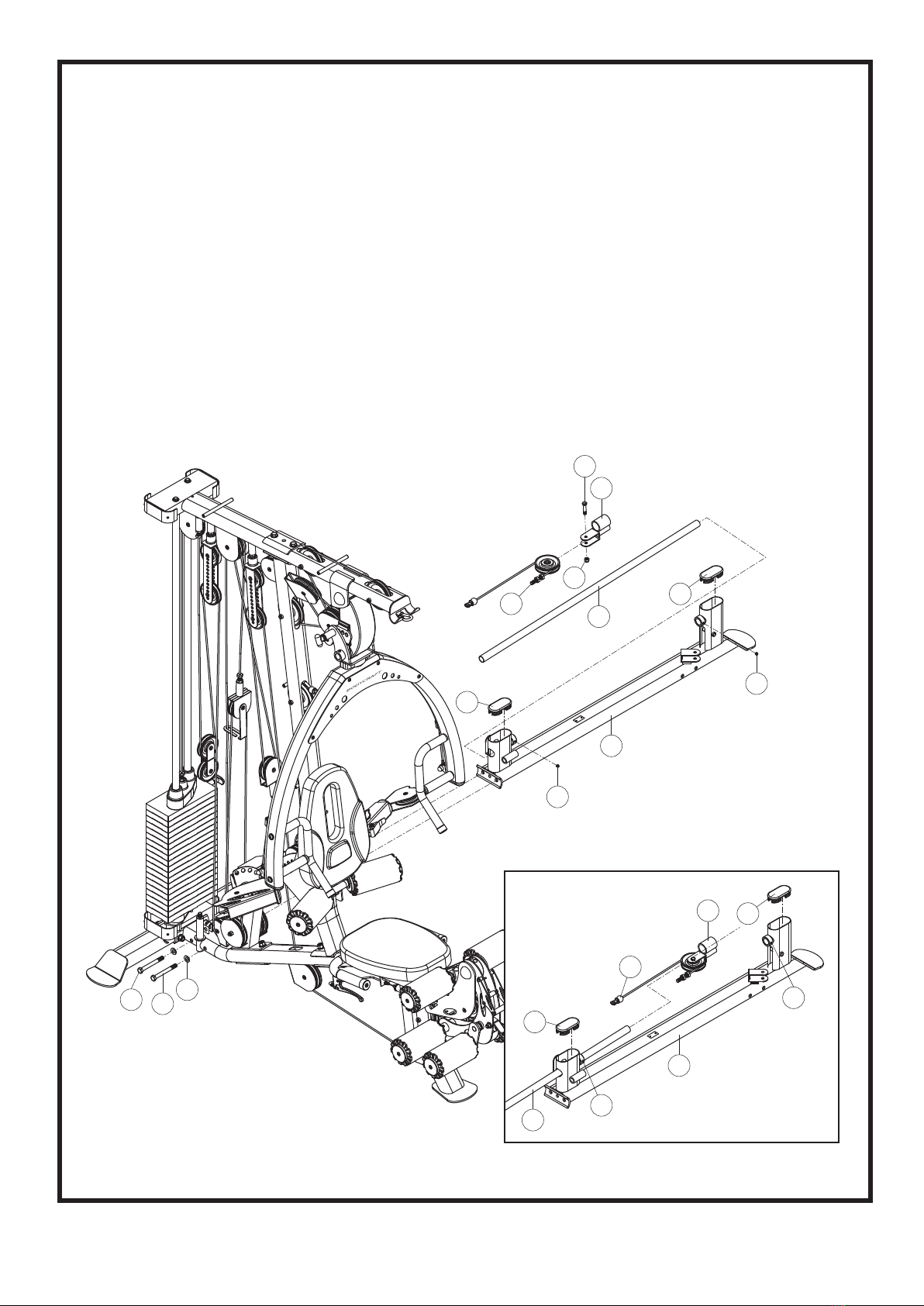

To ease assembly, Do Not tighten any bolts until instructed.
1. Slide Sliding Pulley Block (207) onto the Guide Rod (243). And attach
the Guide Rod (243) to the Connecting Rear Stabilizer (202) using two
5/16" X 1/4" Inner Hex Screws (246).
2. Cap two 50 X 100mm Oval Plugs (244) to the Connecting Rear
Stabilizer (202).
3. Attach the Connecting Rear Stabilizer (202) to the Elite Main Frame
(1), using two 1/2" X 5" Hex Bolts (223), and two 1/2" Washers (235).
STEP 3 ASSEMBLE CONNECTING REAR STABILIZER
6
235
223
223

216
216
201
206
206
237
236
237
236
239
224
235
236 208
210
239
224
235
204
210
215
214
225
236
239 235
224
225
226
236
239
209
210
203
210
235
224
227
227 236 205
236
223
235
222

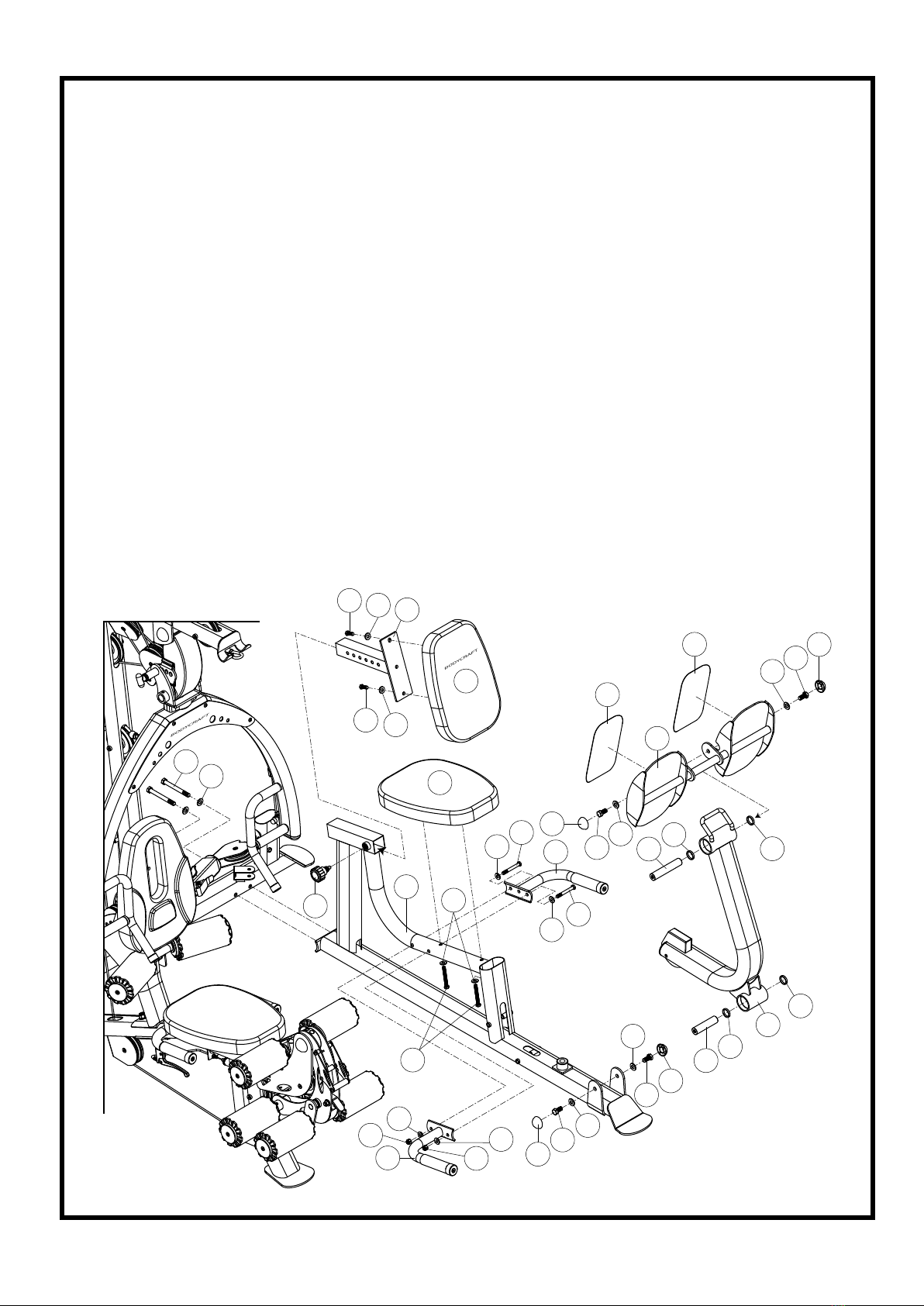

STEP 4 ASSEMBLE BASE FRAME
7
1. Attach the Base Frame (201) to the Connecting Rear Stabilizer (202) using two 1/2" X 5"
Hex Bolts (223) and two 1/2" Washers (235).
2. Insert the 1" Axle (shorter) (209) into the Leg Press Support (203) at the underside of the
bend, and a Ring Spacer (210) on each end of 1" Axle (shorter) (209). Then attach Leg
Press Support (203) to the end of Base Frame (201) using two 1/2" X 1" Hex Threaded
Bolts (224), and two 1/2" Washers (235). Tighten these bolts and cap with two Dome End
Caps (239).
3. Insert the 1" Axle (longer) (208) into the top hole of the Leg Press Support (203), and attach
a Ring Spacer (210) on each end of 1” Axle (longer) (208). Then attach the Foot Plate (204)
using two 1/2" X 1" Hex Threaded Bolts (224), and two 1/2" Washers (235). Tighten these
bolts and cap with two Dome End Caps (239).
4. Attach two Seat Handles (206) to the Base Frame (201), using two 3/8" X 3-1/4" Hex Bolts
(225), four 3/8" Washers (236), and two 3/8" Nylon Nuts (237). Tighten these bolts.
5. Attach Seat Pad (215) into the Base Frame (201), using two 3/8" X 2-3/4" Hex Threaded
Bolts (226) and two 3/8" Washers (236).
6. Attach Back Pad (214) into the Back Pad Adjuster (205), using two 3/8" X 1" Hex Threaded
Bolts (227) and two 3/8" Washers (236). Then slide the Back Pad Adjuster (205) to the
Base Frame (201) and lock at your desired position using the Locking Spring Knob (222).
7. Stick two Non Slips (216) on Foot Plate (204).

Leg Press Cable (213B)
Threaded End Eyelet End
G1
G3
G2
G4
228
213B
234
234
203
201
211
228
229
G4
G5
G6
G4,G5,G6
G6
G5
202
213B
G1
G3
212
245
202
230
237
212
202
G2
Assemble cables and pulleys simultaneously.
1. Screw the threaded end of Leg Press Cable (314) into the
Cable Block (207), and route underneath pulley G2 mounted on
the Connecting Rear Stabilizer (202), using a 3/8" X 2-3/4" Hex
Bolt (230) and 3/8" Washer (237) each. Continuing routing the
cable around the horizontal pulley G3 mounted on the
Connecting Rear Stabilizer (202), using a 3/8" X 1-1/2" Hex Bolt
(245) as shown in Fig. G3.
2. Route the cable under 114mm pulley G4, mounted under the
Seat Pad (215), using a 3/8" X 109.5mm Flat Pin Bolt (228) and
M6 X 12L Male Screw (234) as shown in Fig. G4, G5, G6.
3. Continue routing the cable over and around 114mm pulley G5,
mounted in the bottom of the Leg Press Support (203) using a
3/8" X 99.5mm Flat Pin Bolt (229) and M6 X 12L Male Screw
(234) as shown in Fig. G4, G5, G6.
4. Attach the Eyelet End of Leg Press Cable (213B) inside the slot
in the Base Frame (201) using a 3/8" X 109.5mm Flat Pin Bolt
(228) and M6 X 12L Male Screw (234) as shown in Fig. G4, G5,
G6.
The Cable length can be adjusted using the two threaded
end of the cables. Be sure to always
keep the threaded end at
least 1/3 engaged. Do not
unscrew the threaded end more
than 2/3 of its length.
Always use the jam nut to prevent
these cables from
unscrewing. Tighten
all bolts, beginning
at Base Frame
connection
points.
STEP 5 INSTALL LEG PRESS CABLE
8

201
201
206
206
237
236
237
236
238 217 220
239
224
235
228
211
213B
219
232
228
236 208
238
210
221
216
216 239
224
235
204
221
229
233
210
215
214
225
236
234
211
217
220
239 235
224
225
226
236
239
209
210
221
203
221
210
235
224
233
234
227
227 236 205
218
223
235
235
236
222
1

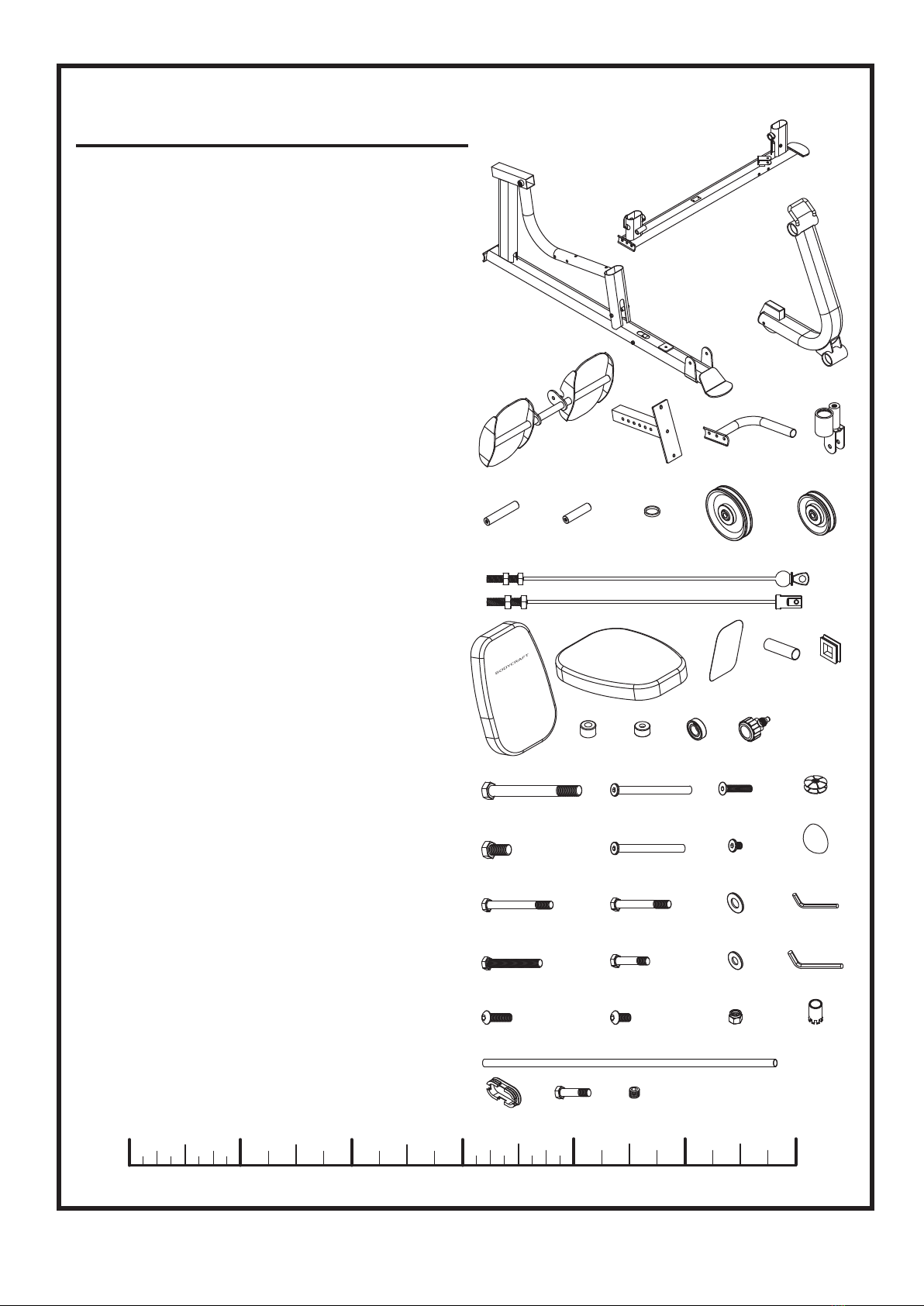

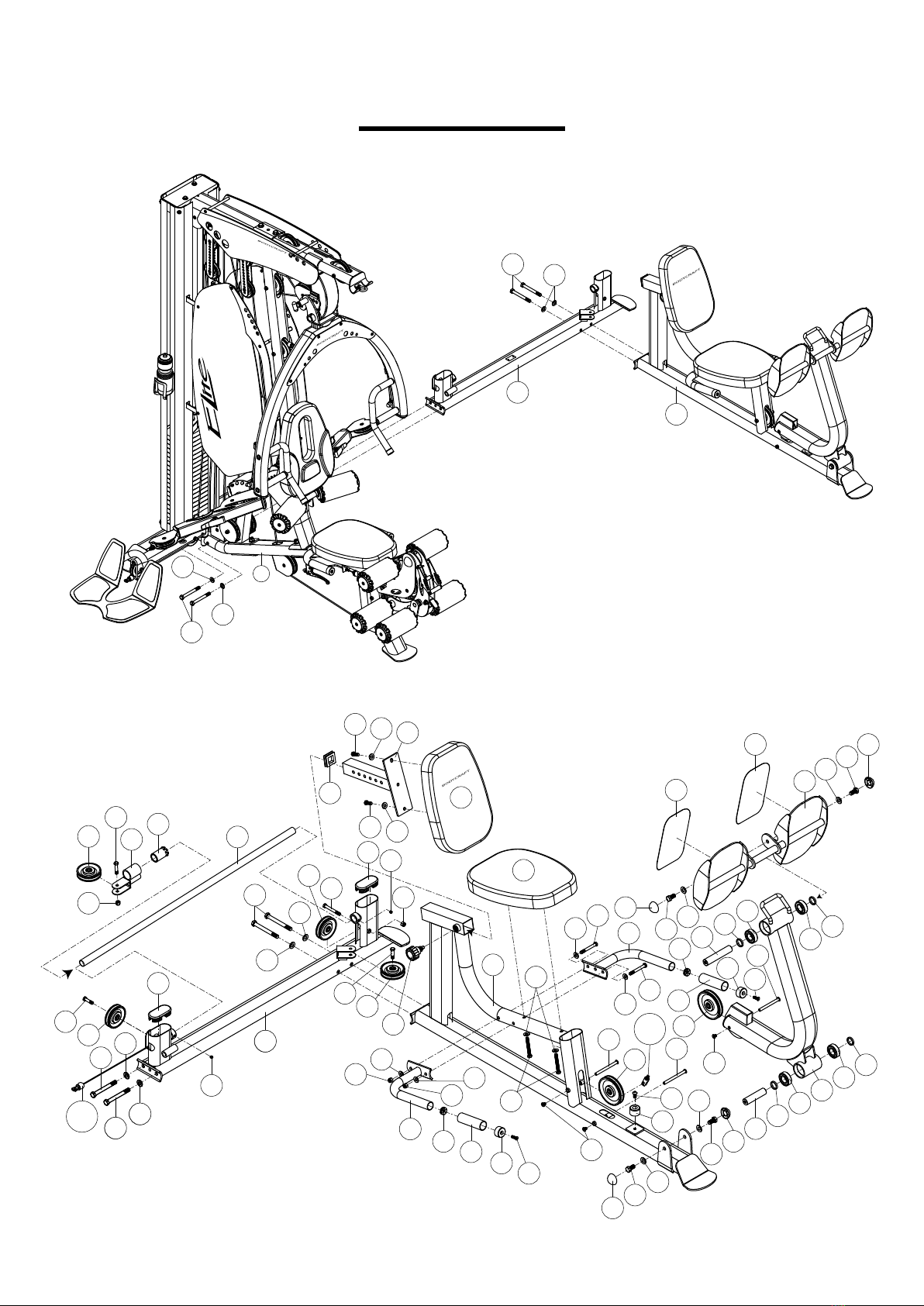

EXPLODED
9
212
245
223
243
207
212
244
245
212
237
242
231
230
244 246
237
212
235
235
235
223
302
246
343
328
213A
202
235
223
202
223 235

201
202
203
204
205
206
207
208
209
210
211
212
213A
213B
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
1
1
1
1
1
2
1
1
1
4
2
4
1
1
1
1
2
2
1
1
2
4
1
4
4
2
2
2
2
1
1
1
1
2
3
8
8
4
2
4
1
1
1
1
2
2
2
BASE FRAME
CONNECTING REAR STABILIZER
LEG PRESS SUPPORT
FOOT PLATE
BACK PAD ADJUSTER
SEAT HANDLE
SLIDING PULLEY BLOCK
φ1" AXLE (LONGER)
φ1" AXLE (SHORTER)
RING SPACER
114mm PULLEY
90mm PULLEY
LEG PRESS LOW CABLE
LEG PRESS CABLE
BACK PAD
SEAT PAD
NON SLIP
1-1/4" X 360mm HAND GRIP
45 X 45mm RECT. PLUG
LEG PRESS STOPPER
SEAT PAD SUPPORT STOPPER
BEARING
LOCKING SPRING KNOB
1/2" X 5" HEX BOLT
1/2" X 1" HEX THREADED BOLT
3/8" X 3-1/4" HEX BOLT
3/8" X 2-3/4" HEX THREADED BOLT
3/8" X 1" HEX THREADED BOLT
3/8" X 109.5mm FLAT PIN BOLT
3/8" X 99.5mm FLAT PIN BOLT
3/8" X 2-3/4" HEX BOLT
3/8" X 1-3/4" HEX BOLT
3/8" X 3/4" SET SCREW
5/16 X 1-1/4" MALE SCREW
M6 X 12L MALE SCREW
1/2" WASHER
3/8" WASHER
3/8" NYLON NUT
5/16" NUT
DOME END CAP
4mm HEX WRENCH
5mm HEX WRENCH
BUSHING
GUIDE ROD
50 X 100mm OVAL PLUG
3/8" X 1-1/2" HEX BOLT
5/16" X 1/4" INNER HEX SCREW
242
243
244 245 246
PARTS LIST
NO. DESCRIPTION QTY.
01/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/41" 2" 3" 4" 1/4 1/2 3/4 1/4 1/2 3/45" 6"
(inch)
10
201
204
208 209 211210 212
213A
214
215
216 217 218
223
224
225
226
227
228
229
230
231
232
233
234
235 240
236 241
237
238
239
219 220 221 222
205 206
202
203
213B
207

1. Make certain all bolts are tightened securely.
2. Make certain all cables are seated into all pulley grooves. A cable
rubbing-against steel will peel the nylon coating, voiding warranty
and resulting in a need for replacement.
3. Pre-stretch the cables. Pull on the cables with great force, helping
remove any links and providing any initial cable stretch.
4. Be aware the cables can loosen and slightly stretch upon initial use.
5. For better performance, apply a household lubricant (such as silicone)
to any adjustable areas.
6. Enjoy many years of a Fit Lifestyle.
Assembly is complete! Please take the following steps before using the gym:
Thank you for purchasing the BODYCRAFT Elite Leg Press
attachment. If you have any questions, please call your local
BODYCRAFT dealer. www.ibodycraft.com
