Overview
The DICENTIS Conference System is an IP based conference system which runs on an OMNEO
compatible Ethernet network. It is used for distributing and processing audio, video and data
signals.
The DICENTIS Discussion devices are used to contribute to a meeting. The following devices
are available:
– DCNM-DE
– DCNM-D
– DCNM-DVT
– DCNM-DSL
The extended version of the DICENTIS Discussion device (DCNM-DE) has a 4.3” capacitive
touchscreen, which provides the user with additional information and control.
Figure 3.1: DCNM-DE
3
6en | Overview DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

Listening
1Loudspeaker.
2Headphone volume control.
33.5 mm headphone socket.
Speaking
4Microphone request button, including white possible-to-speak icon.
5LED-bar for the microphone request button.
6Microphone mute button, priority button, or Microphone request button, including two
white color LED icons.
7LED-bar for the microphone request button.
8Microphone socket for attaching the microphone.
Touchscreen
94.3” capacitive touchscreen (DCNM-DE only).
Identification
10 Area where Near Field Communication (NFC) tag is detected and read (DCNM‑DSL,
DCNM‑DVT and DCNM‑DE only).
Connections
11 Cable glands.
DICENTIS Overview | en 7
Bosch Security Systems B.V. User manual 2016.11 | V1.0 |

7 6 45
1
Figure 3.2: DCNM-D
7 6 45
12
10 1
Figure 3.3: DCNM-DVT
Voting
12 Voting buttons (DCNM‑DVT only).
8en | Overview DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

7 6 45
13 14 110 1
Figure 3.4: DCNM-DSL
Language
13 Language selection buttons (DCNM‑DSL only).
14 Language display (DCNM‑DSL only).
DICENTIS Overview | en 9
Bosch Security Systems B.V. User manual 2016.11 | V1.0 |

DICENTIS Discussion devices operation
The DISCENTIS Discussion devices can be used in three different modes:
– Single-use operation
– Chairperson operation
– Dual-use operation
The LED-bar indications on the devices behave according to the mode selected.
Single-use operation
Switch on the microphone:
Push your microphone request button to switch on the microphone.
– If the white icon in the microphone request button is lit, the LED-bar above your
microphone request button will immediately turn red, and you can speak.
– If the LED-bar above your microphone request button is green, your request-to-speak is
accepted. You cannot speak until the LED-bar above your microphone request button
turns red.
– When the LED-bar above your microphone request button flashes green, you are first in
the waiting list. Your microphone will be switched on soon.
Cancel your request-to-speak:
When the LED-bar above your microphone request button is green or flashes green, you can
push your microphone request button to cancel the request-to-speak. Optionally: the clerk or
operator can disable the possibility to cancel the request-to-speak.
Switch off the microphone:
When the LED-bar above your microphone request button is red, you can push the
microphone request button to switch off the microphone. The LED-bar above your microphone
request button goes off. Optionally: the clerk or operator can disable the possibility to disable
the microphone.
Mute the microphone:
Your microphone is muted as long as you push the microphone mute button (left-hand
microphone request button).
Push-To-Talk mode:
When your device is in the Push-To-Talk (PTT) mode, the microphone is on as long as you push
your microphone request button.
Voice mode:
When your DICENTIS Discussion device is in Voice mode, the microphone is always on. Push
and hold your microphone request button or mute button to temporarily mute the
microphone.
In Voice mode, you cannot make a request-to-speak.
Note: If the DICENTIS Discussion device is set to Chairperson mode there is no mute button,
because the left button is used as a priority button.
Find your seat:
The touchscreen of the DICENTIS Discussion device with touchscreen shows your name in the
bottom balloon.
4
4.1
10 en | DICENTIS Discussion devices operation DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

Identify yourself (DCNM-DSL, DCNM-DVT, DCNM-DE):
– The touchscreen of the DICENTIS device with touchscreen will display instructions for
identifying yourself. The DICENTIS Discussion device with language selector and the
DICENTIS Discussion device with voting will instruct you to identify you by a blinking LED.
– Hold your NFC tag close to the left-hand side of the DCNM-DVT, or DCNM-DE as indicated
on the touch screen.
Voting (DCNM-DVT, DCNM-DE):
– The clerk or operator opens a voting session. When the voting session is opened, your
vote buttons are displayed.
– Cast your vote. You can change your vote until the clerk or operator has closed the voting
session.
The clerk or operator can temporarily hold the voting session. While the voting session is on
hold, you cannot cast or change your vote.
DICENTIS DICENTIS Discussion devices operation | en 11
Bosch Security Systems B.V. User manual 2016.11 | V1.0 |

Single-use indication

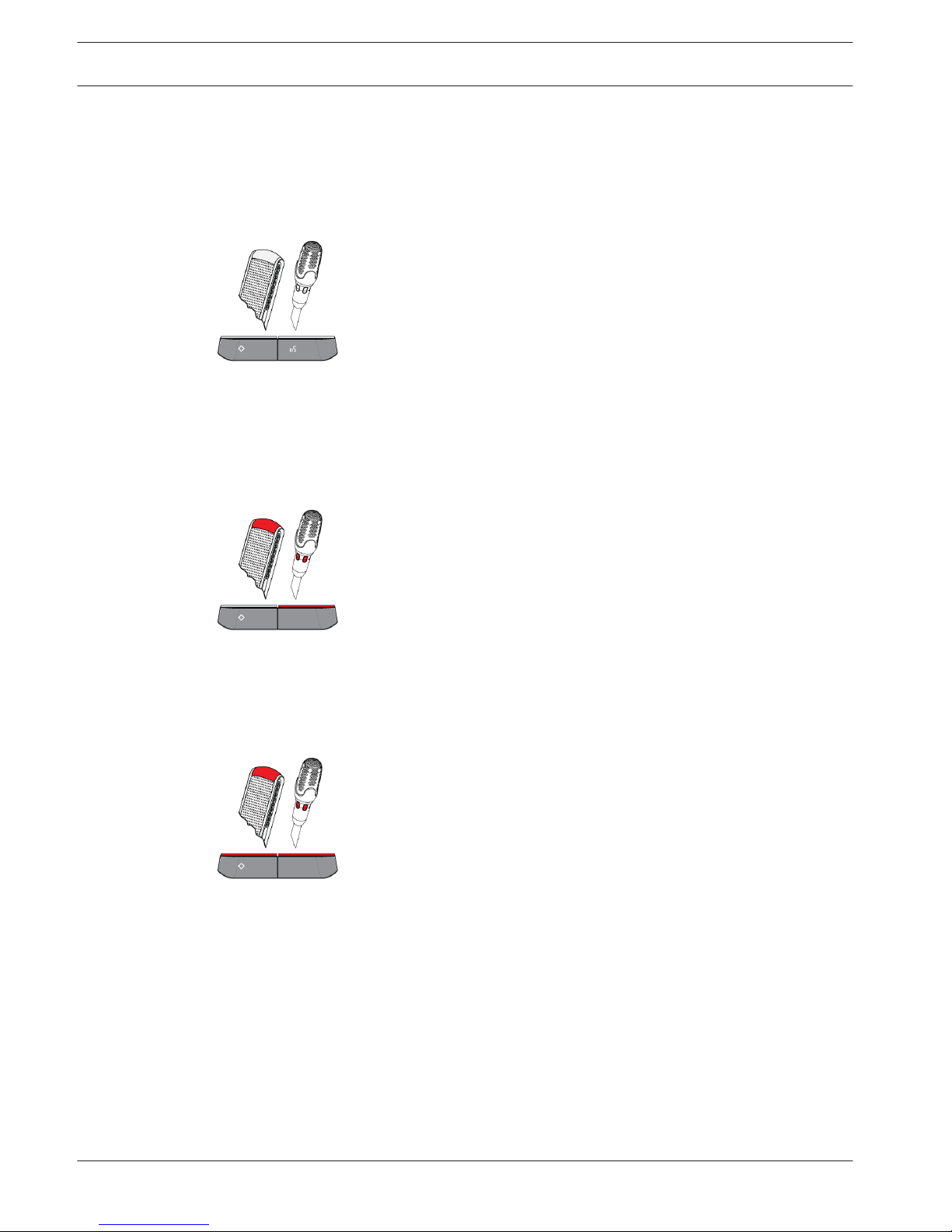

White possible-to-speak icon lit:
– You can speak immediately by pressing the microphone request button.
LED‑bars and microphone LED green or green flashing:
– You have to wait to speak.
– When the LED of the microphone request button flashes green, you are the first in the
waiting list.
– You can push the microphone request button to cancel the request to speak.
LED‑bars and microphone LED lit red:
– Your microphone is active; you can speak.
– You can push the left microphone request button to temporarily mute the microphone.
– You can turn off the microphone by pressing the right microphone request button.
4.2
12 en | DICENTIS Discussion devices operation DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

Chairperson operation
Switch on your microphone:
When the white icon in the microphone button is lit, push your microphone button to switch
on your microphone.
– When the red light above your microphone button comes on, you can speak.
Switch off your microphone:
When the LED-bar above your microphone button is red, push the microphone button to
switch off the microphone. The red LED-bar above your microphone button goes off.
Priority function:
Press the priority button to temporarily switch off the microphones of all participants. At the
same time, the priority button switches on your own microphone. The system has the
possibility to:
– play a chime when you push the priority button.
– erase both the waiting and speakers list when you push the priority button.
When you release the priority button, the system switches off your microphone.
When the speakers list is not erased, the system switches on the microphones of the speakers
again.
Voice mode:
When your DICENTIS Discussion device is in Voice mode, the microphone is always on. Push
and hold your microphone request button to temporarily mute the microphone.
Find your seat:
The touchscreen of the DICENTIS Discussion device with touchscreen shows your name in the
bottom balloon.
Identify yourself (DCNM-DSL, DCNM-DVT, DCNM-DE):
– The touchscreen of the DICENTIS Discussion device with touchscreen will display
instructions for identifying yourself. The DICENTIS Discussion device with language
selector and the Discussion device with voting will instruct you to identify you by a
blinking LED.
– Hold your NFC tag close to the left-hand side of the DCNM-DVT, or DCNM-DE as indicated
on the touchscreen.
Voting (DCNM-DVT, DCNM-DE):
– The clerk or operator opens a voting session. When the voting session is opened, your
vote buttons are displayed.
– Cast your vote. You can change your vote until the clerk or operator has closed the voting
session.
The clerk or operator can temporarily hold the voting session. While the voting session is on
hold, you cannot cast or change your vote.
4.3
DICENTIS DICENTIS Discussion devices operation | en 13
Bosch Security Systems B.V. User manual 2016.11 | V1.0 |

Chairperson indication
White priority icon and possible-to-speak icon lit:
– You can speak immediately by pressing the microphone request button.
– You can press the priority button to speak and temporarily switch off the microphones of
all participants.
Priority icon lit. Right-hand LED-bar and microphone LED lit red:
– Your microphone is active; you can speak.
– You can press and hold in the priority button to continue speaking and temporarily switch
off the microphones of all participants.
– You can turn off the microphone by pressing the microphone request button.
Priority icon lit. LED‑bars and microphone LED lit red:
– Your microphone is active; you can speak.
– The microphones of all participants are temporarily switched off until you release the
priority button.
4.4
14 en | DICENTIS Discussion devices operation DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

Dual-use operation
Switch on the microphone (DCNM‑D, DCNM‑DSL, DCNM‑DE):
Push your microphone request button to switch on the microphone.
– If the white icon in the microphone request button is lit, the LED-bar above your
microphone request button will immediately turn red, and you can speak.
– If the LED-bar above your microphone request button is green, your request-to-speak is
accepted. You cannot speak until the LED-bar above your microphone request button
turns red.
– When the LED-bar above your microphone request button flashes green, you are first in
the waiting list. Your microphone will be switched on soon.
Cancel your request-to-speak:
When the LED-bar above your microphone request button is green or flashes green, you can
push your microphone request button to cancel the request-to-speak. Optionally: the clerk or
operator can disable the possibility to cancel the request-to-speak.
Switch off the microphone:
When the LED-bar above your microphone request button is red, you can push the
microphone request button to switch off the microphone. The LED-bar above your microphone
request button goes off. Optionally: the clerk or operator can disable the possibility to disable
the microphone.
Push-To-Talk mode:
When your device is in the Push-To-Talk (PTT) mode, the microphone is on as long as you push
your microphone request button.
Voice mode:
When your DICENTIS Discussion device is in Voice mode, the microphone is always on. Push
and hold your microphone request button to temporarily mute the microphone.
In Voice mode, you cannot make a request-to-speak.
Find your seat:
The touchscreen of the DICENTIS Discussion device with touchscreen shows your name in the
bottom balloon.
Identify yourself (DCNM-DSL, DCNM-DVT, DCNM-DE):
– The touchscreen of the DICENTIS Discussion device with touchscreen will display
instructions for identifying yourself. The DICENTIS Discussion device with language
selector and the DICENTIS Discussion device with voting will instruct you to identify you
by a blinking LED.
– Hold your NFC tag close to the left-hand side of the DCNM-DVT, or DCNM-DE as indicated
on the touch screen.
– Select the side of the DICENTIS Discussion device you want to be seated at.
Voting (DCNM-DVT, DCNM-DE):
– The clerk or operator opens a voting session. When the voting session is opened, your
vote buttons are displayed.
4.5
DICENTIS DICENTIS Discussion devices operation | en 15
Bosch Security Systems B.V. User manual 2016.11 | V1.0 |

– Cast your vote. You can change your vote until the clerk or operator has closed the voting
session.
The clerk or operator can temporarily hold the voting session. While the voting session is on
hold, you cannot cast or change your vote.
16 en | DICENTIS Discussion devices operation DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

Dual-use indication
Both possible-to-speak icons lit:
– Each participant can speak immediately by pressing their own microphone request
buttons.
Left possible-to-speak icon lit. Right LED-bar and microphone LED green or green flashing:
– The participant on the left can speak immediately by pressing the microphone request
button.
– The participant on the right is in the waiting list and has to wait to speak.
– The participant on the right can cancel the request to speak by pushing the microphone
request button.
Left Possible-to-speak icon lit. Right LED-bar and microphone LED lit red:
– The participant on the left can speak immediately by pressing the microphone request
button.
– The participant on the right can speak.
– The participant on the right can turn off the microphone by pressing the right microphone
request button.
4.6
DICENTIS DICENTIS Discussion devices operation | en 17
Bosch Security Systems B.V. User manual 2016.11 | V1.0 |

Troubleshooting
Notice!
For general troubleshooting, please contact your local system technician.
5
18 en | Troubleshooting DICENTIS
2016.11 | V1.0 | User manual Bosch Security Systems B.V.

Bosch Security Systems B.V.
Torenallee 49
5617 BA Eindhoven
Netherlands
www.boschsecurity.com
© Bosch Security Systems B.V., 2016
