Bosch AMAX panel 2100 User manual

AMAX panel
AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000
en Installation Manual
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

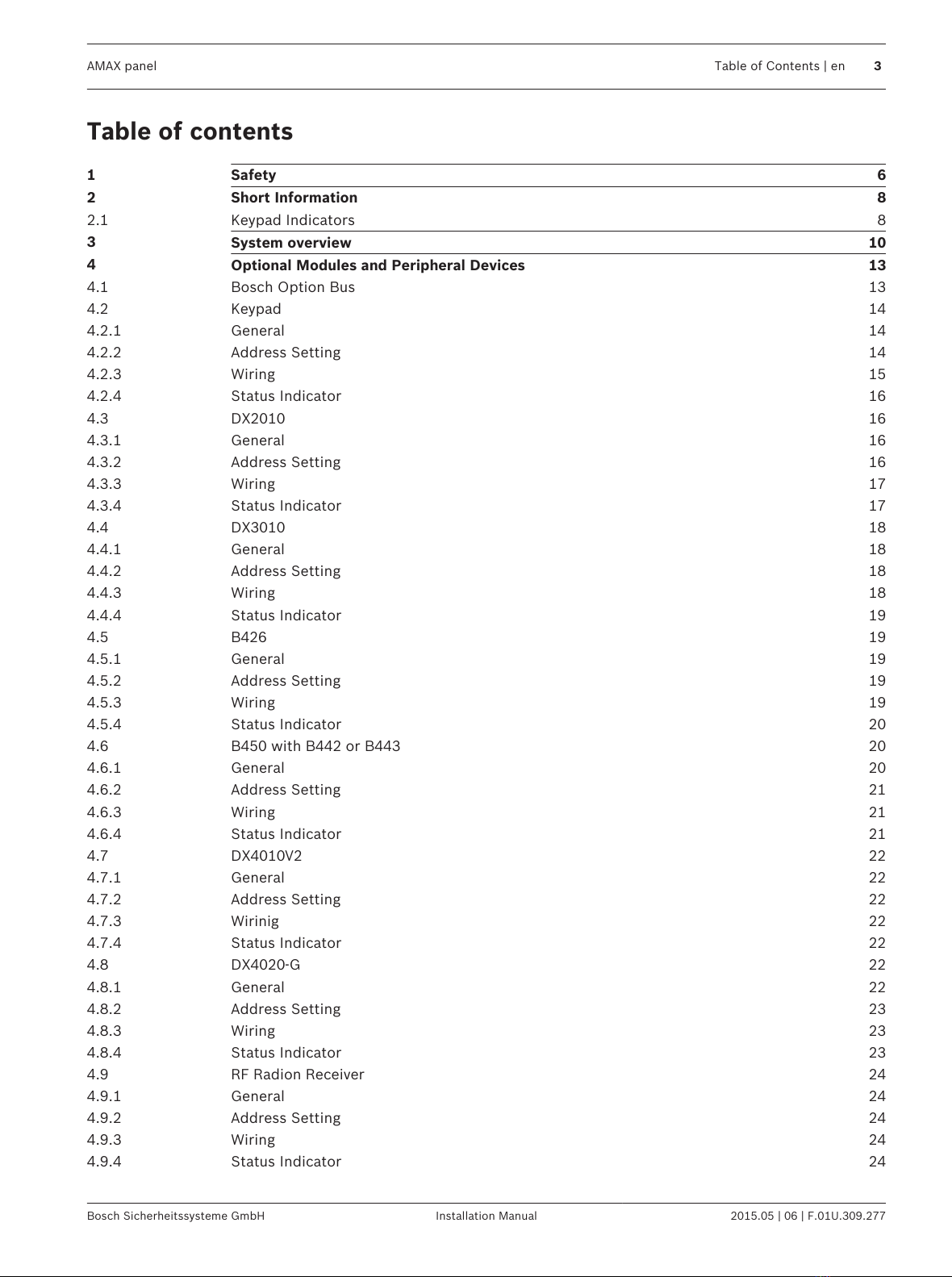

Table of contents
1Safety 6
2Short Information 8
2.1 Keypad Indicators 8
3System overview 10
4Optional Modules and Peripheral Devices 13
4.1 Bosch Option Bus 13
4.2 Keypad 14
4.2.1 General 14
4.2.2 Address Setting 14
4.2.3 Wiring 15
4.2.4 Status Indicator 16
4.3 DX2010 16
4.3.1 General 16
4.3.2 Address Setting 16
4.3.3 Wiring 17
4.3.4 Status Indicator 17
4.4 DX3010 18
4.4.1 General 18
4.4.2 Address Setting 18
4.4.3 Wiring 18
4.4.4 Status Indicator 19
4.5 B426 19
4.5.1 General 19
4.5.2 Address Setting 19
4.5.3 Wiring 19
4.5.4 Status Indicator 20
4.6 B450 with B442 or B443 20
4.6.1 General 20
4.6.2 Address Setting 21
4.6.3 Wiring 21
4.6.4 Status Indicator 21
4.7 DX4010V2 22
4.7.1 General 22
4.7.2 Address Setting 22
4.7.3 Wirinig 22
4.7.4 Status Indicator 22
4.8 DX4020-G 22
4.8.1 General 22
4.8.2 Address Setting 23
4.8.3 Wiring 23
4.8.4 Status Indicator 23
4.9 RF Radion Receiver 24
4.9.1 General 24
4.9.2 Address Setting 24
4.9.3 Wiring 24
4.9.4 Status Indicator 24
AMAX panel Table of Contents | en 3
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

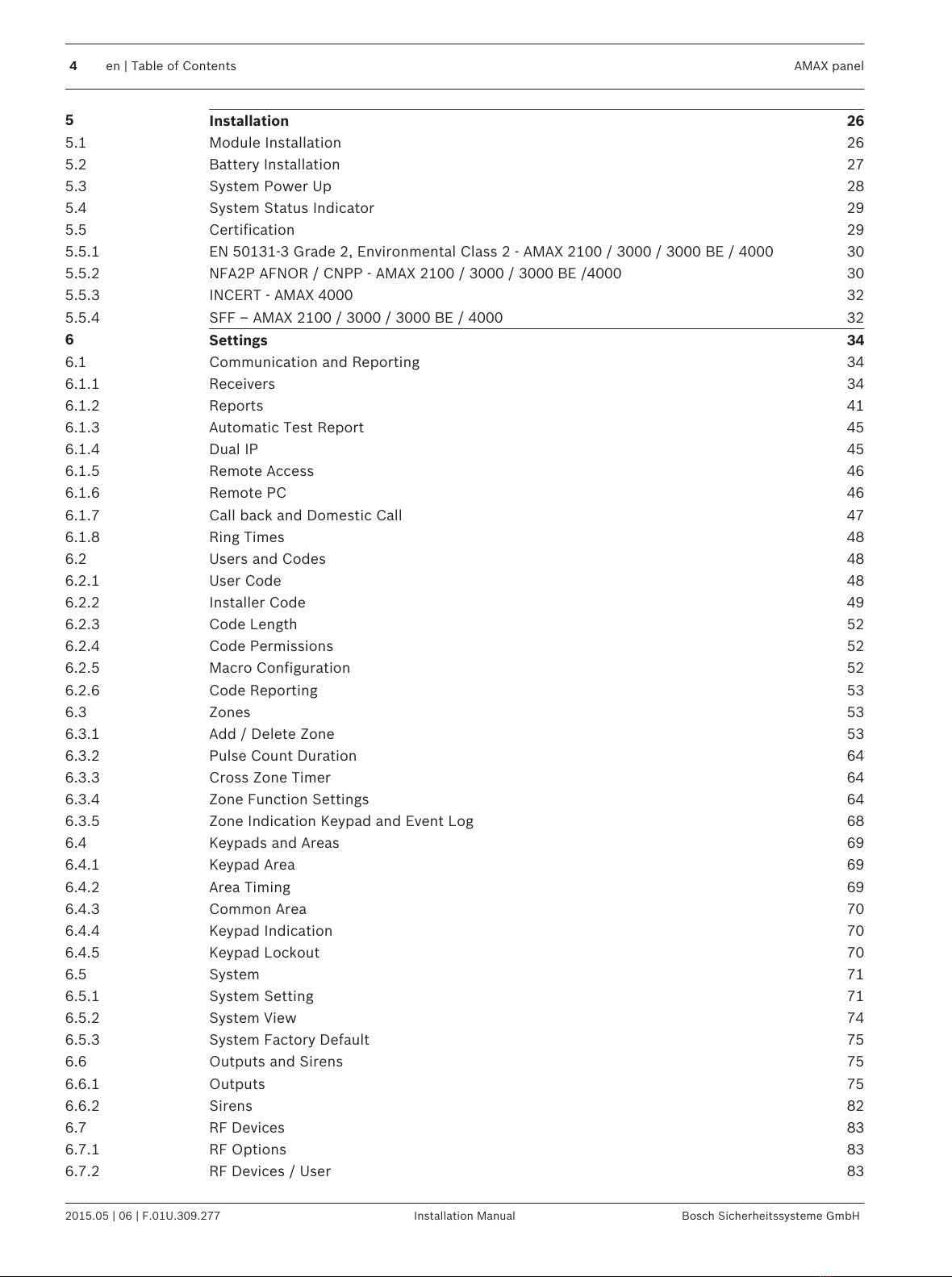

5Installation 26
5.1 Module Installation 26
5.2 Battery Installation 27
5.3 System Power Up 28
5.4 System Status Indicator 29
5.5 Certification 29
5.5.1 EN 50131-3 Grade 2, Environmental Class 2 - AMAX 2100 / 3000 / 3000 BE / 4000 30
5.5.2 NFA2P AFNOR / CNPP - AMAX 2100 / 3000 / 3000 BE /4000 30
5.5.3 INCERT - AMAX 4000 32
5.5.4 SFF – AMAX 2100 / 3000 / 3000 BE / 4000 32
6Settings 34
6.1 Communication and Reporting 34
6.1.1 Receivers 34
6.1.2 Reports 41
6.1.3 Automatic Test Report 45
6.1.4 Dual IP 45
6.1.5 Remote Access 46
6.1.6 Remote PC 46
6.1.7 Call back and Domestic Call 47
6.1.8 Ring Times 48
6.2 Users and Codes 48
6.2.1 User Code 48
6.2.2 Installer Code 49
6.2.3 Code Length 52
6.2.4 Code Permissions 52
6.2.5 Macro Configuration 52
6.2.6 Code Reporting 53
6.3 Zones 53
6.3.1 Add / Delete Zone 53
6.3.2 Pulse Count Duration 64
6.3.3 Cross Zone Timer 64
6.3.4 Zone Function Settings 64
6.3.5 Zone Indication Keypad and Event Log 68
6.4 Keypads and Areas 69
6.4.1 Keypad Area 69
6.4.2 Area Timing 69
6.4.3 Common Area 70
6.4.4 Keypad Indication 70
6.4.5 Keypad Lockout 70
6.5 System 71
6.5.1 System Setting 71
6.5.2 System View 74
6.5.3 System Factory Default 75
6.6 Outputs and Sirens 75
6.6.1 Outputs 75
6.6.2 Sirens 82
6.7 RF Devices 83
6.7.1 RF Options 83
6.7.2 RF Devices / User 83
4en | Table of Contents AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

6.8 Key Programming 84
7Configuration 86
7.1 Programming with the Keypad 86
7.1.1 Text Keypad Programming 86
7.1.2 LED/LCD Keypad Programming 97
7.2 PC Programming 98
7.2.1 Direct Connection 100
7.2.2 Modem Connection 103
7.2.3 IP Connection 106
8Address Programming 110
8.1 Communication and Report Programming 110
8.1.1 Receiver Programming 110
8.1.2 Reports Programming 113
8.1.3 Communication Operations Programming 115
8.2 User and Code Programming 117
8.2.1 User Code Programming 117
8.2.2 Installer Code Programming 121
8.2.3 Code Length Programming 121
8.2.4 Code Permission Programming 121
8.2.5 Macro Programming 122
8.3 Zone Programming 123
8.3.1 Add/Delete Zone Programming 123
8.3.2 Zone Function Programming 128
8.3.3 Pulse Count Duration Programming 131
8.3.4 Zone Cross Timer Programming 131
8.4 Keypad and Area Programming 132
8.4.1 Keypad Area Programming 132
8.4.2 Area Timing Programming 132
8.4.3 Common Area Programming 133
8.4.4 Keypad Indication Programming 133
8.4.5 Keypad Lockout Programming 134
8.5 System Programming 134
8.5.1 System Setting Programming 134
8.5.2 System Factory Default Programming 137
8.6 Output and Siren Programming 137
8.6.1 Output Programming 137
8.6.2 Siren Programming 139
8.7 RF Device Programming 139
9Troubleshooting 142
9.1 General Trouble 142
9.2 Trouble Fault Inquiry 144
10 Maintenance 157
10.1 Firmware Upgrade with the ICP-EZRU2 Upgrade Key 157
11 Technical Data 158
AMAX panel Table of Contents | en 5
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

Safety
Danger!
Electricity
Injuries due to electricity are possible if the system is not operated correctly or if the system
is opened or modified not accordingly to this manual.
– Disconnect all Telecommunication Network Connectors before switching off the power.
– To switch off the power, make sure to have a circuit breaker available.
– Make sure that the system is switched off during the installation and wiring process.
– Only open or modify the system accordingly to this manual.
– Make sure to connect the system to a socket-outlet with a protective grounding contact.
– Only qualified installers /service personnel are allowed to install this system.
Danger!
Battery
Injuries due to electric shock, fire or explosion are possible if the battery is handled or
connected incorrectly.
– Always handle the battery carefully and replace it carefully.
– Make sure that the grounding terminal is always connected and that N, L1 or xx are
connected correctly.
– Make sure to first disconnect the positive wire of the battery when removing it from the
system.
– Be careful when connecting the positive (red) wire and the "BATT +" port of the system.
Make sure not to short-circuit with the "BATT +" port of the AMAX panel or the housing to
prevent electric arc from occurring.
Danger!
Electrostatic-sensitive components
Injuries due to electric shock are possible if anti-static steps are not followed.
– Always contact the grounding terminal before installing the system to discharge the
possibly carried static electricity.
!
Caution!
Sensitive components
Damage of sensitive components is possible if the system is not handled carefully or if the
system is opened or modified not accordingly to this manual.
– Always handle the system carefully.
– Only open or modify the system accordingly to this manual.
!
Caution!
Battery
Damage or contamination of the system is possible if the battery is not handled correctly or if
the battery is not replaced on a regular basis.
– Only use a non-spillable battery.
– Place a label with the last replacement date on the battery.
1
6en | Safety AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

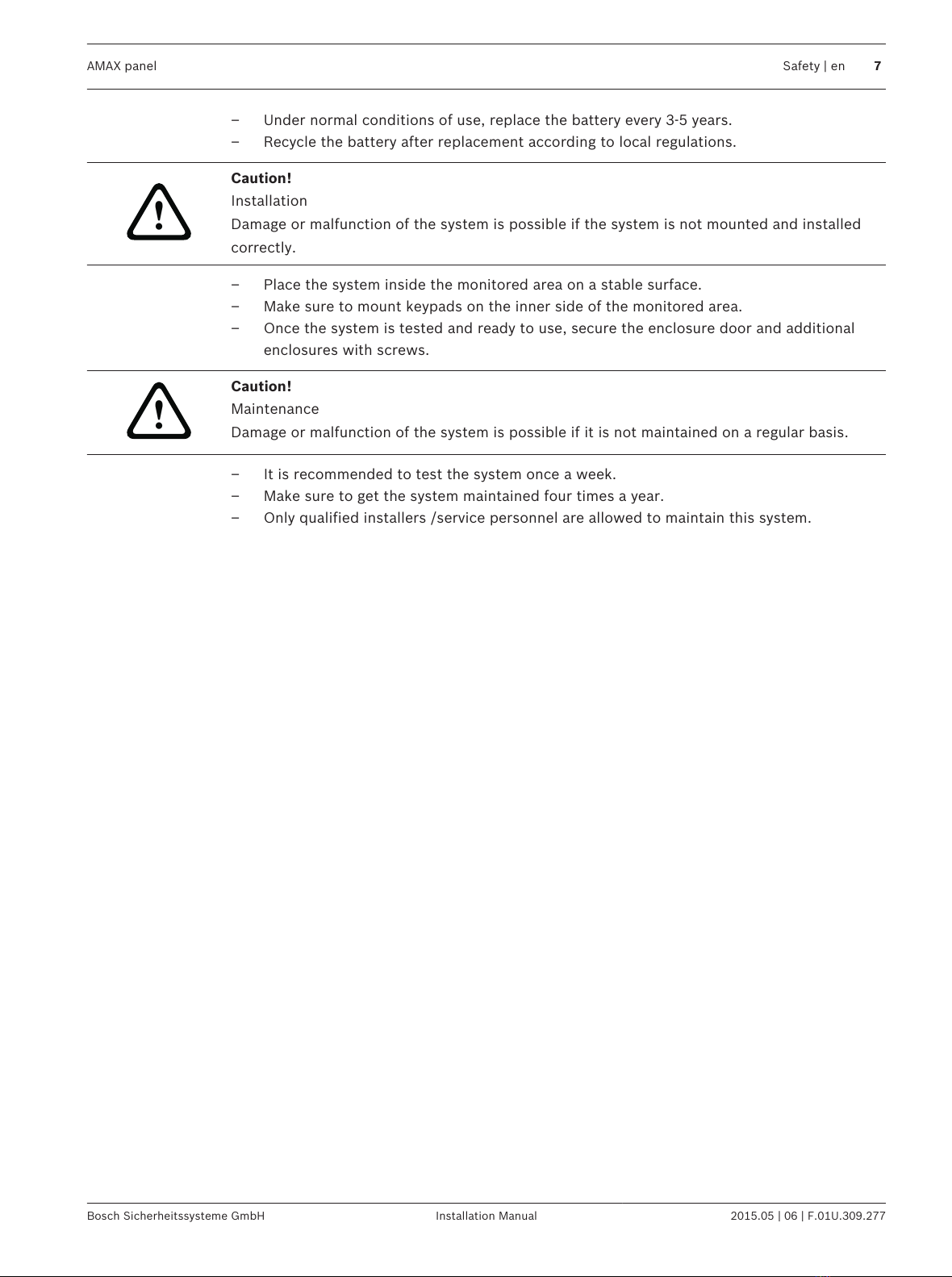

– Under normal conditions of use, replace the battery every 3-5 years.
– Recycle the battery after replacement according to local regulations.
!
Caution!
Installation
Damage or malfunction of the system is possible if the system is not mounted and installed
correctly.
– Place the system inside the monitored area on a stable surface.
– Make sure to mount keypads on the inner side of the monitored area.
– Once the system is tested and ready to use, secure the enclosure door and additional
enclosures with screws.
!
Caution!
Maintenance
Damage or malfunction of the system is possible if it is not maintained on a regular basis.
– It is recommended to test the system once a week.
– Make sure to get the system maintained four times a year.
– Only qualified installers /service personnel are allowed to maintain this system.
AMAX panel Safety | en 7
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

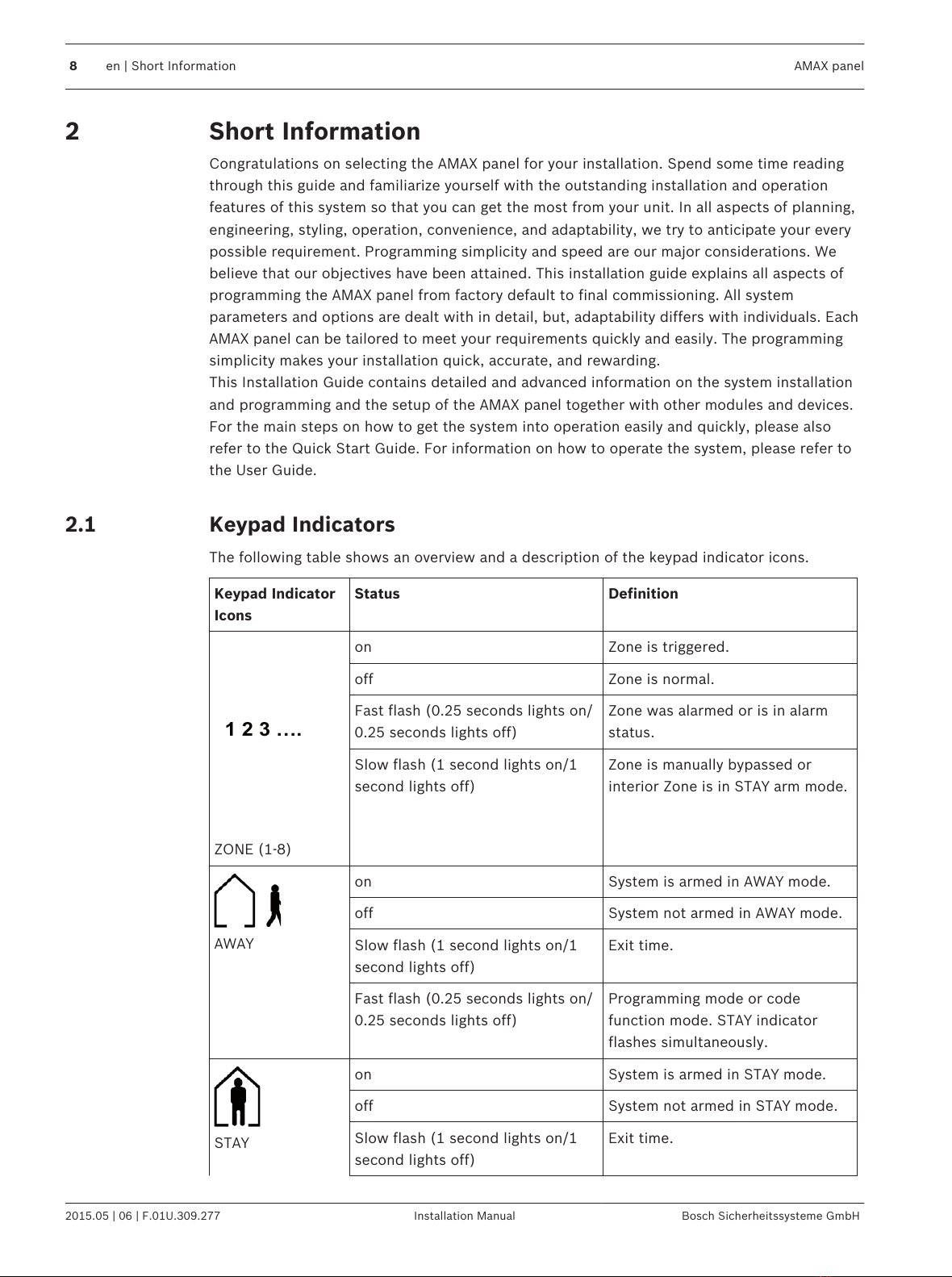

Short Information
Congratulations on selecting the AMAX panel for your installation. Spend some time reading
through this guide and familiarize yourself with the outstanding installation and operation
features of this system so that you can get the most from your unit. In all aspects of planning,
engineering, styling, operation, convenience, and adaptability, we try to anticipate your every
possible requirement. Programming simplicity and speed are our major considerations. We
believe that our objectives have been attained. This installation guide explains all aspects of
programming the AMAX panel from factory default to final commissioning. All system
parameters and options are dealt with in detail, but, adaptability differs with individuals. Each
AMAX panel can be tailored to meet your requirements quickly and easily. The programming
simplicity makes your installation quick, accurate, and rewarding.
This Installation Guide contains detailed and advanced information on the system installation
and programming and the setup of the AMAX panel together with other modules and devices.
For the main steps on how to get the system into operation easily and quickly, please also
refer to the Quick Start Guide. For information on how to operate the system, please refer to
the User Guide.
Keypad Indicators
The following table shows an overview and a description of the keypad indicator icons.
Keypad Indicator
Icons
Status Definition
1 2 3 ….
ZONE (1-8)
on Zone is triggered.
off Zone is normal.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Zone was alarmed or is in alarm
status.
Slow flash (1 second lights on/1
second lights off)
Zone is manually bypassed or
interior Zone is in STAY arm mode.
AWAY
on System is armed in AWAY mode.
off System not armed in AWAY mode.
Slow flash (1 second lights on/1
second lights off)
Exit time.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Programming mode or code
function mode. STAY indicator
flashes simultaneously.
STAY
on System is armed in STAY mode.
off System not armed in STAY mode.
Slow flash (1 second lights on/1
second lights off)
Exit time.
2
2.1
8en | Short Information AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

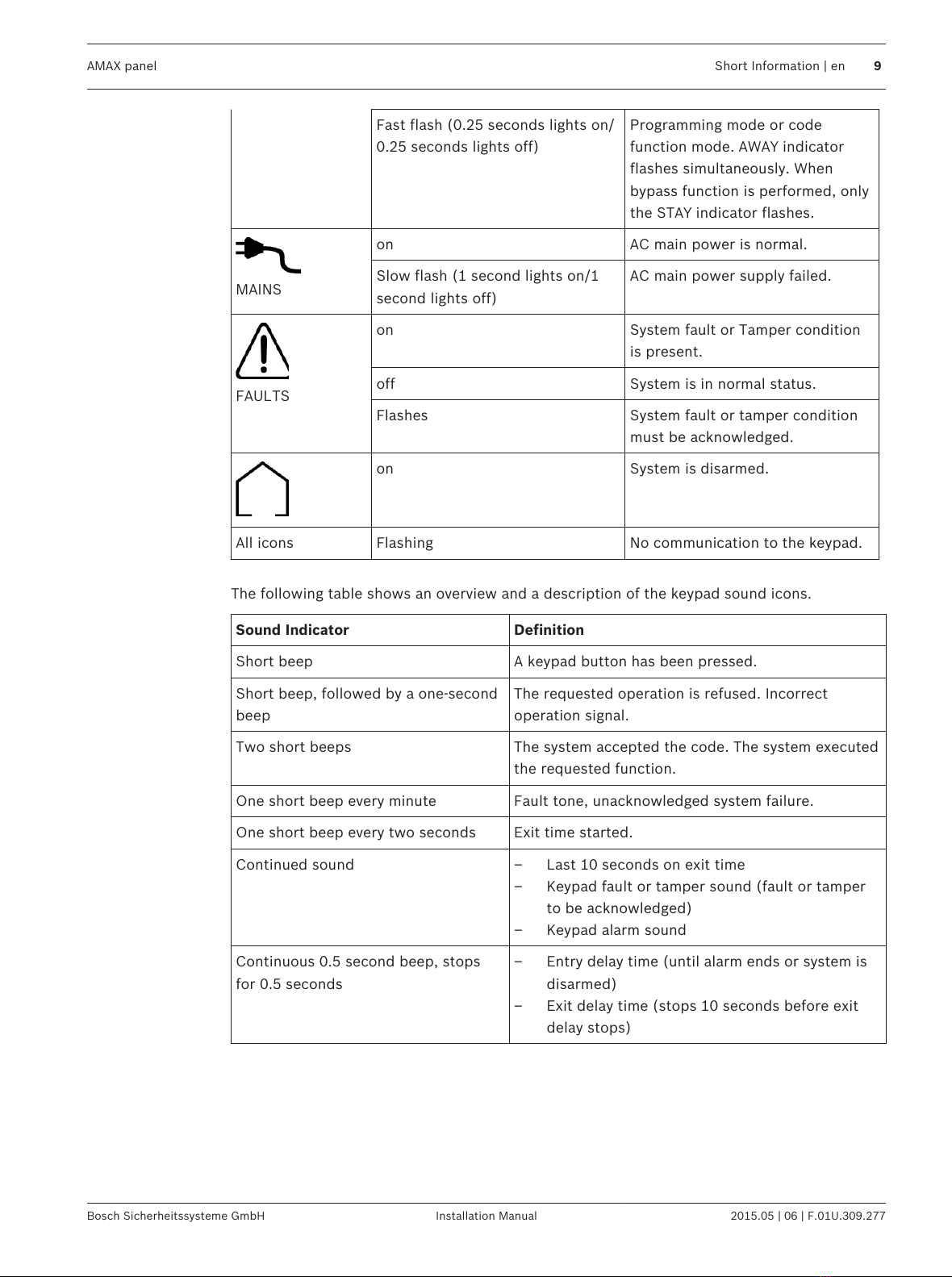

Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Programming mode or code
function mode. AWAY indicator
flashes simultaneously. When
bypass function is performed, only
the STAY indicator flashes.
MAINS
on AC main power is normal.
Slow flash (1 second lights on/1
second lights off)
AC main power supply failed.
FAULTS
on System fault or Tamper condition
is present.
off System is in normal status.
Flashes System fault or tamper condition
must be acknowledged.
on System is disarmed.
All icons Flashing No communication to the keypad.
The following table shows an overview and a description of the keypad sound icons.
Sound Indicator Definition
Short beep A keypad button has been pressed.
Short beep, followed by a one-second
beep
The requested operation is refused. Incorrect
operation signal.
Two short beeps The system accepted the code. The system executed
the requested function.
One short beep every minute Fault tone, unacknowledged system failure.
One short beep every two seconds Exit time started.
Continued sound – Last 10 seconds on exit time
– Keypad fault or tamper sound (fault or tamper
to be acknowledged)
– Keypad alarm sound
Continuous 0.5 second beep, stops
for 0.5 seconds
– Entry delay time (until alarm ends or system is
disarmed)
– Exit delay time (stops 10 seconds before exit
delay stops)
AMAX panel Short Information | en 9
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

System overview
DX2010
Option Bus
B426
A-Link Plus CMS
Ethernet
Video
DX4020G
PSTN GSM/
GPRS
AMAX 3000
AMAX 2100 / 3000
Radion
DX3010
Text KeypadLCD / LED Keypad
DX4010V2
B450
(B442/B443)
GPRS
Figure 3.1: AMAX 2100 / 3000 Overview
DX2010
Option Bus
B426
A-Link Plus CMS
Video
PSTN
Radion
DX3010
Text KeypadLCD / LED Keypad
DX4020G
GSM/
GPRS
DX4010V2
B450
(B442/B443)
GPRS
Ethernet
Figure 3.2: AMAX 3000 BE / 4000 Overview
3
10 en | System overview AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

Wiring diagrams
/ B450
≤ 500mA
Figure 3.3: Wiring diagram AMAX 2100 / 3000
AMAX panel System overview | en 11
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

Program Key Port
GND
-
+
A C
A C
Transformer
Battery
Tamper
L2 COM COM COM
L1a L3 L4 L5 L6 L7 L8
L9
COM
COM
COM
COM
L10
L11
L12
L13
L14
L15
L16
P0+4
R
B
G
Y
AUX1
-
AUX2
-
AUX1
+12V
Y
G
B
R
RINGRHTHTIP
L1b
P0+3
P0+
P0-2
P0-1
Zones
Bosch Option
Bus2 < 900mA
+12V
+0 V
1
2
3
3
1 Tamper Switch
2 Zone Switch
3 EOL 2,2 k
4 NO + NC
3
2
3
2
Fuse 1 A
PO+4: < 750mA
PO+3: < 750mA
PO -2: < 500mA
PO -1: < 500mA
230V ~50Hz
230mA
Wachdog
output
<100mA
12V < 18Ah
18VAC@50VA
Zones
AUX 1: < 900mA
AUX 2: < 900mA
AUX Power
Fire
Intrusion
3
3
2
Slow flash: Normal state
On: Trouble state
Off: Trouble state
_
_
_
_
_
_
_
_
+12V
+12V
+12V
COM
_
12V 7Ah
AUX2
+12V
_
COM
supervised
PO-5
Z1
2
23
3
Keypads:
IUI-AMAX4-TEXT
IUI-SOL-TEXT
IUI-AMAX3-LED16
IUI-AMAX3-LED8
Keypads:
IUI-AMAX-LED8
IUI-AMAX-LCD8
I/O Moduls:
DX2010 Adr. 103 - 108
DX3010 Adr. 150 - 151
DX4010 Adr. 253
Communicators:
DX4020G Adr. 134
B426 / B450 Adr. 134(6) / 250(9)
RF Receiver:
RF3227E 1=
RFRC-OPT 1= (1)
1 =
2=
3 =
4 =
1=
2=
Bosch Option
Bus1 < 900mA
COM
R
BGY
R
B
G
Y
R
B
G
Y
♥
IUI-AMAX3 +4 Keypad
3
1
2
1
Factory
Default
5-16 Inst. Guide
I
2000mA
100 Ω - 2,2 k
_
<
∑
3
Figure 3.4: Wiring diagram AMAX 3000 BE / 4000
12 en | System overview AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

Optional Modules and Peripheral Devices
Bosch Option Bus
The AMAX panel provides BOSCH option bus 1 and option bus 2 (only for AMAX 3000 BE and
AMAX 4000) to connect modules and devices. Each module can be connected to each bus.
A maximum of 14 modules (8 keypads) can be connected to each bus.
The total length of the cable for the connection of all keypads and expansion modules wired to
one option bus must not exceed 700m. Particular modules require limitation in cable distance,
e.g. the last keypad must be placed within 200m.
The AMAX panel tests the communication with the modules and transmits the communication
failure report in case of failure of communication.
Cable Details:
– R: AUX 12V +
– B: 12V –
– G: Data
– Y: Data
Notice!
AMAX 2100 / 3000 provides 12 VDC power supply with a maximum of 500mA for option bus
1. AMAX 3000 BE / 4000 provides a maximum of 900mA for each option bus 1 and 2. When
the total current of the bus exceeds the limit, an external power supply is required.
Notice!
When a data bus address is changed, the module needs to be re-powered to enable the new
address.
The following overview displays the maximum number of modules that can be connected.
Module AMAX 2100 AMAX 3000 /
3000 BE
AMAX 4000
Keypads 4 8 16
DX2010 - 3 6
DX3010 1 2
DX4010 1
GPRS module:
B450 with B442 or B443, DX4020-
G
Up to 2 different GPRS modules, each GPRS module can
only be connected once. Exception: 2 B450 modules can
be connected.
IP module:
B426
2 (1 if one of the GPRS modules above is connected, 0 if
two of the GPRS modules above are connected)
RF receiver - 1
Table 4.1: Maximum number of modules
4
4.1
AMAX panel Optional Modules and Peripheral Devices | en 13
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

Keypad
General
AMAX panel supports five types of keypad as follows:
– IUI-AMAX4-TEXT (LCD Text Keypad)
– IUI-SOL-TEXT (LCD Text Keypad)
– IUI-AMAX3-LED16 (16 Zone LED Keypad)
– IUI-AMAX3-LED8 (8 Zone LED Keypad)
– IUI-AMAX-LED8 (8 Zone LED Keypad)
– IUI-AMAX-LCD8 (8 Zone LCD Keypad)
Dedicated zones for keypads
Keypads can not be assigned to any zones. Certain zones are dedicated to keypads.
The following table shows which zones are dedicated for keypad 1 – 16.
Panel Keypad
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
AMAX 2100 5 6 7 8 - - - - - - - - - - - -
AMAX 3000 /
3000 BE / 4000
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Address Setting
Address setting for IUI-AMAX4-TEXT, IUI-AMAX3-LED16 and IUI-AMAX3-LED8 Keypads
For IUI-AMAX4-TEXT, IUI-AMAX3-LED16 and IUI-AMAX3-LED8 keypads, the address of the
keypad is programmed with 6-position DIP switch. The address of each keypad is unique.
DIP Switch S1 S2 S3 S4 S5 S6
Keypad Address 1 2 3 4 5 6
1 On Off Off Off Off Off
2 Off On Off Off Off Off
3 On On Off Off Off Off
4 Off Off On Off Off Off
5** On Off On Off Off Off
6** Off On On Off Off Off
7** On On On Off Off Off
8** Off Off Off On Off Off
9* On Off Off On Off Off
10* Off On Off On Off Off
11* On On Off On Off Off
12* Off Off On On Off Off
13* On Off On On Off Off
4.2
4.2.1
4.2.2
14 en | Optional Modules and Peripheral Devices AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

14* Off On On On Off Off
15* On On On On Off Off
16* Off Off Off Off On Off
Table 4.2: Keypad Address Settings
* AMAX 4000
** AMAX 3000 / 3000 BE / 4000
O
1 2 3 4 5 6
D I PNOn Off
Figure 4.1: 6-Position DIP Switch
DIP switches 5 and 6 are not used.
Address setting for IUI-AMAX-LED8 and IUI-AMAX-LCD8 Keypads
IUI-AMAX-LED8 and IUI-AMAX-LCD8 keypads can be set only to address 1 or address 2 through
the address jumper.
Address 1 Jumper not short-circuited
Address 2 Jumper short-circuited (both metal pins are covered)
Table 4.3: Keypad Jumper Settings
Wiring
The following graphic shows how to wire a keypad to the option bus of the AMAX panel. The
last keypad must be placed within a cable distance of 200m.
AMAX 3000 BE / 4000
Y
R
Y
G
B
AMAX 2100 / 3000 Keypad
RB
GRBGY
Figure 4.2: Connecting a keypad to the AMAX Panel
4.2.3
AMAX panel Optional Modules and Peripheral Devices | en 15
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

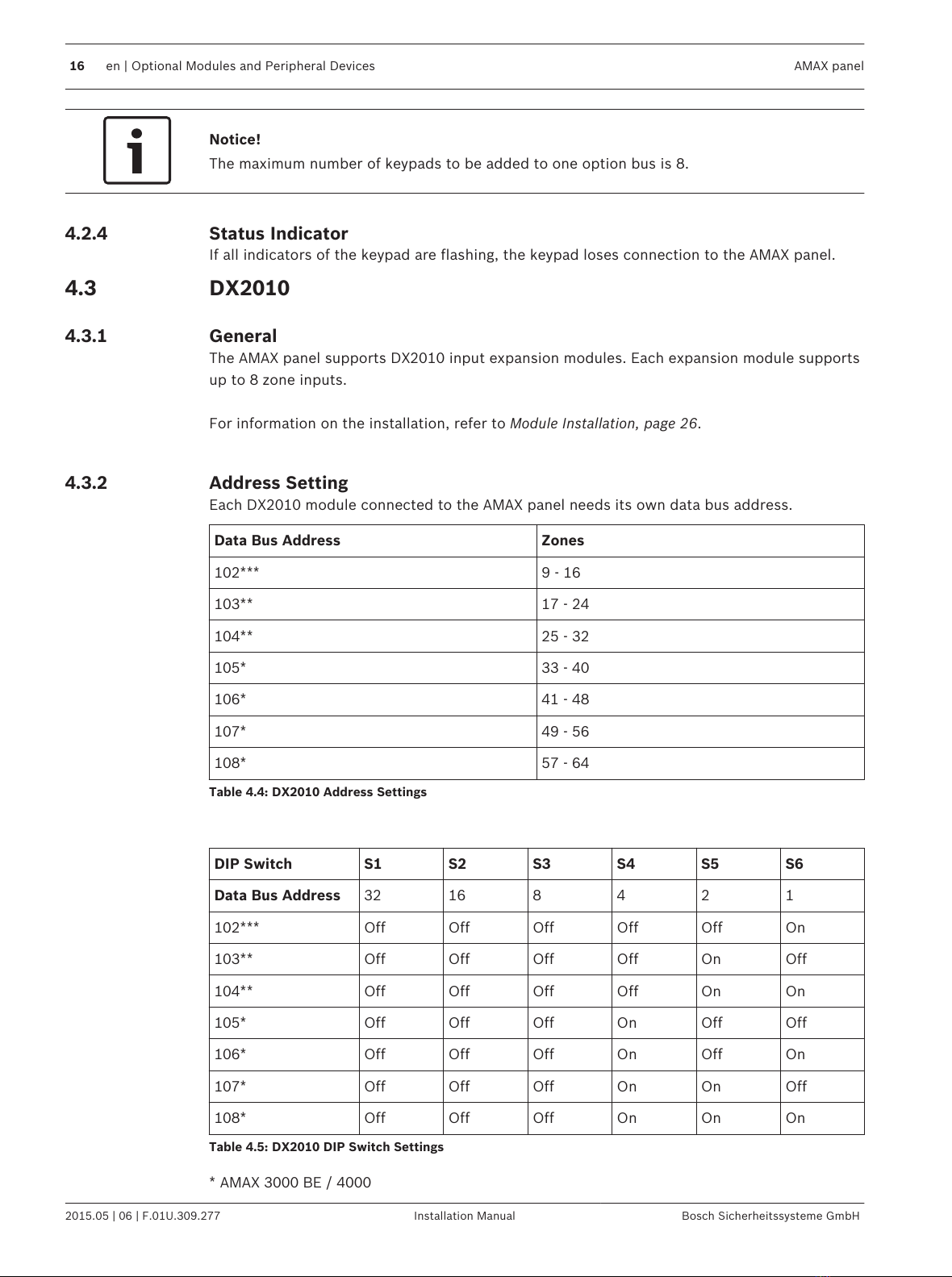

Notice!
The maximum number of keypads to be added to one option bus is 8.
Status Indicator
If all indicators of the keypad are flashing, the keypad loses connection to the AMAX panel.
DX2010
General
The AMAX panel supports DX2010 input expansion modules. Each expansion module supports
up to 8 zone inputs.
For information on the installation, refer to Module Installation, page 26.
Address Setting
Each DX2010 module connected to the AMAX panel needs its own data bus address.
Data Bus Address Zones
102*** 9 - 16
103** 17 - 24
104** 25 - 32
105* 33 - 40
106* 41 - 48
107* 49 - 56
108* 57 - 64
Table 4.4: DX2010 Address Settings
DIP Switch S1 S2 S3 S4 S5 S6
Data Bus Address 32 16 8 4 2 1
102*** Off Off Off Off Off On
103** Off Off Off Off On Off
104** Off Off Off Off On On
105* Off Off Off On Off Off
106* Off Off Off On Off On
107* Off Off Off On On Off
108* Off Off Off On On On
Table 4.5: DX2010 DIP Switch Settings
* AMAX 3000 BE / 4000
4.2.4
4.3
4.3.1
4.3.2
16 en | Optional Modules and Peripheral Devices AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

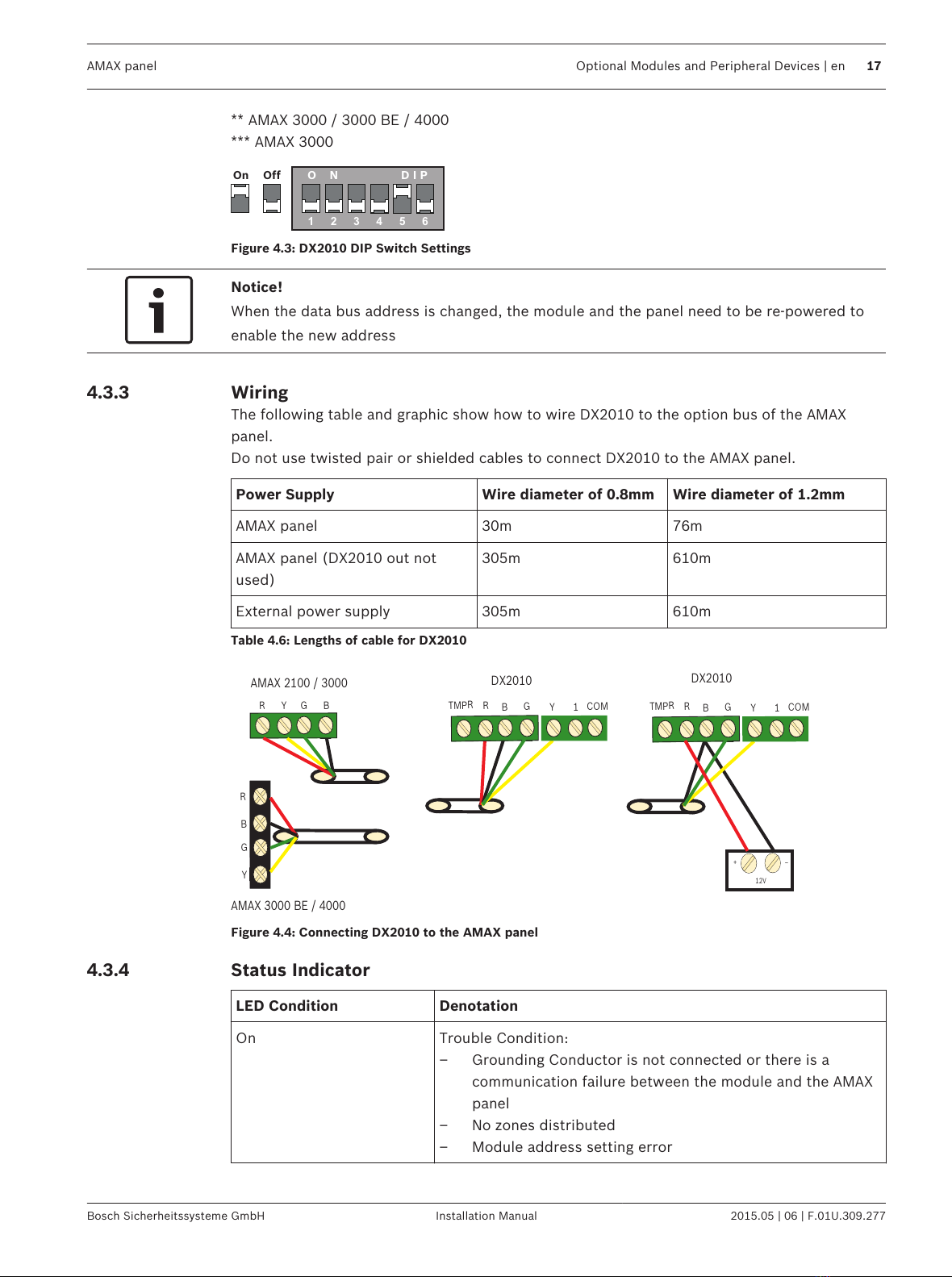

** AMAX 3000 / 3000 BE / 4000
*** AMAX 3000
O
1 2 3 4 5 6
D I PNOn Off
Figure 4.3: DX2010 DIP Switch Settings
Notice!
When the data bus address is changed, the module and the panel need to be re-powered to
enable the new address
Wiring
The following table and graphic show how to wire DX2010 to the option bus of the AMAX
panel.
Do not use twisted pair or shielded cables to connect DX2010 to the AMAX panel.
Power Supply Wire diameter of 0.8mm Wire diameter of 1.2mm
AMAX panel 30m 76m
AMAX panel (DX2010 out not
used)
305m 610m
External power supply 305m 610m
Table 4.6: Lengths of cable for DX2010
+
12V
AMAX 3000 BE / 4000
Y
R
Y
G
B
RB
G
_
RBGY1COM
TMPR RBGY1COM
TMPR
AMAX 2100 / 3000 DX2010
DX2010
Figure 4.4: Connecting DX2010 to the AMAX panel
Status Indicator
LED Condition Denotation
On Trouble Condition:
– Grounding Conductor is not connected or there is a
communication failure between the module and the AMAX
panel
– No zones distributed
– Module address setting error
4.3.3
4.3.4
AMAX panel Optional Modules and Peripheral Devices | en 17
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

Stable flash Normal Operation
Off Power failure
DX3010
General
The AMAX panel supports DX3010 output expansion modules. Each module supports 8 fully
programmable relay outputs.
For information on the installation, refer to Module Installation, page 26.
Address Setting
Each DX3010 module connected to the AMAX panel needs its own data bus address.
Data Bus Address Outputs
150 5-12
151* 13-20
Table 4.7: DX3010 Address Settings
DIP Switch S1 S2 S3 S4 S5 S6
Data Bus Address 1 2 4 8 16 Mode
150 On On On On On Off
151* Off On On On On Off
Table 4.8: DX3010 DIP Switch Settings
* AMAX 3000 / 3000 BE / 4000
O
1 2 3 4 5 6
D I PNOn Off
Figure 4.5: DX3010 DIP Switch Settings
Wiring
The following table and graphic show how to wire DX3010 to the option bus of the AMAX
panel.
Power Supply Wire diameter of 0.8mm Wire diameter of 1.2mm
AMAX panel 12.2m 24.4m
External power supply 305m 610m
Table 4.9: Lengths of cable for DX3010
4.4
4.4.1
4.4.2
4.4.3
18 en | Optional Modules and Peripheral Devices AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com

+
12V
AMAX 3000 BE / 4000
Y
R
Y
G
B
AMAX 2100 / 3000 DX3010
RB
G
DX3010
RBGYRBGY
_
Figure 4.6: Connecting DX3010 to the AMAX Panel
Status Indicator
None.
B426
General
AMAX panel supports up to two communication modules:
– ITS-DX4020-G and B426 or
– B426 and B426
The B426 Ethernet communication module supports monitored two-way IP communication via
Ethernet to perform alarm transmission, remote programming, and control of the AMAX panel.
Installation
1. Disconnect all power supplies of the AMAX panel before installing B426.
2. Use the standard three-hole installation mode to install B426 in the enclosure of the
AMAX panel or another enclosure. For more information refer to Module Installation, page
26 and to B426 Ethernet Communication Module.
3. Use network or direct connection to access the built-in web server when reconfiguring
the module or when connecting the module to the AMAX panel with RPS.
Address Setting
Set the rotary switch to 6 which corresponds to option bus address 134 for the first B426.
Set the rotary switch to 9 which corresponds to option bus address 250 for the second B426.
Wiring
The following graphic shows how to wire B426 to the option bus 1 or 2 of the AMAX panel.
Make sure, that the cable doesn’t exceed 150 meters.
4.4.4
4.5
4.5.1
4.5.2
4.5.3
AMAX panel Optional Modules and Peripheral Devices | en 19
Bosch Sicherheitssysteme GmbH Installation Manual 2015.05 | 06 | F.01U.309.277
All manuals and user guides at all-guides.com

AMAX 3000 BE / 4000
Y
R
Y
G
B
AMAX 2100 / 3000 B426
RB
GRB
G
Y
Figure 4.7: Connecting B426 to the AMAX panel
Status Indicator
B426 provides several LED indicators. The following table describes the system status
indicator (blue).
LED Condition Denotation
On Trouble Condition
Stable flash Normal Operation
3 quick flashes Communication error
Off Power failure or other failure conditions
Table 4.10: B426 System Status Indicator
B450 with B442 or B443
General
Use B450 in combination with a plug-in communicator for primary or backup alarm
communication, remote panel programming and other remote applications. The B450 supports
Conettix IP protocol with full authentication, 256 bit AES encryption and resistance to Denial
of Service attacks. B450 also supports compatible Bosch panels using SIA DC-09, CSV-IP. It is
a reliable way to add cellular network communications to existing or new commercial security
and fire installations.
For the AMAX panel, B450 can be used in combination with either B442 or B443 with the
following communication possibilities:
– B442: GSM (GPRS)
– B443: GSM (GPRS, EDGE), UMTS
The communication of B443 is faster than B442.
Installation
1. Disconnect all power supplies of the AMAX panel before installing B450.
4.5.4
4.6
4.6.1
20 en | Optional Modules and Peripheral Devices AMAX panel
2015.05 | 06 | F.01U.309.277 Installation Manual Bosch Sicherheitssysteme GmbH
All manuals and user guides at all-guides.com
