Bosch ICP-AMAX4-P1 User manual

AMAX panel 4000 / AMAX panel 4000 EN
ICP-AMAX4-P1 / ICP-AMAX4-P2-EN / ICP-AMAX-P3-EN
en Installation Guide

Table of contents
1Graphics 6
2Safety 8
3Short Information 9
4System overview 10
5Optional Modules and Peripheral Devices 11
5.1 Bosch Option Bus 11
5.2 Keypad 12
5.2.1 General 12
5.2.2 Address Setting 12
5.2.3 Wiring 13
5.2.4 Status Indicator 13
5.3 DX2010 13
5.3.1 General 13
5.3.2 Address Setting 14
5.3.3 Wiring 14
5.3.4 Status Indicator 15
5.4 DX3010 15
5.4.1 General 15
5.4.2 Address Setting 15
5.4.3 Wiring 16
5.4.4 Status Indicator 16
5.5 B426 17
5.5.1 General 17
5.5.2 Address Setting 17
5.5.3 Wiring 17
5.5.4 Status Indicator 17
5.6 DX4020-G 18
5.6.1 General 18
5.6.2 Address Setting 18
5.6.3 Wiring 18
5.6.4 Status Indicator 19
5.7 RF 3227E RF 19
5.7.1 General 19
5.7.2 Address Setting 19
5.7.3 Wiring 20
5.7.4 Status Indicator 21
5.8 RF Radion Receiver 21
5.8.1 General 21
5.8.2 Address Setting 21
5.8.3 Wiring 21
5.8.4 Status Indicator 21
6Installation 23
6.1 Module Installation 23
6.2 Battery Installation 24
6.3 System Power Up 25
6.4 System Status Indicator 25
6.5 Prerequisites for Certification conform Installation 26
AMAX panel 4000 / AMAX panel 4000
EN Table of Contents | en 3
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

6.5.1 EN 50131-3 Grade 2, Environmental Class 2 - AMAX 2100 / 3000 / 4000 26
6.5.2 NFA2P AFNOR / CNPP - AMAX 4000 28
6.5.3 INCERT - AMAX 4000 28
6.5.4 SFF – AMAX 2100 / 3000 / 4000 29
7Settings 30
7.1 Communication and Reporting 30
7.1.1 Receivers 30
7.1.2 Reports 36
7.1.3 Automatic Test Report 40
7.1.4 Dual IP 40
7.1.5 Remote Access 40
7.1.6 Remote PC 41
7.1.7 Call back and Domestic Call 41
7.1.8 Ring Times 42
7.2 Codes 42
7.2.1 User Code and Code Commands 42
7.2.2 Installer Code 46
7.2.3 Code Length 46
7.2.4 Code Reporting 46
7.2.5 Code Permissions 47
7.3 Zones 47
7.3.1 Add / Delete Zone 47
7.3.2 Pulse Count Duration 55
7.3.3 Cross Zone Timer 55
7.3.4 Zone Function Settings 55
7.3.5 Zone Indication Keypad and Event Log 59
7.4 Keypads and Areas 60
7.4.1 Keypad Area 60
7.4.2 Area Timing 61
7.4.3 Common Area 61
7.4.4 Keypad Tone / Lockout 61
7.5 System 61
7.5.1 System Setting 61
7.5.2 System View 63
7.6 Outputs and Sirens 66
7.6.1 Outputs 66
7.6.2 Sirens 72
7.7 RF Devices 72
7.7.1 RF Options 72
7.7.2 RF Devices / User 73
7.8 Address and Key Programming 74
7.8.1 Address Programming 74
7.8.2 Programming with the ICP-EZPK Programming Key 74
8Configuration 76
8.1 Programming with the Keypad 76
8.1.1 Text Keypad Menu Programming 76
8.1.2 LED/LCD Keypad Programming 84
8.2 PC Programming 85
8.2.1 Direct Connection 86
4en | Table of Contents AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

8.2.2 Modem Connection 88
8.2.3 IP Connection 91
9Address Programming 95
9.1 Communication and Reports Setting 95
9.2 Zone Programming 101
9.3 Output Programming 114
9.4 Access Codes 119
9.5 System Programming 121
10 Troubleshooting 138
10.1 General Trouble 138
10.2 Trouble Fault Inquiry 140
11 Maintenance 150
11.1 Firmware Upgrade with the ICP-EZRU2 Upgrade Key 150
12 Technical Data 151
AMAX panel 4000 / AMAX panel 4000
EN Table of Contents | en 5
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

Graphics
Program Key Port
GND
-
+
A C
AC
Transformer
Battery
Tamper
L2 COM COM COM
L1a L3 L4 L5 L6 L7 L8
L9
COM
COM
COM
COM
L10
L11
L12
L13
L14
L15
L16
P0+4
R
B
G
Y
AUX1
-
AUX2
-
AUX1
+12V
Y
G
B
R
RINGRHTHTIP
L1b
P0+3
P0+
P0-2
P0-1
Zones
Bosch Option
Bus 2 < 900mA
+12V
+0 V
1
2
3
3
1 Tamper Switch
2 Zone Switch
3 EOL 2,2 k
3
2
3
2
Fuse 1 A
PO+4: < 750mA
PO+3: < 750mA
PO -2: < 500mA
PO -1: < 500mA
230V ~50Hz
230mA
Wachdog
output
<100mA
12V < 18Ah
18VAC@50VA
Zones
AUX 1: < 900mA
AUX 2: < 900mA
AUX Power
Fire
Intrusion
Risk of shock if N,L1 or is connected incorrectly.
For operation safety, the ground terminals must
be connected.
3
3
2
Slow flash: Normal state
On: Trouble state
Off: Trouble state
_
_
_
_
_
_
_
_
+12V
+12V
+12V
COM
_
12V 7Ah
AUX2
+12V
_
COM
supervised
PO-5
Z1
2
23
3
Keypads:
IUI-AMAX4-TEXT
IUI-AMAX3-LED16
IUI-AMAX3-LED8
Keypads:
IUI-AMAX-LED8
IUI-AMAX-LCD8
I/O Moduls:
DX2010 Adr. 103 - 108
DX3010 Adr. 150 - 151
DX4010 Adr. 253
Communicators:
DX4020G Adr. 134
B426 Adr. 134(6) / 250(9)
RF Receiver:
RF3227E 1=
RFRC-OPT 1= (1)
1 =
2=
3 =
4 =
1=
2=
Bosch Option
Bus 1 < 900mA
COM
R
BGY
R
B
G
Y
R
B
G
Y
♥
IUI-AMAX3 +4 Keypad
3
1
2
1
Factory
Default
5-16 Inst. Guide
I
2000mA
100 Ω - 2,2 k
_
<
∑
3
Figure 1.1: AMAX 4000
1
6en | Graphics AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

Program Key Port
GND
-
+
AC
Transformer
Battery
Tamper
L8
12V
R
B
G
Y
1RINGTIP
P0+
P0-2
P0-1
1 Tamper Switch
2 Zone Switch
3 EOL 2,2 k
Fuse 500 mA
PO -2: < 500mA
PO -1: < 500mA
230V ~50Hz
85mA
18V-22V@20VA
Risk of shock if N,L1 or is connected incorrectly.
For operation safety, the ground terminals must
be connected.
Slow flash: Normal state
On: Trouble state
Off: Trouble state
_
_
12V 7Ah
supervised
Z1
Keypads:
IUI-AMAX4-TEXT
IUI-AMAX3-LED16
IUI-AMAX3-LED8
Keypads:
IUI-AMAX-LED8
IUI-AMAX-LCD8
I/O Moduls:
DX2010 Adr. 102 - 105
DX3010 Adr. 150 - 151
DX4010 Adr. 253
Communicators:
DX4020G Adr. 134
B426 Adr. 134(6) / 250(9)
RF Receiver:
RF3227E 1=
RFRC-OPT 1= (1)
1 =
2=
3 =
4 =
1=
2=
COM
R
BGY
R
B
G
Y
♥
IUI-AMAX3 +4 Keypad
3
1
2
Factory
Default
5-8 Inst. Guide
I
1100mA
100 Ω - 2,2 k
_
<
∑
3
TIP
COM
L7
L6
COM
L5
COM
L4
L3
L2
COM
L1
AC
Zones
+12V
COM
COM
1
2
3
3
3
2
3
2
1
_
Bosch Option
Bus 1 < 500mA
OPT/SDI
COM
B
A
PWR
1RING
_
Relay
PO-3: < 100mA
Figure 1.2: AMAX 2100/3000
AMAX panel 4000 / AMAX panel 4000
EN Graphics | en 7
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

Safety
This system / product must be installed by a qualified installer / service person.
During installation and wiring, the AMAX power source must be switched off to prevent
equipment damage.
– To switch off the power source, an easy accessible circuit breaker must be available
– The system / product must be connected to a socket-outlet with a protective earthing
contact
The User has to disconnect all Telecommunication Network Connectors before unplugging the
power adaptor.
After the AMAX panel wiring is completed, connect the AC power and backup batteries.
The mains indicator on the keypad will light up show that AC power is connected.
Notice!
- Use only non spillable battery
- Battery must be recycled
- When battery is not replaced correctly, risk of fire explosion or burning
- Replace the battery every 3-5 years under normal conditions of use
- Place a label with change date on the battery
Notice!
- The system / product must be installed and maintained by qualified installer / service
person.
- Bosch recommends testing the alarm system at least once a week.
Danger!
As static-sensitive components are included in PCBs, anti-static steps should be followed and
they should be carefully installed.
Before installing the alarm AMAX panel, the static electricity should be discharged by
connecting the grounding terminal of the AMAX panel.
2
8en | Safety AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

Short Information
Congratulations on selecting the AMAX panel for your installation. Spend some time reading
through this guide and familiarize yourself with the outstanding installation and operation
features of this system so that you can get the most from your unit. In all aspects of planning,
engineering, styling, operation, convenience, and adaptability, we try to anticipate your every
possible requirement. Programming simplicity and speed are our major considerations. We
believe that our objectives have been attained. This installation guide explains all aspects of
programming the AMAX panel from factory default to final commissioning. All system
parameters and options are dealt with in detail, but, adaptability differs with individuals. Each
AMAX panel can be tailored to meet your requirements quickly and easily. The programming
simplicity makes your installation quick, accurate, and rewarding.
3
AMAX panel 4000 / AMAX panel 4000
EN Short Information | en 9
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

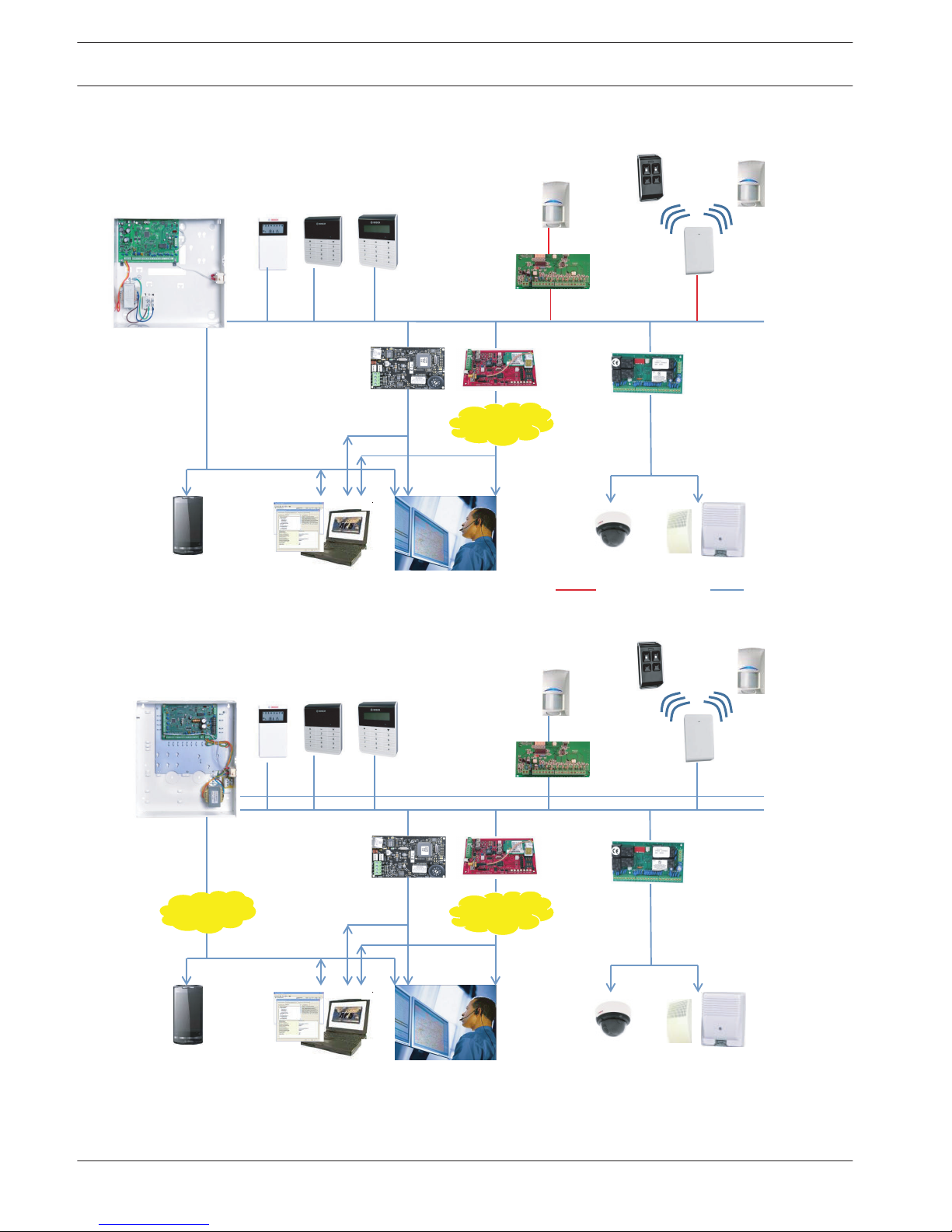

System overview
DX2010
Option Bus
B426
A Link Plus CMS
IP
Video
DX4020G
PSTN GSM/
GPRS
AMAX 3000 AMAX 2100/ 3000
Radion
DX3010
Text KeypadLCD / LED Keypad
AMAX 3000
AMAX 3000
Figure 4.1: AMAX 2100/3000 Overview
DX2010
Option Bus
B426
A Link Plus CMS
IP
Video
DX4020G
PSTN GSM/
GPRS
Radion
DX3010
Text KeypadLCD / LED Keypad
Figure 4.2: AMAX 4000 Overview
4
10 en | System overview AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

Optional Modules and Peripheral Devices
Bosch Option Bus
The AMAX panel provides the Bosch Option Bus to attach expansion modules. AMAX 2100 /
3000 each has one (Bosch Option Bus 1) and AMAX 4000 has two (Bosch Option Bus 1 and
2).
Maximum 14 modules (8 keypads) can be connected to each bus. The total length of the cable
for connection of all keypads and expansion modules wired to one Bosch Option Bus must not
exceed 700m. Particular modules require limitation in cable distance, f.e. the last keypad must
be placed within 200m.
The AMAX panel tests the communication with the modules and transmits the communication
failure report in case of failure of communication.
Cable Details:
– R: AUX 12V +
– B: 12V –
– G: Data
– Y: Data
Notice!
The AMAX panel 2100 / 3000 provides 12 VDC power supply with maximum 500mA for Bosch
option bus 1. The AMAX panel 4000 provides a maximum 900mA for each Bosch option bus 1
and 2. When the total current of the bus exceeds the limit, an external power supply is
required.
Notice!
When data bus address is changed, the module needs to be re-powered to make the new
address effective.
Bosch Option Bus Module –
AMAX Panel
2100 3000 4000
Keypads 4 8 16
DX3010 1 2
B426 or DX4020 2 / 1 if DX4020G is used
DX4020G 1
DX2010 3 6
DX4010 1
RF receiver 1
Table 5.1: AMAX panel number of Bosch Option Bus modules
5
5.1
AMAX panel 4000 / AMAX panel 4000
EN Optional Modules and Peripheral Devices | en 11
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

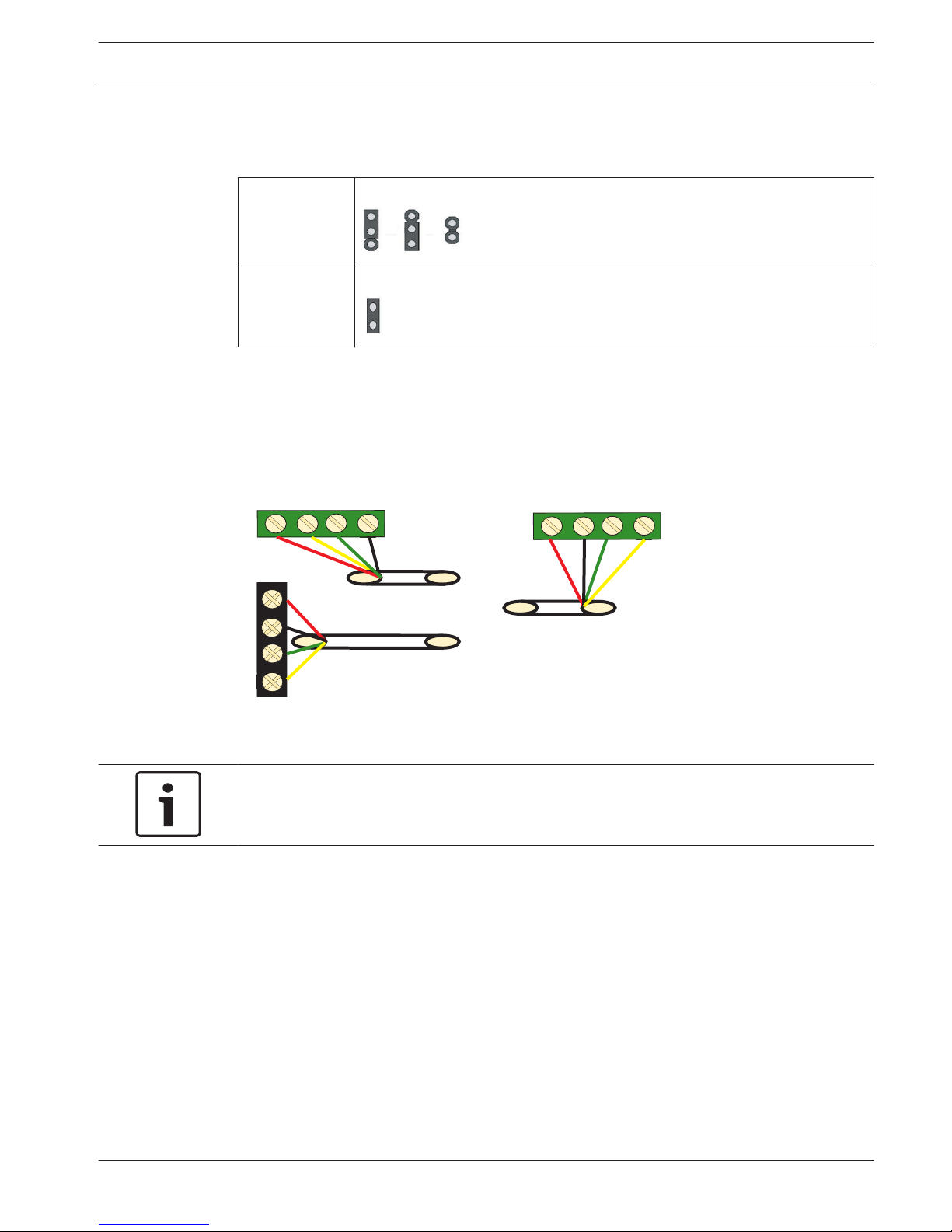

Keypad
General
AMAX panel supports five types of keypad as follows:
– IUI-AMAX4-TEXT (LCD Text Keypad)
– IUI-AMAX3-LED16 (16 Zone LED Keypad)
– IUI-AMAX3-LED8 (8 Zone LED Keypad)
– IUI-AMAX-LED8 (8 Zone LED Keypad)
– IUI-AMAX-LCD8 (8 Zone LCD Keypad)
Address Setting
For IUI-AMAX4-TEXT, IUI-AMAX3-LED16, IUI-AMAX3-LED8 keypads, the address of the keypad is
programmed with 6-position DIP switch. The address of each keypad is unique.
DIP Switch S1 S2 S3 S4 S5 S6
Keypad Address 1 2 3 4 5 6
1 On Off Off Off Off Off
2 Off On Off Off Off Off
3 On On Off Off Off Off
4 Off Off On Off Off Off
5** On Off On Off Off Off
6** Off On On Off Off Off
7** On On On Off Off Off
8** Off Off Off On Off Off
9* On Off Off On Off Off
10* Off On Off On Off Off
11* On On Off On Off Off
12* Off Off On On Off Off
13* On Off On On Off Off
14* Off On On On Off Off
15* On On On On Off Off
16* Off Off Off Off On Off
Table 5.2: Keypad Address Settings
* AMAX4000
** AMAX3000/4000
On Off
Figure 5.1: 6-Position DIP Switch
5.2
5.2.1
5.2.2
12 en | Optional Modules and Peripheral Devices AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

DIP switches 5 and 6 are not used.
IUI-AMAX-LED8 and IUI-AMAX-LCD8 keypads can be set only to address 1 or address 2 through
the address jumper.
Address 1 Jumper not short-circuited
Address 2 Jumper short-circuited (both metal pins are covered)
Table 5.3: Keypad Jumper Settings
Wiring
Connect the keypad to Bosch Option Bus of AMAX panel according to the following figure. The
last keypad must be placed within a cable distance of 200m.
AMAX 4000
Y
R
Y
G
B
AMAX 2100 / 3000 Keypad
RB
GRBGY
Figure 5.2: Connecting keypad to the AMAX Panel
Notice!
One single Bosch Option Bus is limited up to 8 keypads.
Status Indicator
If all indicators are blinking, then the keypad loses data connection to the AMAX panel.
DX2010
General
The AMAX panel supports DX2010 input expansion modules. Each expansion module supports
up to 8 zone inputs.
See also
–Module Installation, page 23
5.2.3
5.2.4
5.3
5.3.1
AMAX panel 4000 / AMAX panel 4000
EN Optional Modules and Peripheral Devices | en 13
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

Address Setting
Each DX2010 module connected to the AMAX panel must have its own data bus address.
Data Bus Address Zones
102*** 9 - 16
103** 17 - 24
104** 25 - 32
105* 33 - 40
106* 41 - 48
107* 49 - 56
108* 57 - 64
Table 5.4: DX2010 Address Settings
DIP Switch S1 S2 S3 S4 S5 S6
Data Bus Address 32 16 8 4 2 1
102*** Off Off Off Off Off On
103** Off Off Off Off On Off
104** Off Off Off Off On On
105* Off Off Off On Off Off
106* Off Off Off On Off On
107* Off Off Off On On Off
108* Off Off Off On On On
Table 5.5: DX2010 DIP Switch Settings
* AMAX 4000
** AMAX 3000 / 4000
*** AMAX 3000
Example : Data Bus Location 103 - DIP Settings
Figure 5.3: DX2010 DIP Switch Settings
Notice!
When data bus address is changed, the module needs to be re-powered to make the new
address effective.
Wiring
Do not use twisted pair or shielded cables to connect DX2010 and the AMAX panel.
5.3.2
5.3.3
14 en | Optional Modules and Peripheral Devices AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

Power Supply Wire diameter of 0.8mm Wire diameter of 1.2mm
AMAX Panel 30m 76m
AMAX Panel (DX2010 Out not
used)
305m 610m
External Power Supply 305m 610m
Table 5.6: Lengths of cable for DX2010
+
12V
AMAX 4000
Y
R
Y
G
B
RB
G
_
RBGY1COM
TMPR
RBGY1COM
TMPR
AMAX 2100 / 3000 DX2010
DX2010
Figure 5.4: Connecting DX2010 to the AMAX Panel
Status Indicator
LED Condition Denotation
On Trouble Condtion:
– Grounding Conductor is not connected or there is a
communication failure between the module and the AMAX
panel.
– No zones distributed
– Module address setting error
Flash (once per second) Normal Operation
Off Power failure
DX3010
General
The AMAX panel supports DX3010 output expansion modules. Each module supports eight
fully programmable relay outputs. For more information about installation, see DX3010
Installation Guide.
See also
–Module Installation, page 23
Address Setting
Each DX3010 module connected to the AMAX panel must have its own data bus address.
5.3.4
5.4
5.4.1
5.4.2
AMAX panel 4000 / AMAX panel 4000
EN Optional Modules and Peripheral Devices | en 15
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

Data Bus Address Outputs
150 5-12
151* 13-20
Table 5.7: DX3010 Address Settings
DIP Switch S1 S2 S3 S4 S5 S6
Data Bus Address 1 2 4 8 16 Mode
150 On On On On On Off
151* Off On On On On Off
Table 5.8: DX3010 DIP Switch Settings
* AMAX 3000 / 4000
Example : Data Bus Location 150 - DIP Settings
On
Off
Figure 5.5: DX3010 DIP Switch Settings
Wiring
Power Supply Wire diameter of
0.8mm
Wire diameter of 1.2mm
AMAX Panel 12.2m 24.4m
External Power Supply 305m 610m
Table 5.9: Lengths of cable for DX3010
+
12V
AMAX 4000
Y
R
Y
G
B
AMAX 2100 / 3000 DX3010
RB
G
DX3010
RBGYRBGY
_
Figure 5.6: Connecting DX3010 to the AMAX Panel
Status Indicator
None.
5.4.3
5.4.4
16 en | Optional Modules and Peripheral Devices AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

B426
General
AMAX panel supports up to two communication modules.
– ITS-DX4020-G and B426 or B426 and B426
The B426 Ethernet communication module supports monitored two-way IP communication via
Ethernet to perform alarm transmission, remote programming, and control of the AMAX panel.
Before installing B426, all power supplies (AC power supply and backup battery power
supply) of the AMAX panel should be disconnected. Use the standard three-hole installation
mode to install B426 in the enclosure of the AMAX panel or in another enclosure. To
reconfigure the module or connected to the alarm control panel with RPS, the network or
direct connection must be used to access its built-in Web server.
For more information about installation and configuration, see B426 Installation and Operating
Guide.
Address Setting
Turn the rotary switch to 6, i.e., set the address to 134 when the first B426 is used. Turn the
rotary switch to 9, i.e., set the address to 250 when the second B426 is used.
Wiring
Connect B426 to Bosch option Bus 1 or 2. The cable may not exceed 150 meters.
AMAX 4000
Y
R
Y
G
B
AMAX 2100 / 3000 B426
RB
G
R
BGY
Figure 5.7: Connecting B426 to the AMAX Panel
Status Indicator
B426 provides the following on-board LED indicators to help in troubleshooting.
– Blue system status indicator.
– Green data bus indicator.
– Green Ethernet link indicator.
LED Condition Denotation
On Trouble Condition
5.5
5.5.1
5.5.2
5.5.3
5.5.4
AMAX panel 4000 / AMAX panel 4000
EN Optional Modules and Peripheral Devices | en 17
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

Flash (stable flash) Normal Operation
Flash (3 flashes) Normal power supply, without communication
Off Power failure or other failure conditions
Table 5.10: B426 System Status Indicator
For more information about indicators, see B426, page 17.
DX4020-G
General
The Conettix ITS-DX4020-G GPRS communication module allows IP communication via
commercial GPRS network. Transmission of alarm information via GPRS is the default for ITS-
DX4020-G. SMS or USB mode can be chosen for configuration. Remote programming and
control of the AMAX panel is supported.
Installation
1. Before installing ITS-DX4020-G, all power supplies of the AMAX panel should be
disconnected.
2. Insert SIM card.
3. Use the standard three-hole installation mode to install the ITS-DX4020-G in the enclosure
of the AMAX panel or another enclosure.
4. Connect the magnetic antenna to ITS-DX4020-G.
Address Setting
Set bus address to 134.
See also
–DX4020-G, page 18
Wiring
The connection of ITS-DX4020-G and the AMAX panel is divided into two modes: GPRS and
GSM.
AMAX 4000
Y
R
Y
G
B
AMAX 2100 / 3000
RB
G
DX4020G
R
B
G
Y
Figure 5.8: GPRS Mode in Support of IP
5.6
5.6.1
5.6.2
5.6.3
18 en | Optional Modules and Peripheral Devices AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH

DX4020G
BUS
AMAX 4000
R
Y
G
B
RING
TIP
RH
TH
R
B
G
Y
PNL
PSTN
TIP
TIP
1RING
1RING
RYGB
AMAX 2100 / 3000
Figure 5.9: GSM Mode in Support of PSTN (Contact ID)
Status Indicator
The AMAX panel tests the communication normally with the module. In case of communication
failure, a fault report including the module address is sent.
LED Condition Denotation
On Normal Condition
Flash Trouble Condition
Off Power Failure
Table 5.11: DX4020-G System Status Indicator
For more information on indicators, configuration and other topics related to ITS-DX4020-G,
see Installation and Operation Guide.
RF 3227E RF
General
The RF3227E RF receiver allows the use of wireless devices using the AMAX panel 3000 /
4000.
Installation
Whenever possible, the receiver should be mounted in a central location with regard to all
wireless sensors. The receiver should be mounted vertically, with at least 25 cm clearance
above it for the antennas. Avoid mounting the receiver in areas with significant metal or
electrical wiring such as furnace, or utility rooms. If this is unavoidable, mount the receiver
with the antennas extending above any metal surface. Avoid mounting the receiver in areas
where it may be exposed to moisture. Reception distances are generally improved with higher
mounting locations and with no metal objects near the antennas.
Address Setting
Set receiver address to #1. The AMAX panel supports only receiver 1, not receiver 2.
5.6.4
5.7
5.7.1
5.7.2
AMAX panel 4000 / AMAX panel 4000
EN Optional Modules and Peripheral Devices | en 19
Bosch Sicherheitssysteme GmbH Installation Guide 2014.4 | 01 | F.01U.267.112

No Jumper = Receiver # 1 (Default)
Jumper = Receiver # 2
Address Jumper
Jumper left on pin for storage only.
RBGY
ADDR
Figure 5.10: Address
Wiring
Connect the RF3227E receiver to Bosch option Bus. The cable must not exceed 300 m. Adding
additional devices to the bus might reduce the maximum distance. Shielded cable is not
required. Do not use twisted pair wires.
AMAX 4000
Y
R
Y
G
B
AMAX 2100 / 3000 RF3227E
RB
GRBGY
Figure 5.11: Connecting RF3227E
5.7.3
20 en | Optional Modules and Peripheral Devices AMAX panel 4000 / AMAX panel 4000
EN
2014.4 | 01 | F.01U.267.112 Installation Guide Bosch Sicherheitssysteme GmbH
