Bosch Professional GCY 42 Assembly instructions

IMPORTANT:
Read Before Using
IMPORTANT :
Lire avant usage
IMPORTANTE:
Leer antes de usar
For English Version
See page 2 Version française Voir page 25 Versión en español Ver la página 49
Operating/Safety Instructions
Consignes de sécurité/d’utilisation
Instrucciones de funcionamiento y seguridad
1-877-BOSCH99 (1-877-267-2499)
www.boschtools.com
GCY42
Call Toll Free for
Consumer Information
and Service Locations.
Pour obtenir des informa-
tions et les adresses de
nos centres de service
après-vente, appelez ce
numéro gratuit.
Llame gratis para obtener
información para el con-
sumidor y ubicaciones de
servicio.
2610051886.indd 1 3/8/19 2:18 PM

2
Safety Symbols
The definitions below describe the level of severity for
each signal word. Please read the manual and pay atten-
tion to these symbols.
!
This is the safety alert symbol. It
is used to alert you to potential
personal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury
or death.
DANGER indicates a hazardous
situation which, if not avoided,
will result in death or serious
injury.
WARNING indicates a hazardous
situation which, if not avoided,
could result in death or serious
injury.
CAUTION indicates a hazardous
situation which, if not avoided,
could result in minor or moder-
ate injury.
2610051886.indd 2 3/8/19 2:18 PM

3
Table of Contents
General Safety Rules...................................................4
Getting to Know your Connectivity Module ...................10
Assembly................................................................13
Operating Instructions ..............................................15
Maintenance and Storage ..........................................22
Warranty information................................................23
2610051886.indd 3 3/8/19 2:18 PM

4
Only use Button/coin cell 3V lithi-
um CR2032 battery. Do not use
any other button/coin cells or other forms of electrical power
supply.
Ensure that battery replacement
is carried out properly. There is a
risk of explosion.
Chemical Burn Hazard. Keep bat-
teries away from children. This
product contains a lithium button/coin cell battery. If a new
or used lithium button/coin cell battery is swallowed or en-
ters the body, it can cause severe internal burns and can lead
to death in as little as 2 hours. If you think a battery might
have been swallowed or placed inside any part of the body,
seek immediate medical attention.
Always completely secure the
connectivity compartment. If the
General Safety Rules
Read all safety warnings and all
instructions. Failure to follow the
warnings and instructions may result in electric shock, fire
and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE
2610051886.indd 4 3/8/19 2:18 PM

5
connectivity compartment does not close securely, stop us-
ing the product, remove the battery, and keep it away from
children.
When discarding batteries, insu-
late the ‘+’ and ‘–’ terminals with
insulating tape. When disposed of improperly, lithium bat-
teries may short, causing them to become hot, burst or ignite.
Never dispose of the batteries in a
fire or expose to high heat. The
batteries may explode.
Follow all instructions and warn-
ings provided by your Bluetooth®
device manufacturer. Failure to follow recommended pro-
cedures could result in personal injury or property damage.
Exercise extreme caution when
using Bluetooth® devices to con-
trol or change power tool functions. Operation of the de-
vice may be in a different area than the paired power tool.
Paired devices may have functionality which allows timed
event programming, including automatically powering on
(e.g. flood light). Depending upon the power tool, these un-
attended operations or function changes without direct line
of sight to the paired tool could result in personal injury or
property damage.
SAVE THESE INSTRUCTIONS
2610051886.indd 5 3/8/19 2:18 PM

6
Always check tool settings before
use. Settings may be different
than when the tool was last used. The connectivity module
enables transfer of data and settings based on Bluetooth®
wireless technology. With module installed, select tool set-
tings may be changed remotely by a paired Bluetooth® de-
vice and user installed app.
The connectivity module GCY42
is equipped with a radio interface.
Local operating restrictions, e.g. in military sites or hos-
pitals, are to be observed. Transmitters have demonstrat-
ed an ability to unintentionally interfere with other devices.
THINK SAFETY
SAFETY IS A COMBINATION OF OPERATOR COMMON
SENSE AND ALERTNESS AT ALL TIMES WHEN THE CON-
NECTIVITY MODULE IS BEING USED.
SAVE THESE INSTRUCTIONS
2610051886.indd 6 3/8/19 2:18 PM

7
FCC Caution
The manufacturer is not responsible for radio interference
caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to oper-
ate the equipment.
This device complies with Part 15 of the FCC Rules. Opera-
tion is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, in-
cluding interference that may cause undesired operation.
NOTE! This equipment has been tested and found to com-
ply with the limits for a Class B digital devices, pursuant to
Part 15 of the FCC rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
SAVE THESE INSTRUCTIONS
2610051886.indd 7 3/8/19 2:18 PM

8
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweenthe equipmentandre-
ceiver.
• Connecttheequipmentintoanoutletonacircuitdierent
from that to which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnician
for help.
“Exposure to Radio Frequency (RF) Signals: The wireless
device is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limit for exposure
to radio frequency (RF) energy set by the Ministry of Health
(Canada), Safety Code 6. These limits are part of compre-
hensive guidelines and established permitted levels of RF
energy for the general population.
These guidelines are based on the safety standards previ-
ously set by international standard bodies. These standards
include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
This device and its antenna must not be co-located or oper-
ating in conjunction with any other antenna or transmitter.
SAVE THESE INSTRUCTIONS
2610051886.indd 8 3/8/19 2:18 PM

9
SAVE THESE INSTRUCTIONS
Industry Canada
This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including inter-
ference that may cause undesired operation of the device.

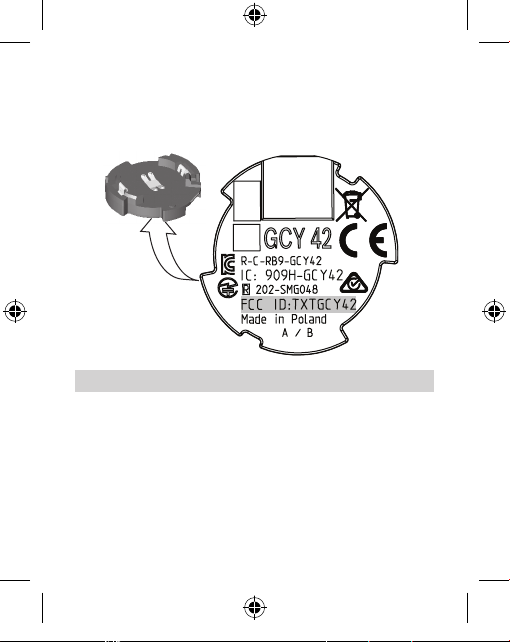

The Bosch GCY42 with an FCC ID number TXTGCY42 is an
approved Bluetooth® low energy module for usage in power
tools. You can find this FCC ID on the back side of the GCY42
as shown in the drawing.
2610051886.indd 9 3/8/19 2:18 PM

10

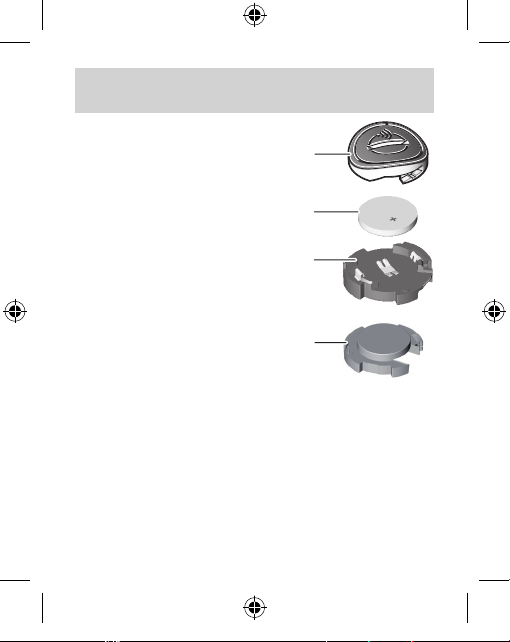

Product Features
The numbering of the product fea-
tures refers to the illustrations on
the graphics pages.
1Button/coin cell battery.
2Connectivity module GCY42.
3Placeholder (part of the power
tool – not included).
4Cover of connectivity module
(part of the power tool – not in-
cluded).
Getting to Know your GCY42 Connectivity
Module
1
2
4
3
2610051886.indd 10 3/8/19 2:18 PM

11
Technical Data
Model GCY42
Operating temperature 14 °F…+ 104 °F
Storage temperature -4 °F…+ 158 °F
Dimensions 0.275” x 1.18” x 1.18”
Weight according to
EPTA-Procedure 01:2014 0.352 oz.
Data transmission
Bluetooth® Bluetooth® 4.2 (Low
Energy)A
Signal Interval, approx. 8 s
Signal Range Maximum 98 ft.B
Frequency range used 2402–2480 MHz
Output power < 1 mW
Power Supply
Battery Button/coin cell (3 V
lithium battery, CR2032)
Battery service life, approx. 24 months
2610051886.indd 11 3/8/19 2:18 PM

12
System Requirements
Mobile terminal device
(tablet, smartphone) Android 5.1 (and above)
iOS 10 (and above)
AThe mobile terminal devices must be compatible with Blue-
tooth® Low Energy devices (version 4.2) and support the Ge-
neric Access Profile (GAP).
BThe signal range may vary greatly depending on external condi-
tions. The Bluetooth® range may be significantly weaker inside
closed rooms and through metallic barriers (e.g. walls, shelv-
ing units, cases, etc.).
The Bluetooth® word mark and logos are registered trade-
marks owned by Bluetooth SIG, Inc. and any use of such
marks by Robert Bosch Tool Corporation is under license.
2610051886.indd 12 3/8/19 2:18 PM

13
Assembly
Always remove the power tool bat-
tery or disconnect the plug from
the power source before installation or removal of com-
munications module. Such preventive safety measures re-
duce the risk of starting the tool accidently.

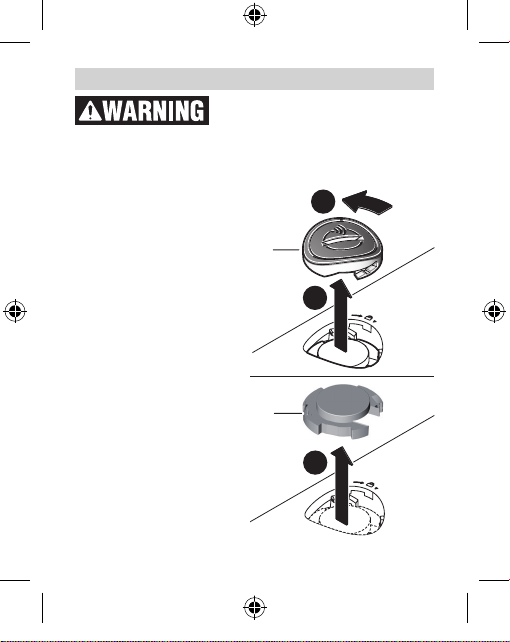

A. Unlock the cover of con-
nectivity module 4on the
power tool by turning it
counterclockwise with a
flat-head screwdriver or
a large coin. Using unsuit-
able objects can damage
the electronics or the
cover.

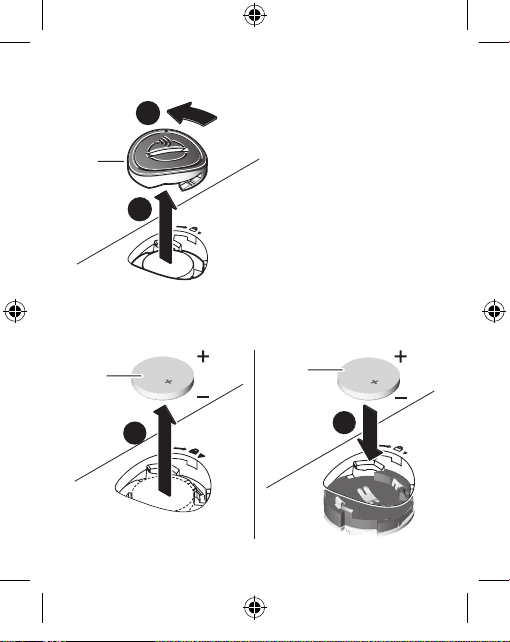

B. Lift the cover of connec-
tivity module 4and put it
aside.
C. Pull out the placeholder
3.
Note: Store the placeholder
3of GCY42 in a safe place.
Reinsert the placeholder
again if the communications
module is removed.
B
A
4
C
3
2610051886.indd 13 3/8/19 2:18 PM

14
D. Insert the GCY42 module 2 into the power tool. Make
sure that the terminals inside the tool and the module
align.
E. Insert the button/
coin cell battery 1into the
GCY42 module 2with the
plus terminal facing up-
wards. It is not necessary to
push in the battery.
2
D
1
E
2
2610051886.indd 14 3/8/19 2:18 PM

15

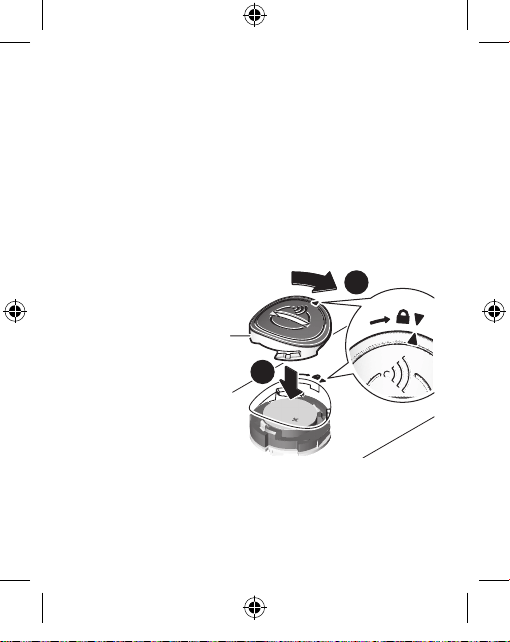

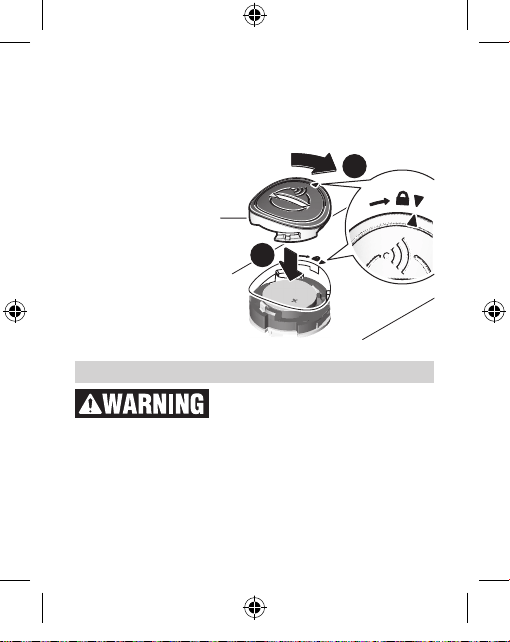

F. Lower the cover 4into the tool.
G. Lock the cover 4in place by turning it clockwise with a
flat-head screwdriver or a large coin until the triangles on
the cover and the tool align and the cover clicks in place.
4
G
F
Operating instructions
Observe all warnings and safety
instructions when using connec-
tivity module. Failure to follow recommended procedures
could result in personal injury or property damage.
Once the button/coin cell battery 1has been inserted, the
GCY42 will broadcast in the following intervals:
– 8 seconds when in broadcasting mode, powered by but-
ton/coin cell battery;
2610051886.indd 15 3/8/19 2:18 PM

16
– 1 second when in broadcasting mode, powered by tool
battery;
– Continuous broadcast when connected to app;
The Bluetooth® signal will only be interrupted when the GCY
30-4has no powersupply(button/coincell and/or tool battery).
Tool presence is indicated within the range of the GCY42
Bluetooth™ transmitter, it is not provided by GPS.
Installing and setting up ‘Bosch Toolbox’ app
Before you can use the GCY42, you need to install the
Bosch Toolbox app.
– Download the Bosch Toolbox app via the appropriate
app store (Apple App Store, Google Play Store).
Note: A user account is required in the respective app store.
– Tap on the My Tools tile in the Toolbox app home screen.
– The screen of your mobile terminal device displays all
further steps to connect the power tool to the terminal
device.
Note: First, fully complete the tutorial for the app. This will
provide you with a better overview of the connection pro-
cess and the use of the connectivity functionalities.
Note: The data transfer must be approved by the user.
You will find information about available connectivity func-
2610051886.indd 16 3/8/19 2:18 PM

17
tionalities in the Bosch Toolbox application (app) or in the
manual of the power tool used.
Data Transmission via Bluetooth®
The transmission interval of the GCY42 is approximately 8
seconds. Depending on ambient conditions, several trans-
mission intervals may be required before the GCY42 is de-
tected. If the GCY42 is not detected, check the following:
Is the distance to the
mobile terminal device too
great?
Reduce the distance be-
tween the mobile terminal
device and the GCY42.
Is the battery too low or
drained? Change the battery.
2610051886.indd 17 3/8/19 2:18 PM

18
Battery Replacement
The app will notify the user
before the button/coin cell
battery is completely used
up.
A. Unlock the cover of
connectivity module 4on
the power tool by turning
it counterclockwise with a
flat-head screwdriver or a
large coin. Using unsuitable
objects can damage the
electronics or the cover.
B. Lift the cover of connectivity module 4and put it aside.
B
A
4
1
C
1
D
2610051886.indd 18 3/8/19 2:18 PM

19
C. Pull out the used button/coin cell battery 1 and dispose of
properly. Only remove used battery using your fingers. Do
not use sharp objects to remove used battery.
D. Insert the new button/coin cell battery 1into the GCY42
module 2with the plus terminal facing upwards. It is not
necessary to push in the battery.
E. Lower the cover 4into the tool.
F. Lock the cover 4in place by turning it clockwise with a
flat-head screwdriver or a large coin until the triangles on
the cover and the tool align and the cover clicks in place.
F
E
4
2610051886.indd 19 3/8/19 2:18 PM

20
Removing the GCY42
A. Unlock the cover of
connectivity module 4on
the power tool by turning
it counterclockwise with a
flat-head screwdriver or a
large coin. Using unsuitable
objects can damage the
electronics or the cover.
B. Lift the cover of con-
nectivity module 4and put it
aside.
C. Pull out the button/coin cell battery 1 and dispose of or
store properly. Only remove used battery using your fin-
gers. Do not use sharp objects to remove the battery.
B
A
4
2
D
1
C
2610051886.indd 20 3/8/19 2:18 PM
