Bosch LECTUS select User manual

LECTUS select
ARD‑SELECT‑BOM | ARD‑SELECT‑WOM | ARD‑SELECT‑BOKM |
ARD‑SELECT‑WOKM
en Manual de instalación

LECTUS select Table of contents | en 3
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
Table of contents
1Safety 4
1.1 FCC Class B 5
2General 6
2.1 Introduction 6
2.2 Disposal 7
2.3 Components 7
2.4 Functional requirements 8
2.4.1 OSDP 8
2.5 RFID technology 9
2.6 Transponder data 10
2.7 Reading distances 11
2.8 Bluetooth® Low Energy 12
3Installation 13
3.1 General 13
3.1.1 Mechanical structure of the flush-mount version 13
3.1.2 Mechanical structure of the surface-mount version 13
3.2 Installing data and supply lines 14
3.3 Assembly preparation 15
3.4 Assembling the reader 16
3.5 Assembling the reader module 18
3.5.1 Configuring the reader (DIP switches) 18
3.6 Connecting and mounting the reader module 19
3.7 Unmounting the reader module 20
3.8 Resetting OSDP-key 20
4Care instructions 21
5Technical specifications 22
6More information 24

4en | Safety LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
1 Safety
–Read, observe and keep the instructions - the entire safety and operating instructions
must be read and correctly followed before the readers are operated.
–Take all warnings into account - follow all warnings on the devices and in the operating
instructions.
–Power sources - the readers should only be operated with the recommended power
sources. If you are unsure whether you can use a specific power supply, contact your
dealer.
i
Notice!
Risk of damage to the equipment
Always switch off the power supply of the device before making changes to the installation.
Do not connect or disconnect any plugs, data cables or screws while the power supply is
switched on.
!
Warning!
Health and Safety
Installation must be carried out in accordance with local fire, health and safety regulations. A
secured door must be installed as part of an escape route and must have:
- a fail-safe lock. the door must be released in the event of power loss. Ideally, a solenoid lock
should be used.
- an emergency switch with a glass cover for manual breaking the circuit, so that the fail-safe
lock can be de-energized immediately in an emergency.
i
Notice!
Risk of damage
Protect the device from electrostatic discharge. Before touching the connector or the
electronics, make sure you are not electrostatically charged.
i
Notice!
The circuit board is at risk from electrostatic discharge. Appropriate precautionary measures
(grounding, etc.) must be observed.
Danger!
- The device must be operated in a fully assembled state only.
- Before connecting the device to the power supply, make sure that the connected operating
voltage does not exceed the permitted values according to the technical specifications.
- Additional safety measures should be enforced whenever there is a risk that failure of
malfunction of the device might pose a risk to humans, animals or damage to the equipment,
this must be prevented with additional safety measures (limit switches, protective
equipment, etc.).
i
Notice!
Installation and assembly of electrical components must be carried out by a qualified
electrician.

LECTUS select Safety | en 5
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
i
Notice!
- The devices are equipped according to EN 62368, with protection class III.
- During the installation, make sure that the facility requirements placed by the corresponding
device safety standard are not influenced in an impermissible manner, compromising product
safety.
- Electromagnetic compatibility: The devices are designed for use in residential, business,
commercial and industrial areas.
1.1 FCC Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.

6en | General LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
2 General
2.1 Introduction
This installation manual is aimed at authorized service providers.
The installation manual contains instructions on the installation and configuration of the
Bosch Security Systems proximity reader LECTUS select.
1 2 3
456
789
C0E

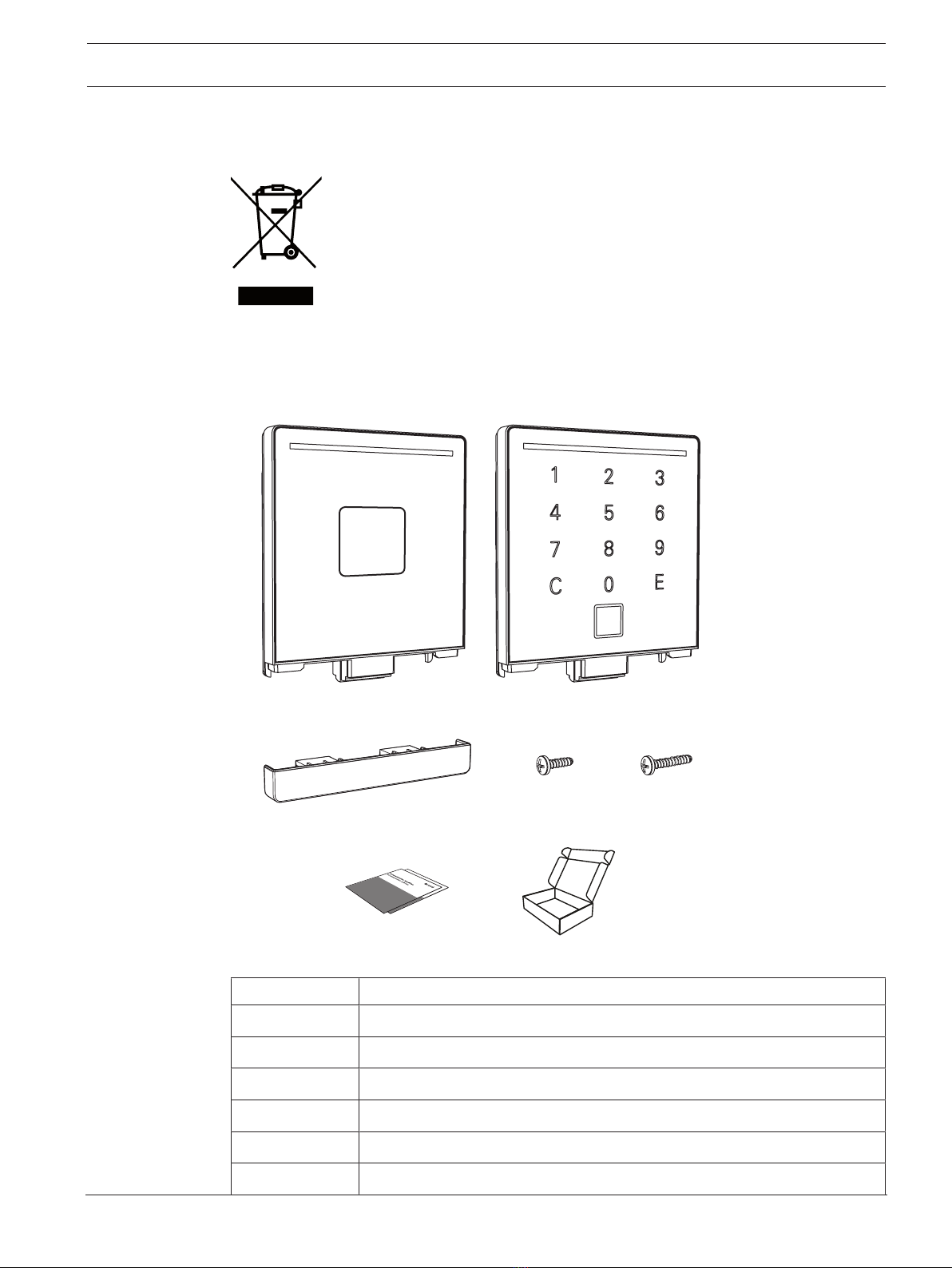

Figure2.1: LECTUS select readers

LECTUS select General | en 7
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
2.2 Disposal
Old electrical and electronic equipment
This product and/or battery must be disposed of separately from household
waste. Dispose such equipment according to local laws and regulations, to
allow their reuse and/or recycling. This will help in conserving resources, and
in protecting human health and the environment.
2.3 Components
x1 x2 x2
Quantity Component
1 Reader module
1 Locking bar
4 Screws
1 Quick installation guide
2 Safety and security information
1 OSS information

8en | General LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
2.4 Functional requirements
The readers have tamper monitoring and tear-off detection (i.e. a sabotage message is
generated if the reader is completely torn from the wall). They are suitable for both indoor and
outdoor use.
Connection type: 8-pin screw / plug-in terminal
The LECTUS select reader reads data from contactless RFID credentials and sends the data to
a higher-level control center. This is where the evaluation takes place as to whether a
credential is authorized or not. The result is sent back to the reader, which then provides a
visual and an acoustic signal. Communication between the reader and the control center takes
place via an encrypted RS485 bus.
The reader has a compact design and is available in two variants, with and without a keyboard
(each as a flush-mount version). The flush-mounted variant fits into any device box in flush-
mounted or hollow-wall design according to DIN, with a device screw distance of 60 mm.
2.4.1 OSDP
The following readers support OSDP V2 protocol:
Commercial Type Number (CTN) Description
ARD-SELECT-BOM Reader, OSDP, BLE, black
ARD-SELECT-WOM Reader, OSDP, BLE, white
ARD-SELECT-BOKM Reader, OSDP, keypad, BLE, black
ARD-SELECT-WOKM Reader, OSDP, keypad, BLE, white
OSDP protocol is common within the Bosch Access Control Systems product portfolio.

LECTUS select General | en 9
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
2.5 RFID technology
The LECTUS select readers support by default the following technologies:
– LEGIC advant
– MIFARE DESFire EV1
– MIFARE DESFire EV2
– Mobile Access
For LEGIC prime and MIFARE Classic, a special configuration is needed and is not offered as
standard.
The RFID technology that can be used is dependent on the reader configuration and the
reader firmware.

10 en | General LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
2.6 Transponder data
The support of the transponder media listed below depends on the respective variant or
reading technology (hardware platform) and the respective reader firmware.
The following non-exhaustive list includes transponder media that is supported by the reader.
RF standard Supported LEGIC
transponders
Other supported
transponders **)
LEGIC RF standard MIM22, MIM256, MIM1024,
CTC4096-MP410
ISO 14443 A
(also NFC Forum Type 2/4A
Tag *)
ATC512-MP, ATC2048-MP,
ATC4096-MP, CTC4096-
MP410, AFS4096-JP
according to ISO 14443 part
3/4:
e.g. Infineon SLE, SmartMX
Integrated support of MIFARE
Ultralight, MIFARE Classic,
MIFARE Plus and MIFARE
DESFire NFC peer-to-peer
target
ISO 14443 B ***)
(also NFC Forum Type 4B Tag
*)
according to ISO 14443 part
4:
e.g. B. InfineonSLE
ISO 15693
(also ISO 18000-3 mode 1)
ATC128-MV, ATC256-MV,
ATC1024-MV
Selected types, e.g. B. EM
4035, Infineon SRF55VxxP,
Tag-It HFI
INSIDE Secure (UID only) according to INSIDE Secure
*) Passive mode, initiator
**) Access with transparent mode (assigned commands for MIFARE transponders)
***) If transponders according to ISO 14443 B (2001) are used, only one transponder is
allowed in the RF field. This restriction does not apply to transponders according to ISO
14443 B (2008).
****) The SONY FeliCa protocol is supported in accordance with ISO 18092 (6 byte
introduction). Older FeliCa cards with a shorter introduction are not supported.
i
Notice!
Recommendation when using smart card chips for LEGIC "card in card" solutions:
A suitability and functional test of the corresponding medium should be carried out before
use or if it is planned to be used.

LECTUS select General | en 11
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
2.7 Reading distances
The normal reading distance depends on the respective reading system, the installation
environment and the type of data carrier. Direct mounting on metal might reduce the optimal
reading distance.
Reading distances (cm)
Type of transponder media LEGIC prime / advent
Basis 4200M
MIFARE Classic/DESFire
EC-format Key-fob EC-Format Key-fob
LEGIC MIM 256 3,5 2 - -
LEGIC MIM 1024 4 *) - -
LEGIC ATC2048-MP110 (ISO
14443A)
4,5 2,5 - -
LEGIC ATC4096-MP310 (ISO
14443A)
3 1,5 - -
LEGIC ATC4096-MP311 (ISO
14443A)
2 1 - -
LEGIC AFS4096-JP10/JP11
(ISO 14443A)
2 *) - -
LEGIC ATC1024-MV110 (ISO
15693)
6,5 3,5 - -
Classic 1k - - 3,5 3
Classic 4k - - 4 *)
DESFire EV1, 2k / 4k / 8k - - 1 1
Legic CTC4096-MP410 (prime
access)
6,5 4 - -
Legic CTC4096-MP410
(ISO14443 access)
2,5 2 - -
*) Key-fob not available during the test, "AFS4096" not available as key-fob
Note: Not all designs and transponder media were available at the time the distance was
measured.
i
Notice!
The reading distances listed above are distance ranges measured on the basis of a selection
of transponder media. These measured reading distances are to be regarded as typical guide
values.
If other transponder media are used (chip type, design, size, production process), the
distance ranges may differ and it is recommended to carry out a suitability and functional test
of the respective medium before using or planning to use the reader.

12 en | General LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
Influencing (reducing) the reading distance
The reading distance can be influenced due to different reasons. On the one hand this is
influenced by the medium (i.e. the data carrier) and on the other hand by the ambient
conditions of the antenna and the data carrier.
The following is a list of points that can reduce the reading distance:
– "Shade" or shield the data carrier with metal, such as EC card in your wallet, key fob on
your key ring, etc.
– No optimal coupling, i.e., the antenna surface of the data carrier is perpendicular (90 °) to
the antenna surface of the reader
– Data carrier itself
– key fob (small active antenna surface)
– "bad" response from the data carrier (ID card / key fob)
– combination ID card (e.g. LEGIC® / inductive, MIFARE / inductive etc.)
– Metal in the "active" effective area of the HF field. The transmission energy is attenuated.
This point is particularly relevant when installing the reader components in metal front
panels (including metal columns, etc.).
2.8 Bluetooth® Low Energy
The readers are equipped with a Bluetooth® Low Energy module.
For more information on:
– how to install Mobile Access, refer to the Datasheet and Quick user guide of the Mobile
Access
– how to adjust the read range, refer to the User manual of the Credential Management.
These documents are available in the online catalog.

LECTUS select Installation | en 13
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
3 Installation
3.1 General
When choosing the installation location, please note:
The readers can interfere with each other or be negatively influenced by other systems and
sources of interference. The readers can still disturb each other at a distance of approx. two
to three times the reading distance. High-energy sources of interference in the range of the
modulation and carrier frequencies can also interfere with the transmission.

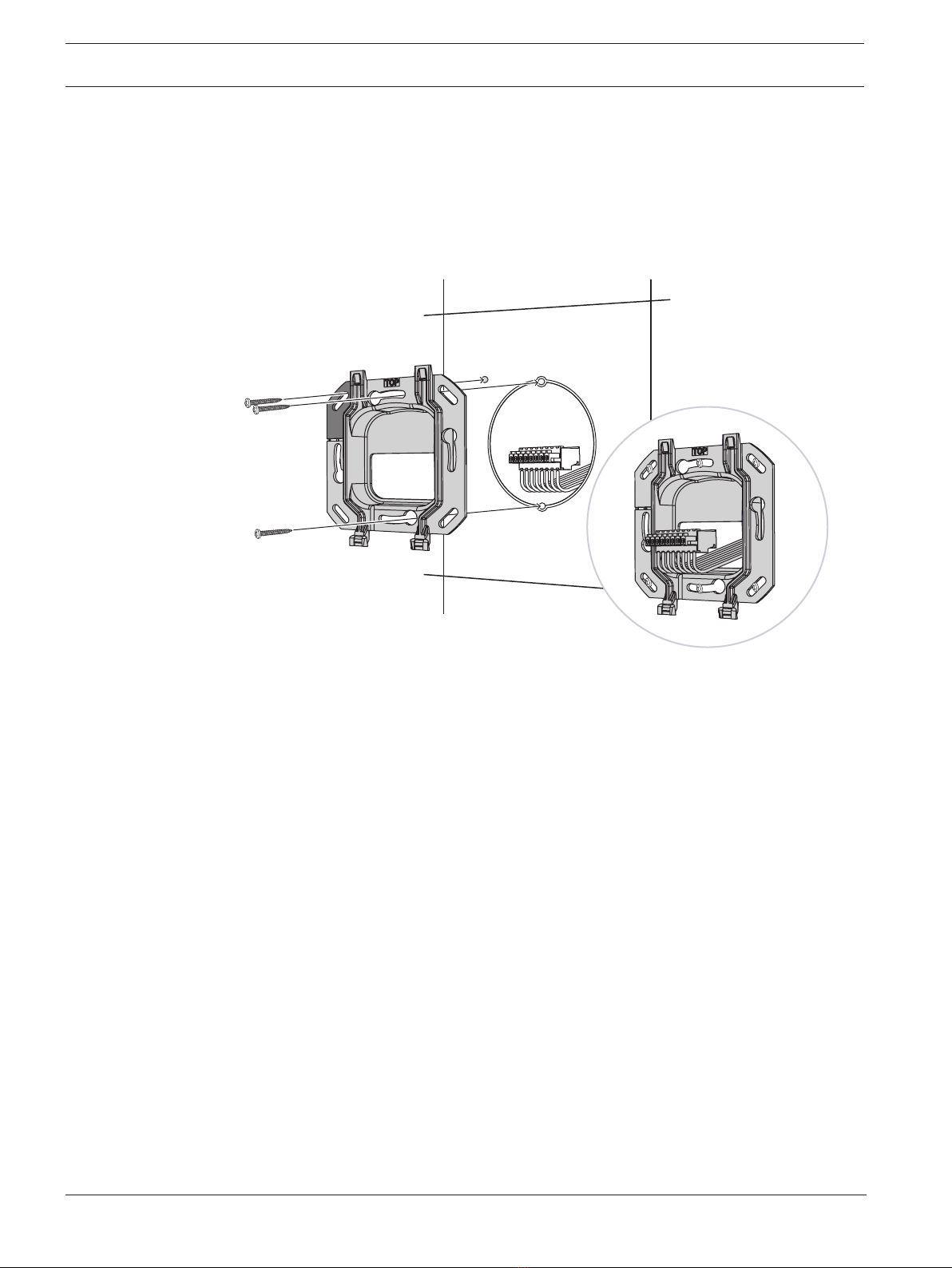

3.1.1 Mechanical structure of the flush-mount version
3.1.2 Mechanical structure of the surface-mount version

14 en | Installation LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
3.2 Installing data and supply lines
When supplying the reader (especially over longer distances), ensure that the cable cross-
section is adequate. Since the power consumption of the individual systems is partially
pulsed, short-term voltage drops cannot be detected with a conventional multimeter (digital
or analog). However, these voltage drops can cause a "POWER-ON-RESET" on the reader
component, which can lead to communication problems.
When dimensioning the power supply and the cable cross-sections of the cabling, the
maximum current consumption must be taken into account. It is essential to ensure that the
input voltage remains constant and corresponds to the technical specifications of the reader.

LECTUS select Installation | en 15
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
3.3 Assembly preparation
1. Lay the connection cables according to the local conditions and prepare them for
connection.

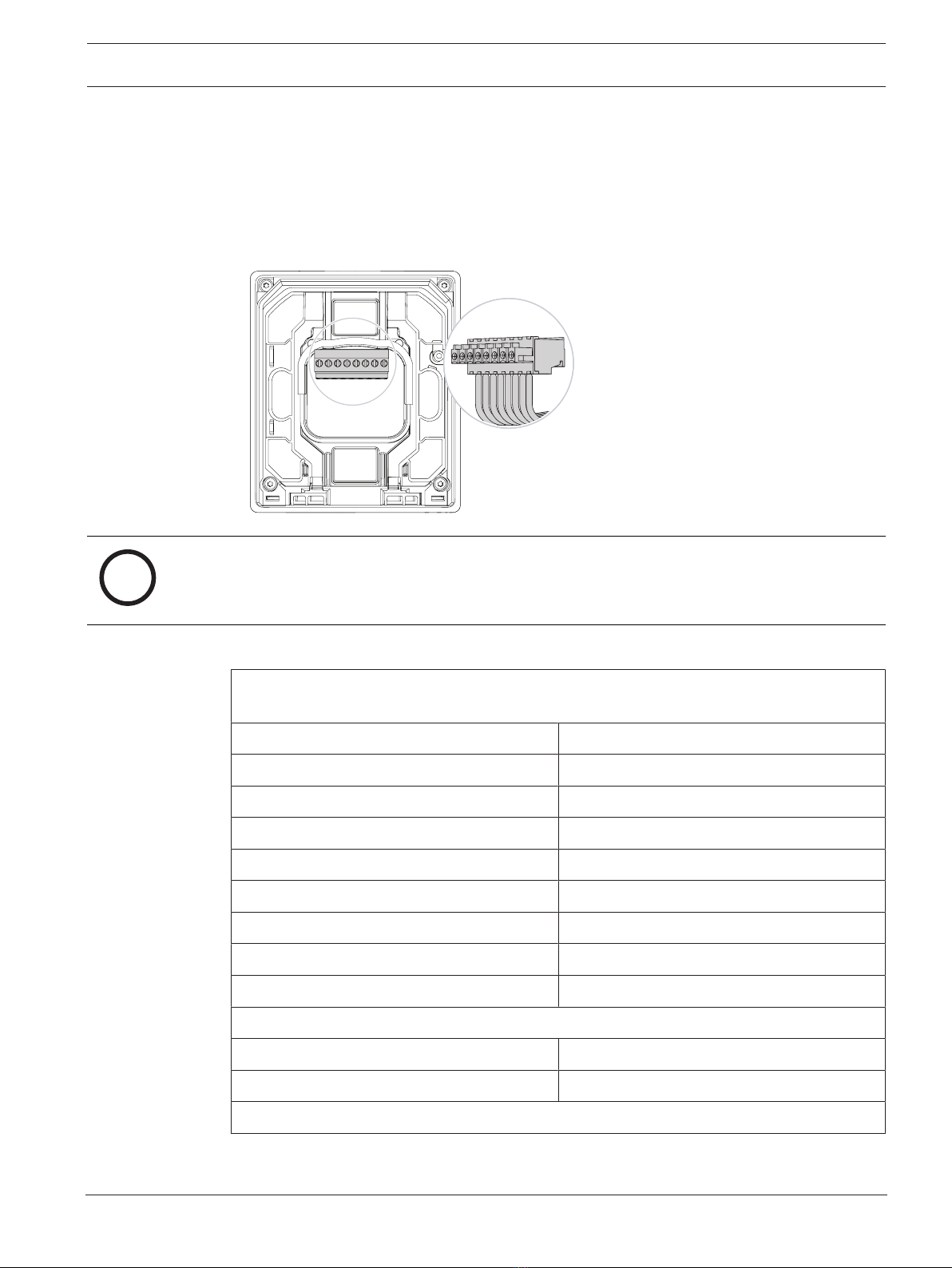

2. Remove the 8-pin screw / plug-in terminal from the reader module and connect the wires
according to this graphic:
65 874321
i
Notice!
The wiring must be carried out in a de-energized state. In other words, the operating voltage
may only be switched on after the reader has been fully installed!
Connection terminal ST1
(8 pin screw / plug terminal, voltage supply / interfaces)
PIN number Description
1 RS485 data “A”
2 RS485 data “B”
3 Do not connect
4 Do not connect
5 Do not connect
6 Do not connect
7 DC- (0V)
8 DC+ (from 8V to 30V)
Wire diameter
Stranded wire AWG 28 - 16
Solid wire AWG 28 - 16
Cable stripping length 6 to 7 mm

16 en | Installation LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
3.4 Assembling the reader
Flush-mount version
1. Use the provided screws to screw the wall bracket onto a DIN device socket with a device
screw distance of 60 mm.
2. Support the reader's tear detection by fixing the perforated tear-off tab with an additional
locking screw.

LECTUS select Installation | en 17
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
Surface-mount version
1. Screw the wall-mount frame to the wall using the screws. The connection cable can be
inserted from above, below or directly from the wall.
2. Tear detection is supported by fixing the upper left screw.

18 en | Installation LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.
3.5 Assembling the reader module
3.5.1 Configuring the reader (DIP switches)
Depending on the firmware function, the DIP switches of the reader module must be set
accordingly.
The reader has 6 DIP switches. Each switch is numbered from 1 to 6.
With the DIP switches it possible to:
– Set the address of the reader
– Set the BUS termination
To change the reader configuration:
1. Power-off the reader.
2. Set the DIP switches correctly.
3. Power-on the reader.
654321
65 874321
ON WE
OSDP protocol
Address 1 2 3 4 5 6 7 8
S1 ON - ON - ON - ON -
S2 - ON ON - - ON ON -
S3 - - - ON ON ON ON -
S4-------ON
S5 Reserved (default - OFF)
S6 Bus terminator resistor (default - OFF)

LECTUS select Installation | en 19
Bosch Security Systems B.V. Manual de instalación 2023-04 | V02 |
3.6 Connecting and mounting the reader module
1. Insert the wired connection terminal on the reader module.
2. Place the reader module flat on the wall bracket. Push the connection cable with the
reader module back into the flush-mounted box.
3. Push the attached reader module down until the reader module clicks into place on the
wall bracket.
4. After it has successfully clicked into place, slide the locking bar into the reader module
until it also clicks into place.
–NOTE: A clear click can be heard each time it clicks into place.
2
1
2

20 en | Installation LECTUS select
2023-04 | V02 | Manual de instalación Bosch Security Systems B.V.

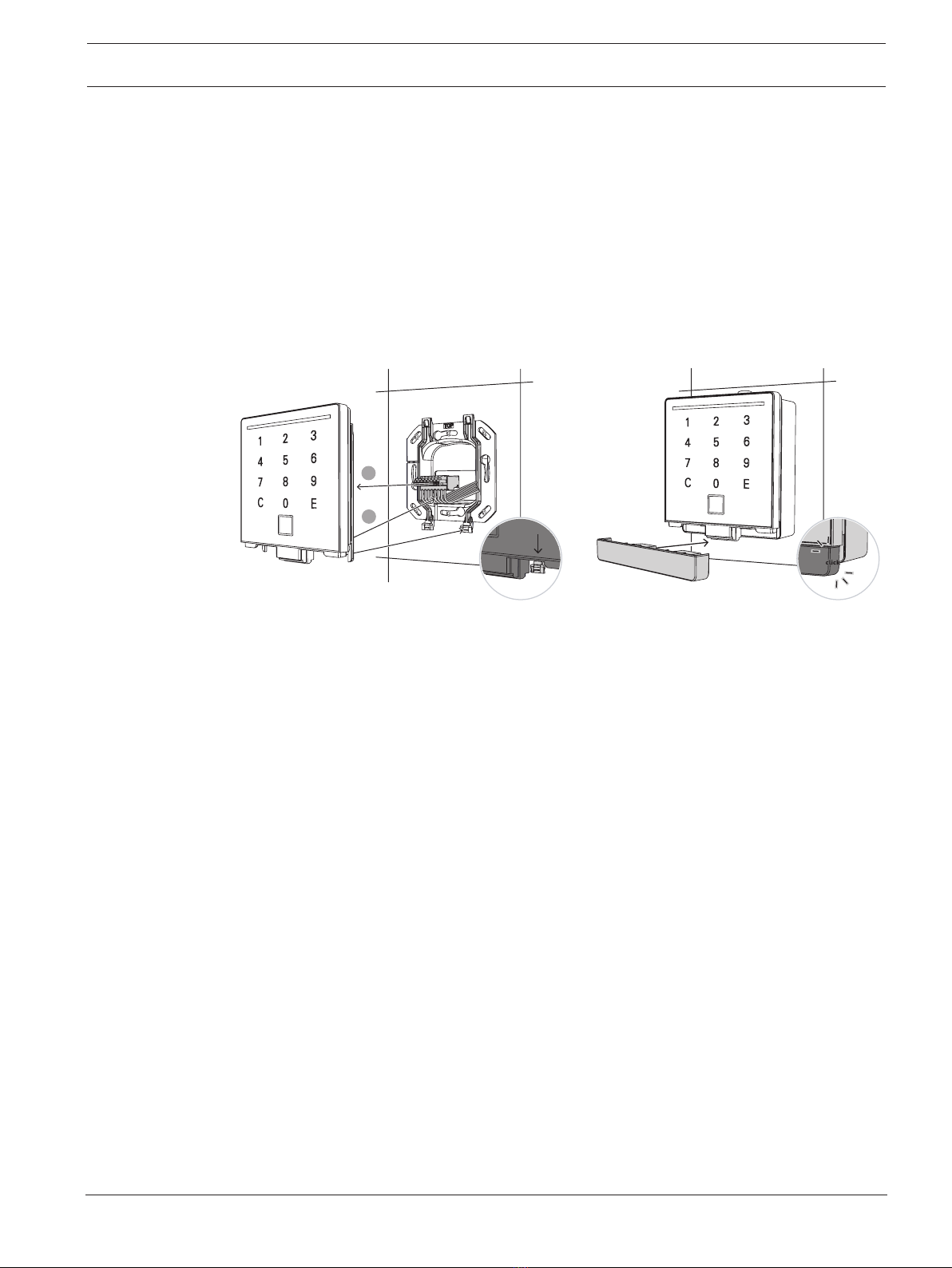

3.7 Unmounting the reader module
1. Unlock the locking bar. To do this, use the screwdriver with the blade max. 4 mm wide
into the unlocking openings and press until the lock releases.
2. Pull out the unlocked locking bar and remove it from the reader module.
3. Push the reader module upwards to release it and lift it off forwards.
1
2
i
Notice!
Any changes that are done to the DIP-switches while the power is on are not considered.
3.8 Resetting OSDP-key
Upon delivery from the factory, each reader has the ‘OSDP installation mode’ set to active.
When operating a reader with an AMC using OSDP secure channel, a dedicated generated
encryption key secures operation and prevents the use of the reader in a different site.
Should it be necessary to change the connection to another access modular controller, then
the OSDP-key must be reset.
It is necessary to reset the OSDP-key:
– if readers and/or access modular controllers need to be changed.
– if the reader must be disposed.
1. Disconnect the reader from the socket.
2. Set all DIP-switches to OFF.
3. Connect the reader to the cable for power-up.
– The reader emits a “beep” sound.
– A green LED starts flashing.
4. Disconnect the reader again.
– The reader is now back in ‘OSDP installation mode’.
– The reader can now be used as a new reader.
i
Notice!
After the reset, the Mobile Access configuration of the Bluetooth® Low Energy module is also
deleted. The configuration may have to be repeated in the Setup Access app.
