Bosch Eyes User manual

Eyes-Outdoor Camera
Instruction Manual
Bosch Smart Home

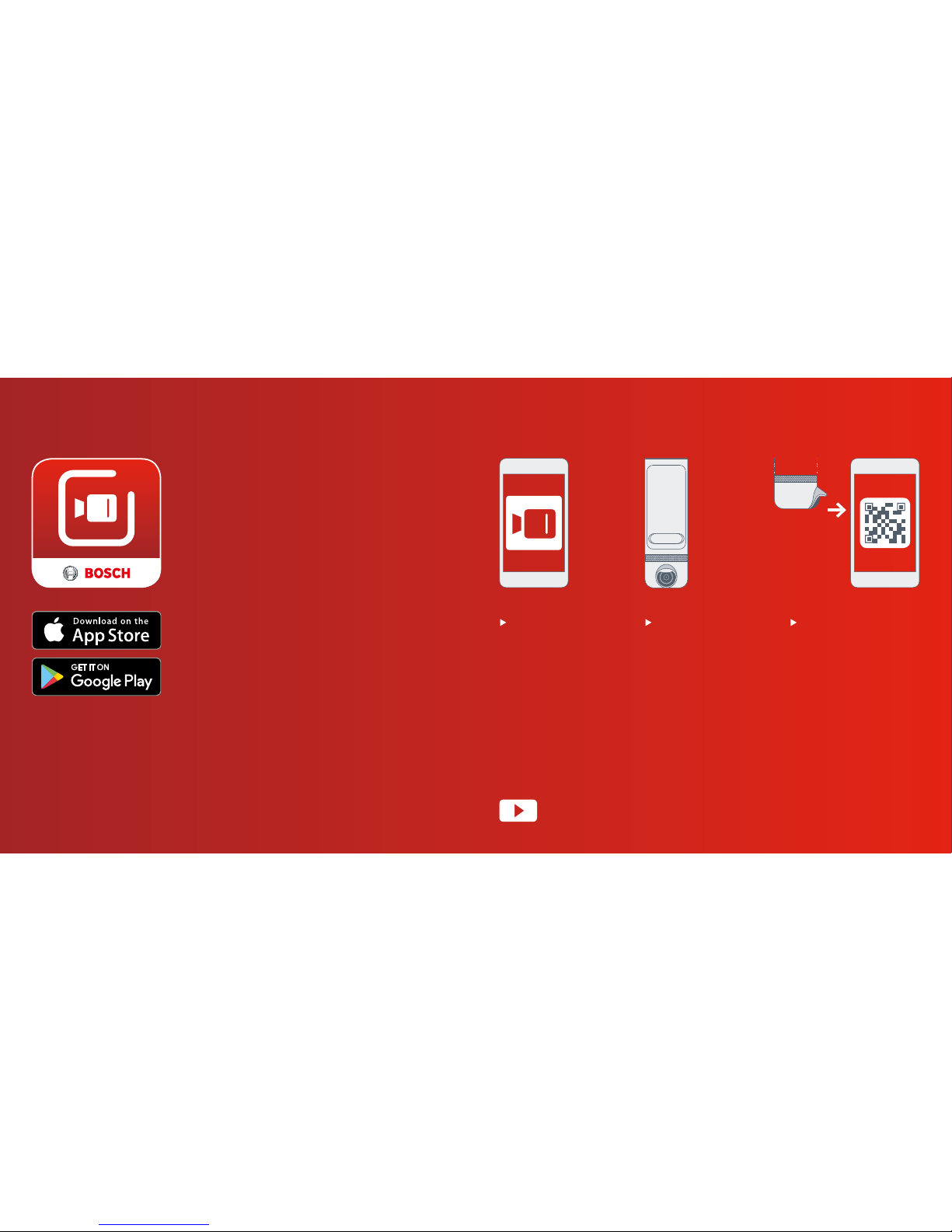

Start making your home smart! Set up your Eyes-Outdoor Camera in just three steps
Start the Bosch
Bosch Smart
Camera App
Mount the Eyes-
Outdoor Camera
and power it up
Use the Bosch Smart
Camera App to
connect and configure
your Eyes-Outdoor
Camera
You need the Bosch Smart Camera
App to install, configure and use
your Bosch Smart Home Eyes-
Outdoor Camera.
Please also make sure that you have
a stable Wi-fi internet connection
available at the installation location.
Make sure that you download the
Bosch Smart Camera App first!
You can also watch easy to follow installation videos on our website:
www.bosch-smarthome.com/installation

5
Congratulations with the purchase of your Bosch Smart Home Eyes-Outdoor
Camera. It will help you to make your home more secure and smarter. Integrated
motion sensors automatically detect motion and record events, while the built-in
lights ensure high quality images at night and offer an attractive illumination to
the exterior of your home. With the Bosch Smart Camera App you can access the
recordings and live images from anywhere, so you will always know if everything
is in order around your home.
We hope you enjoy your new product,
The Bosch Smart Home Team
Dear Customer,

6 7
INDEX
1.0 Product overview ....................08
1.1 Target application ..................... 09
2.0 In the box .................................10
3.0 Warning notices ......................12
3.1 Safety message explanation ..... 12
3.2 Legal notice............................... 13
3.3 Safety precautions .................... 14
4.0 Indicators and control............ 16
4.1 Product overview ...................... 16
5.0 Fixing ........................................20
5.1 Fixing instructions..................... 20
5.2 Check the Wi-fi availability ........ 21
5.3 Install the mounting plate.......... 22
5.4 Power connection ..................... 25
5.5 Place the
Eyes-Outdoor Camera............... 26
6.0 Installation and initial
configuration ...........................28
6.1 Start Camera App ..................... 21
6.2 Add Eyes-Outdoor Camera
to network ................................. 22
7.0 Error and error resolutions....32
8.0 Eyes-Outdoor Camera
operation .................................33
9.0 Maintenance and care ............34
10.0 Product details......................35
10.1 Technical details...................... 35
10.2 Declaration of conformity........ 36
10.3 Faults in radio operation.......... 36
10.4 FCC Statement........................ 37
10.5 Open-Source-Software........... 38
10.6 Environmental protection
and product disposal .............. 39
11.0 Further informations.............40
11.1 Bosch Smart Home System..... 40

8 9

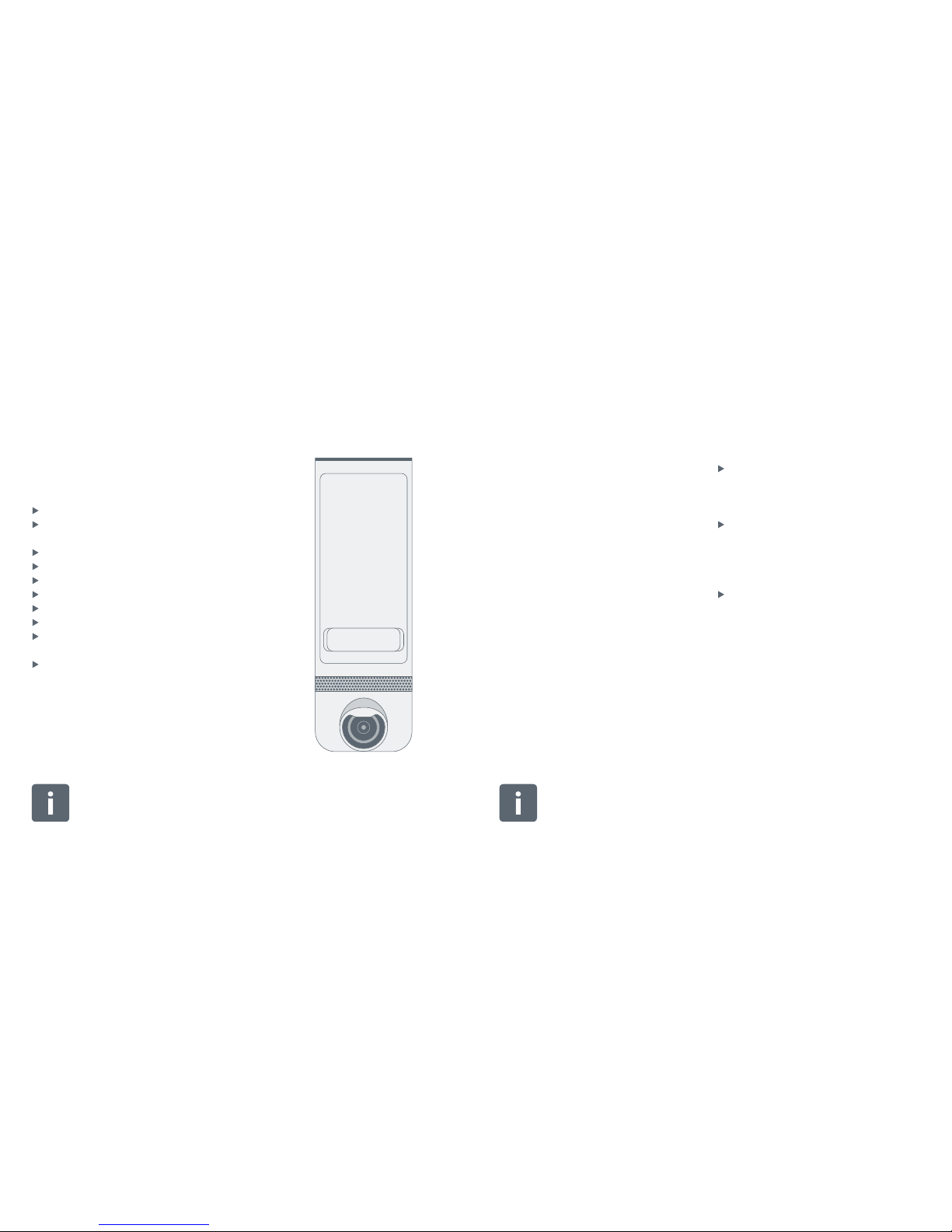

Bosch Smart Home Eyes-Outdoor Camera
is controlled via Wi-fi and has the following
features:
Full HD quality video recording
Internal memory stores capable of storing
up to 200 events
Manually adjustable viewing direction
Configurable privacy masking
Selectable event detection sensitivity
Configurable motion sensitive zones
LED front light (dimmable)
Decorative top/bottom lights
Lamps scheduled based on time or on
ambient illumination
Microphone and speaker for two-way
communication
1.0 PRODUCT OVERVIEW
Detailed information on advanced set-up, including sharing
access to your camera with friends, can be found at
www.bosch-smarthome.com
Do not open or modify the product in any way. Any other use
is considered unintended use. We will not assume liability for any
resulting damage.
1.1 Target application
The product must only be used to-
gether with original Bosch Smart
Home components, and is for outdoor
use only.
Please make sure you strictly follow
the safety and installation instruc-
tions in this document as well as in
the Bosch Smart Camera App
Only use the Eyes-Outdoor Camera
according the installation instruc-
tions and within the temperature and
humidity limits as described in the
Technical Data section (see p. 35)
Avoid direct sun light and sources
of heat and cold

10 11
2.0 IN THE BOX
Wall mounting plateEyes-Outdoor Camera 2 wall plugs 2 mounting screws Screwdriver

12 13
3.0 WARNING NOTICES
3.1 Safety message explanation
3.2 Legal notice
Notice!
Indicates a situation which, if not avoided, could result to
damage of the equipment or environment, or data loss.
Caution!
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Privacy
The Bosch Smart Home Eyes-Outdoor Camera has been developed for
use outdoors. You are responsible for ensuring that the camera and
related services are used lawfully and in compliance with the statutory
requirements applicable at the place of use. In particular, laws in your
country may stipulate permissible purposes of use, installation loca-
tions, selection of image details and the storage period of the video
sequences. If required, inform all persons, employees or third parties
who live in the monitored premises and areas or who are present there
for a significant period of time of the specific circumstances and the
use of the visual security solution in an appropriate manner and obtain
any consent that may be necessary.
Security
By using the Bosch Smart Home Eyes-Outdoor Camera you agree not
to rely on the device and its services for life safety or critical purposes.
Mobile notifications are provided for informational purposes only.
Bosch Smart Home GmbH cannot be held liable for missing or in-
correct notifications or event registrations.

14 15
3.3 Safety precautions
Do not open the Eyes-Outdoor Camera. The Eyes-Outdoor Camera
does not contain any user replaceable parts. If the Eyes-Outdoor
Camera stops working please contact customer service via telephone
00800 843 762 78. Please adhere to manual instructions on intended use.
US/Canada installation
Installations and servicing must be done by qualified technicians and
comply with:
Installed per the American National Electrical Code (NEC), article
280, or Canadian Electric Code (CEC) guidelines as applicable.
The conducting voltage of the surge protector device (SPD) or surge
arrestor must be less than 2,500 Vpk
The branch circuit socket-outlet or circuit breaker shall be installed
near the equipment and shall be easily accessible
The equipment is designed only for normal building installations
(110 VAC 60 Hz)
Use an appropriate 16-AWG power cord for this device. Use UL-listed
flexible cord, SJ or SO serviceable or better, labeled with the suffix
“W,” “W-A,” “Water-Resistant,” or “Outdoor” marked on the cord.
Do not allow anything to rest on the power cord and do not install
the product where someone can walk on the power cord
Do not perform installation activities during thunder storms or when
the threat of lightning is present
Caution, risk of electric shock
Please do not open the housing of the Eyes-Outdoor Camera. It con-
tains live parts with the risk of electric shock. Replacing lights is not
possible.
Please only use original parts. Please only use the mounting
material recommended in this manual. Please do not paint the
Eyes-Outdoor Camera.
This product must only be installed by people legally qualified to install
230 V devices. Please check your local legislation in case of doubts.

4
5
2
3
1
16 17

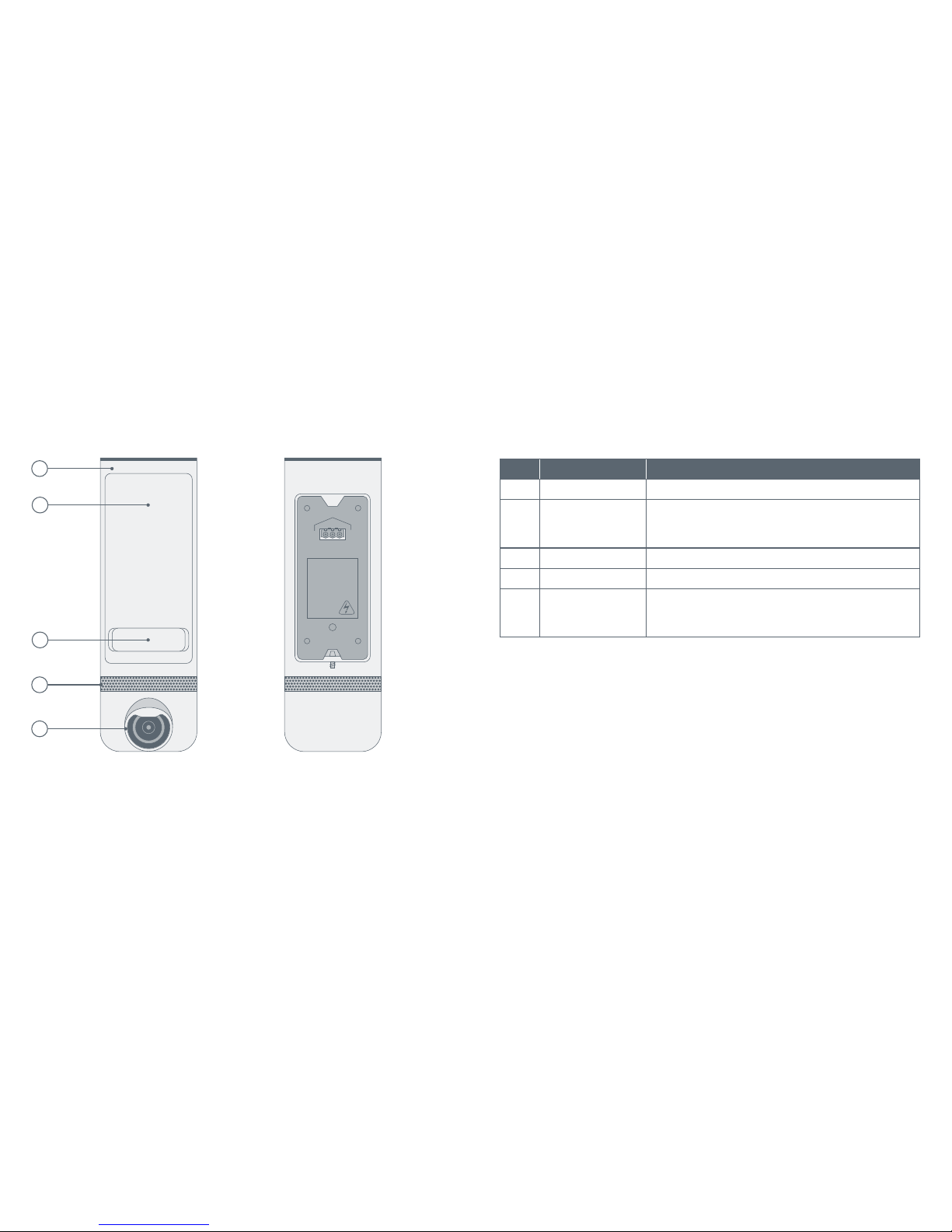

4.0 INDICATORS AND CONTROL
4.1 Product overview
Pos. Description Explanation
1Camera body –
2Front light
Automatically switches on when movement
is detected in the dark. Can optionally be used as
decoration or welcome light
3Motion detector 180°
4Speaker mesh Protects the speaker and microphone
5Wide angle lens
Covers a horizontal viewing angle of 120 degrees;
the direction of view can be optimized during
installation
Front Back

6
6
7
8
9
18 19
4.0 INDICATORS AND CONTROL
4.1 Product overview
Pos. Description Explanation
6Decorative light Top and bottom decoration lights
7Reset hole Resets all settings in the camera, deletes all stored
video, removes the camera from your system
8Terminal block Connection for line wire, neutral wire and earth wire
9Cable entry Please make sure the 230V power cable is routed
through this entry hole
Top
Bottom
Wall mounting plate

3G/4G
20 21
5.0 FIXING
5.1 Fixing instructions
The Eyes-Outdoor Camera needs a stable and sufficiently
strong Wi-fi connection.
You can also watch easy to follow installation videos on our website:
www.bosch-smarthome.com/installation
5.2 Check the Wi-fi availability
Please choose the location where
you would like to position your
Eyes-Outdoor Camera and check the
strength of the Wi-fi-signal using your
smart phone.
The table above indicates if the Wi-fi
connection strength is sufficient
for use in combination with the Eyes-
Outdoor Camera.
Before you start
Please turn off the electricity at all costs!

22 23
5.3 Install the wall mounting plate
The Eyes-Outdoor Camera needs 230 VAC power supply
(line wire, neutral wire and earth wire).
The Eyes-Outdoor Camera must be installed vertically at a wall
between 2.0 and 2.5 meter height above ground.
The Eyes-Outdoor Camera must be installed with the camera
at the bottom.
Before you start the installation please ensure the
power is switched off at the main power switch.
Position the wall mount in the desired location, pull the cable through the cable
entry and mark the two screws on the wall through the screw holes.

N
L
24 25
5.4 Power connection
Connect the power wires as indicated.Remove the mounting plate and drill the holes for the plugs. Push in the plugs
and fix the mounting plate on the wall with the screws.
Earth wire
Neutral wire
Line wire

26 27
5.5 Place the Eyes-Outdoor Camera

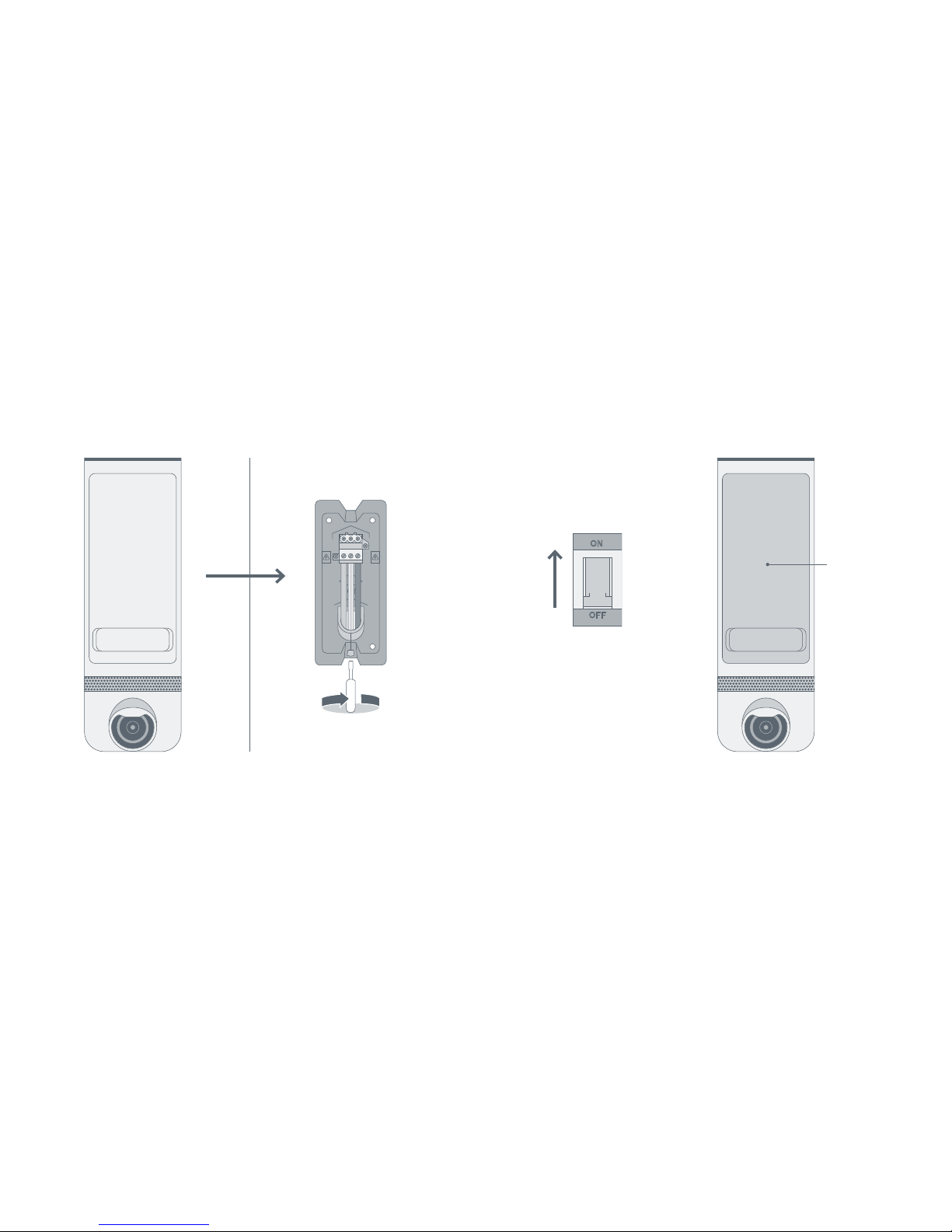

Push the Eyes-Outdoor Camera onto the mounting plate until you hear a click.
Lock the camera in place with the locking screw. Please use the screwdriver
provided to do so.
You can now switch on the power. The camera now boots. When it is ready for
the next installation step, the light at the front flashes green.
Light at the front
flashes green

28 29
6.0 INSTALLATION AND INITIAL CONFIGURATION
Before you start

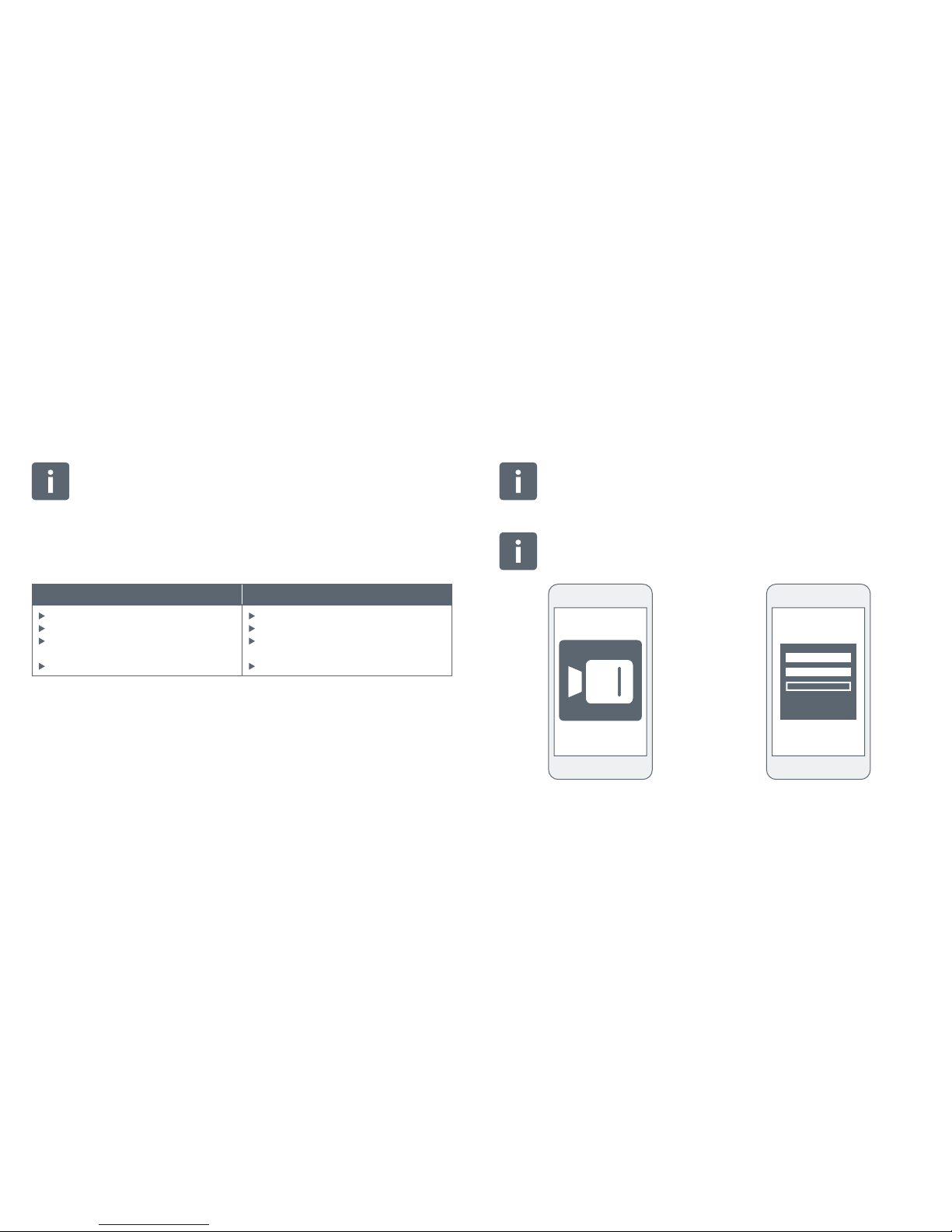

Please first download the Bosch Smart Camera App. You need the app
to install and configure the Eyes-Outdoor Camera. Make sure
you have a Wi-Fi internet connection available and the password to
hand. Make sure your smart phone is connected to the same Wi-fi
network you want to use for the camera.
To configure the Eyes-Outdoor Camera you need to make sure your
phone is connected to the same Wi-fi network you want to connect the
device to. If your router support two frequency bands (2.4 GHz and
5 GHz), select the 2.4 GHz band with your smart phone.
Please don’t close or switch the app during commissioning.
For Android Devices Für Apple iOS-Geräte
Open Google Play
Search for “Bosch Smart Home”
Select the “Bosch Smart Camera
App”
Tap “Install”
Open the App Store
Search for “Bosch Smart Home”
Select the “Bosch Smart Camera
App”
Tap “Install”
6.1 Start Camera App
How to set up your Eyes-Outdoor Camera: launch app and log in or register if you
do not yet have a Bosch account.

30 31
6.2 Configuration of the Eyes-Outdoor Camera
In the Bosch Smart Camera App over-
view screen, select “Add Camera” and
follow the steps indicated in the app.
Once you have completed all the
necessary entries, the app generates
a QR code. Hold it approx. 10 - 20 cm
away from the camera lens.
When the Eyes-Outdoor Camera
recognized the QR code, you will hear
a beep. The camera now begins its ini-
tialisation routine during which the top
half of the light at the front will change
to different colours. At the end of the
routine it will light up blue for approx.
1 min and the camera is displayed in
the app. It is now ready for use.
light at the front
will change to
different colours

32 33
8.0 EYES-OUTDOOR CAMERA OPERATION7.0 ERROR AND ERROR RESOLUTIONS
More detailed information, like how to reset your camera to factory
defaults, visit the online FAQs at www.bosch-smarthome.com/faq
The Eyes-Outdoor Camera is operated
and controlled via the Bosch Smart
Camera App.
More details on all functionality can
be found online in the FAQs section at:
www.bosch-smarthome.com/faq
Error Error indicator Measure
LED off during
installation LED off Please check the power supply
connection to your camera
Generic
boot error
LED blinks
red
Switch off mains fuse or remove camera
from wall, wait 30 seconds and then
power up again
Connection to
Wi-fi failed
LED blinks
alternating
red and green
Check the strength of the
Wi-fi signal (on the camera and on
your smartphone).
Check in your router whether DHCP is
active and connecting new devices is
allowed (MAC filter address).
Tap previous in the app, re-enter the
Wi-fi password, create new QR code
and show QR code to the camera.
If this error is observed with a camera
which was previously working normally,
check your Wi-Fi router.
Connection to
cloud service failed
LED blinks
alternating
red and blue
Check the internet connection of your
router; if OK, wait 30 minutes

34 35
10.0 PRODUCT DETAILS
10.1 Technical details
Device type name SVO-1601-220
Resolution 1920 x 1080 (1080p)
Horizontal viewing angle 120°
Vertical viewing angle 79°
Wi-fi IEEE 802.11b/g/n, 2.4 GHz
Wi-fi free field range 80 m
Max. transmitting capacity 20 dBm
Dimensions (H x W x D) 210 mm x 70 mm x 100 mm
Power Supply 210–250 VAC, 50 Hz
Power consumption 15 W max
Power consumption front illumination 7 W max
Power consumption top/down illumination each 1 W
Weight 750 g
Operational temperature -20 °C to +50 °C
Software class Class A
Dimensions packaging 285 mm x 190 mm x 100 mm
Country of Origin China
9.0 MAINTENANCE AND CARE
Incorrect handling (see notes on intended use) or non-observance
of hazard warnings may compromise the protection afforded by
the device.
The product is maintenance-free.
Repairs should only be performed by
qualified persons. Clean the product
with a soft clean dry and lint-free cloth.
Do not use cleaning agents containing
solvents.

36 37
10.4 FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules standard. Operation is subject
to the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) This device must accept any interference received, including inter-
ference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user
authority to operate the equipment. Referring to the multi-transmitter policy,
multiple-transmitter(s) and module(s) can be operated simultaneously without
C2P. This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator and your body.
10.2 Declaration of conformity
Hereby, Robert Bosch Smart Home
GmbH declares that the radio
equipment type Bosch Smart Home
Eyes-Outdoor Camera is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address:
www.bosch-smarthome.com/
EU-declarations-of-conformity
10.3 Faults in radio operation
Faults in radio operation (e.g. due
to electric motors or defective electri-
cal devices) cannot be ruled out.
The radio range inside buildings may
differ greatly from the radio range in
free-field conditions. Apart from the
transmission power and the receiver
characteristics, environmental influ-
ences such as humidity and structural
characteristics may also influence
radio operation.

38 39
10.6 Environmental protection and product disposal
Environmental protection and disposal
Electrical and electronic equipment
that is no longer usable and defective
or used batteries must be separated
from other waste and recycled in an
environmentally friendly manner
(European Directive on waste electri-
cal and electronic equipment).
To dispose of old electrical and
electronic equipment or batteries,
use your country-specific return
and collection systems.
10.5 Open-Source-Software
This Bosch Smart Home product uses open-source software. You will find
the license information for the components used on this site.
Copyright (C) 2009-2013 ARM Limited. All rights reserved. Redistribution and
use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list
of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the following disclaimer in the documentation and/or
other materials provided with the distribution.
Neither the name of ARM nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior
written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIB-
UTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUB-
STITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
