Bosch AMAX panel 2000 ICP-AMAX-P User manual

AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500
en User Guide

AMAX panel 2000 / AMAX panel 2000 EN Table of Contents | en 3
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
Table of Contents
1 Introduction 4
2 Arming and Disarming the System 8
2.1 Arming the System 8
2.1.1 Arming in AWAY mode 8
2.1.2 Arming in STAY mode 9
2.1.3 Forced arming 9
2.2 Disarming the System 9
2.2.1 Disarming with CODE 9
2.2.2 Disarming with wireless control Key 9
2.2.3 Disarming with Key switch 9
3 Faults or Tamper conditions 10
3.1 System fault or tamper analysis Mode 10
4 Walk test mode 12
5 Event Memory Recall mode 13
6 Reset the Control Panel 14
7 Bypassing 15
7.1 Bypassing Zones 15
7.2 Bypassing Faults and Tamper conditions (Except Zone Tampers) 15
8 Enable / Disable the installers code 16
9 Change individual code 17
10 Keypad alarm operation commands 18
10.1 Duress alarm 18
10.2 Keypad panic alarm 18
10.3 Keypad fire alarm 18
10.4 Keypad medical alarm 18
11 Domestic Dialing 19
Glossary 20
Index 21

4en | Introduction AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
1 Introduction
Quick keypad operation instructions
Table 1.1 Quick keypad operation instructions
ICP-AMAX - LED8-8 Zone LED Keypad ICP-AMAX-LCD8 - 8 Zone LCD Keypad
Arming
AWAY arm [code] + [#] / [#] (quick arming)
STAY arm [code] + [*] / [*] (quick arming)
Disarming
Disarm [code] + [#]
Other Commands
Fault and
Tamper Analysis
[code] + [2] [#]
Walk test [code] + [4] [#]
Event recall [code] + [5] [#]
System Reset [code] + [6] [#]
Bypassing zones [code] + [9] [#] [zone] + [*] [#]
Bypassing Faults
and Tamper
conditions
[code] + [97] [#]
Enable/Disable
Installer code
Enable = [code] + [98] [#] Disable = [code] + [98] [*]
Change
individual code
[code] + [99] [#] [newcode] [#]
Alarm Commands
Duress alarm [code] + [0] [#]
Emergency
alarm
Simultaneously press and hold [1] and [3] or [*] and [#]
Fire alarm Simultaneously press and hold [4] and [6]
Medical alarm Simultaneously press and hold [7] and [9]
Default user code = 2580

AMAX panel 2000 / AMAX panel 2000 EN Introduction | en 5
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
Keypad Indicators
Table 1.2 Keypad Indicators
LCD keypad
indicator icons
LED keypad
indicator lights
Status Definition
Zone (1-8) on Zone is triggered.
off Zone is normal.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Zone was alarmed or is in alarm
status.
Slow flash (1 second lights on/1
second lights off)
Zone is manually bypassed or
interior Zone is in STAY ARM mode.
AWAY on System is armed in AWAY mode.
off System not armed in AWAY mode.
Slow flash (1 second lights on/1
second lights off)
Exit time.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Programming mode or Code
function mode. STAY indicator
flashes simultaneously.
STAY on System is armed in STAY mode.
off System not armed in STAY mode.
Slow flash (1 second lights on/1
second lights off)
Exit time.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Programming mode or Code
function mode. AWAY indicator
flashes simultaneously.
When bypass function is
performed, the STAY indicator only
flashes.
MAINS on AC main power is normal.
Slow flash (1 second lights on/1
second lights off)
AC main power supply failed.
FAULTS on System fault or Tamper condition
is present.
off System is in normal status.
Flashes System fault or Tamper condition
must be acknowledged.
on System is disarmed.
1 2 3 ….

6en | Introduction AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
Keypad sounds
Table 1.3 Keypad sounds
Sound indicator Definition
One short beep A keypad button has been pressed.
One single one-
second beep
The requested operation is refused. Incorrect operation signal.
Two short beeps The system accepted the code. The system executed the requested
function.
One short beep
per second
In walk test mode.
One short beep
every two
seconds
Exit time started.
Continued
sound
– Last 10s on exit time
– Keypad fault/tamper sound (fault/tamper to be acknowledged)
– Keypad alarm sound
Continuous 0.5
second beep,
stops 0.5
seconds
Entry delay time (until alarm ends or system is disarmed).

AMAX panel 2000 / AMAX panel 2000 EN Introduction | en 7
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
Zone description
Zone 1 ______________________________________________________
Zone 2 ______________________________________________________
Zone 3 ______________________________________________________
Zone 4 ______________________________________________________
Zone 5 ______________________________________________________
Zone 6 ______________________________________________________
Zone 7 ______________________________________________________
Zone 8 ______________________________________________________
Exit Time ___________________________________________________ sec
Entry Time _________________________________________________ sec
User Code Names
Code 1 _____________________________________________________
Code 2 _____________________________________________________
Code 3 _____________________________________________________
Code 4 _____________________________________________________
Code 5 _____________________________________________________
Code 6 _____________________________________________________
Code 7 _____________________________________________________
Code 8 _____________________________________________________
Code 9 _______________________________________________________Keyfob 1
Code 10 _____________________________________________________ Keyfob 2
Code 11 _____________________________________________________ Keyfob 3
Code 12 _____________________________________________________ Keyfob 4
Code 13 _____________________________________________________ Keyfob 5
Code 14 _____________________________________________________ Keyfob 6
Code 15 _____________________________________________________ Keyfob 7
Code 16 _____________________________________________________ Keyfob 8

8en | Arming and Disarming the System AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
2 Arming and Disarming the System
2.1 Arming the System
2.1.1 Arming in AWAY mode
Arming the system in AWAY Mode is normally performed when you leave the premises and
require that all zones are activated in a ready state to detect an intrusion.
2.1.1.1 Keypad arming
The system can be set to AWAY mode in two different ways.
To arm the System in AWAY mode (method 1)
Enter your code and press [#].
Two beeps sound, the AWAY indicator flashes slow, and exit time starts. After exit time, the
AWAY indicator turns is lit.
To arm the System in AWAY mode (method 2)
Press and hold [#] until it beeps twice.
The AWAY indicator flashes slow, and exit time starts. After exit time, the AWAY indicator is lit.
Please contact your installer to enable/disable this function.
2.1.1.2 Telephone remote arming
The user dials the control panel number. The control panel answers the call and issues a long
beep. After the long beep, the user must press the [#] key. When the Panel receives the signal
it will confirm the arming of the control panel with a high tone.
Please contact your installer to enable/disable this function.
2.1.1.3 Arming in AWAY mode with wireless remote control Key
Press and hold the Arming Button until two beeps sound on the remote keypad and the AWAY
indicator flashes slow. Exit time starts. After exit time, the AWAY indicator is lit.
NOTICE!
When the number of incorrect code entries on the keypad reaches a specified number, the
keypad will automatically lock for 180 seconds and alarm is reported.If the keypad is idle for 4
minutes, the system will automatically exit from any operational mode.

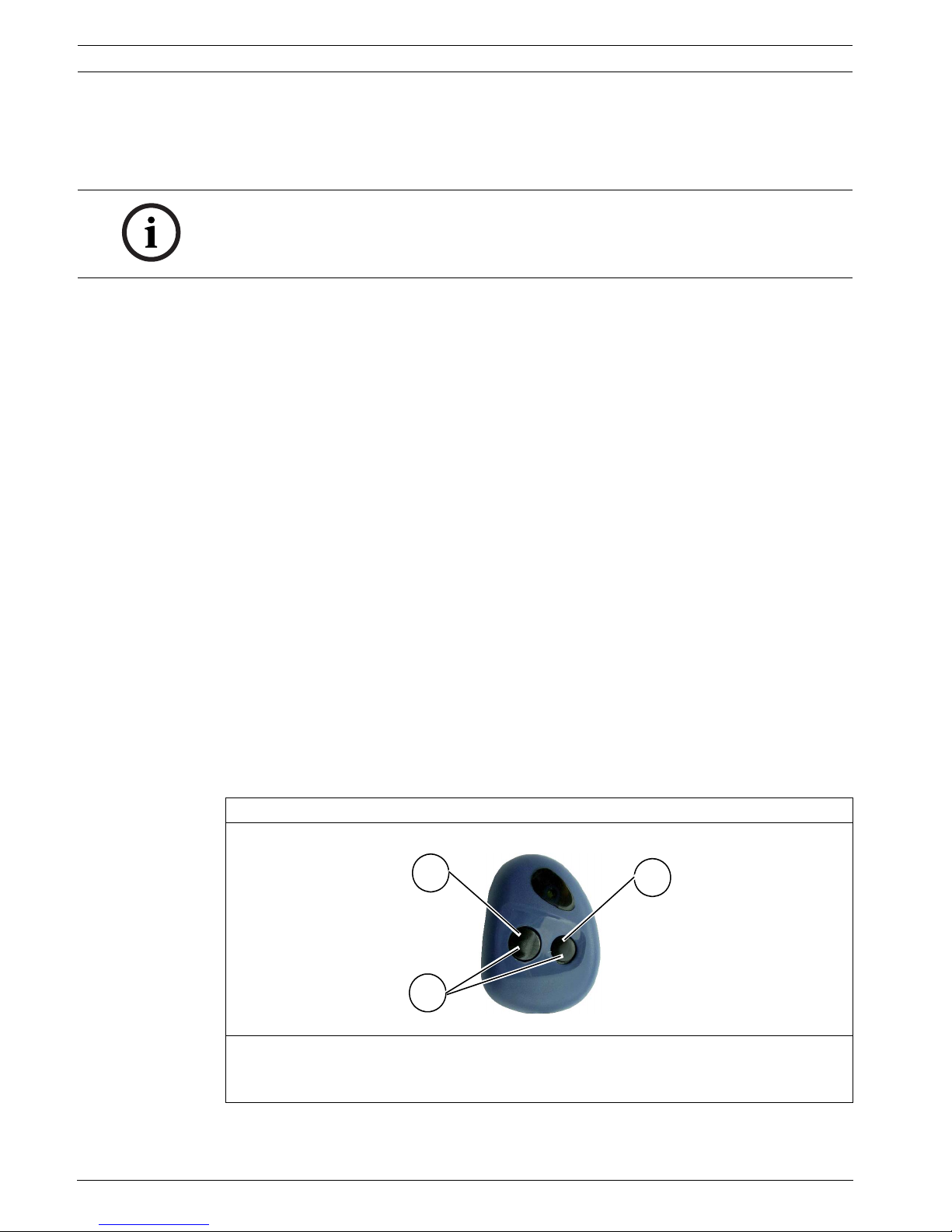

RE012E:2 standard wireless remote control key
1 –Button 1: Arm in AWAY mode
2 –Button 2: Disarm
3 –Button 1 and 2: Press both buttons at the same time to activate Panic alarm
1 2
3

AMAX panel 2000 / AMAX panel 2000 EN Arming and Disarming the System | en 9
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
2.1.1.4 Key switch arming
Users can use a key switch to Arm and Disarm the system. When the Key switch is activated,
the AWAY indicator flashes slow and exit time starts. After exit time, the AWAY indicator is lit.
When the Key switch is deactivated, the system is disarmed and Away indicator is off.
2.1.2 Arming in STAY mode
STAY Mode is used when you need to arm the perimeter and unused areas of the premises to
detect a would-be intruder, while at the same time being able to move freely within an area
that is automatically isolated
There are two methods to arm your system in STAY Mode
To arm the system in STAY mode (method 1)
Enter your code and press [#].
Two beeps sound, the STAY indicator flashes slow and exit time starts. After exit time, the
STAY indicator is lit.
The lights corresponding to all zones programmed as automatically isolated zones (Interior
Instant Zone) begin to flash and continue until the exit time is finished.
To arm the system in STAY mode (method 2)
Press and hold [#] for 3 seconds.
When two beeps sound, release the button.
The STAY indicator flashes slow and exit time starts. After exit time, the STAY indicator is on.
Please contact your installer to enable/disable this function.
2.1.3 Forced arming
Arming the system when a zone is not sealed is known as forced arming. If the AWAY indicator
does not glow, and if a long beep sounds when you attempt to arm the system in AWAY Mode,
then forced arming is not permitted. If this is the case, then you will have to seal all zones or
manually isolate them before you can arm the system.
Please contact your installer to enable/disable this function.
2.2 Disarming the System
2.2.1 Disarming with CODE
Enter your code and press [#] .Two beeps sound and the AWAY or STAY indicator is
extinguished.
2.2.2 Disarming with wireless control Key
Press and hold the Disarming Button. Two beeps sound and the AWAY or STAY indicator is
extinguished.
2.2.3 Disarming with Key switch
When the Key switch is deactivated, the system is disarmed and the AWAY or STAY indicator is
extinguished.

10 en | Faults or Tamper conditions AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
3 Faults or Tamper conditions
Whenever a system fault or tamper condition occurs, the FAULT or MAINS indicator flashes
and the keypad beeps.
3.1 System fault or tamper analysis Mode
To enter fault or tamper analysis mode for determining a system fault or tamper condition:
1. Enter your Code and [2] and press [#]. Two beeps sound.The FAULT indicator remains lit
and the STAY and AWAY indicators flash. The lit zone indicators indicate the type of fault
or tamper condition that occurred.
2. For a multi-level menu, enter the corresponding number to enter the submenu, press [ 0
] key to return to the main menu.
3. To exit from Fault and Tamper Analysis Mode, press [#] . The STAY and AWAY indicators
are extinguished and the FAULT indicator remains lit, and the keypad stops the beep.
NOTICE!
Operation can be carried out only in status.

AMAX panel 2000 / AMAX panel 2000 EN Faults or Tamper conditions | en 11
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
1 Accessory Modules Fail
1Keypad1fail
2Keypad2fail
3 DX 3010 Fail
4 B420/DX 4020 /-G Fail
2Power Faults
1ACFault
2 Fault Battery
3AuxPowerSupplyFault
4 Bosch Option Bus Power Fault
5 RF Power Fault
3 Warning Device Failure List
1 Warning Device 1 Disconnected
2 Warning Device 1 Short
3 Warning Device 2 Disconnected
4 Warning Device 2 Short
4 Telephone Line Fail
5 Date and Time Fail
6 Communications failure
1 Communication Failure 1
2 Communication Failure 2
3 Communication Failure 3
4 Communication Failure 4
7Tamper
1 On board Tamper
2Keypad1Tamper
3Keypad2Tamper
4 Keypad Lock out
5 Sensor Tamper (Zone 1-8)
6 Tamper Zone (Zone 1-8)
8External Fault

12 en | Walk test mode AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
4 Walk test mode
This function allows code holders to test detection devices to ensure they are functioning
correctly. Before activating Walk test Mode, bypass any zones that are not required for
testing.
During the walk test, no walk test report is sent out to the control panel system.
To enter into Walk test Mode:
1. Enter your Code + [4] and press [#].
Two beeps sound and the STAY and AWAY indicators flash. The keypad beeps once per
second when walk test mode is active.
2. Unseal and seal the zones to be tested.
The keypad sounds one second beep and the siren sounds one beep each time when a
Zone status is changed.

AMAX panel 2000 / AMAX panel 2000 EN Event Memory Recall mode | en 13
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
5 Event Memory Recall mode
This function allows you to playback the last 254 system events that occurred.
Event Memory recall mode reports all alarms and each arming or disarming of the system and
helps in troubleshooting system faults.
The events are shown using the keypad indicators. Defined events are shown using keypad
indicators.
To enter Event memory Recall mode:
Enter your code + [5] and press #. Two beeps sound. The events are played back by the
keypad indicators in reverse chronological orer.
Example:
If the events occurred in the following order:
The alarm memory is played back in this order:
Each event is indicated by a beep and a lit indicator.
Resetting a disarmed 24-Hour alarm is indicated by a beep only.
After the last event, two beeps sound to indicate the end of the playback.
You can stop the replay at anytime by pressing [#].
If the system is armed in STAY mode, the STAY indicator shows the event memory playback.
If the control panel is powered down the memory of all events is saved.
Sequence Event
1 System armed in AWAY mode
2 Alarm in Zone 3
3 Alarm in Zone 4
4 System disarmed
Sequence Indication Event
1 All indicators off System disarmed
2 Zone 4 and AWAY indicators light Alarm in Zone 4
3 Zone 3 and AWAY indicators light Alarm in Zone 3
4 AWAY indicator lights System armed in AWAY mode

14 en | Reset the Control Panel AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
6 Reset the Control Panel
This function allows code holders to reset all Alarm Faults and Tamper conditions.
Enter your code and then press [6] [#].
The keypad beeps twice and the signal is eliminated.
NOTICE!
You can reset alarms, faults or tamper conditions, only when they are not active anymore.

AMAX panel 2000 / AMAX panel 2000 EN Bypassing | en 15
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
7Bypassing
7.1 Bypassing Zones
By bypassing Zones, one or more zones are disabled for one arming cycle. After bypassing a
zone, you can arm the system even when a zone is in alarm state.
How to bypass a zone
1. Enter your code and press [9] [#]. The STAY indicator flashes fast.
2. Enter the zone number you wish to bypass, then press the [*] key.
(If you wish to bypass multiple zones, please repeat step 2).
3. If you wish to cancel bypassed zone, enter the zone number of the bypassed zone , then
press the [*] key.
(If you wish to cancel several bypassed zones, please repeat step 3.)
4. Press [#] to exit.
7.2 Bypassing Faults and Tamper conditions (Except Zone
Tampers)
Bypassing Faults and Tamper conditions, one or more faults and tamper conditions are
disabled for one arming cycle. After bypassing a Fault or Tamper condition, you can arm the
system even when a Fault or Tamper condition exists.
How to bypass faults and tamper conditions
1. Enter user code + [97] and press [#].
Two beeps sound.
NOTICE!
If the selected zone is already bypassed, when operating this zone, the bypass from this zone
will be cancelled.

16 en | Enable / Disable the installers code AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
8 Enable / Disable the installers code
This function allows user code holder to enable or disable the installer code.
Installer can only perform actions when he is enabled by a user.
1. Enter your user code + [98] and press [#] to enable the function.
Two beeps sound.
2. Enter your user code + [98] and press [*] to disable the function.
Two beeps sound.

AMAX panel 2000 / AMAX panel 2000 EN Change individual code | en 17
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
9 Change individual code
This function allows user to change their individual code.
How to change the code
1. Enter your code and press [ 99] [#].
Two beeps sound and the STAY and AWAY indicators flash, and your user number is
shown on the keypad.
2. Enter the new code and press [#].
Two beeps sound and the STAY and AWAY indicators are extinguished.
NOTICE!
Thia function is automatically terminated if you do not press a button within 240 seconds or if
you press [#]. One long beep indicates that the code already exists or that you entered an
incorrect user number.

18 en | Keypad alarm operation commands AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
10 Keypad alarm operation commands
10.1 Duress alarm
A keypad duress alarm is used as a silent holdup alarm when 0 is added to the end of a valid
Code used to disarm the system ( [code] + [0] + [#] ).
A duress alarm is useful only if your system reports to a monitoring station. Domestic
reporting cannot define the type of alarm that occurred.
10.2 Keypad panic alarm
If you simultaneously press and hold [1] and [3] or simultaneously press and hold [*] and [#],
a silent emergency alarm will be transmitted. Please contact your installer to enable/disable
the keypad emergency alarm functionality.
Simultaneous pressing and holding the wireless remote control key arming and disarming key
can also transmit a wireless emergency alarm.
10.3 Keypad fire alarm
If you simultaneously press and hold [4] and [6], a silent keypad fire alarm will be transmitted.
Please contact your installer to enable/disable the fire alarm functionality.
10.4 Keypad medical alarm
If you simultaneously press and hold [7] and [9], a silent keypad emergency medical alarm will
be transmitted. Please contact your installer to enable/disable the emergency medical alarm
functionality

AMAX panel 2000 / AMAX panel 2000 EN Domestic Dialing | en 19
Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11
11 Domestic Dialing
Domestic Dialing Alarm
When the control panel is activated into zone tamper/zone alarm, it can dial the mobile phone
or telephone number of a family member/friend. A maximum of one telephone number can be
called through the control panel during an alarm.
Contact your installer to enable/disable the Domestic dialinf functionality.
Confirming the Domestic call
All alarm events need acknowledgement.
The transmission sequence is repeated until the control panel recieves an acknowledgement
tome.
The control panel automatically hangs up after 45 seconds if it cannot detect the
acknowledgement tone and redial later.
The user presses [#] between two acknowledgement tones to confirm the alarm.
If the control panel got the [#] acknowledgement from the user, it will send 2 second long
beep as acknowledge tone and hang up the line.

20 en | Glossary AMAX panel 2000 / AMAX panel 2000 EN
F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited
Glossary
A
Alarm Event that is configured as an alarm. This is a particular situation (motion detected, doorbell
rung, signal lost, etc.) that requires immediate attention. An alarm can include live video,
playback video, an action plan, or a map.
