Brother ScanNCut DX Embossing Tool Set User manual

1
By using the embossing tools with the cutting machine, you can create embossing by pressing a pattern into the material* for either a
recessed effect or, by flipping over the material, a raised effect.
Use this kit to create custom embossed projects.
* Use paper and metal sheet only for the material.
●For details on the region embossing procedure, refer to “Consumables & Options” at the Brother Solutions Center
(http://s.brother/ccoab/).
●The following optional accessories will be necessary for region embossing.
- Embossing template sheets (CAEBSTS1) (F)
- Scanning support sheet (CASTCL1 (stencil sheet)) (G)
●Use the embossing mat when you emboss. Embossing mat can be purchased separately. CAEBSMAT1(embossing mat) (D)
●When embossing metal sheets, be sure to use genuine Brother metal sheets. Metal sheets can be purchased as optional
accessories. CAEBSSMS1 (embossing silver metal sheets) or CAEBSBMS1 (embossing brass metal sheets). (E)
●Do not insert any object other than the embossing tools into the embossing tool holder.
●Do not cut while using the embossing mat.
●If the adhesive strength of the embossing mat is reduced, lightly wipe it with a wet wipe (recommended to use an alcohol-free wet
wipe), to remove any dust or dirt. After wiping the mat, be sure to allow it to dry. If the mat becomes wet, its surface will become
brittle.
●If material can no longer be attached to the embossing mat, replace the mat with a new one.
●Without peeling the embossing mat off the cutting mat, affix the protective sheet for the cutting mat before storing the mats.
●Do not store in a location exposed to direct sunlight, high temperatures or high humidity.
●Use in an environment between 10 °C and 35 °C (50 °F and 95 °F).
●For detailed instructions on using the cutting machine, refer to the Operation Manual supplied with it.
●The contents of this document are subject to change without notice.
●The screens in this manual are for illustration purposes only and may differ from the actual screens.
Embossing Tool Set
About the Embossing Tool Set
About region embossing
Precautions
EN
Version 0

2
After purchasing this kit, check the contents.
The following are available as optional accessories to be purchased separately.
For purchase options, contact the retailer where this set was purchased.
* You must purchase the embossing mat (CAEBSMAT1) separately for line embossing.
aTouch "Premium Functions" on the settings screen. bSelect "ON" beside "Kit Activation (Emboss)".
• As a default, this function is set to “OFF”.

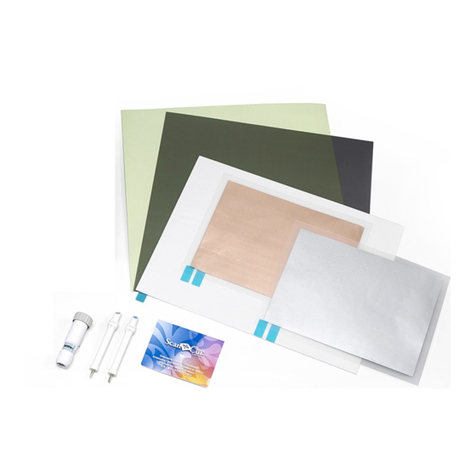

Accessories
ABC
Name
A Embossing tool holder
B Embossing tools (diameter 1.5 mm and 3 mm)
CInsertion
DEF G
Name
D Embossing mat 12" × 9.5" (305 mm × 241 mm) *
E Metal sheets with self-adhesive protective sheets (silver and brass color) 7.9" × 6.1" (200 mm × 155 mm) (thickness 0.1 mm)
FTemplate sheet 12" × 12" (305 mm × 305 mm)
GScanning support sheet 12" × 12" (305 mm × 305 mm)
Activating the Embossing function on the machine

3
In this manual, the embossing effect created using the lines of a pattern is called line embossing.
■Precautions
• With line embossing, only use paper with a thickness of 0.5
mm or less or metal sheets with a thickness of 0.2 mm or less.
• The procedure for metal sheets uses genuine Brother metal
sheets.
aWith the tab on the embossing mat at the bottom left,
attach the green side to the standard tack adhesive mat or
the low tack adhesive mat.
• We recommend attaching it to a new cutting mat.
• Attach the embossing mat so it does not extend from the
attaching area of the cutting mat.
bPeel the protective sheet from the embossing mat, and
then attach the material (side to be embossed facing
down) to the mat.
• Position the material so the area to be embossed fits within the
embossing mat.
b(With metal sheets) Peel the protective sheet from the
embossing mat, and then attach the metal sheet (with the
protective sheets attached and the tabs at the bottom) to
the mat.
• Using a metal sheet without the protective sheets, may result in
damage of the emboss tool or the cutting machine.
• Before cutting the metal sheet, emboss it, and then peel off
both protective sheets. Before embossing the remainder of the
metal sheet, affix a protective sheet to each side.
cSet the elevation lever on the left side of the machine to
the "2" position.
dRetrieve the embossing pattern in the cutting machine,
and then feed in the mat and touch to scan the
material.
• Flip asymmetrical (mirror image) patterns to create the
embossed effect on the front surface of the material.
• Position the pattern so it does not extend from the material. If
the embossing tool touches the embossing mat, the mat may
be damaged.
• If the pattern extends out of the scanned material shown on the
LCD display screen, touch the "Edit" key to adjust the position
or size of the pattern.
Line embossing

4
eRemove the embossing tool holder cap.
Select the embossing tool according to the line thickness
that you want to emboss, and then insert the embossing
tool into the embossing tool holder so that on the tool
aligns with on the holder. After securing the holder
cap, insert the holder into the cartridge.
• Before inserting the holder into the cartridge, check if the tool
moves up and down in the holder. If the tool moves, remove
the cap, and then attach it again.
fSelect "Emboss" on the preview screen.
gTouch , and then specify the setting for “Emboss
Pressure”.
• The recommended embossing pressure differs depending on
the material and embossing tool diameter. Refer to the
following table when adjusting the setting.
• This table of values provides general guidelines. Before making
your project, perform trial embossing with the same material.
Material Thickness Embossing Pressure
1.5 mm tool 3 mm tool
Paper (thick)
0.25 mm 4 4
Metal sheets
-00
Paper (thin) 0.1 mm -6 -4

5
hTouch the "Test" key to make a trial embossing. Check the
result of the test embossing, and if there are no problems,
touch the "Start" key.
• If the desired embossing effect is not achieved, adjust the
embossing pressure. The embossing effect differs depending on
the type and thickness of the material.
• Some materials may tear if the embossing pressure is too strong
or the embossing speed is too fast.
iUse the spatula to carefully peel the material from the
embossing mat.
• Always remove the embossing tool holder from the carriage
after use and close the front tray of the machine.
i(With metal sheets) Remove the metal sheet (with the
protective sheets attached) from the embossing mat, and
then peel both of the protective sheets from the metal
sheet by using the tabs.
• When peeling the metal sheet from the protective sheets, do
not touch the edges of the metal sheet, otherwise injuries may
result.
1. Embossing is not clear.
• If the embossing depth is insufficient, increase the embossing
pressure.
• If the edges are not clear, decrease the inward offset on the
region emboss settings screen.
However, if the offset is too small, embossing cannot be
completed correctly.
2. The material tears.
• If the material tears, decrease the embossing pressure.
If you need additional help, the Brother Solutions Center offers the
latest FAQs and troubleshooting tips. Visit us at "http://s.brother/
cfoag/".
Troubleshooting
