Burkert 3320 User manual

Operating Instructions
Type 3320, 3321,
AE3320, AE3321
Electromotive 2/2-way valve

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© 2015 – 2021 Bürkert Werke GmbH & Co. KG
Operating Instructions 2101/04_EU-EN_00810525 / Original DE

3
Content
1OPERATING INSTRUCTIONS ................................................................................................................7
1.1 Symbols........................................................................................................................................7
1.2 Denitionofterms........................................................................................................................ 7
2INTENDED USE ......................................................................................................................................8
3BASIC SAFETY INSTRUCTIONS ...........................................................................................................9
4GENERAL NOTES.................................................................................................................................11
4.1 Contactaddress.........................................................................................................................11
4.2 Warranty .....................................................................................................................................11
4.3 InformationontheInternet........................................................................................................11
5PRODUCT DESCRIPTION....................................................................................................................12
5.1 Generaldescription....................................................................................................................12
5.2 Properties ..................................................................................................................................12
6STRUCTURE AND FUNCTION.............................................................................................................14
6.1 Representation–Structureoftheelectromotivevalve............................................................15
6.2 Valvepositionaftersupplyvoltagefailure ................................................................................16
6.3 Safetyposition ...........................................................................................................................16
6.4 Displayofthedevicestatus ......................................................................................................17
6.5 Factorysettings.........................................................................................................................19
7CONTROL ELECTRONICS...................................................................................................................20
7.1 Function......................................................................................................................................20
7.2 EnergystorageSAFEPOSenergy-pack(option) ......................................................................21
8TECHNICAL DATA ................................................................................................................................24
8.1 Conformity..................................................................................................................................24
8.2 Standards ...................................................................................................................................24
Electromotive 2/2-way valve
Types 3320 and 3321
English

4
Types 3320 and 3321
8.3 Approvals ...................................................................................................................................24
8.4 Typelabel ...................................................................................................................................24
8.5 Operatingconditions .................................................................................................................25
8.6 Generaltechnicaldata...............................................................................................................28
8.7 Electricaldata ............................................................................................................................28
8.8 KvvaluesforType3320and3321.............................................................................................30
9INSTALLING THE VALVE ......................................................................................................................31
9.1 Safetyinstructions .....................................................................................................................31
9.2 Installationofdeviceswiththreadedsocketconnectionorangeconnection .....................31
9.3 Installationofdeviceswithweldedconnections......................................................................32
9.4 Rotatingtheactuator.................................................................................................................36
9.5 Holdingdevice ...........................................................................................................................37
10 ELECTRICAL INSTALLATION............................................................................................................... 38
10.1 Electricalinstallationwithcircularplug-inconnector ..............................................................38
10.2 Electricalinstallationwithcablegland......................................................................................41
11 START-UP .............................................................................................................................................47
11.1 Safetyinstructions .....................................................................................................................47
11.2 Basesettings..............................................................................................................................47
11.3 Setsafetypositionandeectivedirection ...............................................................................47
11.4 Adjustmentofpositioncontroller–executeX.TUNE ...............................................................48
11.5 SetAUTOMATICoperatingstate...............................................................................................50
12 OPERATION..........................................................................................................................................51
12.1 Overview:Availabilityoftheoperatingelements......................................................................51
12.2 Displayelements .................................................................................................................................. 52
12.3 Operatingelements....................................................................................................................53
12.4 büSserviceinterface .................................................................................................................54
12.5 SIMcard–acquireandsavedata(option) ........................................................................................ 55
12.6 UserinterfaceoftheBürkertCommunicatorPCsoftware............................................................... 56
12.7 EstablishtheconnectionbetweendeviceandBürkertCommunicator..................................57
English

5
Types 3320 and 3321
13 BASIC FUNCTIONS..............................................................................................................................58
13.1 Changingtheoperatingstate,AUTOMATIC,MANUAL ............................................................58
13.2 Setsafetypositionandeectivedirection ...............................................................................59
14 ADVANCED FUNCTIONS................................................................................................................................ 60
14.1 X.TIME – limitationofcontrolspeed .........................................................................................60
14.2 X.LIMIT – mechanicalstrokerangelimit...................................................................................61
14.3 SetLEDoperationmode ...........................................................................................................62
14.4 Settingthecoloursforindicatingvalveposition ......................................................................63
15 MANUALOVERRIDEOFVALVE ..........................................................................................................64
15.1 Enablevalveelectrically ............................................................................................................64
15.2 Actuatingthevalvemechanically..............................................................................................65
16 OPERATING STRUCTURE AND FACTORY SETTING .........................................................................67
16.1 Operatingstructureofthecongurationarea ..........................................................................67
17 INDUSTRIAL ETHERNET .....................................................................................................................74
17.1 Fieldbusgatewaydescription ...................................................................................................74
17.2 TechnicaldataIndustrialEthernet.............................................................................................76
17.3 Projectingviaeldbus ...............................................................................................................77
17.4 Webserver .................................................................................................................................79
17.5 Advancedfunctionalities ...........................................................................................................81
18 MAINTENANCE,TROUBLESHOOTING...............................................................................................83
18.1 Safetyinstructions .....................................................................................................................83
18.2 Maintenance...............................................................................................................................83
18.3 Troubleshooting .........................................................................................................................85
19 CANopen ..............................................................................................................................................88
19.1 Projectingviaeldbus ...............................................................................................................88
19.2 CANopennetworkconguration ............................................................................................... 88
20 büS........................................................................................................................................................88
English

6
Types 3320 and 3321
20.1 CablingofbüSnetworks ...........................................................................................................88
20.2 CongurationofbüSnetworks..................................................................................................88
21 CLEANING ............................................................................................................................................89
22 ACCESSORIES,REPLACEMENTPARTS............................................................................................90
22.1 Communicationsoftware...........................................................................................................90
22.2 Spareparts.................................................................................................................................91
22.3 Assemblytools...........................................................................................................................92
23 DISASSEMBLY .....................................................................................................................................93
23.1 Safetyinstructions .....................................................................................................................93
24 PACKAGING AND TRANSPORT ..........................................................................................................94
25 STORAGE .............................................................................................................................................94
26 DISPOSAL ............................................................................................................................................94
English

7
Operating instructions
Types 3320 and 3321
1 OPERATING INSTRUCTIONS
The operating instructions describe the entire life cycle of the device. Keep these instructions in a location
which is easily accessible to every user and make them available to every new owner of the device.
Importantsafetyinformation!
Carefully read through the operating instructions. Study in particular the chapters entitled Basic safety
instructions and Intended use.
▶The operating instructions must be read and understood.
1.1 Symbols
DANGER!
Warnsofanimmediatedanger.
▶Failure to observe these instructions will result in death or serious injuries.
WARNING!
Warnsofapotentiallyhazardoussituation.
▶Failure to observe these instructions may result in serious injuries or death.
CAUTION!
Warnsofapotentialdanger.
▶Failure to observe these instructions may result in moderate or minor injuries.
NOTE!
Warnsofdamage.
•Failure to observe the warning may result in damage to the device or the equipment.
Indicates important additional information, tips and recommendations.
Refers to information in these operating instructions or in other documentation.
▶Designates instructions to avoid danger.
→Designates a procedure that you must carry out.
designates a result.
1.2 Denition of terms
•The term “Device” used in these instructions applies to all valve types described in these instructions.

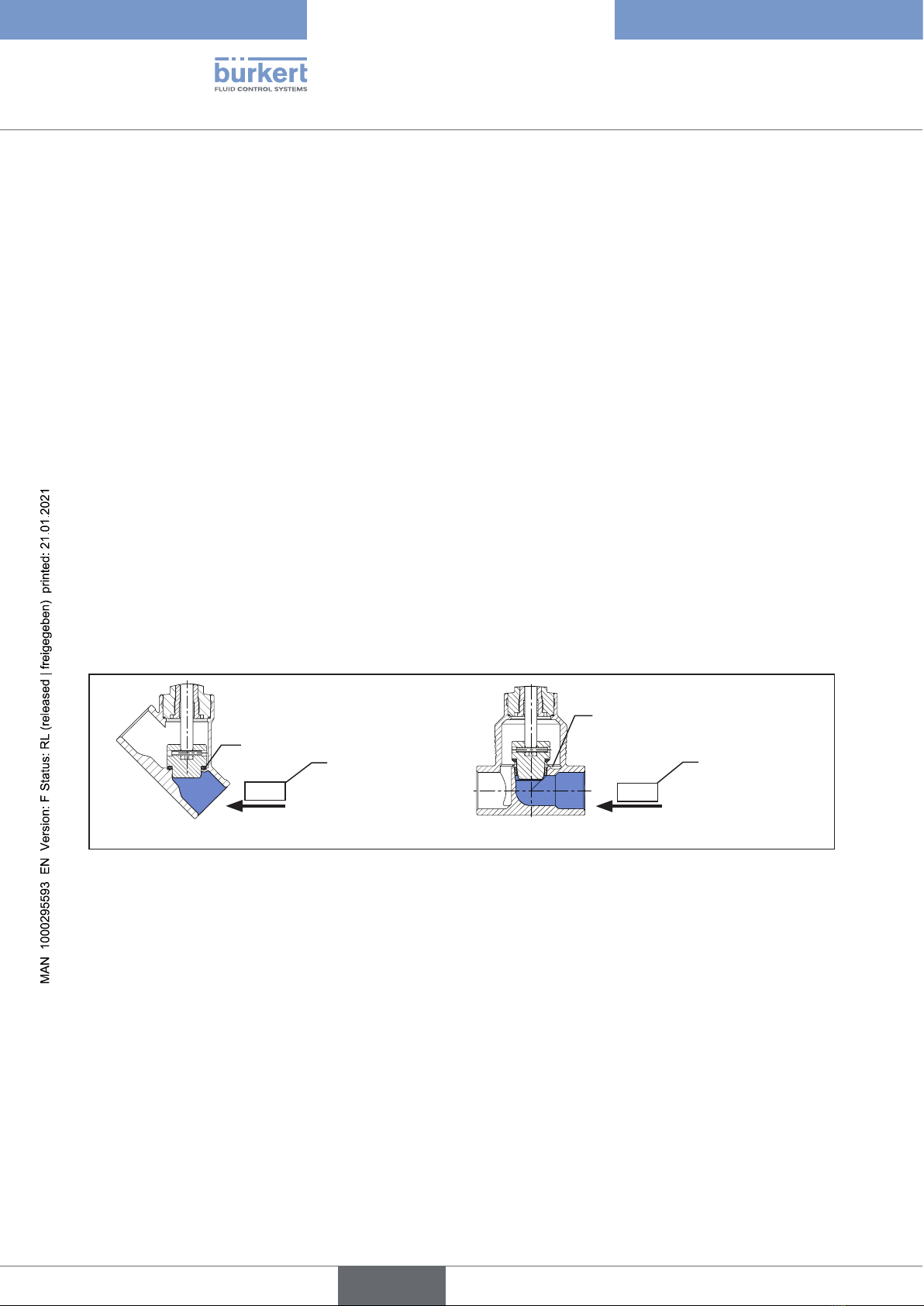

Type 3320, electromotive 2/2-way angle seat valve
Type 3321, electromotive 2/2-way globe valve
•The abbreviation “Ex” used in these instructions stands for “potentially explosive”.
•The term “büS” (Bürkert system büS) used in this manual stands for the communication büS developed
by Bürkert, based on the CANopen protocol.
•In these instructions, the unit bar stands for relative pressure. The absolute pressure is stated separately
in bar(abs).
English

8
Intended use
Types 3320 and 3321
2 INTENDED USE
Improperuseoftheelectromotive2/2-wayType3320and3321valvemaybedangerousforpeople,
nearbyequipmentandtheenvironment.
Theelectromotive2/2-wayType3320and3321valveisdesignedtocontroltheowofliquidand
gaseousmedia.
▶Standard devices must not be used in the potentially explosive area. They do not possess the separate
“Ex” type label denoting the approval for use in potentially explosive environments.
▶If the position of the valve has a bearing on safety concerns in the event of a power failure: Only use
devices that have a SAFEPOS energy-pack (optional energy pack).
▶When using the device, observe the authorised data, operating conditions and deployment conditions
specied in the contract documents and in the operating instructions.
▶Protect device from harmful environmental inuences! (e.g. radiation, air humidity, fumes, etc.) For any
matters requiring clarication, contact the relevant sales department.
Usethedevice
▶Use only in conjunction with third-party devices and components recommended or approved by
Bürkert.
▶Only use the device when it is in perfect condition; always ensure proper storage, transportation, instal-
lation and operation.
▶only as intended.
English

9
Basic safety instructions
Types 3320 and 3321
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not take into account any unforeseen circumstances and events which occur
during installation, operation and maintenance. The operator is responsible for observing the location-specic
safety regulations, also with reference to personnel.
Riskofinjuryfromhighpressure.
▶Before working on the device or system, switch o the pressure and vent or empty the lines.
Dangerofburnsandriskofre.
Following an extended duty cycle or as a result of a hot medium, the surface of the device may become hot.
▶Only touch the device when wearing protective gloves.
▶Keep the device away from highly ammable substances and media.
Dangerduetoloudnoises.
▶Depending on the usage conditions, the device may generate loud noises. Detailed information on the proba-
bility of loud noises is available from the respective sales department.
▶Wear hearing protection when in the vicinity of the device.
Dischargeofmediumifpackingglandworn.
▶Relief bore must be regularly inspected for any medium leakages.
▶If medium is leaking from the relief bore, the packing gland must be replaced (see chapter “Maintenance”).
▶If the medium is hazardous, secure the area around the leakage to prevent risks.
Riskofcrushingbymechanicallypoweredparts.
▶Installation work on the swivel plate, diaphragm and valve body must only be performed while electrically
isolated.
For devices with SAFEPOS energy-packs: Ensure that the SAFEPOS energy-pack is fully discharged. Wait
until the LED ring is no longer lit and ensure that the LED status is not in “LED o” mode.
▶Do not reach into the openings of the valve body.
Riskofuncontrolledprocessintheeventofapowerfailure.
For devices without the optional SAFEPOS energy-pack, the valve will not stop in a dened position in the
event of a power failure.
▶If the position of the valve has a bearing on safety concerns in the event of a power failure: Only use
devices that have a SAFEPOS energy-pack (optional energy pack).
▶Select a valve position that is safe in respect of the process using the DIP switch.
English

10
Basic safety instructions
Types 3320 and 3321
Generalhazardoussituations.
To prevent injury, ensure that:
▶In potentially explosive environments, the device must only be used in accordance with the specica-
tions on the separate Ex-type label.
▶The additional information and safety instructions relating to potentially explosive atmospheres enclosed
with the device or the separate operating instructions relating to potentially explosive atmospheres must
be heeded when using the device.
▶In potentially explosive atmospheres, only use devices with a separate type label for use in such
atmospheres.
▶Feed only those media listed in chapter “8 Technical data” into the medium ports.
▶Do not make any internal or external changes to the device and do not subject it to mechanical stress.
▶Transport, install and dismantle a heavy device only with the aid of a second person and using suitable
equipment.
▶Secure to prevent unintentional operation.
▶Only trained technicians carry out installation and maintenance work.
▶Following an interruption in the power supply, ensure that the process is restarted in a controlled man-
ner. Observe the sequence.
1. Connect supply voltage.
2. Charge the device with medium.
▶Observe general engineering standards & rules.
▶The valves must be installed according to the regulations applicable in the country of use.
NOTE!
Electrostaticallysensitivecomponentsandassemblies.
The device contains electronic components that are susceptible to the eects of electrostatic discharging
(ESD). Components that come into contact with electrostatically charged persons or objects are at risk. In
the worst-case scenario, they will be destroyed immediately or will fail after start-up.
•Meet the requirements specied by EN61340-5-1 to minimise or avoid the possibility of damage caused
by sudden electrostatic discharge.
•Do not touch electronic components when the supply voltage is connected.
English

11
General notes
Types 3320 and 3321
4 GENERAL NOTES
4.1 Contact address
Germany
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelngen
Tel. + 49 (0) 7940 - 10-91 111
Fax + 49 (0) 7940 - 10-91 448
E-mail: [email protected]
International
The contact addresses can be found on the back pages of the printed operating instructions.
Also on the Internet at:
country.burkert.com
4.2 Warranty
A precondition for the warranty is that the device is used as intended and that the specied usage conditions
are taken into account.
4.3 Information on the Internet
Operating instructions and data sheets for Types 3320 and 3321 can be found on the Internet at:
country.burkert.com
English

12
Product description
Types 3320 and 3321
5 PRODUCT DESCRIPTION
5.1 General description
The 2/2-way electromotive valve Type3320 and 3321 is suitable for liquid and gaseous media.
This may be neutral gas, water, alcohol, oil, fuel, hydraulic uid, salt solution, caustic soda, organic solvent
or vapour.
The 2/2-way valve has an electromotive linear actuator with the actuating electronics assembly, which is
actuated either via binary signals or (digitally) via a eldbus. The electromotive linear actuator is set up such
that it is optimally eective. At the same time, when idling without power, it also keeps the valve sealed even
under the maximum specied operating pressure.
The device can also be equipped with the energy storage system (SAFEPOS energy-pack). In the event of a
supply voltage failure, the energy storage system supplies the actuator with the energy required to move the
valve to the desired position, which can be set in the menu.
The valve position can be manually changed in two ways.
1. Electrical manual override: used if supply voltage is present.
2. Mechanical manual override: must only be used if there is no supply voltage present.
The device can be operated with 2 capacitative buttons and 4 DIP switches. It is also always possible
to set the device with the büS service interface and by using the PC software Bürkert Communicator.
The USBbüS interfaceset, available as an accessory, is required for conguration with Bürkert Communicator.
5.2 Properties
•High seal tightness due to self-adjusting packing gland.
•Devices with PTFE and PEEK material are kept sealed without power.
•High ow rate values due to the stainless steel valve body that aids in ow.
•Mechanical position indicator shows the valve position even in the event of a supply voltage failure.
•360° LED light ring for displaying device states, valve end positions and operating state.
•No electrical energy is required to hold the valve position even under maximum operating pressure,
except for basic consumption for the control unit.
•Easy and quick replacement of the swivel plate.
•Valve actuator can rotate 360°.
•Integrated control unit.
•High seat tightness due to swivel plate.
•Contact-free, high-resolution and wear-free position sensor.
•The actuator housing consists of a robust and heat-dissipating aluminium body. The coating is resistant to
common detergents. The plastics used for the actuator housing are also detergent-resistant.
English

13
Product description
Types 3320 and 3321
5.2.1 Variants (valve sizes and actuator sizes)
AngleseatvalveType3320andglobevalveType3321:
Availableactuatorsizeinnominalforce[N]
DNconnection(valve
body) Seatsizevalve
[DN] [NPS] 15 20 25 32 40 50
15 1/2 1300 - - - - -
20 3/4 - 1300 - - - -
25 1 - - 1300 - - -
32 11/4 ---1300, 2500 - -
40 11/2 - - - - 1300, 2500 -
50 2 -----1300, 2500
Table 1: Variants for Types 3320 and 3321
5.2.2 Options
•Energy storage system (SAFEPOS energy-pack) for reaching safety position.
The safety position that the valve is supposed to take in the event of a supply voltage failure is specied
with the DIP switch.
•SIM card for saving and transmitting device-specic values and settings.
English

14
Structure and function
Types 3320 and 3321
6 STRUCTURE AND FUNCTION
The electromotive valve consists of an electromotive linear actuator, a swivel plate and a 2/2 way globe valve
body or a 2/2 way angle seat valve body.
The control electronics and “SAFEPOS energy-pack” are housed in the side of the linear actuator.
The control electronics consist of the microprocessor-controlled electronic mechanism and the position sensor.
Actuation occurs via binary signals (analogue) or eldbus (digital).
The electromotive valve is designed with the three-wire technique. Operation is performed with 2 buttons and
4 DIP switches.
The electromotive linear actuator consists of a brushless direct current motor, a gear and a threaded spindle.
The valve spindle connected to the threaded spindle transfers the force to the swivel plate.
•The linear actuator is designed such that it does not require any electrical energy to hold the valve
position, i.e. when idling only the control electronics consume energy.
•The stainless steel valve body aids in ow and facilitates high ow rates.
•The self-adjusting packing gland guarantees a high degree of tightness.
The swivel plate is connected to the actuator spindle by a bolt, and is thus easy to replace.
•The actuator housing consists of a robust and heat-dissipating aluminium body with a detergent-resistant
coating. The plastics used are also detergent-resistant.
Valveseat:
The valve seat is always closed against the medium ow. The ow direction must thus be such that the ow
reaches the valve below the seat.
Globe valve Type 3321Angle seat valve Type3320
Flow direction
Valve seat
Valve seat
Flow direction
1 2
Marking on the
housing 1 2
Marking on the
housing
Image 1: Flow direction below seat, ow direction
Fluidicconnections:
•The threaded socket connection, welded connection or clamp connection are available for all valve
bodies.
•The valve body with ange connection is also available for globe valve Type 3321.
English

15
Structure and function
Types 3320 and 3321
6.1 Representation – Structure of the electromotive valve
Blind cover with status indicator and
bayonet catch
Actuator housing
Actuator cover
Transparent window with position
indicator
Electrical connectors (cir-
cular plug-in connector or
cable gland)
Body connection (with
wrench at)
Port connection
Angle seat valve body
Actuator base
FE Functional earth
Relief bore
Pressure component
element Do not unscrew!
Digits for indicating
the ow direction
Image 2: Assembly, electromotive angle seat valve Type 3320
Pressure component
element Do not unscrew!
Blind cover with status indicator and
bayonet catch
Actuator housing
Actuator cover
Transparent window with position
indicator
Electrical connectors (cir-
cular plug-in connector or
cable gland)
Body connection (with wrench at)
Digits for indicating
the ow direction Port connection
Globe valve body
Actuator base
Relief bore
FE Functional earth
Image 3: Assembly, electromotive globe valve Type 3321
English

16
Structure and function
Types 3320 and 3321
6.2 Valve position after supply voltage failure
ValvepositionfordeviceswithouttheSAFEPOSenergy-packenergystorage:
If the electromotive actuator idles upon a supply voltage failure, the valve remains in the last position that it
was in.
If the supply voltage fails while the actuator is changing the valve position, the valve remains in an undened
position. The ywheel mass of the actuator and the operating pressure continue to inuence the valve spindle
until it nally idles.
ValvepositionfordeviceswiththeSAFEPOSenergy-packenergystorage:
The valve assumes the safety position dened in the SAFEPOS menu.
For a description of the SAFEPOS energy-pack energy storage system, see chapter “7.2 Energy
storage SAFEPOS energy-pack (option)” on page 21
6.3 Safety position
The DIP switch denes the safety position that the valve assumes in the following scenarios:
•Internal error
•Supply voltage failure (optional)
This function is only available for devices that have the optional SAFEPOS energy-pack energy storage
accessory.
ThefollowingsafetypositionsareavailabletochoosefromforSAFEPOS:
•Close = valve closed
•Open = valve opened
•Inactive = valve remains in an undened position in the event of a supply voltage failure.
English

17
Structure and function
Types 3320 and 3321
6.4 Display of the device status
The device status is displayed on the LED light ring. Various LED modes can be set
to display device status and valve position:
•Valve mode
•Valve mode + warnings (factory pre-set)
•NAMUR operation mode
*The description for setting the LED mode can be found in chapter “14.3 Set LED operation
mode” on page 62.
6.4.1 Valve mode
The valve position and device status “Failure” are displayed in the valve mode.
Noticationsondevicestatuses“Outofspecication”,“Maintenancerequired”and“Function
check”arenotdisplayedinthevalvemode.
Thefactory-setcoloursfordisplayingthevalvepositions“open”and“closed”canbeswitched.
Foradescriptionseechapter“14.4Settingthecoloursforindicatingvalveposition”.
Displaysinvalvemode:
If device status “Normal”: Continuously lit in the colour of the valve position.
For device status “Failure”: Alternating ashing between red and the valve position colour.
Valveposition Colourforvalveposition Colourfordevicestatus“Failure”
open yellow red
inbetween white
closed green
Table 2: Display of device status in valve mode
6.4.2 Valve mode + warnings
In this operation mode, the valve position and device statuses “Failure”, “Out of specication”, “Maintenance
required” and “Function check” are displayed.
If several device statuses exist simultaneously, the device status with the highest priority is displayed. The
priority is based on the severity of the deviation from standard operation (red=failure=highest priority).
Displaysinvalvemode+warnings:
For device status “Normal”: Continuously lit in the colour of the valve position.
If device status is not “Normal”: Flashes alternately with the colours for the valve position and the device
status.
Valveposition Colourforvalve
position
Colourfordevicestatus
Failure Outsideof
specication
Maintenance
required
Functioncheck
open yellow red yellow Blue orange
inbetween white
closed green
Table 3: Display of device status in valve mode + warnings
English

18
Structure and function
Types 3320 and 3321
6.4.3 NAMUR operation mode
In NAMUR mode the LED light ring lights up in the colour specied for the device status as per NAMUR NE 107.
If several device statuses exist simultaneously, the device status with the highest priority is displayed. The
priority is based on the severity of the deviation from standard operation (red=failure=highest priority).
Indicators in NAMUR operation mode:
StatusLEDinlinewithNE107,issue2006-06-12
Colour Colour
code
Description Meaning
red 5Failure, error or
fault
Due to a malfunction in the device or its peripherals, closed-loop
control mode is not possible.
orange 4Function check Work is being carried out on the device, which means that
closed-loop control mode is temporarily not possible.
yellow 3 Outside of
specication
The environment conditions or process conditions for the
device are not within the specied range. Internal device diag-
nostics indicate problems within the device or with the process
properties.
Blue 2 Maintenance
required
The device is in closed-loop control mode, but function will soon
be restricted.
→Perform device maintenance.
green 1 Diagnostics
active
Device is in error-free operation. Status changes are highlighted
in colour.
Messages are sent via any eldbus that may be connected.
white 0 Diagnostics
inactive
Device is switched on.
Status changes are not displayed.
Messages are not transferred via a eldbus that may be
connected.
Table 4: Indication of the device status in NAMUR operation mode
*A detailed fault description can be found in chapter “18.3 Troubleshooting” on page 85.
6.4.4 Flashing of the LED light ring
Quick ashing of the LED light ring indicates that it a connection with the PC software Bürkert Communi-
cator has been established.
English

19
Structure and function
Types 3320 and 3321
6.4.5 Notications on device status
Notications on device statuses and errors are entered into the logbook. Chapter “18 Maintenance, trouble-
shooting” contains the most common notications and the measures that they require.
Noticationsondevicestatus“Functioncheck”
The notications are presented when operation is interrupted by work on the device.
Noticationsondevicestatus“Functioncheck”
MANUAL operating state active
X.TUNE active
Signal generator active
Table 5: Notications on device status “Function check”
6.5 Factory settings
Operating state:
Devices in their factory default state have their operating state preset to MANUAL.
The pre-set factory settings can be found in chapter “16 Operating structure and factory setting”.
The factory settings are depicted in blue in the operating structure to the right of the menu.
English

20
Control electronics
Types 3320 and 3321
7 CONTROL ELECTRONICS
7.1 Function
The actuator (stroke) position is controlled by the digital input. The position is specied either by en external
signal (analogue) or via a eldbus (digital).
The position sensor records the current position of the electrical linear actuator and from this creates an end
position signal via the digital outputs.
Technicalcharacteristics:
•Positionsensor
contact-free, high-resolution and wear-free.
•Microprocessor-controlledelectronicsassembly
for signal processing, control and motor control.
•Electricalinterfaces
(circular plug-in connector or cable gland)
7.1.1 Interfaces
Digital input
24V
Electromotivevalve 2 digital outputs
24 V PNP
Inputs
Outputs
Supply
Operation
Remark:
Optional outputs are shown with a
dashed line.
Communication
Fieldbus
büS/CANopen
Image 4: Interfaces of the electromotive valve
The electromotive valve is designed with the three-wire technique, i.e. the electrical supply
(24 V ) is separate from the position signal of the digital input.
English
