Burkert 2101 User manual

Quickstart
English Deutsch Français
Type 2101
2/2-way globe valve
2/2-Wege-Geradsitzventil
Vanne à siège droit 2/2 voies

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© 2013 - 2015 Bürkert Werke GmbH
Operating Instructions 1501/02_EU-ML_00810250 / Original DE

3
Quickstart
1 QUICKSTART ..................................................................................................3
2 SYMBOLS .........................................................................................................4
3 AUTHORIZED USE ......................................................................................4
4 BASIC SAFETY INSTRUCTIONS ..........................................................5
5 GENERAL INFORMATION ........................................................................6
6 TECHNICAL DATA ........................................................................................6
7 INSTALLATION ...............................................................................................9
8 START-UP ......................................................................................................14
9 MAINTENANCE WORK ...........................................................................15
10 REMOVAL ......................................................................................................16
11 PACKAGING, TRANSPORT, STORAGE ..........................................16
Type 2101
1 QUICKSTART
The Quickstart describes the entire life cycle of the device. Keep these
instructions in a location which is easily accessible to every user, and
make these instructions available to every new owner of the device.
Important Safety Information!
Read Quickstart carefully and thoroughly. Study in particular the
chapters entitled “Basic safety instructions” and “Authorized use”.
▶Quickstart must be read and understood.
Quickstart explains, for example, how to install and start-up the device.
A detailed description of the device can be found in the operating
instructions for Type 2101.
The operating instructions can be found on the Internet at:
www.burkert.com
1.1 Definition of term / abbreviation
The term “device” used in these instructions always stands for the
globe valve Type 2101.
The abbreviation “Ex” used in these instructions always stands for
“explosion-protected”.
english

4
Symbols
Type 2101
2 SYMBOLS
DANGER!
Warns of an immediate danger.
▶Failure to observe the warning may result in a fatal or serious injury.
WARNING!
Warns of a potentially dangerous situation.
▶Failure to observe the warning may result in serious injuries or
death.
CAUTION!
Warns of a possible danger.
▶Failure to observe this warning may result in a moderate or minor
injury.
NOTE!
Warns of damage to property.
Important tips and recommendations.
Refers to information in these operating instructions or in
other documentation.
▶designates instructions for risk prevention.
→Designates a procedure which you must carry out.
3 AUTHORIZED USE
Non-authorized use of the globe valve Type 2101 may be a
hazard to people, nearby equipment and the environment.
▶The device is designed for the controlled flow of liquid and
gaseous media.
▶In the potentially explosion-risk area the globe valve type 2101 may
be used only according to the specification on the separate Ex type
label. For use observe the additional information enclosed with the
device together with safety instructions for the explosion-risk area.
▶Devices without a separate Ex type label may not be used in a
potentially explosive area.
▶The admissible data, the operating conditions and conditions of
use specified in the contract documents, operating instructions
and on the type label are to be observed during use. These are
described in the chapter entitled “6 Technical data”.
▶The device may be used only in conjunction with third-party devices
and components recommended and authorized by Bürkert.
▶Correct transportation, correct storage and installation and
careful use and maintenance are essential for reliable and fault-
less operation.
▶Use the device only as intended.
3.1 Restrictions
If exporting the system or device, observe any existing restrictions.
english

5
Basic safety instructions
Type 2101
4 BASIC SAFETY INSTRUCTIONS
These safety instructions do not make allowance for any
• contingencies and events which may arise during the installation,
operation and maintenance of the devices.
• local safety regulations, whereby the operator is responsible for their
compliance, by the installation personnel too.
DANGER!
Risk of injury from high pressure in the equipment or device!
▶Before working on equipment or device, switch off the pressure
and deaerate or drain lines.
Risk of injury due to electrical shock!
▶Before reaching into the device, switch off the power supply and
secure to prevent reactivation!
▶Observe applicable accident prevention and safety regulations
for electrical equipment!
Risk of burns!
The surface of the device may become hot during long-term
operation.
▶Do not touch the device with bare hands.
Risk of injury from moving parts in the device!
▶Do not reach into openings.
Risk of injury caused by the spring jumping out when the
actuator is opened.
▶The actuator must not be opened.
Risk of injury caused by the lines and device rupturing.
▶Due to the risk of water hammer, valves with a flow direction
above the seat must not be used for liquid media.
▶Consider the type of flow direction and the type of medium for
operation of the device.
General hazardous situations.
To prevent injury, ensure:
▶Secure system/equipment from unintentional activation.
▶Only trained technicians may perform installation and maintenance
work.
▶After an interruption in the power supply or pneumatic supply,
ensure that the process is restarted in a defined or controlled
manner.
▶The device may be operated only when in perfect condition and
in consideration of the operating instructions.
▶The general rules of technology apply to application planning and
operation of the device.
To prevent damage to property of the device, ensure:
• Supply the media connections only with those media which are
specified as flow media in the chapter entitled “6 Technical data”.
• Do not put any loads on the valve (e.g. by placing objects on it
or standing on it).
• Do not make any external modifications to the valves. Do not paint
the body parts or screws.
english

6
General information
Type 2101
5 GENERAL INFORMATION
5.1 Contact address
Germany
Bürkert Fluid Control Systems
Sales Center
Chr.-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. : 07940 - 10 91 111
Fax: 07940 - 10 91 448
E-mail: [email protected]
International
Contact addresses are found on the final pages of the printed oper-
ating manual.
You can also find information on the Internet under:
www.burkert.com
5.2 Warranty
The warranty is only valid if the device is used as authorized in accor-
dance with the specified application conditions.
5.3 Information on the Internet
The operating instructions and data sheets for Type 2101 can be found
on the Internet at: www.burkert.com
6 TECHNICAL DATA
6.1 Conformity
In accordance with the EC Declaration of conformity, globe valve type
2101 is compliant with the EC Directives.
6.2 Standards
The applied standards, which verify conformity with the EC Directives,
can be found on the EC Type Examination Certificate and / or the EC
Declaration of Conformity.
According to Pressure Equipment Directive the following operating
conditions must be observed:
Line connection
orifice
Maximum pressure for compressible fluids
of Group 1 (hazardous gases and vapors
according to Art. 3 No. 1.3 Letter a first
dash)
DN65 15 bar
6.3 Type label
WARNING!
Risk of injury from high pressure!
Important device-specific technical specifications are indicated on
the type label.
▶Observe permitted pressure range on the type label of the device.
english

7
Technical data
Type 2101
00189700
2101 A 25M PTFE VA
Tmed -10°C - +180°C
Flow 1 2 DIN
Pilot 4,8-10bar
Pmed 16,0bar
DN25 Kv13,0W3ZLT
CE
CE-Identification
Permitted pilot
pressure
Permitted medium
pressure
Type
Control function
(CF)
Orifice of the body /
actuator size
Sealing material Body material
ID number of
the device
Flow direction
Permitted medium
temperature
Date of
manufacture
(encoded)
Main dimensions
port connection Flow capacity in
standard production
conditions
Fig. 1: Type label - example
6.4 Operating conditions
Observe permitted ranges on the type label of the device!
6.4.1 Temperature ranges
The globe valve is suitable for steam sterilization.
Actuator
size
Actuator
material
Medium
(for PTFE seal) Environment 1)
ø 50 mm
PPS -10 ... +185 °C 0 ... +60 °C 2)
0 ... +100 °C 3)
ø 70 mm
ø 90 mm
ø 130 mm
Tab. 1: Temperature ranges
1) If a pilot valve is used, the max. ambient temperature is +55
°C.
2) Pilot air ports with push-in connector
3) Pilot air ports with threaded bushing
english

8
Technical data
Type 2101

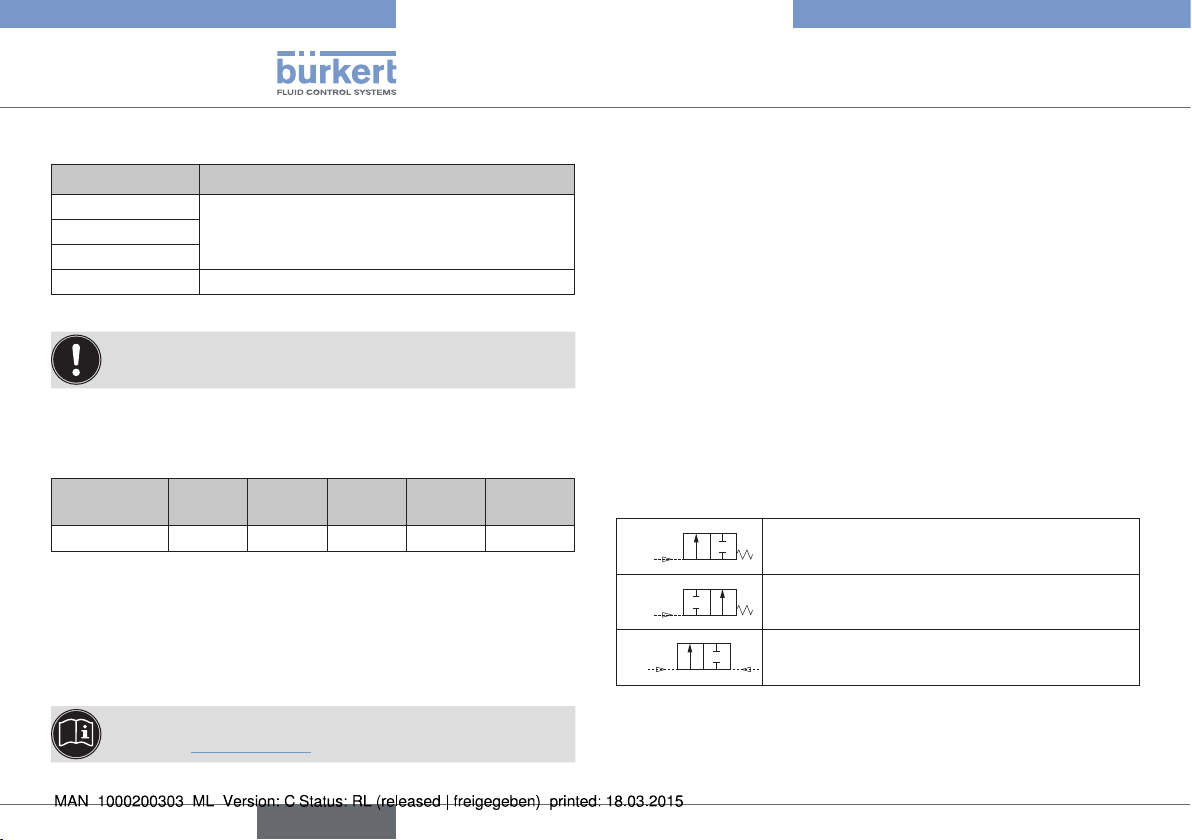

6.4.2 Pressure ranges
Actuator size Maximum pilot pressure 4)
ø 50 mm
10 barø 70 mm
ø 90 mm
ø 130 mm 7 bar
Tab. 2: Pressure ranges
4) For the device version ø 70 / Orifice 50 / MC 13 the max.
permitted pilot pressure is limited to 7 bar.
Minimum pilot pressure: flow below the seat
(medium flow against the closing direction of the valve)
Required minimum pilot pressure Pmin with control function A:
Actuator
size [mm]
50 70 90 130
≤ DN 50
130
≥ DN 65
Pmin [bar] 5,2 4,8 5,0 5,0 5,6
The required minimum pilot pressure Pmin with control function B and I
(flow below the seat) is dependent on the pressure of the medium 5).
Minimum pilot pressure: flow above the seat
(medium flow with the closing direction of the valve)
The required minimum pilot pressure Pmin with control function A
(flow above the seat) is dependent on the pressure of the medium 5).
5) The pressure diagrams are in the operating instructions on the
Internet: www.burkert.com
6.5 General technical data
Media
Control medium Neutral gases, air
Flow media Water, alcohol, fuel, hydraulic liquids,
saline solutions, lye, organic solvents
Materials and
connections see data sheet or operating instructions
Installation as required, preferably with actuator in
upright position.
Protection class IP67 in accordance with IEC 529 /
EN 60529
6.6 Control functions (CF)
A
1(P)
2(A)
Normally closed by spring action.
B
1(P)
2(B)
Normally open by spring action.
I
1(P)
2(A)
Actuating function via reciprocal pressurization.
Tab. 3: Control functions
english

9
Installation
Type 2101
7 INSTALLATION
7.1 Safety instructions
DANGER!
Risk of injury from high pressure!
▶Before loosening the lines and valves, turn off the pressure and
vent the lines.
WARNING!
Risk of injury from improper installation!
▶Installation may be carried out by authorized technicians only
and with the appropriate tools!
Risk of injury from unintentional activation of the system and
an uncontrolled restart!
▶Secure system from unintentional activation.
▶Following installation, ensure a controlled restart.
For control function I – Danger if pilot pressure fails!
For control function I control and resetting occur pneumatically. If
the pressure fails, no defined position is reached.
▶To ensure a controlled restart, first pressurize the device with
pilot pressure, then switch on the medium.
Risk of injury from moving parts in the device!
▶Do not reach into openings.
7.2 Before installation
• The globe valve can be installed in any installation position, pref-
erably with the actuator face up.
• Before connecting the valve, ensure the lines are flush.
• Observe direction of flow (see type label).
7.2.1 Preparatory work
→Clean pipelines (sealing material, swarf, etc.).
Devices with welded body
NOTE!
For valves with installed control:
When welding the valve body into the pipeline, the control must
not be installed.
▶Remove control from the actuator (see installation chapter in the
operating instructions for the corresponding control).
Remove the actuator from the valve body:
→Clamp the valve body in a holding device.
NOTE!
Damage to the seat seal or the seat contour!
▶When removing the actuator, ensure that the valve is in open
position.
→Control function A pressurize the pilot air port 1 with com-
pressed air (5 bar): valve opens.
→Using a suitable open-end wrench, place the wrench flat on the
tube.
english

10
Installation
Type 2101
→Unscrew the actuator from the valve body.
Other device versions
→Do not remove actuator unless this is a customer-specific
requirement.
→Procedure see “Devices with welded body”.

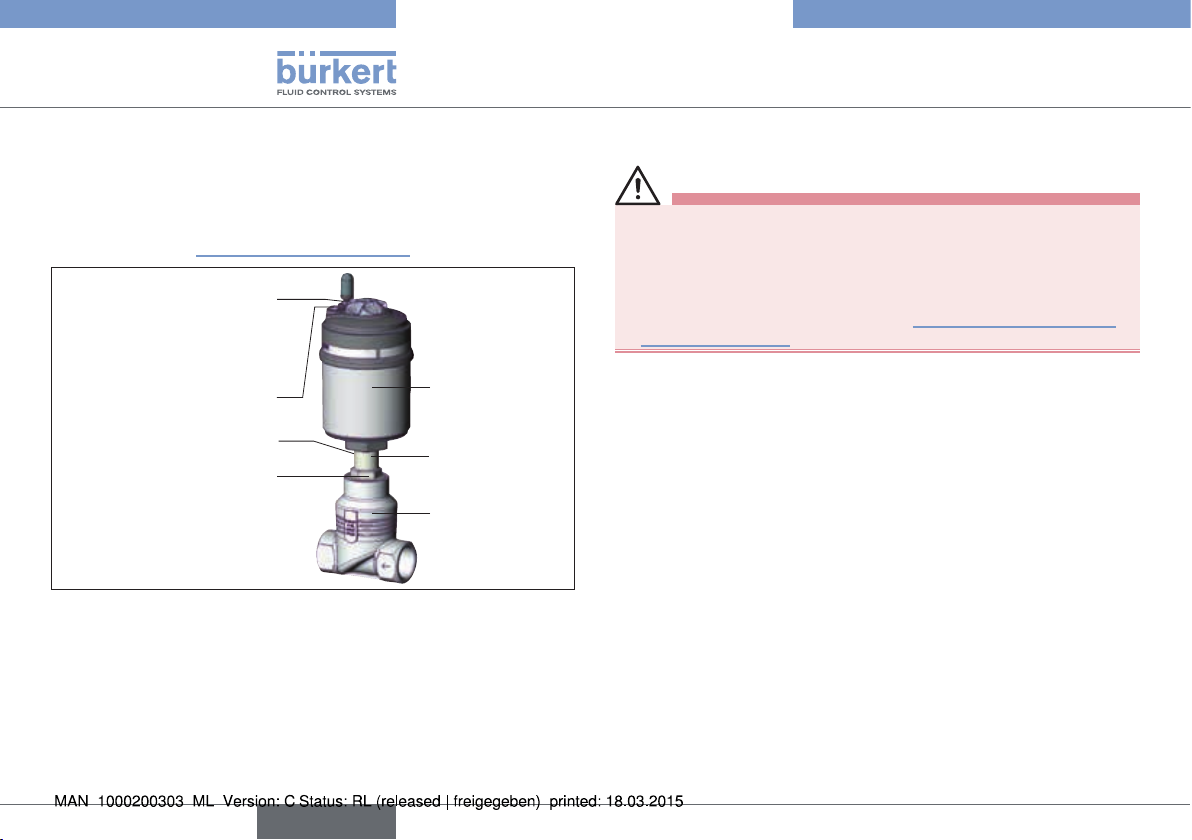

Actuator
Nipple
Valve body
Air discharge connection
CFA, CFB
Pilot air port
CFI
Pilot air port
CFA, CFB, CFI
Flats for open-end
wrench
Release bore
2
1
Fig. 2: Installation
7.3 Installation
WARNING!
Risk of injury from improper assembly!
Assembly with unsuitable tools or non-observance of the tight-
ening torque is dangerous as the device may be damaged.
▶For installation use an open-end wrench, never a pipe wrench.
▶Observe the tightening torque (see “Tab. 4: Tightening torque
valve body / nipple”).
Dirt trap for devices with authorization in accordance with DIN
EN 161
In accordance with DIN EN 161 „Automatic shut-off valves for gas
burners and gas appliances“ a dirt trap must be connected upstream
of the valve and prevent the insertion of a 1 mm plug gauge.
→If the authorisation also applies to stainless steel bodies, the
same type of dirt trap must be attached in front of the globe
valve.
7.3.1 Installation of the valve body
Welded bodies
→Weld valve body in pipeline system.
Other body versions
→Connect body to pipeline.
english

11
Installation
Type 2101
7.3.2 Install actuator (welded body)

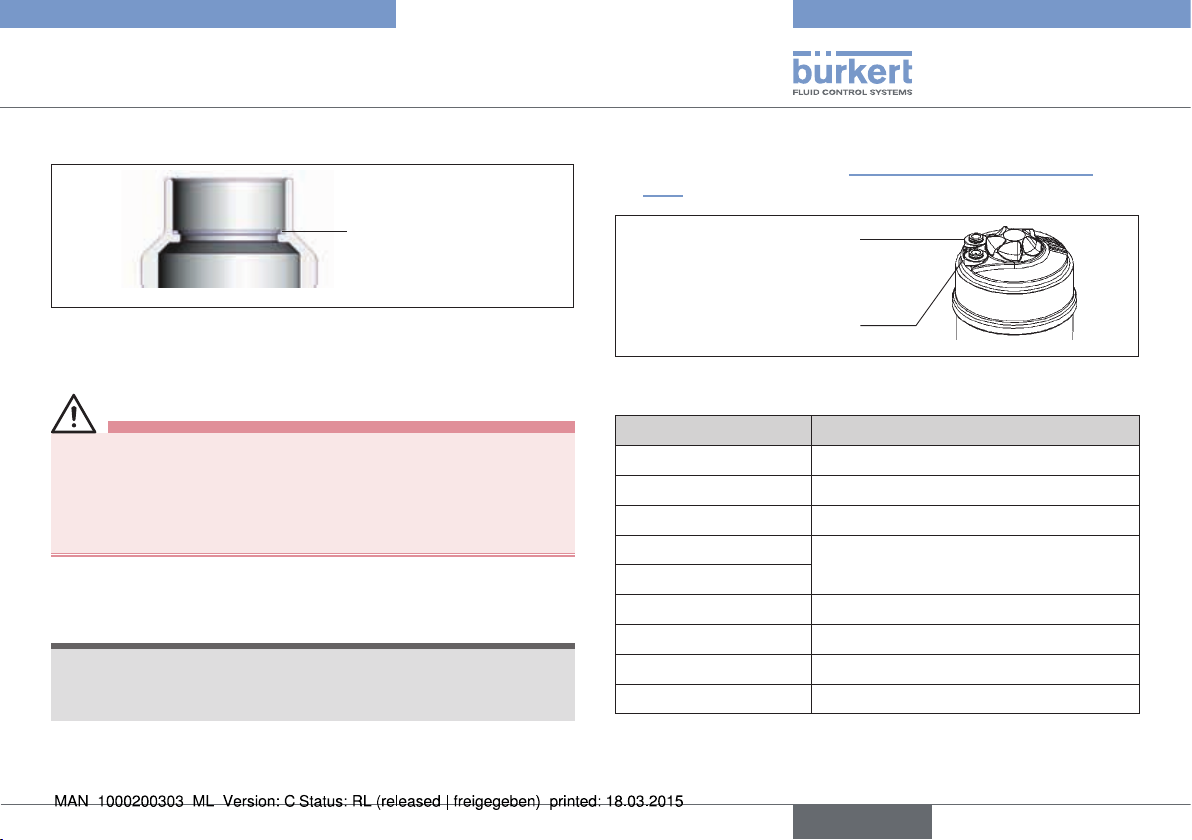

Graphite seal
Fig. 3: Graphite seal
→Check the graphite seal and if required, replace it.
WARNING!
Danger if incorrect lubricants used!
Unsuitable lubricant may contaminate the medium. In oxygen
applications there is a risk of an explosion!
▶In specific applications, e.g. oxygen or analysis applications, use
appropriately authorised lubricants only.
→Grease nipple thread before re-installing the actuator (e.g. with
Klüber paste UH1 96-402 from Klüber).
NOTE!
Damage to the seat seal or the seat contour!
▶When installing the actuator, ensure that the valve is in open
position.
→Control function A pressurize the pilot air port 1 with compressed
air (5 bar): valve opens.
→Screw actuator into the valve body.
Observe tightening torque “Tab. 1: Temperature ranges Ex
area”).
1
2
Pilot air port
CFA, CFB, CFI
Air discharge connection
CFA, CFB
Pilot air port CFI
Fig. 4: Pneumatic connection
DN Tightening torque [Nm]
15 45 ± 3
20 50 ± 3
25 60 ± 3
32 65 ± 3
40
50 70 ± 3
65 100 ±3
80 120 ± 5
100 150 ± 5
Tab. 4: Tightening torque valve body / nipple
english

12
Installation
Type 2101
7.3.3 Install control
Description see Installation chapter in the operating instruc-
tions for the corresponding control.
7.3.4 Rotating the actuator
The position of the connections can be aligned steplessly by rotating
the actuator through 360°.
NOTE!
Damage to the seat seal or the seat contour.
▶When rotating the actuator, ensure that the valve is in open
position.
Procedure:
→Clamp the valve body in a holding device
(applies only to valves which have not yet been installed).
→Control function A pressurize the pilot air port 1 with com-
pressed air (5 bar): valve opens.
→Counter on the flats of the nipple with a suitable open-end
wrench.
→Place suitable open-end wrench on the hexagon of the actuator.
WARNING!
Risk of injury from discharge of medium and pressure.
If the direction of rotation is wrong, the body interface may become
detached.
▶Rotate the actuator module in the specified direction only.
→Actuator with hexagon:
Rotate counter-clockwise (as seen from below) to bring the
actuator module into the required position.

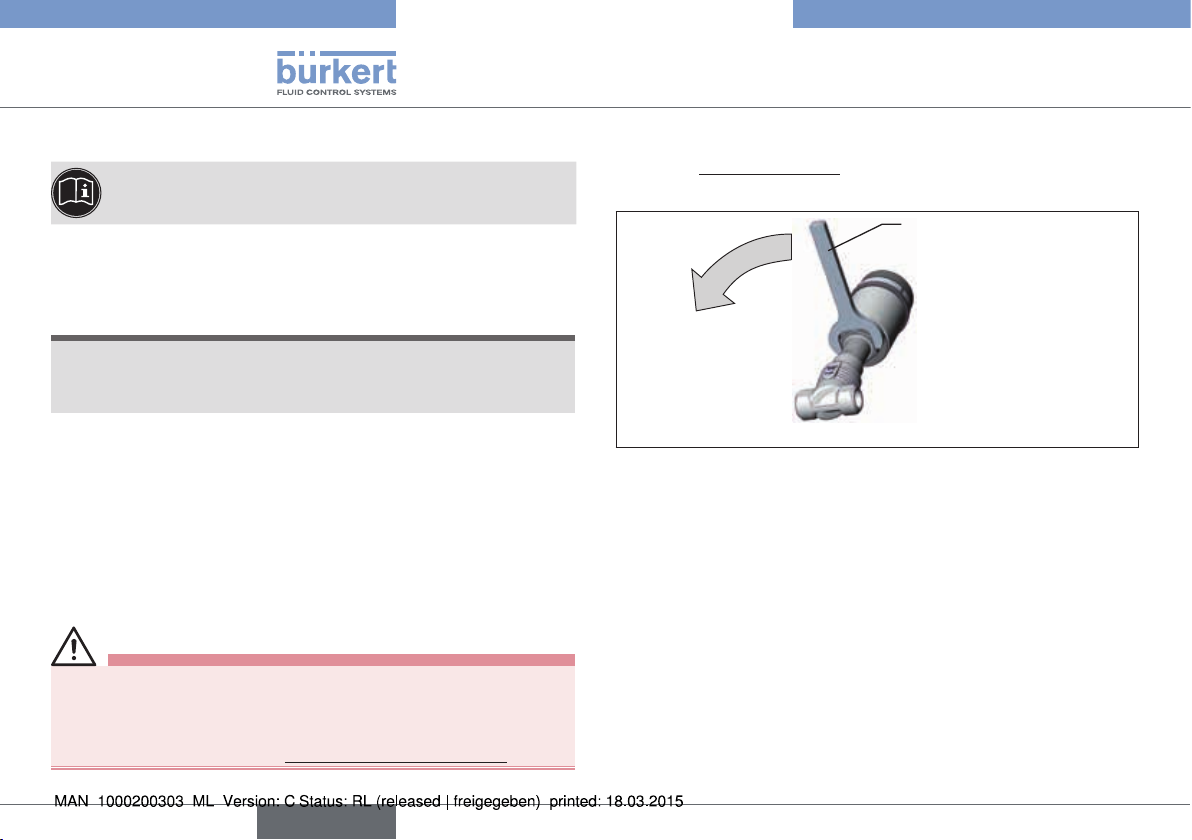

Open-end wrench
Fig. 5: Rotating with open-end wrench
english

13
Installation
Type 2101
7.4 Pneumatic connection
DANGER!
Danger – high pressure in the equipment.
▶Before loosening the lines and valves, turn off the pressure and
vent the lines.
WARNING!
Risk of injury from unsuitable connection hoses.
Hoses which cannot withstand the pressure and temperature range
may result in hazardous situations.
▶Use only hoses which are authorised for the indicated pressure
and temperature range.
▶Observe the data sheet specifications from the hose manufacturers.
For control function I – Danger if pilot pressure fails.
For control function I control and resetting occur pneumatically. If
the pressure fails, no defined position is reached.
▶To ensure a controlled restart, first pressurize the device with
pilot pressure, then switch on the medium.
7.4.1 Connection of the control medium
If the position of the pilot air ports for installation of the hoses
is unfavorable, these can be aligned steplessly by rotating
the actuator through 360°.
The procedure is described in the chapter entitled “7.3.3
Install control”.
Control functions A and B:
→Connect the control medium to the pilot air port 1 of the
actuator.
Silencer
For the versions with a plug-in connection the silencer for reducing
the exhaust air noise is supplied loose.
→Plug the silencer into the free air discharge connection 2.
If used in an aggressive environment, we recommend con-
veying all free pneumatic connections into a neutral atmo-
sphere with the aid of a pneumatic hose.
Control function I:
→Connect the control medium to the pilot air port 1 and 2 of the
actuator (see “Fig. 6”)
Pressure on connection 1 opens the valve.
Pressure on connection 2 closes the valve.
1
2
Pilot air port
CFA, CFB, CFI
Air discharge connection
CFA, CFB
Pilot air port CFI
Fig. 6: Pneumatic connection
Control air hose:
6/4 mm or 1/4“ control air hoses can be used.
Optionally a pilot air port is possible via a G 1/8 thread.
english

14
Start-up
Type 2101
8 START-UP
8.1 Safety instructions
WARNING!
Risk of injury from improper operation!
Improper operation may result in injuries as well as damage to the
device and the area around it.
▶Before start-up, ensure that the operating personnel are familiar
with and completely understand the contents of the operating
instructions.
▶Observe the safety instructions and intended use.
▶Only adequately trained personnel may operate the equipment/
the device.
8.2 Pilot pressure
WARNING!
For control function I – Danger if pilot pressure fails!
For control function I control and resetting occur pneumatically. If
the pressure fails, no defined position is reached.
▶To ensure a controlled restart, first pressurize the device with
pilot pressure, then switch on the medium.
→Set the pilot pressure according to the type label specifications,
chapter “5” and flow (chapter “8.3”).
8.3 Flow
CFA CFB/CFI
Flow below the seat
(closing against the medium)
Flow above the seat
(closing with the medium)
CFA
Fig. 7: Flow below and above the seat
8.3.1 Flow above the seat
Control function A, CFA: closes by spring force against the medium flow.
Control function B, CFB: closes with the control pressure against the
medium flow. The medium pressure supports the opening of the valve.
WARNING!
Risk of injury caused by the lines and device rupturing.
▶Use valves with flow above the seat for gaseous media and
steam only.
To ensure complete opening, the minimum pilot pressure must
be used.
8.3.2 Flow below the seat
Control function A, CFA: closes by spring force against the medium
flow. Control function B, CFB: closes with the control pressure
against the medium flow. The medium pressure supports the
opening of the valve.
english

15
Maintenance work
Type 2101
WARNING!
Seat leaks caused by the minimum pilot pressure being too
low (on CFB and CFI) or the medium pressure being too high!
▶Observe the minimum control pressure and medium pressure
(see “6.4.2”).
8.4 Start-up
After installing the device, run the teach function. This function
presets the control parameters.
Description – see operating instructions for the control.
9 MAINTENANCE WORK
→Complete a visual inspection of the equipment once a year. Shorter
maintenance intervals may be recommended depending on the
operating conditions.
9.1 Replacement parts
CAUTION!
Risk of injury and/or damage by the use of incorrect parts!
Incorrect accessories and unsuitable replacement parts may
cause injuries and damage the device and the surrounding area.
▶Use only original accessories and original replacement parts
from Bürkert.
Wearing parts: Seals and the swivel plate.
→In the event of a leak, replace the relevant wear part.
The maintenance and repair instructions are available on the
Internet: www.burkert.com
english

16
Removal
Type 2101
10 REMOVAL
DANGER!
Risk of injury from discharge of medium and pressure!
It is dangerous to remove a device which is under pressure due to
the sudden release of pressure or discharge of medium.
▶Before removing a device, switch off the pressure and vent the lines.
Procedure:
→Loosen the pneumatic connection.
→Remove the device.
11 PACKAGING, TRANSPORT,
STORAGE
NOTE!
Transport and storage damage!
• Protect the device against moisture and dirt in shock-resistant
packaging during transportation and storage.
• Permitted storage temperature: -20...+65°C.
Damage to the environment caused by device components
contaminated with media.
• Ensure the device and packaging are disposed of in an environ-
mentally sound manner.
• Observe applicable regulations on disposal and the
environment.
english

17
Der Quickstart
1 DER QUICKSTART ....................................................................................17
2 DARSTELLUNGSMITTEL .......................................................................18
3 BESTIMMUNGSGEMÄSSE VERWENDUNG................................18
4 GRUNDLEGENDE SICHERHEITSHINWEISE ..............................19
5 ALLGEMEINE HINWEISE .......................................................................20
6 TECHNISCHE DATEN .............................................................................20
7 MONTAGE .....................................................................................................23
8 INBETRIEBNAHME ...................................................................................28
9 WARTUNGSARBEITEN ...........................................................................29
10 DEMONTAGE ...............................................................................................30
11 TRANSPORT, LAGERUNG, ENTSORGUNG .................................30
Typ 2101
1 DER QUICKSTART
Der Quickstart beschreibt den gesamten Lebenszyklus des Geräts.
Bewahren Sie diese Anleitung so auf, dass sie für jeden Benutzer gut
zugänglich ist und jedem neuen Eigentümer des Geräts wieder zur
Verfügung steht.
Wichtige Informationen zur Sicherheit!
Lesen Sie den Quickstart sorgfältig durch. Beachten Sie vor allem
die Kapitel „Grundlegende Sicherheitshinweise“ und „Bestim-
mungsgemäße Verwendung“.
▶Der Quickstart muss gelesen und verstanden werden.
Der Quickstart erläutert beispielhaft die Montage und Inbetriebnahme
des Geräts.
Die ausführliche Beschreibung des Geräts finden Sie in der Bedie-
nungsanleitung für den Typ 2101.
Die Bedienungsanleitung finden Sie im Internet unter:
www.buerkert.de
1.1 Begriffsdefinition / Abkürzung
Der in dieser Anleitung verwendeten Begriff „Gerät“ steht immer für
das Geradsitzventil Typ 2101.
Die in dieser Anleitung verwendete Abkürzung „Ex“ steht immer für
„explosionsgeschützt“.
deutsch

18
Darstellungsmittel
Typ 2101
2 DARSTELLUNGSMITTEL
GEFAHR!
Warnt vor einer unmittelbaren Gefahr!
▶Bei Nichtbeachtung sind Tod oder schwere Verletzungen die Folge.
WARNUNG!
Warnt vor einer möglicherweise gefährlichen Situation!
▶Bei Nichtbeachtung können schwere Verletzungen oder Tod die
Folge sein.
VORSICHT!
Warnt vor einer möglichen Gefährdung!
▶Nichtbeachtung kann mittelschwere oder leichte Verletzungen
zur Folge haben.
HINWEIS!
Warnt vor Sachschäden!
Wichtige Tipps und Empfehlungen.
Verweist auf Informationen in dieser Bedienungsanleitung
oder in anderen Dokumentationen.
▶markiert eine Anweisung zur Gefahrenvermeidung.
→markiert einen Arbeitsschritt den Sie ausführen müssen.
3 BESTIMMUNGSGEMÄSSE
VERWENDUNG
Bei nicht bestimmungsgemäßem Einsatz des Geradsitzventils
Typ 2101 können Gefahren für Personen, Anlagen in der
Umgebung und die Umwelt entstehen.
▶Das Gerät ist für die Steuerung des Durchflusses von flüssigen
und gasförmigen Medien konzipiert.
▶Im explosionsgefährdeten Bereich darf das Geradsitzventil Typ
2101 nur entsprechend der Spezifikation auf dem separaten Ex-
Typschild eingesetzt werden. Für den Einsatz muss die dem Gerät
beiliegende Zusatzinformation mit Sicherheitshinweisen für den
Ex-Bereich beachtet werden.
▶Geräte ohne separates Ex-Typschild dürfen nicht im explosions-
gefährdeten Bereich eingesetzt werden.
▶Für den Einsatz die in den Vertragsdokumenten und der Bedie-
nungsanleitung spezifizierten zulässigen Daten, Betriebs- und
Einsatzbedingungen beachten. Diese sind im Kapitel „7. Techni-
sche Daten“ beschrieben.
▶Das Gerät nur in Verbindung mit von Bürkert empfohlenen bzw.
zugelassenen Fremdgeräten und -komponenten einsetzen.
▶Voraussetzungen für den sicheren und einwandfreien Betrieb
sind sachgemäßer Transport, sachgemäße Lagerung und Instal-
lation sowie sorgfältige Bedienung und Instandhaltung.
▶Das Gerät nur bestimmungsgemäß einsetzen.
3.1 Beschränkungen
Beachten Sie bei der Ausfuhr des Systems/Geräts gegebenenfalls
bestehende Beschränkungen.
deutsch

19
Grundlegende Sicherheitshinweise
Typ 2101
4 GRUNDLEGENDE
SICHERHEITSHINWEISE
Diese Sicherheitshinweise berücksichtigen keine
• Zufälligkeiten und Ereignisse, die bei Montage, Betrieb und Wartung
der Geräte auftreten können.
• ortsbezogenen Sicherheitsbestimmungen, für deren Einhaltung, auch
in Bezug auf das Montagepersonal, der Betreiber verantwortlich ist.
Verletzungsgefahr durch hohen Druck in Anlage oder Gerät!
▶Vor Arbeiten an Anlage oder Gerät, den Druck abschalten und
Leitungen entlüften oder entleeren.
Verletzungsgefahr durch Stromschlag!
▶Vor Arbeiten an Anlage oder Gerät, die Spannung abschalten
und vor Wiedereinschalten sichern.
▶Die geltenden Unfallverhütungs- und Sicherheitsbestimmungen
für elektrische Geräte beachten!
Verbrennungsgefahr!
Bei Dauerbetrieb kann die Geräteoberfläche heiß werden.
▶Das Gerät nicht mit bloßen Händen berühren.
Verletzungsgefahr durch sich bewegende Teile im Gerät!
▶Nicht in Öffnungen fassen.
Verletzungsgefahr durch herausspringende Feder beim Öffnen
des Antriebs!
▶Der Antrieb darf nicht geöffnet werden.
Verletzungsgefahr durch Bersten von Leitungen und Gerät.
▶Wegen Schließschlaggefahr dürfen Ventile mit Anströmung über
Sitz nicht für flüssige Medien eingesetzt werden.
▶Für den Betrieb des Geräts die Art der Anströmung und die Art
des Mediums beachten.
Allgemeine Gefahrensituationen.
Zum Schutz vor Verletzungen beachten:
▶Anlage oder Gerät vor unbeabsichtigtem Betätigen sichern.
▶Nur geschultes Fachpersonal darf Installations- und Instandhal-
tungsarbeiten ausführen.
▶Nach einer Unterbrechung der elektrischen oder pneumatischen
Versorgung ist ein definierter oder kontrollierter Wiederanlauf
des Prozesses zu gewährleisten.
▶Gerät nur in einwandfreiem Zustand und unter Beachtung der
Bedienungsanleitung betreiben.
▶Für die Einsatzplanung und den Betrieb des Geräts die allgemeinen
Regeln der Technik einhalten.
Zum Schutz vor Sachschäden am Gerät ist zu beachten:
• In Medienanschlüsse nur Medien einspeisen, die im Kapitel „7.
Technische Daten“ aufgeführt sind.
• Gerät nicht mechanisch belasten (z. B. durch Ablage von Gegen-
ständen oder als Trittstufe).
• Keine äußerlichen Veränderungen an den Ventilen vornehmen.
Gehäuseteile und Schrauben nicht lackieren.
deutsch

20
Allgemeine Hinweise
Typ 2101
5 ALLGEMEINE HINWEISE
5.1 Kontaktadressen
Deutschland
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: [email protected]
International
Die Kontaktadressen finden Sie auf den letzten Seiten der
gedruckten Bedienungsanleitung.
Außerdem im Internet unter: www.burkert.com
5.2 Gewährleistung
Voraussetzung für die Gewährleistung ist der bestimmungs-
gemäße Gebrauch des Geräts unter Beachtung der spezifizierten
Einsatzbedingungen.
5.3 Informationen im Internet
Bedienungsanleitungen und Datenblätter zum Typ 2101 finden Sie im
Internet unter: www.buerkert.de
6 TECHNISCHE DATEN
6.1 Konformität
Das Geradsitzventil Typ 2101 ist konform zu den EG-Richtlinien ent-
sprechend der EG-Konformitätserklärung.
6.2 Normen
Die angewandten Normen, mit denen die Konformität mit den EG-Richt-
linien nachgewiesen wird, sind in der EG-Baumusterprüfbescheinigung
und/oder der EG-Konformitätserklärung nachzulesen.
Gemäß Druckgeräterichtlinie sind folgende Betriebsbedingungen zu
beachten:
Nennweite
Leitungsanschluss
Maximaler Druck für kompressible Fluide
der Gruppe 1 (gefährliche Gase und
Dämpfe gemäß Art. 3 Nr. 1.3 Buchstabe a
erster Gedankenstrich)
DN65 15 bar
6.3 Typschild
WARNUNG!
Verletzungsgefahr durch hohen Druck.
Wichtige gerätespezifische technische Angaben sind auf dem
Typschild angegeben.
▶Zulässiger Druckbereich auf dem Typschild des Geräts beachten.
deutsch
