Canyon CNS-SW7 User manual

TABLE OF CONTENTS
INTRODUCTION 3
SAFETY PRECAUTIONS 3
PACKAGE CONTENTS 4
DEVICE OVERVIEW 4
BUTTON OPERATION SUMMARY 5
BASIC OPERATION 6
CURRENT TIME MODE 7
FUNCTIONAL DISPLAY 7
WEATHER FORECAST FEATURE 7
CURRENT TIME MODE SETTINGS 8
DAILY ALARM MODE 9
ENABLING DAILY ALARM/HOURLY CHIME 9
DAILY ALARM SETTINGS 9
CHRONOGRAPH MODE 10
OPERATING CHRONOGRAPH 10
TIMER MODE 11
QUICK SET VALUE AND USER PRESET VALUE 11
USER PRESET VALUE SETTINGS 11
OPERATING TIMER 12
PACER MODE 13
OPERATING PACER 13
PACER SETTINGS 13
LINKING WITH CHRONOGRAPH 14

DUAL TIME MODE 15
ALTIMETER MODE 16
TEMPERATURE AND HISTORY DISPLAY 16
UNIT SELECTION AND ALTIMETER ADJUSTMENT 17
ZERO ALTITUDE ADJUSTMENT 17
ABSOLUTE ALTITUDE ADJUSTMENT 18
SEA LEVEL PRESSURE ADJUSTMENT 19
FACTORY DEFAULT ADJUSTMENT 19
BAROMETER MODE 20
TEMPERATURE AND HISTORY DISPLAY 20
UNIT SELECTION AND BAROMETER ADJUSTMENT 21
ABSOLUTE PRESSURE ADJUSTMENT 21
FACTORY DEFAULT ADJUSTMENT 22
COMPASS MODE 23
MAGNETIC DECLINATION 23
CALIBRATING COMPASS 25

Thank you for purchasing CANYON CNS-SW7, a multi-functional watch device with
weather forecast function developed from advanced sensor technology. You have
made an excellent choice and we hope you will enjoy all of its exciting features. To
fully utilize the functions and features of CANYON CNS-SW7, please read through
the user manual carefully before using the product, and follow all of the procedures
in the manual to fully enjoy all features of the product.
Introduction
Safety Precautions
Please observe all safety precautions before using the device. Please follow all
procedures outlined in this manual to properly operate the device. The device
and its accessory, like most electronic or magnetic devices, may be at
interference with pacemaker. Please consult doctor or other professionals
before using the product.
zDo NOT attempt to disassemble or alter any part of the device that is not
described in this guide.
zDo NOT place the device near a heat source or directly expose it to flame.
zNever place the device in vicinity of equipments generating strong
electromagnetic fields. Exposure to strong magnetic fields may cause
malfunctions.
zAvoid exposing the device to extreme temperatures or chemicals such as
gasoline and alcohol.
zAvoid strong impacts for it will damage the device permanently.
zStore device and its accessory at a dry and well ventilated location when they
are not in use.

Package Contents
Product Image Item Name
CANYON CNS-SW7 Main Unit
Quick Guide
Documentation CD
Device Overview
[SR] Button [S/S] Button
[EL] Button
[M] Button [L/R] Button

Button Operation Summary
Mode Button [M]
zPress to cycle through 6 functional modes.
zPress and hold to enter/exit Setting Mode.
zDuring Settings Mode, press to cycle through different settings.
Sensor Button [SR]
zPress to cycle through Altimeter, Barometer, and Compass modes.
Start/Stop Button [S/S]
zPress to show current date at Current Time Mode.
zPress to toggle between functional displays within the same mode.
zPress to start/stop time counting at Chronograph Mode.
zPress to toggle between options.
zPress to increase values at Settings Mode.
Lap/Reset Button [L/R]
zPress to reset time counting at Chronograph Mode.
zPress to move cursor during History recalling display.
zPress to toggle between options.
zPress to decrease values at Settings Mode.
Light Button [EL]
zPress to turn on back light for 3 seconds

Basic Operation
CANYON CNS-SW7 is a multi-functional watch device that contains 9 functional
modes including Current Time Mode, Daily Alarm Mode, Chronograph Mode, Timer
Mode, Pacer Mode, Dual Time Mode, Altimeter Mode, Barometer Mode, Compass
Mode. Press [M] to cycle through 6 Timekeeping modes and press and hold [SR] to
activate and cycle through 3 Sensor Modes as shown above.

Current Time Mode
Functional Display
zPress [S/S] to toggle between
different functional displays
including Day of Week display,
Temperature display, Altitude
Tendency display, and Sea Level
Pressure Tendency display
Weather Forecast Feature
Sunny Cloudy
with sun
Cloudy Raining
zThe device provided 4 different
symbols indicating the forecasted
weather as shown.
zThe feature only occurs in Current
Time Mode and Dual Time Mode.
NOTE:
zIt is highly recommended that the
device to be kept at the same
altitude for at least 24 hours to
achieve higher accuracy predication.
zThe device presents weather
forecast function by adopting
general weather forecasting
principles. Dramatic weather
changes within a very short period of
time will not be reflected by device.

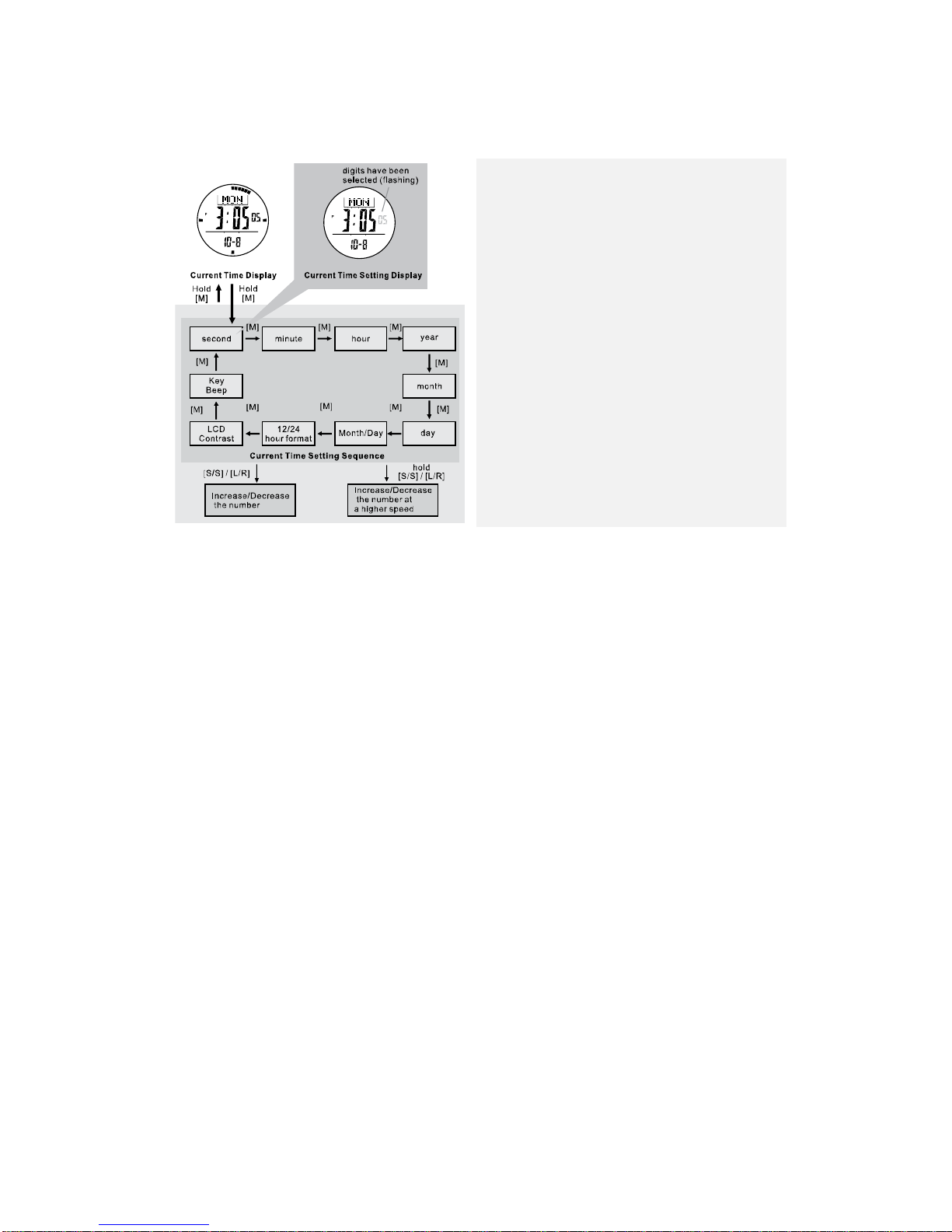

Current Time Mode Settings
zPress and hold [M] for 2 seconds to
enter Settings Mode. Upon entering,
the Settings Mode indicator SET will
be displayed at the top of screen.
zPress [M] to shift through different
digits and settings including
month-day format, 12/24 hour
format, LCD contrast level, and
beeping. Press [S/S] and [L/R] to
adjust values.
zPress and hold [M] for 2 seconds to
save modified settings and exit
Settings Mode.

Daily Alarm Mode
Enabling Daily Alarm/Hourly Chime
zPress [S/S] to switch between daily
alarm1, daily alarm2, and hourly
chime display.
zPress [L/R] to switch daily alarms
on/off at their displays respectively.
A daily alarm indicator will be
displayed on the screen when daily
alarm is switched on.
zPress [L/R] to switch hourly chime
on/off at its display. An hourly chime
indicator will be displayed on
the screen when hourly chime is
switched on.
Daily Alarm Settings
zPress and hold [M] for 2 seconds at
Alarm1/2 display to enter Settings
Mode. Upon entering, the Settings
Mode indicator SET will be displayed
at the top of screen.
zPress [M] to shift through different
digits and press [S/S] and [L/R] to
adjust values.
zPress and hold [M] for 2 seconds to
save modified settings and exit
Settings Mode.

Chronograph Mode
Operating Chronograph
zUpon entering, the Chronograph
Mode indicator CHR will be
displayed at the top of screen.
zThe device measures elapsed time
and current lap time.
zPress [S/S] to start counting. Press
the button again to stop counting
and the elapsed time will be
displayed on the screen. Press the
button the third time to resume
counting.
zPress [L/R] while counting to
display current lap time. Press the
button again to display next lap
time. The lap time display will return
to counting display automatically
after 10 seconds.
zPress and hold [L/R] for 2 seconds
to reset counter.
zDuring split time display, press and
hold [M] to recall all lap times and
total lap times accumulated.
zPress [S/S] and [L/R] to review
each lap time and total lap times
accumulated.
zPress and hold [M] to exit lap time
display and back to chronograph
display.

Timer Mode

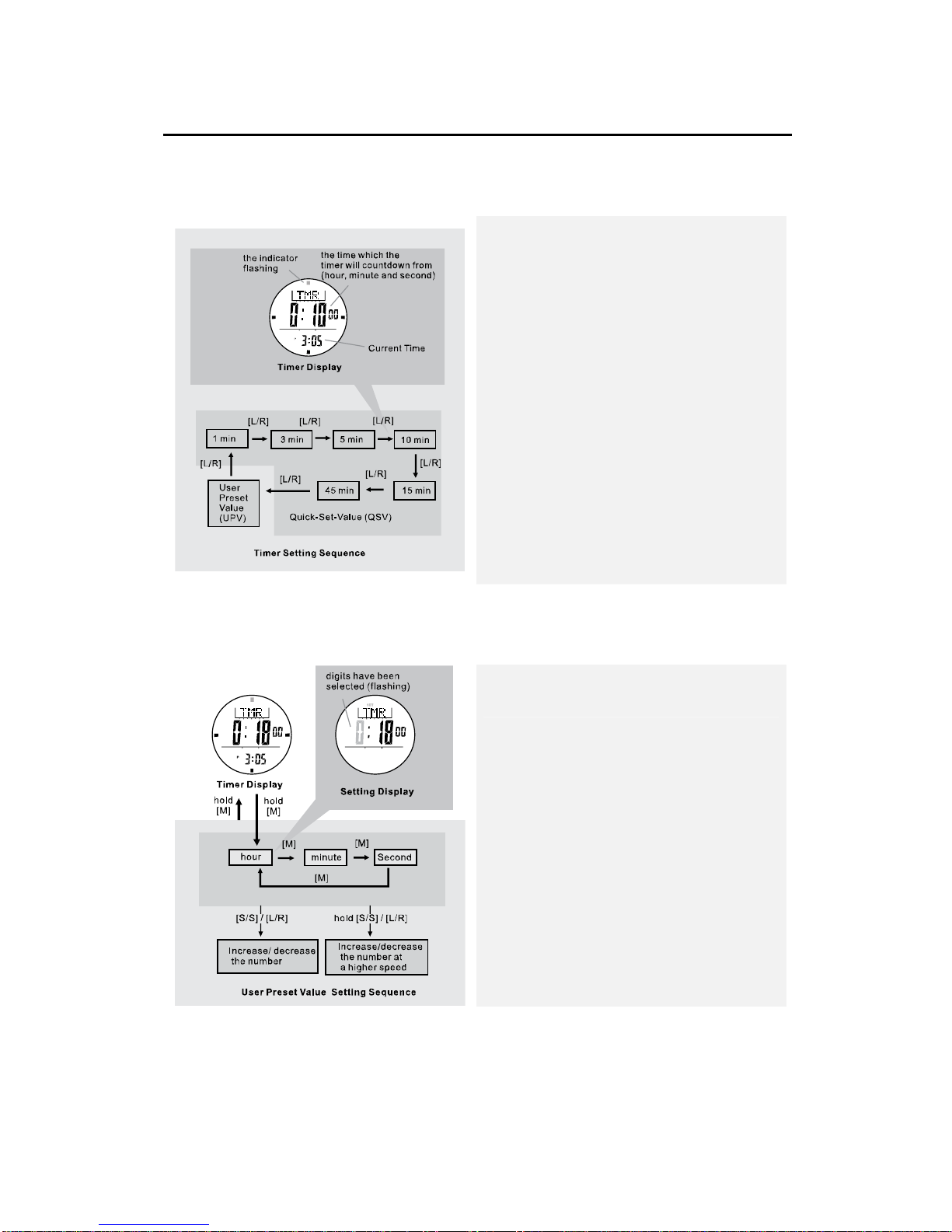

Quick Set Value and User Preset Value
zUpon entering, the Timer Mode
indicator TMR will be displayed at
the top of screen.
zPress [L/R] to cycle through quick
set values of countdown timer.
User Preset Value Settings
zPress and hold [M] for 2 seconds to
enter target time setting. The
Settings Mode indicator SET will be
displayed at the top of screen.
zPress [M] to switch between hour,
minute, and second digits. Press
[S/S] and [L/R] to adjust values.
zPress and hold [M] to save modified
settings and exit Settings Mode.

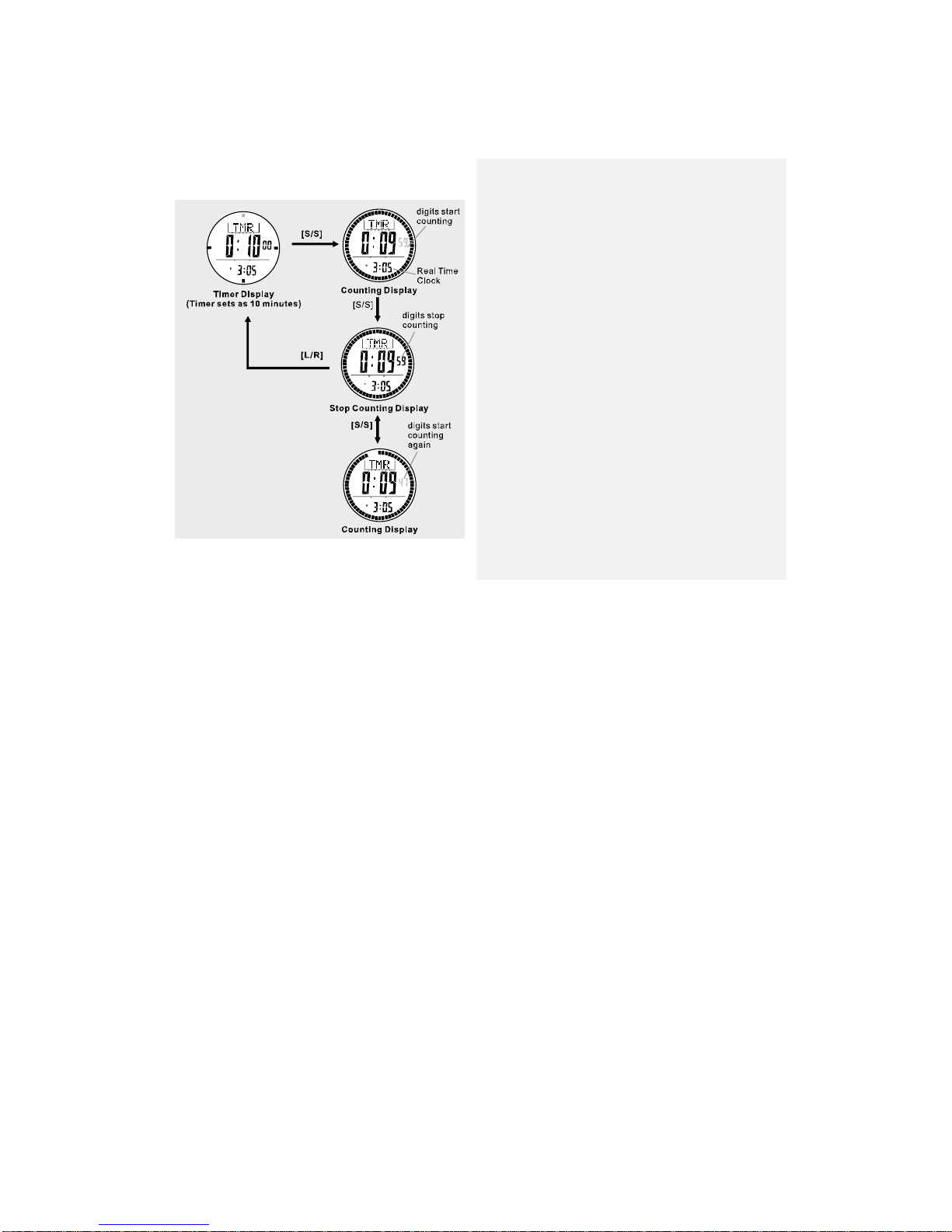

Operating Timer
zPress [S/S] to start countdown. The
residual time will be displayed on the
screen.
zPress [S/S] during count-down to
pause. Press the button again to
resume countdown.
zPress [L/R] to reset count-down
timer to target time.
NOTE:
The device will beep once per minute
when the timer reaches last 10 minutes,
once every 10 seconds when timer
reaches last one minute, and once every
second in the last 5 seconds. It will also
beep for another 30 second when timer
reaches target time.

Pacer Mode

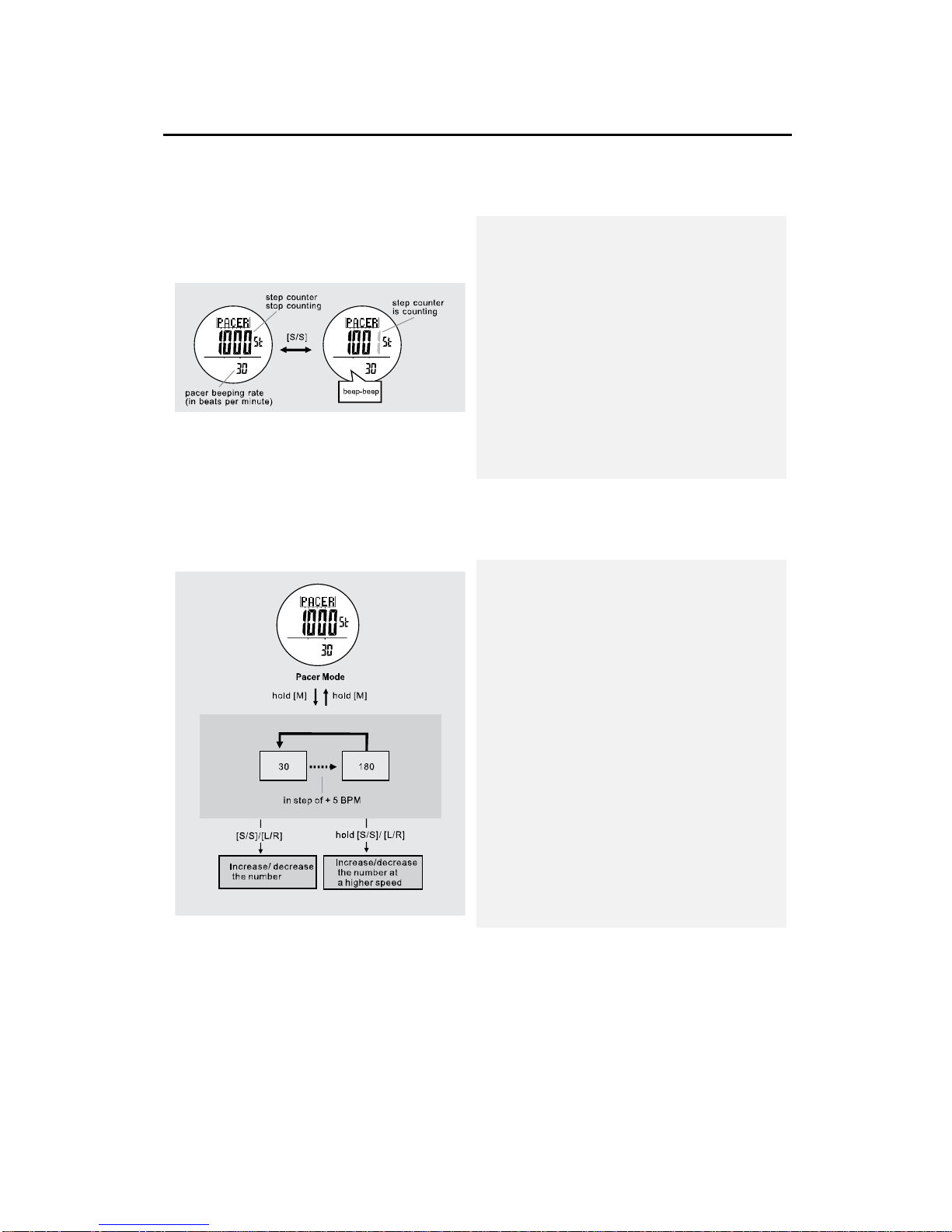

Operating Pacer
zUpon entering, the Pacer Mode
indicator PCR will be displayed at
the top of screen.
zPress [S/S] to generate beeps at a
pre-defined pacer rate. Press the
button again to stop.
zThe step counter increases one
counter per beep.
zPress and hold [L/R] to reset step
counter.
Pacer Settings
zPress and hold [M] for 2 seconds to
enter Pacer Mode setting.
zPress [S/S] and [L/R] to adjust
values.
zPress and hold [M] again to save
modified settings and exit Settings
Mode.

Linking with Chronograph
zDuring Pacer Mode, press [M] to
select Chronograph Mode.
zAt Chronograph Mode, press [S/S]
to start counting and beeping
simultaneously. Press the button
again to stop counting and beeping.

Dual Time Mode

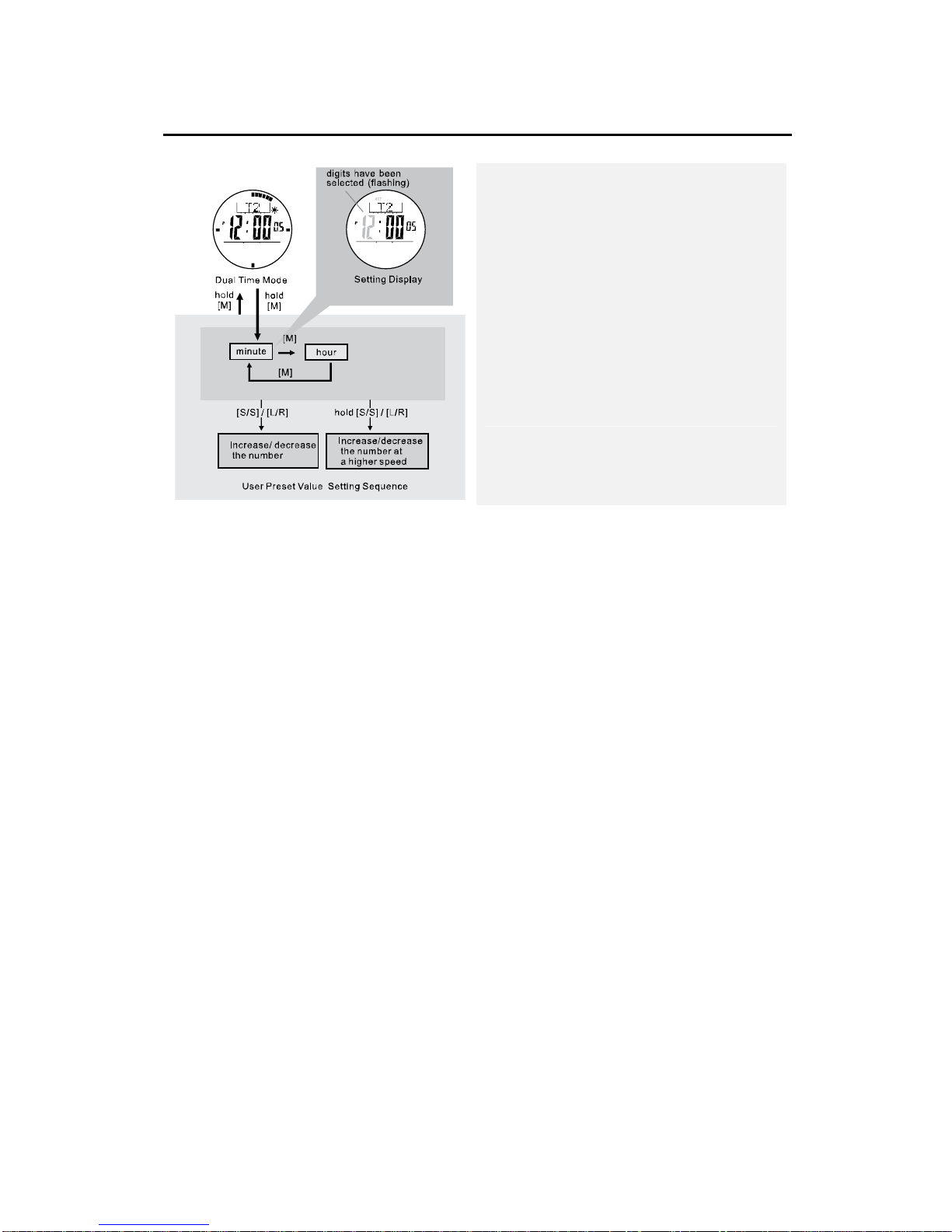

zPress and hold [M] for 2 seconds to
enter Settings Mode.
zPress [M] to shift through different
digits. Press [S/S] and [L/R] to
adjust values.
zPress [M] to save modified settings
and exit Settings Mode.

Altimeter Mode

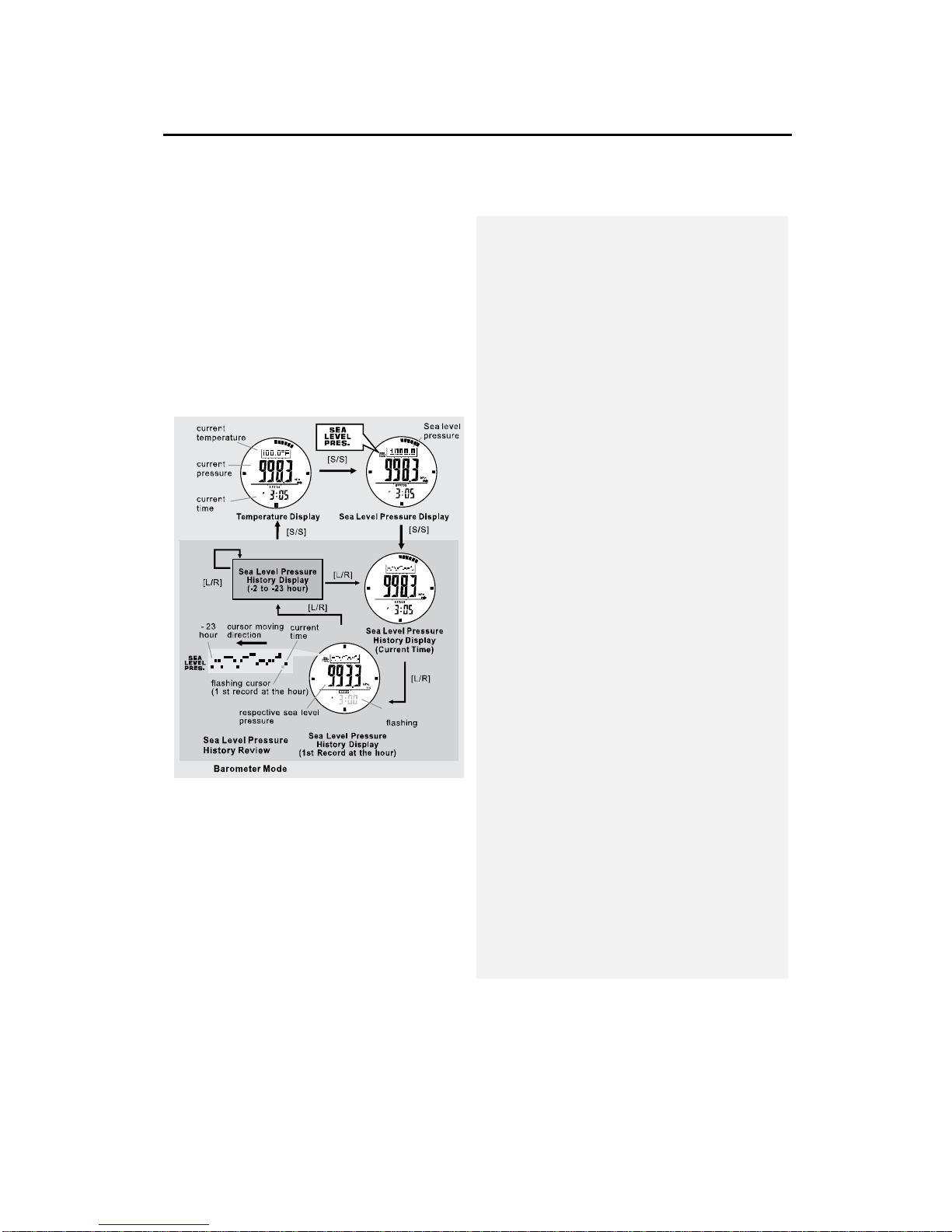

Temperature and History Display
zPress [SR] anytime during main
menu to cycle through Altimeter
Mode, Barometer Mode, and
Compass Mode.
zAt the device screen display during
Altimeter Mode, 1 of 2 Altimeter
functions, temperature or history,
will be displayed at the top row.
zCurrent (history) altitude and the
current (history) time are displayed
at the middle row and bottom row of
the display respectively.
NOTE:
To obtain more accurate readings, please
keep the device away from body which
will minimize effect of body heat.
zPress and hold [L/R] to obtain
immediate readings. The tempera-
ture is displayed in degree Celsius
(˚C) or degree Fahrenheit (˚F).
zThe device automatically records the
altitude reading every 60 minutes
and plots the data into an altitude
bar graph as History display.
zPress [L/R] to review altitude
records and their recording time of
the last 23 hours in order.

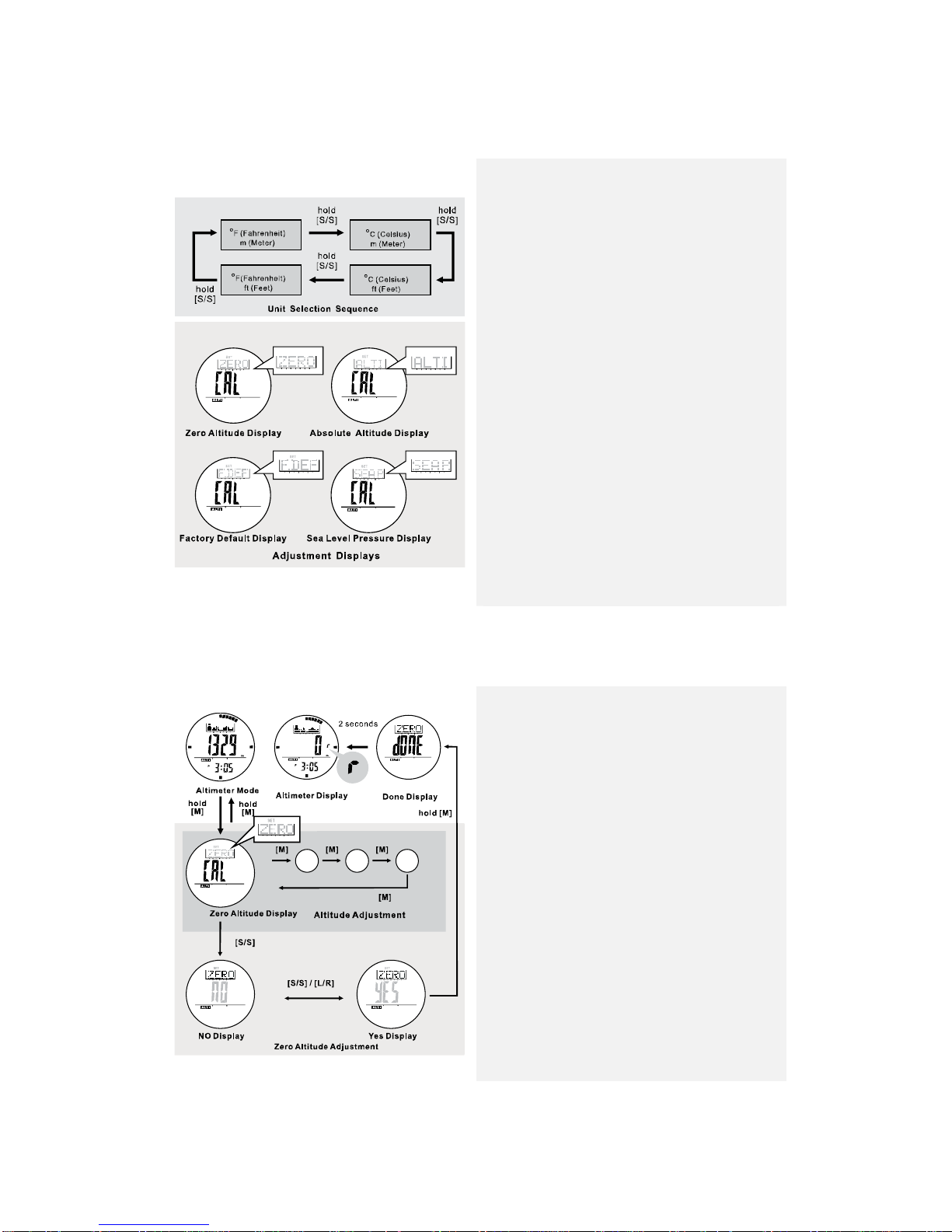

Unit Selection and Altimeter Adjustment
zPress [S/S] to switch between
measurement units including
altitude units meter(m)/feet(ft) and
temperature units (˚C)/ (˚F).
zThere are 4 methods to adjust/
calibrate altimeter functions
including Zero Altitude, Absolute
Altitude, Sea Level Pressure and
Factory Default Adjustment. Please
refer to following sections for more
details.
NOTE:
The device is equipped with automatic
Sea Level Pressure comparison feature
which does not display fluctuating
altitude readings when staying at the
same altitude.
Zero Altitude Adjustment
zZero Altitude function takes relative
altitude measurement by setting the
current altitude as reference point
with value of “zero”. An “r” reference
point indicator will be displayed.
zPress and hold [M] for 2 seconds
during Altimeter Mode to enter
Settings Mode.
zPress [M] to cycle through 4
different altitude adjusting methods
and to select ZERO option. Press
[S/S] to confirm selection.
zPress [S/S] or [L/R] to toggle
between YES/NO options and press
and hold [M] to confirm selection.

Absolute Altitude Adjustment
zAbsolute Altitude function takes
altitude measurement calculated
from air pressure. The device
requires calibration from time to
time to obtain more accurate
readings.
NOTE:
A precise altitude indication such as sea
level (0m) or an altitude sign pole is
required before calibration.
zPress and hold [M] for 2 seconds
during Altimeter Mode to enter
Settings Mode.
zPress [M] to cycle through 4
different altitude adjusting methods
and to select ALTI option. Press
[S/S] to confirm selection.
zPress [S/S] or [L/R] to increase or
decrease absolute altitude value and
press and hold [M] to confirm
selection.

Sea Level Pressure Adjustment
zSea Level Pressure function takes
altitude measurement calculated by
the difference between current and
sea level pressure. The device
requires calibration from time to
time to obtain more accurate
readings.
zPress and hold [M] for 2 seconds
during Altimeter Mode to enter
Settings Mode.
zPress [M] to cycle through 4
different altitude adjusting methods
and to select SEAP option. Press
[S/S] to confirm selection.
zPress [S/S] or [L/R] to increase or
decrease sea level pressure value
and press and hold [M] to confirm
selection.
Factory Default Adjustment
zFactory Default adjustment function
restores factory default value
(1013.2mb). The device requires
calibration from time to time to
obtain more accurate readings.
zPress and hold [M] for 2 seconds
during Altimeter Mode to enter
Settings Mode.
zPress [M] to cycle through 4
different altitude adjusting methods
and to select F.DEF option. Press
[S/S] to confirm selection.
zPress [S/S] or [L/R] to toggle
between YES/NO options and press
and hold [M] to confirm selection.

Barometer Mode
Temperature and History Display
zPress [SR] anytime during main
menu to cycle through Altimeter
Mode, Barometer Mode, and
Compass Mode.
zAt the device screen display during
Altimeter Mode, press [S/S] to
cycle through 3 Barometer functions
including temperature, Sea Level
Pressure, and history displayed at
the top row.
zCurrent (history) pressure and the
current (history) time are displayed
at the middle row and bottom row of
the display respectively.
NOTE:
To obtain more accurate readings, please
keep the device away from body which
will minimize effect of body heat.
zPress and hold [L/R] to obtain
immediate readings. The tempera-
ture is displayed in degree Celsius
(˚C) or degree Fahrenheit (˚F).
zThe device automatically records the
pressure reading every 60 minutes
and plots the data into a pressure
bar graph as History display.
zPress [L/R] to review pressure
records and their recording time of
the last 23 hours in order.
