CAS IE-100 User manual

2

3
CONTENTS
SAFETYGUIDE................................................4
PRECAUTION...................................................4
PRODUCT CHARACTERISTICS................5
SPECIFICATION..............................................5
MODEL...............................................................6
SIZEAND NET WEIGHT...............................7
OPERATION......................................................8
ELECTRICALPRINCIPLE DIAGRAM...10
DISPLAY MESSAGE .....................................11
TROUBLESHOOTING.................................12
REMOTE CONTROLLER...........................13

4
SAFETY GUIDE
Read carefully the following instruction and advice before using this scale.
■ Over-loading this scale is harshly prohibited
■ Refrain from long-time loading that could lead to excessive fatigue on loadcell
used inside the scale. Excessive fatigue that on loadcell would decrease the
accuracy and shorten the life of scale.
■ Check the shackle and hook regularly.
■ Check the battery power level before/after use and recharge the scale in time.
■ In order to maximize the battery life, periodic recharging is necessary for scales even not
in use for long time.
■ Do not try to repair the scale by yourselves.
■ Use privately attached charger only.
PRECAUTION
■ The crane scale is a kind of precise weighing instrument, pay attention on
operantion and maintenance.
■Rotate the load instead of machine otself if necessary for operation.
■Stop using the machine under the circumstances of thunder & rain.
■Check periodicly if the clips/pins and screws of the machine are loose or broken
before use.
■ If low battery signal appeare & LED annunciator goes green while charging,
please check the battery.
■ Hang the machine instrad for storage while not in use in order to prevent from
unnecessary load in the weight sensor inside.
■ Do not subject the scale to sudden to sudden temperature changes.
■ Avoid from the shock of excessive weight.

5
PRODUCT CHARACTERISTICS
Model Display characteristics
30mm(1.2″)LED
IE Series 30mm(1.2″)LCD
High accuracy, small volume,
easy to bring
■ High quality: The process management is operated according to OIMLR76,
GB/T11883-2002, and get the European CE certificate.
■ Safty installation:Aluminum Die-Casting Case, high intensity hook and shackle,
special loadcell for safty installation.
■ High reliability: Using high quality components on PCB circul board to board to insure
long time stability.
■ Broad applicability: 30mm high character display, 25M distance eyeshot, can be used
in storage industry, textile industry, metallurgy industry etc.
■ Simple operation: Check battry voltage automatically, wireless remote controller,
separate battery space, small volume, easy to bring.
■ Complete function: Kg/Lb conversion, Hold,Tare, Division choice, Stablity regulation,
Accumulation/Search, Gross/Net conversion, parameter regulation etc.
SPECIFICATION
Standard GB/T11883-2002《Electrical Crane Scale》
Accuracy class OIML class III
Display 30mm(1.2″) 5digits LCD/LED
Zero Range 4% full capacity
Tare Range 100% Full capacity
Stable Time ≤10 seconds
Overload Indication 100% Max. capacity + 9e
Max. Safety Load 125% Max. capacity
Ultimate Load 400% Max. capacity
Battery Life ≥50 hours
Battery Type Fully sealed Lead-Acid battery, 6V/5Ah
Adapter DC9V/1500mA
Operating Temp. - 10 ~ + 40℃℃

6
Operating Humidity ≤85% RH under 20℃
Remote Controller Distance Min. 10m
Battery of Remote Controller 5# battery, 1.5V 2ⅹ
MODEL
Model Max. capacity
(kg / lb) Min. capacity (kg / lb) Division (kg / lb) Total display (kg / lb)
IE-100 50/100 0.5/1 0.02/0.05 n=2000
IE-200 100/200 1/2 0.05/0.1 n=2000
IE-500 200/500 2/4 0.1/0.2 n=2500
IE-1000 500/1000 4/10 0.2/0.5 n=2000
IE-2000 1000/2000 10/20 0.5/1 n=2000

7

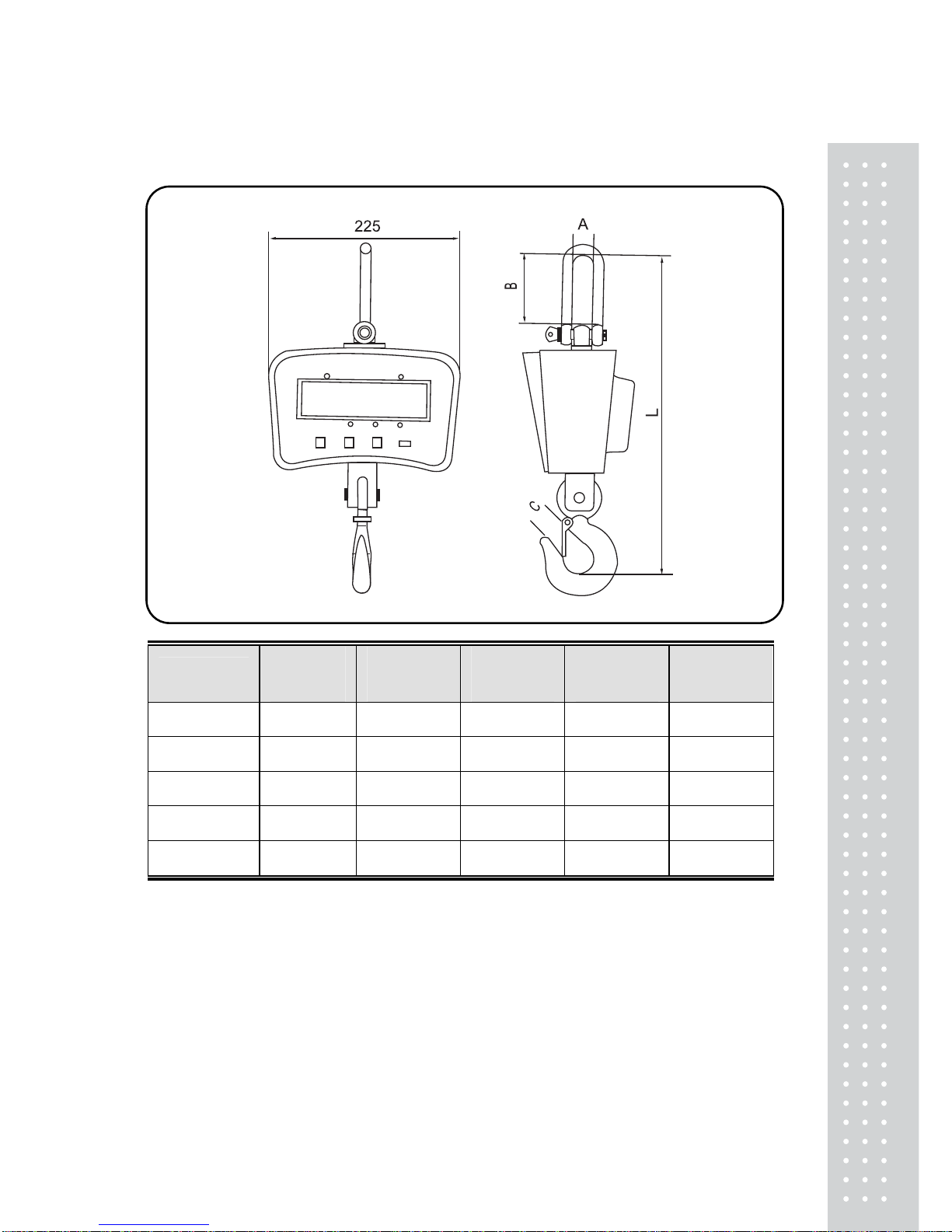

SIZE AND NET WEIGHT
Max.Capacity L
(mm) A (mm) B (mm) C (mm) Net weight
100kg 335 20 65 20 4.0
200kg 335 20 65 20 4.0
300kg 335 20 65 20 4.0
500kg 360 25 75 20 4.2
1000kg 360 25 75 20 4.2
※ Notice: If there’s any modification, all the date are subject to the scale itself.
↕
↕

8
OPERATION
■ TURN ON
Operation Display Illustration
【OFF/ON】【8.8.8.8.8 】Display two times
【500.0 】Display capacity two times
【U X.XX 】Display the voltage of battery
【- - - - - 】Wait stable signal
【0】“STB” light, can hang the weight
※Notice: To guarantee the accuracy, leave scale alone for 3~5 minutes after turning on.
■ ZERO
Operation Display Illustration
Press【→0←】on scale 【0】
Press 【ZERO 】on
controller 【0】
After turn on, generally display
【0】, if not for 【0】
Can operate like this
■ TARE
Operation Display Illustration
Press【→T←】on scale 【0】
Press 【TARE 】on
controller 【0】
Press this key to deduct the weight of
Container, while “TARE” light on, the
Scale will show the net weight of load
※Notice:As crane scale deduct the weight of container automatically, so it will show the
net weight of load every time, you needn’t press this key to get net weight until you change
the container or turn off.
※ OVERLOADWARNING
The display will show【-OL-】once the load (Net +Tare) exceeds Max. capacity.
Make sure that theload are withinthe capacity range, otherwise it’s very dangerous.

9
■ CHECK BATTERY
Press【OFF/ON】on scale, when turn on or turn off, it shows【U X.XX】
Press 【OFF】on controller 2 seconds
Stable after 15 minute, it show【】, after 60minutes, it turn off automatically.
■ HOLD THE WEIGHT READING
Press “HOLD” key on the remote controller to hold the displayed weight reading.
At this moment, “HOLD” light on, Press this key again will disable hold function.
■ LOW BATTERY WARNING
When the battery voltage lower then【U 5.8.0】,thedisplayflash,butthescalecanstillworkuntilthe
displayshow 【-Lb- 】,oneminutelater,itwillturnoffautomatically,youneedtorechargethebatteryto
useagain.
■ POWER SAVING
The display will show 【━】whentheloadareatstablestatusinexcessof15minutesand
revert to normal weighing readings while load changes. When the load are at stable status
in excess of 60 minutes, the scale will turn off automatically
■ RECHARGING BATTERY
1. Turn off, connect the adapter with 220VAC power supply, also insert the plug in the socket
which located in the rearof scale.The light become green, it means it’s recharging automatically,
until the green light become red,that means recharging is finished.
2. Whenyou need to use crane scale hour after hour, take off the rear cover, change the battery with
recharged battery.
Attention:Generally, the time of recharging should not lower than 8 hours,this scale have recharging
protection function, long time recharging will not damage the battery.
■ TURN OFF
Press【OFF/ON】on scale 2 seconds
Press【OFF】on controller 2 seconds
Stable after 15minutes, it show【】, after 60minutes, it turn off automatically.

10
ELECTRICAL PRINCIPLE DIAGRAM
Control key Control
distance
Load cell Signal
enlarges
A/D
CPU LED or LCD
display
Battery

11
DISPLAY MESSAGE
Display Illustration
【- - - - -】Waiting stable
【Err10】Accumulated weight not exceed Min. Capacity
【Err11】Accumulated times exceed, (can’t accumulate after 30times)
【Err12】Accumulated weight exceed (can’t accumulate after 99999)
【CLr】Ask if you really want to delete accumulated weight, in case error deletion
【noCLr】Give up deletion
【88888】Confirm deletion
【noACC】No any accumulated value (when you check)
【SHIFt】Conversion, when you press SHIFT in controller
【UX.XX】The voltage of current battery
【SCALE】Enter weight adjustment
【SEtUP】Enter parameter adjustment
【UAdJ 】Enter voltage adjustment
【-OL- 】Overload warning
【-Lb- 】Low battery warning
【End 】End, when parameter adjustment ready
【OFF 】Turn off

12
TROUBLESHOOTING
Phenomenon Reason Solution
Battery damaged Check battery
No display when
Turn on Battery contact loosed Tighten the contact
Display flash Low battery Min.Capacity Recharge the battery
Can’t trun on & off 【OFF/ON】Abuttun damaged Check & clean the buttun
Can’t tare 【TARE】Abuttun damaged Check & clean the buttun
The recharger damaged Check the recharger
Recharge indicator
Light can’t turn on The recharger isn’t
plugged ready Insert plug again
The load is unstable Stablize the load
Loadcell cable damaged Check and replace loadcell
Display isn’t stable
The scale in damp
Environment for a long time
Put the scale in dry
Environment
No enough time for heating
the scale after turn on
After turning on, heating
3-5 minutes.
The display don’t show
“0” when empty load Put the scale on ground for
too long time Scale should be hung
The error is large The scale isn’t hung properly Check the scale and sling
Battery damaged Replace battery
Battery can’t recharge
Outlet damaged Replace the outlet
Receiver window is too dirty Check and clean Remote distance
shorten Low battery of controller Replace controller battery

13
REMOTE CONTROLLER GUIDE
■ Lightness of display
Operation Illustration
【F1】0~5, 0: no display, 1: Minimum light, 5: Maximum light (Default: 2)
■ZERO
Operation Illustration
【ZERO】display〖0
〗when no load, “ZERO” light on
■HOLD
Operation Illustration
【HOLD】Hold the weight, “HOLD” light on
【HOLD】Convert to weighing situation, “HOLD” light off
■ TARE
1.Tare directly
Operation Illustration
【TARE】Display show net weight, “TARE” light on
【TARE】Display show gross weight, “TARE” light off
2. Set tare weight in advance
Operation display Illustration
【MR 】【SHIFT】
【TARE】【00000】Current tare weight
【****】Input the tare weight
【MR 】【- ***】Exit, “TARE” light on, it will deduct tare weight
automatically when weighing.

1
4
■ ACCUMULATION
Operation display Illustration
【 M+ 】【No***】Current accumulation times
【H****】 Rear four digit of current accumulated value
【L****】 Front four digit of current accumulated value
Attention:After display two times circlely, it will return toweigh situation automatically, youalso can
pressMRtoreturndirectly.
■ SEARCH
Operation display Illustration
【 MR 】 【No***】 Current accumulation times
【 M+ 】 【*****】 Current weight
【H****】 Rear four digit of current accumulated value
【L****】 Front four digit of current accumulated value
【 MR 】 【 0】 Return to weigh
Attention: Press【TARE】and 【→0←】cansearch every time weightandaccumulatedvalue, press
【 MR 】return.
■ CLEAR
Operation display Illustration
【CLEAR】 【 CLr 】 Display blink, please confirm if you want to delete
Accumulated value
【CLEAR】 【noCLr】Cancel deletion
【 MR 】 【88888】Confirm deletion
■ ZERO DISPLAY
Operation display Illustration
【 MR 】 【SHIFT】
【→0←】 【 ***】 Display current zero value

15
■ KG/LB CONVERSION
Operation display Illustration
【 MR 】 【SHIFT】
【CLEAR】 【Un= *】
Un = 0 : kg “lb” light off
Un = 1 : kg “lb” light on,
■ SEARCH OVERLOAD TIMES
Operation display Illustration
【 MR 】 【SHIFT】
【CLEAR】 【OL=**】Display times of overload
■ VOLTAGE DISPLAY
Operation display Illustration
【 MR 】 【SHIFT】
【 F1 】 【U X.XX】Display show current voltage of the battery
【 MR 】 【 0】 Return to weigh
■ TURN OFF
Operation display Illustration
【OFF】 【 OFF 】
【U X.XX】Display show current voltage of battery
then turn off
