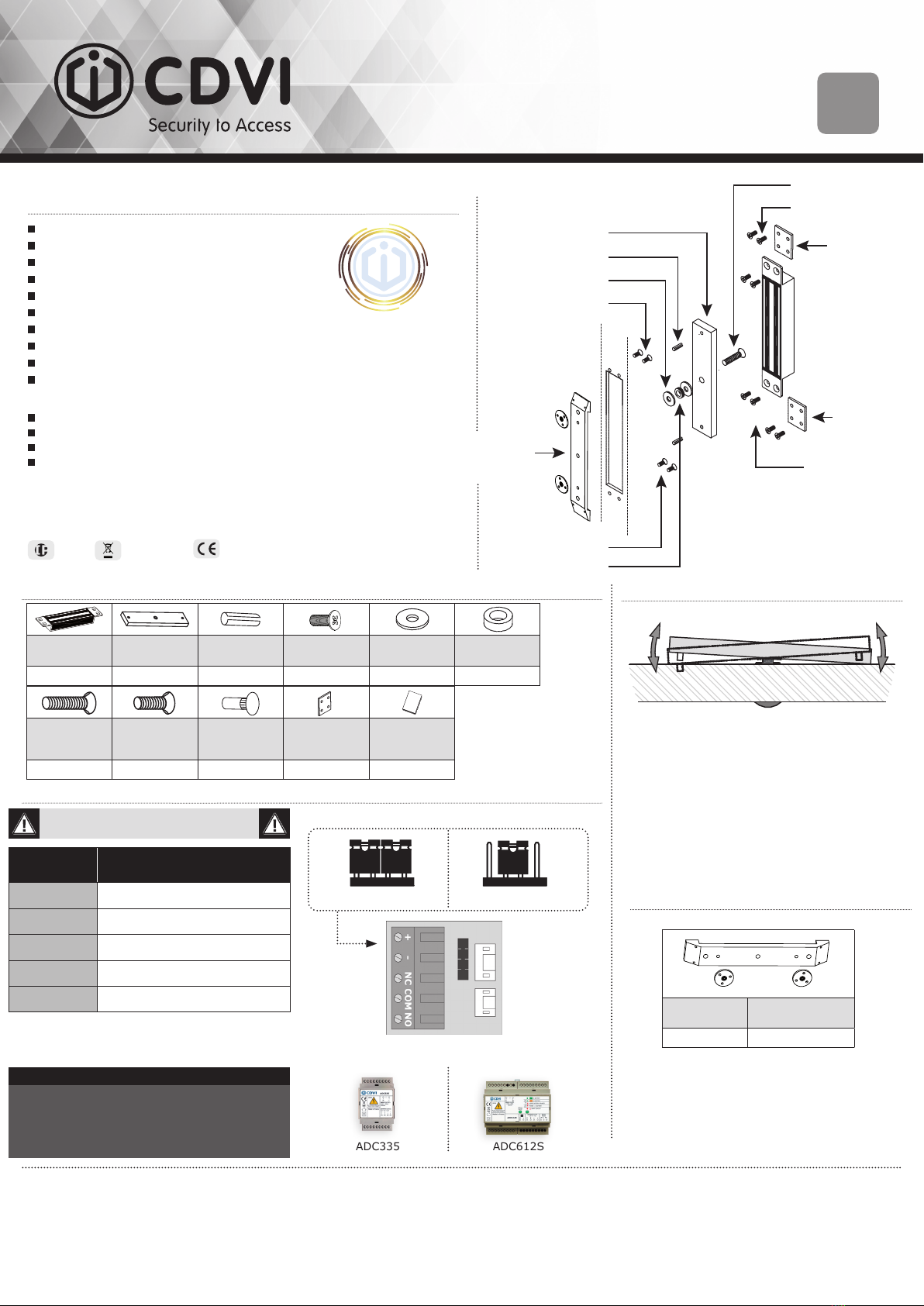

CDVI I300ER User manual

Manufacturing Access Control since 1985
I300ER
300Kg Mortice Electromagnetic lock EN
PACKAGE CONTENT
Magnetic
lock
Armature
plate
5x16
Roll pin M5X8 Srew Steel washer Rubber washer
111122882211
M8x35
Screw M8x25 Screw Cap nut
Joggle
bracket
Manual
1111112211
PRODUCT PRESENTATION
Monitored
Mortice
High corrosion resistance
Delivered with armature plate
No mechanical wear
Ease of installation
Recommended for exterior use
Fail safe (Door unlocked when power off)
Holding force : 300kg
Built-in varistor : Built-in electronic protection to
eliminate back EMF
Dimensions (L x W x D): 228 x 38 x 27mm
Armature plate dimensions (L x W x D): 185 x 38 x 11mm
Power supply: 12/24V dc
Consumption: 480 mA with 12V dc
240 mA with 24V dc
CE Certication
WEEE & RoHS
IP42
Armature plate support
AMB300 (optional)
Armature plateArmature plate
Roll pinRoll pin
Steel washerSteel washer
ScrewScrew
ScrewScrew
Rubber washerRubber washer
Armature plate screwArmature plate screw
ScrewScrew
ScrewScrew
Joggle bracketJoggle bracket
Joggle bracketJoggle bracket
MOUNTING RECOMMENDATIONS
OPTIONAL ACCESSORIES
References AMB300
DescriptionDescription Armature mountingArmature mounting
plateplate
Armature plate
- It is vital that the magnetic lock and armature
plate are securely xed to their supports.
- The magnetic lock and the armature plate must
be aligned.
- The armature plate must be mounted “oating”
around the central mounting screw to
compensate for any misalignment of the door
Stainless steel
CDVI_I300ER_IM_01_EN-FR_A4_B - G0301FR1059V01
CDVI FRANCE + EXPORT
31, av. du Général Leclerc
93500 PANTIN - France
Phone [phone]
www.cdvi.com
CDVI SWEDEN
[SWEDEN - DENMARK -
NORWAY FINLAND]
Phone [phone]
www.cdvi.se
CDVI UK
[UNITED KINGDOM - IRE-
LAND]
Phone [phone]
www.cdvi.co.uk
CDVI AMERICAS
[CANADA - USA]
Phone [phone]
www.cdvi.ca
CDVI BENELUX
[BELGIUM - NETHERLAND -
LUXEMBOURG]
Phone [phone]
www.cdvibenelux.com
CDVI SUISSE
Phone [phone]
www.cdvi.ch
CDVI IBÉRICA
[SPAIN - PORTUGAL]
Phone [phone]
www.cdviberica.com
CDVI ITALIA
Phone [phone]
Fax: [phone]
www.cdvi.it
CDVI TAIWAN
Phone [phone]
www.cdvichina.cn
CDVI CHINA
Phone +86 (0)10
84606132/82
www.cdvichina.cn
CDVI MAROC
Phone [phone]
09 40
www.cdvi.ma
CDVI POLSKA
Phone [phone]
www.cdvi.com
Do not connect the magnetic
lock without the PCB.
10
WARRANTY
YEAR
ELECTRICAL CONNECTIONS
Voltage selection jumpers
Recommended power supplies
12V dc default setup
The N.O./N.C. signal only switches when the door is
closed with the electromagnetic lock powered
Check the jumper position before connecting the
lock to the input current. A wrong position could
damage the lock. This type of damage is not
covered by the warranty.
IMPORTANT NOTE
Terminal
block Correspondence
+12 or 24V dc
-- 0 V
NC Normally closed
CCOM
NO Normally open
ADC335
12V dc
ADC612S
24V dc
