Cembre HT131-U User manual

1
HYDRAULIC CRIMPING TOOLS
PRESSES HYDRAULIQUES
HYDRAULISCHE PRESSWERKZEUGE
HERRAMIENTAS HIDRAULICAS DE COMPRESION
UTENSILI OLEODINAMICI DA COMPRESSIONE
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
05 M 057
OPERATION AND MAINTENANCE MANUAL
NOTICE D'UTILISATION ET ENTRETIEN
BEDIENUNGSANLEITUNG
MANUAL DE USO Y MANTENIMIENTO
MANUALE D'USO E MANUTENZIONE
HT131-U
HT131-UC

2
1
- Tool type
- Outil type
- Handwerkzeug Typ
- Herramienta tipo
- Tipo di utensile
- Year
- Année
- Jahr
- Año
- Anno

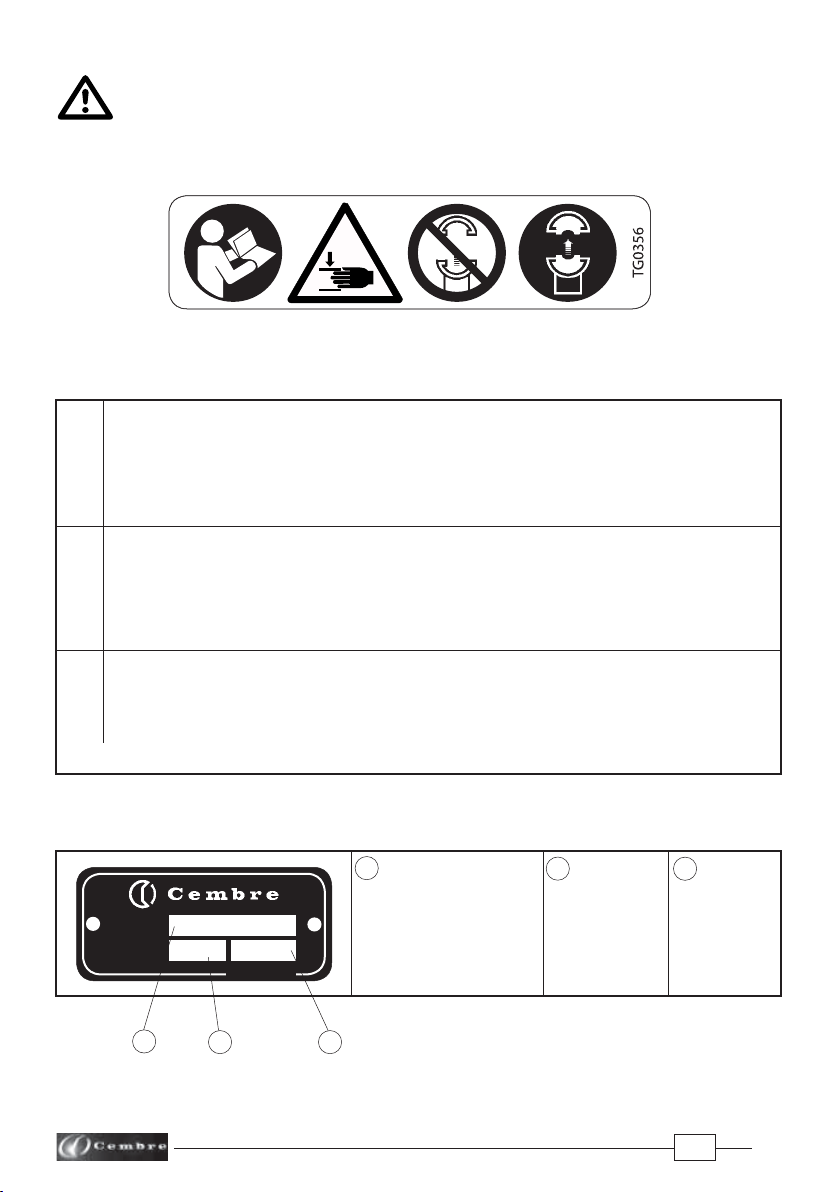

WARNING LABELS - ETIQUETTES SIGNALETIQUES - WARNSCHILDER -
ETIQUETAS DE ATENCION - ETICHETTE D'AVVERTENZA
– Before using the tool, carefully read the instructions in this manual.
– Avant d'utiliser cet outil, lire attentivement les instructions de cette notice.
– Vor Inbetriebnahme unbedingt die Bedienungsanleitung durchlesen.
– Antes de utilizar la herramienta, leer atentamente las instrucciones contenidas en este manual.
– Prima di utilizzare l'utensile, leggere attentamente le istruzioni contenute in questo manuale.
– When operating the tool keep hands away from the danger zone.
– Au cours du sertissage, tenir les mains éloignées de la zone de danger.
– Während des Verpressens nicht mit den Händen in den Pressbereich langen.
– Durante su utilización, mantenga las manos fuera de la zona de peligro.
– Durante l'utilizzo, mantenere le mani fuori dalla zona di pericolo.
2
– Do not pump when dies are not in place.
– Insérer les matrices avant d'actionner l'outil.
– Nicht ohne Presseinsatzpaar betatigen.
– No poner en presión sin matrices.
– Non mandare in pressione l'utensile senza le matrici inserite.
3
4
TYPE
FORCE 130 kN
HT131-UC
Made in Italy
23
123
123
1
4
- Force
- Force
- Kraft
- Fuerza
- Forza

3
ENGLISH
HYDRAULIC CRIMPING TOOLS
HT131-U and HT131-UC *
1. GENERAL CHARACTERISTICS
– Application range: is suitable both for compression of electrical connectors on conductors up
to400mm2(800MCM)and aluminium conductorsupto300mm2 (600MCM).
– Crimping force:........................................................................................................... 130 kN (14.6 sh ton)
– Rated operating pressure:..................................................................................... 700 bar (10,000 psi)
– Dimensions: length .................................................................................................. 488 mm (19.2 in.)
width with handles closed........................................................... 149 mm (5.8 in.)
width with handles open ............................................................. 349 mm (13.7 in.)
– Weight (without dies):.............................................................................................. 5,4 kg (11.9 lbs)
– Recommended oil:.............................................................. AGIP ARNICA 22 or
ESSO INVAROL EP22 or equivalent
– Operating positions. The three operating positions are identified on the main handle, which
rotates relative to the reference symbol, (see Fig. 1).
Rest position (Handles locked): lock handles together when tool is not
in use.
Releaseposition:closethemoveablehandle(53)againstthemainhandle
(04), in order to discharge the oil pressure and retract the dies.
Operating position: operate the moveable handle (53), to build up
pressure and close the dies.
– Advancing speed. The tool has two forward speeds of the ram and automatically switches from
a fast advancing speed of dies to a slower crimping speed.
–Safety.The tool is provided with max pressure valve; MPC1 special manometer, is available upon
request to check the correct setting of the valve.
* The HT131-UC tool is the HT131-U tool fitted with adaptor AU130-C (Ref. to Fig. 2).

4
2. APPLICATION RANGE
2.1) The tool HT131-UC is supplied with the AU130-C adaptor, which will accept the semi-circular
slotted dies (common to Cembre 130 kN tooling) suitable for:
–Indentation on copper conductors
–Circular Compression on copper conductors.
–Hexagonal compression on copper, aldrey or aluminium conductors.
2.2) With the upper adaptor AU130-... and lower adaptor AC130-P, the tool HT131-U or HT131-UC
can accept:
– Pre-rounding dies UP 130-...
(used for converting aluminium sectoral conductor to a compact, round section).
–Containing dies (MV, MVC, MVM, MUA series) and the relevant Indentors PS130-.../E
(to crimp connectors on aluminium cables using the deep indent crimping system).
3. INSTRUCTIONS FOR USE (Ref. to Fig. 1, 2 and 3)
Instruction for use are referring to the tool featuring an AU130-C adaptor but they are completely
suitable also for tool equiped with AU130-... and AC130-P adaptors (regardless of selected dies).
3.1) Setting
With the tool is in rest position operate as follows:
– Select the appropriate die set for the connector.
– Insert the die set (88 and 89) into the head, as § 4.3.
– Insert the conductor in the connector.
– Position the connector between the dies and ensure the correct location of the crimp.
3.2) Die advancement
– Set the tool on release position by rotating main handle (04); open the moveable
handle (53).
– Rotate main handle (04) to operating position .
– Operate moveable handle (53) for lower die advancement. This first stage rapidly closes the dies
to the connector.
NEVER PRESSURIZE THE TOOL WITHOUT INSERTING THE DIES AS THIS COULD CAUSE DAMAGE TO
THE TOOL HEAD AND THE RAM.
Make sure the dies are exactly positioned on desired crimp point, otherwise re-open dies following
instructions as per § 3.4 and position the connector again.
ENGLISH

5
ENGLISH
3.3) Crimping
– Continue operating the moveable handle (53). The tool will automatically change over to the
high pressure stage. The ram will advance until the dies meet.
– It is recommended to continue pumping until the maximum pressure valve is activated and a
"click" is heard.
3.4) Dies re-opening
– Rotate main handle to release position .
Completely close handles and the die will retract.
3.5) Rest setting
– Completely retract the ram as § 3.4.
– Close handles and rotate main handle to rest position ; the moveable handle will be
locked.
– Store the tool in the plastic case.
4. CRIMPING OF CONNECTORS ON COPPER CABLES (Ref. to Fig. 2 and 3)
4.1) Connector crimping
– Fit adaptor AU130-C (see § 4.2).
– Select the appropriate die set for the connector.
– Insert die set in to upper and lower die holders (see § 4.3).
– Insert the conductor in the connector.
– Position the connector between the dies and ensure the correct location of the crimp.
– To crimp connector continue as § 3.2.
4.2) Adaptor assembly
Insert the AU130-C (90) adaptor in the guides on the U-fork (33) until securely located, with the
grooves on the adaptor corresponding to the locators (34) on the U-fork head (33).
Remove the adaptor by pushing the adaptor off the locators and sliding from the head.
4.3) Dies assembly
4.3.1) Press release button (86) and insert the upper die (88) into the AU130-C adaptor (90) until
secured by the die retaining pin (87).
To remove the upper die, press the release button (86) and slide the die from the adaptor (90).
4.3.2) Press the release pin (30) and insert the lower die (89) into the seat on the ram (28) until
secured by the pin (32). To facilitate this operation an advancement of 15-20 mm (0.59 - 0.79 in.) of
the ram (28) is suggested. To remove the die press the release pin (30) and slide the die from the
ram.

6
5. CRIMPING OF CONNECTORS ON ALUMINIUM CABLES (Ref. to Fig. 4 and 5)
5.1) Pre-rounding conductor (for sectoral cables)
– From the table (Fig. 9, page 42) select the adaptors and pre-rounding dies for the appropriate
conductor size.
– Insert the upper adaptor AU130-... and AC130-P lower adaptor into the head (see § 5.3).
– Insert the pre-rounding die (94) into the AC130-P adaptor (see § 5.4).
– Position the conductor into the pre-rounding die (95) and locate the pre-rounding die (95) in
the adaptor AU130-... (see § 5.4). Ensure that the pre-rounding die is correctly located in the
adapter with it’s upper slot in line with the internal adapter pins.
– Operate the tool until the dies are fully closed.
Release the hydraulic pressure (see § 3.4) and remove the compacted round conductor.
5.2) Connector crimping
– Remove the pre-rounding dies and the adaptor AC130-P from the tool head (see § 5.4).
– From the table (Fig. 9, page 42) select the containing die and indentor recommended for the
conductor size.
– Insert the indentor PS130.../E into the ram (28) (see § 5.4).
– Insert conductor into the connector; locate the connector into the containing die; locate the
containing die in the adaptor (see § 5.4).
Commence indent crimping from the barrel end for both splices and terminals, following the
sequence shown below.
– For every operation ensure the die is correctly located in the adapter with it’s upper slots in line
with the internal adapter pins.
– Each indenting operation is completed when indentor and die are fully closed;
it is recommended to continue pumping until the maximum pressure valve is activated and a
"click" is heard (see § 3.3).
5.3) Adaptor fitting and removal
–Insert the upper adaptor AU130-... (98) into the U-fork head (33) until secured by the locators
(34).To remove the adaptor from the U-fork head, push the adaptor from the locators and slide out.
ENGLISH
INDENTING SEQUENCE
1 2 1 4 3 2

7
ENGLISH
– To insert the adaptor AC130-P (91), press the die release pin (30).
Insert the adaptor into the seat of the ram (28), until secured by the retaining pin (32).
To facilitate this operation, an advancement of 15÷20 mm (0.59-0.79 in.) of the ram (28) is sug-
gested. To remove the adaptor, press the die release pin (30) and slide the adaptor from the ram
(28).
5.4) Dies, indentors, pre-rounding dies - fitting and removal (Ref. to Fig. 5)
– The containing die (96) and upper pre-rounding die (95): are located in the adaptor AU130-...
(98) by grooves in the upper face.
– Thelowerpre-roundingdie(94):isinsertedorremovedfromtheadaptorAC130-P(91),bypulling
the release button (92).
– The indentor PS130.../E (93): is inserted into the seat on the ram (28) (see §4.3.2).
6. WARNING
The tool is robust and requires very little daily maintenance.
Compliancewiththefollowingpoints,should helptomaintaintheoptimumperformanceofthetool.
6.1) Accurate cleaning
Dust, sand and dirt are a danger for any hydraulic device.
Every day, after use, the tool must be cleaned with a clean cloth, taking care to remove any residual,
especially close to pivots and moveable parts.
6.2) Storage (Ref. to Fig. 6)
When not in use, thetool should be stored and transported in it's case to prevent damage. Follow-
ing cases are available:
–VALP3 plastic case: size 620x380x135 mm (24.4x14.9x5.3 in.), weight 2,5 kg (5.5 lbs).
–VAL130 steel case: size 360x280x48 mm (14.17x11x1.89 in.), weight 3 kg (6.62 lbs), for storage of
the accessories for crimping aluminium connectors.
6.3) Head rotation
For ease of operation, the tool head can rotate through 180°.
Warning: do not attempt to turn the head if the hydraulic circuit is pressurised.
7. MAINTENANCE (Ref. to Fig. 7 and 8)
Air in the hydraulic circuit may affect the performance of the tool; e.g. no lower die advancement,
slow advancement of the lower die; lower die pulsating.
In this case proceed as follows:

8
ENGLISH
7.1) To purge air bubbles from hydraulic circuit
a – Hold tool upright in a vice with handles open (Fig. 7).
b – By an hexagonal 2,5 mm key, remove screw (62) and main handle (04) to expose oil reservoir
(03).
c – Remove reservoir cap (01).
d – Operate three or four times the moveable handle (53), to advance the ram (28).
e – Depress pressure release pin (70) until ram is fully retracted.
f – Repeat points (d -e) at least five times, to ensure all air bubbles in the hydraulic circuit are
purged into the reservoir.
g – If the oil level is low, top up as directed in § 7.2.
h – Remove all air from reservoir and fit cap (01).
i– Assemble main handle (04), and holding screw (62).
If the tool continues to malfunction return the tool for service/repair as detailed in § 8.
7.2) Oil top up
Every six months check the oil level in the reservoir. If necessary, top up the oil level to the top lip
of the reservoir and remove all air from the reservoir, see 7.1, points a, b, c,e, g, hand i.
Always use clean recommended oil, see § 1.
Do not use old or recycled oil.
Do not use hydraulic brake fluid.
Ensure that disposal of used oil is in accordance with current legislation.
8. RETURN TO Cembre FOR OVERHAUL
In the case of a breakdown contact our Area Agent who will advise you on the problem and give
you the necessary instructions on how to dispatch the tool to our nearest service Centre; if possible,
attach a copy of theTest Certificate supplied by Cembretogether with the tool or fill in and attach
the form available in the“ASSISTANCE” section of the Cembre website.

9
ENGLISH
6800040 01 RESERVOIR CAP 1
6380265 ● 02 MAIN HANDLE GRIP 1
6720100 03 OIL RESERVOIR 1
6480043 ● 04
MAIN HANDLE 1
6760014 ● 05 ø 3x4 SPLIT PIN 1
6780105 ● 06 MAIN HANDLE SUPPORT 1
6360260 ★ 07 O-RING 1
6040685 08 GUIDING RING 2
6900621 09 COMPL. SUCTION SCREW 1
6360160 ★ 10 O-RING 1
6740060 ★ 11 3/16" BALL 1
6520765 ★ 12
SUCTION SPRING 1
6160234 13 BODY 1
6740060 ★ 14 3/16" BALL 1
6520765 ★ 15 SUCTION SPRING 1
6740140 ★ 16 9/32" BALL 1
6520180 ★ 17 NO RETURN SPRING 1
6340566 18 BALL SUPPORT 1
6900059 19 M 4x8 SCREW 1
6100020 20 KEY 1
6700250 ▲ 21 ø 36 CIRCLIP 1
6170140 ▲ 22 SPRING COVER 1
6360420 ★ ▲ 23 O-RING 1
6040320 ★ ▲ 24 BACK-UP RING 1
6520620 ▲ 25 RAM RETURN OUTER SPRING 1
6520610 ▲ 26 RAM RETURN INNER SPRING 1
6300040 ▲ 27 RAM SPRING GUIDE 1
6620315 ▲ 28 RAM 1
6522006 ▲ 29 SPRING 1
6620445 ▲ 30 DIE RAM RELEASE PIN 1
6760040 ▲ 31 ø 3x8 SPLIT PIN 1
6620320 ▲ 32 DIE RAMRETAINER PIN 1
6280025 ■ 33 U-FORK HEAD 1
6340630 ■ 34 M10 DOWEL 2
6180800 ■ 35 M10 NUT 2
6100035 36 KEY 1
6900252 37 M 5x14 SCREW 1
6362035 ★ 38 SEAL 1
6362010 ★ 39 SEAL 1
6641140 ★ 40 BACK-UP RING 1
6360240 ★ 41 SEAL 1
6362020 ★42 SEAL 1
6620382 43 PUMPING RAM 1
Code N° Item DESCRIPTION Qty Code N° Item DESCRIPTION Qty
6760320 ✚ 44 ø
5x30 SPLIT PIN 1
6780265 ✚ 45
MOVEABLE HANDLE SUPPORT 1
6700100 ★ 46 ø 7 CIRCLIP 2
6700100 ✚47 ø 7 CIRCLIP 2
6080060 ✚ 48 MOVEABLE HANDLE BUSH 4
6560420 ✚ 49 MOVEABLE HANDLE PIVOT 1
6560420 50 MOVEABLE HANDLE PIVOT 1
6200030 ✚ 51 MOVEABLE HANDLE LATCH
1
6760280 ✚ 52 ø 4x30 SPLIT PIN 1
6480269 ✚53 MOVEABLE HANDLE 1
6380240 ✚54 MOVEABLE HANDLE GRIP 1
6232006 55 LABEL (TG. 0356) 1
6650118 56 ø 2,5x3,5 RIVET 2
6232068 57 METAL LABEL (TG. 0268) 1
6760040 ▲58 ø 3x8 SPLIT PIN
1
6740020 ★ 59 1/4" BALL 1
6520280 60 SPRING
1
6640205 61 WASHER 1
6900060 62 M 4x8 SCREW 1
6895050 63 MAX PRESSURE VALVE
1
6360160 ★ 64 O-RING 1
6740120 ★ 65 7/32" BALL 1
6600100 66 BALL SUPPORT 1
6520260 67 SPRING 1
6740080 ★ 68 5/16" BALL 1
6340540 69 M 10x8 DOWEL 1
6620120 70 PRESSURE RELEASE PIN 1
6360120 ★ 71 O-RING 1
6040060 ★ 72 BACK-UP RING 1
6080080 73
PRESS. RELEASE PIN BUSH 1
6900280 ✚ 74 M5x18 SCREW 1
6180200 ✚ 75 M5 NUT 1
6340566 76 BALL SUPPORT 1
6520180 ★77 NO RETURN SPRING 1
6740140 ★ 78 9/32” BALL 1
6635011 79 PRESSURE RELEASE PIN 1
6520861 80 PRESSURE RELEASE SPRING 1
6340720 81 PRESSURE RELEASE DOWEL 1
6480042 ● COMPLETE MAIN HANDLE
6620316 ▲ COMPLETE RAM
6280026 ■ COMPLETE FORK
6480194 ✚
COMPLETE MOVEABLE HANDLE
6000074 ★ SPARE PARTS PACKAGE
9. PARTS LIST (Ref. to Fig. 8)
The guarantee is void if parts used are not Cembreoriginal spares .
When ordering spare parts always specify the
following:
- code number of item
- name of item
- type of tool
- tool serial number
The items marked () are those
Cembre recom-
mends replacing if the tool is disassembled.These
items are supplied on request in the
“HT131-U Spare Parts Package”

10
FRANÇAIS
PRESSES HYDRAULIQUES
type HT131-U et HT131-UC*
1. CARACTERISTIQUES GENERALES
– Domaine d'application: conçue pour le sertissage des connecteurs électriques pour câbles en
cuivre jusqu'à 400 mm2 (800 MCM) et pour câbles enaluminiumjusqu'à
300 mm2 (600 MCM).
– Force de sertissage:.................................................................................................. 130 kN (14.6 sh ton)
– Pression nominale: ................................................................................................... 700 bar (10,000 psi)
– Dimensions: hauteur ............................................................................................... 488 mm (19.2 in.)
largeur (bras mobile fermé)......................................................... 149 mm (5.8 in.)
largeur (bras mobile ouvert) ....................................................... 349 mm (13.7 in.)
– Poids (sans matrices):............................................................................................... 5,4 kg (11.9 lbs)
– Huile:......................................................................................... AGIP ARNICA 22 ou
ESSO INVAROL EP22 équivalent
– Positions de fonctionnement: les trois positions de fonctionnement de la presse sont mention-
nées sur le bras principal (04) qui pivote sous le corps (13) de presse, et sont sélectionnées face
au repère fixe (voir Fig. 1).
Repère de repos: c'est la position où l'outil doit être au repos.
Le bras mobile (53) est bloqué.
Repère de décompression: l'outil à cette position, en amenant et
maintenant le bras mobile (53) contre le bras principal (04) relache sa
pression et ouvre ainsi les matrices.
Repère de travail: l'outil à cette position, en actionnant le bras mobile
(53), permet la montée en pression et la fermeture des matrices.
– Avance rapide: l'outil passe automatiquement de la vitesse rapide d'approche des matrices, à la
vitesse lente de montée en pression.
– Sécurité: l'outil est pourvu d'une valve de surpression.
Pour vérifier le bon fonctionnement de cette valve, un manomètre spécial, notre réf. MPC1, est
disponible à la demande.
*Cette désignation indique l’ensemble de l’outil HT131-U complété de l'adaptateur AU130-C (Voir Fig. 2).
