Chauvin Arnoux DigiFlex MA4000D-350 User manual

MA4000D
ENGLISH
SVENSKA
User's manual
Bruksanvisning
FLEXIBLE CURRENT METER
STRÖMTÅNG MED FLEXIBEL SPOLE

2
WARNING, risk of DANGER! The operator must
refer to these instructions whenever this danger
symbol appears.
Equipment protected by double insulation.
Must not be applied to or removed from bare
conductors at dangerous voltages. Type B cur‑
rent sensor as per IEC 61010‑2‑032.
Battery.
The CE marking indicates conformity with
European directives, in particular LVD and EMC.
The rubbish bin with a line through it indicates
that, in the European Union, the product must
undergo selective disposal in compliance with
Directive WEEE 2002/96/EC. This equipment
must not be treated as household waste.
Definition of measurement categories:
Measurement category IV corresponds to measurements
taken at the source of low‑voltage installations.
Measurement category III corresponds to measurements
on building installations.
Measurement category II corresponds to measurements
taken on circuits directly connected to low‑voltage
installations.
PRECAUTIONS FOR USE
This instrument is protected against voltages of not more than
1000V with respect to ground in measurement category III
or 600V in CAT IV between the sensor and the conductor of
which it measures the current.
The protection provided by the instrument may be impaired
if the instrument is used other than as specified by the
manufacturer.
Do not exceed the rated maximum voltage and current or
the measurement category.
Thank you for purchasing a DigiFLEX MA4000D current
meter with flexible sensor.
For best results from your instrument:
read this user’s manual carefully,
comply with the precautions for use.
English ................................................. 2
Svenska ............................................... 6

3
Observe the conditions of use, namely the temperature,
the relative humidity, the altitude, the level of pollution,
and the place.
Before each use, check the integrity of the insulation
on the coil, the cords and the housing. Do not use the
instrument if it is open, damaged, or poorly reassembled,
or its accessories if they appear damaged.
The sensor must not be applied to or removed from
uninsulated conductors at dangerous voltages.
Use personal protection equipment systematically.
All troubleshooting and metrological checks must be per‑
formed by competent and accredited personnel.
CONTENTS
1. PRESENTATION...........................................................4
2. CURRENT MEASUREMENT .......................................6
2.1. Measurement principle ...................................6
2.2. Use...................................................................6
3. CHARACTERISTICS ....................................................9
3.1. Reference conditions......................................9
3.2. Electrical characteristics.................................9
3.3. Variations in range of use .............................10
3.4. Typical frequency response curves..............10
3.5. Power supply.................................................11
3.8. Environmental conditions .............................11
3.7. Characteristics of construction ....................12
3.8. Compliance with international standards ....12
3.9. Electromagnetic compatibility......................12
4. MAINTENANCE..........................................................13
4.1. Cleaning.........................................................13
4.2. Replacement of the batteries .......................13
4.3. Metrological check........................................13
4.4. Repair ............................................................13
5. WARRANTY................................................................14
6. TO ORDER..................................................................14
6.1. Accessories ...................................................14
6.2. Replacement parts........................................14

4
1. PRESENTATION
The DigiFLEX is used for RMS measurements of current,
from 200 mA to 4000 A.
The sensor takes the form of a flexible coil 35 cm long,
connected by a shielded cord to a small housing containing
the signal processing electronics, supplied by a battery.
The flexibility of the sensors makes it easier to wrap them
round the conductor to be measured, whatever its type
(cable, bar, strand, etc.) and its accessibility. The design of
the snap‑action coil opening and closing device allows it to
be handled while wearing protective gloves.
MA 4000D
AC RMS
CURRENT METER
MAX
(>2s)
HOLD
4000 A
6
0
0
V
C
A
T
I
V
1
0
0
0
V
C
A
T
I
I
I
P
M AX
HOLD
A
Flexible sensor.
Sensor
opening
device.
Shielded cord.
LCD display
unit.
Electronics
housing.
HOLD key.
ON/OFF key.

5

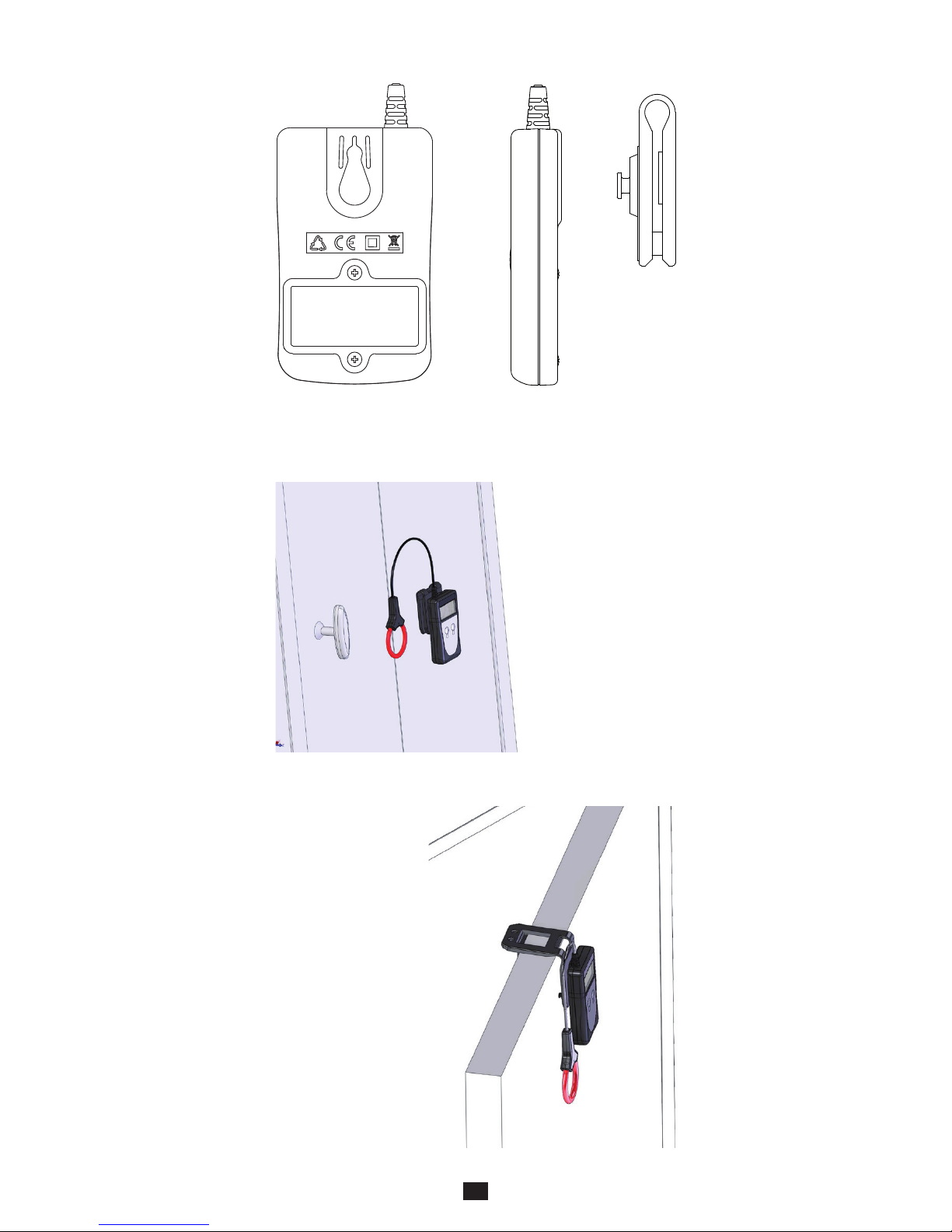

On the back of the electronics housing is a notch for the
attachment of a belt clip (optional).
The multi‑function belt clip can be used:
to carry the electronic housing on your belt,
to attach it to a
metal surface
using the built‑in
magnet,
to hook it to a door
or the edge of a
table.

6
Open it, then place it round the conductor through which
the current to be measured flows (only one conductor in
the sensor).
Close the coil.
2. CURRENT MEASUREMENT
2.1. MEASUREMENT PRINCIPLE
The flexible sensor is based on the Rogowski coil.
It combines:
very good linearity with no saturation effect (and so no
heating);
light weight (no magnetic circuit).
2.2. USE
2.2.1. CONNECTION
First of all, use the appropriate means of protection.
Press the yellow opening device to open the flexible coil.

In order to optimize measurement quality, it is best to
centre the conductor in the coil and to make the shape
of the coil as nearly circular as possible.
Press the key to switch the device on. The display
unit lights.
2.2.2. MEASUREMENT
Read the measurement on the display unit. The current is
given in A
rms
.
A

7

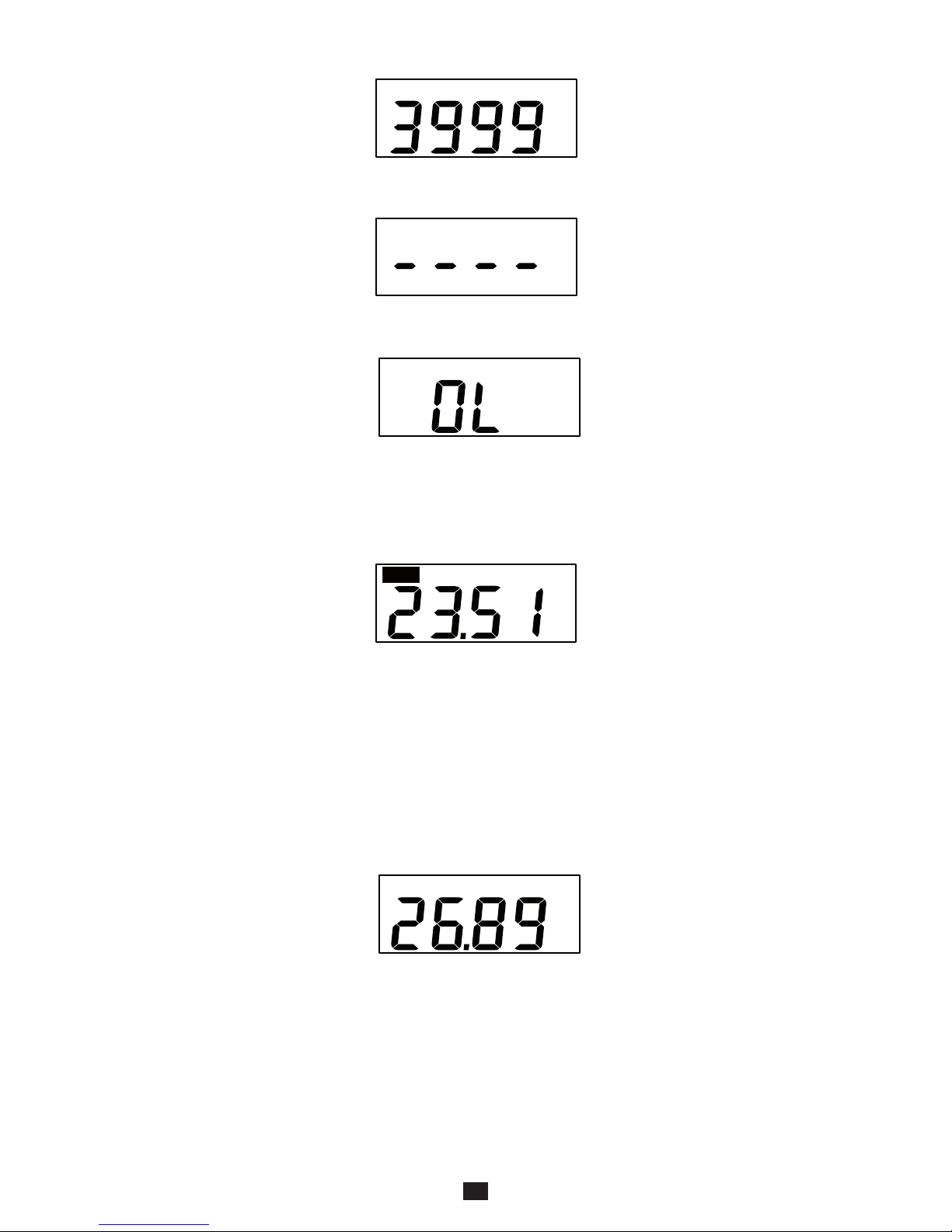

If the measurement exceeds the display capacity (4000 A),
the device displays 3999, blinking.
HOLD
A
MAX
A
A
A
If the measurement is too low (see § 3.2), the device displays
dashes.
If the edges of the signal are too steep or its peak factor is
too large, the device displays OL.
2.2.3. FREEZING THE MEASUREMENT
If you want to freeze the display of a measurement, press
the HOLD key.
The M
ax
symbol is then displayed; the device starts making
measurements a few seconds later.
The device compares each new measurement to the one
displayed. If the new measurement is greater than the old, it
replaces it in the display.
To return to the real‑time display mode, press the HOLD
(MAX > 2s) key again.
A
The HOLD symbol is displayed.
The device continues to make measurements, but the display
is frozen. To release it, press the HOLD key again.
2.2.4. SEARCH FOR MAXIMUM
To search for a maximum, for example a spike lasting at
least 100 ms, press the HOLD (MAX > 2s) key for more
than two seconds.

8
2.2.5. DE-ACTIVATION OF AUTOMATIC SWITCHING OFF
In order to save the batteries, the device switches itself off
automatically at the end of 10 minutes if the user has not
pressed a key (unless the MAX function is active).
It is possible to deactivate automatic switching off. To do
this, when you switch the device on, press the and HOLD
keys simultaneously. The Psymbol (lit steadily) is then dis‑
played.
A
P
To reactivate automatic switching off, switch the device off,
then back on.
2.2.6. BATTERIES LOW
When the battery voltage drops and the remaining battery
life of the device is only about one hour, the symbol
blinks on the display unit.
When the battery voltage is too low to guarantee the accu‑
racy of the measurements, the symbol lights steadily.
The batteries must then be replaced (see § 4.2).
2.2.7. DISCONNECTING
Switch the device off by pressing the key.
Press the yellow opening device to open the flexible core.
Remove the flexible core from the conductor.

9
3. CHARACTERISTICS
3.1. REFERENCE CONDITIONS
Quantity of influence Reference values
Temperature 23 ± 3°C
Relative humidity 45 to 75% RH
Frequency of the signal measured 40 to 65 Hz
Peak factor of the signal measured √2
Conductor diameter ≤5 mm
Battery voltage 2.8 ‑ 3.2 V
External electric field none
External DC magnetic field (earth
field) <40 A/m
External AC magnetic field none
Position of the conductor centred in the
measurement coil
Shape of the measurement coil nearly circular
3.2. ELECTRICAL CHARACTERISTICS
Display range (A) 40 400 4000
Specified measure‑
ment range (A)
0.20 ‑
39.99
40.0 ‑
399.9
400 ‑
3999
Resolution 10 mA 100 mA 1 A
Intrinsic uncertainty ±(2%
+ 10 ct)
±(1.5%
+ 2 ct)
±(1.5%
+ 2 ct)
In MAX mode:
Display range (A) 40 400 4000
Specified measure‑
ment range (A)
1.00 ‑
39.99
40.0 ‑
399.9
400 ‑
3999
Resolution 10 mA 100 mA 1 A
Typical error ±(2%
+ 10 ct)
±(1.5%
+ 2 ct)
±(1.5%
+ 2 ct)

10
3.3. VARIATIONS IN RANGE OF USE
Quantity of influence Range of influence
Error on the measurement
Typical Maximum
Battery voltage 1.8 to 2 V
< 1 ct ±(2% + 1 ct)
Temperature 0 to 50 °C
± 0.25 % / 10 °C ±( 0.5 % / 10 °C + 2 ct)
Relative humidity 10 to 90% RH
0.2% ± (0.3 % + 2 ct)
Frequency response
10 to 20 Hz
20 Hz to 30 Hz
30 Hz to 400 Hz
400 to 1000 Hz
1000 to 3000 Hz
See § 3.4
± (5 % + 1 ct)
± (1 % + 1 ct)
± (0.5 % + 1 ct)
± (6 % + 1 ct)
‑ 3 dB typical
Position of the conductor in
the sensor (f<400 Hz)
Any position on the interior
perimeter of the sensor
± 0.5 % ± (1.5 % ± 1 ct)
Adjacent conductor
carrying alternating current
Conductor touching the ex‑
terior perimeter of the sensor
Away from opening: 55 dB
At opening: 55 dB
Away from opening: ≥45 dB
At opening: ≥45 dB
Peak factor 1.4 to 3.5
limited to 6000 Apeak
at 16.66 Hz : ± (2 % + 1 ct)
at 50 Hz : ± (0.5 % + 1 ct)
at 440 Hz : ± (30 % + 1 ct)
± (6 % + 1 ct)
± (3 % + 1 ct)
‑
Serial mode rejection ratio
in AC 0 to 400 A
dc < 1 ct ≥ 50 dB
Common mode rejection,
50/60 Hz 0 to 600 V
rms < 1 ct ≥ 60 dB
Influence of a 50/60 Hz ex‑
ternal magnetic field 0 to 400 A/m
Housing: 43 dB
Sensor: 50 dB
Housing: ≥ 30 dB
Sensor: ≥ 40 dB

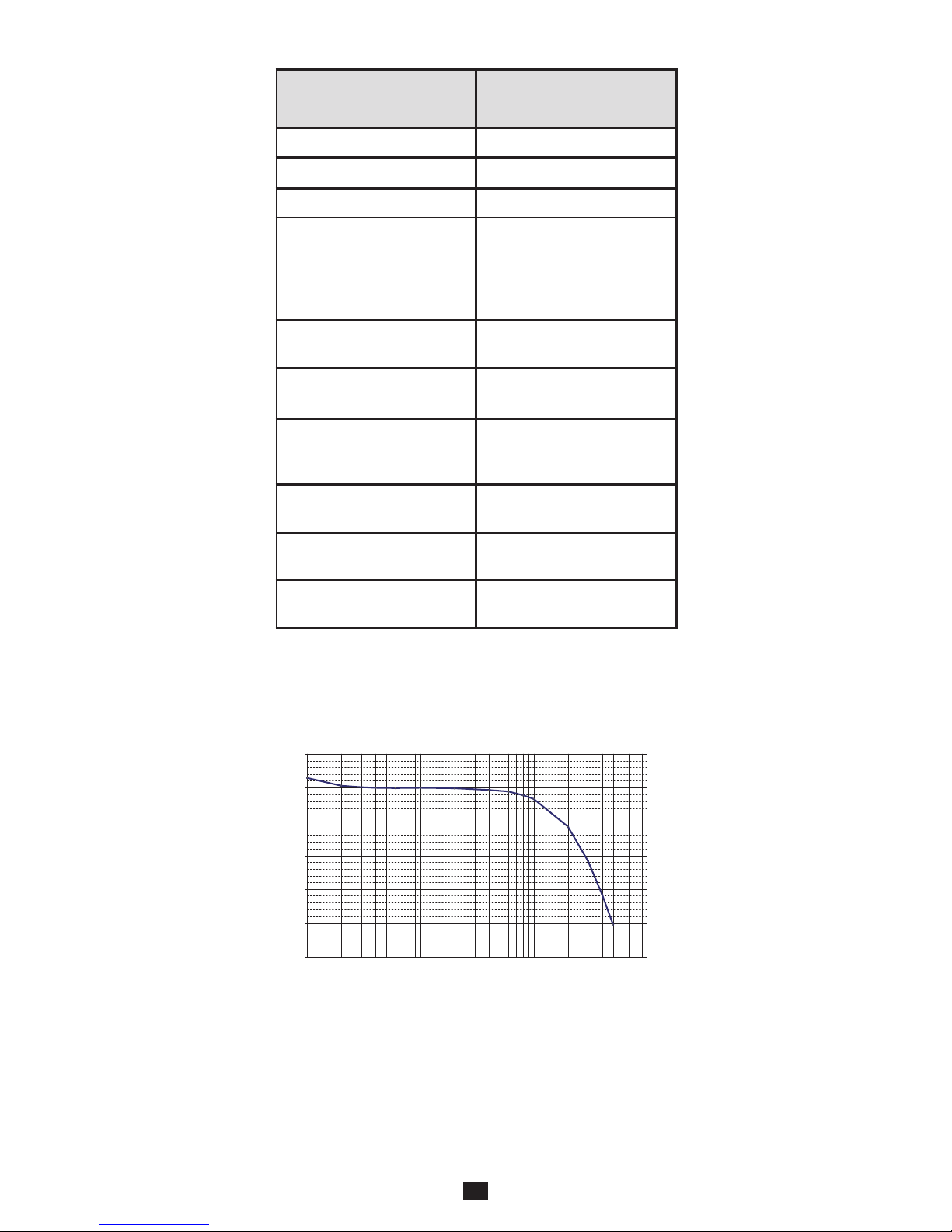

3.4.TYPICALFREQUENCYRESPONSECURVES
at 39 A
ac
-50 %
-40 %
-30 %
-20 %
-10 %
0 %
10 %
10 Hz 100 Hz 1000 Hz 10000 Hz

11
3.3. VARIATIONS IN RANGE OF USE
Quantity of influence Range of influence
Error on the measurement
Typical Maximum
Battery voltage 1.8 to 2 V
< 1 ct ±(2% + 1 ct)
Temperature 0 to 50 °C
± 0.25 % / 10 °C ±( 0.5 % / 10 °C + 2 ct)
Relative humidity 10 to 90% RH
0.2% ± (0.3 % + 2 ct)
Frequency response
10 to 20 Hz
20 Hz to 30 Hz
30 Hz to 400 Hz
400 to 1000 Hz
1000 to 3000 Hz
See § 3.4
± (5 % + 1 ct)
± (1 % + 1 ct)
± (0.5 % + 1 ct)
± (6 % + 1 ct)
‑ 3 dB typical
Position of the conductor in
the sensor (f<400 Hz)
Any position on the interior
perimeter of the sensor
± 0.5 % ± (1.5 % ± 1 ct)
Adjacent conductor
carrying alternating current
Conductor touching the ex‑
terior perimeter of the sensor
Away from opening: 55 dB
At opening: 55 dB
Away from opening: ≥45 dB
At opening: ≥45 dB
Peak factor 1.4 to 3.5
limited to 6000 Apeak
at 16.66 Hz : ± (2 % + 1 ct)
at 50 Hz : ± (0.5 % + 1 ct)
at 440 Hz : ± (30 % + 1 ct)
± (6 % + 1 ct)
± (3 % + 1 ct)
‑
Serial mode rejection ratio
in AC 0 to 400 Adc
< 1 ct ≥ 50 dB
Common mode rejection,
50/60 Hz 0 to 600 Vrms
< 1 ct ≥ 60 dB
Influence of a 50/60 Hz ex‑
ternal magnetic field 0 to 400 A/m
Housing: 43 dB
Sensor: 50 dB
Housing: ≥ 30 dB
Sensor: ≥ 40 dB
3.5. POWER SUPPLY
The device can be powered:
either by two 1.5 V R03 (AAA) alkaline batteries,
or by two NiMH storage batteries of the same size.
The nominal operating voltage is between 1.8 and 3.2 V.
The battery life in continuous operation is:
70 hours with super‑alkaline batteries,
50 hours with NiMH storage batteries having a capacity
of 1200 mAh.
The low battery condition is reported by the blinking
symbol on the display unit. When it is lit steadily, the batter‑
ies must be replaced (see § 4.2).
3.8. ENVIRONMENTAL CONDITIONS
The instrument must be used in the following conditions:
Temperature in use: 0°C to +50°C
Storage temperature: ‑20°C to +70°C
(without batteries)
Relative humidity in use: 80% RH to 50°C
Relative humidity in storage: 90% RH (up to 45°C)
The sensor can withstand a temperature of 90°C.

12
For indoor use.
Level of pollution: 2.
Altitude: <2000 m.
3.7. CHARACTERISTICS OF CONSTRUCTION
Overall dimensions
Housing: 100 x 60 x 20 mm
Connecting cable: 0.70 m
Sensor
Length (mm) 350 mm
Clamping diameter 100 mm
Mass of the device: approximately 130 g.
Index of protection: IP 40 per IEC 60529
IK 04 per IEC 50102
Afterflame time: V0 (per UL 94)
The flexible coil is resistant to oils and aliphatic hydrocarbons.
3.8. COMPLIANCE WITH INTERNATIONAL
STANDARDS
Electrical safety per IEC 61010‑2‑032 for type B sensors.
Rated voltage 600 V with respect to earth in category IV.
Double insulation:
3.9. ELECTROMAGNETIC COMPATIBILITY
Emissions and immunity in an industrial setting compliant
with IEC 61326‑1 for portable devices.

13
4. MAINTENANCE
Any unauthorized repair or replacement of a part
by an “equivalent” may gravely impair safety.
4.1. CLEANING
Disconnect everything connected to the instrument and
switch it off.
Use a soft cloth, dampened with soapy water. Rinse with a
damp cloth and dry rapidly with a dry cloth or forced air. Do
not use alcohol, solvents, or hydrocarbons.
Make sure that no foreign body interferes with the operation
of the snap device of the sensor.
4.2. REPLACEMENT OF THE BATTERIES
The battery must be replaced when the green indicator
flashes or remains off when the instrument is switched on.
Disconnect everything connected to the instrument and
and switch it off.
Use a screwdriver to unscrew the two closing screws of
the housing.
Replace the old battery with a new battery (1.5 V R03 or
AAA super‑alkaline batteries).
Close the housing; make sure that it is completely and
correctly closed.
Screw both screws back in.
Spent batteries must not be treated as ordinary
household waste. Take them to the appropriate
recycling collection point.
4.3. METROLOGICAL CHECK
Like all measuring or testing devices, regular instru-
ment verification is necessary.
This instrument should be checked at least once a year.
For checks and calibrations, contact one of our accredited
metrology laboratories (information and contact details
available on request), at our Chauvin Arnoux subsidiary or
the branch in your country.
4.4. REPAIR
For all repairs before or after expiry of warranty, please return
the device to your distributor.

14
5. WARRANTY
Except as otherwise stated, our warranty is valid for twelve
months starting from the date on which the equipment was
sold. Extract from our General Conditions of Sale, provided
on request.
The warranty does not apply in the following cases:
inappropriate use of the equipment or use with incompat‑
ible equipment;
modifications made to the equipment without the explicit
permission of the manufacturer’s technical staff;
work done on the device by a person not approved by
the manufacturer;
adaptation to a particular application not anticipated in
the definition of the equipment or not indicated in the
user’s manual;
damage caused by shocks, falls, or floods.
6. TO ORDER
DigiFLEX MA4000D-350............................... P01120577Z
Delivered in a blister pack with:
two 1,5 V piles alkaline battery (AAA),
one Velcro fastener
one user’s manual in 5 languages,
one certificate of verification.
6.1. ACCESSORIES
Carrying bag 120x200x60 .............................. P01298074
Multi‑function belt clip .................................. P01102100Z
6.2. REPLACEMENT PARTS
Set of 5 Velcro fasteners ............................... P01102113

15

16
VARNING, risk för FARA! Användaren måste
noggrant läsa bruksanvisningen när denna
symbol visas.
Instrumentet är skyddat med dubbel isolering.
Får inte användas på eller tas bort från oisolerade
eller bara ledare med farliga spänningar. Typ B
strömspole enligt IEC 61010‑2‑032.
Batteri.
CE‑märkningen indikerar överensstämmelse
med EU‑direktiv, särskilt LVD och EMC.
Soptunnan med en kryssmarkering indikerar
inom Europeiska unionen, att produkten måste
genomgå selektiv avfallshantering enlighet med
direktiv WEEE 2002/96/EC. Den här utrustningen
får inte behandlas som hushållsavfall.
Definition av mätkategorier:
Mätkategori IV motsvarar mätningar på matning till låg‑
spänningsinstallationer.
Mätkategori III motsvarar mätningar på fastighetsinstal‑
lationer.
Mätkategori II motsvarar mätningar som utförs på kretsar
direkt kopplade till lågspänningsinstallationer.
FÖRSIKTIGHETSÅTGÄRDER
VID ANVÄNDNING
Instrumentet är skyddat mot spänningar upp till 1 000V i
förhållande till jord i mätkategori III eller 600V i CAT IV mellan
spolen och ledaren som strömmen mäts i.
Instrumentets inbyggda skydd kan försämras om instru‑
mentet används på annat sätt än som anges av tillverkaren.
Överskrid inte den maximalt specificerade spänningen och
strömmen eller mätkategorin.
Tack för att du köpt en DigiFLEX MA4000D strömtång med
flexibel spole.
För att uppnå bästa resultat med ditt instrument:
Läs den här bruksanvisningen noggrant.
Observera användarinstruktionerna.
SVENSKA

17
Observera villkoren för användning, nämligen temperaturen,
den relativa fuktigheten, höjden, graden av förorening,
och platsen.
Innan varje användning, Kontrollera spolens isolation,
kablarna och höljet. Använd inte instrumentet om det är
öppet, skadat, eller dåligt hopsatt, eller om dess tillbehör
verkar skadade.
Spolen får inte användas på eller tas bort från oisolerade
eller bara ledare med farliga spänningar.
Använd alltid nödvändig personlig skyddsutrustning.
All felsökning och kalibrering måste utföras av kompetent
och ackrediterad personal.
INNEHÅLLSFÖRTECKNING
1. PRESENTATION.........................................................18
2. STRÖMMÄTNING ......................................................20
2.1. Mätprincip .....................................................20
2.2. Användning....................................................20
3. TEKNISKA DATA........................................................23
3.1. Referensvillkor...............................................23
3.2. Elektriska specifikationer..............................23
3.3. Storheter som påverkar mätonoggrannheten .24
3.4. Typiska frekvensresponskurvor....................24
3.5. Strömförsörjning............................................25
3.8. Miljövillkor......................................................25
3.7. Mekaniska egenskaper.................................26
3.8. Överensstämmelse med internationella
normer ..........................................................26
3.9. Elektromagnetisk kompatibilitet...................26
4. UNDERHÅLL ..............................................................27
4.1. Rengöring ......................................................27
4.2. Byte av batterierna........................................27
4.3. Kalibrering .....................................................27
4.4. Reparation .....................................................27
5. GARANTI ....................................................................28
6. ATT BESTÄLLA ..........................................................28
6.1. Tillbehör.........................................................28
6.2. Reservdelar ...................................................28

18
MA 4000D
AC RMS
CURRENT METER
MAX
(>2s)
HOLD
4000 A
6
0
0
V
C
A
T
I
V
1
0
0
0
V
C
A
T
I
I
I
P
M AX
HOLD
A
1. PRESENTATION
DigiFLEX används för TRMS mätningar av ström, från
200 mA till 4000 A.
Sensorn har formen av en flexibel spole 35 cm lång, anslu‑
ten med en skärmad kabel till ett litet hölje som innehåller
elektronik för signalbehandling, strömförsörjd med ett batteri.
Spolens flexibilitet gör det lätt att omsluta den runt ledaren
som skall mätas, oavsett typ (kabel, skena etc.) och dess
tillgänglighet. Utförandet med snäppteknik för öppning och
stängning av spolen gör att den kan hanteras även med
skyddshandskar.
Flexibel spole.
Spolöppningsanordning.
Skärmad kabel.
LCD displayenhet.
HOLD tangent.
ON/OFF tangent.
Elektronikhölje.

19
På baksidan av elektronikhöljet finns en skåra för att fästa
en bältesklämma (option).
Multi‑funktions bältesklämman kan användas till:
Att bära elektronikhöljet på bältet,
Att fästa elektro‑
nikhöljet på en
metallyta med
den inbyggda
magneten,
Att fästa elektro‑
nikhöljet på en
dörr eller på kan‑
ten av ett bord.

20
2. STRÖMMÄTNING
2.1. MÄTPRINCIP
Den flexibla spolen är baserad på Rogowski spolen.
Den kombinerar:
mycket god linjäritet utan mättnadseffekt (och ingen
värme);
låg vikt (ingen magnetisk krets).
2.2. ANVÄNDNING
2.2.1. ANSLUTNING
Först av allt, skydda dig på lämpligt sätt.
Tryck på den gula öppningsanordningen för att öppna
den flexibla spolen.

Öppna den och placera den runt den ledare som skall mätas
(endast en ledare i spolen).
Stäng spolen.
För att optimerad mätkvaliteten, är det bäst att centrera
ledaren i spolen och göra formen på spolen så nära cir‑
kulär som möjligt.
Tryck på tangenten för att slå på strömtången.
Displayenheten tänds.
2.2.2. MÄTNING
Läs mätresultatet på displayenheten. Strömmen anges i
A
rms
.
A
