Cisco Chicago Business VoIP User manual

877-PC MYCLOUD | 7777 on your phone
Instructions for using your Cisco IP phone

2 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
We are pleased to welcome you to the Chicago Business VoIP community.
Everything you need to access your new phone system in the cloud is
included in your shipment. Please refer to the setup instructions included in
your phone shipment to setup up your location-independent Cisco IP
phone.
Once you setup the phones following the step-by-step instruction, be sure
to record all four of your personal voicemail greetings (No Answer, Do Not
Disturb, Busy, and Name –see page 5).
You will only need your voicemail password to call into your voicemail box
from an outside line. It is recommended that you reset your password for
each direct line to something that can be easily remembered (also found on
page 5).
If you have any questions regarding setup, service, or features; please do
not hesitate to contact us using any of the information printed at the
bottom of this guide.
Thank you for choosing Chicago Business VoIP as your small business, phone
service provider!
Our best,

CBV User Guide | 3
877-PC MYCLOUD | 7777 on your phone
Voicemail page 5
Setup voicemail page 5
Manage voicemail box page 5
Manage voicemail messages page 5
Check voicemail from an outside line page 6
Answering Incoming Calls page 6
Answer a call page 6
Answer 2nd concurrent call page 6
Manage more than 2 concurrent calls page 6
Return a missed call page 7
Making a call page 7
Dial external number page 7
Dial internal extension page 7
Place 2nd concurrent call page 7
Redial page 7
8-Party conferencing page 8
Abbreviated dial (similar to speed dial) page 8
Managing calls page 9
Place call on hold page 9
Transfer call page 9
Call forwarding page 9
Disable call forwarding page 9
Park call (MCPark) page 10
Retrieve parked call page 10
Do not disturb (DnD) page 10
Directed call pickup (DC pickup) page 10
Phone Settings page 11
Select ring tone page 11
Adjust ringer volume page 11
Adjust call volume page 11

4 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
Using the Directory page 11
View your network directory listing page 11
View dialed or missed calls page 12
Return a missed call page 12
Intercom page 12

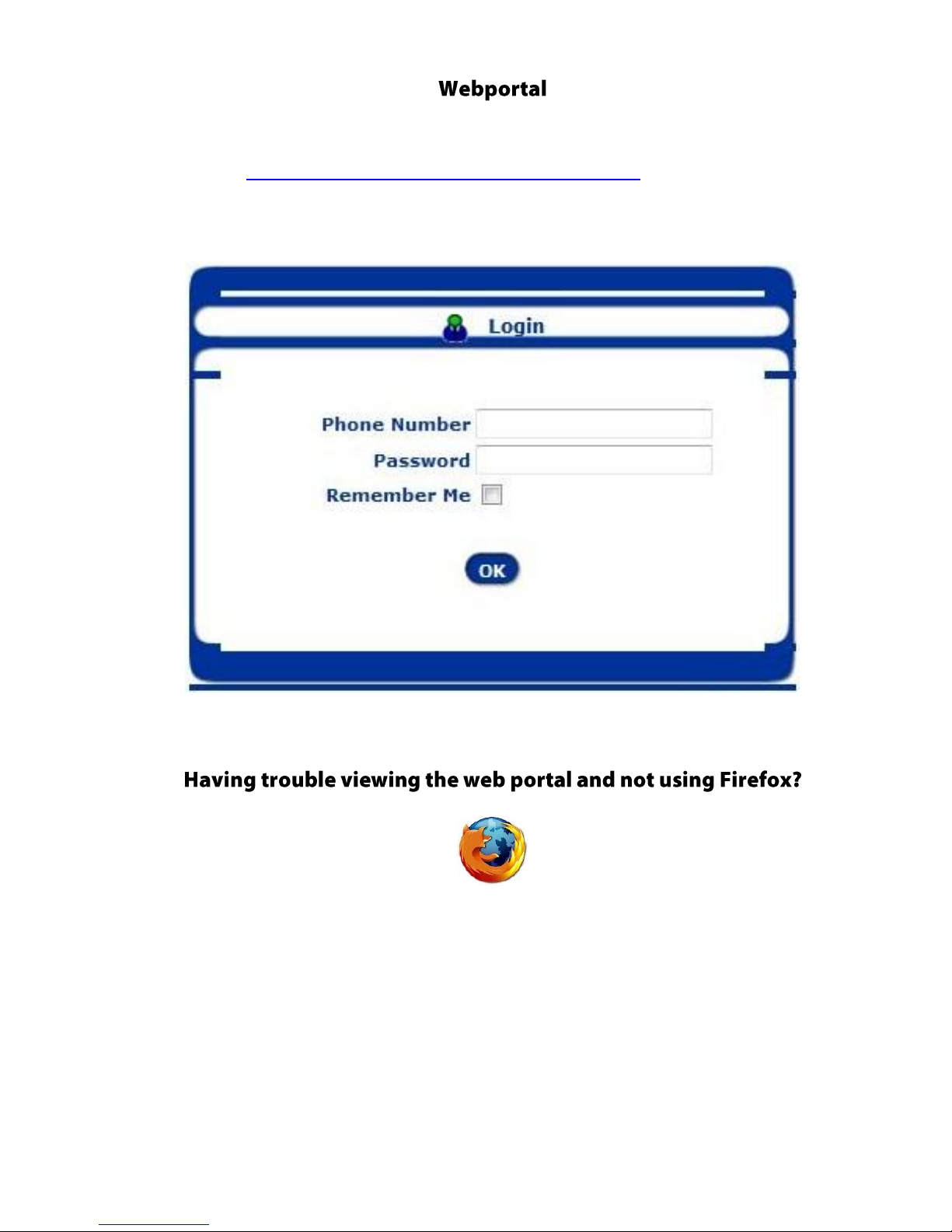

Login to your Webportal page 13
Change Webportal password page 14
Directory page 14
Click to Dial page 14
Voicemail page 14
Setup a Conference call (up to 8 people) page 14
Call Management page 15

CBV User Guide | 5
877-PC MYCLOUD | 7777 on your phone
Setup voicemail
1. Press “MESSAGE”
2. Press 5
3. To record message for:
No answer press 1
Do not disturb press 2
Busy press 3
Your name press 4
Reset personal greeting with system default press 5
Manage voicemail box
Press “MESSAGE”
Voicemail menu:
Play voicemail inbox press 1
Play saved messages press 2
Change password press 3
Playback personal greeting press 4
Record personal greeting press 5
Manage voicemail messages
While playing your voicemail messages:
Reply press 2
Dial back press 3
Delete press 4
Save press 5
Forward press 6
Rewind press 7
Replay from start press 77
Pause press 8
Fast forward press 9
Skip to end of message press 99
Check voicemail from an outside line
1. From an outside line, dial your phone number.
2. Press * when your voicemail greeting begins.
3. Dial your voicemail password followed by the # key.

6 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
Answer a call
There are five options:
Pick up the handset.
Press the “ANSWER” softkey.
Press the “SPEAKER” button.
Press the line button to the left of the display screen to activate the
speakerphone.
(Press the “HEADSET” button to activate the headset.)
Answer 2nd concurrent call
To answer second incoming call without ending current call, press
“ANSWER” softkey. The 1st call is automatically placed on hold and you
are connected with the 2nd call.
To reconnect with 1st call
1. Press the up and down scroll arrows and highlight the 1st call.
2. Press the “RESUME” softkey.
To switch between calls
1. Scroll to highlight the call you wish to resume.
2. Press the “RESUME” softkey.
Note: If you press a line button on the side of the display screen
without pressing “ANSWER” the first call will be disconnected. If
you do not answer the 2nd incoming call the caller will be directed
to your voicemail box.
Manage more than 2 concurrent calls
You can receive up to 4 concurrent calls on your phone. Only two calls
will show up on your screen at a time. Calls 3 and 4 will appear as they
come in.
To view the calls:
To view call 1 and 2, press the top line appearance button to
the right of the display screen.
To view calls 3 and 4, press the bottom line appearance
button to the right of the display screen.

CBV User Guide | 7
877-PC MYCLOUD | 7777 on your phone
Return a Missed Call
1. Press “DIRECTORIES” button.
2. Press “1” for missed calls.
a. To return a call from an internal line, press “DIAL.”
b. To return a call from an external line, press “EDITDIAL.”
i. Add 1 in front of the area code.
3. Press the “DIAL” softkey
Make a call
There are two options:
Lift the handset.
Press the “SPEAKER” button.
Dial external number
1. Dial 9.
2. Dial 1 + area code + phone number.
Note: Your outbound dial digit may be 8.
Dial internal extension
Dial the four-digit extension of the party you wish to call.
*You may also dial first then pick up the handset or press the “SPEAKER”
button.
Place a 2nd Concurrent Call
1. While engaged in a call, place the call on hold by pressing the
“NEWCALL” softkey.
2. To make a 2nd concurrent call, dial the external or internal numbers
as you normally would.
Redial
1. Press the “REDIAL” softkey.
2. Or go to “DIRECTORIES.”
3. Choose between Missed Calls, Received Calls or Placed Calls
4. Scroll and select the call you wish to redial.

8 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
8-Party Conference Call
This conferencing option is similar to making a three way call. You can
dial up to eight parties and add them to a call. With 8-Party
conferencing the party cannot call into the conference call. You have to
originate the call. 8-Party conferencing is included free of charge with
the unlimited calling plan.
1. When engaged in a call, press the “MORE” softkey.
2. Press the “CONFRN” softkey. Now your first call is placed on hold
and you will hear the dial tone.
3. Dial the number of the person you wish to add.
4. When the new party answers, repress the “CONFRN” softkey.
5. To include additional parties, repeat these steps.
Note: If you get a called party’s voicemail or they do not answer,
press the “ENDCALL” softkey then the “RESUME” softkey to cancel
the addition.
Note: For parties larger than eight or to allow parties to dial into a
conference call, contact us about Always-On Conferencing.
Abbreviated dial
Abbreviated dial is a two-digit code that functions similar to speed dial.
You can program up to 100 abbreviated dial codes (00-99).
To program Abbreviated Dial
1. Press 75#.
2. Press the “DIAL” softkey.
3. Press 1 to program a dial code.
4. Press the digits (00-99) you wish to program.
5. Dial the phone number you want to assign, followed by the #
key. Be sure to enter the number as you would normally dial it.
6. To save, press #.
7. To exit without saving, press *.
To use Abbreviated Dial
1. Press *3.
2. Press the desired abbreviated dial code (00-99).
3. Press the “DIAL” softkey.

CBV User Guide | 9
877-PC MYCLOUD | 7777 on your phone
Place call on hold
1. While engaged in a call, press the “HOLD” softkey.
2. To resume call, press the “RESUME” softkey.
Note: One minute after the party is put on hold the phone will ring 3-
short rings to remind you of the call. Each subsequent three minutes the
phone will re-ring 3-short rings.
Transfer call
1. While engaged in a call, press the “TRNSFR” softkey. The call is
placed on hold and you will hear a dial tone.
2. Dial the number to which you want to transfer the call.
3. When the called party answers, inform them of the transfer.
4. Press the “ENDCALL” softkey to complete the transfer.
Note: If you hang up before the called party or their voicemail answers,
your original caller will be disconnected and not transferred.
Call Forwarding
You can forward all incoming calls to any other phone, such as your
mobile or home phone.
1. Press the “FORWARD” softkey. The speaker phone will turn on and
the display will show “enter fwd #”
2. Dial the number to which you want to forward your calls.
To forward externally, dial 9 + 1 + area code + phone number.
Note: Your outbound dial digit may be the number 8.
To forward internally, dial the four digit extension only.
3. Press the “FORWARD” softkey. Call forwarding is now enabled. The
LCD display will show “Forwarded to XXXXXXXXX.”
Disable call Forwarding
1. Press the “FORWARD” softkey.
2. Pick-up and hang-up the handset.

10 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
Park call (MCPark)
This is similar to transferring a call. It is useful if you want to transfer a
call to a line in the conference room (or any other phone in your
network), but no one is immediately there to pick it up. It allows you to
put the call on hold and pick it at your convenience when you walk to
the conference room without the call being disconnected.
Park a call
1. While engaged in a call, press the “MORE” softkey.
2. Press the “MCPark” softkey.
3. The display shows “Park number is XXXX” Write down the
park number so you can later retrieve the call.
4. Hang up.
Retrieve a parked call
1. Pick up the receiver of the phone on which you wish to
retrieve the call.
2. Dial the park number you were previously given.
Do Not Disturb (DnD)
When do not disturb is enabled, the phone will not ring. All incoming
calls are rerouted directly to your voicemail box or destination of your
choice.
To activate: Press the “DND” softkey.
To deactivate: Press the “DND” softkey again.
Directed call pickup (DC pickup)
DC pickup allows you to answer another phone in your network when
you hear the other phone ring.
1. Press the “MORE” softkey.
2. Press the “DC PICK” softkey.
3. Dial the ringing phone’s extension to answer the call.

CBV User Guide | 11
877-PC MYCLOUD | 7777 on your phone
Select a ring tone
1. Press the “SETTINGS” button. A list of options will appear on the
phone display.
2. Scroll down to option 2: RING TONE
3. Press the “SELECT” softkey or dial 2 on the keypad. A list of ringer
options appears.
4. Use the up and down scroll arrows to highlight the desired ring
tone.
5. Press the “PLAY” softkey to preview the highlighted ring tone.
6. Press the “SELECT” softkey to choose the highlighted ring tone for
your ringer.
7. Press the “OK” softkey to return to the settings menu.
Adjust the ringer volume
1. Press the “VOLUME” buttons while the phone is on the hook. The
new setting will save automatically.
Adjust the call volume
1. Activate the handset or speakerphone (depending on which you
want to change).
2. Repeatedly press the “VOLUME” buttons until the volume is to your
liking.
3. Press the “SAVE” softkey to save the volume.
View your network directory listing
1. Press the “SERVICES” button.
2. Press 1 for Directory.
3. Press 2 for Company Directory listing.
4. Use the scroll key to search the directory.
5. Press 3 for Company Directory Lookup.
Note: to start over, pick up and hang up the handset.

12 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
Viewing Dialed or Missed Calls
1. Press the “DIRECTORIES” button.
2. Press the “SELECT” softkey or the number of the appropriate
directory you want to view.
Return a missed call, while in the missed calls directory:
To return a missed call from an internal line
1. Press the “DIAL”
To return a missed call from an outside line
1. Press the “EDITDIAL”
2. Add 1 in front of the area code.
3. Press the “DIAL” softkey.
Intercom
The intercom feature is used to speak both ways from one extension to
another extension among any of the phones in your network.
1. Press the “MORE” softkey
2. Press the “INTERCOM” softkey
3. Dial the 4-digit extension of the phone you wish to notify.
Note: If the party you wish to reach has Do Not Disturb activated or
is engaged in an active call, you will hear a busy signal.

CBV User Guide | 13
877-PC MYCLOUD | 7777 on your phone
Login to your Webportal
Go to: http://webportal.chicagobusinessvoip.com/
Username and Password are issued to you by email.
Set your web-browser in Compatibility Mode.
1. Go to “Tools”
2. Click “Compatibility View”
3. Close and Re-Open your web-browser
4. Reload the webportal page

14 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
Change webportal password
1. Login to your webportal.
2. Go to the “OPTIONS” tab.
3. Go to the “PASSWORD” sub-tab.
4. Fill in the blanks.
5. Click the “SUBMIT” button.
Directory
Personal:
1. Login to your webportal.
2. Under Directory >> Personal >> click the “ADD” button.
3. Fill in the data fields.
4. Click the “SAVE” button.
Corporate: Save your company’s directory to your PC by exporting it
here. You may also use these numbers in a Find-Me list.
My Numbers*: Input your numbers here to save for Find-Me and
Remote Phone setups.
Click to Dial
1. Login to your webportal.
2. Choose someone from your “DIRECTORY” (Personal or Corporate).
3. Click on underlined phone number associated with the chosen
name.
4. Your Cisco IP phone will automatically begin to ring.
5. Pick up the handset to disable the speaker phone.
Voicemail
Inbox: Check, Save, Forward or Delete new and old messages here.
Saved: Review, Forward or Delete saved messages here.
Notifications: Setup Voicemail to Email here.
Change voicemail box password here.
Set up a conference call (up to 8)
1. Login to your webportal.
2. Choose someone from your “DIRECTORY” (Personal or Corporate).
3. Click the conference icon .
4. Repeat as needed (up to eight contacts).

CBV User Guide | 15
877-PC MYCLOUD | 7777 on your phone
Call Management
Call Logs: Review your past 100 calls here.
Find-Me:
1. Login to your webportal.
2. Go to the “CALL MANAGEMENT” tab.
3. Go to the “FIND-ME” sub-tab.
4. Select a “FIND-ME” list (to edit) and click on the
“FUNCTIONS” icon .
5. OR –select the “ADD” button to make a new list.
6. Select the “ADD” button again.
7. Use the dropdown menu to choose from the My Numbers*
directory.
8. Complete the rest of the form.
9. Click the “SAVE” button.
Call Treatment: activate your Find-Me list or Forward calls
1. Login >> Call Management >> Call Treatment
2. Click on the “FUNCTIONS” icon .
3. Select a “DEFAULT ACTION” from the drop-down menu.
a. Find-Me (this is a Soft Forward)
i. Choose a “Find-Me” list.
ii. Click the “SAVE”button.
b. Forward to Number (this is a Hard Forward)
i. Fill in a number to forward to.
ii. Click the “SAVE” button.
c. Forward When Busy/ No Answer (this is a Hard
Forward)
i. Fill in a number for both the “Busy” and the
“No Answer” data fields.
ii. Click the “SAVE” button.

16 | CBV User Guide
www.chicagobusinessvoip.com | [e-mail]
Free Phone System in the Cloud
Carrier-grade VoIP network powered by Cisco System
*
Unlimited Local & Long Distance Calling
*
30+ Business Features
*
Plug-N-Play Install
For complete details contact:
[email protected] | 312-646-1149
201 West Lake Street, Unit 124 | Chicago, Illinois 60606
