ELECTRIC KETTLES
MODELS:cKEL-40-SH
cKEL-60-SH
Cleveland Standard Features
n Self-contained, easily installed - needs only an electrical hook-up
nSteam jacket filled with treated water, venting and/or refilling is
not required
nAccurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial
nWater resistant controls, splash-proof construction
nRe-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
nWelded-in heating elements, (holds vacuum better, won't leak
or loose water)
nEasily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
nRear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
n50 psi steam jacket rating for higher cooking temperatures
n50 psi safety valve
n Solid state water level control (no sight glass gauge to break or leak)
nFaucet mounting bracket
n2˝ diameter tangent draw-off valve with drain strainer
nSpring-assisted, hinged, rotatable, domed stainless steel cover
n 1 5/8˝ O.D. tri-leg supports with level adjustable feet for floor bolt-
ing
nStandard voltage is 208-240 volts, 60 Hz, 3 Phase, 3-wire
nTypical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
p316 Stainless Steel Interior Liner (316G)
p3" diameter Tangent Draw-Off Valve w/Strainer (TD3),
for 60 gallon only
pHot & Cold Water Faucet (DPK)
pKettle Accessory Kit (KAK)
pTri-Basket Strainer Support Systems (TBS)
pKettles Markings (KM)
pMeasuring Strips (MS)
pVoltages other than standard (VOS)
pCorrectional Packages
pHigh Wattage (HW) (see back page)
pHeat Deflector Shield (HS001)

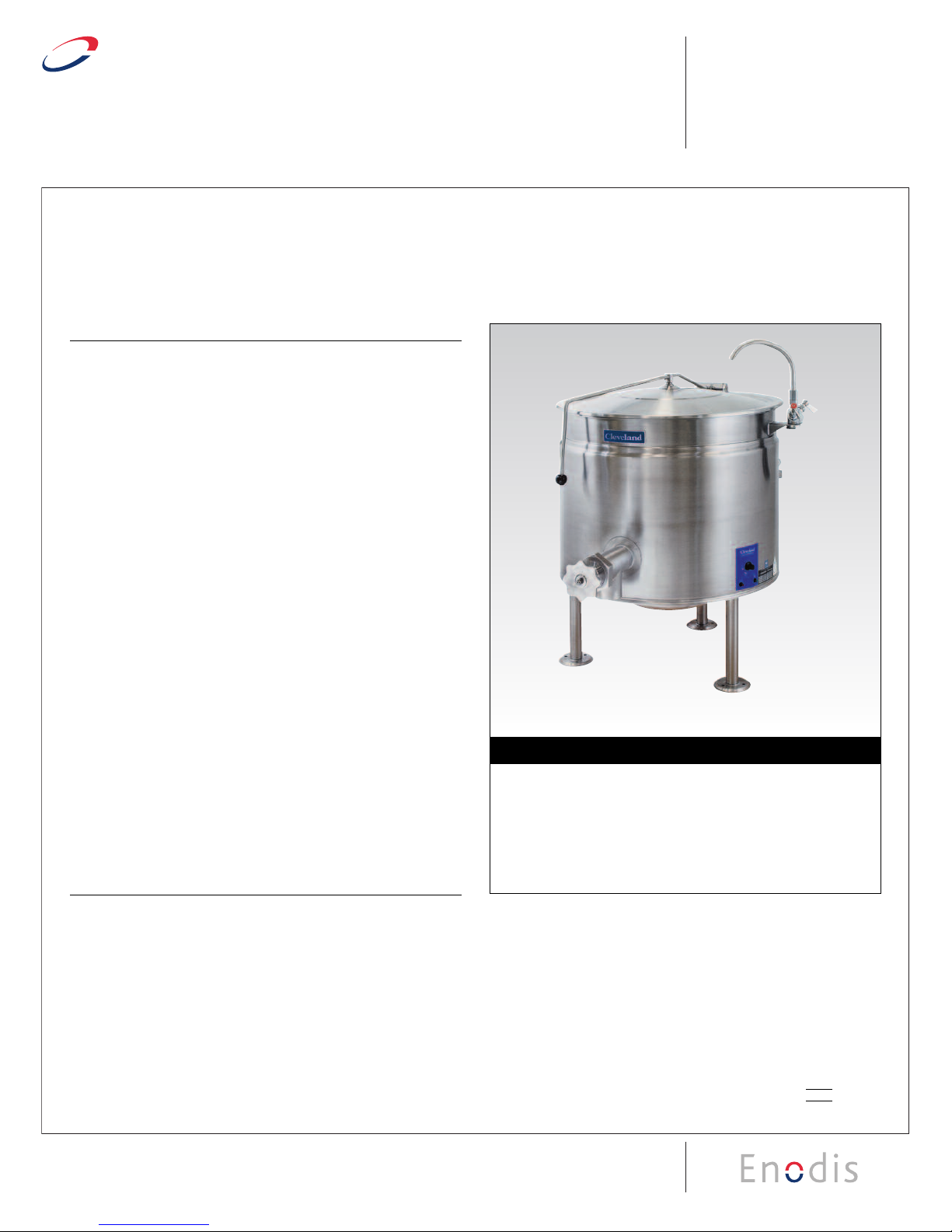

Cleveland Electric Stationary Kettle, Model KEL-40SH, 34.8˝ rim
height, 3⁄4 steam jacketed, 50 psi steam jacket rating, Permanently
filled Steam Jacket. Splash-Proof Solid-State Temperature
Controls. 2˝ Tangent Draw-Off Valve with Strainer, Spring-Assist
Cover and Faucet Bracket. Splash Proof Solid State Temperature
(±1°C) and Safety Control System in plug-in Module including
L.E.D. indicators.
Short Form Specifications
SECT. VIII PAGE 17
0707
SHORT SERIES™ELECTRIC KETTLES
34.8˝ RIM HEIGHT, STATIONARY, FULL STEAM JACKETED
SELF-CONTAINED
, “ SPLASH PROOF SERIES”
40 or 60 GALLONS (150 or 225 LITERS)
pInsulated Outer Jacket (IOJ)

RECOMMENDED
FLOOR SLOPE
1" (26 mm) per 4' (1220 mm)
PIPE DRAIN RECOMMENDED
min. valve size plus 1" (26 mm)
4" (102 mm)
RECOMMENDED
9/16"
14
mm
120º
TYP
1" (25
mm)
MAX. ADJUSTMENT
15/8" (42 mm) Ø
FLANGED FOOT DETAIL
7/16" (11 mm) Ø
3HOLES ON
3 1/8" (80
mm) Ø
B.C.D.
4 7/8"
124
Ø mm
(NOT TO SCALE)
SECT.VIII PAGE 18
0707
Litho in U.S.A.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., NSF
, CGA, CSA, ETL and others.
STANDARD WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
40 150 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
60 225 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
HIGH WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
40 150 24.5 N/A 68.1 30 N/A 75.3 32.6 68.1 39.3 25.1 66.2 38.2
60 225 29.4 N/A 81.7 39.2 N/A 94.3 39.2 81.7 47.1 30.2 79.4 45.9
Consult factory for other voltages.
CLEARANCE
WATER
3⁄8˝ O.D. copper tube or
1⁄2˝ N.P
.T. pipe.
When ordered with
optional faucet.
H
C
RIGHT = 0
LEFT = 0
REAR = 0
Allow 12" minimum on
right side for servicing
SHIPPING
WEIGHT (LBS.)
KEL-40-SH = 330
KEL-60-SH = 370
•CAPACITIES:
(in 8 oz. servings, other sizes may be calculated)
40 Gallon / 150 liters........... 640 servings
60 Gallon / 225 liters........... 960 servings
DIMENSIONS
GALS./
LITERS ACDEFGHJKLMOPQR
40/ IN 29 1/2 35 7/8 38 44 14 67 3/8 11 7/16 34 1/2 9 1/2 15 1/2 8 7/8 43 5 13/16 25 5/8 22 7/8
150 mm 750 911 965 1118 356 1712 291 876 242 394 225 1,092 148 651 582
60/ IN 33 35 7/8 41 1/4 47 1/4 10 1/4 72 12 15/16 38 11 1/4 17 1/4 6 3/4 46 5 9/16 28 25 7/8
225 mm 839 911 1048 1200 260 1829 329 965 286 439 171 1,168 141 711 65
