Cognex 3D-A5000 Sensors
Cognex 3D-A5000 sensors combine structured light projection and GigE Vision cameras to generate information about
three-dimensional objects. The sensor projects a pattern on an area within the field of view of two enclosed cameras:
Cognex software builds a 3D data structure representing the object from geometrically distorted images taken from the
two cameras, which can then be viewed as a static 2D image or dynamically through a 3D viewing option:
Once you have the 3D data, VisionPro supports a variety of 3D vision tools for performing tasks such as:
lFinding the 3D pose of a trained 3D model
lGenerating height or volume calculations
lAnalyzing a cross-section of the object
See your installed VisionPro documentation for details.
5
Cognex 3D-A5000 Sensors

PC Requirements
Any PC you use with a 3D-A5000 sensor must meet certain minimum requirements. Cognex also makes
recommendations for some components.
Components Requirement
CPU Minimum:
l4th generation Intel® Core™ i5 Processor with 4 cores
Recommended:
l8th generation Intel Core i7 Processor with four physical cores (8 logical cores)
lIntel Xeon E5 Processor with six physical cores (12 logical cores)
Operating System Windows 10 Pro 64-bit
GPU (mandatory) Minimum:
lNVIDIA GeForce GTX 1070
Recommended:
lNVIDIA GeForce GTX 1080
Cognex also supports:
lNVIDIA GeForce GTX 1070 Ti
lNVIDIA GeForce GTX 1080 Ti
NVIDIA Graphics Driver Minimum:
lVersion 387
Recommended:
lVersion 396 or later
10 Gigabit Ethernet Adapter Recommended:
Chelsio T520-BT
https://www.chelsio.com/nic/unified-wire-adapters/t520-bt/
Refer to the Chelsio documentation for correct installation procedures
Download the latest driver software for the Chelsio T520-BT:
https://service.chelsio.com/downloads/Microsoft/
Recommended Package Type:exe
RAM Minimum:8GB
Recommended:16GB
Ethernet Cable Recommended:Cat6a
Power Supply Required power supply depends on all system components. For typical setups (no
additional hardware components [single GPU, single CPU]):
l600W power supply for GTX 1070 and GTX 1070 Ti
l700W power supply for GTX 1080 and GT 1080 Ti
Supported Sensors
Refer to the following table for details on the 3D-A5000 sensors supported by this VisionPro release:
6
Cognex 3D-A5000 Sensors

Specification 3D-A5005 3D-A5030 3D-A5060
Resolution X, Y = 42 - 44 µm X, Y = 195 - 199 µm X, Y = 361 - 454
µm
Clearance Distance (mm)
The minimum distance required before the
sensor will detect 3D features.
300 1465 1400
Near Field of View (mm x mm)
The size of the area closest to the sensor where
3D features can be detected. Features above
the Near Field of View will not be captured by
the sensor.
60 x 44 280 x 210 520 x 390
Measurement Range (mm)
The total distance in which the sensor can
detect 3D features.
12 80 400
Far Field of View (mm x mm)
The size of the area farthest from the sensor
where 3D features can be detected. Features
below the Far Field of View will not be captured
by the sensor.
65 x 46 285 x 215 645 x 490
Refer to the following diagram for physical dimensions of the 3D-A5000 sensor:
7
Cognex 3D-A5000 Sensors

Operating Conditions
Be aware of the general operating conditions of a 3D-A5000 sensor:
Specification Description Notes
IP Rating IP65
Operating temperature range 0 - 40°C Accurate measurements in
trigger mode:22°C +/- 5°C
Storage Temperature -10°C to 60°C
Ambient Temperature 0°C to 40°C
Power Supply Requirements +24VDC +/- 10%
144W (6.0A)with illumination on at maximum
intensity
15W (0.6A)with illumination off
Operating Current Up to 6.0A depending on operation-mode
Maximum Humidity 85% non-condensing (maximum)
Shock (unit in a shipping padded
container)
3 Axis, 50 Gs (11ms half-sine pulse)
Vibration Non-operating (unit does not acquire images while
under vibration): 3 Axis, 8 Gs (10-500 Hz for 30
minutes)
Accurate Measurements: 3 Axis, 2G RMS Sine
Sweep 10-200 Hz continuous
Trigger Inputs 1 opto-isolated acquisition trigger input
4V...24V (High); 0.0V...0.5V (Low)
Configurable as current sink (NPN) or current
source (PNP)
Discrete Outputs 3 opto-isolated outputs
Configurable as current sink (NPN) or current
source (PNP)
8
Cognex 3D-A5000 Sensors

Hardware Installation
Cognex ships your 3D-A5000 sensor with a power supply and cables for the GigE Vision cameras and I/O connections.
See the section PC Requirements on page6 for the minimum PC requirements to use with your 3D-A5000 sensor.
Be aware you need the following accessories to complete the installation of your PC and 3D-A5000 series sensor:
lA 1024 x 768 display at 96 DPI
lAny network cables to connect your PC to your corporate network
lA VisionPro security key.
The security key provides a security mechanism to ensure that the Cognex software is properly licensed.
l(Optional)Hardware trigger
lA mounting option for your 3D-A5000 sensor.
Refer to the following diagram for physical dimensions (in mm)of the mounting options on the back of the sensor:
Precautions
To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex
product:
lRoute cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of
damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power
surges, or other irregularities in the power supply.
lChanges or modifications not expressly approved by the party responsible for regulatory compliance could void
the user’s authority to operate the equipment.
lEnsure that the cable bend radius begins at least six inches from the connector. Cable shielding can be
degraded or cables can be damaged or wear out faster if a service loop or bend radius is tighter than 10X the
cable diameter.
lThis device is certified for office use only and if used at home, there can be frequency interference problems.
lThis device should be used in accordance with the instructions in this manual. Failure to do so may impair the
performance and/or protection provided by the device.
lAll specifications are for reference purposes only and can change without notice.
9
Hardware Installation

Deploy the PC and the 3D Sensor
Perform the following steps to deploy your PC and 3D-A5000 sensor:
1. Place your PC in a well-ventilated area.
2. Mount your sensor within cable-length of the PC. See Hardware Installation on page9 for measurements of the
mounting plate on the back of the sensor.
3. Connect the GigE cable of the sensor to the 10 Gigabit Ethernet adapter.
4. Connect your 3D-A5000 power cable to a 24V power supply.
Power cable pin assignments:
Pin Number Signals WireColor
1 +24VDC Red
2 Ground Black
3 Reserved
4 Reserved
5. Connect an optional hardware trigger.

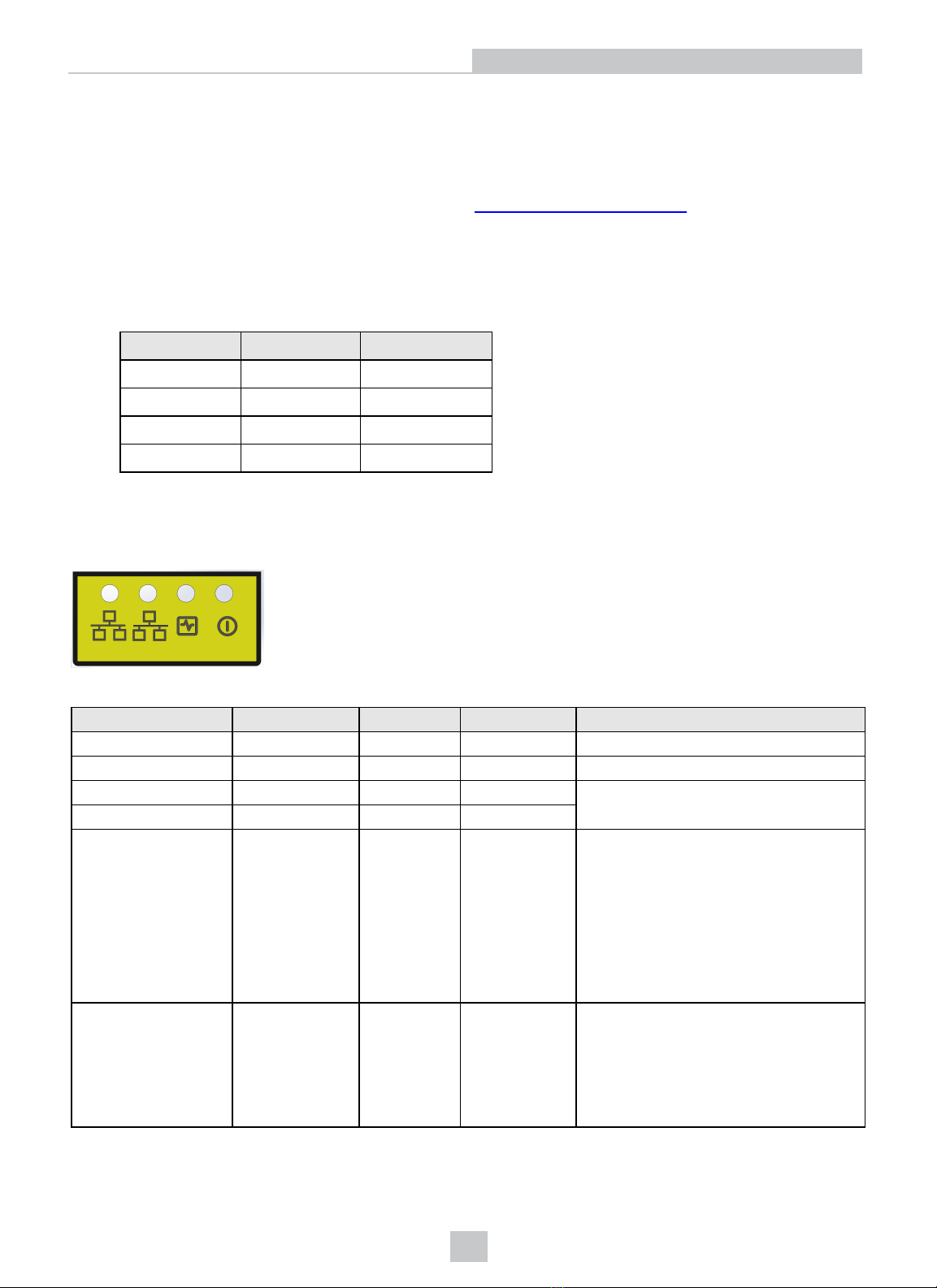

LED Indicators
Refer to the following table for a description of the status LED indicators on the front panel of the 3D sensor:
Green (Ethernet) Yellow (Ethernet) Red Green Details
OFF OFF OFF OFF Power Off
ON ON ON ON Powering Up
OFF OFF ON OFF Booting
OFF OFF ON ON
ON/OFF ON
(pulses) OFF ON
(pulses)
System OK
Green ON, pulses briefly every 5 seconds
Yellow ON if Ethernet link connected at
any speed, pulses with Ethernet packets
sent or received
Green (Ethernet)ON if Ethernet connected
at 10 Gbps
N/A N/A FLASH FLASH Firmware Update Required
Green and Red flash alternately indicating
an interrupted firmware update.
Sensor will not acquire images until a
successful firmware update is complete.
10
Hardware Installation

Green (Ethernet) Yellow (Ethernet) Red Green Details
N/A N/A ON FLASH System Error
See the following description.
In the event of a system error, the Green LED fast flashes "N" times, has a long pause, and repeats. The "N"value
indicates the error code:
1. File System Corrupt
2. No Calibration File Present
3. Cooling Fan Failure
4. Diarotator Motor Failure
5. Diarotator Controller Failure
6. Image Sensor Failure
7. Configuration EEPROM corrupt
If the 3D sensor detects multiple errors, each error is flashed with a pause between each value. For example, for errors 2,
3 and 5 the sequence would be:
l2 fast flashes and a short pause
l3 fast flashes and a short pause
l5 fast flashes and a long pause
Then the cycle would repeat.
Caution Labels

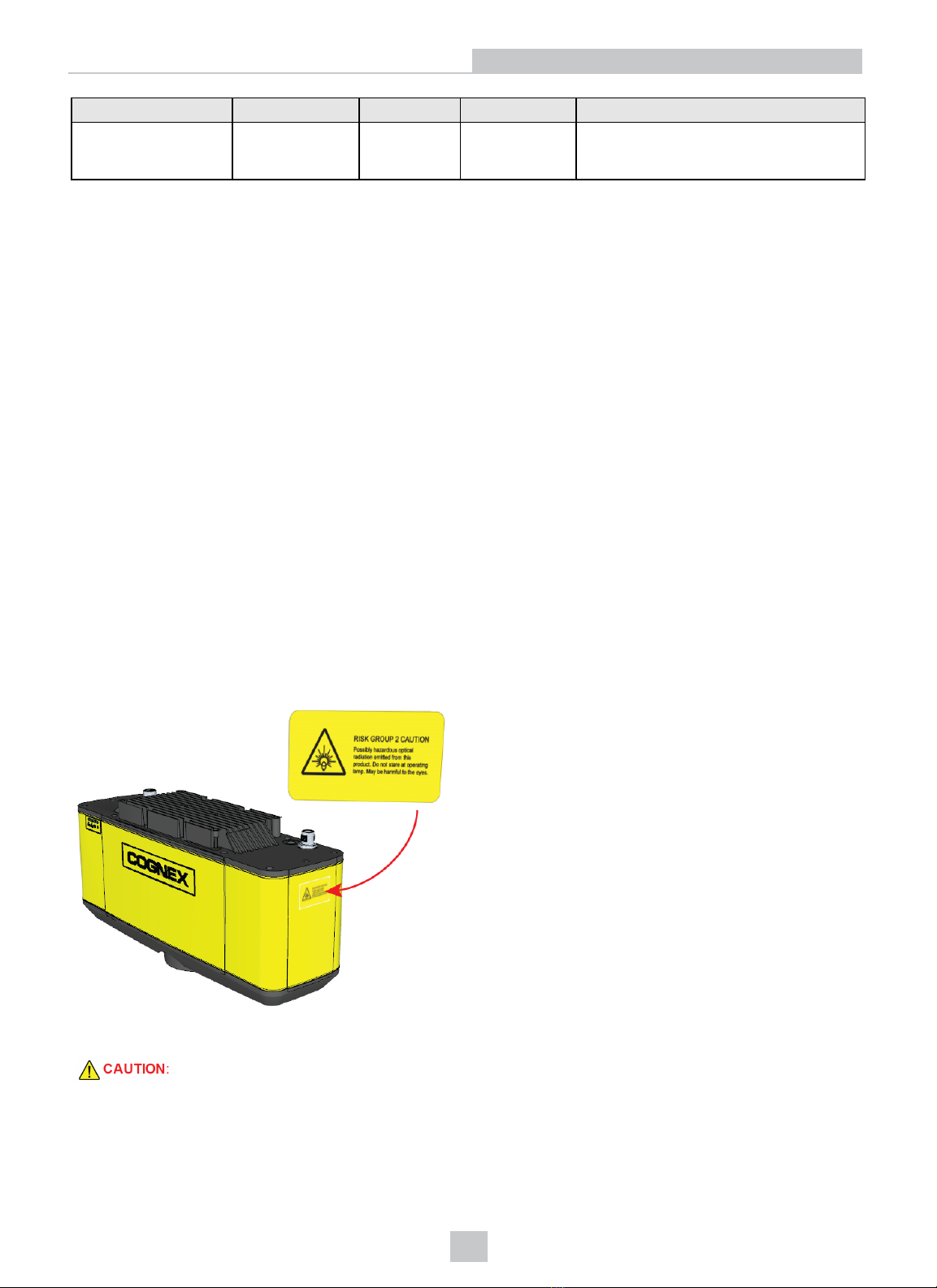

Your 3D-A5000 sensor supports a caution label applied to the side of the sensor:
The label contains the following caution:
Do not stare into operating projector. The intense light may be harmful to the eyes.
Depending on how your mount the hardware in your production environment, the caution label might not be visible to
anyone operating the sensor. Find additional English and non-English labels in the packaging with your Cognex
hardware.
11
Hardware Installation

Use the non English label if the English label is not sufficient for your production environment. Place one or both labels
in a place visible to anyone operating the sensor:
12
Hardware Installation

I/O Cable
The following table describes the 3D-A5000 I/O cable:
Pin
Number
Signal WireColor
1 READY+ Yellow
2 Reserved White/Yellow
3 Reserved Brown
4 READY- White/Brown
5 TRIGGER_IN+ Violet
6 TRIGGER_IN- White/Violet
7 Reserved Red
8 Reserved Black
9 TRIGGER_OUT+ Green
10 TRIGGER_OUT- Orange
11 MISSED_TRIGGER+ Blue
12 MISSED_TRIGGER- Grey

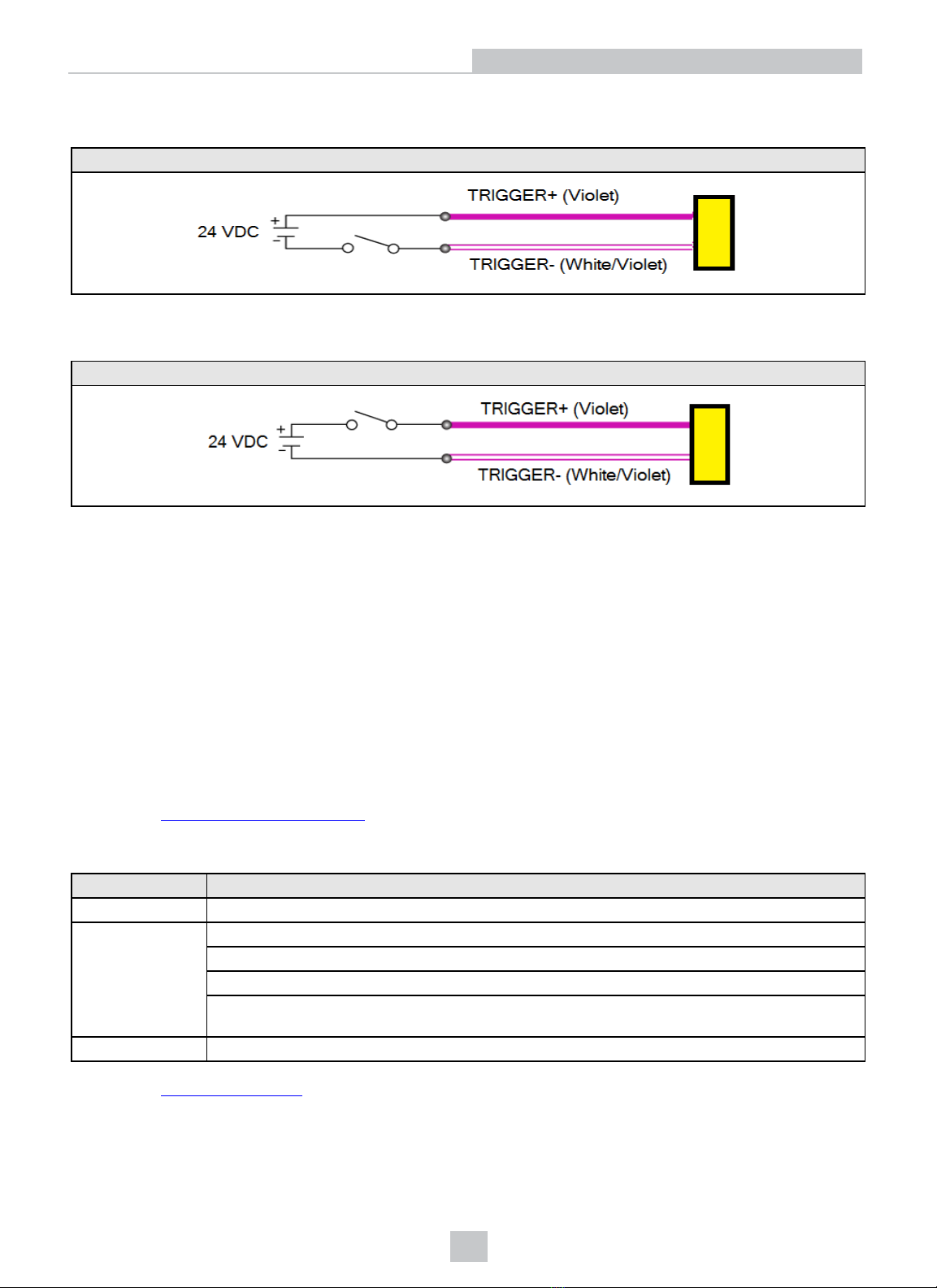

Hardware Triggers
The acquisition trigger input to the 3D sensor is opto-isolated, and the sensor will respond to a trigger event when the
voltage difference between the TRIGGER+ and TRIGGER- inputs exceeds 10V.
Specification Description
VIH ±10 – ±28 V
VIL 0 – ±5 V
ITYPE @ 12 VDC, 4 mA
@ 24 VDC, 8 mA
Delay 50 µs maximum latency between leading edge of trigger and start of acquisition. Input pulse
should be a minimum of 1ms wide.
Trigger Circuit
30V max across the input pins - transition approx. 10V (Min.)
13
I/O Cable

To configure the acquisition trigger as a sourcing input, connect the TRIGGER+ terminal to the high-voltage reference
(24VDC) and the TRIGGER- terminal to the output of the photo-electric sensor.
Trigger (Source)
To configure the acquisition trigger as a sinking input, connect the TRIGGER- terminal to the low voltage reference
(ground) and the TRIGGER+ terminal to the output of the photo-detector or PLC.
Trigger (Sink)
Be aware of the following I/O line behavior during acquisition:
lThe sensor asserts the READY line to indicate that it will perform a hardware-triggered acquisition when it detects
a rising edge on the TRIGGER_IN line.
The sensor must be configured for hardware triggers, an acquisition start command received, and the sensor
must not be currently performing an acquisition.
lThe sensor generates a 5.2 ms pulse on the TRIGGER_OUT line at the start of any acquisition sequence
(hardware trigger or software trigger)
lThe sensor generates a 5.2 ms pulse on the MISSED_TRIGGER line if it detects a TRIGGER_IN signal but the
READY line is not asserted
Discrete Outputs
See the topic Hardware Triggers on page13 for details on the acquisition trigger. Your 3D-A5000 sensor supports three
other optically-isolated high-speed outputs that can be used as either NPN (current sinking) or PNP (current sourcing)
lines.
Specification Description
Voltage 26.4VDC maximum through external load
Current 50mA maximum sink current
OFF state leakage current 100µA
External load resistance 240 Ohms to 10K Ohms
Each line rated at a maximum 50mA, protected against over-current, short circuits and transients
from switching inductive loads. High current inductive loads require an external protection diode.
Delay210µs (maximum due to opto-isolators turning on)
See the topic I/O Cable on page13 for the pin assignments of the 3D-A5000 sensor I/O cable.
Your 3D-A5000 sensor uses an identical circuit for all the outputs the 3D sensor supports:
14
I/O Cable

lMISSED_TRIGGER
lREADY
lTRIGGER_OUT
For example, the following figure contains a block diagram for the MISSED_TRIGGER signal:
Wiring for sourcing output:
lMISSED_TRIGGER+ to load power (e.g. PLC +24VDC)
lMISSED_TRIGGER- to load (e.g. PLC sinking input ) and return (e.g. PLC ground)
Wiring for sinking output:
lMISSED_TRIGGER+ to load (e.g. PLC sourcing input ) and power (e.g. +24VDC)
lMISSED_TRIGGER- to load return power (e.g. PLC ground)
15
I/O Cable

Cleaning and Handling
Cognex makes the following recommendations for cleaning your 3D-A5000 sensor.
To clean the outside of the 3D sensor housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a
cleaning cloth. Do not pour the cleaner directly onto the 3D sensor housing.
CAUTION: Do not attempt to clean any Cognex product with harsh or corrosive solvents, including lye, methyl ethyl
ketone (MEK) or gasoline.
To remove dust from the camera windows, use a pressurized air duster. The air must be free of oil, moisture or other
contaminants that could remain on the windows. To clean the window, use a small amount of isopropyl alcohol on a
cleaning cloth and gently clean the window surface. Do not scratch the windows. Do not pour the alcohol directly on the
windows.
16
Cleaning and Handling

Regulations/Conformity:3D-A5000 Sensors
Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site:
cognex.com/support.
Cognex 3D-A5000 series sensors meet or exceed the requirements of all applicable standards organizations for safe
operation. As with any electrical equipment, however, the best way to ensure safe operation is to operate them according
to the agency guidelines that follow. Please read these guidelines carefully before using your device.
Safety and Regulatory
Manufacturer Cognex Corporation 1 Vision Drive Natick, MA 01760 USA
Canada ICES-003, Class A
European Community
This equipment complies with the essential requirements of the EU
Directive 2014/30/EU. Declarations are available from your local
representative.
3D-A5005; Regulatory Model R00094
3D-A5030; Regulatory Model R00095
3D-A5060; Regulatory Model R00092
FCC Class A Compliance Statement This equipment has been tested and found to comply with the limits for
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
KCC 3D-A5005: Regulatory Model R00094 R-R-CGX-R00094
3D-A5030: Regulatory Model R00095 R-R-CGX-R00095
3D-A5060: Regulatory Model R00092 R-R-CGX-R00092
NRTL TÜV SÜD AM SCC/NRTL OSHA Scheme for UL/CAN 61010-1
CB TÜV SÜD AM, IEC/EN 61010-1. CB report available upon request
RoHs Compliant to the most recent applicable directive.
17
Regulations/Conformity:3D-A5000 Sensors

For European Community Users
Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012
on waste electrical and electronic equipment (WEEE).
This product has required the extraction and use of natural resources for its production. It may contain hazardous
substances that could impact health and the environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural
resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal
waste and invites you to use the appropriate separate take-back systems for product disposal.
If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste
administration.
You may also contact your supplier for more information on the environmental performance of this product.
18
For European Community Users
