Cognex DataMan 70 Series User manual

DataMan®70 Series
Quick Reference Guide
2020 October 05
Revision: 6.2.1.1

Precautions
To reduce the risk of injury or equipment damage, observe the following precautions
when you install the Cognex product:
lRoute cables and wires away from high-current wiring or high-voltage
power sources to reduce the risk of damage or malfunction from the
following causes: over-voltage, line noise, electrostatic discharge (ESD),
power surges, or other irregularities in the power supply.
lChanges or modifications not expressly approved by the party responsible
for regulatory compliance could void the user’s authority to operate the
equipment.
lEnsure that the cable bend radius begins at least six inches from the
connector. Cable shielding can be degraded or cables can be damaged or
wear out faster if a service loop or bend radius is tighter than 10X the cable
diameter.
lThisdevice should be used in accordance with the instructions in this
manual.
lAll specifications are for reference purposes only and can change without
notice.

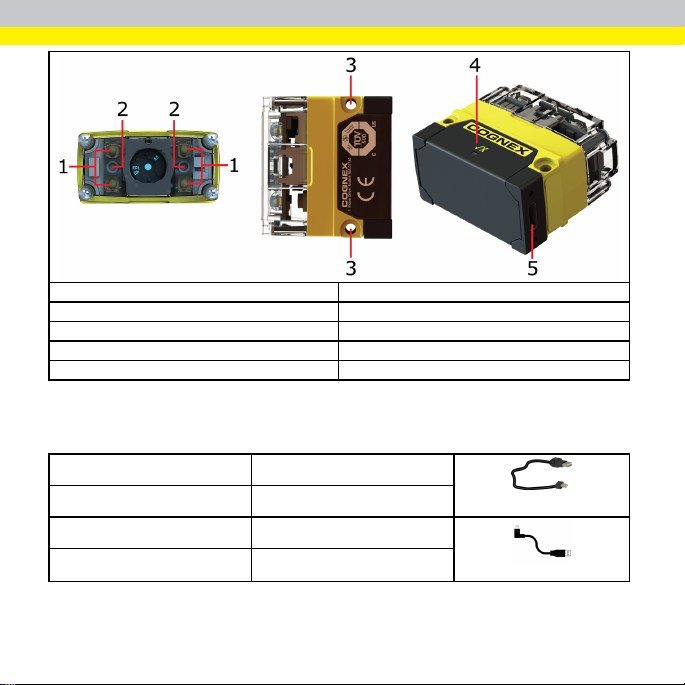

Product Overview
2

1 Illumination LEDs
2 LED aimers
3Mounting holes
4Good/bad read indicator
5 USB type-C port
DataMan 70 Accessories
ACCESSORIES FOR DM70
Sealed USB type C cable to USB type
A straight 2.5m
DMA-STCBLE-IP65-25
Sealed USB type C cable to USB type
A straight 3.6m
DMA-STCBLE-IP65-36
Sealed USB type C cable to USB type
A angled 2.5 m
DMA-RTCBLE-IP65-25
Sealed USB type C cable to USB type
A angled 3.6m
DMA-RTCBLE-IP65-36
3

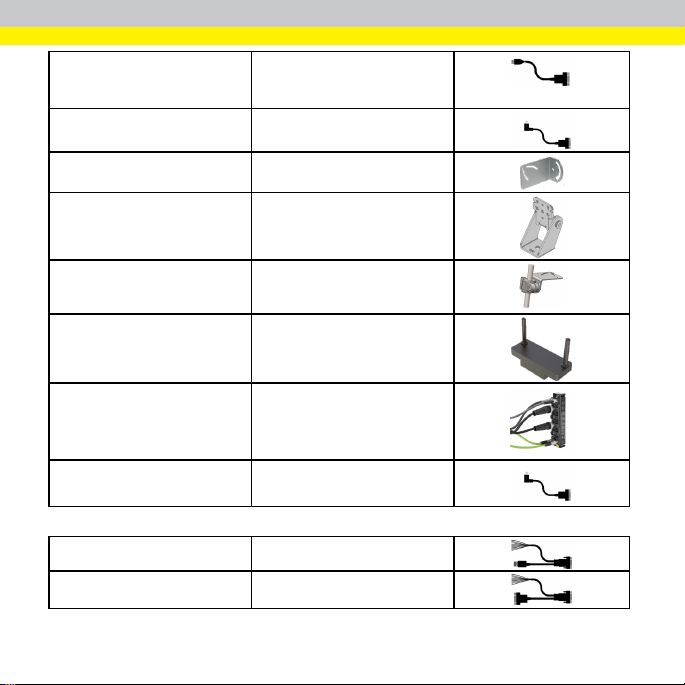

Sealed Serial I/O Adapter cable with
straight USB type C connector
DMA-SERIAL-IP65-ST
Sealed Serial I/O Adapter cable with
angled USB type C connector DMA-SERIAL-IP65-RA
Universal Mounting Bracket DM70-UBRK-000
Pivot Mounting Bracket DM100-PIVOTM-00
Logistics Bracket DMA-BKT-LGS
Value Line Bracket DMA-BKT-70-VAL
Industrial Ethernet connection module DMA-EZCCM-001
EZCCM to USBcable DMCB-EZCCM-USB-03
ACCESSORIES FOR DM70 USED WITH DMA-SERIAL-IP65-xx
USB & Flying Leads I/O Cable, 2.0 m DM-USBIO-00
RS-232 & Flying Leads I/O Cable, 2.5
m
DM-RS232IO-00
4

DataMan Basic I/O Module DM100-IOBOX-000
5

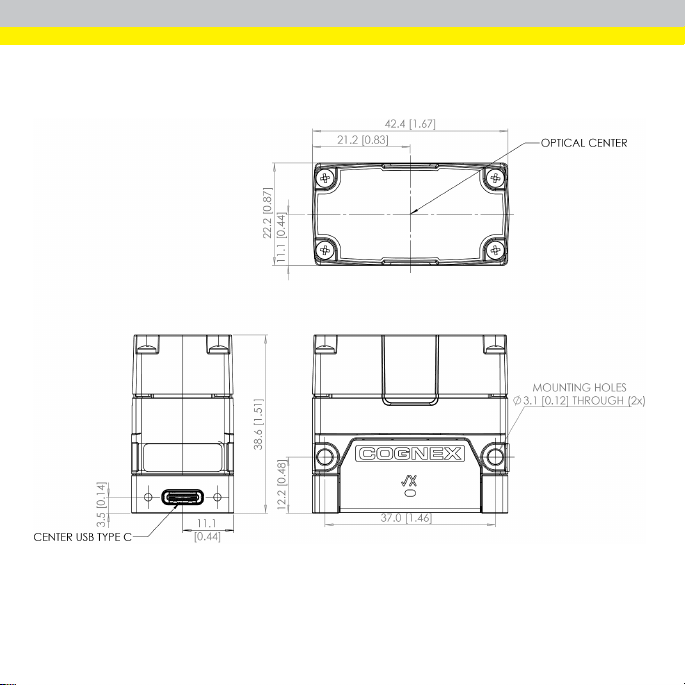

Dimensional Drawings
6

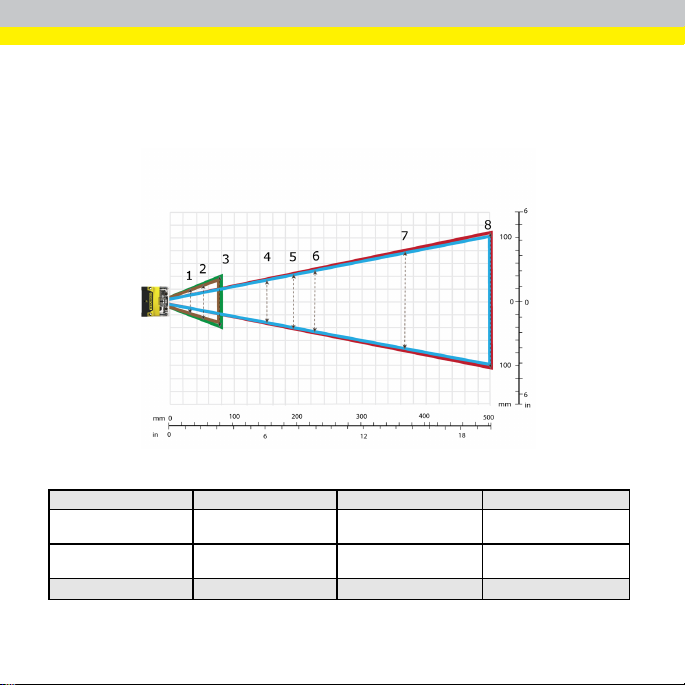

Field of View and Reading Distances
Horizontal Field of View values
1 2 3 4
DM72 Short Range: 31
mm [1.2 in]
DM72 Short Range: 50
mm [1.9 in]
DM72 Short Range: 82
mm [3.2 in]
DM70 Long Range: 115
mm [4.5 in]
DM70 Short Range: 29
mm [1.14 in]
DM70 Short Range: 47
mm [1.85 in]
DM70 Short Range: 76
mm [2.99 in]
DM72 Long Range: 123
mm [4.8 in]
5 6 7 8
7

DM70 Long Range: 144
mm [5.6 in]
DM70 Long Range: 170
mm [6.7 in]
DM70 Long Range: 279
mm [10.9 in]
DM70 Long Range: 370
mm [14.5 in]
DM72 Long Range: 153
mm [6.0 in]
DM72 Long Range: 181
mm [7.1 in]
DM72 Long Range: 297
mm [11.7 in]
DM72 Long Range: 394
mm [15.5 in]
Vertical Field of View values
1234
DM72 Short Range: 23
mm [0.8 in]
DM72 Short Range: 38 mm
[1.25 in]
DM72 Short Range: 61
mm [1.9 in]
DM70 Long Range: 73 mm
[2.8 in]
DM70 Short Range: 18
mm [1.1 in]
DM70 Short Range: 30 mm
[1.65 in]
DM70 Short Range: 48
mm [2.5 in]
DM72 Long Range: 92 mm
[3.6 in]
5678
DM70 Long Range:92
mm [3.6 in]
DM70 Long Range: 108
mm [4.25 in]
DM70 Long Range: 178
mm [7.0 in]
DM70 Long Range: 236
mm [9.2 in]
DM72 Long Range: 115
mm [4.5 in]
DM72 Long Range:135
mm [5.3 in]
DM72 Long Range: 223
mm [8.7 in]
DM72 Long Range: 295
mm [11.6 in]
Device
Distances in mm/
2Dmin. code
6.2 mm lens
Long Range
Distances in mm/
1D min. code
6.2 mm lens
Long Range
DM70
150 12 MIL 150 6 MIL
190 15 MIL 190 10 MIL
225 18 MIL 225 10 MIL
375 30 MIL 375 15 MIL
500 35 MIL 500 20 MIL
1000 80 MIL 1000 35 MIL
8

Device
Distances in mm/
2Dmin. code
6.2 mm lens
Long Range
Distances in mm/
1D min. code
6.2 mm lens
Long Range
DM72
150 10 MIL 150 5 MIL
190 12 MIL 190 6 MIL
225 15 MIL 225 6 MIL
375 20 MIL 375 10 MIL
500 25 MIL 500 15 MIL
1000 50 MIL 1000 30 MIL
Device
Distances in mm/
2Dmin. code
6.2 mm lens
Short Range
Distances in mm/
1D min. code
6.2 mm lens
Short Range
DM70
40 4 MIL 40 2 MIL
65 5 MIL 65 3 MIL
105 10 MIL 105 6 MIL
DM72
40 4 MIL 40 2 MIL
65 5 MIL 65 3 MIL
105 10 MIL 105 6 MIL
9

Horizontal Field of View values
1 2 3 4 5 6 7
DM70: 22 mm
[0.87 in]
DM70: 43 mm
[1.7 in]
DM70: 54 mm
[2.1 in]
DM70: 64 mm
[2.5 in]
DM70: 106
mm [4.1 in]
DM70: 142
mm [5.6 in]
DM70: 283
mm [11 in]
DM72: 24 mm
[0.94 in]
DM72: 45 mm
[1.8 in]
DM72: 58 mm
[2.3 in]
DM72: 68 mm
[2.7 in]
DM72: 113
mm [4.4 in]
DM72: 151
mm [5.9 in]
DM72: 301
mm [12 in]
Vertical Field of View values
1 2 3 4 5 6 7
10

DM70: 14 mm
[0.55 in]
DM70: 27 mm
[1.1 in]
DM70: 34 mm
[1.3 in]
DM70: 41 mm
[1.6 in]
DM70: 68 mm
[2.7 in]
DM70: 90 mm
[3.5 in]
DM70: 180
mm [7.1 in]
DM72: 18 mm
[0.71 in]
DM72: 34 mm
[1.3 in]
DM72: 43 mm
[1.7 in]
DM72: 51 mm
[2.0 in]
DM72: 85 mm
[3.3 in]
DM72: 113
mm [4.4 in]
DM72: 226
mm [8.9 in]
Device
Distances in mm/
2Dmin. code
16 mm lens
Distances in mm/
1D min. code
16 mm lens
DM70
80 3 MIL 80 2 MIL
150 5 MIL 150 3 MIL
190 6 MIL 190 4 MIL
225 7 MIL 225 4 MIL
375 12 MIL 375 5 MIL
500 15 MIL 500 10 MIL
1000 25 MIL 1000 15 MIL
DM72
80 2 MIL 80 2 MIL
150 3 MIL 150 2 MIL
190 4 MIL 190 2 MIL
225 4 MIL 225 3 MIL
375 7 MIL 375 4 MIL
500 10 MIL 500 6 MIL
1000 20 MIL 1000 15 MIL
Connecting the Reader
Perform the following steps:
1. Connect the breakout cable.
2. Connect the reader to the PC.
11

For information on the pinout and wire colors, see section Connections, Optics and
Lighting in the DataMan 70 Reference Manual.
Installation
Installation procedures and specifications are presented in detail in the DataMan®70
Reference Manual, which is installed with the DataMan Setup Tool. From the
Windows Start menu, select the following to access the manual: All Programs >
Cognex > DataMan Software vx.x.x > Documentation.
12

Note:
If a standard component is missing or damaged, immediately contact your
Cognex Authorized Service Provider (ASP) or Cognex Technical Support.
Mounting
Mounting the DataMan 70 at a slight angle (15°) can reduce reflections and improve
reader performance. Having a recess for screw heads on the top and the bottom,
DataMan 70 allows for upside down mounting. Recommended fasteners and nuts:
lFastener: 2 x DIN 7985 M3x30mm or DIN 912/ISO 4762 M3x30mm
lNut: 2 x DIN 985 M3
Install Software and Documentation and
Connect the Reader
To configure a DataMan 70 reader, the DataMan Setup Tool software must be
installed on a networked PC. The DataMan Setup Tool is available from the
DataMan support site: http://www.cognex.com/support/dataman.
13

1. After installing the software, connect the DataMan 70 Seriesreader to your
PC.
2. Launch the DataMan Setup Tool and click Refresh.
3. Select your DataMan 70 reader from the list and click Connect.
DataMan 70 Series Specifications
Weight 43 g(without cable)
Operating
Temperature
0ºC — +40ºC (+32ºF — +104ºF)1
Storage
Temperature
-10ºC — +60ºC (+14ºF — +140ºF)
Maximum
Humidity
<95% (non-condensing)
Environmental IP65
Shock and
Vibration
IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11g, 10ms
IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz
at 100m/s2 / 15mm)
LED Safety IEC 62471: Exempt risk group, no further labeling is required.
Codes 1-D barcodes: Codabar, Code 39, Code 128, and Code 93,Code 25, Interleaved 2 of 5,
Pharma, Code UPC/EAN/JAN, MSI
2-D barcodes: Data MatrixTM (I IDQuick: ECC 0, 50, 80, 100, 140, and 200) QR Code and
microQR Code, PDF 417, MicroPDF 417, AztecCode, MaxiCode
Power Supply
Requirements
Options:
lUSBpowered: 2.5 W
lExternal power supply: +5 — +24 VDC
Supplied by limited-energy circuit according to IEC/ UL/ CSA 61010-1
Power
Consumption
5VDC, <2.5 W (powered over USB), average power max. 1.5 W
1Housing temperature must not exceed +60°C (+140°F). Mounting the reader onto a metal bracket is recommended
for temperatures above +32°C (+90°F).
14

DataMan 70 Series Imager Specifications
Specification DataMan 70 Imager DataMan 72 Imager
Image Sensor 1/3 inch CMOS 1/3 inch CMOS
Image Sensor
Properties
4.51 mm x 2.88 mm (W x H), 6.0 μm
square pixels
4.86 mm x 3.66 mm (W x H), 3.75µm
square pixels
Image Resolution
(pixels)
752 x 480 1280 x 960
Lens Type S-mount 6.2 mm F:7
S-mount 16 mm F:7
LED Wavelengths
The following table shows LED types and the related wavelengths:
LED λ [nm]
RED 617
RED HPIL 617
15

Regulations/Conformity
The DataMan 70 has Regulatory Model R00044 and meets or exceeds the
requirements of all applicable standards organizations for safe operation. However,
as with any electrical equipment, the best way to ensure safe operation is to operate
them according to the agency guidelines that follow. Please read these guidelines
carefully before using your device.
Note: For the most current CE declaration and regulatory conformity information, see the Cognex support
site: cognex.com/support.
Safety and Regulatory
Manufacturer Cognex Corporation
One Vision Drive
Natick, MA 01760 USA
USA TÜV SÜD AM SCC/NRTL OSHA Scheme for IEC 61010-1, UL61010-1:2012/R:2015-
07,CAN/CSA-C22.2No.61010-1:2012+ UPD No.1:2015-07+ UPD No.2:2016-04
FCC 47 CFR Part 15 Subpart B, Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference; and (2) this device must accept any
interference received, including interference that may cause undesired operation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at their own expense.
Canada TÜV SÜD AM SCC/NRTL OSHA Scheme for IEC 61010-1, UL61010-1:2012/R:2015-
07,CAN/CSA-C22.2No.61010-1:2012+ UPD No.1:2015-07+ UPD No.2:2016-04
ICES 003 compliant CAN ICES-3 (A)/NMB-3(A)
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
classe A est conforme à la norme NMB-003 du Canada.
16

Safety and Regulatory
Europe EN 61326-1, Class A
IEC 61010-1
UL 61010-1:2012/R:2015-07, CAN/CSA-C22.2 No. 61010-1:2012 + UPD No. 1:2015-07 + UPD
No. 2:2016-04
This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take immediate measures. This equipment complies with
the essential requirements of the EU Directive 2014/30/EU. Declarations are available from your
local representative.
The CE mark on the product indicates that the system has been tested to and conforms with the
provisions noted within the 2014/30/EU Electromagnetic Compatibility Directive. For further
information please contact: Cognex Corporation, One Vision Drive Natick, MA 01760 USA.
Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies,
personal computers, etc.) that is not CE marked.
Australia AS/NZS 3548, CISPR 22 Class A
Korea KN32, KN35
A급 기기(업무용 방송통신기자재): 이 기기는 업무용(A급)전자파적합기기로서 판 매
자 또는 사용자는 이 점을 주의하시기 바라 며,가정외의 지역에서 사용하는 것을 목
적으 로 합니다.
Certificate number: MSIP-REM-CGX-DM70
Japan VCCI-3/2015.04 Class A
LED Safety Statement
This device has been tested in accordance with IEC62471, and has been certified to
be under the limits of Exempt Risk Group. No further labeling is required.
For European Community Users
Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
17

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the
environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for product disposal.
If you need more information on the collection, reuse, and recycling systems, please
contact your local or regional waste administration.
You may also contact your supplier for more information on the environmental
performance of this product.
18

中国大陆RoHS (Information for China RoHS
Compliance)
根据中国大陆《电子信息产品污染控制管理办法》(也称为中国大陆RoHS)，
以下部份列出了本产品中可能包含的有 毒有害物质或元素的名称和含量。
Table of toxic and hazardous substances/elements and their content, as required by
China’s management methods for controlling pollution by electronic information
products.
Hazardous Substances 有害物质
Part Name
部件名称 Lead (Pb) 铅Mercury
(Hg)
汞
Cadmium
(Cd)
镉
Hexavalent
Chromium
(Cr (VI))
六价铬
Polybrominated
biphenyls (PBB)
多溴联苯
Polybrominated
diphenyl ethers
(PBDE)
多溴二苯醚
Regulatory
Model
R00044
X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
这个标签是根据SJ / T 11364 的规定准备的。
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the
limit requirement of GB / T26572 - 2011.
表示本部件所有均质材料中含有的有害物质低于GB / T26572 - 2011 的限量要求。
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this
part is above the limit requirement of GB / T26572 - 2011.
表示用于本部件的至少一种均质材料中所含的危害物质超过GB / T26572 - 2011 的限制要求。
19

Copyright © 2020
Cognex Corporation. All Rights Reserved.
