Comeup DH-300A User manual

Heavy Duty Hoist
Model: DH-300A
PN: 752155 24V
Introduction
 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 12 m
Lifting speed: 5 M/min
Motor output: 300 W x 17 A at DC24V
Brake: Electromagnetic and mechanical ratchets
Control: Pendant switch powers the hoist
 Unpacking
．Hoist assembly…………………………………………………………..
1pc
．Pendant switch CPB-271 w/cords……………………….……………..
1pc
．Wire rope 4.8 mm x 12 m w/safety hook………………………………
1pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless hoist operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Hoist PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Installation
Before using the hoist, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.

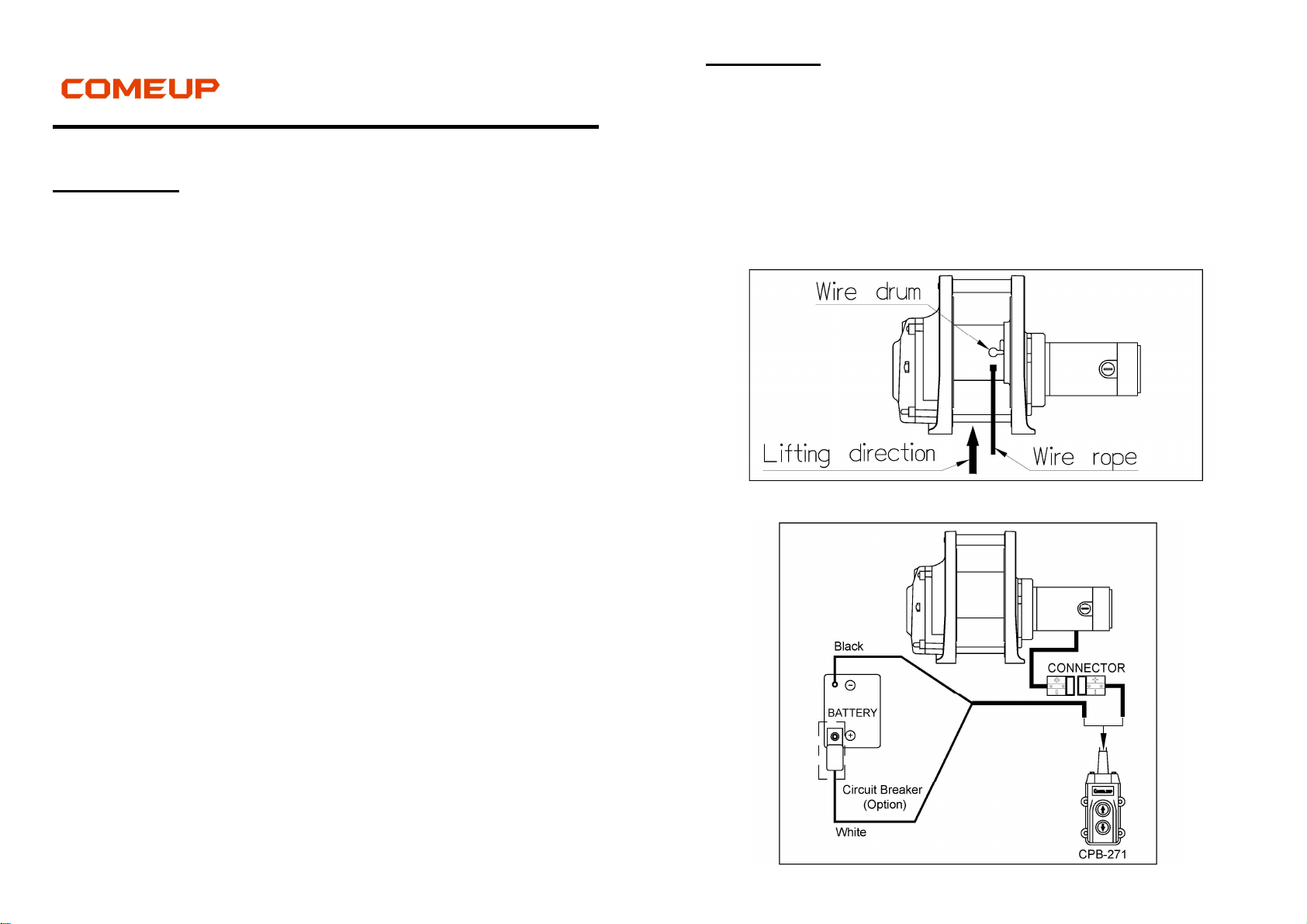

 Wire rope replacement
．Insert the wire rope into the hole of drum and fix it with a P. T. screw, then
press the "UP" button of switch for rotate the drum in the lifting direction.
．Wind the wire rope accurately around the drum, and an irregular winding
will cause the load to be swing, thus damaging the wire and reducing the
life of hoist.
 Wiring Diagram

Warning
．The hoist is not intended to be used in any manner for the movement or lifting
of personnel.
．The lifting capacity shown is based on the top layer of rope on the drum.
．The rope winding on the drum shall remain 5 wraps from the drum.
Parts List
V
er:
4
Item
No.
Description Part No. Qty
1 Gearbox rear cover kit 880546 1
2 Ratchet stopper kit 880547 2
3 2
nd
shaft 880548 1
4 3
rd
gear kit 880549 1
5 Brake kit 881516 1
6 Tie bar kit 880552 1
7 Tie bar kit A 880553 2
8 Gearbox support rack kit 880555 1
9 Output shaft kit 880556 1
10 Drum kit 881518 1
11 Motor coupling kit 881515 1
12 Motor support rack kit 880558 1
13 Torque shaft kit 881517 1
14 Motor housing kit 881908 1
15 Motor kit 24V 881910 1
16 Remote control, CPB-271 881915 1
17 Wire rope w/hook 881926 1
Hoist Assembly
