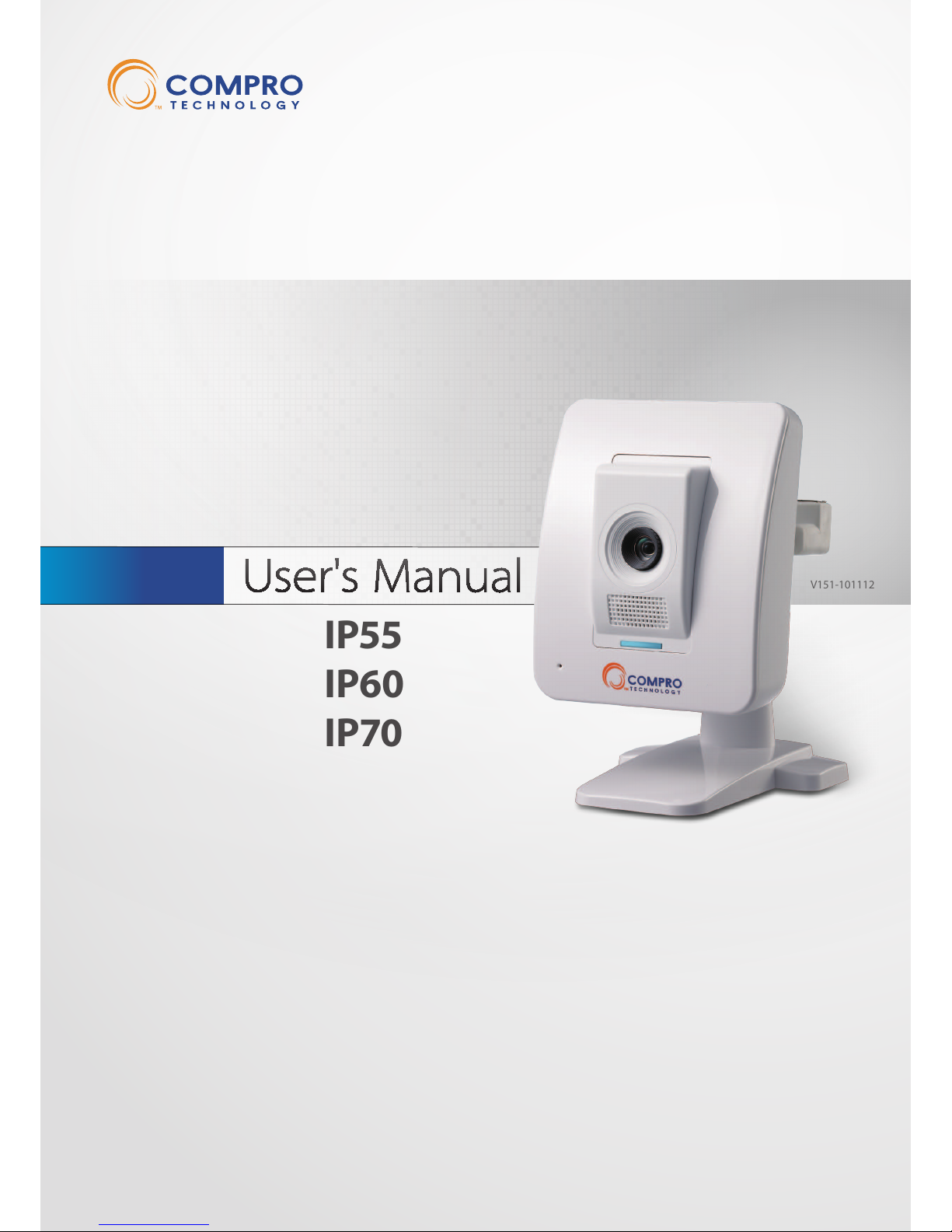

COMPRO IP55 User manual

Network Camera
IP55
IP60
IP70
Model No.
V151-101112

Copyright
© 2010 Compro Technology, Inc. All rights reserved.
Notices
This manual is only intended for the users of Compro IP55, IP60, and IP70 network camera, and is
applicable for rmware release 1.51. The camera appears on the cover of this manual is a IP60 which
diers with IP55 and IP70 in appearance.
Before starting using the camera, please read and follow the steps below to protect your IP camera.
• PleaseplacetheIPcameraonalevelsurfaceandoutofdirectsunshine.
• PleasekeeptheIPcameraindoorsandawayfromwater,dust,humidityormagneticproducts.
• PleasedonotdroptheIPCamerabodytotheoor;itmaycausethedamagetomainparts.
• Pleasedonotdisassembleorremodeltheproduct;itmaycausedamageorre.
• Donotshake,moveordisturbtheIPcamerawhenitisinoperation,assuchactionsmayresultinthe
malfunction of the device.
• PowerotheIPCameraassoonasitisfoundsmokingorsmeltunusual.
• PleasedonotplacetheIPCameraaroundtheheatsources,suchastelevisionormicrowaveoven.
Trademark
Compro Technology and Compro VideoMate are the registered trademarks of Compro
Technology Inc.
Seedonk and Seedonk Messenger are registered trademarks of Seedonk Inc.
All other company and product names mentioned in this document are registered trademarks of the
respective companies.
Restriction
No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of Compro Technology, Inc.
Disclaimer
Compro Technology makes no warranties with respect to this documentation and disclaims any implied
warranties of merchantability, quality, or fitness for any particular purpose. The information in this
document is subject to change without notice. COMPRO reserves the right to make revisions to this
publication without obligation to notify any person or entity of any such changes.
Compro Technology Inc.
www.comprousa.com
Tel. [phone], Fax [phone]
4/F, No.12, Alley 6, Lane 45, Pao Shin Road
Hsintein City, Taipei, Taiwan.
Support e-mail: suppor[email protected]

Contents
Contents
Chapter 1: Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
IP55 Full Feature List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
IP60 Full Feature List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
IP70 Full Feature List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
ApplicationDiagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Camera Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
LEDStatusIndicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
DigitalI/OConnectorBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Chapter 2: Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Wireless Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
DisassemblingandAssemblingtheCameraStand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Mounting the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
DismountingtheCamera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Installing Camera Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
Running the iWizard Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Installing ComproView . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Chapter 3: Accessing Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Viewing Streaming Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Accessing via PC Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Accessing via iPhone/Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Accessing via 3GPP Mobile Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Accessing via Seedonk IM Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Chapter 4: Live View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Page Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Icons on Live View Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Left Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
EnableDigitalZoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Voice Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Chapter 5: Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Main Setup Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Video Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Stream Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Active Bandwidth Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Video Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Flickerless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Exposure Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Low Light Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
LEDIndicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
IR Light Control (IP70 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Embed Text and Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5

Compro IP55/60/70 Network Camera
Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
NetworkDiagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Network Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
RTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
Event Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Event Server Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Trigger Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
MotionDetectionSetup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
I/O Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11
AudioDetection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Recording Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Recording History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
DateSetup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Multi-Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Chapter 6: Event Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Chapter 7: Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Prole Management: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
ResetAllSettingstoDefault. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Chapter 8: Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Initial Hardware / Software Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
iWizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Hardware wiring check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
ResettotheFactoryDefaultSettings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Trouble with the ActiveX Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4
Remote Viewing via Internet Explorer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
DDNSSetup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Contacting Compro Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Chapter 9: Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Chapter 10: Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
IP55 Available Video Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
IP60 Available Video Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
IP70 Available Video Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
List of Figures and Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4

1-1
Chapter 1: Product Overview
Package Contents
Chapter 1: Product Overview
Package Contents
Please check the package contents on your hand. If anything is missing, please don’t hesitate to contact your
local distributor.
Figure 1-1. Parts list
1Network Camera
2RJ-45 LAN Cable
3Power Adaptor
4Quick Start Guide
5InstallationCD
6Mounting Screw x 3 /Screw Mount x 3

1-2
Compro IP55/60/70 Network Camera
Features
The camera is an easy-to-install product for the indoor xed camera solution. Its support of the H.264/MPEG-
4/MJPEG video compression format helps achieve superior performance and high video quality in small
recording le size, which means a much lower cost for data storage. Utilizing smart motion detection and
built-in 2-way audio for fast and easy communications, The camera ensures instant responses when security
iscompromised.Thecameraalsocomeswithabuilt-inMicroSDslotforlocalimagestorage.
IP55 Full Feature List
• 1/4”CMOSMegapixelsensor
• Supportsreal-timeMPEG-4andMJPEGcompression(DualCodec)
• Supportsdualstreamssimultaneously
• Support10xdigitalzoom
• Videoresolutionisupto1280x1024pixels
• Imageframerateisupto30framesunder640x480or15framesunder1280x1024
• Smartmotiondetection
• Two-wayaudiowithbuilt-inMICandspeaker
• SupportUPnP(universalplugandplay)
• Support10/100802.3/Ethernet
• 802.11b/g/nWLANonapplicablemodel(Optionalwirelessadaptor)
• DigitalI/OforExternalSensorandAlarm(2In/1Out)
• Supportslocalstorage(MicroSD/SDHC),Snapshot
• EasytoInstallwithIPcameraWizard
• RemoteMonitoringon3GPPmobilephonesorphoneswithwebbrowser(e.g.iPhone/BlackBerry)
• Bundledpowerful32-channelIPvideomanagementsoftware---ComproView
IP60 Full Feature List
• 1/3"CMOSMegapixelsensor
• Supportsreal-timeH.264,MPEG-4andMJPEGcompression(TripleCodec)
• Supportsdualstreamssimultaneously
• Support10xdigitalzoom
• Videoresolutionupto1280x1024pixels
• Imageframerateupto30framesat640x480or15framesat1280x1024
• Smartmotiondetection
• Two-wayaudiowithbuilt-inMICandspeaker
• SupportsUPnP(universalplugandplay)
• Supports10/100802.3/Ethernet
• 802.11b/g/nWLANonapplicablemodel(optionalwirelessadaptor)
Features

1-3
Chapter 1: Product Overview
• DigitalI/OforExternalSensorandAlarm(2In/1Out)
• Supportslocalstorage(microSD),Snapshot
• EasytoInstallwithIPcameraWizard
• RemoteMonitoringon3GPPmobilephonesorphoneswithwebbrowser(e.g.iPhone/BlackBerry)
• Bundledpowerful32-channelIPvideomanagementsoftware---ComproView
IP70 Full Feature List
• 1/3”CMOSMegapixelsensor
• DayandnightfunctionalitywithmechanicalIRcutlterswitching
• Built-inIRlampwithlightsensor
• Supportsreal-timeH.264,MPEG-4andMJPEGcompression(TripleCodec)
• Supportsdualstreamssimultaneously
• Support10xdigitalzoom
• Videoresolutionisupto1280x1024pixels
• Imageframerateisupto30framesunder640x480or15framesunder1280x1024
• Smartmotiondetection
• Two-wayaudiowithbuilt-inMICandspeaker
• SupportsUPnP(universalplugandplay)
• Supports10/100802.3/Ethernet
• 802.11b/g/nWLANonapplicablemodel(Optionalwirelessadaptor)
• DigitalI/OforExternalSensorandAlarm(2In/1Out)
• Supportslocalstorage(microSD),Snapshot
• EasytoInstallwithIPcameraWizard
• RemoteMonitoringon3GPPmobilephonesorphoneswithwebbrowser(e.g.iPhone/BlackBerry)
• Bundledpowerful32-channelIPvideomanagementsoftware---ComproView
Features

1-4
Compro IP55/60/70 Network Camera
Application Diagram
I/O Module
I/O Input
Sensor
I/O Output
Alarm
Wireless
Module
Video
Analytics
32-CH ComproView
iPhone
16-CH WebVUer
3rd-party NAS
3GPP
microSD/SDHC
Local Storage
Audio Input
Audio Output
Internet
Figure 1-2. Application diagram
Application Diagram

1-5
Chapter 1: Product Overview
Camera Layout
For the IP55 and IP60 camera.
Figure 1-3. Front and rear view of IP55/IP60
1Lens
2Microphone
3Speaker
4LEDstatusindicator
5Wireless adaptor connector (USB type)
6Audio Output
7Reset Button
8MicroSDcardslot(ontheside)
9Microphone Input
10 Power connector
11 Ethernet Port
12 I/O port (2 in / 1 out)
Camera Layout

1-6
Compro IP55/60/70 Network Camera
For the IP70 camera.
6 12 13 14
10
5114
21 3 7 98
Figure 1-4. Front and rear view of IP70
1Light sensor
2Lens
3IR Lamp x 6 (inside,)
4Microphone
5Speaker
6LEDstatusindicator
7USB Wireless adaptor connector
8Audio Output
9Reset Button
10 MicroSDcardslot(ontheside)
11 Microphone Input
12 Power connector
13 Ethernet Port
14 I/O port (2 in / 1 out)
Camera Layout

1-7
Chapter 1: Product Overview
LED Status Indicator
LED Status Indicator
Whenyoupoweronthecamera,itwillstartbootingprocedure.ThereareoneblueLEDandoneredLED
insidethecameracase.Dependingonthebootingstatus,theLEDindicatorwillbelitinthefollowingsway:
1. About25secondsafterpoweringontheIPcamera,boththeblueLEDandredLEDindicatorwill
become lit (appears purple).
2. About35secondsafterpoweringontheIPcamera,theredLEDwillbeturnedo.
3. Cameratryingtoconnecttonetwork:bothblue&redLEDashingatanintervalof0.5second.
4. Cameraestablishedconnection:blueLEDconstantlyon(RedLEDo)
5. Camerafailedtoconnect:ashingredLED.(BlueLEDo )
Steady (Blue) Blinking (Red) O
Successful connection to the
network
The camera is unable to connect
to the network
The unit is either not working
ortheLEDindicatorhasbeen
turned o.
Table 1-1. LED status
Figure 1-5. Normal connection

1-8
Compro IP55/60/70 Network Camera
Digital I/O Connector Block
The I/O connector on the back of the camera provides a central interface between your home security system
and various output devices.
The two digital inputs are normally used with security sensors, e.g. passive infrared sensors (PIR), smoke
detectors, door/window sensors, etc. They work by detecting a change in the state of open and closed circuit.
You can check the status of the circuit in [Setup] > [Event Setup] > [I/O Status].
The output port is normally used to trigger external audio or visual indicators, e.g. sirens or strobe lights, etc.
Pin Name Specications Note
1 – 4 DigitalInputPorts1&2 Max5VDC,60mA Floating, TTL
5 - 7 DigitalOutputPort Max24VDC,1Aor
Max 125VAC, 1A
You can only use either
the Normally Open (NO) or
Normally Closed (NC) at any
given time.
Table 1-2. Buttons in recording history
Figure 1-6. Front and rear view
Notice!
The above output scenario is where the siren will only sound when the input has
been triggered. Should you wish to use the opposite way in which the output
device keeps staying on until the input has been triggered, please use NC.
IP55/60/70 IP55/60/70
Digital I/O Connector Block

2-1
Chapter 2: Installtion
Connecting the Cables
Chapter 2: Installation
Connecting the Cables
The picture below shows the basic connection of your IP camera.
Figure 2-1. Connection of cables
LAN cable from PC to hub/router: IfyourLANcablefromPChasbeenconnectedtotheCable/ADSL
modem, please re-connect it to the Ethernet port of your hub/router.
Ethernet port on camera: Use the bundled RJ-45 LAN cable to connect the Ethernet port of the IP camera
to the Ethernet port of your hub/router.
Wireless adaptor (Optional accessory): If you have purchased the Compro USB wireless adaptor for
wireless connection, please plug it into the USB port of IP camera for wireless reception.
Power: Attach the power adaptor to the camera’s power connector and connect the power plug to a power
outlet.
Caution!
The wireless connection port only supports the wireless adaptors from
Compro;pleasedonotuseotherUSBadaptorsonComproIPcamera.
3
2
4
1

2-2
Compro IP55/60/70 Network Camera
Wireless Connection
With the Compro wireless adaptor installed, you can also opt for using the wireless connection. Please keep in
mind that you can only have one active connection at a time, either through LAN or wireless network.
If you connect the IP camera to the Intranet, then the same group of users can share the access of IP
camera. Please also ensure that the wireless adaptor has been securely fastened, or it could lead to unstable
connection.
Caution!
• Theoperationofthewirelessnetworkmaybeinterferedshouldthere
be other 2.4GHz devices working in the vicinity, e.g. microwave oven,
digital cordless camera, etc. You may experience slow frame rate or
dropsofconnection;insuchsituation,wesuggestyoutrymovingthe
IP camera away from the area or turning o other appliances.
• Sincewirelesscamerascancauseinterferencesontransmission,
you may encounter erratic behaviors when there are more than 10
cameras operating in close proximity.
• Thedefaultwirelessconnectionmethoduses802.11nstandardand
you should experience a stable connection on your camera within 20
meters of the access point. However, your wireless performance may
vary depending on the operating environment, building material, etc.
Wireless Connection

2-3
Chapter 2: Installtion
Disassembling and Assembling the Camera Stand
The camera is already installed on the camera stand when delivered from Compro. If you need to disassemble
and assemble the stand, please refer to the pictures below.
Disassembly
Pleaseuseaatbladescrewdrivertodisassemble.
Figure 2-2. Disassembly of camera stand
Assembly
Figure 2-3. Assembly of camera stand
Disassembling and Assembling the Camera Stand

2-4
Compro IP55/60/70 Network Camera
Mounting the Camera
If you want to mount the camera on the wall or ceiling, please use the screws to fix the bracket to a flat
surface. After the bracket is fixed to a flat surface, please try to adjust the camera to the desired viewing
angle. Follow the steps below to mount the camera.
Step 1-Detachthemetalmountingplatefromthebaseofmountingbracketbyinsertingaflatblade
screwdriver into the rectangular hole seen on the wide end of the bracket base and then pressing the
screwdriver downward.
Figure 2-4. Detaching mounting plate
Step 2 - Place the side of the mounting plate that has protruding screw holes against the mounting surface.
Screw the mounting plate into the mounting holes on the mounting surface. And secure the bracket
to the mounting plate by clicking the plate into its position, as shown in the point 1 and 2 of the
gure below.
OK
2
1
Figure 2-5. Mounting the camera
Caution!
If the power cable and the network cable connected to the camera
are not securely fastened (as shown below), it could lead to unstable
connection.
Mounting/Dismounting the Camera

2-5
Chapter 2: Installtion
Dismounting the Camera
Ifyouliketoremovethemountedcamerafromitsmountingsurface,prepareoneatbladescrewdriverand
one Phillips screwdriver, and then follow the instruction below to dismount the camera.
Step 1-Detachtheplasticmountingbracketfromthemetalmountingplatethathasbeenscrewedonthe
mountingsurface,byinsertingaatbladescrewdriverintotherectangularholeseenonthewide
end of the plastic bracket base, and then pressing the screwdriver downward.
Step 2 - Use a Phillips screwdriver to unscrew the metal mounting plate from the mounting surface.
OK
2
1
Caution!
Donotpullamountedcameraoffthemountingsurfacebyforce,as
doing so may damage the bracket base permanently and render future
camera mounting impossible.
Dismounting the Camera

2-6
Compro IP55/60/70 Network Camera
Installing Camera Software
The software for your camera includes 3 major parts which help you use the IP camera:
1. iWizard Installer and iWizard utility: For quick and convenient setup of your IP camera software/
hardware in steps. Having installed the iWizard, double-click on the iWizard icon on your desktop and
it will start to search the available cameras on your network.
Figure 2-6. iWizard
2. 16-CH WebVUer: This provides Live View and controls via Internet Explorer (ActiveX). The WebVUer
also supports multi-channel management, allowing you to monitor up to16 cameras simultaneously.
Figure 2-7. 16-CH WebVUer
3. ComproView: A professional PC-based surveillance software that supports up to 32 simultaneously
channles and real-time recording, playback, event alerting and more.
Figure 2-8. 32-CH ComproView
Running the iWizard installer

2-7
Chapter 2: Installtion
Running the iWizard Installer
Before running Compro software, make sure you have the IP Camera beside you. To install the software, insert
theinstallationCDsuppliedwiththecameraintoyourCD-ROMdrive,andtheiWizardinstallerwillstartand
guide you during the installation process of the hardware and software for your IP camera. You will be asked
to select the displayed language rst. Then please click on [IP Camera Setup] and select the camera you wish
to install, and follow the steps below.
1. The wizard searches for all available
cameras on your local network. Click on
a camera from connected camera list,
and wait until the live video and camera
information are displayed on the right
side. (You can double-check the device
nameandtheMACIDwhichareprinted
on the serial number sticker at the back
of IP camera and on the package). Then,
click [Next].
Figure 2-9. Camera selection
2. Meanwhile, if you see the Windows
Security Alert dialog box during the
search, please choose [Unblock]..
Figure 2-10. Security alert dialog (Windows XP)
3. The default password is admin. We
strongly recommend you enter a new
password to protect your system. (Please
note down your new password) You can
also click [Next] to skip this step and
reatain default password.
Figure 2-11. Password setup
Running the iWizard installer

2-8
Compro IP55/60/70 Network Camera
4. Please check the camera name, date
and time setting.
Figure 2-12. Camera conguration
5. When you come to Seedonk setup, you
can choose whether to use Seedonk
P2P service and remotely access your
camera through Seednok platform.
If you choose [Yes], you may opt for
connecting to a different Seedonk
server by pressing the [Advanced
Settings] button, and entering a
different server address. (If you enable
Seedonk P2P service, you won’t be able
touseiDDNSservice.) Figure 2-13. Seedonk setup
Notice!
Seedonk video streams are encrypted end-to-end and most of the
streams are sent through direct channels and don't pass through
Seedonk server, which helps protect user privacy.
6. Select the configuration of your
IP address to obtain IP address
automatically(DHCPmode)ormanually
enter IP address information. Then
choose whether to allow iWizard to
automatically configure your firewall,
configure connection port and the
frequency of your local power. (Note
if you enabled Seedonk P2P service,
you won’t see connection port and
frequency conguration here.) Figure 2-14. Device conguration
Running the iWizard installer
