COMPRO IP70 User manual

IP70
Day & Night Megapixel/HD
H.264 Network Camera
User’s manual

IP70 IP Camera User’s Manual
2
www.comprousa.com
Copyright ©2001-2010. Compro Technology, Inc. No part of this document
may be copied or reproduced in any form or by any means without the prior
written consent of Compro Technology, Inc.
Compro, VideoMate, Poladyne, Play with Power, and the Compro logo are
trademarks of Compro Technology, Inc. Other names and marks are
trademarks of their respective owners.
COMPRO makes no warranties with respect to this documentation and
disclaims any implied warranties of merchantability, quality, or fitness for any
particular purpose. The information in this document is subject to change
without notice. COMPRO reserves the right to make revisions to this
publication without obligation to notify any person or entity of any such
changes.
Compro Technology, Inc.
www.comprousa.com
Tel. [phone], Fax [phone]
4/F, No.12,Alley 6, Lane 45, Pao Shin Road Hsintein City, Taipei, Taiwan.
Support e-mail: [e-mail]

IP70 IP Camera User’s Manual
3
Table of Contents
Important Safety Notice............................................................................... 4
Product Overview........................................................................................ 5
Package Contents..................................................................................... 5
Product Description.................................................................................. 6
Key Features ............................................................................................. 7
Specifications ........................................................................................... 7
System Requirements .............................................................................. 9
Hardware Installation ................................................................................ 10
Hardware Overview (Name of Each Part).............................................. 10
Connect Your IP Camera........................................................................ 11
Wireless Connection .............................................................................. 12
Disassembly and Assembly the Camera Stand....................................... 13
Mounting on the Wall or Ceiling............................................................... 14
Software Installation.................................................................................. 16
Controls the IP camera in Internet Explorer ......................................... 30
Configuring the IP camera ..................................................................... 32
Access the IP Camera via iPhone/mobile device .................................... 46
Access the IP Camera via 3GPP Mobile Phone....................................... 47
The Internet Setting................................................................................... 48
DDNS Setup and Port Forwarding............................................................ 49
Firmware Update........................................................................................ 53
Troubleshooting ........................................................................................ 54
Initial Hardware / Software Setup .......................................................... 54
Trouble with the ActiveX Client ............................................................. 56
Remote Viewing via Internet Explorer................................................... 59

IP70 IP Camera User’s Manual
4
Important Safety Notice
Please follow the steps below to protect your IP camera:
Please place the IP camera on a level surface and out of direct sun shine.
Please keep the IP camera inside house and away from water, dust,
humidity or magnetic products.
Please do not drop the IP Camera body to the floor; it may cause the
damage to main parts.
Please do not disassemble or remodel the product, it may cause damage
or fire.
Do not shake, move or disturb the IP camera when it is in operation, as
such actions may result in the malfunction of the device.
Power off the IP Camera as soon as it is found smoking or smelt unusual.
Please do not place the IP Camera around the heat sources, such as
television or microwave oven.

IP70 IP Camera User’s Manual
5
Product Overview
Package Contents
Please check the package contents on your hand, if anything is missing,
please don’t hesitate to contact with your local distributor.
Important!
Please do not use the adaptor that not from Compro technology, it may cause
damage of your IP camera.
IP70
Network Camera RJ-45 LAN
Cable
Power Adaptor
(5V, 2A)
Installation CD
Installation Guide Screw for Ceiling
Mount x 3
Screw Mount x 3

IP70 IP Camera User’s Manual
6
Product Description
IP70 provides an easy-to-install way for the indoor fixed camera solution.
Combined with the H.264/MPEG-4/MJPEG video compression formats,
superior performance and high video quality are achieved with much smaller
recording file size, which means much lower costs for data storage. Utilizing
smart motion detection, with built-in 2-way audio for fast and easy
communications, IP70 ensures instant responses when security is
compromised. Along with IR support, insufficient light is no longer an issue to
capture the most crucial images in the dark alleys. In addition, the IP70
built-in the compact MicroSD slot for local image storage.
High Quality Megapixel/HD Image
Utilizing Megapixel/HD technology enables IP70 to view detail and identify
people and objects at least three times better than the conventional CCTV
camera. Combining with dual H.264 and MPEG-4 or MJPEG streams to
enable optimization of different bandwidth of networks and various image
sizes of devices from PC to mobile phone.
Smart Video and Audio Analytic
IP70 provides two-way audio support of a built-in microphone and speaker,
allowing remote listening of the area via direct voice communication or
pre-recorder audio clips. It also comes with a suite of special professional
grade intelligent video analytic features such as smart video detection, smart
audio detection, and active scene change alarm for proactive surveillance
applications.
Easy Wireless Network Installation
802.11 b/g/n wireless LAN is supported via the WL155 USB upgrade module
with a simple and easy wireless installation process. (Optional Accessory)
Total Surveillance Solution for Home and Business
IP70 bundles a full range of applications to provide an intelligent surveillance
total solution - iWizard is a smart installer to turn the complicated network
camera installation to a simple and fast process; WebVUer is an intuitive IE
based video management software includes all the key features for
trouble-free monitoring home surveillance; ComproView is a powerful feature
rich 32 channels professional grade multi-camera video management solution
for business surveillance.

IP70 IP Camera User’s Manual
7
Day & Night Support for Any Lighting Condition
IP70 features a unique design of its class integrating a professional class of
light sensor IR solution for 24 hours and 7 days surveillance under any lighting
condition. A light sensor will turn on an array of IR LEDs to illuminate the
scene automatically when the lighting condition is dark for image clarity and
switch off the IR LEDs when the lighting condition turns normal.
Key Features
1/3" CMOS Megapixel sensor
Day and night functionality with mechanical IR cut filter switching
Built-in IR lamp with light sensor
Supports real-time H.264, MPEG-4 and MJPEG compression (Triple
Codec)
Supports dual streams simultaneously
Support 4x digital zoom
Video resolution is up to 1280 x 1024 pixels
Image frame rate is up to 30 frames under 640x480 or 15 frames under
1280 x 1024
Smart motion detection
Two way audio with built-in MIC and speaker
Support UPnP (universal plug and play)
Support 10/100 802.3/Ethernet
802.11b/g/n WLAN on applicable model (Optional wireless adaptor)
Digital I/O for External Sensor and Alarm (2 In/1 Out)
Supports local storage (MicroSD), Snapshot
Easy to Install with VideoMate IP camera Wizard
Remote Monitoring from 3GPP Mobile or Phones with web browser
(e.g. iPhone/BlackBerry)
Bundle with powerful 32-channel IP video management software ---
VideoMate ComproView
Specifications
Camera
Image Sensor
1/3" CMOS Megapixel sensor
Lens Focal Length: 4.0 mm
Max Aperture Ratio: F1.5

Fixed iris
Zoom
4x digital zoom

IP70 IP Camera User’s Manual
8
Angle of View
60°horizontal
Focusing Range
0.5m ~ INF
Minimum
Illumination
IR Mode: 0 lux; using built-in IR light in darkness
up to 8m

Color Mode: 1.0 lux
Shutter Time
1/5 ~ 1/16000 Sec
Video
Video
Compression
H.264 ( MPEG-4 Part 10)
Motion JPEG

MPEG-4 Part 2
Resolutions
160x120, 320 x 240, 640 x 480, 1280 x 1024
Frame Rate Up to 30 frames at 640 x 480

Up to15 frames at 1280 x 1024
Video Streaming
Dual H.264, MJPEG or MPEG-4 video streams
Image Settings Adjustable image size and quality
AGC, AWB, AES

Configurable brightness, saturation and
sharpness
Audio
Audio
Communication
Two-way audio with built-in MIC (S/N ratio 58
dB, 50-10000hz ) and speaker (660mv)
Audio
compression
G.711 PCM 64Kbit/sec
Audio input /
output
MIC input / Audio out
Network
Security
User ID / Password protection
Supported
Protocols DDNS (iDDNS) / PPPoE / HTTP Server / DHCP Client /NTP Client /DNS Client / FTP Client / SMTP
Client / ARP / ICMP/IPV4/ UDP / TCP/IP
Firmware
Firmware Support UPnP

Support online firmware update
Software
ComproView Multiple channel management

iDDNS service for dynamic IP and desktop
shortcut creation
Recording search and playback

Scheduled and event driven management

IP70 IP Camera User’s Manual
9

Smart Detection
Web Browser
Internet Explorer
(ActiveX)
Monitor the current condition of the monitor area
via Internet Explorer
Capture a still image and save it in JPG format on
PC

Alarm and event management: FTP, I/O alarm,
server notification and email
Supported
Devices
PC, Laptop, Nettop, MID with IE/ActiveX support.

Mobile phone, iphone/ipod, PDA support in
MJPEG mode.
Mobile Phone
MJPEG Mode
Viewing of camera image via phone browsers
3GPP Mode Viewing of camera image via 3G phones
(3GPP Streaming)
General
Operating
Condition
5 °C ~ 40 °C
Power Supply
DC 5V/2A
System
Requirements

Computer with 1.7GHz processor and 512 MB
memory or above

Supported Operating Systems: Windows XP
SP3, Vista SP1, Windows 7 x86/x64
Included
Accessories
Software CD (Manual included)
Start up Guide
Power adaptor
Network cable
Screws for ceiling mounting

Screw mount
Dimensions
84 x 124.5 x 91.5 mm (including bracket)
System Requirements
Computer with 1.7GHz processor and 512 MB memory or above
Supported Operating Systems : Windows XP SP3, Vista SP1, Windows 7
x86/x64
Supported Web Browsers (ActiveX): Internet Explorer 6 or later

IP70 IP Camera User’s Manual
10
Hardware Installation
Hardware Overview (Name of Each Part)
Light Sensor
Lens
Speaker
IR Lamp (inside, x6)
Microphone
LED Light
Wireless Adaptor
Connector
(USB type)
LAN Port
Microphone Input
Power
Audio Output
I/O port
(2 in / 1 out)
Reset Button
MicroSD card slot
(On the right side)

IP70 IP Camera User’s Manual
11
Connect Your IP Camera
The picture below shows the basic connection of IP70 camera:
1. LAN cable from hub/router to PC: If your LAN cable from PC has been
connected to the Cable/ADSL MODEM before, please re-connect it to the
LAN port of your hub/router.
2. LAN port on camera: Using the bundled RJ-45 LAN cable to connect IP
camera with the LAN port of your hub/router.
3. Wireless adaptor (Optional accessory): If you have purchase the
Compro USB wireless adaptor for wireless connection upgrade, please
plug it into the USB port of IP camera for wireless reception.
4. Power: Attach the power adaptor to the camera’s power socket and
connect it to the power outlet.
Important!
The wireless connection port only supports the wireless adaptor from Compro;
please do not use other USB adaptor on Compro IP camera.
To MODEM

IP70 IP Camera User’s Manual
12
Wireless Connection
With the IP70 wireless adaptor, you also have the option of using the wireless
connection method. Please keep in mind that you can only have one active
connection only, via LAN or wireless.
If user connects the IP camera on the intranet, then the same group of user
can share that IP camera to use. Please ensure that the wireless adaptor had
been securely fastened, otherwise it could lead to unstable connection.
Important!
1. The operation of the IP70 wireless network may be interfered should there
be other 2.4GHz devices working in the vicinity, e.g. microwave oven,
digital cordless camera, etc. You may experience slow frame rate or drops
in connection; up on such situation, we suggest that you try to move the IP
camera around the area or try to shut off other appliances.
2. Since wireless cameras cause interferences during transmission, you may
encounter erratic behaviors when there are more than 10x operating in
close proximity.
3. The default wireless connection method is via 802.11n standard and you
should experience a stable connection of up to 20 meters between the
access point and the camera unit. Your wireless performance may vary
depending on the operating environment, building material, etc.

IP70 IP Camera User’s Manual
13
Disassembly and Assembly the Camera Stand
The camera stand is already install to the camera when it out from Compro, if
you need to disassemble and assemble the stand, please follow the picture
below to disassemble and assemble it.
Disassembly (Please use the slotted screwdriver to disassemble it.)
Assembly

IP70 IP Camera User’s Manual
14
Mounting on the Wall or Ceiling
If user wants to set IP70 on the wall or ceiling, please use the screws to fix the
bracket on the flat surface. After the bracket is fixed on the wall, please try to
adjust the angle to the desire position.
Important!
If the power cable (IP70) and the network cable (IP70) are not securely
fastened, it could lead to unstable connection.

IP70 IP Camera User’s Manual
15
IP70 Digital I/O Connector Block
The I/O connector on the back of the IP70 provides a central interface
between your home security system and various output devices.
The two digital inputs are normally used with security sensors, e.g. passive
infrared sensor (PIR), smoke detector, door/window open sensor, etc. This
input works by detecting a change in the state, open and closed circuit. You
can check the status of the circuit by going to the Setup > Event Setup > I/O
Status.
The output port is normally used to trigger external audio or visual indicators,
e.g. sirens or strobe lights, etc.
Pin Name Specification Note
1 –4 Digital Input Ports
1 & 2
Max 5VDC,
60mA
Floating, TTL
5 - 7 Digital Output Port Max 24VDC, 1A
or
Max 125VAC, 1A
You can only use either
the normally open (NO) or
normally closed (NC) at
any given time.
Important!
The above output scenario is where the siren will only sound when it the input had been
triggered. Should you wish to use the other way where the output device is always on when
it had not been triggered, please use NC.
IP70
IP70

IP70 IP Camera User’s Manual
16
Software Installation
Before Compro software installation, user has to make sure the IP Camera is
beside you. The wizard of ComproView Installer on the installation CD will help
you to step-by-step install IP camera hardware and software on your system.
1. Insert the Compro software
installation CD to CD-ROM drive,
the installer will automatic start for
installation, please select the
display language at first.
2. Please click “IP Camera Setup”
and select IP70 to install your IP
camera. Also, you can select other
icons to open the related
documents, browse CD contents,
or exit.
3. Step1: Connect your camera as
the picture shown, or you can click
to watch the tutorial video. After
connect all the network and power
cables, please click “Next”.
If you already connect your IP
camera cables, you can skip this
step and click “Next”to continue.

IP70 IP Camera User’s Manual
17

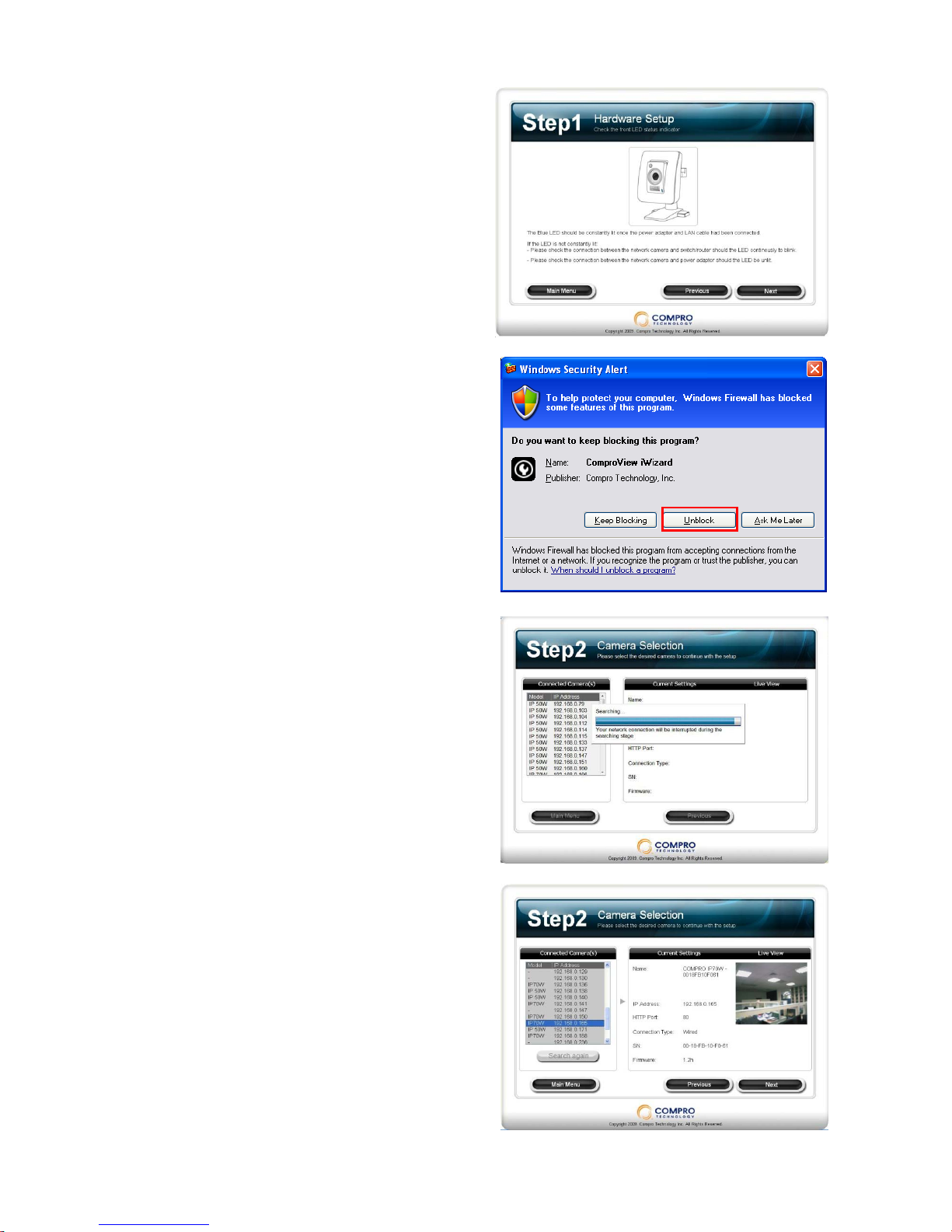

4. Check the LED light of IP camera is
working properly. And click “Next”to
searching your camera.
5. If you see the Windows Security Alert
while searching your camera, please
click “Unblock”.
6. Step2: The wizard will searching all
the available cameras from your local
network.
7. You can select your camera from the
list on the left side, and it will display
video live view and camera
information on the right side.
(You can double check the device
name with the MAC ID, the MAC ID
will be print in the serial number
sticker on the back side of IP camera
or in the package box)

IP70 IP Camera User’s Manual
18
8. Step3: We recommend you input
the new password to protect your
system. Or you can click “Next”to
pass this process.
(The default password is “admin”)
9. Please check the camera name, date
and time settings.
10. Select your IP address
configuration by DHCP (Obtain IP
address automatically) or you can
manually input IP address
information, allows iWizard to auto
configuration your firewall, setup
connection port, and frequency of
your local power.
11. Step4: If you already connect the
Compro wireless adaptor on your IP
camera, please click “Yes”and it
will search for the available SSID of
wireless AP/router, please select
the AP/router you want.

IP70 IP Camera User’s Manual
19
12. (For Wireless connection only) please
select the encryption method and
input passphrase, then select the IP
address configuration.
13. Step5: If you want to use iDDNS
service, please click “Yes”and input
the address name you desire, then
click “Check Availability”to check
the input address name is not being
used by others. When it successes,
you can click “Create Shortcut”to
create the shortcut on your desktop
for more convenient use.
Important!
The iDDNS is a free DDNS (Dynamic Domain Name Service) service from
Compro. If you are using floating IP, you need to apply the DDNS service to
create a hostname that points to your home or office IP address, and provides
easy-to-remember URL for quick access in anytime, anywhere. After
succeeded create the iDDNS address name, you only need to using http://xxx
(input by yourself).iddns.org to access your IP camera from browser.
If your local LAN and router have setup firewall to prevent attack from outside,
you have to setup the http port from your router.
For example, if you are setting the http port “2001”for your IP camera, your IP
camera address will be
http://xxx (input by yourself).iddns.org:2001

IP70 IP Camera User’s Manual
20
14. Step6: Here will display the old and
new settings, if ok, please click “Next”,
or click ”Previous”back to previous
settings.
15. Step7: System will save and reload
the new settings on your camera.
16. Step8: The iWizard will running
network diagnostics on your network
settings and warning the inappropriate
settings. (In the picture below shows
the RTSP port is not correct setup, you
have to setup the same port as your
router for using the RTSP service)
17. Step9: You can click the link on the
screen to direct access the web page
of your IP camera, and if you want to
setup another IP camera, please click
“Yes”, or click “No”to install the
ComproView software.
