Craftex CT024N User manual

OWNER’S MANUAL
CT024N – 8” DRILL PRESS

2
INDEX
GENERAL SAFETY INSTRUCTIONS PAGE 3
SPECIFIC SAFETY INSTRUCTIONS PAGE 4
Features PAGE 5
Electrical Information PAGE 6
Unpacking & Cleaning PAGE 7
Assembly
Base to Column PAGE 8
Drill Press Head to Column PAGE 9
Feed Handle PAGE 9
Pulley Cover PAGE 10
Mounting the Drill Press PAGE 10
Adjustments
Changing Spindle Speeds PAGE 11
Table Adjustments PAGE 11
Drilling Depth PAGE 12

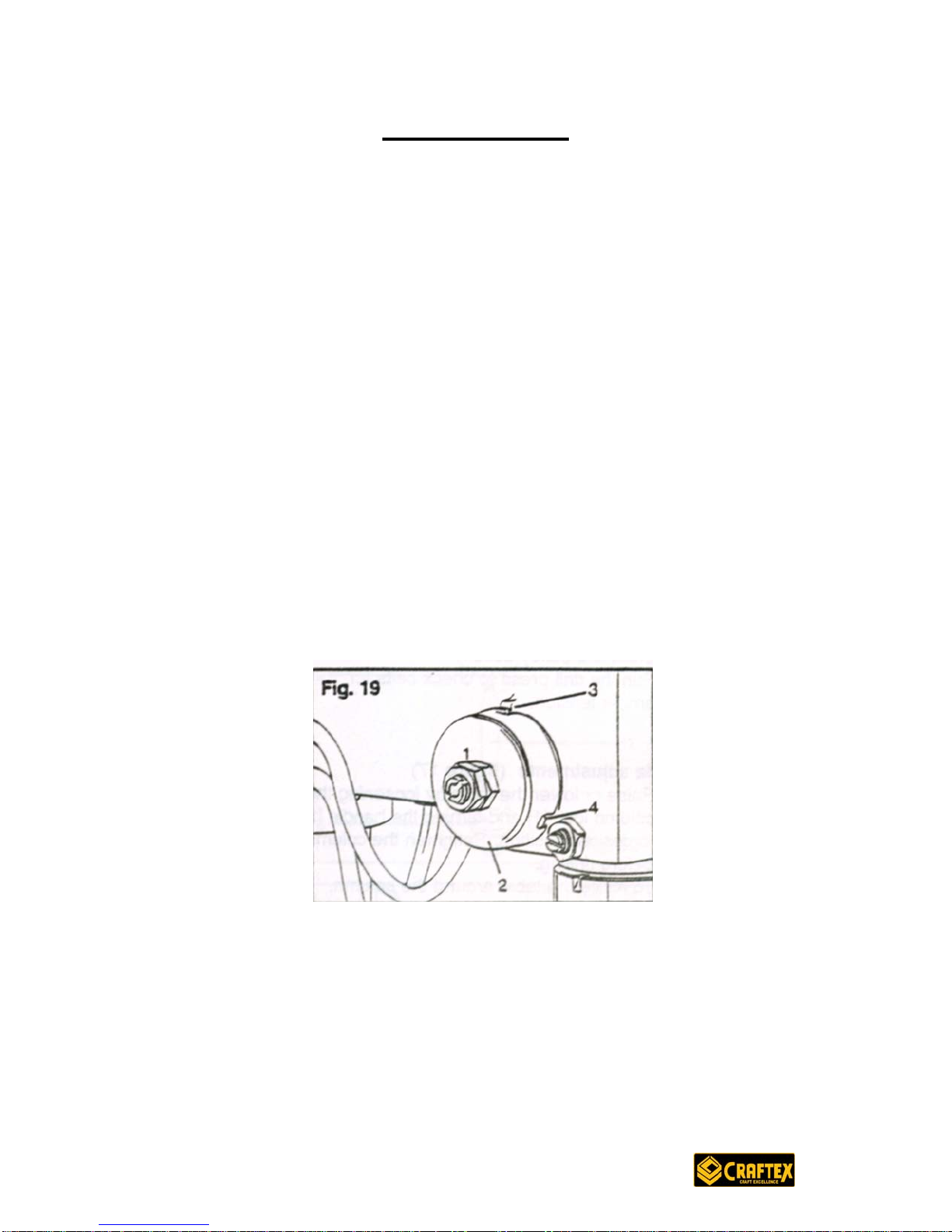

Spindle Return Spring PAGE 12
Operation
Drilling Speeds PAGE 13
Metalworking PAGE 13
Woodworking PAGE 13
Feeding PAGE 13
Maintenance PAGE 14
Schematic Diagram PAGE 15

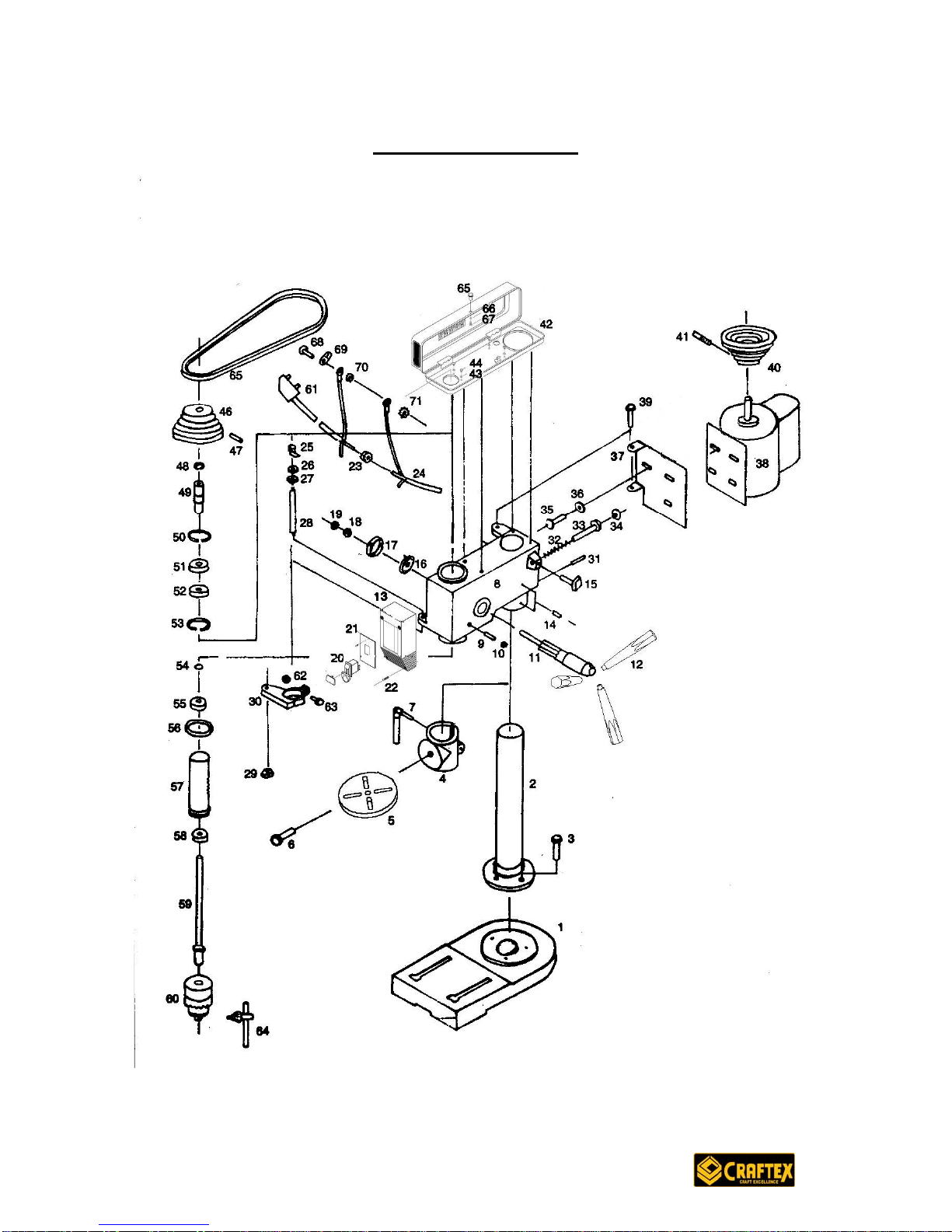

Parts List PAGE 16
Warranty PAGE 17

3
GENERAL SAFETY INSTRUCTIONS
EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW
YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S
MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES.
CONNECT your machine ONLY to the matched and specified power source.
WEAR SAFETY GLASSES, HEARING PROTECTION and SAFETY
SHOES when operating heavy machinery. Always wear safety glasses.
DO NOT wear loose clothing or jewellery when operating machinery.
A Safe Environment is important. Keep the area free of dust, dirt and other
debris in the immediate vicinity of the machine.
BE ALERT! Do Not Use prescription or other drugs that may affect your ability
or judgement to safely use this machine.
DISCONNECT the power source when making other adjustments or repairs.
NEVER leave an operating tool unattended.
NEVER reach over the table when the tool is in operation.
ALWAYS keep blades, knives or bits sharp and properly aligned.
ALWAYS keep all safety guards in place and ensure their proper function.
ALWAYS make sure that any tools used for adjustments are removed before
operating the machine.
ALWAYS secure your work with the appropriate clamps or vises.
ALWAYS keep bystanders safely away while operating machinery.
THINK SAFETY. WORK SAFELY. Never attempt a procedure if it does not
feel safe or comfortable.

4
SPECIFIC SAFETY INSTRUCTIONS
Always make certain that you clamp down any object that you are drilling into.
When drilling, make sure that you are using the correct speed for the material
being drilled.
Clear the drill press table of all objects before turning the tool on.
Keep hands and fingers safely away from the spinning drill bits.
NEVER start the drill press with the drill bit in contact with the work piece.
Make certain that the drill bit is securely tightened into the drill chuck.
NEVER wear gloves while operating a drill press.
Make certain that the table lock is securely tightened before using the drill press.
Never attempt to drill any material that is not flat without using a secure jig for
that specific work piece.
Always remove the drill bit before leaving the machine.

5
DRILL PRESS FEATURES
As part of the growing line of Craftex woodworking equipment, we are proud to
offer the CT024N Drill Press. The Craftex name guarantees Craft Excellence. By
following the instructions and procedures laid out in this owner’s manual, you will
receive years of excellent service and satisfaction. The CT024N is a professional
tool and like all power tools, proper care and safety procedures should be
adhered to.
This little drill press features solid cast iron construction, depth stop adjustment
and lockable switches. Comes complete with pulleys, belts, arbor, drill chuck and
motor.
Specifications
Size: 8"
Motor: 1/3 HP
Chuck: 1/2"
Spindle: JT33
Table: 7" Round
Speeds: 5
Height: 23"
Weight: 20 kg.
Carton size: 14" x 8 1/2" x 17 1/2"
GROUNDING INSTRUCTIONS

6
In the event of a malfunction or breakdown, grounding provides the path of least
resistance for electrical current and reduces the risk of electrical shock. This tool
is equipped with an electrical cord that has an equipment grounding conductor
and a grounding plug. The plug MUST be plugged into a matching outlet that has
been properly installed and grounded in accordance with ALL local codes and
ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If the provided plug will
not fit the electrical outlet, have the proper outlet installed by a
qualified licensed electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in
risk of electrical shock. The conductor wire with the green insulation (with or
without yellow stripes) is the equipment-grounding conductor. If repair or
replacement of the electrical cord or plug is required, DO NOT connect the
equipment grounding conductor to a live terminal.
If in doubt about these instructions consult a qualified,
licensed electrician.
USE ONLY A THREE-WIRE EXTENSION CORD with
a 3-prong grounding plug and three-hole receptacles
that accept the tool’s plugs as shown.
It is recommended that stationary tools be assigned to a dedicated 15 amp circuit
using #12 wire.
UNPACKING AND CLEANING

7
Carefully unpack your drill press and all of its parts. Compare the carton contents
with the illustration below. Do not discard any packing material until the drill press
is completely assembled and operating properly.
Your drill press and some of its parts have been coated with a protective
lubricant that should be removed before the machine is assembled. This can be
done with a soft cloth moistened with non-corrosive kerosene or mineral spirits.

8
ASSEMBLY
BASE TO COLUMN
Select the base and the drill press column from the loose parts. Select the four
bolts from the parts bag. Align the holes of the post flange to the threaded holes
in the base. Insert the bolts and tighten securely.
.

9
ASSEMBLY
DRILL PRESS HEAD TO COLUMN.
Lift the drill press head carefully and position it over the column.
The column fits into the drill press mounting hole. Make certain the mounting hole
is properly seated on the column. Line the drill press head up with the table and
base and then tighten the two set-screws using the supplied hex wrench.
FEED HANDLE.
Fit the feed handle onto the shaft.

10
ASSEMBLY
PULLEY COVER
Insert washer and screw through the hole in the pulley cover, thread the knob
onto the screw and then tighten.
MOUNTING THE DRILL PRESS
Your drill press must be securely fastened to prevent the machine from tipping,
sliding or walking during operation. There are two base holes provided for this.
