OWNER’S MANUAL
CT133 - MINI MILLING MACHINE

2
CT133 MINI MILLING MACHINE
INDEX
GENERAL SAFETY INSTRUCTIONS PAGE 3
SPECIFIC SAFETY INSTRUCTIONS PAGE 4
FEATURES
ILLUSTRATED FEATURES PAGE 5
MACHINE SPECIFICATIONS PAGE 6
LIST OF ACCESSORIES PAGE 7
POWER SAFETY PAGE 8
MAHCINE INSTALLATION PAGE 9 – 10
MECHANSIM ADJUSTMENT PAGE 11 –16
OPERATION & TECHNIQUES PAGE 17 – 18
ELECTIRICAL CIRCUIT DIAGRAM PAGE 19
MAINTENANCE PAGE 20 –21
PARTS DIAGRAM PAGE 22 – 24
PARTS LISTING PAGE 25 – 26
WARRANTY PAGE 27

3
GENERAL SAFETY INSTRUCTIONS
EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW
YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S
MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES.
CONNECT your machine ONLY to the matched and specified power
source.
WEAR SAFETY GLASSES, RESPIRATORS, HEARING PROTECTION
and SAFETY SHOES when operating heavy machinery.
DO NOT wear loose clothing or jewellery when operating machinery.
Always wear
safety glasses.
A Safe Environment is important. Keep the area free of dust, dirt and
other debris in the immediate vicinity of the machine.
BE ALERT! Do Not Use prescription or other drugs that may affect your
ability or judgement to safely use this machine.
DISCONNECT the power source when changing drill bits or making other
adjustments or repairs.
NEVER leave an operating tool unattended.
NEVER reach over the table when the tool is in operation.
ALWAYS keep bits sharp and properly aligned.
ALWAYS keep all safety guards in place and ensure their proper function.
ALWAYS make sure that any tools used for adjustments are removed
before operating the machine.
ALWAYS secure your work with the appropriate clamps or vises.
ALWAYS keep bystanders safely away while operating machinery.
THINK SAFETY. WORK SAFELY. Never attempt a procedure if it does
not feel safe or comfortable.

4
SPECIFIC SAFETY INSTRUCTIONS
This machine is designed for drilling, deep milling and face milling of small pieces
with a limit size of approx. 12” x 8” x 8”. It is highly recommended that you read
this manual carefully before operating this machine.
•Always use the chip guard along with safety glasses to ensure proper safety
when milling.
•Before starting any work, make sure the work piece has been properly
clamped to the table. DO NOT ever hold a work piece in your hand when
milling or drilling.
•When selecting an appropriate speed for your work piece, allow the mill to
gain full speed before starting.
•NEVER reverse the motor direction while the mill is in motion.
•DO NOT clear debris & chips by hand. ALWAYS use a brush & DO NOT
clear the table while the mill is running.
•Operating this machine beyond the design purpose and limit of this machine
without sufficient consultation or proper training is not recommended.
•The noise level during operation if 70 – 75db. Hearing protection may not be
necessary but is recommended.
•In case of power failure, the machine may start up again once power is
restored, be sure to pay close attention in this case and turn the power switch
to off as soon as there is a machine interruption.
•Handling – The net weight of this machine is approx. 50kg. When lifting or
moving this machine, be sure to get assistance from another person. It is best
to use common sense and practice safety at all times when using this
machine and other power tools.

5
CT133 - FEATURES
A – MOTOR
B – FINE FEEDING WHEEL
C – HEADSTOCK & SPINDLE
D – LOGINTUDINAL FEED HAND WHEEL
E – WORKING TABLE
F – SADDLE
G – CROSS FEED WHEEL
H – BASE
I – CONNECTING STRUT
J – LIMIT BLOCK
K – EMERGENCY STOP SWITCH
L – BALANCE MECHANISM
M – COLUMN
N – ELECTRICAL BOX

6
CT133 - MACHINE SPECIFICATIONS
As part of the growing line of Craftex metalworking equipment, we are proud to
offer the CT133 Mini Milling Machine. The Craftex name guarantees Craft
Excellence. By following the instructions and procedures laid out in this owner’s
manual, you will receive years of excellent service and satisfaction. The CT133 is
a professional tool and like all power tools, proper care and safety procedures
should be adhered to. The CT133 Mini Milling Machine has multiple functions on
either face milling or drilling and there are various sizes and kinds or cutters that
can be used with this machine.
Table Size ………………………………………………………………….16” x 4”
T-Slot Size …………………………………………………………………. M10
Maximum Table Travel …………………………………………………... 8 ½”
Maximum Cross Slide …………………………………………………..…4”
Maximum Spindle Travel …………………………………………………..7”
Head Tilt……………….……………………………………………( -45° ~ +45°)
Spindle Speed ..……………………………………………Low: 0 ~ 1100 RPM
High: 0 ~ 2500 RPM
Spindle Taper ……………………………………………………………. MT3
Drilling Capacity ……………………………………………………………1/2”
End Milling Capacity ……………………………………………………….5/8”
Face Milling Capacity ……………………………………………………..1 1/8”
Machine Weight …………………………………………Gross Weight – 68 kg
Net Weight – 50 kg
Motor……………………………………………………………………… 350 Watts
Voltage……………………………………………………………………. 110V
AMP…………………………………………………………………………4.5
Cycle/RPM………………………………………………………………… 6000RPM
Switch Type ……………………………………………Variable Speed Reversible
Power Transfer…………………………………………………………… Gears
FEATURES
Dial Graduation are in Metric
Fine Feed Head Control
Two Speed ranges
Spring Head Return
Zero Setting Dials
Cast Iron Construction

7
CT113 – STANDARD ACCESSORIES
T-SLOT SPECIFICATION (mm)
Description QTY
Large Wrench S: 36 1
Drill Chuck & Taper Shank 1
Oil Can 1
Fixing Pin 1
L Hex. Wrench S: 3, 4, 5, 4
Socket Head Wrench D: 45 – 52 1
Double End Wrench 8-10, 14-17, 17-19 3
Drill Chuck Holder 1
Handle 2
T-Nut 2
Fuse 4.5A(110V) 1
Draw Bar 1

8
CT133 - POWER CONNECTION/DISCONNECT
& OPEARTION
The connection, disconnection and grounding is carried out through the plug on
the machine. For safety reasons do not change this plug in any situation. For the
protection control device, we recommend that the operator should supply a fuse
with current ratings and the total length between the fuse and connection
terminal should coincide with the following “ Extension lead Chart”
The power source for this machine is 110V. Make sure that the Emergency stop
switch is in the off position before plugging the cord in. Disconnect the machine
from the power source with the plug before servicing and when changing
accessories.
Amperage Rating
7.5m
15m
22.5m
30m
45.5m
Extension Cable Length
3A
0.75
0.75
0.75
0.75
0.75
6A
0.75
0.75
0.75
0.75
1.25
10A
1.0
1.0
1.0
1.0
1.5
13A
1.25
1.5
1.5
1.5
2.5
Wire Size mm 2

9
CT133 – MACHINE INSTALLATION
MACHINE LOCATION & SET UP
The machine should be fixed on the working table with four hexagon holts.
Please install it to an appropriate location in order to meet with the precision
requirements of the machine. Before setting your machine up, clean off any anti-
rust protector and grease that was used for shipping purposes. You can use a
clean cloth and appropriate solvents.
(1) When selecting a location make sure that your worktable has a flat surface.
(2) Avoid placing in a location with exposure to direct sunlight, heavy moisture
and excessive dust.
(3) When you have found your desired location, drill 4 locating holes on the
worktable, the dimensions should be the same as the machine base.
(4) Pay close attention when selecting your spot to ensure that there is enough
room around the machine for the cross feed & longitudinal hand wheel can be
extended during future use.
(5) Adjust the machine accordingly and affix to the worktable with 4 M10 bolts &
nuts.

10
CT133 – MACHINE INSTALLATION
CHECK THE FOLLOWING BEFORE SWITCHING YOUR MACHINE
ON
(1) Remove all fixtures that were used while initial set up of your machine took
place.
(2) Check whether the power voltage is suited for your machine
(3) Remove all obstacles which are around your machine and might come in the
way
(4) Check the angle of the pillar and adjust the bolts to see if they are tight
enough.
(5) Check the chuck, chuck holder and fixing pin on the spindle to make sure that
they are unloaded.
(6) Check the high-low speed o n the spindle to see if it is set on the right speed.

11
CT133 – MECHANISM ADJUSTMENT
INSTALATION OF THE TAPER SHANK
(1) Turn the main power off before replacing the cutter.
(2) Pull out the protective cover (a)
(3) Wipe the spindle sleeve and the taper shank from any debris or dirt.
(4) Put the taper shank (g) into the spindle sleeve. The cutter should be matted
with an oilcloth to keep your fingers safe.
(5) Insert the fixing pin (d) right on the spindle
(6) Use a #14 open end wrench ( c) to tighten(clockwise) the spindle draw bar (b)
(7) Pull out the fixing pin
(8) Install the protective cover
REMOVAL OF THE TAPER SHANK
(1) Turn off the main power before you replace the cutter
(2) Pull out the protective cover (a)
(3) Insert the fixing pin (d) right on the spindle sleeve
(4) Use a #14 open end wrench (c ) to loosen (counter clockwise) the spindle
draw bar (b)
(5) Knock the taper shank (g) gently with a plastic or deadblow hammer to loosen
it into the spindle sleeve. Then take off the taper shank (g)
(6) The cutter should be again handles with an oilcloth to protect your fingers.
(7) Install the protective cover (a)
* When installing or removing the taper shank, make sure that the machine is unplugged.

12

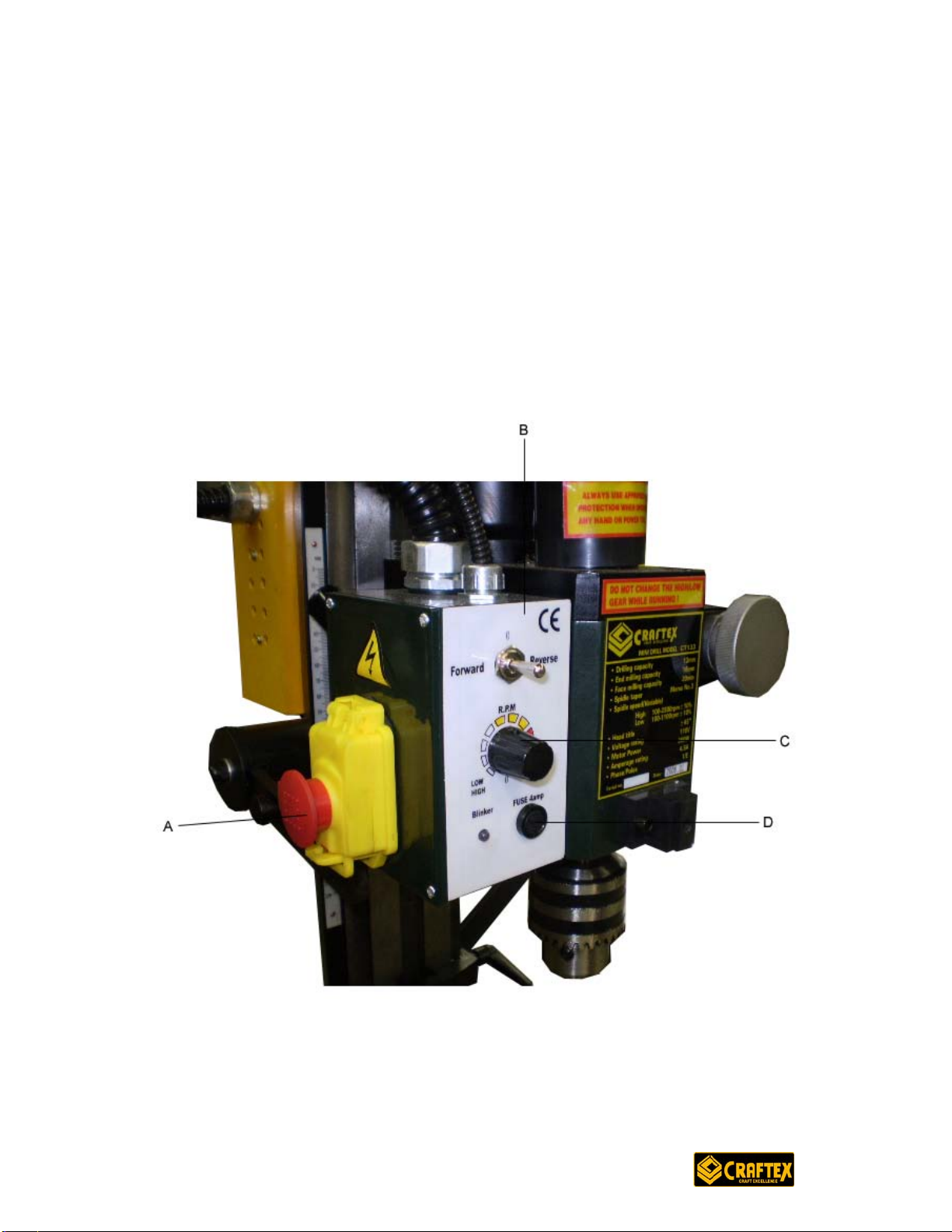

CT133 – CONTROL PANEL
Review the following diagram to familiarize yourself with the CT133 Control
Panel.
(A) Emergency Stop Switch
(B) Electrical Control Box
(C)Variable Speed Control Knob
(D)Fuse Socket
Note – After using the Emergency Stop control, it will be necessary to reset the
spindle ON and RPM control knob, and the spindle rotation toggle switch

13
CT133 – MECHANISM ADJUSTMENT
TEST RUN & SPINDLE BREAK IN
The CT133 has two spindle speeds: Low – 0 ~ 1100 & High – 0 ~ 2500 RPM.
It is important to break the machine in properly before consistently using your
machine. This will ensure better overall performance. Once you have read this
entire manual and have familiarized yourself with the machine, you can begin the
process.
To begin, take the following steps
(1) Make sure the machine is properly lubricated (see page20)
(2) Make sure the machine is free from obstruction or debris. Remove the
drawbar if there is no arbor or collet in the spindle.
(3) With the spindle at a complete stop, change the speed range lever into the
low range. (If the lever will not change at first, rotate the spindle by hand while
holding light pressure on the lever. When the gear engages, the lever will fall
into place)
(4) Turn the machine ON and let the machine run for at least 10 minutes on low
speed. The machine should run smooth with minimal vibration and minimal
noise. If the mill is not running smoothly, turn the machine OFF right away
before proceeding.
DO NOT change speed ranges with the machine is ON. This may damage
your machine.
(5) Slowly increase the RPM to a medium range and allow the machine to run
another 10 minutes in this range.
(6) Slowly increase the RPM to the highest range and allow the machine to run
another 10 minutes in this range.
(7) Turn the machine OFF and change to HIGH speed. Repeat steps 4 – 6.

14
CT133 – MECHANISM ADJUSTMENT
TRAVEL ADJUSTMENT
Using the limit block you can control the traveling of the spindle box.
(1) Loosen the handle (a) beside the limit block
(2) Adjust the limit block in position
(3) Tighten the handle
(4) The travel position can be referred to the measurement guide of the column

15
ADJUST THE ANGLE OF THE COLUMN
(1) Turn the main power off before making this adjustment
(2) Hold the column with your hands in order to prevent the column from free fall
once it is loose.
(3) Loosen the locked nut (a) with a large wrench (b)
(4) Adjust the column angle as desired. (45° is the Max. for both left & right)
(5) Tighten.

16
MITER WEDGE ADJUSTMENT
After long term use & contact motion to the machine function, errors may
occur due to relative surface motion. The miter wedge acts as an interface on
each slide face. In order to eliminate this error, make use of the adjusting screw
by keeping pressure between two machine parts (example – Spindle box &
column) Adjust and keep the contact pressure to maintain its mechanical
precision.
In order to maintain precision, the pressure between the two elements
needs to be adjusted appropriately because of the abrasion that is produced from
the contact motion (This adjustment can be made once a year if necessary)
In order to make this adjustment take the following steps.
(1) Loosen the locked nuts
(2) Adjust the foremost pressure of the miter wedge by the locked nut. If
necessary, loosen all the adjusting screws
(3) Tighten and loosen the adjusting screws and keep in mind that the pressure
of each adjusting screw should be the same.
(4) Tighten the lock nuts uniformly
(5) Use a #3 hexagonal wrench to fix the adjusting screws from rotating to cause
the unbalanced pressure
(6) Adjust the middle portion first and then go towards the interior from two sides
uniformly while you are adjusting the screw in order to ensure a uniform
pressure.

17
CT133 – OPERATIONS & TECHNIQUES
METHOD OF OPERATION – DRILLING & DEEP MILLING
(1) Install the appropriate tool and tighten & make sure your adjustments are firm.
(Make sure the power is turned to OFF at this time)
(2) Select an appropriate speed level.
WHEN THE SPINDLE IS RUNNING, DO NOT CHANGE THE SPEED
BETWEEN HIGH & LOW
(3) Set your work piece on the worktable & secure it.
(4) Adjust the working table (Longitudinal Axis Y) and saddle seat (Cross Axis X)
in position.
(5) Loosen the limit block handle and adjust the blocks in position. At this point
do not let the tool meet the work piece.
(6) Remove all obstacles and unnecessary items from around the machine.
(7) Turn on the main power.
(8) Refer to the measurement ruler on the column to obtain your desired drilling
or milling depth.
(9) After you have finished your work, turn the power off and take the spindle
back to its original position.
(10) Clean the machine of debris or dirt.
FACE MILLING
(1) Install the appropriate tool and tighten & make sure your adjustments are firm.
(Make sure the power is turned to OFF at this time)
(2) Select an appropriate speed level.
WHEN THE SPINDLE IS RUNNING, DO NOT CHANGE THE SPEED
BETWEEN HIGH & LOW
(3) Set your work piece on the worktable & secure it.
(4) Adjust the working table (Longitudinal Axis Y) and the saddle seat (Cross Axis
X) in position.
(5) Release the limit block on the column and adjust the depth of cut.
(6) Turn the hand wheel of the working table (Y-axis)
and the saddle seat (X- axis) to perform face milling.
(7) After you have finished your work, turn the power off and take the spindle
back to its original position.
(8) Clean the machine of debris or dirt.

18
CT133 – OPERATIONS & TECHNIQUES
INSPECTION DURING OPERATION
During operation it is important to be aware at all times not only of your work
piece and machine but of your surroundings. The machine will not perform to the
best of its abilities under the following conditions.
(1) The depth of cut is too deep
(2) The feeding speed is too fast for the material being worked on
(3) The rotation speed is too fast
(4) The machine is not fixed properly to the bench or worktable.
(5) The vise and work piece is not properly and firmly fixed.
PROPER RPM SETTINGS
It is important the follow correct RPM settings when working with different
materials. Before you start any work, you should determine the best RPM setting
for your work piece. Failure to select the correct RPM may result in the operator’s
bodily harm as the machine may eject certain materials or work piece if the
incorrect RPM is selected. Failure to choose the correct RPM will also put excess
strain on the machine and shorten the tool life. The following formula may also be
helpful in determining the correct RPM.
(Cutting Speed x 4) / Diameter of cutting tool = RPM
Refer to the following table below before you begin milling/drilling.
CUTTING SPEEDS FOR HSS CUTTING TOOLS
STAINLESS STEEL
TOOL STEEL
CAST STEEL
CAST IRON, HARD
CAST IRON, SOFT
COPPER
ALLOY STEEL, HARD
TITANIUM
ALUMINUM & ALLOYS
BRASS & BRONZE
WOOD
PLASTICS
60
50
80
50
80
100
40
50
300
150
300-500
300-800
MATERIAL CUTTING SPEED (SFM)

19
CT133 – ELECTRICAL CIRCUIT DIAGRAM

20
CT133 – MAINTENANCE
LUBRICATION
In order to ensure precision and maintenance of your machine, you must keep
your machine properly lubricated.
Part of your standard accessories there is an oil-can; you can use this to
lubricate your machine.
It is recommended that you use two to three drops on all contact points shown in
the diagram below with ISO 68 or SAE 20W oil or similar lubricant.
(A)Cross slide & saddle seat ways
(B)Column Pivot point
(C)Column ways
It is recommended that you use lightweight lithium grease directly on the
following points once a month to ensure accuracy and longer tool life.
(D)Longitudinal Leadscrew
(E)Cross Feed Leadscrew
(F) Column Gear Rack
