Cross Technologies 2099-2424 User manual

Instruction Manual Model 2099-2424
24V Source/Inserter
February 2020, Rev. C
ALARM
SSPB
DC ON
REF ON LNB
MENU
EXECUTE
ALARM
PSB
EXT REF
REMOTE
OVEN
MODEL 2099
SOURCE / INSERTER
SSPB +24.1V @ 1.800A
LNB +24.2V @ 0.27A CROSS TECHNOLOGIES
PSA
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB: www.crosstechnologies.com
E-MAIL: [email protected]

INSTRUCTION MANUAL
MODEL 2099-2424 24V Source/Inserter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitors and Controls 6
2.0 Installation 10
2.1 Mechanical 10
2.2 Rear Panel Outputs 11
2.3 Front Panel Indicators 12
2.4 Operation 13
2.5 Menu Settings 14
3.0 Alarm Operations 18
4.0 Option W65 Description 20
5.0 Environmental Use Information 21
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB: www.crosstechnologies.com
E-MAIL: [email protected]
2099-2424 Manual, Rev. C Page 2 02/12/20

Model 2099-2424
10 MHz, 24V Source/Inserter
1.0 General
1.1 Equipment Description
The 2099-2424 10 MHz Source/Inserter is a 10 MHz, ± 0.01 ppm oven controlled crystal oscillator (OCXO)
with circuitry to insert the 10 MHz signal and DC voltage on L-band lines for an LNB and SSPB. Multi-
function switches select LNB and SSPB DC Power, internal or External 10 MHz, and insertion of 10 MHz on
the L-band lines. LEDs indicate DC power (green), Reference insertion (green), alarm (red), remote operation
(yellow), and OCXO oven warm-up (yellow). An external 10 MHz reference can be selected to be inserted
directly into the L-Band lines. Option E6 also allows the internal 10 MHz source to be locked to a high stability
external 10 MHz reference. Remote control allows remote configuration of front panel commands and
monitoring LNB and SSPB voltage and current. Parameter selection and LNB and SSPB voltage and current
appear on the LCD display. Connectors are BNC female for RF and 10 MHz input and output signals. AC
power is 100-240 ± 10% VAC, 47-63 Hz. The chassis is 1 RU, 12” deep.
ALARM
SSPB
DC ON
REF ON LNB
MENU
EXECUTE
ALARM
PSB
EXT REF
REMOTE
OVEN
MODEL 2099
SOURCE / INSERTER
SSPB +24.1V @ 1.800A
LNB +24.2V @ 0.27A CROSS TECHNOLOGIES
PSA
J7 J8
SSPB
DC
DS2 F2
SSPB
FUSE
RF IN RF OUT
RF+DC+REF
GND
PSA
M&C
J5 J6
EXT REF
INPUT EXT REF OUTPUT
J3 J4
LNB
DC
DS1 F1
LNB
FUSE
LNB RF IN,
RF+DC+REF RF OUT
J1 J2
LNB SSPB
PSB

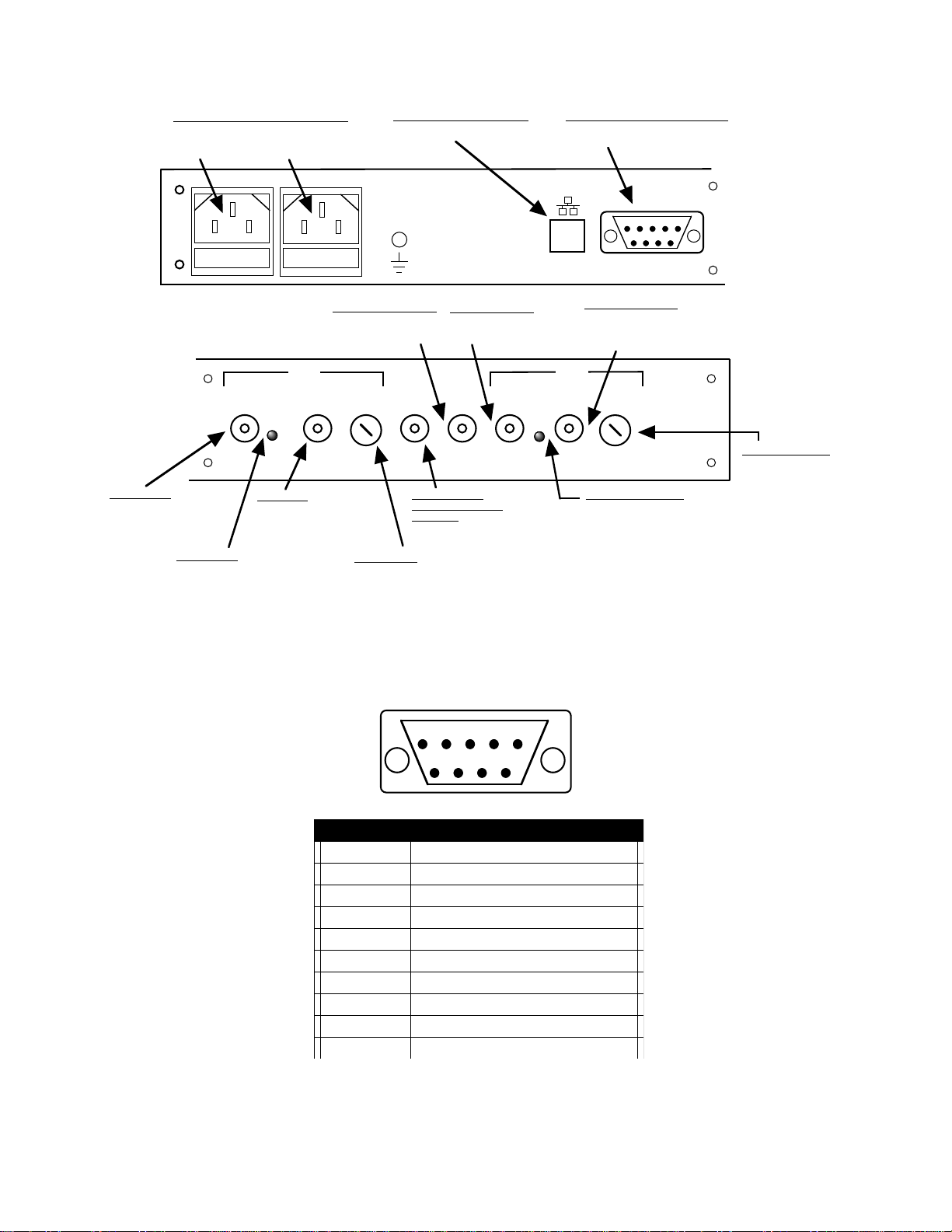

Rear Panel Shown with Option R (Redundant AC Power)

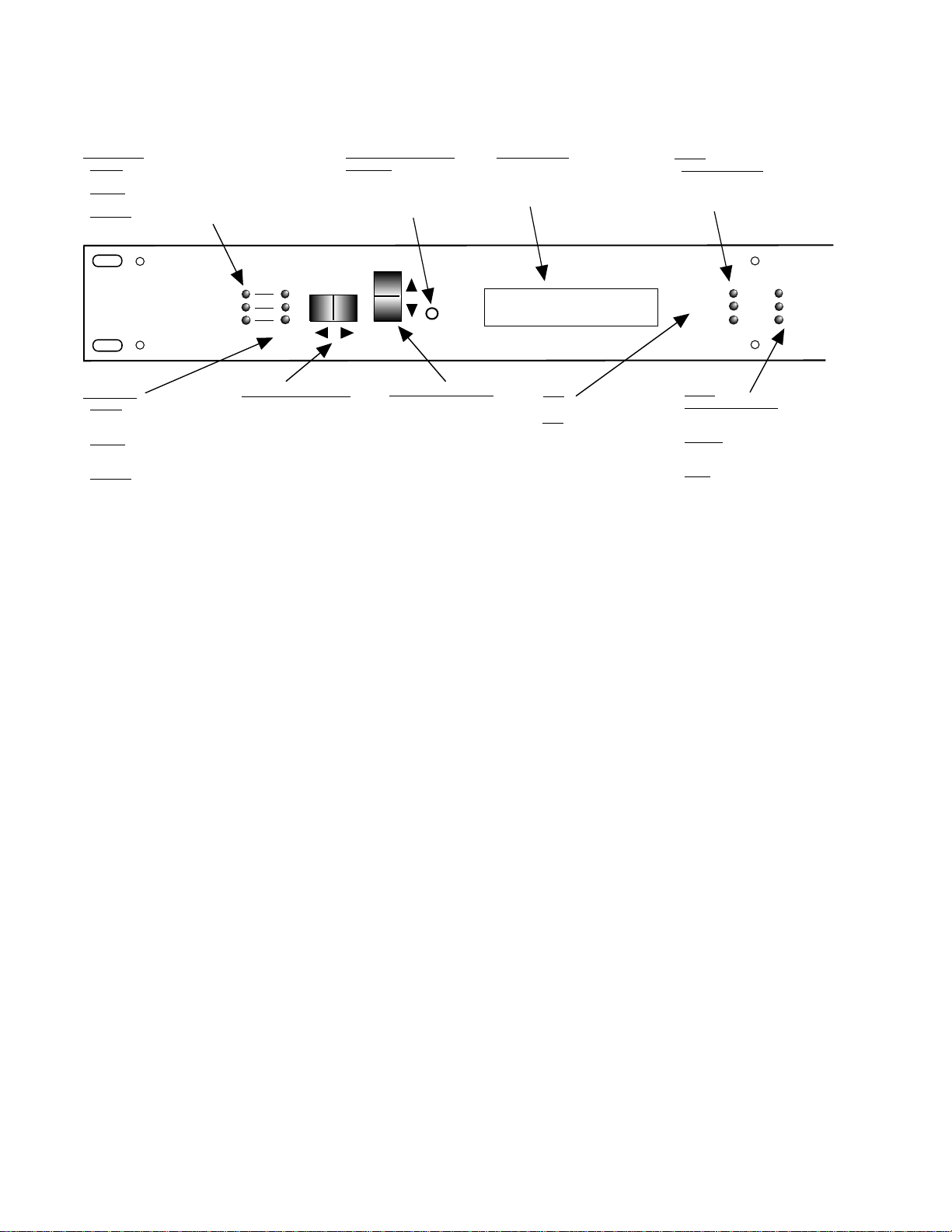

FIGURE 1.1 Model 2099-2424 Front and Rear Panels
FIGURE 1.2 Model 2099-2424 10 MHz Source/Inserter Block Diagram
2099-2424 Manual, Rev. C Page 3 02/12/20
L-BAND
RF IN
EXT 10 MHz
INT 10
MHz
OCXO
fuse
L-BAND +DC +10 M
SSPB OUT
fuse
2099-2424
Block Diagram
+24VDC
+24VDC
L-BAND
RF OUT L-BAND +DC +10 M
LNB IN

1.2 Technical Characteristics
TABLE 1.0 2099-2424 10 MHz Source/Inserter*
Technical Characteristics continued on page 5...
2099-2424 Manual, Rev. C Page 4 02/12/20
*10˚C to 40˚C; Specifications subject to change without notice © Cross Technologies, Inc. 2020
100 - 240 ±10% VAC
,
47 - 63 Hz
,
100 watts maximumPower
19 inch
,
1 RU Chassis
,
1.75” Hi
g
h X 12.0” Dee
p
Size DB9
(
female
)
- NO or NC Closure on AlarmAlarm/Remote Connector
BNC
,
50
(
female
)
(
Works for 50Ωor 75Ω
)
10 MHz Connectors
Yellow LED
,
Yellow LED
,
Yellow LEDOven
,
External Reference
,
Remote
Green LED
,
Red LED
,
Green LEDPower
,
Alarm
,
Reference
Front Panel Dis
p
la
y
and M&CSSPB
,
LNB Volts and Am
p
s
FP Switch or M&C Select
;
Green
,
Rear Yellow LEDSSPB
,
LNB Insert
Chassis / Other
BNC
,
50Ω
(
female
)
RF Connectors
Other
FP Switch or M&C Select
;
Green LED10 MHz Insert Select FP Switch or M&C Select
;
External Yellow LEDInternal/External 10 MHz Select
Control Indicators
149149140110
10 kHz1 kHz100 Hz10 Hz
dBC/Hz
Phase Noise @ Frequency
TABLE 1.0 2099-2424 24V Source Inserter*
± 0.5
pp
mTunin
g
Ad
j
ust
± 0.01
pp
mWarm U
p,
1 Hour
± 0.1
pp
mWarm U
p,
4 Minutes
± 0.1
pp
mA
g
in
g,
p
er
y
ear
± 0.001
pp
mA
g
in
g,
p
er da
y
± 0.01
pp
m max. over tem
p
Stabilit
y
Oscillator
< -30 dBC
,
< -40 dBC T
yp
.Harmonics
(
Out
p
ut
)
< -30 dBC
,
< -40 dBC T
yp
.Harmonics
In
p
ut/Out
p
ut Characteristics
(
on BNC Connectors
)
Out
p
ut Characteristics
(
on L-Band RF
)
+3 dBm ± 3 dB
(
O
p
tion W65 +3 dBm max.
)
Level
50Ω/ 75Ω
,
14 dBIm
p
edance
,
Return Loss
< -20 dBm
,
< -30 dBm T
yp
.Level to non-insert end
+2 dBm ±2 dBLevel
10 MHz Reference
+24 ±2 VDC
,
2.5 A
,
max.Volta
g
e/Current SSPB
±1.0 dB, 950 to 2150 MHz;
±0.5 dB
,
36 MHz BW
Frequency Response
< 1 dB, 0.95 to 1.5 GHz
< 2 dB
,
1.5 to 2.15 GHz
Insertion Loss
SSPB
,
LNB
,
DC Power Characteristics
> 12 dB, 0.95 to 1.5 GHz
> 10 dB
,
1.5 to 2.15 GHz
Return Loss
±5 %Load Re
g
ulation
50ΩIm
p
edance
RF In
p
ut/Out
p
ut Characteristics
+24 ±2 VDC
,
0.5 A
,
max.Volta
g
e/Current LNB
950 to 2150 MHz & 10 MHzFre
q
uenc
y
L-Band Insertion

1.2 Technical Characteristics continued...
2099-2424 Manual, Rev. C Page 5 02/12/20
50Ω N -T
yp
e - NN
±2.0
,
dB
,
2500 MHz
±1.0
,
950-2500 MHz
±0.5 dB
,
36 MHz BW
Fre
q
uenc
y
Res
p
onse: with o
p
tion SS onl
y
- W108-S
50Ω SMA for RF IN and RF OUT - SS
Lock Internal 10 MHz Reference to External 10 MHz
- E6
*10˚C to 40˚C; Specifications subject to change without notice. © Cross Technologies, Inc. 2020
75Ω F-T
yp
e - F
75Ω BNC
Ethernet
,
with TCP/IP
,
Telnet®
Ethernet
,
with Web Browser and SNMP
Ethernet
,
with Web Browser
RS485 Remote Interface
Connectors/Im
p
edance
Common Interface/Standard RS232
Options
- B
- W28
- W18
- W8
-
Q
Redundant AC Power
- R

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C/422/485, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
Female DB-9
PC Com Port Male DB-9
2
1
3
4
5
6
7
8
9
2
1
3
4
5
6
7
8
9

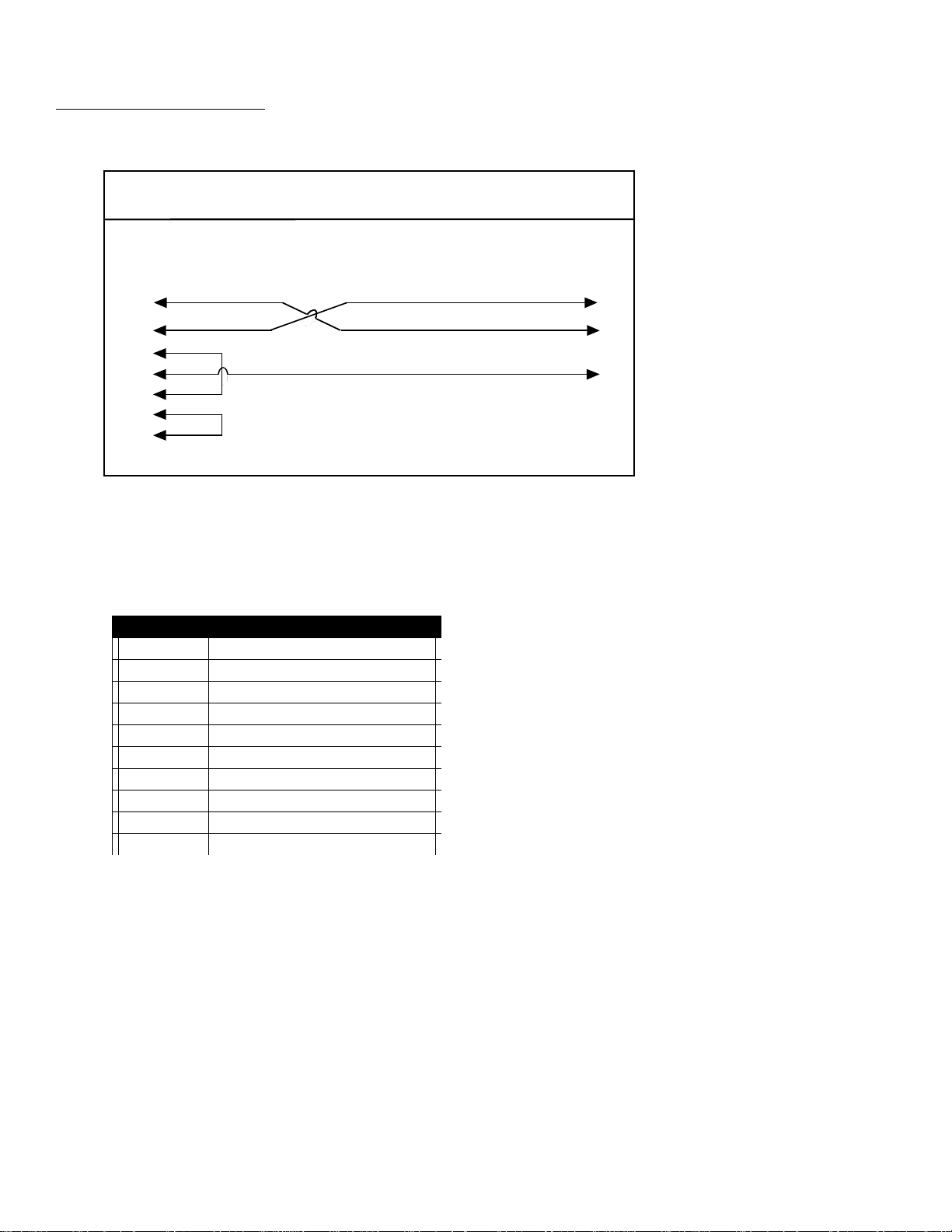

M&C Cable Diagram - Cross Technologies Frequency Converters and
Frequency Sources
Connector: Rear panel, DB-9 female
J19 Pinouts
(RS-232C/422/485)
Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
2099-2424 Manual, Rev. C Page 6 02/12/20

B) Status Requests
Table 1.1 lists the status requests for the 2099-2424 10 MHz Source/Inserter and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.1 2099-2424 Status Reequests
Status Requests
Table 1.1 2099-2424 Status Requests
Command Syntax* Description
Get SSPB DC Voltage Insert State {aaSS} returns {aaSSx}
where: x = 1 if DC voltage is inserted on the SSPB loop through.
x = 0 if DC voltage is disabled on the SSPB loop through.
Get SSPB 10 MHz Ref. Insert State {aaSD} returns {aaSDx}
where: x = 1 if the 10 MHz reference is inserted on the SSPB loop through.
x = 0 if the 10 MHz reference is disabled on the SSPB loop through.
Get LNB DC Voltage Insert State {aaSL} returns {aaSLx}
where: x = 1 if DC voltage is inserted on the LNB loop through.
x = 0 if DC voltage is disabled on the LNB loop through.
Get LNB 10 MHz Reference Insert State {aaSB} returns {aaSBx}
where: x = 1 if the 10 MHz reference is inserted on the LNB loop through.
x = 0 if the 10 MHz reference is disabled on the LNB loop through.
Get SSPB Inserted Voltage and Current {aaSJ} returns {aaSJxxxxx,yyyyy}
where: xxxxx = Measured DC voltage inserted on the SSPB loop through.
where: yyyyy = Measured DC current inserted on the SSPB loop through.
Get LNB Inserted Voltage and Current {aaSK} returns {aaSKxxxxx,yyyyy}
where: xxxxx = Measured DC voltage inserted on the LNB loop through.
where: yyyyy = Measured DC current inserted on the LNB loop through.
Get 10 MHz Reference Operating Mode {aaSM} returns {aaSMx}
(option E) where: x = 1 if the mode is Internal Reference.
x = 2 if the mode is External Pass.
x = 3 if the mode is External Pass Auto.
x = 4 if the mode is External Lock. (• Option E6 only)
x = 5 if the mode is External Lock Auto. (• Option E6 only)
Get IP Address {aaSi} returns {aaSixxx.xxx.xxx.xxx}
(ethernet option)
where xxx.xxx.xxx.xxx = IP address
Get Subnet Mask {aaSs} returns {Ssxxx.xxx.xxx.xxx}
(ethernet option)
where xxx.xxx.xxx.xxx = subnet mask
Get Alarm Status {aaSA} returns {SAabc}
(ethernet option)
where a = SSPB Alarm State (0 for alarm off; 1 for alarm on)
b = LNB alarm state (0 for alarm off; 1 for alarm on)
c = Summary alarm state (0 for alarm off; 1 for alarm on)
Status Request continued on page 8...
2099-2424 Manual, Rev. C Page 7 02/12/20

Status Request continued from page 7...
Table 1.1 2099-2424 Status Reequests
Status Requests Continuued...
Table 1.1 2099-2424 Status Requests Continued...
Command Syntax* Description
Get all monitored statuses {aaSa} returns {Sabcdefghijklmn}
where:
b = DC CONV A status (0 = ok, 1 = voltage too high, 2 = voltage too low)
c = DC CONV B status (0 = ok, 1 = voltage too high, 2 = voltage too low)
d = +24V PSA status (0 = ok, 1 = voltage too high, 2 = voltage too low)
e = +24V PSB status (0 = ok, 1 = voltage too high, 2 = voltage too low)
f = SSPB V status (0 = ok, 1 = voltage too high, 2 = voltage too low)
g = SSPB I status (0 = ok, 1 = current too high)
h = LNB V status (0 = ok, 1 = voltage too high, 2 = voltage too low)
i = LNB I status (0 = ok, 1 = current too high)
j = Internal Reference Mode status(0 = ok, 1 = internal reference low and Internal
Reference Mode is selected)
k = External Reference Mode status(0 = ok, 1 = external reference low and External
Pass Reference Mode is selected)
l = External Pass Auto Reference Mode status (0 = ok, 1 = external reference low
and External Pass Auto Reference Mode is selected)
m = External Lock Reference Mode status (0 = ok, 1 = external reference low,
2 = pll cannot lock) Option E6 otherwise 0
n = External Lock Auto Reference Mode(0 = ok, 1 = external reference low,
2 = pll cannot lock) Option E6 otherwise 0
Get product/model info {aaSv} returns {Sv2099-2424y..yverZZZZ}
where 2412-x02 = product model where x is the number of channels
y..y = list of options, if any
"ver" = separates model & options from firmware version
ZZZZ = firmware version (e.g., 4.00)
Get SSPB Reference Level {aaSW} returns {aaSWxxx}
(Option W65) where xxx = Power level of the internal 10 MHz reference that is inserted on
the SSPB loop through.
Get SSPB Reference Gain {aaSX} returns {aaSXxxx}
(Option W65) where xxx = Power gain of the external 10 MHz reference that is inserted on
the SSPB loop through.
Get LNB Reference Level {aaSY} returns {aaSYxxx}
(Option W65) where xxx = Power level of the internal 10 MHz reference that is inserted on
the LNB loop through.
Get LNB Reference Gain {aaSZ} returns {aaSZxxx}
(Option W65) where xxx = Power gain of the external 10 MHz reference that is inserted on
the LNB loop through.
2099-2424 Manual, Rev. C Page 8 02/12/20

C) Commands
Table 1.2 lists the commands for the 2099-2424 10 MHz Source/Inserter and briefly describes them. After a
command is sent the 2099-2424 10 MHz Source/Inserter sends a return “>” indicating the command has been
received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only option -Q)
C = 1 character, either C (command) or S (status)
N = 1-digit command or status number, 1 through 9
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (option Q) is selected.
Table 1.2 2099-2424 Commands
Command Syntax* Description
Set SSPB DC Voltage Insert {aaCSx} where: x = 1 to enable DC Voltage on the SSPB loop through.
x = 0 to disable DC Voltage on the SSPB loop through.
Set SSPB 10 MHz Reference Insert {aaCDx} where: x = 1 to enable the 10 MHz reference on the SSPB loop through.
x = 0 to disable the 10 MHz reference on the SSPB loop through.
Set LNB DC Voltage Insert {aaCLx} where: x = 1 to enable DC Voltage on the LNB loop through.
x = 0 to disable DC Voltage on the LNB loop through.
Set LNB 10 MHz Reference Insert {aaCBx} the LNB
x = 0 to disable the 10 MHz reference on the LNB loop through.
Set 10 MHz Reference Operating Mode {aaCMx} where: x = 1 to set the mode to Internal Reference.
Option E, (option E6) x = 2 to set the mode to External Pass.
x = 3 to set the mode to External Pass Auto.
x = 4 to set the mode to External Lock. (• Option E6 only)
x = 5 to set the mode to External Lock Auto. (• Option E6 only)
Clear Fault (External Lock Auto Mode) {aaCFx} where : x = 1 to clear a FAULT condition.
Set SSPB 10 MHz Reference Insert Level {aaCWxxx} where: xxx = Power level of the internal 10 MHz reference that is inserted
(Option W65) on the SSPB loop through. The valid range is +10 to -10 dBm.
Set SSPB 10 MHz Reference Insert Gain {aaCXxxx} where: xxx = Gain of the external 10 MHz reference that is inserted
(Option W65) on the SSPB loop through. The valid range is +10 to -10 dB.
Set LNB 10 MHz Reference Insert Level {aaCYxxx} where: xxx = Power level of the internal 10 MHz reference that is inserted
(Option W65) on the LNB loop through. The valid range is +10 to -10 dBm.
Set LNB 10 MHz Reference Insert Gain {aaCZxxx} where: xxx = Gain of the external 10 MHz reference that is inserted
(Option W65) on the LNB loop through. The valid range is +10 to -10 dB.
2099-2424 Manual, Rev. C Page 9 02/12/20

2.0 Installation
2.1 Mechanical
The 2099-2424 10 MHz Source/Inserter consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by
12 inch deep chassis. Redundant switching, +27 VDC power supplies provides power
for the assemblies if equipped with option R. Otherwise, a single switching +27 VDC power supply is used.
The 2099-2424 10 MHz Source/Inserter can be secured to a rack using the 4 holes on the front panel.
Figure 2.0 shows how the 2099-2424 10 MHz Source/Inserter is assembled.
AC A
AC B
FIGURE 2.0 2099-2424 10 MHz Source/Inserter Mechanical Assembly
2099-2424 Manual, Rev. C Page 10 02/12/20

2.2 Rear Panel Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.
PSA
GND
AC - POWER IN (Option R shown)
AC input for switching
power supplies A & B.
100-240 ±10% VAC, 47-60 Hz.
J19 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
J2J1
15
23
4
6
78
9
ETHERNET CONNECTION
RJ45 Ethernet Connector
(Optional)
M&C
F2 - SSPB 24V Fuse
3A Fast Blo,
1/4” Fuse
J5 - EXTERNAL
REFERENCE INPUT
(option -E)
External frequency reference input
+3 dBm ± 3 dB, BNC, female connector.
J3 J4 F1 J5 J6 J7 F2
J8
LNB SSPB
LNB RF IN
RF+DC+REF
LNB
DC
DS1 DS2
RF OUT LNB
FUSE EXT REF
INPUT EXT REF
OUTPUT RF IN
SSPB
DC
RF OUT
RF+DC+REF +24V
FUSE
J3 LNB, RF IN
950-2150 MHz input from
LNB. Provides LNB voltage
and 10MHz ref. insertion.
50ΩBNC female connector.
J4, RF OUT
950-2150 MHz.
Capacitively coupled and
looped from LNB RF input.
50ΩBNC female connector.
F1 - LNB Fuse
3/4A Fast Blo,
1/4” Fuse
J6 10MHz REF OUTPUT
10MHz reference output,
+3 dBm ± 3 dB. 50Ω/75Ω
BNC female connector.
J7 SSPB RF INPUT
950-2150 MHz input,
Capacitively coupled.
50ΩBNC female connector.
DS2 SSPB ALARM DC
Lights yellow when SSPB
voltage is present on the
RF OUT (J8) center pin.
J8 RF OUT TO SSPB
950-2150 MHz output, Looped
from RF IN. Provides SSPB
voltage and 10MHz ref.
insertion
DS1 - LNB DC
Lights yellow when LNB
voltage is present on the RF IN
(J3) center pin.
PSB
FIGURE 2.1 2099-2424 Rear Panel Outputs
1
6
2345
7
8 9
TABLE 2.1 J119
TABLE 2.1 J19 Pinouts (DB9)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Open=ALARM
8 Not Used
9 Alarm Relay: Closed=ALARM
2099-2424 Manual, Rev. C Page 11 02/12/20

2.3 Front Panel Indicators -The following are the front panel indicators.
ALARM
SSPB
DC ON
REF ON
LNB
MENU
EXECUTE
ALARM
PSA
EXT REF
REMOTE
OVEN
S2 - VERT. TOGGLE
Vertical toggle switch that
controls values in the
Menu items when in
program mode. Does not
function in the normal
display mode.
S1 - HORIZ. TOGGLE
Horizontal toggle switch
that controls which
values are being
adjusted. Does not
function in the normal
display mode.
LCD DISPLAY
Display shows
Current Mode SSPB
and LNB Voltage
and Current.
SSPB +24.1V @ 1.800A
LNB +24.2V @ 0.27A
DS1 - SSPB
• Alarrm - Indicates voltage insertion
out of range (or fuse alarm).
• DC ON - Indicates DC presence
on SSPF RF output.
• REF ON - Indicates 10 MHz insertion
on SSPF RF output.
DS2 - LNB
• Alarrm - Indicates voltage
insertion out of range (or
fuse alarm).
• DC ON - Indicates
DC presence on
LNB RF input.
• REF ON - Indicates
10 MHz insertion on
LNBF RF input.
DS3 -
• Summary Alarrm - Indicates
a problem with an internal
subsystem or a problem
with the external reference input.
DS4 -
External Reference
Indicates reference pass or external
reference lock has been selected.
Remote
Indicates remote
communication is enabled.
Oven
Indicates internal reference
oven is actively heating.
NOTE: Unit will not be within
specified frequency tolerance until
indicator is extinguished.
S3- MENU EXECUTE
BUTTON
Press this to get into
Program mode and
press again to
execute any changes.
PSB
DS1
Indicates PSA is on.
DS2
Indicates PSB is on.
FIGURE 2.2 2099-2424 Front Panel Controls and Indicators
2099-2424 Manual, Rev. C Page 12 02/12/20

2.4 Installation / Operation
2.4.1 Installing and Operating the 2099-2424 10 MHz Source/Inserter with option R.
1. PLEASE NOTE: Unit must have 1 RU Air Space above and 1 RU Air Space below.
2. Connect 100-240 ±10% VAC, 47-63 Hz to PSA and PSB connectors (Figure 2.1).
3. Be sure DS1 and DS2 LEDs (green, POWER) are on (Figure 2.2).
4. Be sure DS6 (red, ALARM) is off and/or contact closure at DB9 ALARM connector, J19,
to occur to insure that the unit is not in an alarm condition.
5. Wait for DS4 LED (yellow, OVEN) to go off to insure that the oscillator oven is stabilized.
6. (option -E only) Choose one of the five (5) modes (Internal, Ext Pass, Ext Pass Auto, Ext Lock,
or Ext Lock Auto) in which to operate the unit.
7. Set desired internal reference output level or pass-through gain, if applicable (option -W65 only).
8. PS-A - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the
far slot in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
9. PS-B - The fuse is a 5 mm x 20 mm, 5 amp slow blow (Type T) and is inserted in the
far slot in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the
near slot. If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 5 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 5A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.3 Fuse Location and Spare Fuse
2099-2424 Manual, Rev. C Page 13 02/12/20

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.4):
Power Up
Normal Display
Menu 1. Select Reference Mode
Menu 2. Select SSPB DC insert On/Off
Menu 3. Select SSPB reference insert On/Off
Menu 3 a. SSPB Reference Level (Option -W65)
Menu 3 b. SSPB Reference Gain (Option -W65)
Menu 4 Select LNB DC insert On/Off
Menu 5. Select LNB Reference insert On/Off
Menu 5 a. LNB Reference Level (Option -W65)
Menu 5 b. LNB Reference Gain (Option -W65)
Menu 6 Adjust Internal Reference Frequency Offset
Menu 7 Select Remote Operation On/Off
Menu 8 Select Remote Interface (option Q)
Menu 9 Select RS485 Address (option Q)
Menu 10 Measured 24 VDC From Power Supplies A&B
Menu 11 Measured 12 VDC From DC to DC Converters
Save Menu When “R” is selected from any above menu or at the end
Alarm indications appear on the LED (see Figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “SAVE SETTINGS?” Menu. If this sequence is not
followed, none of the changes will take effect. No program changes will be evident until they are verified at the
“SAVE SETTINGS?” Menu.
2099-2424 Manual, Rev. C Page 14 02/12/20

2.5.2 Power-On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The software version will be displayed.
2099-2424W28
4.0
3. The present LNB and SSPB inserted voltage and current are shown.
SSPB +24.1V @ 1.800A
LNB +24.2V @ 0.27A
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and will toggle settings such as
ON/OFF and RS232/422/485. In the case of the LEVEL setting, the vertical switch will increase or
decrease the digit that is selected (within the limits of operation).
2099-2424 Manual, Rev. C Page 15 02/12/20

ON POWER UP (2)
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
2099-2424W28
4.0
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up 1:
(Units with ethernet option)
Power Up 2:
Normal Display
Menu 1 Reference
Mode Select
Menu 2 Select SSPB
DC Insert On/Off
Menu 3 Select SSPB
Reference Insert On/Off
Menu 3a Adjust SSPB
Reference Level
Menu 3b Adjust SSPB
Reference Gain
Menu 4 Select LNB
DC Insert On/Off
Menu 5 Select LNB
Reference Insert On/Off
Menu 5a Adjust LNB
Reference Level
Menu 5b Adjust LNB
Reference Gain
Menu 6 Adjust Internal
Reference Frequency Offset
Menu 7 Select Remote
Operation On/Off
Menu 8 Select Remote
Interface On/Off (option Q)
Menu 9 Set RS485
Address (option Q)
Menu 10 Measured 24 VDC
From Power Supplies A&B
Menu 11 Measured 12 VDC
From DC to DC Converters A&B
Save? When “R” is selected from any
above menu or at the end
SSPB REFERENCE
INSERT = ON
REMOTE ON
SCROLL <>
PUSH BUTTON
R
SSPB REFERENCE
LEVEL = +10
SCROLL <>
SCROLL
PUSH BUTTON
R
SSPB REFERENCE
GAIN = +09
SCROLL <>
SCROLL
PUSH BUTTON
R
INTERN FREQ
OFFSET = +0000
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
REF MODE =
INTERNAL
R
SSPB +48 VDC
INSERT OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
ON POWER UP (1)
= = = IP Addr = = =
192.168.123.002
SSPB +24.1V @ 1.800A
LNB +24.2V @ 0.27A
INTERFACE
RS232
RS485 ADDRESS =
00
+24V PSA=+49.2 VDC
+24V PSB=+49.0 VDC
DC CONV A= +12.9 VDC
DC CONV B= +12.1 VDC
SAVE SETTINGS? YN
R
R
R
R
R
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
LNB +24 VDC
INSERT = OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
LNB REFERENCE
INSERT = ON
SCROLL <>
SCROLL
PUSH BUTTON
R
LNB REFERENCE
LEVEL = +10
SCROLL <>
SCROLL
PUSH BUTTON
LNB REFERENCE
GAIN = +09
SCROLL <>
SCROLL
PUSH BUTTON
R
R
(NOTE: See next page for possible alarm conditions)
Figure 2.4 Menu Display and Sequence
2099-2424 Manual, Rev. C Page 16 02/12/20

Alarm Conditions
If any alarm is on then the status of nine possible alarm conditions will be displayed at the end of the menu.
Internal Ref low
External Ref low
Ref PLL Not Locked
Reference ok
STATUS 9:
LNB v insert high
LNB v insert low
LNB I Insert ok
LNB I Insert off
STATUS 8:
LNB v insert high
LNB v insert low
LNB v Insert ok
LNB v Insert off
STATUS 7:
SSPB i insert high
SSPB i insert low
SSPB i Insert ok
SSPB i Insert off
STATUS 6:
SSPB v insert high
SSPB v insert low
SSPB V Insert ok
SSPB V Insert off
STATUS 5:
DC conv b high
DC conv b low
DC Conv B okSTATUS 4:
DC conv a high
DC conv a low
DC Conv A okSTATUS 3:
PSB 48V high
PSB 48V low
PSB 24V okSTATUS 2:
PSA 48V high
PSA 48V low
PSA 24V okSTATUS 1:
Normal (No Alarm Condition) Alarm Condition
2099-2424 Manual, Rev. C Page 17 02/12/20

3.0 Alarm Operations
SSPB Power Supply Alarms
1. DC CONV A (SSPB V2A Monitor)
This is the +12V DC voltage from DC to DC converter A. The summary alarm indicator and contact closure
will be set if this voltage is greater than 26V or less than 23V.
2. DC CONV B (SSPB V2B Monitor)
This is the +12V DC voltage from DC to DC converter B. The summary alarm indicator and
contact closure will be set if this voltage is greater than 26V or less than 23V.
3. +24V PSA (SSPB V1A Monitor)
This is the +24V DC voltage from power supply A. The summary alarm indicator and contact closure will be set if
this voltage is greater than 26V or less than 22V. The unit's Power Supply A AC input must be detected before this
voltage is monitored for alarm purposes.
4. +24V PSB (SSPB V1B Monitor)
This is the +24V DC voltage from power supply B. The summary alarm indicator and contact closure will be set if
this voltage is greater than 26V or less than 22V. The unit's Power Supply B AC input must be detected before this
voltage is monitored for alarm purposes.
5. SSPB V Monitor
This is the DC voltage that is inserted at the SSPB RF loop through. The SSPB alarm indicator and alarm contact
closure will be set if the voltage ( +24V) is too high or too low. The unit will alarm if the voltage is greater
than 26V or less than 22V.
6. SSPB I Monitor
This is the current that is measured at the SSPB RF loop through. The SSPB alarm indicator and alarm contact
closure will be set if the current is greater than 2.7 Amps @ +24V.
LNB Power Supply Alarms
1. LNB V Monitor
This is the DC voltage that is inserted at the LNB RF loop through. The summary alarm indicator and contact closure
will be set if the voltage is greater than 26V or less than 22V.
2. LNB I Monitor
This is the current that is measured at the LNB RF loop through. The summary alarm indicator and contact closure
will be set if the current is greater than 600 milliamps.
2099-2424 Manual, Rev. C Page 18 02/12/20

10 MHz Reference Alarms
1. Internal Reference Mode
The summary alarm indicator and contact closure will be set if the internal reference is not detected by the internal
reference power detector. The external reference indicator will always be off in this mode.
2. External Pass Reference Mode
The summary alarm indicator and contact closure will be set if the external reference power is less than
-5 dBm, +/- 1 dBm. The external reference indicator will always be on in this mode.
3. External Pass Auto Reference Mode
The summary alarm indicator and contact closure will be set if the external reference power is less than
-5 dBm, +/- 1 dBm. The external reference indicator will always be on in this mode.
4. External Lock Reference Mode
The summary alarm indicator and contact closure will be set if the external reference power is less than
-5 dBm ,+/- 1 dBm. The summary alarm indicator and contact closure will be set if the internal reference
cannot lock to the external reference. The external reference indicator will always be on in this mode.
5. External Lock Auto Reference Mode
The summary alarm indicator and contact closure will be set if the external reference power is less than -5 dBm,
+/- 1 dBm. The summary alarm indicator and contact closure will be set if the internal reference cannot lock to
the external reference. The external reference indicator will always be on in this mode.
2099-2424 Manual, Rev. C Page 19 02/12/20

4.0 Model 2099-2424 Option W65:
L-Band Inserted 10 MHz Reference Power Adjustment
Option W65 allows the user to independently adjust the power of the 10 MHz signal that is inserted on both
(LNB and SSPB) L-band loop-throughs. NOTE: The maximum 10 MHz input power is +3 dBm when
Option W65 is installed.
There are two methods available for adjusting the power of the 10 MHz signal inserted onto the L-band
Loop-throughs.
1). If the user has selected the internal 10 MHz reference as the source, the user may adjust the output
power LEVEL from -10 to +10 dBm.
2). If the user has selected the external 10 MHz reference as the source [i.e., 10 MHz from the external
reference input (J5)] then the user may adjust the GAIN from -10 to +10 dB from the input level point
to the insertion point. Eg., if the external 10 MHz reference input is +2 dBm and the GAIN is set to
+4 dB then the inserted 10 MHz reference power is +6 dBm.
If the Reference Mode is set to INTERNAL, EXT LOCK, or EXT LOCK AUTO then the front panel menu will
allow the user to adjust the inserted reference LEVEL from -10 to +10 dBm. The Remote M&C commands to
perform these settings are ” {CW} “ (Set SSPB 10 MHz Reference Insert Level) and ” {CY}” (Set LNB 10
MHz Reference Insert Level).
If the Reference Mode is set to EXT PASS or EXT PASS AUTO then the front panel menu will allow the user
to adjust the inserted reference GAIN. The Remote M&C commands to perform these settings are ” {CX} “
(Set SSPB 10 MHz Reference Insert Gain) and ” {CZ}” (Set LNB 10 MHz Reference Insert Gain).
2099-2424 Manual, Rev. C Page 20 02/12/20
