APT 500C DISPLAY
APT 500c Display
User’s Guide
PRODUCT SPECIFICATIONS ..............................................................................................................................2
ELECTRICAL PARAMETERS ......................................................................................................................................... 2
DIMENSIONS &MATERIALS....................................................................................................................................... 2
FEATURES .............................................................................................................................................................. 2
MAIN FUNCTIONALITIES ..................................................................................................................................3
POWER ON/OFF .................................................................................................................................................... 3
MODE SWITCH ....................................................................................................................................................... 3
ASSIST LEVEL OPERATING ......................................................................................................................................... 4
SPEED &MILEAGE DISPLAY SWITCH ........................................................................................................................... 4
PARAMETER SETTINGS.....................................................................................................................................5
BUTTON NAVIGATION .............................................................................................................................................. 5
MENU ................................................................................................................................................................. 5
ADVANCED SETTINGS ............................................................................................................................................... 6
ERROR CODES ..................................................................................................................................................8
ASSEMBLY INFORMATION ...............................................................................................................................8
PIN LAYOUT ........................................................................................................................................................... 8
CERTIFICATION........................................................................................................................................................ 9
QUICK START GUIDE ........................................................................................................................................9
STEP 1 ................................................................................................................................................................. 9
STEP 2 ................................................................................................................................................................. 9
STEP 3 ................................................................................................................................................................. 9

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Product Specifications
Electrical Parameters
•2.2inch IPS screen
•24V/36V/48V/52V battery supply
•Rated operating current : 40mA
•Off leakage current < 1uA
•Max output current to controller : 100mA
•Operating temperature : -20 – 70 °C
•Storage temperature : -30 – 80 °C
Dimensions & Materials
Materials
Product shell – ABS plastic
Transparent window – High strength Acrylic
Dimensions
L 179mm x W 40mm x H 18mm
Features
•Suitable for low temperature: Max -20
℃.
•High-contrast 2.2inch IPS colourful
matrix screen.
•Ergonomic external button design,
easy to operate.
•Speed display : AVG SPEED, MAX SPEED, SPEED (Real-time).
•Kilometer / Mile : Can be set according to user’s preference.
•Smart battery indicator : Provide a reliable battery indication.
•9-level Assist : 3-level/5-level/9-level optional.
•Mileage indicator : Odometer/Trip distance/ Clock/ Riding time.
•Power indicator : Real time power indication; digital or analog.
•Error code indicator.

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Main Functionalities
Power On/ Off
Press and hold the POWER button for 1 second to turn the display on/ off. The display will
automatically shut down when there is no operation for a period of time.
Mode Switch
Double the POWER button to change between Race Mode & Street Mode. Note that this
will not change the mode in real time but rather set the start-up mode (Street Mode
recommended). Change the mode in real time via mobile app.

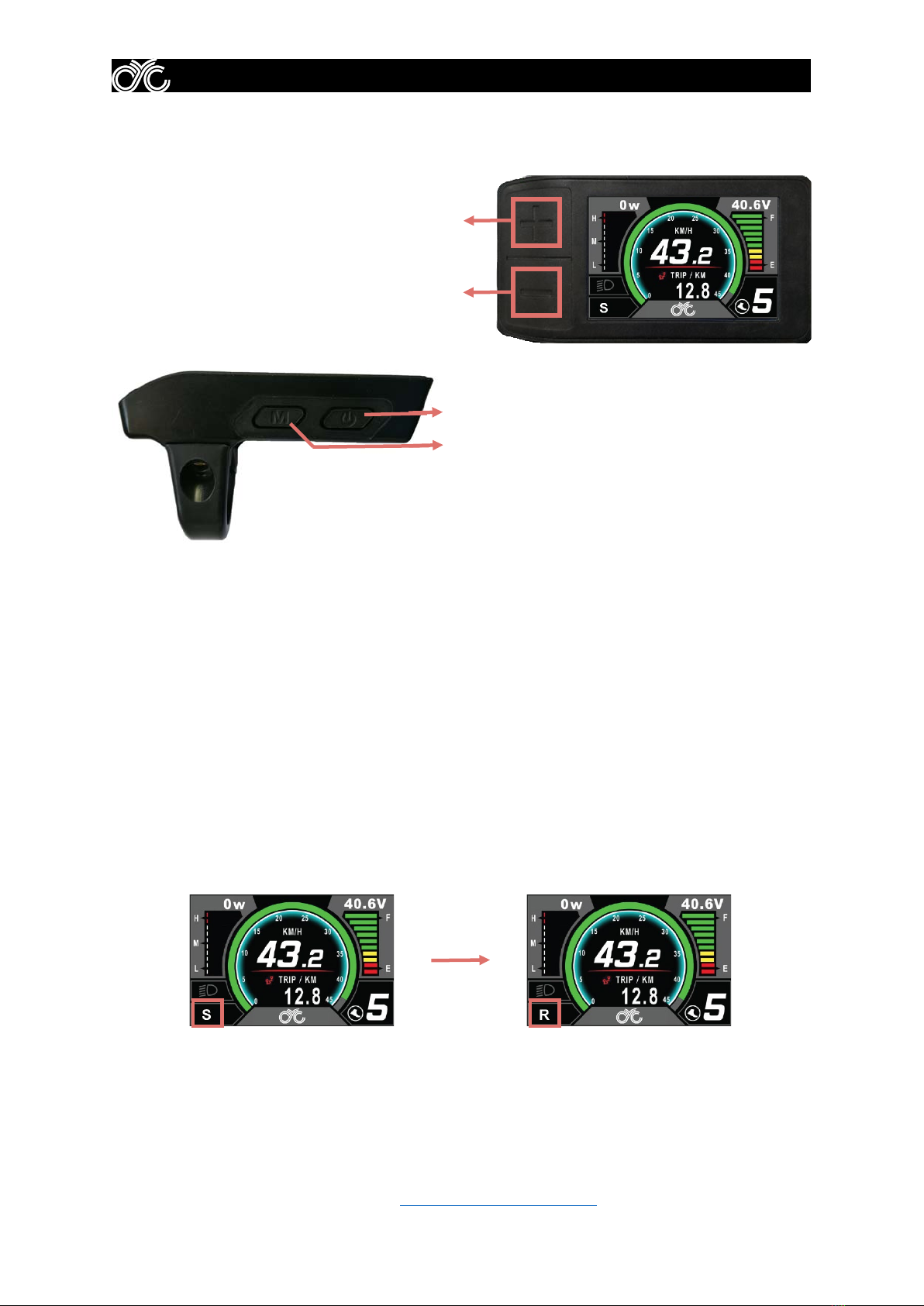

UP
DOWN
MENU
POWER
Street Mode
Race Mode

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Assist Level Operating

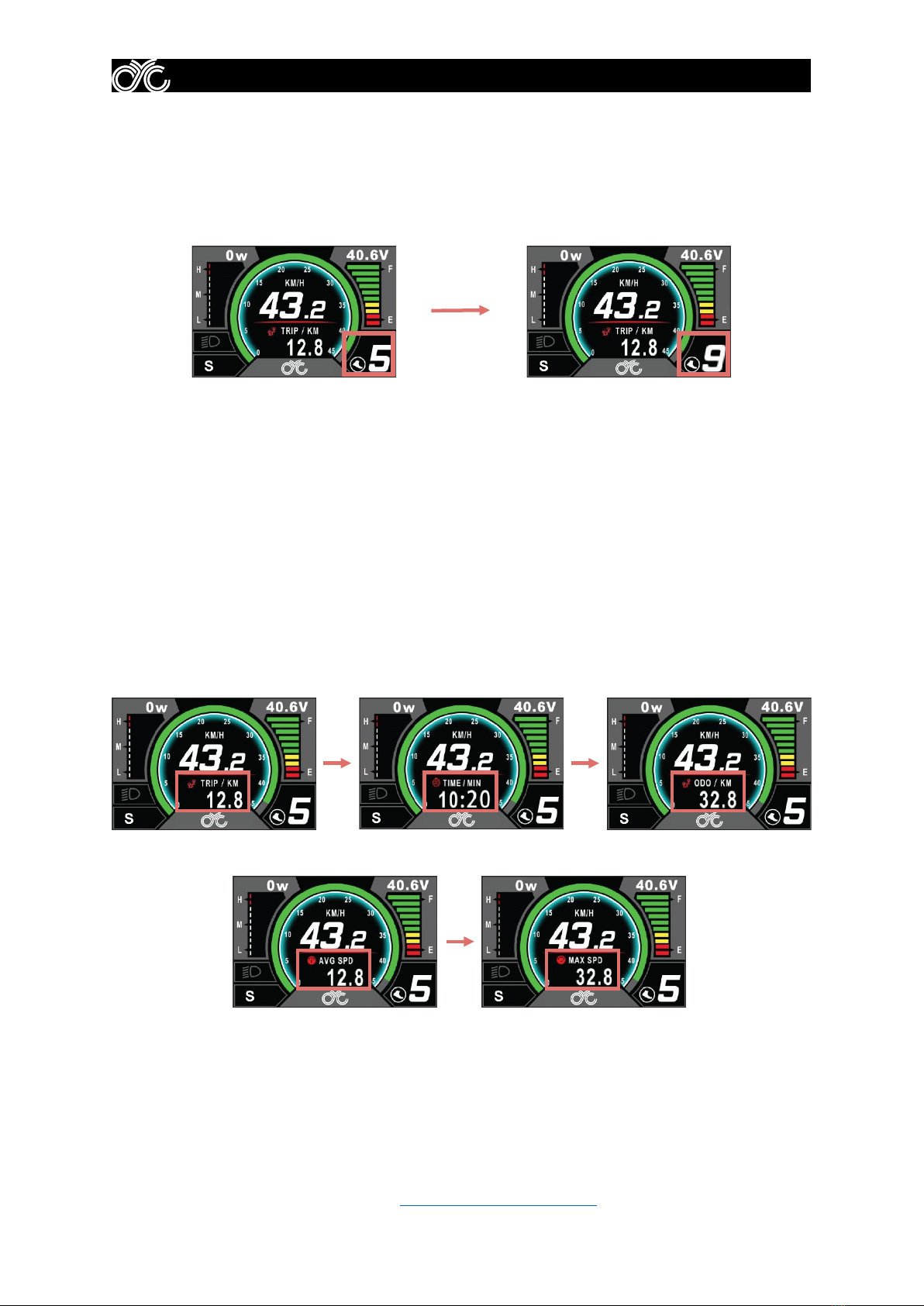

Short press UP/ DOWN button to change the assist level. The top assist level is 9 where 0 is
neutral. The amount of assist levels can be adjusted according to the user’s preference.
Speed & Mileage Display Switch
Short press MENU button to change the speed & mileage readings: TRIP / KM -> TIME / MIN
-> ODO/ KM -> AVG SPD -> MAX SPD.
TRIP / KM = Trip distance
TIME / MIN = Trip time in minutes
ODO / KM = Odometer
AVG SPD = Trip average speed
MAX SPD = Trip maximum speed

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Parameter Settings
Button Navigation
Long press the MENU button to get into the settings menu (also to exit settings menu). Hold
press for at least 2 seconds.
Press the UP/DOWN buttons to change between the parameters, MENU button to select, &
UP/DOWN to change the selected parameter.
Press the MENU button to deselect parameter & to set changes made.
* The display will automatically quit the settings menu when there is no operation for 30
seconds.
* For safety reasons, the display cannot get into the settings menu when riding.
* The display will quit settings menu when the user starts riding.
MENU
System
Press UP/ DOWN to change between Metric & Imperial.
Brightness
Press UP/ DOWN button to change the brightness of the display’s backlight. I is the darkest
& IIIII is the brightest.

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY

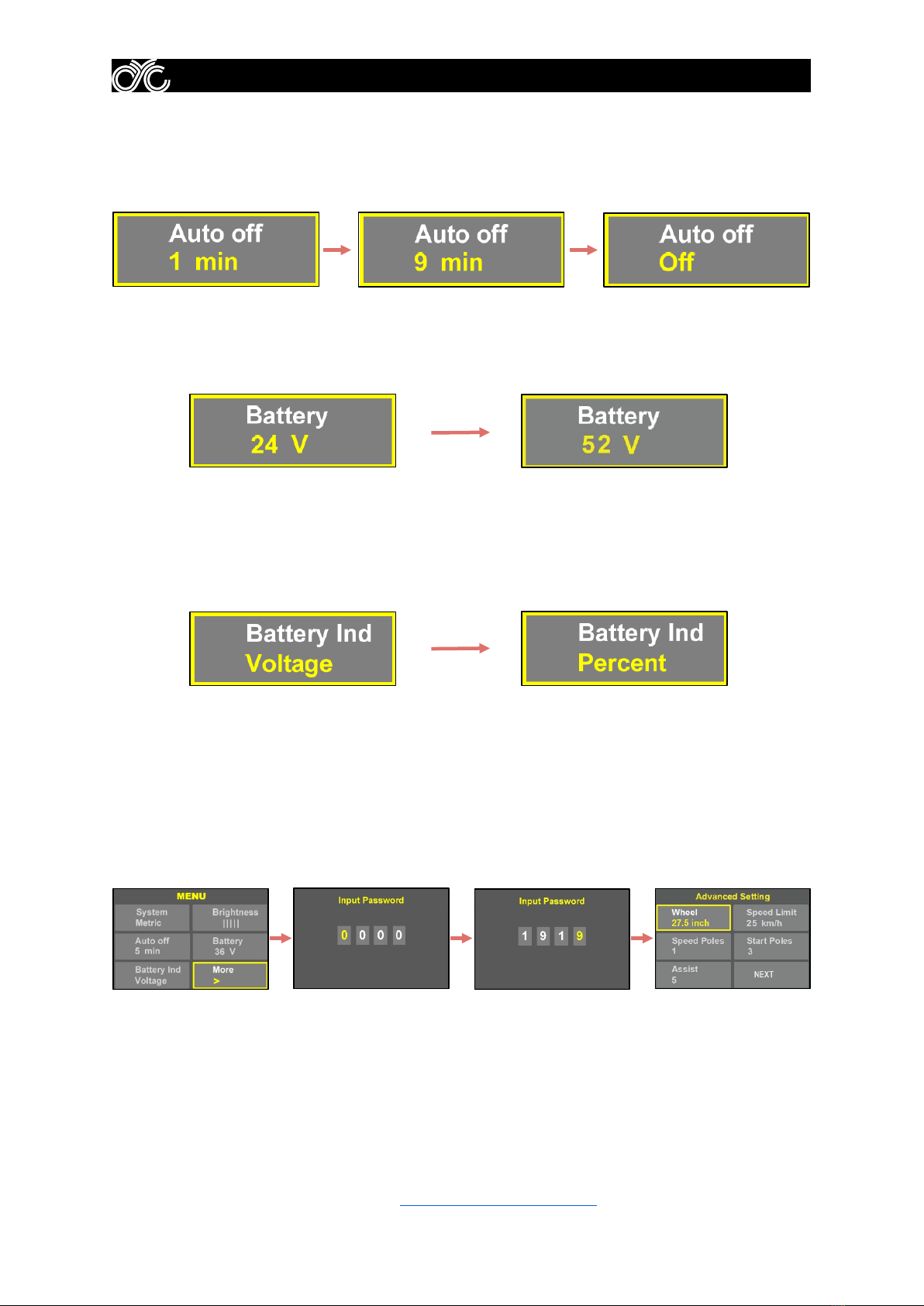

Auto off
Press UP/DOWN button to change the auto power off time. This can be set between 1 to 9
minutes or off.
Battery
Press UP/DOWN button to change your battery voltage. This can be set to from 24V to 52V.
Battery Ind
Press UP/DOWN button to change your battery indication. This can be set to Voltage,
Percentage, or off.
Advanced Settings
Entering Advanced Settings
Press MENU to select the “More” options. This will take you to advanced settings where you
need to enter a password. The default password is 1919.
There are only 2 parameters which need to be set as all others should be neglected and will
not affect your system: Wheel & Assist.
Note that the second Advanced Setting page is for changing the input password settings.

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Wheel

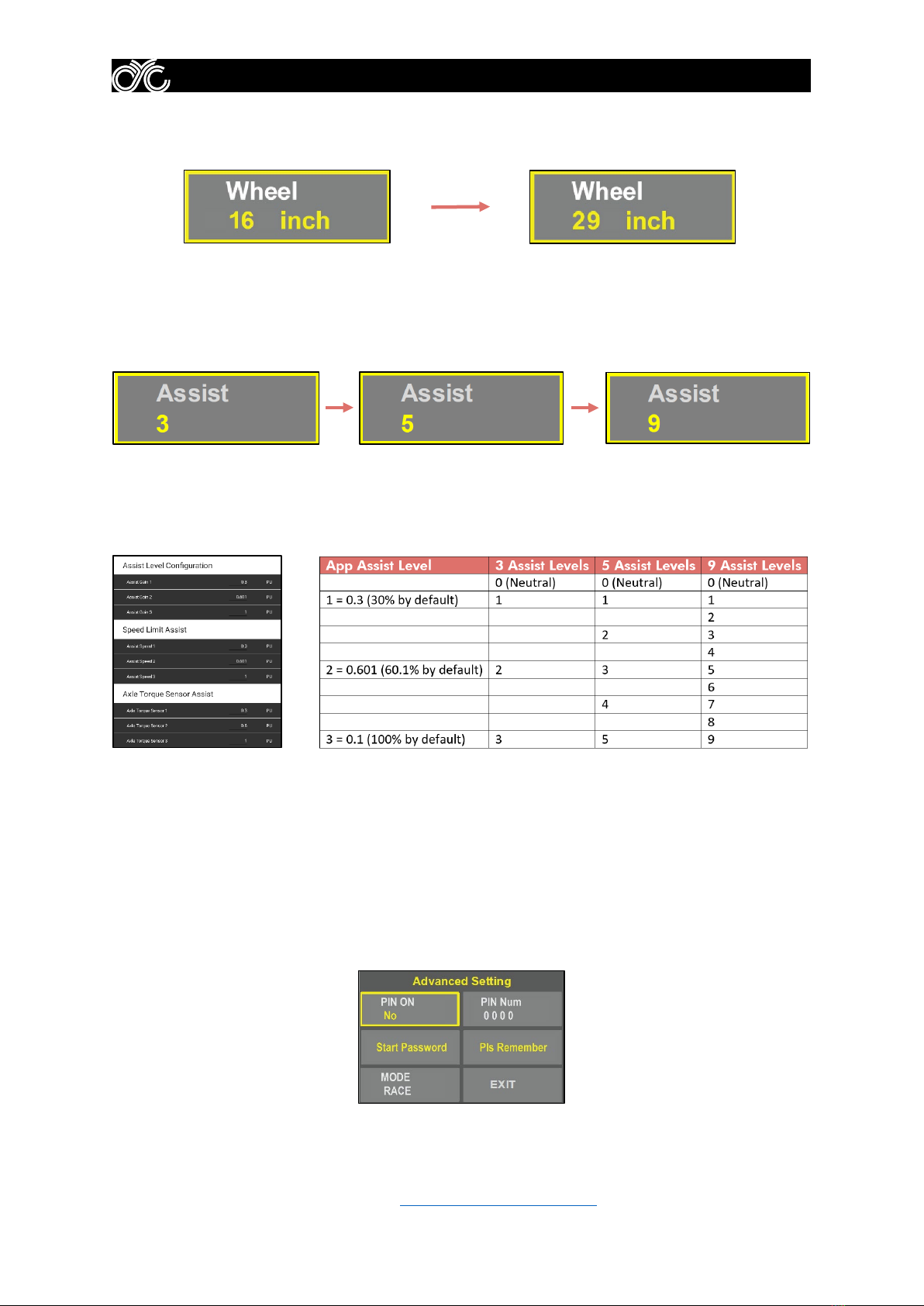

Press UP/DOWN to change the wheel settings. The optional wheel diameter is 16 to 29 inch.
Assist
Press UP/DOWN to change the amount of assist levels. Here, you can choose the number of
assist levels (or gears) accordingly. The available options are 3, 5, or 9 assist levels.
The power output will distribute evenly across the chosen number of assist levels (or gears)
according to the Assist Level Configuration, Speed Limit Assist, and Axle Torque Sensor
Assist settings on your CYC Motor (BAC) mobile app:
Note that the Assist Levels shown above in the app, can be customized.
Password
When selecting the “NEXT” option in the advanced settings menu, it will take you to the
password set-up page. PIN ON function will enable & disable your start-up password. PIN
Num will set a new password (default password is 1919). MODE will toggle between Race
mode & Street mode as in the main screen.

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Error Codes
In certain circumstances, an error code may appear on your display. Refer to the CYC Motor
(BAC) mobile application user guide for instructions on how to clear the errors.
Error Code
Description
Error 21H
Instantaneous phase overcurrent
Error 22H
Throttle voltage out of range
Error 24H
Hall sensor error
Error 30H
Communication error
Assembly Information
Note the torque requirements described above as excessive torque can cause damage.
Pin Layout
1. Red wire : Anode(24V to 52V)
2. Black wire : GND
3. Yellow wire : TxD (display -> controller)
4. Green wire : RxD (controller -> display)
5. Blue wire : Power cord to the controller
M4*10
Torque requirements:
STD = 0.1 N.m.
MAX = 0.2 N.m

The information contained in this document is derived from the TFT LCD Display Guide provided by Tianjin APT Science and
Technology Co., Ltd. (otherwise known as APT). All the information contained in this user manual is published in good faith
and for general information purpose only. Contact [e-mail] for further assistance.
APT 500C DISPLAY
Certification
CE / IP65 (waterproof) / ROHS.
Quick start guide
After unboxing & installing your X1 PRO or X1 Stealth, there are a few things you need to set
up.
STEP 1
Ensure that all wires are properly connected & that your system can switch pressing the
display’s power button. Check that the display shows your battery voltage & level. Should
your display briefly show Error 30H upon start-up, this is normal as the system takes a
moment to connect. Should your battery voltage & level not display refer to step 3.
STEP 2
Ensure that your pedal assist & throttle are working correctly. To test this,
connect to the CYC Motor (BAC) mobile app & change to Assist Level 0 on
your display. You can test the PAS by looking at the app’s dashboard &
turning the crank set. If your Average Pedal RPM reading changes, then your
PAS is working. To test the throttle, open your throttle & check that your
Throttle In voltage changes. Ensure that you test the PAS & throttle in Assist
Level 0 as to not make the bike thrust forward.
STEP 3
Set up the correct information on your display. You will need to enter your wheel diameter,
battery voltage (if incorrect), & your preferred number of assist levels.
Be sure to contact [e-mail] if further assistance is needed.
THANK YOU!
