CYCMOTOR X1 Stealth User manual

User Manual
X1 Stealth

00 TABLE OF CONTENTS
01 SAFETY & PRECAUTION
General Safety
Before the Ride
Installation & Use
Disclaimer
06 MAINTENANCE
07 TERMS & CONDITIONS
Warranty
Contact Information
05 QUICK START
04 MOBILE APP & DISPLAY
03 INSTALLATION
Required Tools
Operating Notice
Magnetic Battery Mount for Controller
Adjusting the Width of the Bottom Bracket
Installation of 63/ 73 & 83mm version
Installation of BB92 version
Wiring & Connection
02 SPECIFICATIONS
Description
Specifications
Parts List
Dimensions
68/ 73/ 83mm version
BB92 version
Motor, Controller & Gearbox

01 SAFETY & PRECAUTION
General Safety Before the Ride
Kindly read through the entire user manual. This manual contains
important information to reduce user risk as well as instructions for
this product’s proper use. Do not discard the manual but keep it for
reference.
Note that the user’s personal safety remains the user’s
responsibility and that the user must contact CYC Motor Ltd or their
official product dealer directly for any further guidelines or
assistance.
Never interfere with the movable parts when the drive unit is
connected to a power supply. This could result is serious injury if
the system is accidentally engaged.
This product is a powerful motor system that is dangerous for
children and must be handled by an adult at all times. Small
components and accessories may also present a choking hazard.
Keep the motor system and accessories out of reach from children.
All components and accessories may only be replaced with
identical components directly supplied by CYC Motor Ltd or an
official product dealer. CYC Motor Ltd cannot be held liable for any
damage as a result of using unapproved parts.
This product only complies with local, state, and federal
regulations if speed limits are set accordingly. Ensure that you have
set up your X1 Stealth kit according to your local, state, and federal
regulations when using and registering this drive unit on a public
road/ area.
Ensure that the drive unit chain has the proper tension. Incorrect
tension could cause jamming of the system and result in injury
while riding. Inspect the chain tension regularly.
Ensure that the chains are properly lubricated. Cleaning and
lubricating your chain with regular bicycle chain cleaner, is advised
regularly.
When connecting a power supply, make sure the power supply is
completely connected. Faulty connection could result in a short
circuit and damage the controller or batteries.
Inspect all electrical wires and plugs for damage regularly.
Secure all wires properly. Ensure that no loose wires are dangling
from the bike that could be jammed into any moving parts.
Before turning on the system, ensure that the throttle can be
twisted freely without friction and that the throttle can return to its
original position without restriction. This is to prevent any
uncontrolled response of the system.

01 SAFETY & PRECAUTION
Installation & Use Disclaimer
Do not install anything other than the parts and accessories that
came with this drive unit. Doing so could damage the product.
The drive system can be activated and deactivated by holding
down the on/off button on the display.
Avoid changing the bike gear (note: this is different from the drive
unit's assist level) while the drive unit is powering the bike. This
may lead to excessive wear on the chain and chain rings or other
gear related failure.
When changing gear, use human input only. After the gear is
changed, you may accelerate again with the throttle or continue
using the PAS.
Take off with the appropriate assist level & bike gear.
This product is splash proof and rain proof but NOT WATER PROOF.
Do not submerge it underwater.
If you require any more information or have any questions about
the user manual disclaimer, please feel free to contact us via email
at [e-mail] or call [phone].
All the information contained in this user manual is published in
good faith and for general informational purposes only. CYC Motor
Ltd does not make any warranties about the completeness of this
information and encourages further inquiries as stated above if
needed. CYC Motor Ltd will not be held liable for any losses and/or
damages in connection with the use of this product. The use of this
product is at the user’s own risk.
Notice: Please contact CYC Motor Ltd if unsure about the assembly
instructions or for any further assistance as CYC Motor Ltd will not
be held liable for any losses and/ or damages caused by the
assembly.

02 SPECIFICATION
Description
Specifications
This product is a high-powered electric bike (ebike) drive unit kit which includes a programmed control unit and peripherals. This product is
designed to be installed as a conversion system to convert standard bicycles into electric bicycles.
Rated Voltage
Max. RPM at Crank
Rated Power
Max. Rated Torque at Crank
Overall Efficiency
Colour
Weight of Motor & Controller
Total Weight with Crank set & BB
Bracket Materials
Crank Arm Length
Q Factor
Control Method
Motor Sensor
Chain ring
Compatibility
36- 72V (normal) (10- 20S batteries)
150 - 300 RPM
1500W
150 N.m.
> 90%
Anodized Black
2.7kg
4.5kg
7075-T6
165mm or 170mm
190mm
FOC
Hall & Temp. Sensor
11/53T option with 32T bike chain ring
11/63T option with 38T bike chain ring
BSA threaded bottom brackets with 68/ 73/ 83mm width
BB92 press-fit bottom bracket

02 SPECIFICATION
Parts List

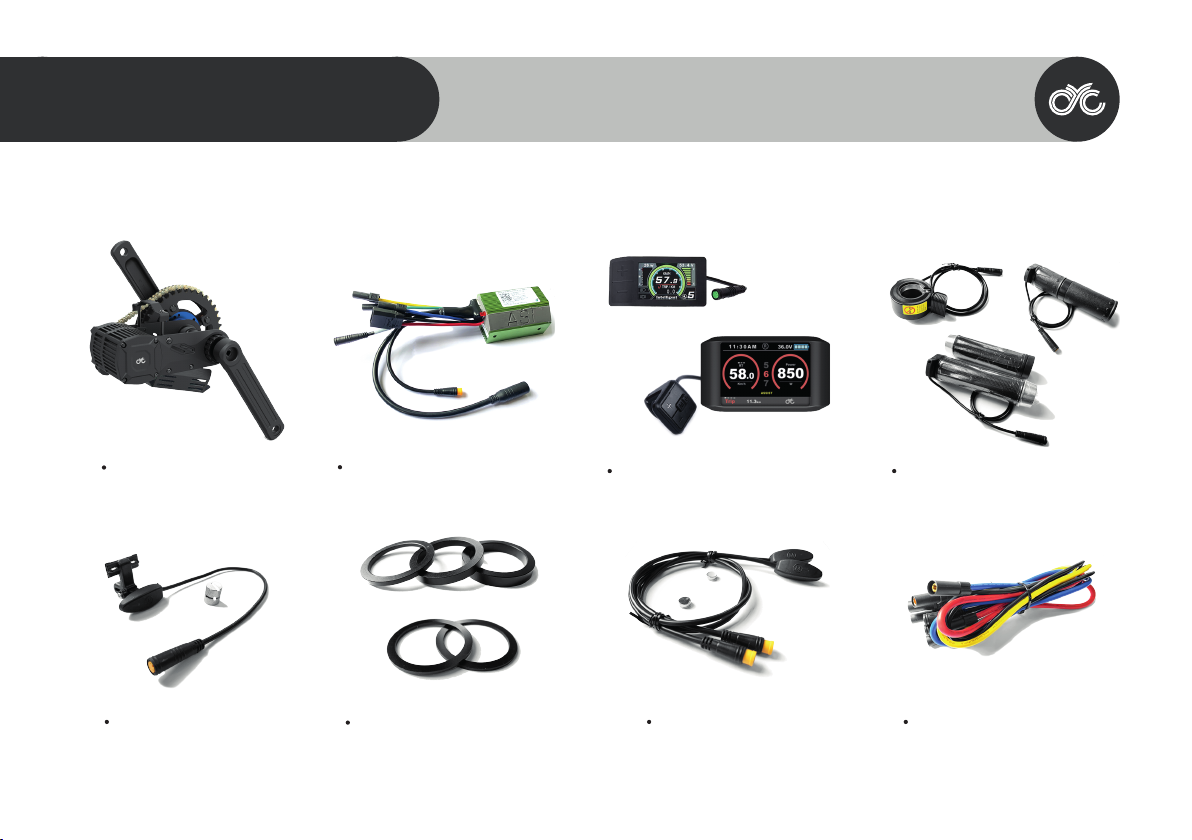

X1 Stealth Motor System 500c or 750c APT Colour Display
or
Bottom Bracket Spacers
(3, 5 & 7mm for BSA version;
2mm (2pcs) for BB92 version)
3mm
2mm (2pcs)
5mm 7mm
Thumb, Half-Twist or Full throttle
or
Extension Wire for Controller
(optional)
ASI BAC855 controller
(with water sealed adaptor cable)
Magnetic Speed Sensor Magnetic Brake Sensor
(optional)

02 SPECIFICATION
Dimensions
BSA Threaded 83mm Version
For BSA Threaded 68mm & 73mm Version:
Bottom Bracket Spacers (3/ 5/ 7mm) needs to be added.
(Refer to 03-Installation: Adjusting the Width of Bottom Bracket)
***
A
B
C
D
E
F
G
H
74mm
202mm
140mm/ 165mm/ 190mm
135.5mm
165mm/ 170mm
22mm
115.5mm
I 190mm
83mm
A
B
C
D
E
H
G
F
I
Add spacers where necessary

02 SPECIFICATION
Dimensions
BB92 Version
Bottom Bracket Spacers (2mm x2pcs) included if
necessary
***
A
B
C
D
E
F
G
HI
A
B
C
D
E
F
G
H
74mm
202mm
140mm/ 165mm/ 190mm
135.5mm
165mm/ 170mm
22mm
115.5mm
I 190mm
92mm

02 SPECIFICATION
Motor
Motor Type
No-load Motor Kv
Stator Lamination
Magnet
Efficiency (at 2N.m.)
Rated RPM (at 2N.m.)
Epoxy sealed
BLDC Out-runner
150
0.2mm
N45UH ( > 180˚C )
> 93%
> 9000 RPM
Black Epoxy Potted Stator
Controller
Type
Rated Voltage
Max. Input Current
Bluetooth
Mobile App
Mounting Position
ASI BAC855
36V - 72V
65A
BLE
CYC MOTOR (BAC) App for iOS & Android
Gearbox
First Stage Reduction Ratio
Second Stage
Overall Reduction Ration
(Motor to Crank)
1: 6 Planetary Gear
Harden Steel Sun & Ring Gear
219H Chain
1: 28.9 (11/53T)
1: 34.4 (11/63T)
Integrated between Bottom Bracket/ Mounted Separately

03 INSTALLATION

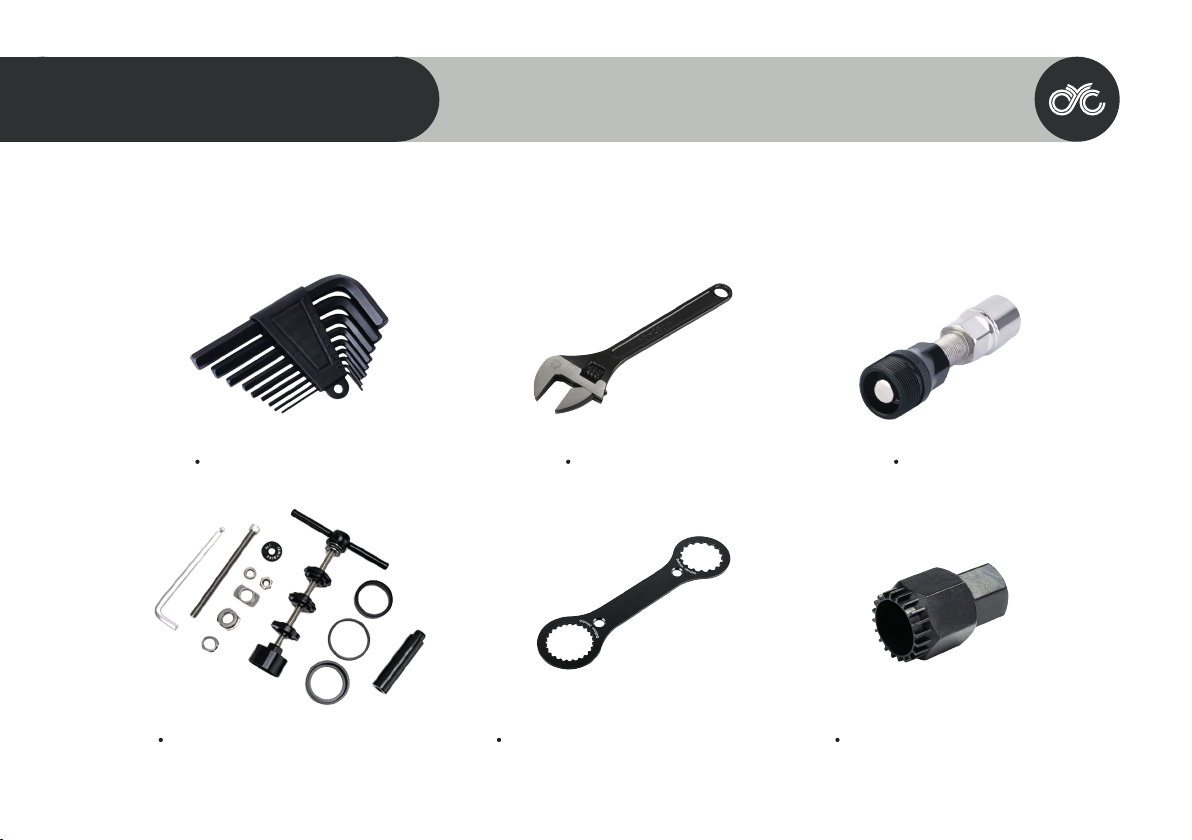

Required Tools
Hex Keys ( 2.5mm & 10mm) Adjustable Wrench Crank Puller
Press Fit Bottom Bracket Removal Tools
Only for BB92 version
Ø44mm, 16 Notch Bottom Bracket Tool 20 spline bottom bracket tool

03 INSTALLATION
Operating Notice
RIGHT-HAND and LEFT-HAND sides are determined by the bike
handle; Right-hand corresponds to the right handle.
Mounting Options for Controller
The BAC855 controller can be mounted below the bottom bracket
(pre-assembled by default) or mounted elsewhere on the bicycle
frame at the user's discretion using the controller extension wire
that can be selected upon purchase or purchased separately from
the CYC online store or an authorized dealer.
NOTE: The controller comes pre-assembled at the bottom bracket
between the mounting plates.
Adjusting the Width of Bottom Bracket
In order for the X1 Stealth to fit on various different widths of
bottom brackets, there are several spacers that come with the kit.
These spacers are designed to provide the bottom brackets with
necessary spacing between the X1 Stealth brackets.
The preferred mounting set-ups are shown on the next page for
68mm and 73mm bottom brackets. Note that the spacers can be
adjusted to accommodate different chain lines as needed.
Before mounting the motor body to your bike frame, the existing
crank system and bottom bracket must be removed.

03 INSTALLATION
*68mm bottom brackets require a 7mm and a 5mm spacer on the
left (non-drive side) and a 3mm spacer on the right (drive side) as
shown.
*73mm bottom bracket requires a 7mm & 3mm spacer on the left
(non-drive side) and no spacer on the right (drive side) as shown.

03 INSTALLATION

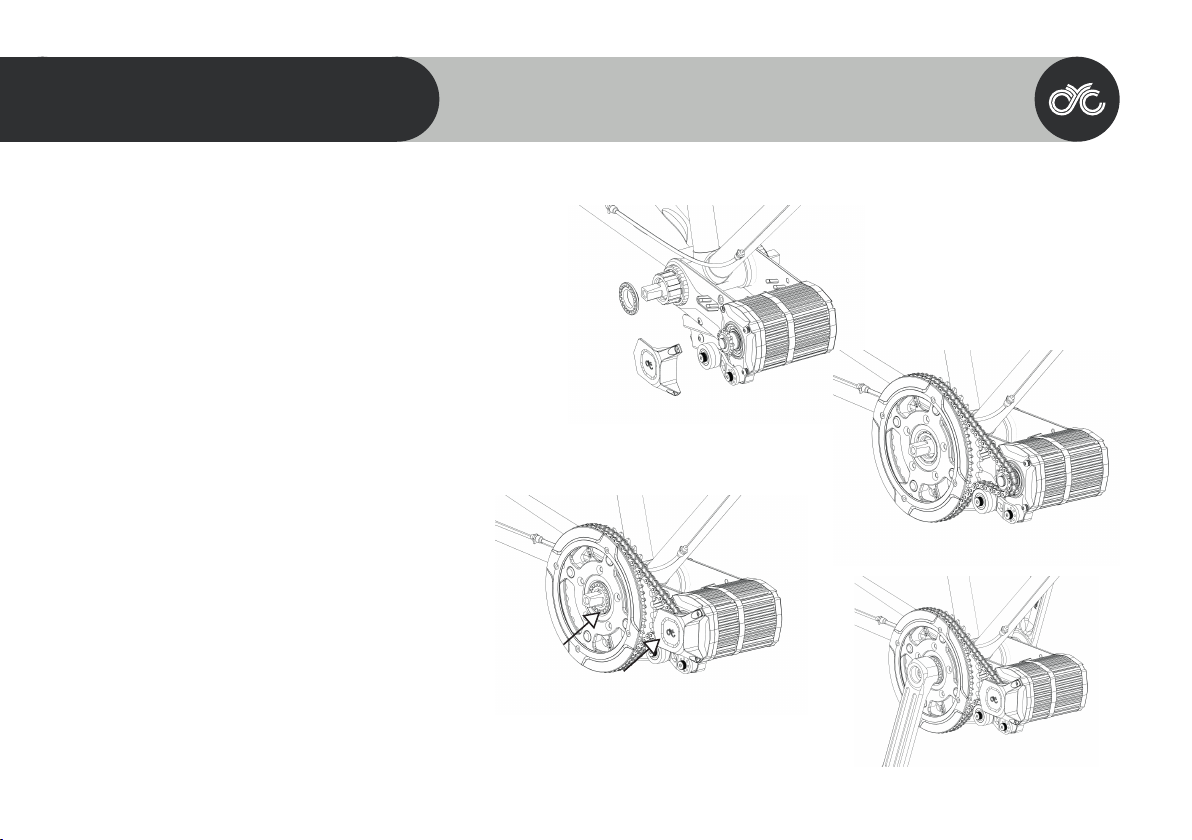

Installation of 68/73/83mm version
Line up the motor body with your bike at the bottom bracket.
For a 68mm bottom bracket width, place the 3mm spacer
between the mounting brackets & the bottom bracket shell as
needed & shown on previous page. For 73mm & 83mm bottom
bracket widths, no spacer is needed.
01.
Thread in the right (drive side) bottom bracket cup through the
hole on the right mounting plate & into the bike’s bottom
bracket shell. Note the thread direction is anti-clockwise.
02.
Thread in the left (non-drive side) bottom bracket cup through
the hole on the left mounting plate (and spacers for 68mm &
73mm bottom bracket widths) into the bike’s bottom bracket
shell. Note the thread direction is clockwise.
03.
Insert the spindle from the right (drive-side) side of the rear
mounting bracket hole through to the left side of the rear
mounting bracket hole.
04.
01.
02.
03.
04.
Screw on the left (non-drive side) bottom bracket cap.05.
05.
Kindly note that there are installation videos available at
https://www.cycmotor.com/x1-stealth

03 INSTALLATION
Installation of 68/73/83mm version
Remove the right (drive side) bottom bracket cap & the front
chain ring cover.
06.
Place the chain over the outer chain ring (note that the bike's
chain ring will be placed on the inner chain ring & hang the
chain ring with the chain over the spindle. Push the tensioner
down to place the chain over the sprocket.
07.
Slide the chain ring in place (over the spindle), screw on the
right (drive side) bottom bracket cap & install the front chain
ring cover again as shown.
08.
Install the left & right crank arm and screw on with the crank
bolt.
09.
06.
07.
08.
09.
Kindly note that there are installation videos available at
https://www.cycmotor.com/x1-stealth

03 INSTALLATION

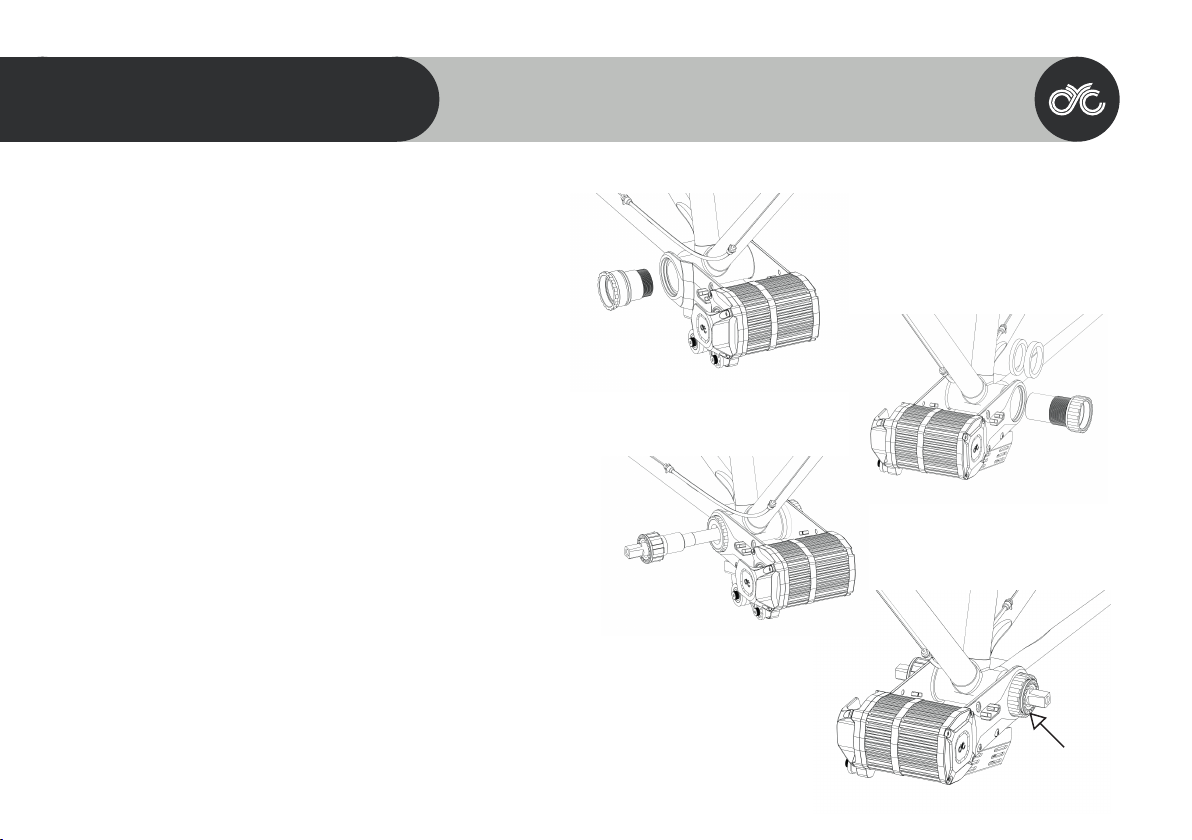

Installation of BB92 version
Line up the motor body with your bike at the bottom bracket.
01.
Insert the right (drive side) bottom bracket cup through the hole
on the right mounting plate into the bike’s bottom bracket
shell. Use press-fit bottom bracket tool to insert.
02.
If any spacers are needed, place the spacer/s between the
bracket & the bottom bracket shell on the left (non-drive side).
Insert the left bottom bracket cup through the hole on the left
mounting plate into the bike’s bottom bracket shell. Rotate
clockwise and tread into drive side bottom bracket cup. Tighten
well.
03.
Insert the spindle from the right (drive-side) side of the rear
mounting bracket hole through to the left side of the rear
mounting bracket hole.
04.
Screw on the left (non-drive side) bottom bracket cap.05.
Kindly note that there are installation videos available at
https://www.cycmotor.com/x1-stealth
05.
03.
04.
01.
02.

03 INSTALLATION
Installation of BB92 version
Remove the right (drive side) bottom bracket cap & the front
chain ring cover.
06.
Place the chain over the outer chain ring (note that the bike's
chain ring will be placed on the inner chain ring & hang the
chain ring with the chain over the spindle. Push the tensioner
down to place the chain over the sprocket.
07.
Slide the chain ring in place (over the spindle), screw on the
right (drive side) bottom bracket cap & install the front chain
ring cover again as shown.
08.
Install the left & right crank arm and screw on with the crank
bolt.
09.
06.
07.
08.
09.
Kindly note that there are installation videos available at
https://www.cycmotor.com/x1-stealth

03 INSTALLATION
Mounting the Hanger
Place 1 of the aluminium joints on the inside of the brackets &
screw in the bolt to attach it to the motor's mounting plate.
01. Position the hanger over the bike's frame & screw in the hanger
to the aluminium joint loosely.
02.
Insert the rubber between the frame & the bracket.
03. Place the 2nd aluminium joint on the other side of the
mounting bracket & connect the hanger fully. Tighten the
hanger to ensure that the motor is secured.
04.
Step 1
Step 2
Step 3
Step 4

03 INSTALLATION

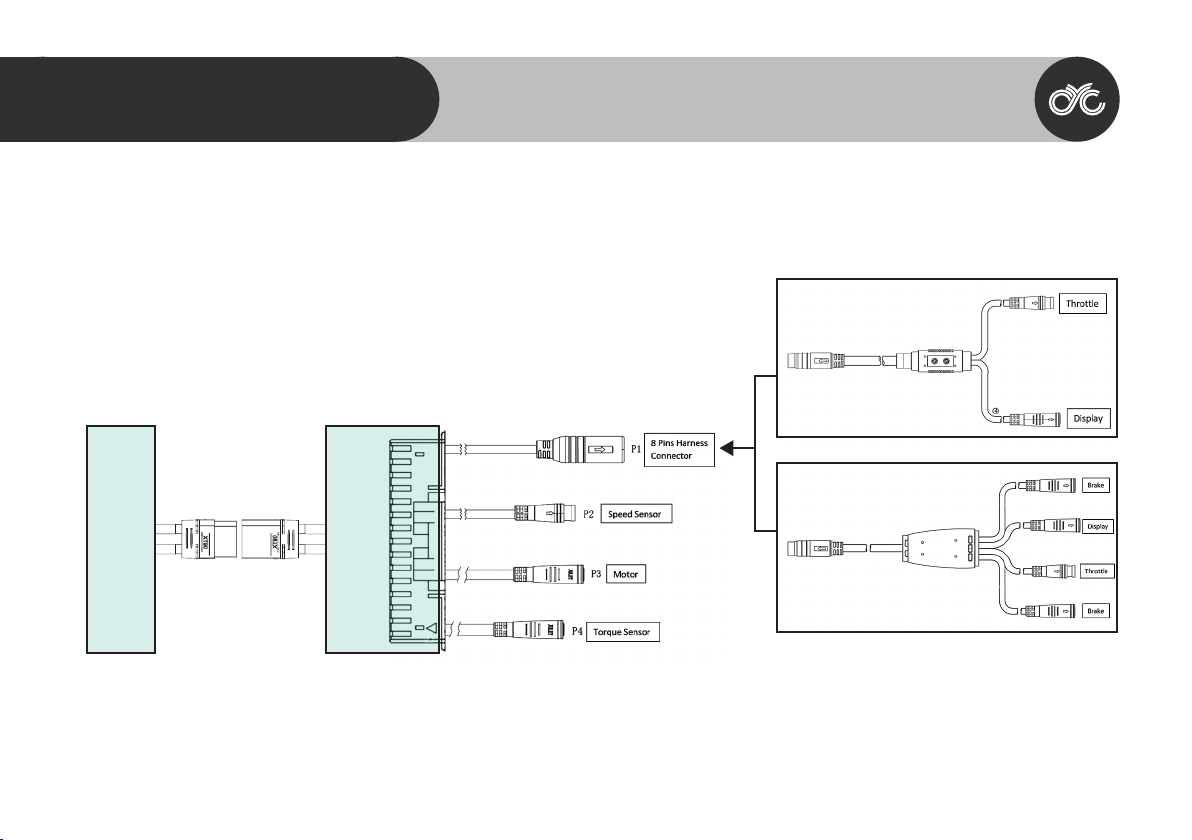

Wiring & Connection
XT90
(Male)
XT90
(Female)
Battery
1-4 Wiring Harness
1-2 Wiring Harness
P3(6Pins) wire length: ≈130mm
P2(3Pins) wire length: ≈200mm
P1(8Pins) wire length: ≈300mm
or
3Pins wire ≈116mm
3Pins wire
3Pins wire ≈116mm
8Pins Harness
Connector
8Pins Harness
Connector
5Pins wire ≈112mm
5Pins wire
3Pins wire ≈120mm
P4(6Pins) wire length: ≈80mm
Controller

04 MOBILE APP & DISPLAY
Kindly download the display & mobile app user manuals from the link below or scan the QR code. All materials listed below are freely available
for download on the CYC website.
https://www.cycmotor.com/x1-pro-gen-2#comp-kkxfisjz
Included in this link:
Brochure
User Manual
Mobile App Guide
APT 500c Display User Manual
APT 750c Display User Manual
Speed Sensor Installation Guide
Brake Sensor Installation Guide
1:1 printouts for mounting reference

05 QUICK START
STEP 1
Ensure that all wires are properly connected & that your system can
switch on by long pressing the display’s power button. Check that
the display shows your battery voltage & level. Should your display
briefly show Error 30H upon start-up, this is normal as the system
takes a moment to connect. Should your battery voltage & level not
display, refer to step 3.
STEP 2
Ensure that your pedal assist & throttle are working correctly. To
test this, connect to the app & change to Assist Level 0 on your
display. You can test the PAS by looking at the app’s dashboard &
turning the crank set. If your Average Pedal RPM reading changes,
then your PAS is working. To test the throttle, open your throttle &
check that your Throttle In voltage changes.
STEP 3
Set up the correct information on your display. You will need to
enter your wheel diameter, battery voltage (if incorrect), & your
preferred number of assist levels. Kindly see your display’s user
manual for instructions.
Ensure that you test the PAS & throttle in Assist
Level 0 as to prevent your bike from thrusting
forward.
