CYCMOTOR X1 STEALTH GEN 3 User manual

X1 STEALTH GEN 3
User Manual
CYC MOTOR LTD
[e-mail] [phone]

1
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
TABLE OF CONTENTS
SAFETY & PRECAUTION........................................................................3
General Safety ....................................................................................................................................3
Before the Ride...................................................................................................................................3
Installation & Use ...............................................................................................................................4
Disclaimer...........................................................................................................................................4
Warning............................................................................................................................................... 5
TECHNICAL SPECFICIATIONS .............................................................6
Description .........................................................................................................................................6
General ............................................................................................................................................... 6
Motor...................................................................................................................................................6
Controller............................................................................................................................................ 6
Gearbox ..............................................................................................................................................7
Parts List............................................................................................................................................. 8
Dimensions....................................................................................................................................... 10
BSA Threaded 68/73/83mm Version............................................................................................ 10
BB92 Version................................................................................................................................. 11
INSTALLATION....................................................................................... 12
Required Tools ................................................................................................................................. 12
Operating Notice.............................................................................................................................. 13
Mounting Options for Controller ..................................................................................................... 13
Adjusting the Width of the Bottom Bracket .................................................................................... 13
Installation of 68/73/83mm version ................................................................................................ 15
Installation of BB92 version............................................................................................................. 18
Mounting the Hanger ....................................................................................................................... 22
Wiring & Connection......................................................................................................................... 24
MOBILE APP & DISPLAY.....................................................................25
GENERAL MAINTENANCE ..................................................................26
Torque Requirement for Bolts ......................................................................................................... 27
Bolt Specifications ........................................................................................................................... 27

2
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
WARRANTY............................................................................................ 28
PURCHASES FROM A CYC DEALER ............................................... 28
CONTACT INFORMATION.................................................................. 28
DISCLAIMER ...........................................................................................29
PRIVACY POLICY...................................................................................29
INFORMATION AND COLLECTION USE..........................................29

3
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
SAFETY & PRECAUTION
General Safety
Kindly read through the entire user manual. This manual contains important information to
reduce user risk as well as instructions for this product’s proper use. Do not discard the manual
but keep it for reference.
Note that your personal safety remains your responsibility and that the user must contact
CYCMOTOR LTD or their official product dealer/distributor directly for any further guidelines or
assistance.
Never interfere with the movable parts when the drive unit is connected to a power supply. This
could result in serious injury if the system is accidently engaged.
This product is a powerful motor system that is dangerous for children and must be handled by an
adult at all times. Small components and accessories may also present a choking hazard. Keep the
motor system and accessories out of reach from children.
All components and accessories may only be replaced with identical components directly
supplied by CYC MOTOR LTD or an official product dealer/distributor. CYC MOTOR LTD cannot be
held liable for any damages as a result of using unapproved parts.
This product only complies with local, state, and federal regulations if speed limits are set
accordingly. Ensure that you have set up your X1 Pro kit according to your local, state, and federal
regulations when using and registering this drive unit on a public road/area.
Before the Ride
Ensure that the drive unit chain has the proper tension. Incorrect tension could cause jamming of
the system and result in injury while riding. Inspect the chain tension regularly.
Ensure that the chains are properly lubricated. Cleaning and lubricating your chain with a regular
bicycle chain cleaner, is advised regularly.
When plugging in your kit, please ensure that your peripherals are connected properly as faulty
connection could result in damage of the controller or batteries.

4
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Inspect all electrical wires and plugs for damage regularly.
Secure all wires properly. Ensure that the throttle can bet twisted freely without friction and that
the throttle can return to its original position without restriction. This is to prevent any
uncontrolled response of the system.
Installation & Use
Do not install anything other than the parts and accessories that came with this drive unit. Doing
so could damage the product.
The drive system can be activated and deactivated by holding down the ON/OFF button of the
display.
Avoid changing the bike gear (note: this is different from the drive unit’s assist level) while the
drive unit is powering the bike. This may lead to excessive wear on the chain and chain rings or
other gear related failure. When changing gears, use human input only. After the gear is changed,
you may accelerate again with the throttle or continue using the PAS.
Take off with the appropriate assist level and bike gear.
This product is splash proof and rain proof but not waterproof. Do not submerge it underwater.
Disclaimer
If you require any more information or have any questions about the user manual disclaimer,
please feel free to contact us via email at [e-mail] or call [phone].
All the information contained in this manual is published in good faith and for general
informational purposes only. CYC MOTOR LTD does not make any warranties about the
completeness of this information and encourages further inquiries If needed. CYC MOTOR LTD will
not be held liable for any losses and/ or damages in connection with the use of this product. The
use of this product is at own risk.

5
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Please contact CYC MOTOR LTD if you are unsure about the assembly instructions or for any
further assistance as CYC MOTOR LTD will be held liable for any losses and/ or damages created by
the assembly.
The control unit’s hardware and software are under the GPL V3 open-source license. VESC® is a
trademark of Benjamin Vedder. More information can be found at www.gnu.org/licenses/gpl-
3.0.html. CYCMOTOR LTD’s source code can be found at www.github.com/CYC-MOTOR. Different
firmware can be loaded to this controller.
Warning
Any issues with this product’s performance or damages sustained to the product as a result of
loading unauthorized firmware, will not be supported, or warrantied by CYCMOTOR LTD or any
authorised product dealer.
Modifications of any kind is not advised. Any issues with this product’s performance or damages
sustained to be the product as a result of modifications will not be supported or warrantied by
CYCMOTOR LTD or any authorized product dealer. If the product or its components have been
found to be modified, warranty of the product may be limited in the case where troubleshooting
and/ or replacement may be needed.

6
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
TECHNICAL SPECFICIATIONS
Description
This product is a high-powered electric bike (ebike) drive unit kit which includes a programmed
control unit and peripherals. This product is designed to be installed as a conversion system to
convert standard bicycles into electric bicycles.
General
Rated Nominal Voltage
36V – 52V
Max. RPM (at crank)
>300 RPM
Rated Power
1500W
Max. Torque (at crank)
150 N.m.
Colour
Anodized Black
Weight of Motor & Controller
2.7 kg
Total Weight with Crankset & BB
4.5 kg
Bracket Materials
7075-T6
Crank Arm Length
165mm or 175mm
Q Factor
190mm
Control Method
FOC
Motor Sensor
Hall & Temp. Sensor
Chainring
32T with 52T motor chainring
38T with 63T motor chainring
Compatibility
68-83mm, BB92, BB30/PF30 (compatible with
adapter)
Motor
Motor Type
BLDC Out-runner
No-load Motor Kv
150
Stator Lamination
0.2mm
Magnet
N45UH (>180 °C)
Efficiency (at 2N.m.)

93%
Peak RPM
12,600 RPM at 84V
Epoxy sealed
Black Epoxy Potted Stator
Controller
Type
CYC X6 Controller
Nominal Voltage
36V – 72V
Max. Input Current
65A
Bluetooth
Connectivity via speed sensor
Mobile App
CYC Ride Control App for iOS & Google Play

7
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Mounting Position
Integrated between bottom bracket /
mounted separately
Gearbox
First Stage Reduction
Hardened steel sun & ring gear with brass
planetary gears
Second Stage Reduction
219H Chain
Overall Reduction 1:28.9 (11/53T)
1:34.4 (11/63T)

8
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL

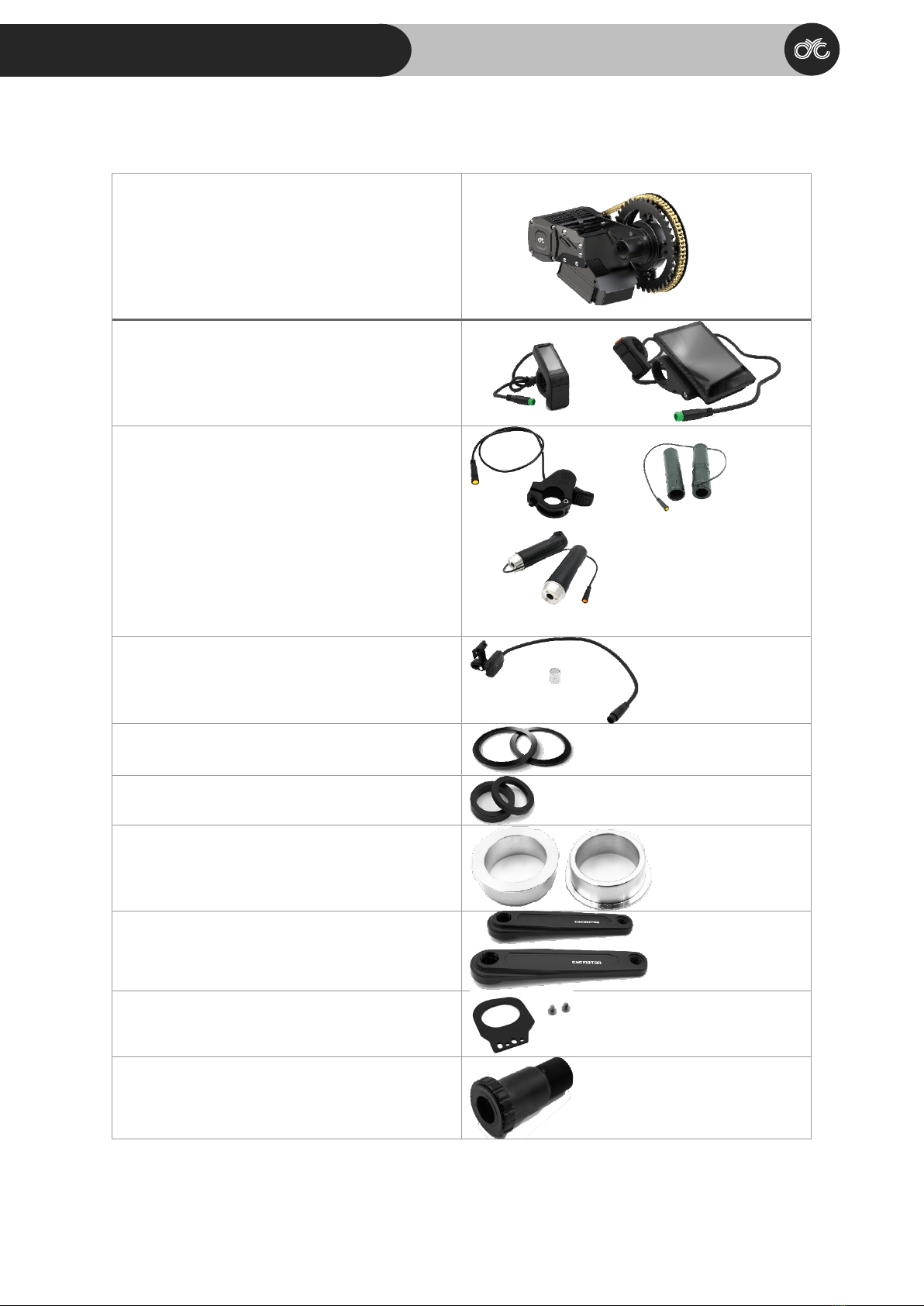

Parts List
X1 Stealth Gen 3 Motor Assembly with
Chainring & controller
SW102 or DS103 Display
or
Thumb, Half-Twist or Full Throttle
or or
Magnetic Bluetooth Speed Sensor
Bottom Bracket Spacers
Spindle Spacers
BB92 to BSA adapters
Crankarms with Crankarm Bolts
Left Adapter Plate
Left Bottom Bracket Cup

9
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Mounting Hanger
Retaining Lock Ring
Spindle
(OPTIONAL) Magnetic Brake Sensors
(OPTIONAL) Controller Extension Wires

10
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL

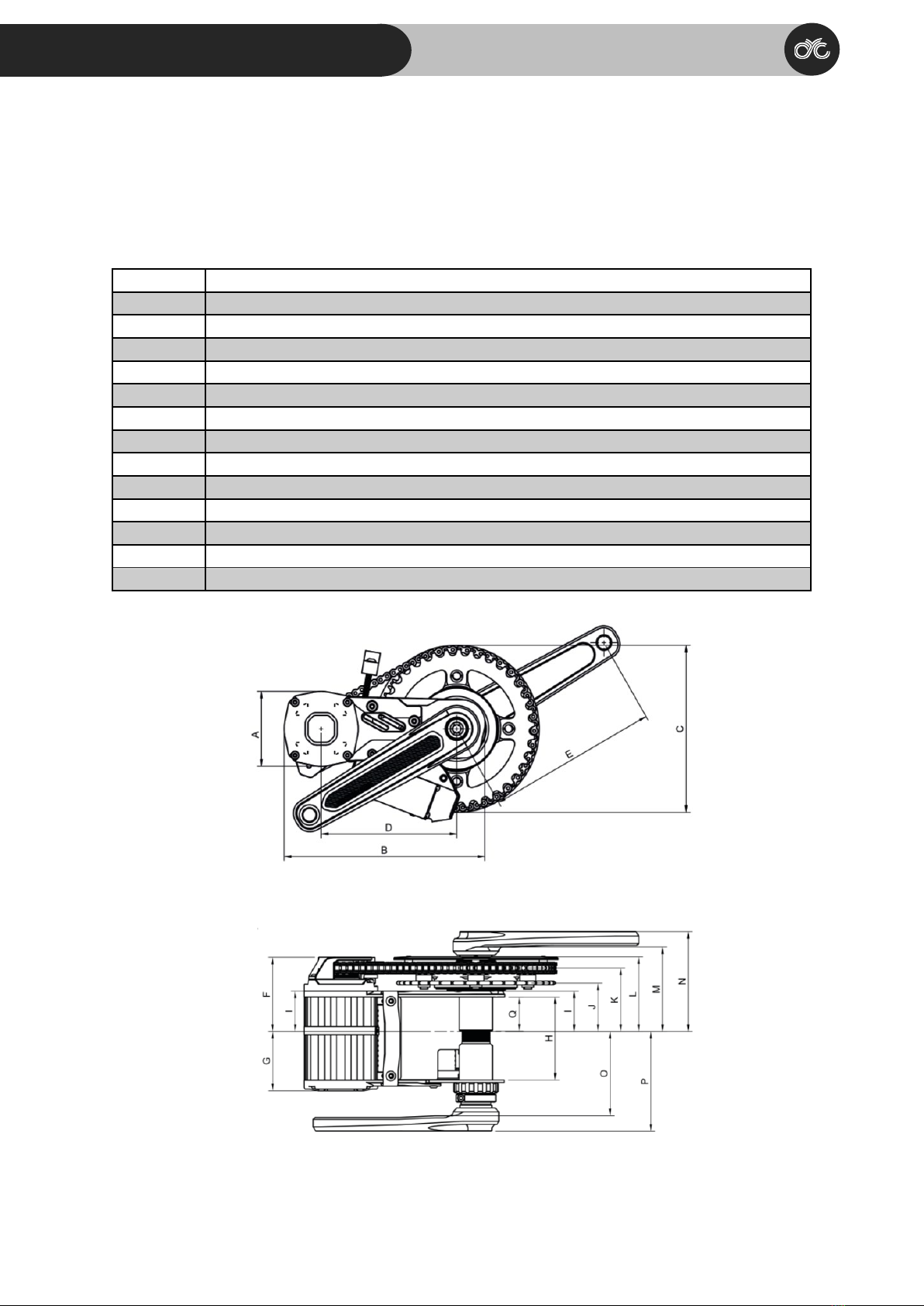

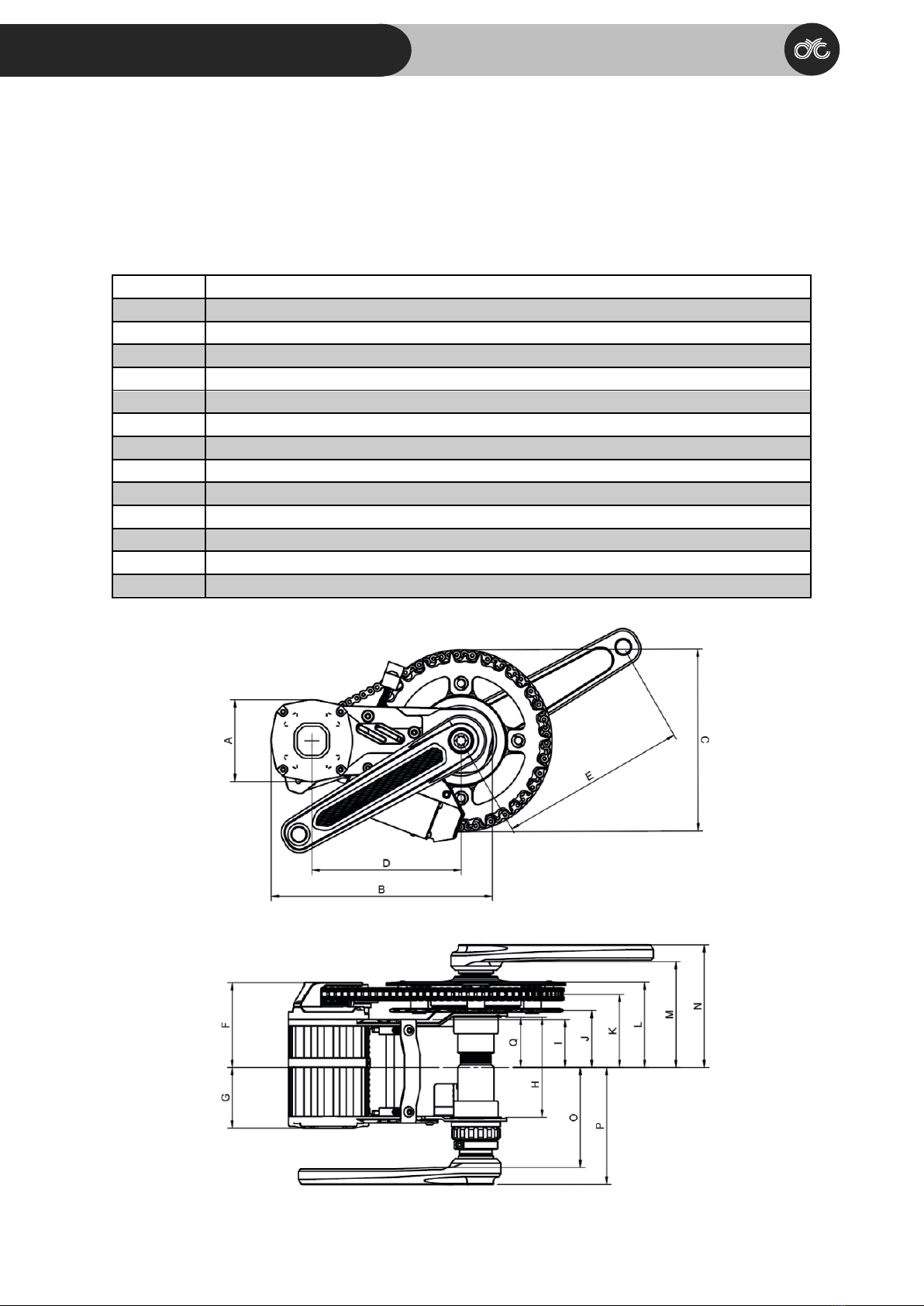

Dimensions
BSA Threaded 68/73/83mm Version
A
74mm
B
201mm
C
140mm
D
135.5mm
E
165mm
F
81.4mm
G
52.4mm
H
83mm
I
47.5mm
J
55.6mm
K
70.59mm
L
81.9mm
M
91.6mm
N
107.1mm

11
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Dimensions
BB92 Version
A
74mm
B
201mm
C
165mm
D
135.5mm
E
170mm
F
77.92mm
G
55.9mm
H
92mm
I
53mm
J
61.1mm
K
76.1mm
L
87.4mm
M
97.1mm
N
112.6mm

12
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
INSTALLATION

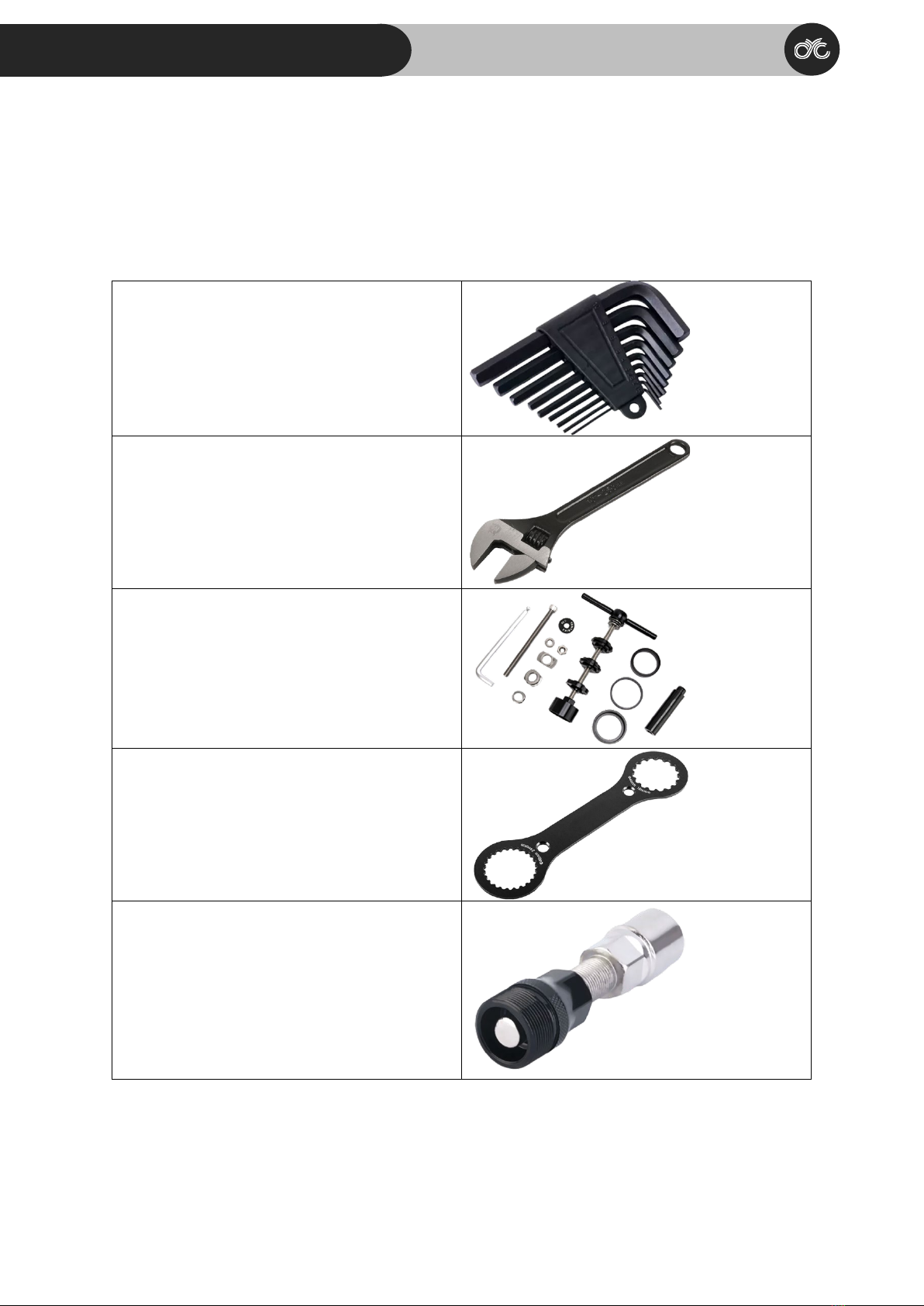

Required Tools
Hex Keys (3mm & 8mm)
Adjustable Wrench
PressFit Bottom Bracket Removal Tools (Only
for BB92 version)
16 Notch Bottom Bracket Tool
Crank Puller (for disassembly)

13
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Operating Notice
RIGHT-HAND and LEFT-HAND sides are determined by the bike handle; Right-hand corresponds to
the right handle.
Mounting Options for Controller
The CYC X6 controller can be mounted below the bottom bracket (pre-assembled by default) or
mounted elsewhere on the bicycle frame at the user’s discretion using controller extension wires
that can be selected upon purchase or bought separately from the CYC online store or an
authorized dealer.
NOTE: The controller comes preassembled at the bottom bracket between the mounting plates.

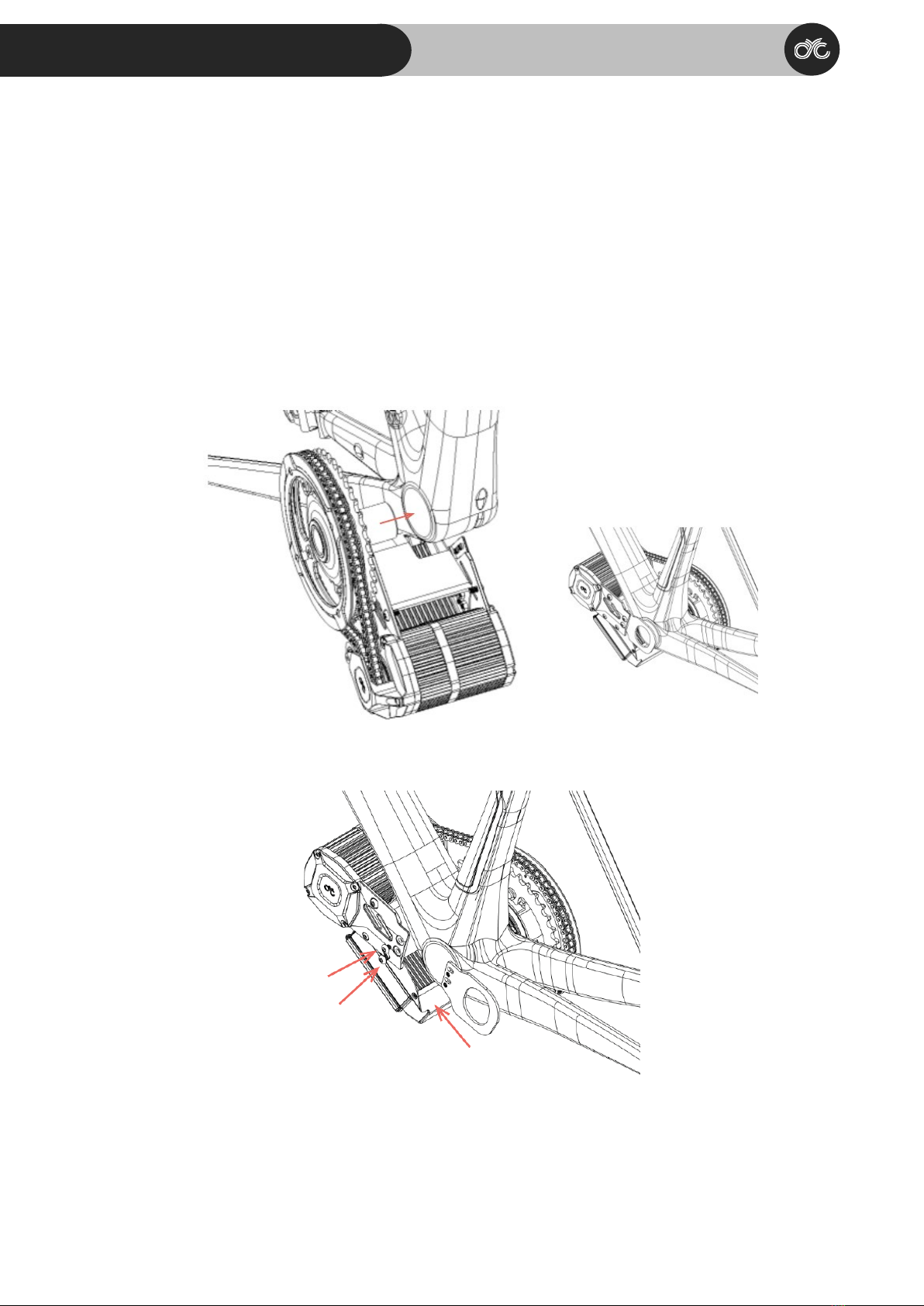

Adjusting the Width of the Bottom Bracket
In order for the CYC kit to fit on various different widths of bottom brackets, there are several
spacers that come with the kit. These spacers are designed to provide the bottom brackets with
necessary spacing between the motor brackets.
Please note that the spacers can be adjusted to accommodate different chainlines as needed.
The preferred mounting set-ups are shown on the next page for 68mm and 73mm bottom
brackets. Note that the spacers can be adjusted to accommodate different chain lines as needed.
Before you begin, ensure that you have removed the original crank set and bottom bracket from
your frame. This includes any bearings and/or cups that might have been fitted previously. To
install your CYC kit, you will need a clean bottom bracket shell on your frame.

14
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
*68mm bottom brackets require a 7mm and a 5mm spacer on the left (non-drive side) and a 3mm
spacer on the right (drive side) as shown.
*73mm bottom brackets require a 7mm & 3mm spacer on the left (non-drive side) and no spacer
on the right (drive side) as shown.

15
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL

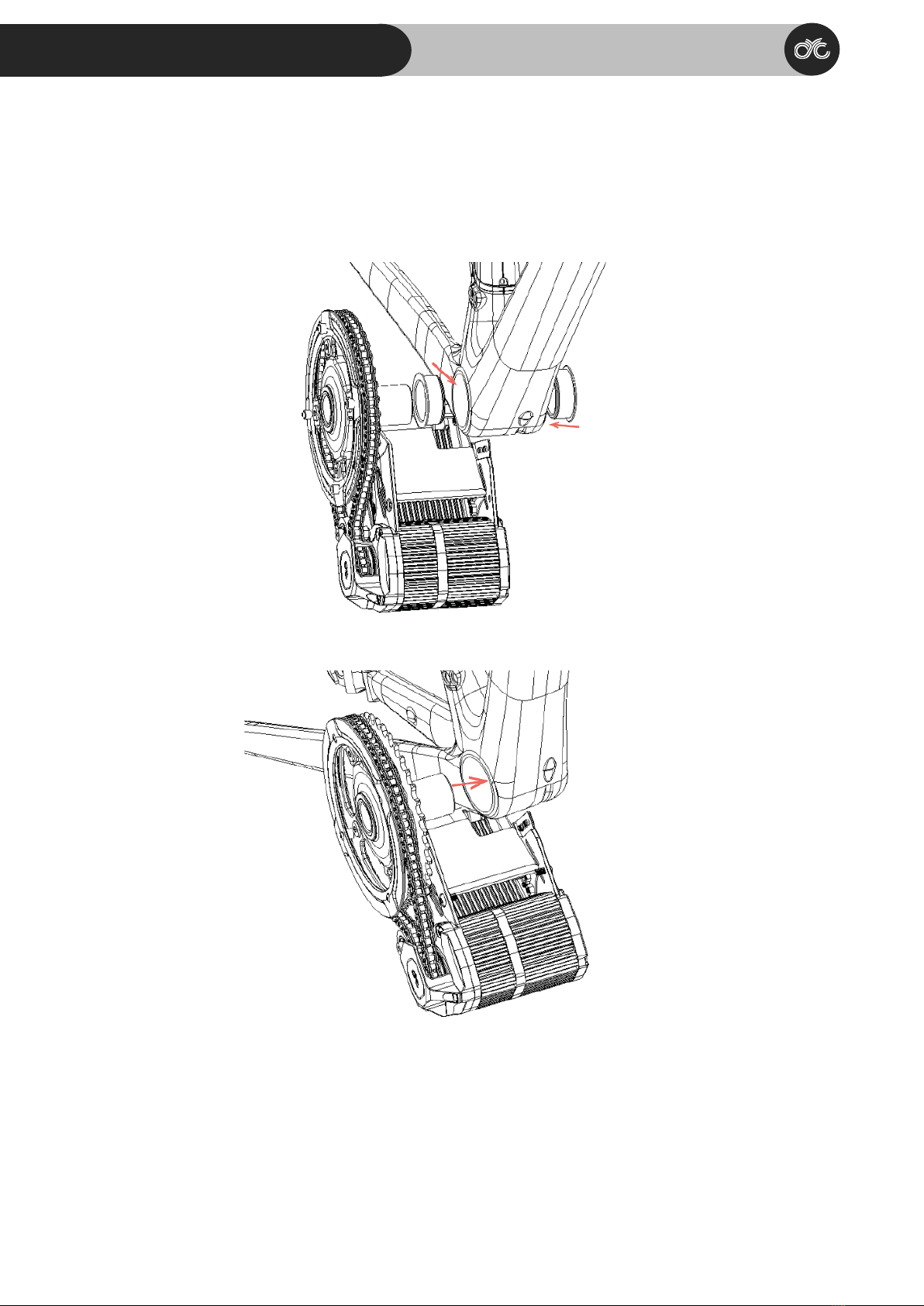

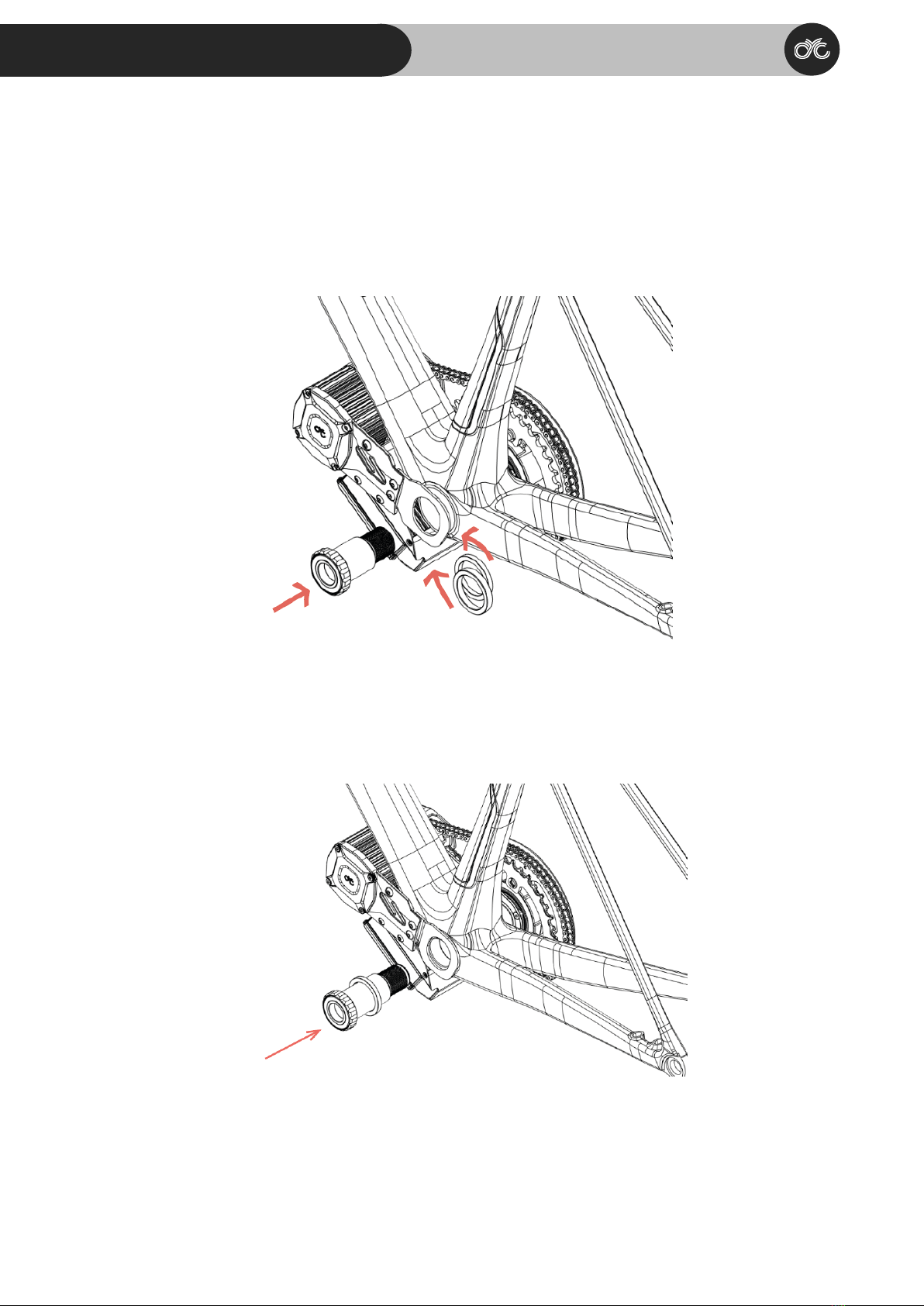

Installation of 68/73/83mm version
1. Line up the motor body with your frame at the bottom bracket, place the bottom bracket
spacers accordingly (if applicable) and insert the right (drive) side of the motor into the
frame’s bottom bracket shell.
a. For a 68mm bottom bracket shell, place the 3mm bottom bracket spacer over the
right (drive) side bottom bracket cup before inserting it into the frame’s bottom
shell.
b. For a 73mm & 83mm bottom bracket shell, there is no need to add any bottom
bracket spacers on the right (drive) side.
c. Note that the spacer/s can be added as needed. The above spacer placing
directions are guidelines only.
2. Add 2 x M5*6 screws into the left (non-drive) side adapter bracket and the mounting
bracket.
3. Line up the 3, 5, and/ or 7mm bottom bracket spacer/s provided inside the adapter
bracket plate on the left (non-drive) side of the frame. Thread the left (non-drive) side

16
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
bottom bracket cup into the frame’s bottom bracket shell through the spacer/s and the
adapter bracket plate. Rotate clockwise but do not tighten fully yet.
a. For a 68mm bottom bracket shell, place the 5mm & 7mm bottom bracket spacer
over the left (non-drive) side bottom bracket cup before inserting it into the
frame’s bottom bracket shell.
b. For a 73mm bottom bracket shell, place the 3mm & 7mm bottom bracket spacer
over the left (non-drive) side bottom bracket cup before inserting it into the
frame’s bottom bracket shell.
c. For an 83mm bottom bracket shell, there is no need to add any in any bottom
bracket spacers on the left (non-drive) side.
4. Add the 5mm bottom bracket spacer provided outside the adapter bracket plate on the
left (non-drive) side of the frame. Thread the left (non-drive) side bottom bracket cup into
the frame’s bottom bracket shell through the spacer and the adapter bracket plate. Rotate
clockwise.
5. Insert the spindle from the right (drive) side. Note that you will need to line up the splines
with the chainring assembly. If your spindle does not go through or comes to a hard stop

17
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
before being fully inserted, rotate the spindle a bit and try again. Once the spindle is lined
up, a soft tip hammer may also be used to get the spindle all the way through.
6. Install the motor hanger (see page 23) and place the rubber padding provided in between
the motor and the frame.
7. Install the left (non-drive) and right (drive) side crank arm according to the L and R
indication on your crank arms. Place the spindle spacer in between the left (non-drive)
side crank arm and the lock ring before installing the crank arms. Use the M15 ISIS crank
arm screws to tighten and secure the crank arms.
8. Place your bicycle chain over the inner chain ring. Note that you will need to undo the
quick link to split your chain.
9. Connect the peripherals and your battery.
10. Test run and have fun! Use responsibly.

18
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
Installation of BB92 version
1. Insert the BB92 to BSA adapters provided to the frame’s bottom bracket shell. Use a pressfit
installation tool to insert the adapters.
2. Line up the motor body with your frame at the bottom bracket and insert the right (drive) side
of the motor into the frame’s bottom bracket shell.

19
©2023 CYC MOTOR LTD
X1 STEALTH GEN 3 USER MANUAL
3. Add 2 x M5*6 screws into the left (non-drive) side adapter plate and the mounting bracket.
4. Add the 5mm bottom bracket spacer provided outside the adapter bracket plate on the left
(non-drive) side of the frame. Thread the left (non-drive) side bottom bracket cup into the
frame’s bottom bracket shell through the spacer and the adapter bracket plate. Rotate
clockwise.
5. Insert the spindle from the right (drive) side. Note that you will need to line up the splines with
the chainring assembly. If your spindle does not go through or comes to a hard stop before
being fully inserted, rotate the spindle a bit and try again. Once the spindle is lined up, a soft
tip hammer may also be used to get the spindle all the way through.
