CYP CH-2527TXPL User manual

CH-2527TXPL & CH-2527RXPL
HDMI over HDBaseT Transmitter (PD)
and Receiver (PSE)
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2017 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VS1 09/11/17 Preliminary release
VS2 24/11/17 Updated section 8

CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Transmitter's Front and Rear Panels......... 3
6.2 Receiver's Front and Rear Panels............ 4
6.3 IR Cable Pin Assignments ......................... 5
6.4 RS-232 Protocol.......................................... 5
7. Connection Diagram ......................................6
8. Specications ..................................................7
8.1 Transmitter's Technical Specications..... 7
8.2 Receiver's Technical Specications........ 8
8.3 Video Specications................................. 9
8.4 Cable Specications .............................. 10
9. Acronyms .......................................................10

1
1. INTRODUCTION
This transmitter and receiver set is a great solution for extending
uncompressed HD audio and video as well as Ethernet and control
via a single run of Cat.5e/6/7 cable over distances of up to 70 meters.
Multiple data and control interfaces are provided, including IR and RS-
232 connections. This extender set complies with the advanced HDCP
2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x
and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH
(Power over HDBaseT) provided by the Receiver (PSE), allowing for
greater exibility within different installation scenarios.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
Transmitter
• 1×HDMI over HDBaseT Transmitter (PD)
• 1×IR Blaster Cable
• 1×Operation Manual
Receiver
• 1×HDMI over HDBaseT Receiver (PSE)
• 1×IR Extender Cable
• 1×48V/0.83A DC Power Adaptor
• 1×Power Cord
• 1×Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI input source equipment such as a Blu-ray player, game
console or set-top box.
• HDMI output equipment such as an HDTV, projector or AV receiver.
• Industry standard Cat.6 or Cat.6a cables are recommended.
• The use of “Premium High Speed HDMI” cables is recommended.
5. FEATURES
• HDMI with 3D & 4K support, DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• Supports resolutions up to 4K@50/60Hz (4:2:0, 8-bit)
• Supports CEC bypass
• Simultaneous transmission of uncompressed video, audio and data
over a single 70m/230ft Cat.5e/6/7 cable at 1080p60 and 35m/115ft
at 4K
• HDBaseT feature support: HD Video and Audio, 48V PoH, and
Control (bidirectional IR/RS-232 pass-through)
• Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD)
(compatible Transmitters only)
Notes:
• The 48V PoH function is designed to power compatible Transmitter
units only. Non-PoH Transmitters will need their own power supply.
Other brands of Transmitter may not be compatible.
• The use of “Premium High Speed HDMI” cables is highly
recommended for displaying 3D and 4K content and compatible
display equipment is required.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter's Front and Rear Panels
POWER
LINK
RS-232 IN
STD UPDATE
CAT5e/6/7 OUT
IR1
EXTENDER
IR2
BLASTER
HDMI IN
1 2 43 5 6 7 8
1STD/UPDATE: This switch is reserved for factory use only.
2RS-232 IN: Connect to a PC, laptop or other serial control device
for the extension of RS-232 signals.
3POWER LED: This LED will illuminate to indicate the unit is on and
receiving power via PoH.
4LINK LED: This LED will illuminate solid when both Transmitter and
Receiver are connected and communicating with each other
properly.
5IR2 BLASTER: Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6IR1 EXTENDER: Connect to the supplied IR Extender cable for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
7CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with
a single Cat.5e/6/7 cable for transmission of all data signals.
8HDMI IN: Connect to HDMI source equipment such as a media
player, game console or set-top box. DVI sources are supported
with the use of an HDMI to DVI adapter.

4
6.2 Receiver's Front and Rear Panels
CAT5e/6/7 IN
IR2
EXTENDER
IR1
BLASTER
HDMI OUT
DC 48V
POWER
LINK
RS-232 OUT
STD UPDATE
1 2 43 6
57 8 9
1STD/UPDATE: This switch is reserved for factory use only.
2RS-232 OUT: Connect to a serial controllable device for the
extension of RS-232 signals.
3POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
4LINK LED: This LED will illuminate solid when both Transmitter and
Receiver are connected and communicating with each other
properly.
5DC 48V: Plug the 48V DC power adapter into this port and connect
it to an AC wall outlet for power.
6IR1 BLASTER: Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
7IR2 EXTENDER: Connect to the supplied IR Extender cable for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
8CAT5e/6/7 IN: Connect to a compatible HDBaseT Transmitter with
a single Cat.5e/6/7 cable for transmission of all data signals.
9HDMI OUT: Connect to an HDMI TV, monitor or amplier for digital
video and audio output.

5
6.3 IR Cable Pin Assignments
3
1
2
IR Signal
Power
Ground
IR Extender
3
2
1
IR Blaster
Power
IR Signal
NC
6.4 RS-232 Protocol
TX
►
◄
RX
Pin Denition Pin Denition
1 NC 1 NC
2TxD 2RxD
3RxD 3TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 115200bps
Data Bits: 8
Parity Bits: None
Stop Bits: 1
Flow Control: None

6

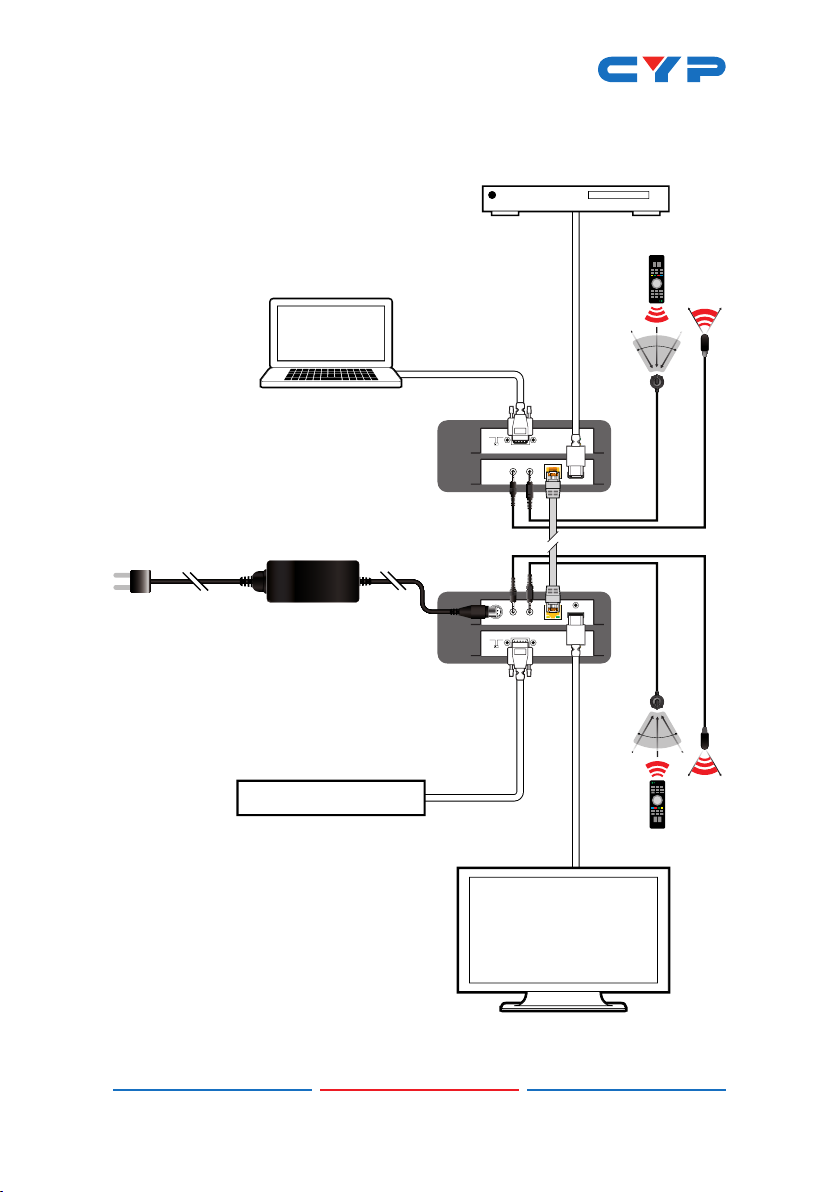

7. CONNECTION DIAGRAM
RX
TX POWER
LINK
RS-232 IN
STD UPDATE
CAT5e/6/7 OUT
IR1
EXTENDER
IR2
BLASTER
HDMI IN
CAT5e/6/7 IN
IR2
EXTENDER
IR1
BLASTER
HDMI OUT
DC 48V
POWER
LINK
RS-232 OUT
STD UPDATE
1.5m
60°
7m3m 3m
60°
7m3m 3m
60°
1.5m
60°
DVD/Blu-ray Player
Ultra HDTV
RS-232 Controlled
Device
Power Supply
RS-232
RS-232
RS-232 Equipped
PC/Laptop
HDMI
Input
HDMI
Output
Cat.5e/6/7 Cable
IR In & Out
IR In & Out

7
8. SPECIFICATIONS
8.1 Transmitter's Technical Specications
Video Bandwidth 340Hz/10.2Gbps
Input Port 1×HDMI
Output Port 1×Cat.5e/6/7
Pass-through Ports 1×IR Extender [3.5mm]
1×IR Blaster [3.5mm]
1×RS-232 [9-pin D-sub]
Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0, 8-bit)
VGA@60Hz - WUXGA@60Hz (RB)
HDMI Cable Length 10m (1080p@60Hz, 12-bit)
5m (4K@60Hz, 4:4:4, 8-bit)
CAT5e/6 Cable Length 70m (1080p@60Hz, 12-bit)
35m (4K@60Hz, 4:2:0, 8-bit)
IR Frequency 30 - 50kHz (30 - 60kHz under ideal
conditions)
Baud Rate Up to 115200bps
Power Supply 48V PoH
ESD Protection Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions 128mm×25mm×108mm (W×H×D)
[Case Only]
128mm×25mm×117m (W×H×D)
[All Inclusive]
Weight 370g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C - 40˚C/32˚F - 104˚F

8
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity 20 - 90% RH (Non-condensing)
Power Consumption 4.71W
8.2 Receiver's Technical Specications
Video Bandwidth 340Hz/10.2Gbps
Input Port 1×Cat.5e/6/7
Output Port 1×HDMI
Pass-through Ports 1×IR Extender [3.5mm]
1×IR Blaster [3.5mm]
1×RS-232 [9-pin D-sub]
Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0, 8-bit)
VGA@60Hz - WUXGA@60Hz (RB)
HDMI Cable Length 10m (1080p@60Hz, 12-bit)
5m (4K@60Hz, 4:4:4, 8-bit)
CAT5e/6 Cable Length 70m (1080p@60Hz, 12-bit)
35m (4K@60Hz, 4:2:0, 8-bit)
IR Frequency 30 - 50kHz (30 - 60kHz under ideal
conditions)
Baud Rate Up to 115200bps
Power Supply 48V/0.83A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions 128mm×25mm×108mm (W×H×D)
[Case Only]
128mm×25mm×117m (W×H×D)
[All Inclusive]
Weight 366g

9
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C - 40˚C/32˚F - 104˚F
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity 20 - 90% RH (Non-condensing)
Power Consumption 8.74W
8.3 Video Specications
Supported Resolutions (Hz) Input Output
640×480@60/72/75/85  
800×600@56/60/72/75/85  
1024×768@60/70/75/85  
1280×720@60  
1280×1024@60  
1600×1200@60  
1920×1200@60 (RB)  
480i/576i  
480p/576p  
720p@50/60  
1080i@50/60  
1080p@50/60  
1080p@24/25/30  
3840×2160p@24/25/30  
4096×2160p@24  
4096×2160p@50/60 (4:2:0)  

10
8.4 Cable Specications
Cable Type Cable Length Supported Video Format
Cat.5e/6/7 70 meters Full HD video:
• Up to 1080p@60Hz, 12-bit color
• Data rates lower than 5.3Gbps
or below 225MHz TMDS clock
Cat.5e/6/7 35 meters Ultra HD video:
• 4K@24/25/30Hz & 4K@50/60Hz
(YUV 4:2:0), 8-bit color
• Data rates higher than
5.3Gbps or above 225MHz
TMDS clock
9. ACRONYMS
ACRONYM COMPLETE TERM
Cat.5e Category 5 (enhanced) Cable
Cat.6 Category 6 Cable
Cat.7 Category 7 Cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
HD High-Denition
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
IR Infrared
LAN Local Area Network
PoH Power over HDBaseT
VGA Video Graphics Array (640×480@60Hz)
WUXGA Wide Ultra Extended Graphics Array
(1920×1200@60Hz)

CYPRESS TECHNOLOGY CO., LTD.
www.cypress.com.tw
