CYP PUV-1630TXWP-EU User manual

OPERATION MANUAL
PUV-1630TXWP-EU
2x HDMI, 1x VGA over Single CAT5e/6/7 HDBaseT™
Wall Plate Transmitter (EU)

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 11/02/2019 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................7
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......9
6.1 Front Panel................................................... 9
6.2 Rear Panel...................................................10
6.3 WebGUI Control .......................................11
6.4 Serial Control (Via Receiver).................20
6.5 Telnet Control............................................20
6.6 RS-232 and Telnet Commands............21
7. Connection Diagram .......................... 36
8. Specifications...................................... 37
8.1 Basic Specifications.................................37
8.2 Video Specifications................................38
8.3 Audio Specifications...............................40
8.4 Cable Specifications ...............................41
8.5 HDBaseT Features....................................42
9. Acronyms............................................. 42

6
1. INTRODUCTION
This HDBaseT Wall Plate Switch with Signal Management is an HDMI and
VGA switch with audio embedding and HDBaseT output. The wall plate
is designed for use with EU two-gang sized enclosures. This Transmitter
can send uncompressed high-denition video/audio over a single cable
up to a distance of 100 meters at 1080p@60Hz. The HDMI inputs support
resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports
resolutions up to WUXGA (RB). With the use of the 3.5mm audio input,
stereo audio may be embedded with VGA or DVI/HDMI sources as well.
Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K
UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can
be supported and will be automatically converted to 8-bit colour, or the
4:2:0 colour space when necessary.
Signal management features such as automatic switching based on input
signal and hot plug detection enable convenient hands-free operation.
A multi-function button on the face of the unit provides access to an
information OSD as well as allowing manual input selection. Additional
functionality such as EDID management, HDCP management and basic
signal event automation (which can send customised RS-232 or CEC
commands to external devices automatically) is also available.
This Transmitter may be powered locally or via 48V PoH from a compatible
HDBaseT Receiver, which allows for greater exibility in installations.
The unit can be controlled via the front panel button with OSD, WebGUI,
and Telnet. When paired with a compatible Receiver RS-232 control also
becomes available making it exceptionally versatile.
2. APPLICATIONS
Household entertainment sharing and control
Lecture halls, auditoriums and classroom
Houses of worship
Conference rooms and boardrooms
Hotel event spaces

7
3. PACKAGE CONTENTS
HDBaseT Wall Plate Switch (EU 2-Gang)
1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI or VGA source equipment such as media players, video game
consoles, PCs, or set-top boxes.
A compatible HDBaseT Receiver is required. An HDBaseT Receiver
capable of suppling 48V PoH is recommended.
The use of “Premium High Speed” HDMI cables, and industry standard
Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
2 HDMI inputs
1 VGA input with 3.5mm mini-jack audio input
Wall plate is designed for EU two-gang sized enclosures
Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports VGA input resolutions up to WUXGA (RB)
Analogue stereo audio may be embedded with VGA or DVI/HDMI
sources
HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit)
with automatic colour space conversion of 4K@50/60Hz (4:4:4, 8-bit)
or 4K@any (10/12-bit) sources
Supports CEC bypass
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,
and 48V PoH (PD)
HDBaseT output transmits video, audio and data over a single
Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K
when using Cat.6a/7
Supports pass-through of many audio formats including LPCM
2.0/5.1/7.1, Bitstream, and HD Bitstream

8
User activated information OSD
Supports manual input selection or automatic input selection with
hot plug detection
Basic signal event automation (via RS-232 or CEC w/ compatible
Receiver)
Front panel LEDs indicate HDCP mode, input source, link state, and
power
Unit may be powered locally or via 48V PoH from a compatible
HDBaseT Receiver
Controllable via a multi-function front panel button with OSD, or via
WebGUI, Telnet, and RS-232 (w/ compatible Receiver only)

9
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PUV-1630TXWP-EU
1
7 8 9
2 3 4 5 6
1PWR LED: This LED will illuminate to indicate the unit is on and
receiving power.
2LINK LED: This LED will illuminate when the unit is on, receiving
power, and has successfully linked to a compatible Receiver.
3HDCP LED: This LED indicates the HDCP mode of the current input.
Green indicates Follow Display mode, orange indicates Follow Source
mode, off indicates HDCP support is disabled.
4VGA IN LED: This LED will illuminate when the VGA input is selected.
5Input Select: A short press of this button will switch between the
available inputs. Pressing and holding this button for 2 seconds will
activate the information OSD.
6HDMI IN 2 & 3 Ports and LEDs: Connect to HDMI source equipment
such as a media player, game console or set-top box. The appropriate
LED will illuminate when that HDMI input is selected.
7VGA IN 1 Port: Connect to VGA source equipment such as a PC or
laptop.
Audio In Port: Connect to the stereo analogue output of a device
such as a CD player or PC for embedding into the HDBaseT output.

10
8FAC. RESET Pinhole: Press and hold for 5 seconds to reset the unit to
its factory defaults.
9LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection and to control the unit.

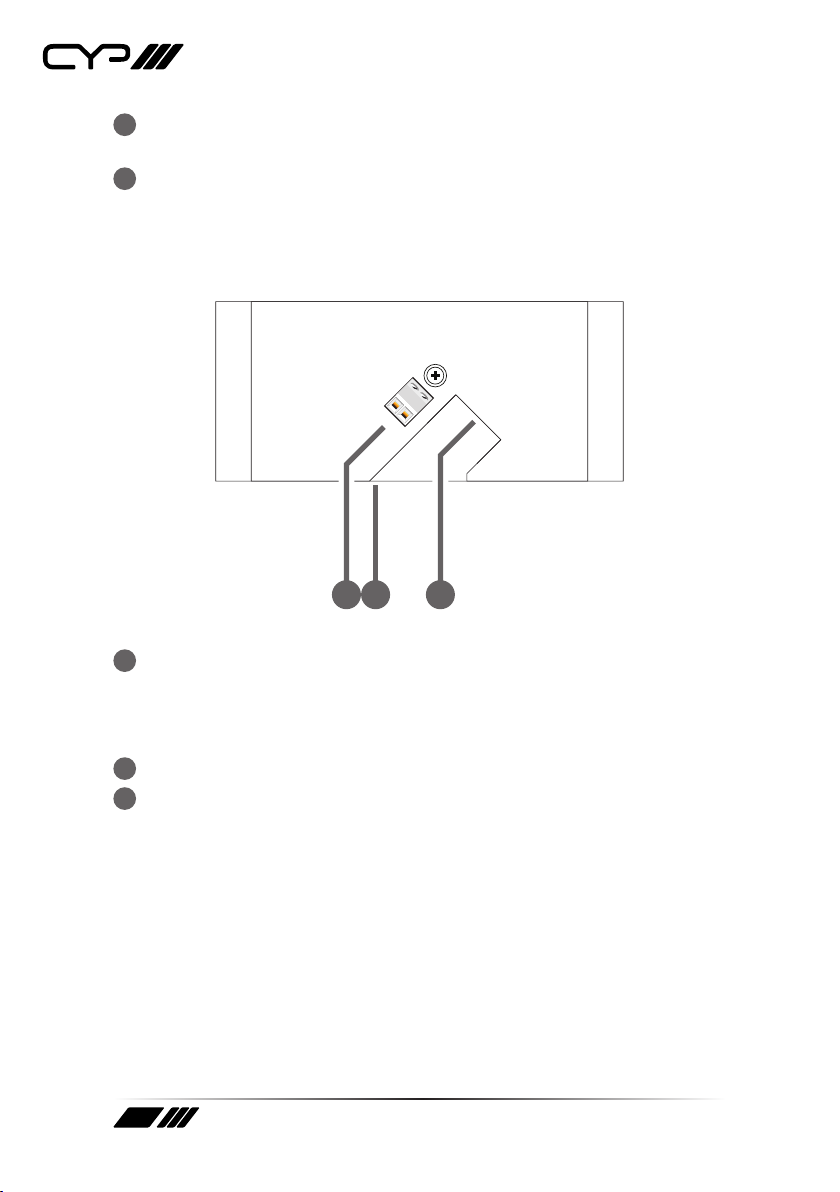

6.2 Rear Panel
DC 12V
+
−
CAT5e/6/7 OUT
31 2
1DC 12V Port: Plug the 12V DC power adapter into this terminal block
and connect it to an AC wall outlet for power. (Optional)
Note: This connection is not required if the unit is receiving power via 48V
PoH from the Receiver.
2SERVICE Port: This port is reserved for rmware update use only.
3CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver with
a single Cat.5e/6/7 cable for transmission of all data signals. 48V PoH
will also be supplied when connected to a compatible PSE Receiver.
Note: The 48V PoH function is designed to receive power from compatible
Receiver units only. Other brands of Receiver may not be compatible.

11
6.3 WebGUI Control
Device Discovery
Please obtain the “Device Discovery” software from your authorised dealer
and save it in a directory where you can easily nd it.
Connect the unit and your PC/Laptop to the same active network and
execute the“Device Discovery” software. Click on“Find Devices on
Network” and a list of devices connected to the local network will show
up indicating their current IP address.
Note: The unit’s default IP address is 192.168.1.50.
By clicking on one of the listed devices you will be presented with the
network details of that particular device.
1) IP Mode: If you choose, you can alter the static IP network settings for
the device, or switch the unit into DHCP mode to automatically obtain
proper network settings from a local DHCP server. To switch to DHCP
mode, please select DHCP from the IP mode drop-down, then click
“Save” followed by “Reboot”.
2) WebGUI Hotkey: Once you are satised with the network settings,
you may use them to connect via Telnet or WebGUI. The network
information window provides a convenient link to launch the WebGUI
directly.

12
WebGUI Overview
After connecting to the WebGUI’s address in a web browser, the login
screen will appear. Please enter the appropriate user name and password
then click “Submit” to log in.
Note: The default user name and password is “admin”.
On the left side of the browser you will see the following menu tabs where
all primary functions of the unit (Switch, Automation, EDID Settings and
System Settings) are controllable via the built in WebGUI. The individual
functions will be introduced in the following sections.
Clicking the red “Logout” tab will automatically log the currently
connected user out of the WebGUI and return to login page.

13

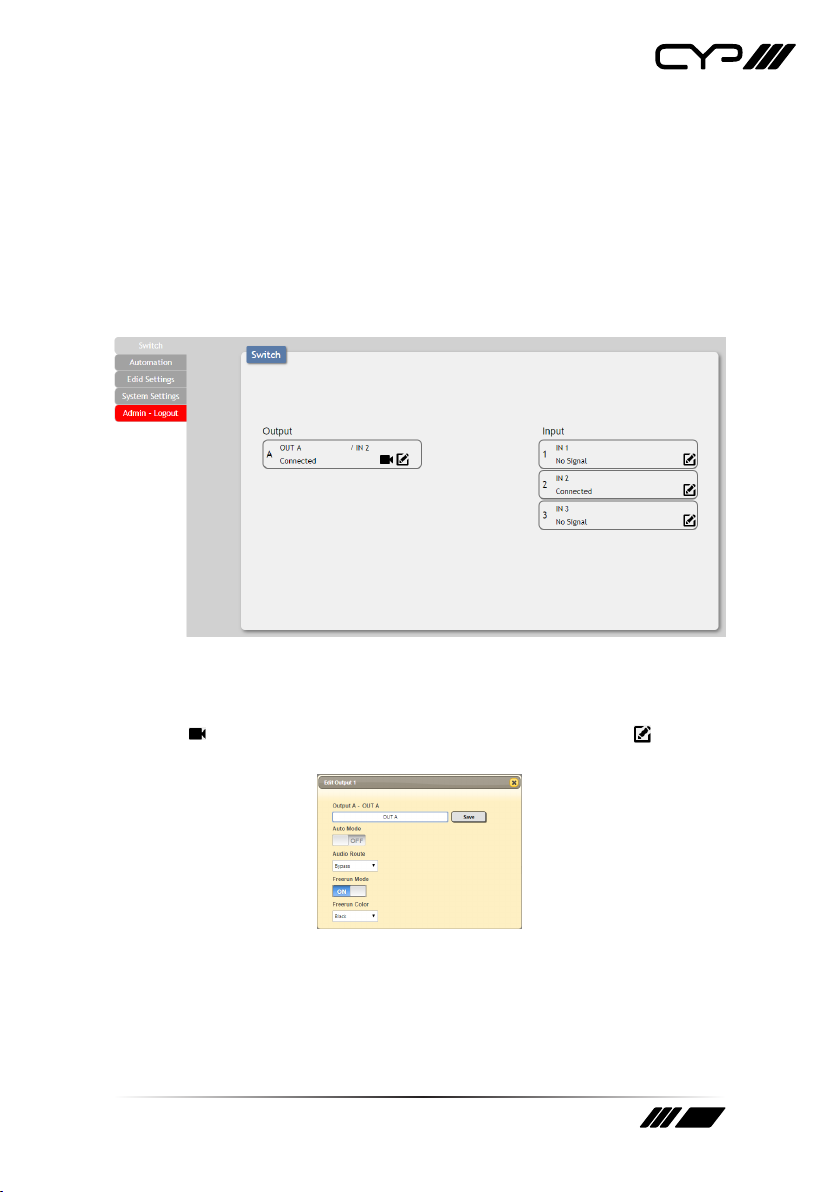

6.3.1 Switch Tab
This tab provides video/audio routing control as well as control over
HDCP behavior, freerun settings, and naming of the Inputs and Output. To
assign a new video route, please click the Output button and then click on
the button of the preferred Input port to route. As you select each button
they will change their colour to orange. The new route will become active
immediately and the routing information displayed on the buttons will
change accordingly.
1) Output: Click on the Output button to begin routing selection
followed by the selection of the preferred Input. Click on the Camera
icon ( ) to mute or unmute the output. Click the Edit icon ( ) to
modify additional Output settings.
2) Edit Output: This window provides options to rename the Output,
enable auto switching, set audio routing, and configure freerun.
■Output Name: Provides a way to change the name of the Output
port. Click on “Save”to confirm and activate any changes.

14
■Auto Mode: Enable or disable the auto input switching mode.
■Audio Route: Control the audio used when the HDMI input is
active. Selecting “Bypass”will use the HDMI signal’s normal audio.
Selecting “External” will use the analogue stereo audio.
■Freerun Mode: Enable or disable the video freerun function.
When this is enabled, the selected freerun colour will be displayed
on the screen if there is no live source on the selected input.
■Freerun Colour: Select the colour to display when freerun is
active. Available choices are: Black, Red, Blue, and Colourbars.
3) Input: Rename the inputs or modify the HDCP behavior (HDMI inputs
only) by clicking on the Edit icon ( ) to open the editing window.
Click on “Save”to confirm and activate any changes made to a name.
Changes made to the HDCP behavior are applied immediately.
■Apple Mode: Completely disables HDCP support on the input.
■Follow In: HDCP support follows the HDCP mode required by the
connected source device.
■Follow Out: HDCP support follows the HDCP mode supported by
the connected sink.

15

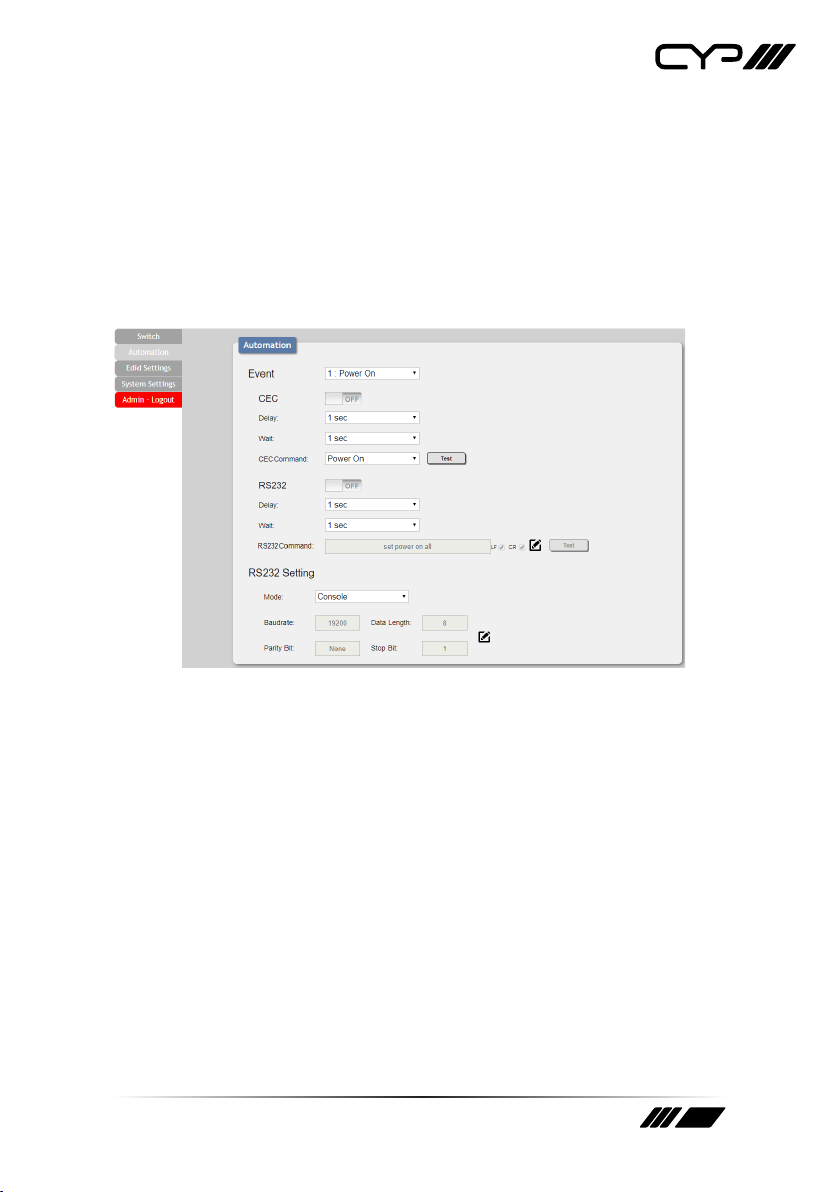

6.3.2 Automation Tab
The Automation tab provides control over the unit’s automatic control
command broadcast behavior when the specified system Automation
Events occur. Automation commands may be sent to 3rd party devices via
standard CEC, or customizable RS-232.
Note: Sending RS-232 commands requires the use of a compatible HDBaseT
Receiver with an RS-232 port.
1) Event: Use the dropdown to select the Automation Event to configure.
Available Automation Events are:
– Power On: This unit is powered on.
– Out A Source Active: The currently selected input changes
from inactive to active.
– Out A Source Lost: The currently selected input changes from
active to inactive.
■CEC: Enable or disable sending a CEC command when the
currently selected Automation Event is activated.
Note: CEC support must be enabled on the connected HDMI device.
■Delay: Set the length of time, in seconds, that the specified
Automation Event must continue to be true before sending the
defined CEC command.

16
■Wait: Set the length of time, in seconds, to wait after this
CEC Automation Event has been activated before ANY other
Automation Event can be detected.
■CEC Command: Set the CEC command to send when the specified
Automation Event is activated. Clicking the “Test” button will send
the command immediately. Available CEC commands are:
– Power Off: Turn off the connected HDMI display device.
– Power On: Turn on the connected HDMI display device.
– Active Source: Force the connected HDMI display device to
switch to the HDMI input that this unit is connected to.
Note: Not all HDMI devices support all CEC commands.
■RS-232: Enable or disable sending an RS-232 command when the
currently selected Automation Event is activated.
Note: The RS-232 port must be in “Control” mode to send commands
to external devices.
■Delay: Set the length of time, in seconds, that the specified
Automation Event must continue to be true before sending the
defined RS-232 command.
■Wait: Set the length of time, in seconds, to wait after this RS-
232 Automation Event has been activated before ANY other
Automation Event can be detected.
■RS-232 Command: Click the Edit icon ( ) to define the RS-
232 command to send when the specified Automation Event
is activated. Clicking the “Test” button will send the command
immediately.
2) RS-232 Setting: Provides controls to configure the settings and
behavior of the RS-232 port.
■Mode: Switch the behavior of the RS-232 port between “Console”
and “Control”. When “Console” is selected, the unit can receive
and be controlled directly via RS-232 commands. When “Control”
is selected the RS-232 port can send Automation commands to
control other devices.
■RS-232 Setting Edit: Click on the Edit icon ( ) to configure the
various RS-232 port settings including baud rate, data length,
parity and stop bits.

17

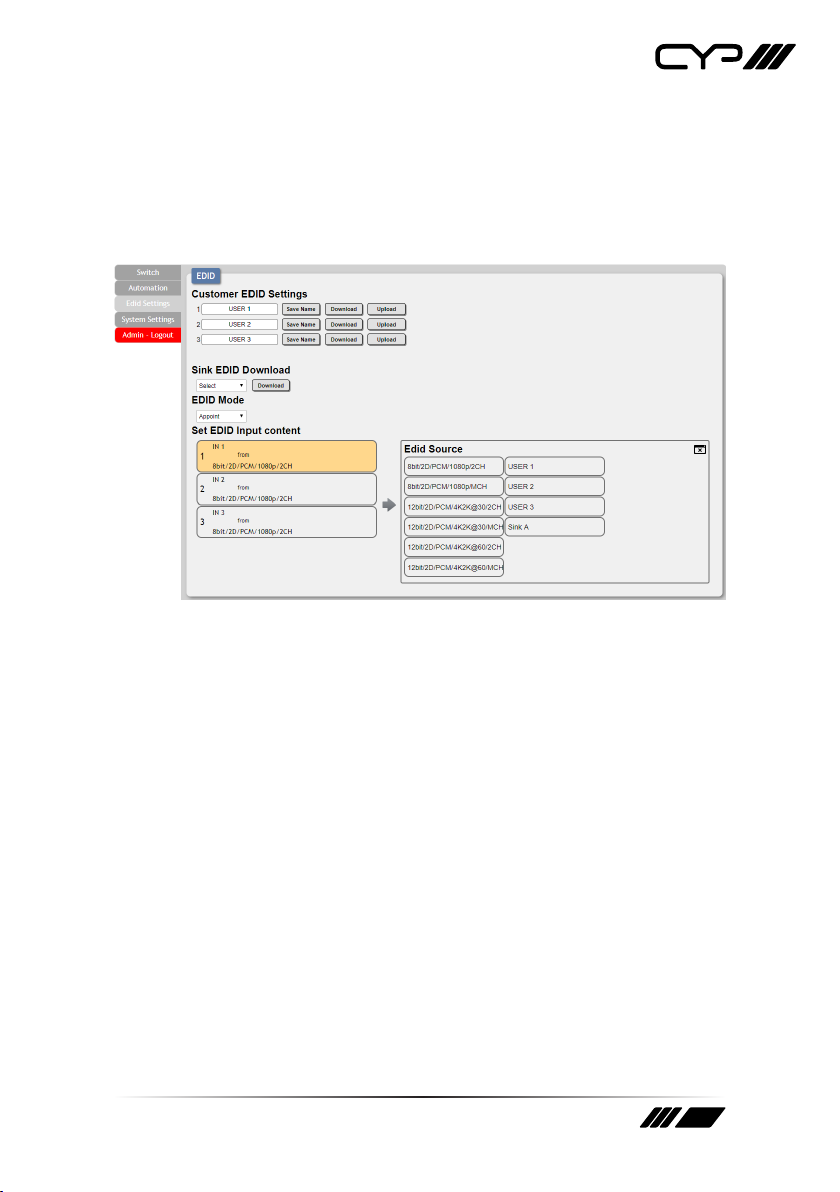

6.3.3 EDID Settings Tab
This tab provides control over the EDID behavior of the unit. There are
six internal EDIDs, three customer uploaded EDIDs, and one sink sourced
EDID that can be assigned to each input port individually. The sink EDID
and Customer EDIDs are also available for download to the connected PC.
1) Customer EDID Settings: Manage the uploadable User EDID content.
■Save Name: Type the preferred name for the User EDID in the
space provided then click“Save Name”to confirm the change.
■Download: Click to download and save the current User EDID as a
file (*.bin) on the connected PC.
■Upload: Click to upload a previously saved EDID file (*.bin) from
the connected PC into the User EDID slot.
2) Sink EDID Download: Select and save the EDID from a connected
display.
■Drop-down Menu: Select the sink to read an EDID from for
download.
■Download: Click to download the EDID from the selected sink as a
file (*.bin) to the connected PC.
3) EDID mode: This dropdown controls how EDIDs are assigned to the
unit’s Inputs.
■All: Selecting this will allow the assignment of a single EDID to all

18
Inputs simultaneously.
■Appoint:Selecting this allows for a different EDID to be assigned
to each Input.
4) Set EDID Input Content: This section provides a way to set the EDID
to use with the selected Input.
■IN 1/IN 2/IN 3/All Input: Click the appropriate buttons to select
the preferred Input(s) and open the EDID Source table for
assigning an EDID.
■EDID Source: Click the EDID to assign to the selected Input. Once
the EDID has been selected, the change will be occur immediately.
The EDIDs available in the EDID Source table are:
EDID Source EDID Content
8bit/2D/PCM/1080p/2CH 1080p@60Hz, LPCM 2.0
8bit/2D/PCM/1080p/MCH 1080p@60Hz, LPCM 7.1+Bitstream
12bit/2D/PCM/4K2K@30/2CH 4K@30Hz, LPCM 2.0
12bit/2D/PCM/4K2K@30/MCH 4K@30Hz, LPCM 7.1+Bitstream
12bit/2D/PCM/4K2K@60/2CH 4K@60Hz, LPCM 2.0
12bit/2D/PCM/4K2K@60/MCH 4K@60Hz, LPCM 7.1+Bitstream
USER 1 The first Customer EDID
USER 2 The second Customer EDID
USER 3 The third Customer EDID
SINK A EDID copied from Output A

19

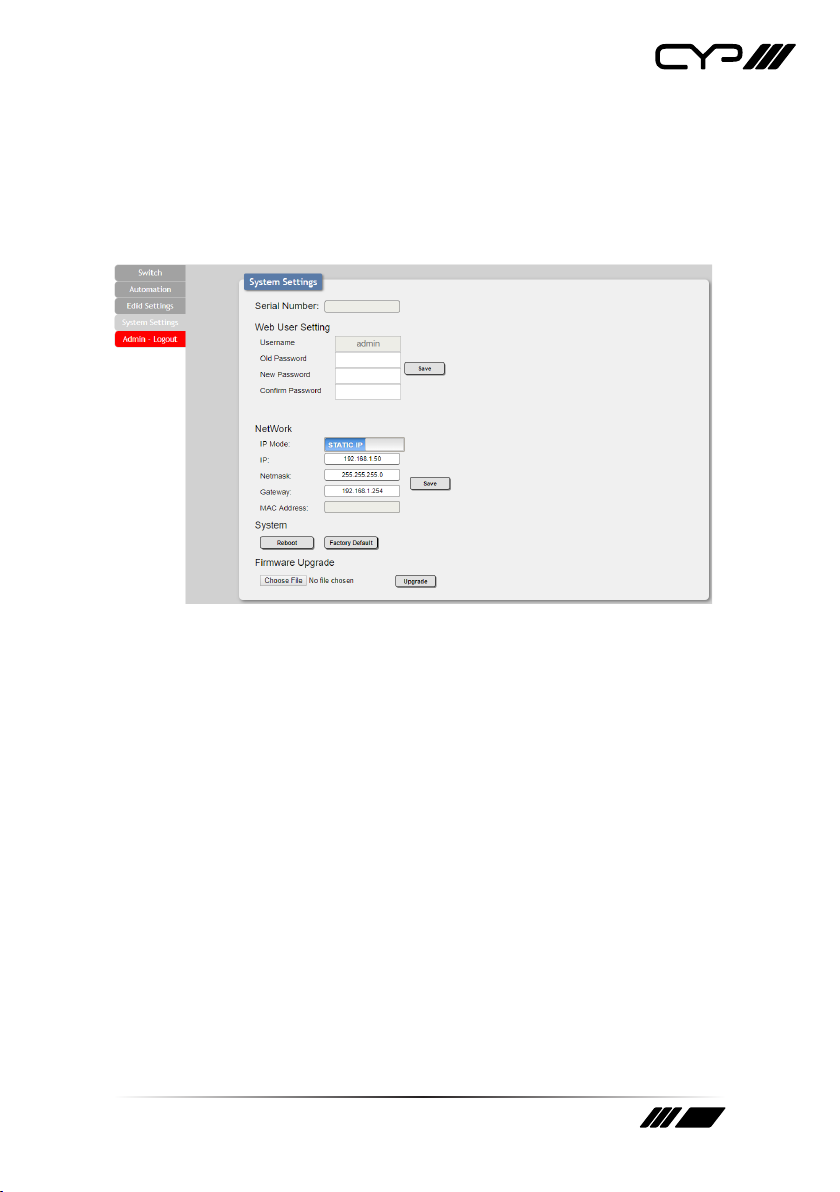

6.3.4 Systems Settings Tab
This tab provides access to control a number of system configuration
controls including displaying the unit’s serial number, modifying the web
access privileges, changing the IP configuration, performing a factory
reset, rebooting the system, and updating the firmware.
1) Serial Number: Displays the unit’s serial number.
2) Web User Setting: This section provides a way to change the password
for the Administrator account. Click on“Save” to confirm and activate
any changes made to these settings.
Note: The default password is “admin”.
3) Network: The IP Address, Netmask and Gateway can be set manually,
or DHCP can be enabled for automatic IP Configuration if your local
network supports it. Click on “Save” to confirm and activate any
changes made to these settings.
Note: If the IP address is changed then the IP address required for WebGUI
and Telnet access will also change accordingly.
4) System
■Reboot: Click this button to reboot the unit.
■Factory Default: Click this button to reset the unit to the factory
default settings.

20
5) Firmware Upgrade: To update the unit's firmware, click the
“Choose File” button to open the file selection window and then
select the firmware update file (*.bin format) located on your local
PC. After selecting the file, click the “Upgrade”button to begin the
firmware update process. Once the process completes the unit will
automatically reboot.
6.4 Serial Control (Via Receiver)
Serial Port Default Settings
Baud Rate 19200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
Note: RS-232 support requires the use of a compatible HDBaseT Receiver with
an RS-232 bypass port.
6.5 Telnet Control
Before attempting to use Telnet control, please ensure that both the unit
and the PC are connected to the same active networks.
To Access the Command Line Interface (CLI)
Windows 7 Click Start, type “cmd” in the search eld, and press
Enter.
Windows XP Click Start > Run, type “cmd”, and press Enter.
Mac OS X Click Go > Applications > Utilities > Terminal.
Once in the Command Line Interface (CLI) type “telnet” followed by the
IP address of the unit (and the port number if it is non-standard) and then
hit “Enter”. This will connect us to the unit we wish to control.
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\Users\Adminstrator\telnet 192.168.1.50 23
Note 1: If the IP address is changed then the IP address required for Telnet access will
also change accordingly.
Note 2: The default IP address is 192.168.1.50.
