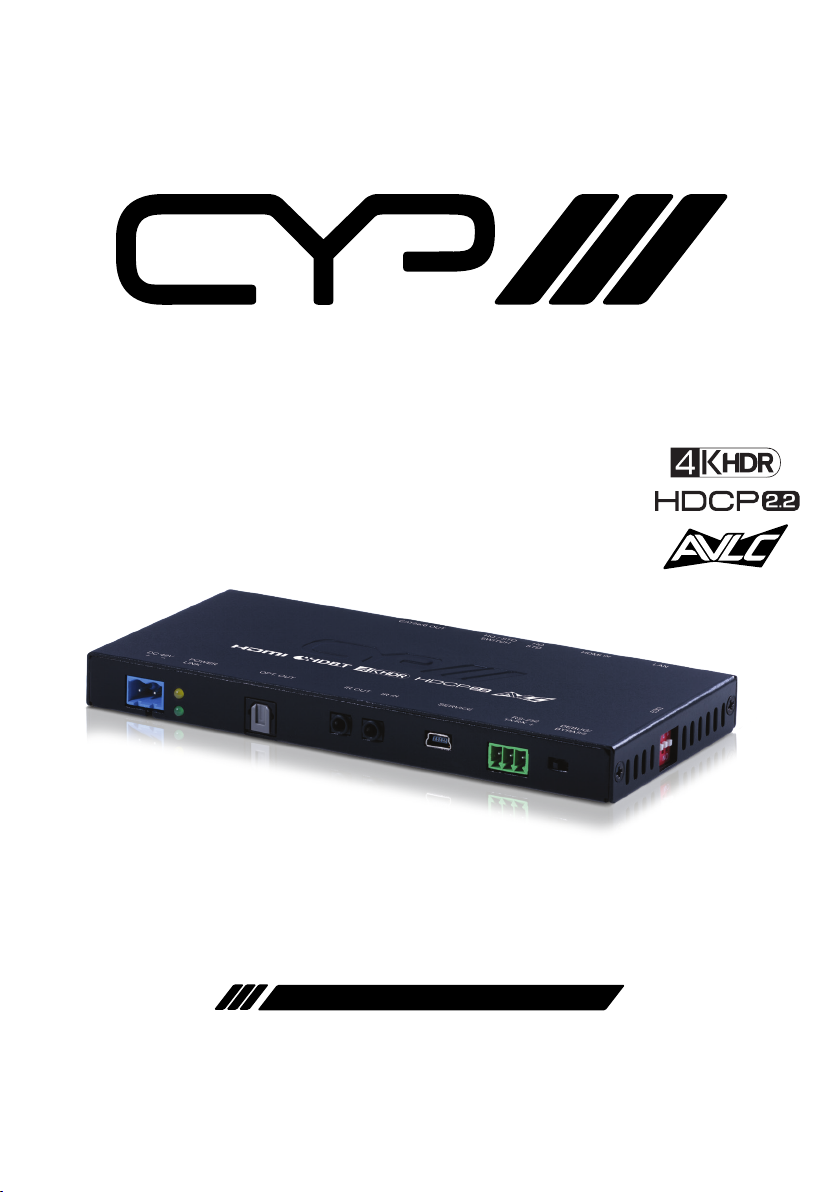

CYP PUV-1830TX-AVLC User manual

PUV-1830TX-AVLC
HDBaseT™ HDR Transmitter
(4K, HDCP2.2, PoH, LAN, OAR, 18Gbps)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 25/05/2018 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 Right Panel.................................................10
6.4 IR Cable Pinouts .......................................10
6.5 RS-232 Control..........................................11
6.6 RS-232 Commands..................................11
6.7 EDID Management..................................13

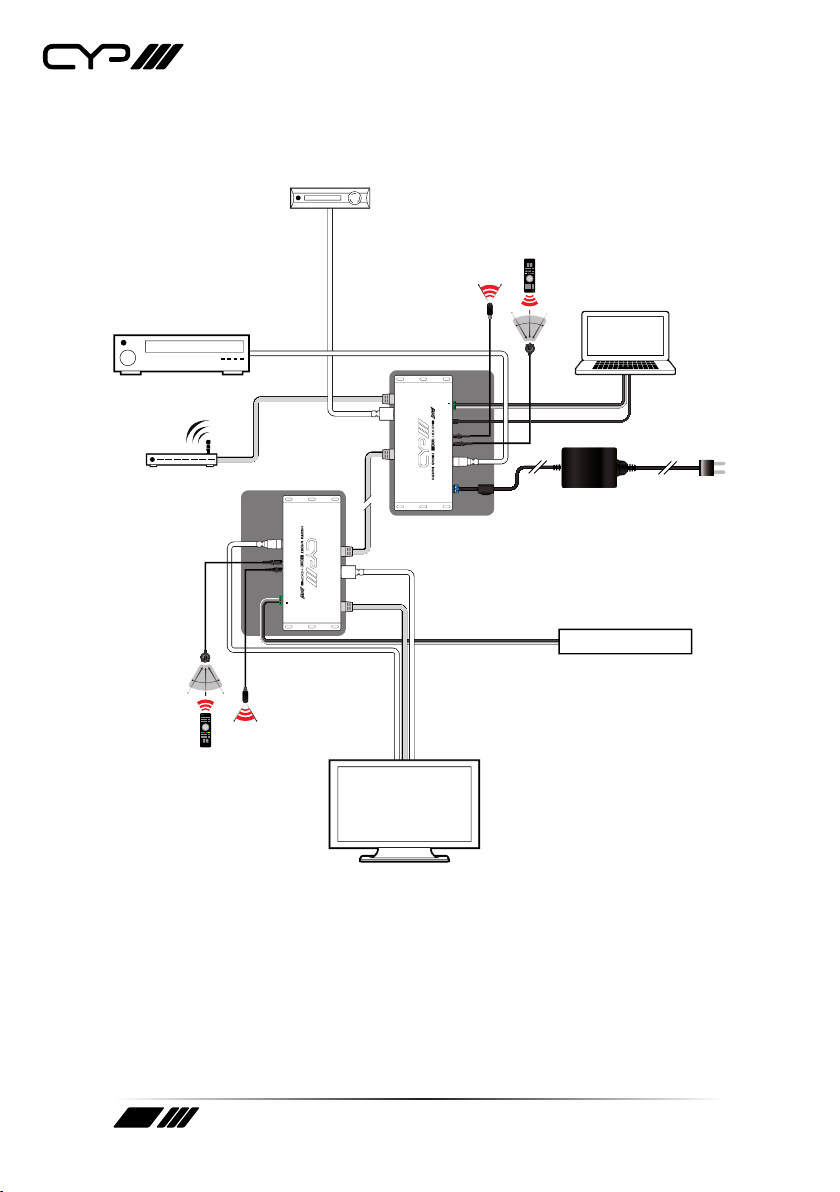

7. Connection Diagram .......................... 18
8. Specifications...................................... 19
8.1 Technical Specifications ........................19
8.2 Video Specifications................................20
8.3 Audio Specifications...............................21
8.4 Cable Specifications ...............................22
8.5 HDBaseT Features....................................22
9. Acronyms............................................. 23

6
1. INTRODUCTION
This HDMI over single Cat.5e/6/7 Transmitter is a great solution for ex-
tending HD audio and video as well as Ethernet and control via a single
run of Cat.5e/6/7 cable over distances of up to 100 metres. Multiple data
and control interfaces are provided, including IR, RS-232 and LAN connec-
tions. This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0
standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x stan-
dards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI
video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-
bit sources with HDR, are able to be processed and extended by the use
of AVLC (Adaptive Visually Lossless Compression) when connected to a
compatible AVLC Receiver.
Beyond video, data, and control this unit also contains useful audio
features. The Optical Audio Return (OAR) feature supports transmitting
optical audio back from a compatible Receiver for local playback. Round-
ing out the feature set is robust EDID management as well as automatic
HDBaseT clock stretching and TMDS re-clocking support. This Transmit-
ter (PSE) can provide 48V PoH (Power over HDBaseT) to a compatible
Receiver (PD), allowing for greater exibility within dierent installation
scenarios.
2. APPLICATIONS
48V PoH from Transmitter (PSE) to Receiver (PD)
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1×HDMI over HDBaseT Transmitter with HDR & OAR
1×48V/0.83A DC Power Adapter
1×Power Cord
1×3.5mm to IR Blaster Cable
1×3-pin Terminal Block to 9-pin D-sub Adapter Cable
1×Rackmount Ears (Set of 2)
1×Operation Manual

7
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a media player, video game console
or set-top box.
A compatible HDBaseT Receiver with AVLC and 48V PoH support is
recommended.
The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly
recommended.
The use of “Premium High Speed HDMI” cables is highly recommended.
5. FEATURES
HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
and Deep Colour input and output up to 12-bit
Supports CEC bypass
Simultaneous transmission of uncompressed video, audio and data
over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and
70m/230ft at 4K
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V
PoH, and Control (bidirectional IR/RS-232 pass-through)
Integrated AVLC (Adaptive Visually Lossless Compression) activates
when the bandwidth requirements of the source are beyond 10.2Gbps
(340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a
compatible Receiver with no loss of visual quality
The AVLC feature allows manual selection between High Quality Mode
(Full bandwidth) and Standard Mode (Lower bandwidth, useful for
longer cable runs with 4K sources)
Supports the Optical Audio Return (OAR) function to transmit optical
audio from a compatible Receiver to the Transmitter
Comprehensive EDID management support including 6 pre-defined
EDIDs, 9 user EDIDs and an EDID bypass mode

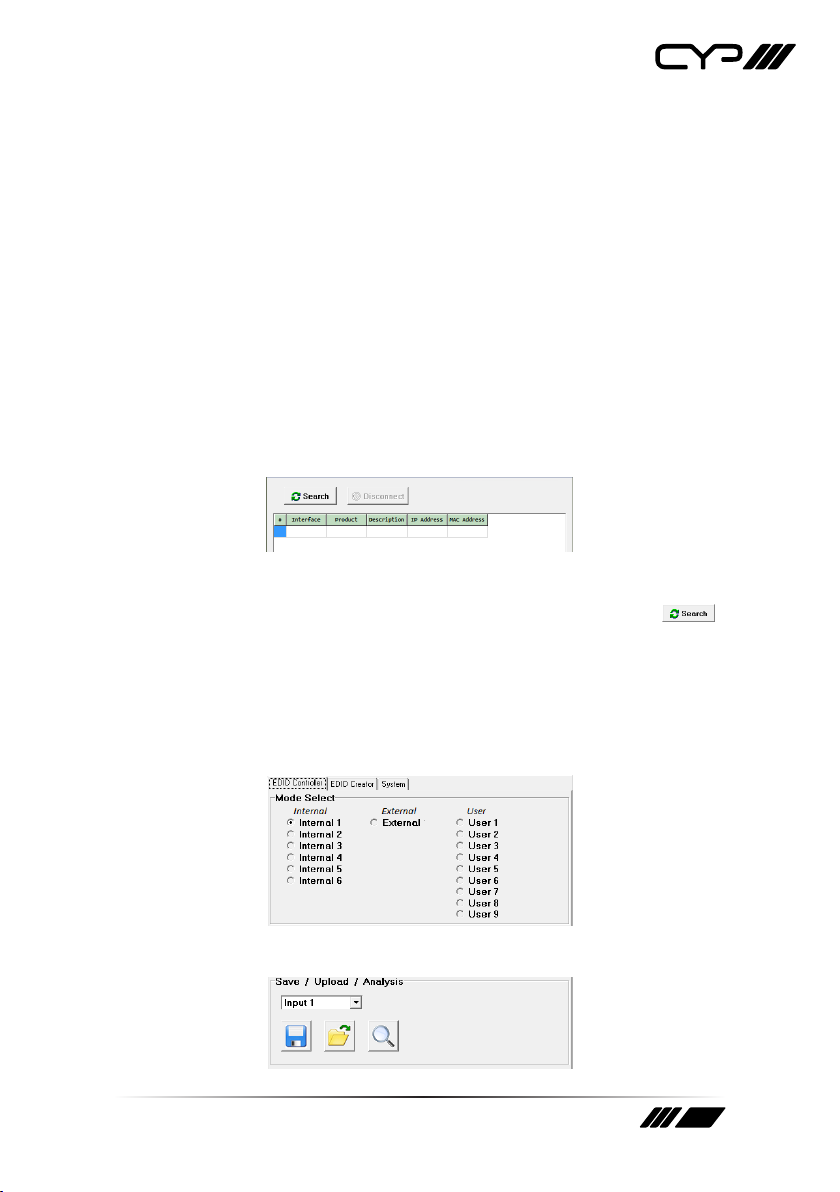

PC-based EDID management software allows for the uploading of
customised user EDIDs via USB
Supports HDMI DDC bus clock stretching for improved compatibility
with certain Blu-ray players
Performs TMDS re-clocking and signal re-generation for improved
signal integrity
Ultra-thin design (16mm thickness) for convenient installation
Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD)
(compatible Receivers only)

8
6. OPERATION CONTROLS AND FUNCTIONS

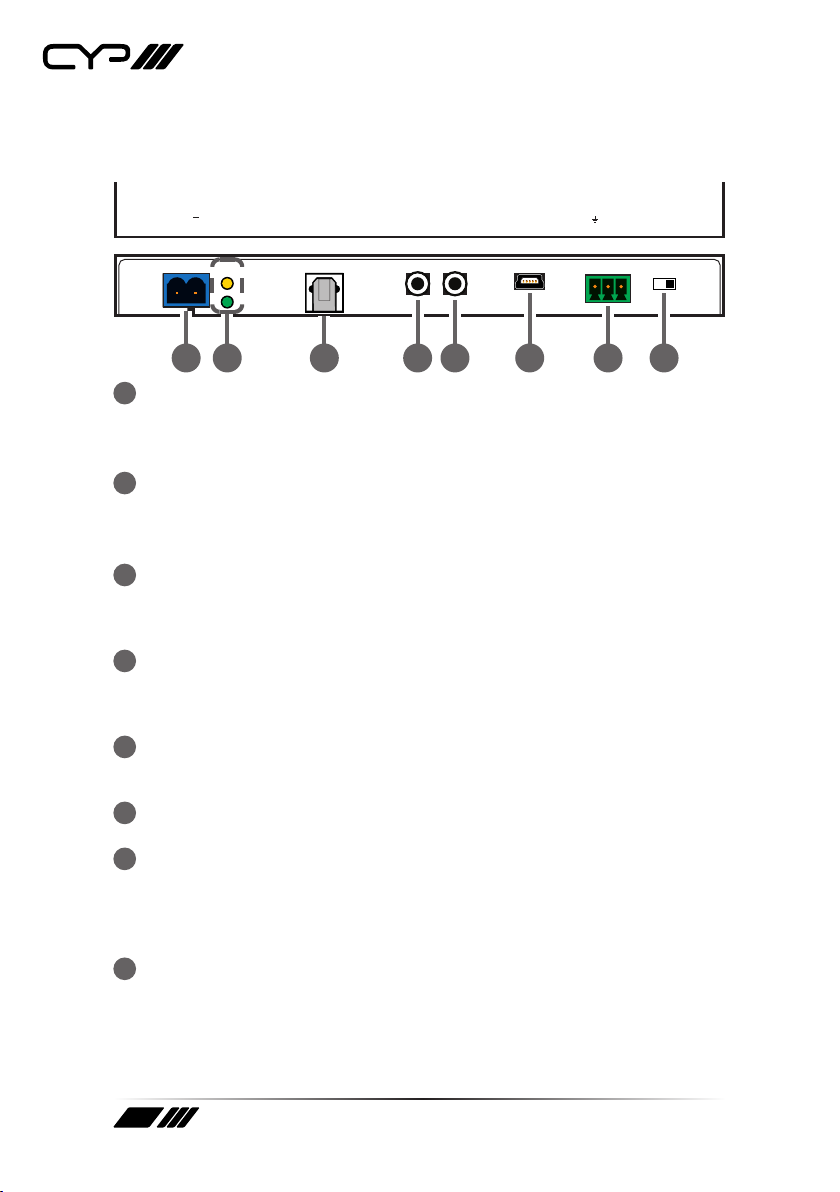

6.1 Front Panel
CONSOLE/
BYPASS
RX
RS-232SERVICE
OPT. OUT
DC 48V
+
-
POWER
LINK
TX
IR BLASTER 2IR EXTENDER 1
1 2 3 4 5 6 7 8
1DC 48V: Plug the 48V DC power adapter into this port and connect it
to an AC wall outlet for power.
Note: Please be sure to follow the polarity labels on the unit and the
adapter’s wires.
2POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active.
3OPT. OUT: Connect to powered speakers or an amplifier for digital
audio output using an appropriate optical cable. Audio is sourced
from the Optical Audio Return input on a connected compatible
Receiver.
4IR EXTENDER 1: Connect to an IR Extender to extend the IR control
range of devices connected to the other end of the HDBaseT
connection. Ensure that the remote being used is within direct line-of-
sight of the IR Extender.
5IR BLASTER 2: Connect to the provided IR Blaster to transmit IR
signals from the other end of the HDBaseT connection to devices
within direct line-of-sight of the IR Blaster.
6SERVICE: This USB port is reserved for firmware update and user EDID
upload use.
7RS-232: Connect to a PC, laptop or other serial control device with a
3-pin adapter cable for the extension of RS-232 signals to the Receiver
in "Bypass" mode, or for control this unit when in "Console" mode.
Note: Depending on the controlled device connected to the Receiver side,
the Tx and Rx pins might need to be reversed.
8CONSOLE/BYPASS: This switch controls the operational mode of the
RS-232 port. When set to “Bypass”, RS-232 signals will be passed to the
connected Receiver. When set to “Console”the RS-232 port may be
used to send commands directly to the Transmitter.
Note: RS-232 bypass requires both the Transmitter and Receiver to be set
to “Bypass” mode.

9

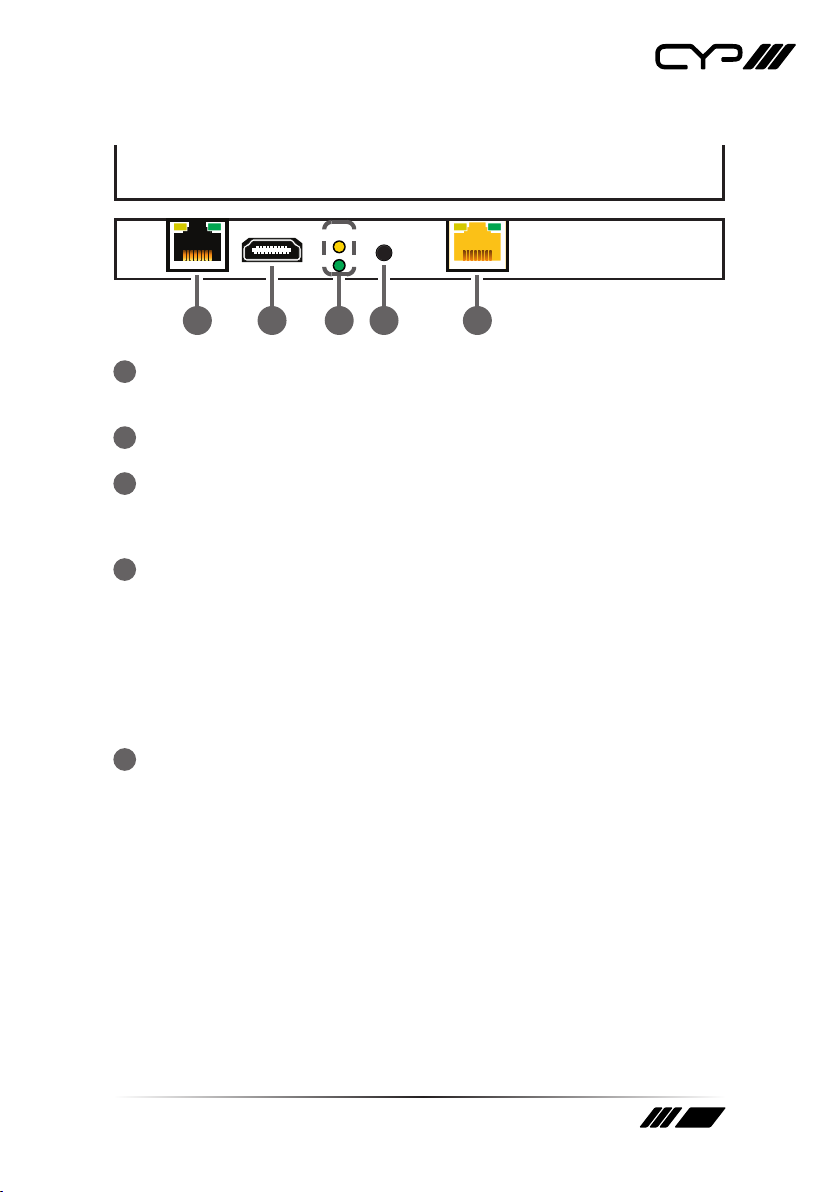

6.2 Rear Panel
CAT5e/6/7 OUTHQ / STD
SWITCH
HQ
STD
HDMI IN LAN
1 2 3 4 5
1LAN: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection.
2HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box.
3HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode
will be used when AVLC is required. The lower green LED indicates that
AVLC will use HQ (High Quality) mode. The upper yellow LED indicates
that AVLC will use STD (Standard) mode.
4HQ/STD SWITCH: This switch allows the user to select which
compression mode to use when AVLC is active, High Quality or
Standard.
Note: HQ (High Quality) mode uses the least amount of compression
and provides the highest possible visual quality (perceptually identical
to the original). STD (Standard Quality) mode applies additional signal
reduction methods to lower the bandwidth requirements of 4K sources
further, improving transmission reliability over longer cable runs at the
cost of some visual fidelity.
5CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a
single Cat.5e/6/7 cable for transmission of all data signals. 48V PoH
will also be supplied when connected to a compatible PD Receiver.
Note: The 48V PoH function is designed for powering compatible Receiver
units only. Non-PoH Receivers will need their own power supply. Receivers
from other brands may not be compatible.

10
6.3 Right Panel
EDID
ON
1234
1

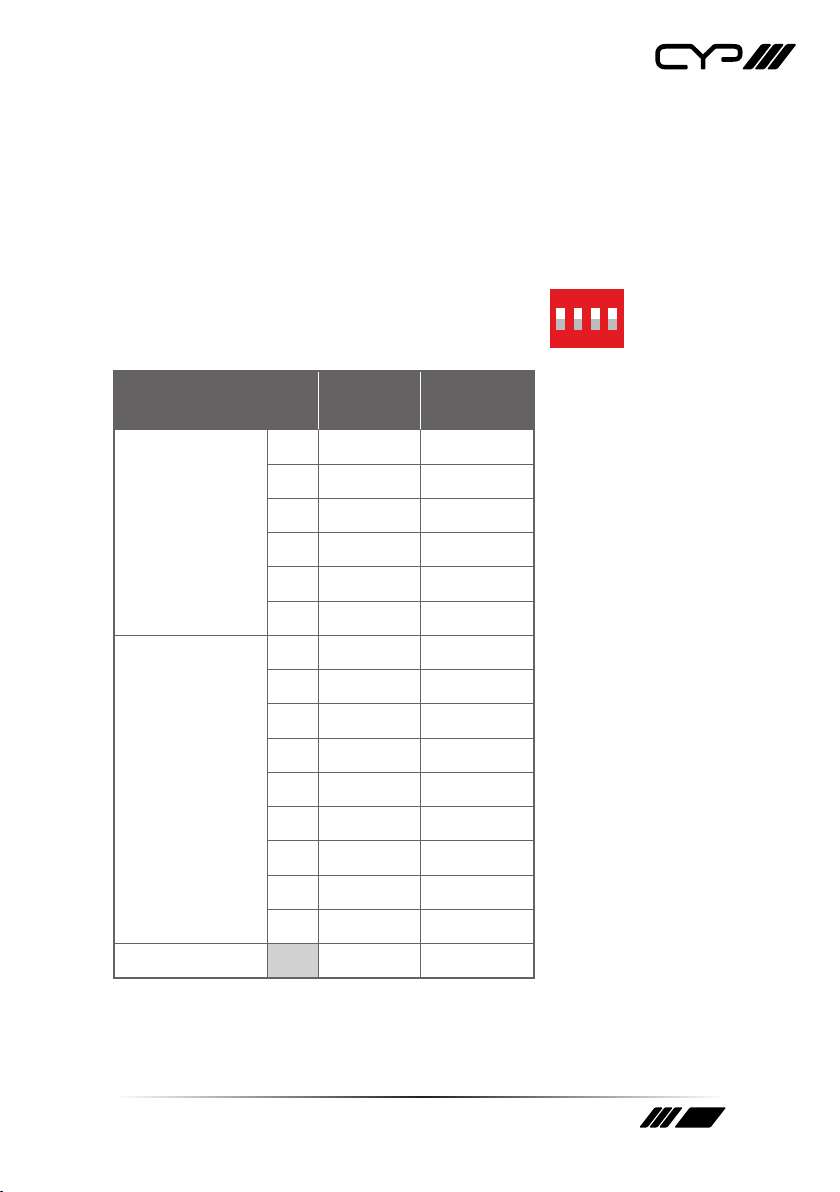

1EDID: The EDID dipswitch block provides a way to select the EDID
to use with the connected source. By using a combination of on and
off settings for the dipswitches, there are a total of 16 possible EDID
selections across 3 different operation modes.
The three modes are “Internal EDID”, “User EDID” and“External EDID”.
There are a total of 6 built-in internal EDIDs and 9 User EDIDs (which
can be modified via USB upload). The “External EDID” setting will copy
the EDID from the sink that is connected to the Receiver. (See “EDID
Management” for more details.)
6.4 IR Cable Pinouts
3
1
2
Infrared
Power
Ground
IR Extender
3
1
2
IR Blaster Power
Infrared
NC
