CYP CH-516TXAS User manual

CH-516TXAS
PC/CV Scaler over CAT5e/6/7 Transmitter with LAN/
RS-232/IR/Bidirectional PoE
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology. All Rights Reserved.
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 01/11/13 Preliminary release
VS1 09/10/13 Updated text/diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel.........................................3
6.2 Rear Panel .........................................4
6.3 Remote Control.................................5
6.4 IR Cable Pin Assignment ..................5
6.5 RS-232 Pin Denitions ........................6
6.6 RS-232 Commands............................7
6.7 OSD Menu..........................................9
6.8 Input Resolutions Support...............11
7. Connection Diagram .......................... 12
8. Specications ...................................... 13
8.1 Technical Specications ................13
8.2 CAT5e/6/7 Cable Specication....14
9. Acronyms ............................................. 14

1
1. INTRODUCTION
The CH-516TXAS is an HDBaseT™ Transmitter Scaler supporting PC
or Composite Video (CV) input. It can scale and switch the video
sources, and send the digitalized signal over a single run of CAT5e/6/7
cable to the Receiver at a distance up to 100 meters, along with an
external audio input, 2-way IR, RS-232 and bidirectional LAN serving.
Control is via on-panel buttons or IR remote control and there is an
On-screen Display (OSD) providing selection and system information.
The device provides a full range of output resolutions, up to 1080p
and WUXGA (RB). The bidirectional Power over Ethernet (PoE) function
provides greater exibility in installations.
2. APPLICATIONS
• Analog to Digital video signal conversion
• Up scale standard denition video to High-Denition TVs/displays
• Extend the operating distance of a CV/PC video signal
• Lecture room/Showroom/Meeting room/Classroom display and
control
3. PACKAGE CONTENTS
• CV/PC to CAT5e/6/7 with LAN/IR/RS-232/Bidirectional PoE Transmitter
• 1×IR Extender
• 1×IR Blaster
• 24 V/2.7 A DC Power Adaptor
• Remote Control (CR-128)
• Operation Manual
4. SYSTEM REQUIREMENTS
CV/PC source equipment such as a DVD/Video player or PC/Laptop
and output to HDBaseT compatible Receiver.

2
5. FEATURES
• Supports PC/CV scaling to a full range of HDTV or PC resolutions up
to 1080p and WUXGA (RB)
• Transmission of uncompressed data over a single CAT5e/6/7 cable
up to 100m/328ft
• 5Play™ convergence: Video and Audio, LAN serving, bidirectional
Power over Ethernet (PoE) and Control (IR/RS-232 bypass)
• Supports IR, Remote control, RS-232 (bypass) and on-panel controls
• Provides bidirectional 24V DC power to or receive from compatible
PoE Receiver through CAT5e/6/7 cable
• Supports Ethernet transmission rates up to 100 Mbps
• Supports NTSC and PAL formats for Composite Video input
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of different specications.
2. The PoE function is designed for powering compatible Receiver
units only—non-PoE Receivers will need their own power supply.
Receivers from other brands may not be compatible.
3. DO NOT connect the LAN connection to the CAT5e/6/7 port.
Doing so may cause a power shutdown and may damage the
device.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PC CV XGA AUDIO
SERVICE
MEN
UE
NTER
- +
720P
INPUT CV/PC
INPUT
2 3 4 5 6 8 91
7
1SERVICE: Reserved for manufacturer use only.
2IR RECEIVER WINDOW: Receives only the IR signal from the supplied
remote control for this device only.
3PC: Connect to a PC/Laptop source device with a D-Sub 15pin cable.
4CV: Connect to a composite video source such as a DVD/Video player.
5AUDIO: Connect to an analog stereo (L/R) audio source with a
3.5mm mini-jack cable.
6MENU: Press this button to enter the On-Screen Display (OSD) menu.
7INPUT (–) Button & CV/PC LED: Press the INPUT (−) button to toggle
between CV or PC inputs. When in CV mode the LED will be lit, off
when in PC mode.
8−/+: Use these buttons to navigate down and up in the on-screen
menu.
9ENTER: Press this button to conrm the selection.
Note:
Pressing '−' (MINUS) and ENTER simultaneously will immediately
switch the output resolution of the device to 720p60.
Pressing '+' (PLUS) and ENTER simultaneously will immediately switch
the output resolution of the device to XGA (1024×768).

4
6.2 Rear Panel
IR
Blaster
IR
Extender
CAT5e/6 OUT
MODE LINK
LANRS232 IN
DC 24V
POWER
21 3 4 5 6 7
1POWER LED: This LED will illuminate when the device is connected
to an active power supply.
2DC 24V: Connect the 24 V DC power supply to the unit and plug
the adaptor into an AC outlet. Only one unit requires powering if
both the Transmitter and Receiver are both PoE compatible.
3RS-232 IN: Connect to a PC or RS-232 control system with a D-Sub 9
pin male cable for the transmission of RS-232 commands.
4LAN: Connect to an active network for LAN serving. When any
compatible LAN equipped receivers are connected, this allows
the network access (including internet access if available) to
be shared between any connected LAN equipped receivers.
Connect any Ethernet equipped device e.g. a Smart TV or games
console to the LAN port of a receiver for that device to share the
network/internet access.
Warning: DO NOT connect the LAN connection to the CAT5e/6/7
port. Doing so may cause a power shutdown and may damage the
device.
5IR Blaster: Connect the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6IR Extender: Connect the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct line-
of-sight of the IR Extender.
7CAT5e/6/7 OUT: Connect to the Receiver unit with a single CAT5e/6/7
cable for transmission of all data signals.
MODE LED: This LED will illuminate when the power is connected.
LINK LED: This LED will illuminate when connected to a Receiver unit
that is connected with a TV/monitor that is displaying the signal.

5

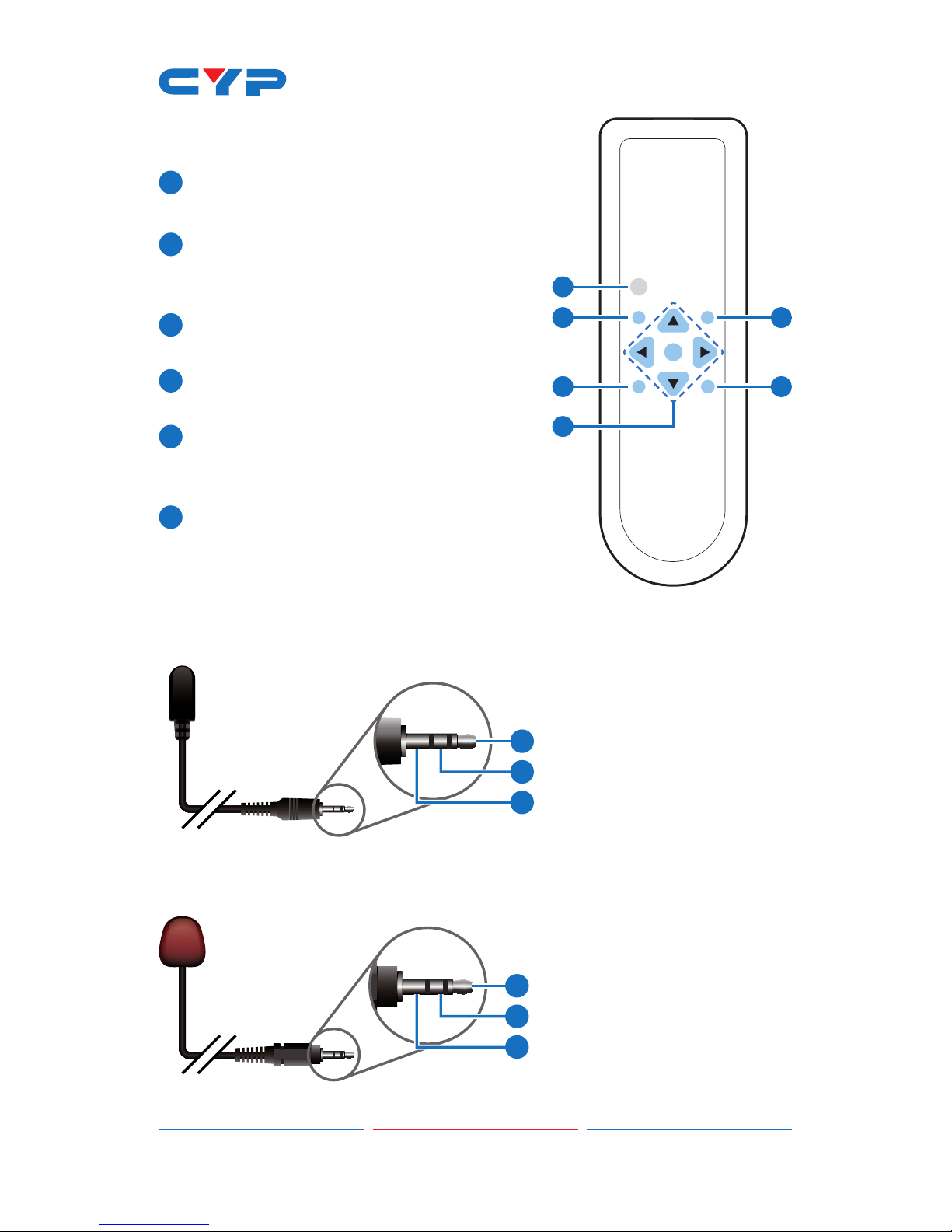

6.3 Remote Control
1INPUT: Press this button to toggle
between the CV or PC input.
2EXIT: Press this button to exit the menu
or the current selection in the on-screen
menu.
3MENU: Press this button to enter into the
OSD menu.
4RESET: Press this button to return the
device to the factory default settings.
5AUTO ADJUST: Press this button to
optimize the positioning of the picture
(picture centering) on the screen.
6 OK & ▲▼◄►: Press 'OK' to conrm the
selection or use the directional buttons
to navigate the on-screen menus.
6.4 IR Cable Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
CR-128
OK
INPUT
EXIT MENU
RESET AUTO
ADJUST
1
2
4
6
3
5

6
6.5 RS-232 Pin Denitions
PIN DEFINE TX / RX
1N/C
2TxD/RxD
3RxD/TxD
4NC
5GND
6NC
7NC
8NC
9NC
Baud Rate: 9600bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

7
6.6 RS-232 Commands
COMMAND DESCRIPTION
S SOURCE 1~2 1=VIDEO
2=PC
R SOURCE Reports the numerical equivalent for the
SOURCE setting (as listed above)
S OUTPUT 0~25 0=Native 12=1600×1200
1=640×480 13=1920×1080
2=800×600 16=1920×1200
3=1024×768 17=480p
5=1360×768 18=720p@60
6=1280×720 19=1080p@60
7=1280×800 20=1080i@60
8=1280×1024 22=576p
9=1440×900 23=720p@50
10=1400×1050 24=1080p@50
11=1680×1050 25=1080i@50
R OUTPUT Reports the numerical equivalent for the
OUTPUT setting (as listed above)
S SIZE 0~6 0=OVERSCAN 4=LETTER BOX
1=FULL 5=UNDER 2
2=BEST FIT 6=UNDER 1
3=PAN SCAN
R SIZE Reports the numerical equivalent for the SIZE
setting (as listed above)
S CONTRAST 0~60 Sets the numerical value for the CONTRAST
setting (0~60)
R CONTRAST Reports the numerical value for the CONTRAST
setting (0~60)
S BRIGHTNESS 0~60 Sets the numerical value for the BRIGHTNESS
setting (0~60)
R BRIGHTNESS Reports the numerical value for the BRIGHTNESS
setting (0~60)

8
COMMAND DESCRIPTION
S HUE 0~60 Sets the numerical value for the HUE setting
((0~60)
R HUE Reports the numerical value for the HUE setting
(0~60)
S SATURATION 0~60 Sets the numerical value for the SATURATION
setting (0~60)
R SATURATION Reports the numerical value for the SATURATION
setting (0~60)
S SHARPNESS 0~30 Sets the numerical value for SHARPNESS setting
(0~30)
R SHARPNESS Reports the numerical value for the SHARPNESS
setting (0~30)
S NR 0~3 0=OFF 2=MIDDLE
1=LOW 3=HIGH
R NR Reports the numerical equivalent for the NOISE
REDUCTION setting (as listed above)
S AUDIO DELAY 0~3 0=OFF 2=110ms
1=40ms 3=150ms
R AUDIO DELAY Reports the numerical equivalent for the AUDIO
DELAY setting (as listed above)
S AUDIO MUTE 0/1 0=ON 1=MUTE
R AUDIO MUTE Reports the numerical equivalent for the AUDIO
MUTE setting (as above)
S KEY LOCK 0/1 0=ENABLE 1=DISABLE
R KEY LOCK Reports the numeric equivalent for the KEY
LOCK setting (as listed above)
FW Checks the FIRMWARE version
S RESET 1 Sets the numerical equivalent for the RESET
setting (as left)
Note:
1. RS-232 commands will not execute unless followed by a carriage
return and LF (Line Feed).
2. Commands are not case-sensitive.
3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded.

9
6.7 OSD Menu
1ST LAYER 2ND LAYER 3RD LAYER 4TH LAYER
DISPLAY OUTPUT Native
640x480 60
800x600 60
1024x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720x480P 60
1280x720P 60
1920x1080I 60
1920x1080P 60
720x576P 50
1280x720P 50
1920x1080I 50
1920x1080P 50
SIZE SIZE OVER SCAN
FULL
ASPECT RATIO
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1

10
1ST LAYER 2ND LAYER 3RD LAYER 4TH LAYER
SIZE MODE INFO INFO
ON
OFF
PC (PC mode only) AUTO SETUP NO
YES
H_POSITION 0~60 (30)
V_POSITION 0~60 (30)
PHASE
CLOCK
WXGA/XGA XGA
WXGA
RESET NO
YES
COLOR COLOR R
G
B
R OFFSET
G OFFSET
B OFFSET
CONTRAST 0~60
BRIGHTNESS 0~60
HUE 0~600~60
SATURATION 0~60
SHARPNESS 0~60
NR. OFF
LOW
MIDDLE
HIGH

11
1ST LAYER 2ND LAYER 3RD LAYER 4TH LAYER
AUDIO VOLUME 0~100
DELAY OFF
40ms
110ms
150ms
SOUND ON
MUTE
SETUP FACTORY RESET NO
YES
KEY LOCK OFF
ON
INFORMATION INPUT
OUTPUT
REVISION
Note: Items in Bold are the default settings.
6.8 Input Resolutions Support
INPUT RESOLUTION CV PC
NTSC/PAL -
VGA@60/72/75 Hz -
SVGA@56/60/72/75 Hz -
XGA@60/70/75 Hz -
SXGA@60/75 Hz -
UXGA@60 Hz -
1280×800@60 Hz -
1680×1050@60 Hz (RB) -
1920×1080@60 Hz -

12
7. CONNECTION DIAGRAM
PC CV XGA AUDIO
SERVICE
MENU ENTER
- +
720P
INPUT CV/PC
INPUT
IR
Blaster
IR
Extender
CAT5e/6 OUT
MODE LINK
LANRS232 IN
DC 24V
POWER
RS-232 Out
LAN
HDMI Out
CAT5e/6 to HDMI with LAN/IR/RS232
Receiver
7m3m 3m
60°
m
m
3m
1.5m
60°
1.5m
60°
7m3m 3m
60°
m
m
m
PC/Laptop
RS-232 Control System
Power Supply
VGA
Input
Composite
Video Input
Analog
Stereo Input
CAT5e/6/7
Cabe (100m)
IR Extender
IR Extender
IR Blaster
IR Blaster
Router with Internet
Connection
Compatible PoE
Receiver unit
Smart TV
HDMI
Output
Video/DVD Player
RS-232
LAN
LAN

13
8. SPECIFICATIONS
8.1 Technical Specications
Ethernet Speed 100 Mbps
Output Video Bandwidth 300MHz / 10.2Gbps
Input Ports 1×Composite Video, 1×VGA, 1×3.5mm
Mini-jack (L/R), 1×RS-232, 1×LAN, 1×IR
Extender
Output Ports 1×CAT5e/6/7, 1×IR Blaster
CAT5e/6/7 Out Cable
Distance
Up to 100 Meters
CV Resolutions Support NTSC/PAL
VGA Resolutions Support VGA~WUXGA (RB)
CAT5e/6/7 Resolutions
Support
HD: Up to 1080p@60 Hz
PC: Up to WUXGA (RB)
IR Frequency 30~50 kHz
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions 145 mm (W)×192 mm (D)×30 mm (H)/Jacks
Excluded
145 mm (W)×202 mm (D)×30 mm (H)/Jacks
Included
Weight 606 g
Chassis Material Aluminum
Color Black
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C ~ 60˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 16 W

14
8.2 CAT5e/6/7 Cable Specication
Cable Type Range Pixel Clock
Rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz,
36 bits, 3D (data
rates lower than 5.3
Gbps or below 225
MHz TMDS clock).
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CAT7 Category 7 Cable
CV Composite Video
DVI Digital Visual Interface
HDMI High-Denition Multimedia Interface
IR Infrared
WUXGA (RB) Widescreen Ultra Extended Graphics Array
(Reduced blanking)

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
20130624 MPM-CH516TXAS
