CYP PUV-1710LTX-AVLC User manual

PUV-1710LTX/LRX-AVLC
70m HDBaseT™ HDR Transmitter & Receiver
(4K, HDCP2.2, PoH, LAN, 18Gbps)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 16/03/2018 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Transmitter's Front Panel ........................ 8
6.2 Transmitter's Rear Panel .......................... 9
6.3 Receiver's Front Panel .............................. 9
6.4 Receiver's Rear Panel..............................10
6.5 IR Pin Assignment....................................11
6.6 RS-232 Protocol........................................11
7. Connection Diagram .......................... 12
8. Specifications...................................... 13
8.1 Transmitter's Technical Specifications ...13
8.2 Receiver's Technical Specifications ...14
8.3 Video Specifications................................15
8.4 Cable Specifications ...............................17
9. Acronyms............................................. 18

6
1. INTRODUCTION
This transmitter and receiver set is a great solution for extending UHD vid-
eo and audio as well as Ethernet and control via a single run of Cat.5e/6/7
cable over distances up to 70 metres. This extender set complies with the
advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the
legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps
bandwidth limitation, 4K UHD HDMI video sources, up to and including
4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to
be processed and extended by the use of AVLC (Adaptive Visually Loss-
less Compression) when needed. Multiple data and control interfaces are
also provided, including IR and RS-232 connections. The Receiver (PD) is
powered by 48V PoH (Power over HDBaseT) provided by the Transmitter
(PSE), allowing for greater exibility within dierent installation scenarios.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1×HDMI to Cat.5e/6/7 Transmitter (with IR & RS-232)
1×Cat.5e/6/7 to HDMI Receiver (with IR & RS-232)
1×48V/0.83A DC Power Adapter
1×3.5mm to IR Extender Cable
1×3.5mm to IR Blaster Cable
1×Operation Manual

7
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a media player, video game console
or set-top box.
HDMI receiving equipment such as an HDTV, monitor or audio ampli-
er.
The use of “Premium High Speed HDMI” cables, and industry standard
Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
Supports output resolutions up to 4K@50/60Hz (4:4:4, 8-bit)
Supports Deep Colour input and output up to 12-bit
Supports 10-bit and 12-bit HDR bypass
Supports CEC bypass
Simultaneous transmission of video, audio and data over a single
Cat.5e/6/7 cable up to 70m (230ft) at 1080p and 35m (115ft) at 4K
Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Con-
trol (Bi-directional IR/RS-232 pass-through)
Integrated AVLC (Adaptive Visually Lossless Compression) activates
when the bandwidth requirements of the source are beyond 10.2Gbps
(340MHz) allowing for support of sources up to 18Gbps (600MHz) with
no loss of visual quality
The AVLC function allows manual selection between High Quality (Full
bandwidth) mode and Standard mode (Lower bandwidth, useful for
longer cable runs with 4K sources)
Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to
Receiver (PD) (compatible Receivers only)
Note: The 48V PoH function is designed for powering compatible Receiver
units only. Non-PoH Receivers will need their own power supply. Receivers
from other brands may not be compatible.

8
6. OPERATION CONTROLS AND FUNCTIONS

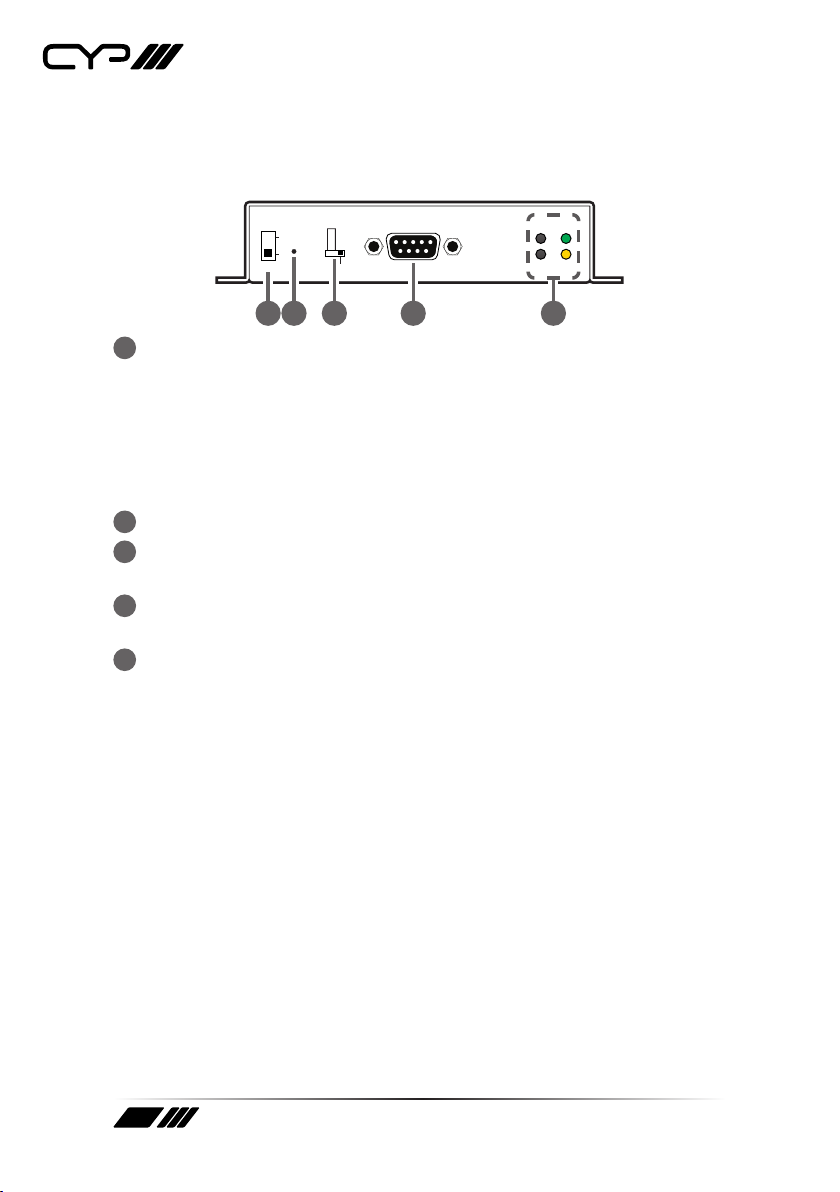

6.1 Transmitter's Front Panel
RS-232 IN
STD
UPDATE
ISP
LINK
PWR
SYNC
HQ/STD
PUV-1710LTX-AVLC
AVLC
HQ
STD
1 2 3 4 5
1STD/HQ: This switch allows user to select which compression mode
to use when AVLC is active. HQ (High Quality) mode uses the least
amount of compression and provides the highest possible visual
quality (perceptually identical to the original). STD (Standard Quality)
mode applies additional signal reduction methods to lower the band-
width requirements of 4K sources further, improving transmission
reliability over longer cable runs at the cost of some visual delity.
2ISP: This button is reserved for factory use only.
3STD/UPDATE: This switch is reserved for factory use only. The default
setting is “STD”.
4RS-232 IN: Connect to a PC, laptop or other serial control device for
the extension of RS-232 signals.
5SYNC LED: This LED will illuminate when a live input source is detect-
ed.
HQ/STD LED: This LED will illuminate whenever the AVLC function is
active. A green LED indicates that AVLC is in HQ (High Quality) mode.
A red LED indicates that AVLC is in STD (Standard) mode.
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active. The LED will blink with a regular pat-
tern if a Receiver is connected but there is not currently a live signal.
The LED will blink with an irregular pattern if a connection error has
occurred.

9
6.2 Transmitter's Rear Panel
HDMI INCAT5e/6/7 OUTDC 48V
IR2
EXTENDER
IR1
BLASTER
1 2 3 45
1DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC
wall outlet for power.
2IR1 BLASTER: Connect to the provided IR Blaster to transmit IR signals to
devices within direct line-of-sight of the IR Blaster.
3IR2 EXTENDER: Connect to the provided IR Extender to extend the IR con-
trol range of remotely located devices. Ensure that the remote being used is
within direct line-of-sight of the IR Extender.
4CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a single
Cat.5e/6/7 cable for transmission of all data signals.
5HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box.
6.3 Receiver's Front Panel
RS-232 OUT
ISP
LINK
PWR
STD
UPDATE
SYNC
HQ/STD
PUV-1710LRX-AVLC
1 2 3 4
1ISP: This button is reserved for factory use only.
2STD/UPDATE: This switch is reserved for factory use only. The default
setting is “STD”.
3RS-232 OUT: Connect to a serial controllable device for the extension
of RS-232 signals.
4SYNC LED: This LED will illuminate when a live input source is detect-
ed.
HQ/STD LED: This LED will illuminate whenever the AVLC function is
active. A green LED indicates that AVLC is in HQ (High Quality) mode.
A red LED indicates that AVLC is in STD (Standard) mode.
POWER LED: This LED will illuminate to indicate the unit is on and

10
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active. The LED will blink with a regular pat-
tern if a Receiver is connected but there is not currently a live signal.
The LED will blink with an irregular pattern if a connection error has
occurred.
6.4 Receiver's Rear Panel
IR1
EXTENDER CAT5e/6/7 IN HDMI OUT
IR2
BLASTER
1 2 34
1IR2 BLASTER: Connect to the provided IR Blaster to transmit IR signals
to devices within direct line-of-sight of the IR Blaster.
2IR1 EXTENDER: Connect to the provided IR Extender to extend the
IR control range of remotely located devices. Ensure that the remote
being used is within direct line-of-sight of the IR Extender.
3CAT5e/6/7: Connect to a compatible HDBaseT Transmitter with a
single Cat.5e/6/7 cable for transmission of all data signals.
4HDMI OUT: Connect to an HDMI TV, monitor or amplier for digital
video and audio output.

11
6.5 IR Pin Assignment
3
1
2
Infrared
Power
Ground
IR Extender
3
1
2
IR Blaster Power
Infrared
NC
6.6 RS-232 Protocol
UNIT TERMINAL
Pin Pinout Pin Pinout
1 1
2TxD 2 RxD
3 RxD 3 TxD
4 4
5 GND 5 GND
6 6
7 7
8 8
9 9

12
7. CONNECTION DIAGRAM
UHDTV
LAN
RS-232 IN
STD
UPDATE
ISP
HQ
STD
LINK
PWR
SYNC
HQ/STD
HDMI INCAT5e/6/7 OUTDC 48V
IR2
EXTENDER
IR1
BLASTER
IR1
EXTENDERCAT5e/6/7 IN HDMI OUT
IR2
BLASTER
LAN
RS-232 OUT
ISP
LINK
PWR
STD
UPDATE
SYNC
HQ/STD
7m3m 3m
60°
1.5m
60°
7m3m 3m
60°
1.5m
60°
Digital Media Player
Serial Equipped
Computer
Serial Controlled
Device
RS-232
RS-232
HDMI
Output
HDMI
Input
IR
IR
Cat.5e/6/7
Cable
Power Supply

13
8. SPECIFICATIONS
8.1 Transmitter's Technical Specications
HDMI Bandwidth 600MHz/18Gbps
HDBaseT Bandwidth 340MHz/10.2Gbps
Input Ports 1×HDMI
Output Ports 1×Cat.5e/6/7
Pass-through Ports 1×IR Extender [3.5mm]
1×IR Blaster [3.5mm]
1×RS-232 [9-pin D-sub]
IR Frequency 30 - 50kHz (30 - 60kHz under ideal condi-
tions)
Baud Rate Up to 115200bps
Power Supply 48V/0.83A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions 128mm×25mm×108mm (W×H×D)
[Case Only]
128mm×25mm×117mm (W×H×D)
[All Inclusive]
Weight 385g
Chassis Material Metal
Silkscreen Colour Black
Operating Temperature 0˚C - 40˚C/32˚F - 104˚F
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity 20 - 90% RH (Non-condensing)
Power Consumption 8.47W

14
8.2 Receiver's Technical Specications
HDMI Bandwidth 600MHz/18Gbps
HDBaseT Bandwidth 340MHz/10.2Gbps
Input Ports 1×Cat.5e/6/7
Output Ports 1×HDMI
Pass-through Ports 1×IR Extender [3.5mm]
1×IR Blaster [3.5mm]
1×RS-232 [9-pin D-sub]
IR Frequency 30 - 50kHz (30 - 60kHz under ideal condi-
tions)
Baud Rate Up to 115200bps
Power Supply PoH
ESD Protection Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions 128mm×25mm×108mm (W×H×D)
[Case Only]
128mm×25mm×117mm (W×H×D)
[All Inclusive]
Weight 386g
Chassis Material Metal
Silkscreen Colour Black
Operating Temperature 0˚C - 40˚C/32˚F - 104˚F
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity 20 - 90% RH (Non-condensing)
Power Consumption 9.8W

15
8.3 Video Specications
Supported PC Resolutions (Hz)
HDMI
Input
HDMI
Output
640×480 60, 72, 75, 85  
720×400 70, 85  
800×600 56, 60, 72, 75, 85  
1024×768 60, 70, 75, 85  
1152×864 75  
1280×720 50, 60  
1280×768 60, 75, 85  
1280×800 60, 60 (RB)  
1280×960 60  
1280×1024 60  
1360×768 60  
1366×768 60  
1400×1050 60, 60 (RB)  
1440×900 60, 60 (RB)  
1600×900 60  
1600×1200 60  
1680×1050 60, 60 (RB)  
1920×1080 60  
1920×1200 60  

16
Supported TV Resolutions (Hz)
HDMI
Input
HDMI
Output
720×480i 59.94, 60  
720×576i 50  
720×480p 59.94, 60  
720×576p 50  
1280×720p 50, 59.94, 60  
1920×1080i 50, 59.94, 60  
1920×1080p 50, 59.94, 60  
1920×1080p 23.97, 24, 25, 29.97, 30  
3840×2160p 24, 25, 30  
4096×2160p 24, 25, 30  
3840×2160p (YUV 4:2:0) 50, 60  
3840×2160p 50, 60  

17
8.4 Cable Specications
HDMI Cable
Length (metre)
1080p 4K
8-bit 12-bit 8-bit
Input 10 10 5
Output 10 5 5
Cat. Cable
Length (metre) 1080p 4K
Cat.5e 70 35
Cat.6 70 35
Cat.7 70 35
Full HD Video (1080p)
-Up to 1080p@60Hz, 12-bit colour
-Data rates lower than 5.3Gbps or below 225MHz TMDS clock
Ultra HD Video (4K)
-4K@24/25/30Hz & 4K@50/60Hz (YUV 4:2:0), 8-bit colour
-4K@50/60Hz (4:4:4, 8-bit) with AVLC active
-Data rates higher than 5.3Gbps or above 225MHz TMDS clock

18
9. ACRONYMS
ACRONYM COMPLETE TERM
AVLC Adaptive Visually Lossless Compression
Cat.5e Category 5 (enhanced) Cable
Cat.6 Category 6 Cable
Cat.7 Category 7 Cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
HD High-Denition
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
IR Infrared
LAN Local Area Network
LPCM Linear Pulse-Code Modulation
PC Personal Computer
PD Powered Device
PoH Power over HDBaseT
PSE Power Sourcing Equipment
UHD Ultra-High-Denition
