D-Link DCM202 - Express Ethernetwork DOCSIS 2.0 Cable... User manual

Manual
Building Networks for People
USB/Ethernet
D-Link DCM-202
Broadband Cable Modem

2
Contents
Package Contents ...............................................................3
System Requirements for Configuration .............................4
Local Cable Network Service...............................................5
Prepare Your Workspace for the Installation .......................5
Introduction ..........................................................................7
Which Installation to Use? ...................................................8
Ethernet Installation..............................................................9
Troubleshooting the Ethernet Installation ..........................13

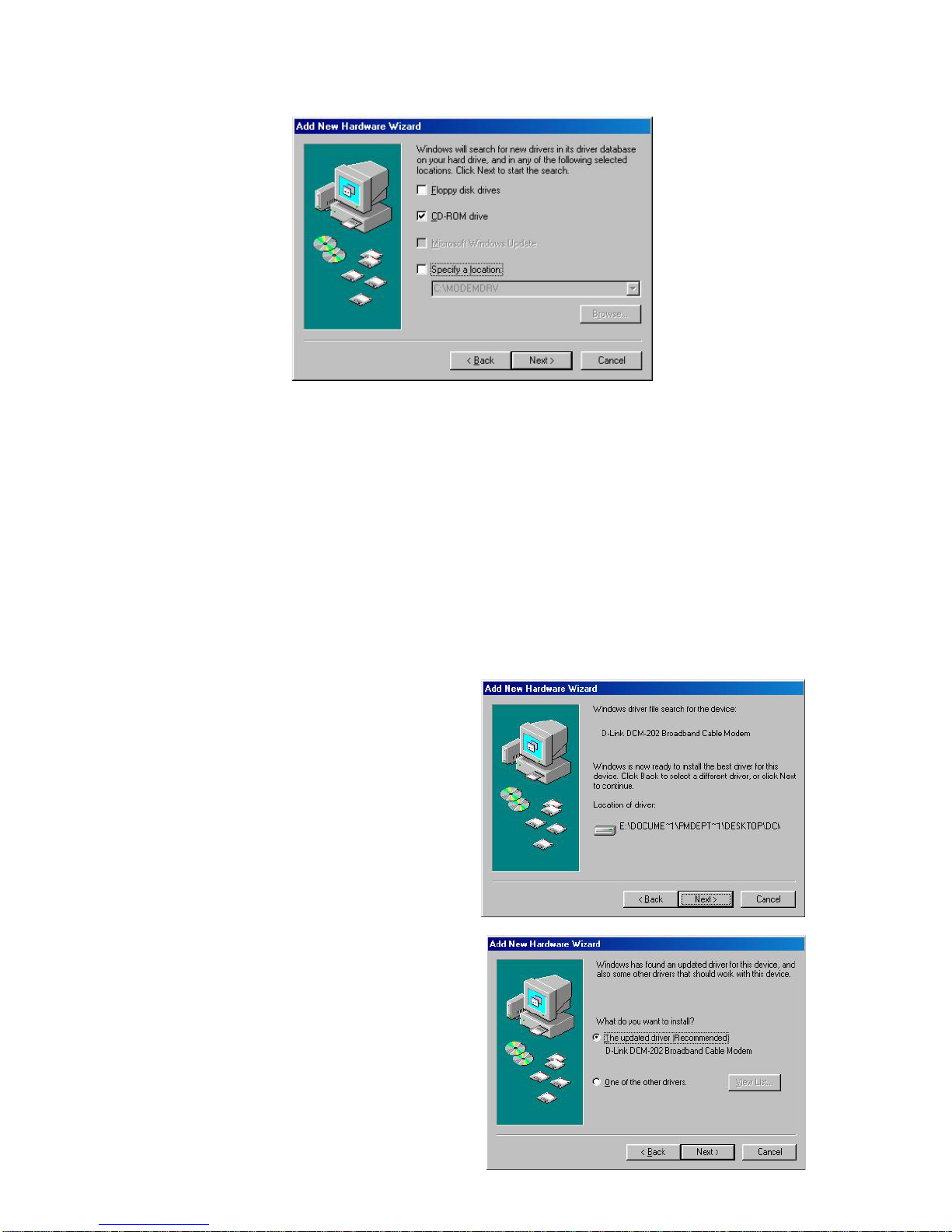

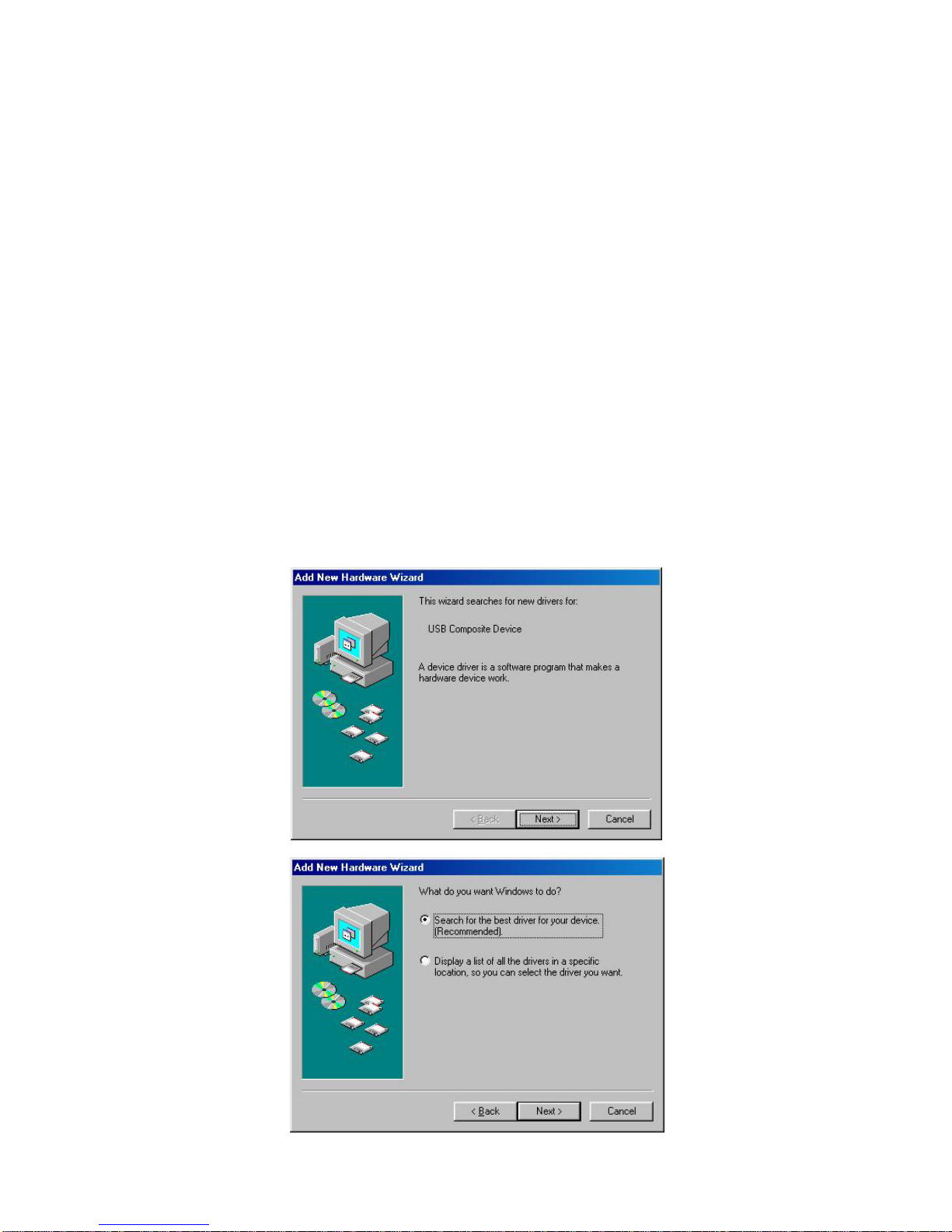

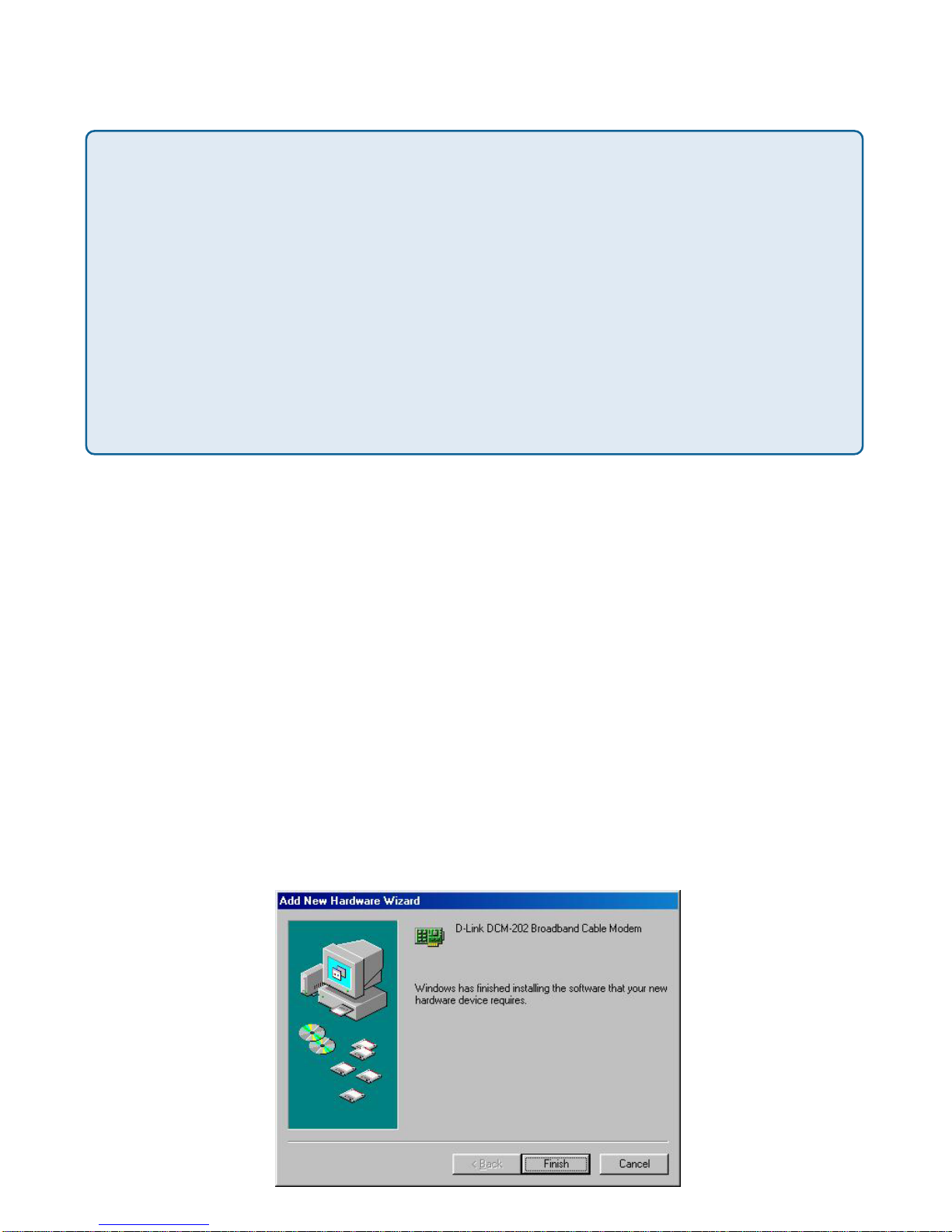

USB Installation..................................................................16
Troubleshooting the USB Installation.................................26
FrontandRearPanels..........................................................29
LEDs..................................................................................29
Back Panel Connectors .....................................................31
Technical Specifications ....................................................32
Technical Support ..............................................................35
Warranty .............................................................................36
Registration........................................................................39

3
Contents of Package:
D-Link DCM-202
USB/Ethernet Broadband Cable Modem
Manual, Warranty and Drivers on CD
PrintedQuick InstallationGuide
Package Contents
If any of the above items are missing, please contact your reseller.






CAUTION! You must use the 12VDC/1.0A power adapter that comes with
the D-Link DCM-202 cable modem. Using the wrong power adapter can
damage the cable modem.
One 12VDC/1.0A Power adapter
1 CAT 5 UTP Ethernet cable
1 USB cable
1 Cable modem stand to install the cable modem in a vertical
position
CAUTION! Be sure to read this entire User Manual from front to back in
sequence before installing the D-Link DCM-202 cable modem.

4
System Requirements for Configuration:
A cable-line splitter (not included), if you plan to have the cable modem
and a television connected to the same wall cable outlet.
An active two-way cable line.
To install the cable modem using the Ethernet port:

Verify that you have these items before beginning the installation:
To install the cable modem using the USB port:
Any PC running Microsoft Windows 95, Windows 98,
Windows Me, Windows 2000, or Windows NT operating
systems or a computer running any other operating (OS) that
supports the TCP/IP Internet protocol.
An active Ethernet port on your computer.
TCP/IP protocol installed. See the “Configuring the TCP/IP
Communications Protocol” section for more information on
installing the TCP/IP protocol.
A PC running Windows 98, Windows 2000, or Windows Me
operating system (OS). The USB drivers do not support the
Macintosh operating system.
Original Windows 98, Windows 2000, or Windows Me
installation CD or diskettes.
An active USB port on your computer










5
Before installing the modem:
1 Read this entire User’s Manual from front to back in sequence.
2 Find the Serial Number, RF and Ethernet address located on a sticker on
the cable modem and write them here:
Serial Number S/N: ____________________
RF and ETH MAC: ____________________
3 Contact your local cable service operator for Internet/cable network
access. Your local cable operator will check for cable access availability in
your area, install a cable line (if necessary), provide you with an access
account, set up configuration and verify other technical details.
4 Ask your local cable service provider about adding additional IP addresses
to your account. See “ Which Installation to Use?” for more information.
Local Cable Network Service
Prepare Your Workspace for the Cable Modem
Installation
Before installing the cable modem, you should prepare your workspace. You
can install the cable modem vertically, or attach the included four rubber feet
and install the cable modem horizontally.
To prepare your workspace:
1 Position the cable modem so that it is located near the computer and the
wall cable outlet. There should be plenty of room to guide the cables away
from the cable modem without crimping them.

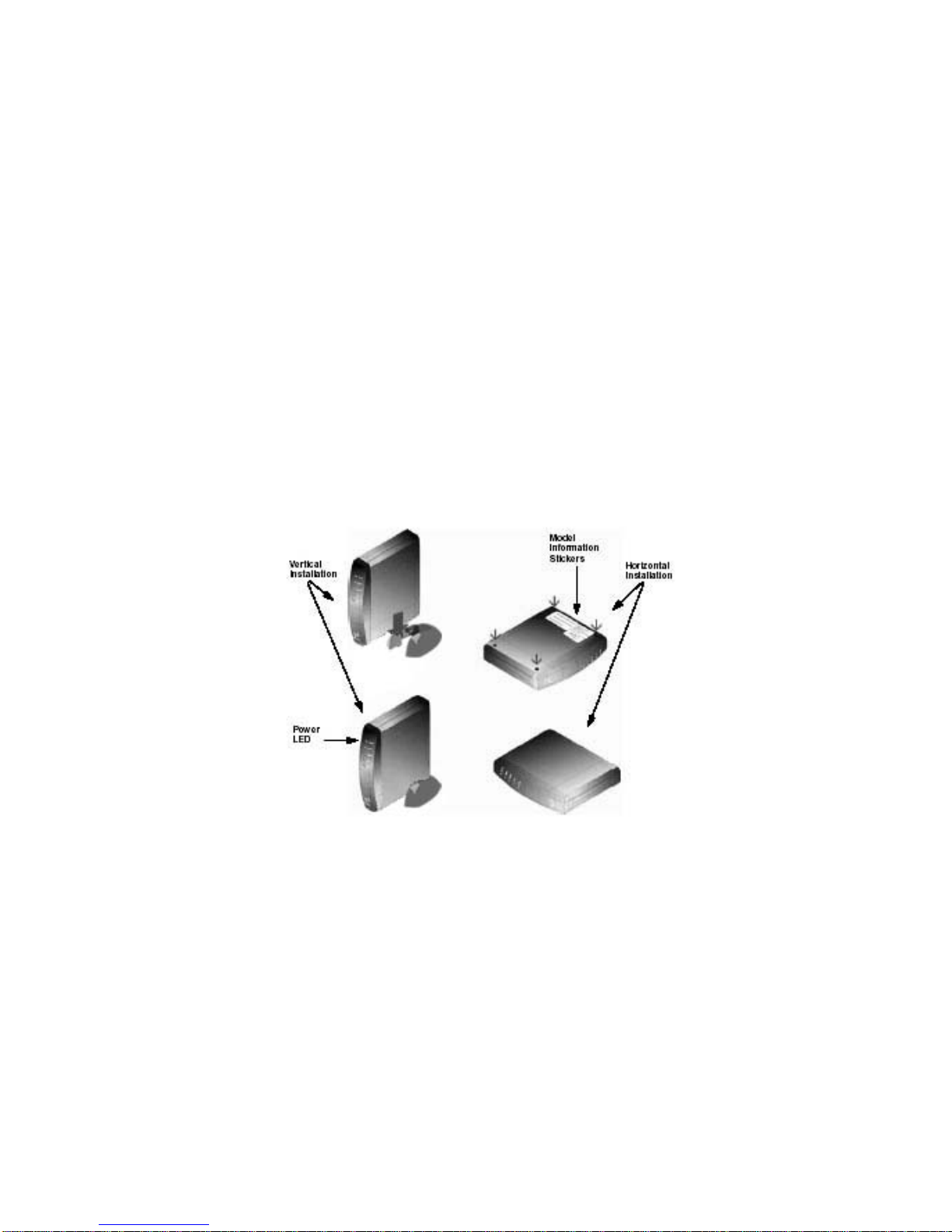

2 Prepare the cable modem:
For vertical installation: Place the cable modem securely in the
included stand.
For horizontal installation: Use the four included feet to install the
cable modem.



6
Remove the backing paper and attach a foot to each of the corners on
the cable modem; be sure to attach the feet on the surface that
contains the model information stickers, as shown.
3 Do not restrict the airflow around the cable modem.
4 To enhance the best performance and proper function of the cable
modem, place it on a horizontal surface or workplace and make sure that
the cable modem does not move when it is operating.
Prepare Your Workspace for the Cable Modem
Installation (continued)

7
Introduction
Thank you for purchasing the D-Link “Broadband Cable Modem with USB &
Ethernet” DCM-202, which is an MCNS DOCSIS™ 2.0 cable modem featuring
the latest DOCSIS technology.
The cable modem enables your network cable operator to provide you with
broadband applications such as telecommunications, IP dedication for your
small office/home office (SOHO), or high-speed residential Internet access.
The cable modem provides a downstream speed of up to 38Mbps from the
cable network to your computer and 30Mbps from your computer to the cable
network.
The DES data encryption helps ensure privacy for the transmitted information.
Another distinctive feature of the cable modem is its easy installation, because
DHCP and TFTP clients can obtain automatic access to the IP address and
configuration from their network servers via the modem. SNMP agents permit
remoteconfiguration and monitoringfrom amanagement station equippedwith
an SNMP server.

8
Features
Decide Which Installation Process to Use
The cable modem enables you to connect to the Internet using either your
computer’s Ethernet or USB port.
Be sure to follow the installation steps for the setup you want to use. Using the
Ethernet setup enables you to use a hub to connect multiple computers to the
cable modem. To do this, you might have to obtain additional IP addresses
from your cable operator.

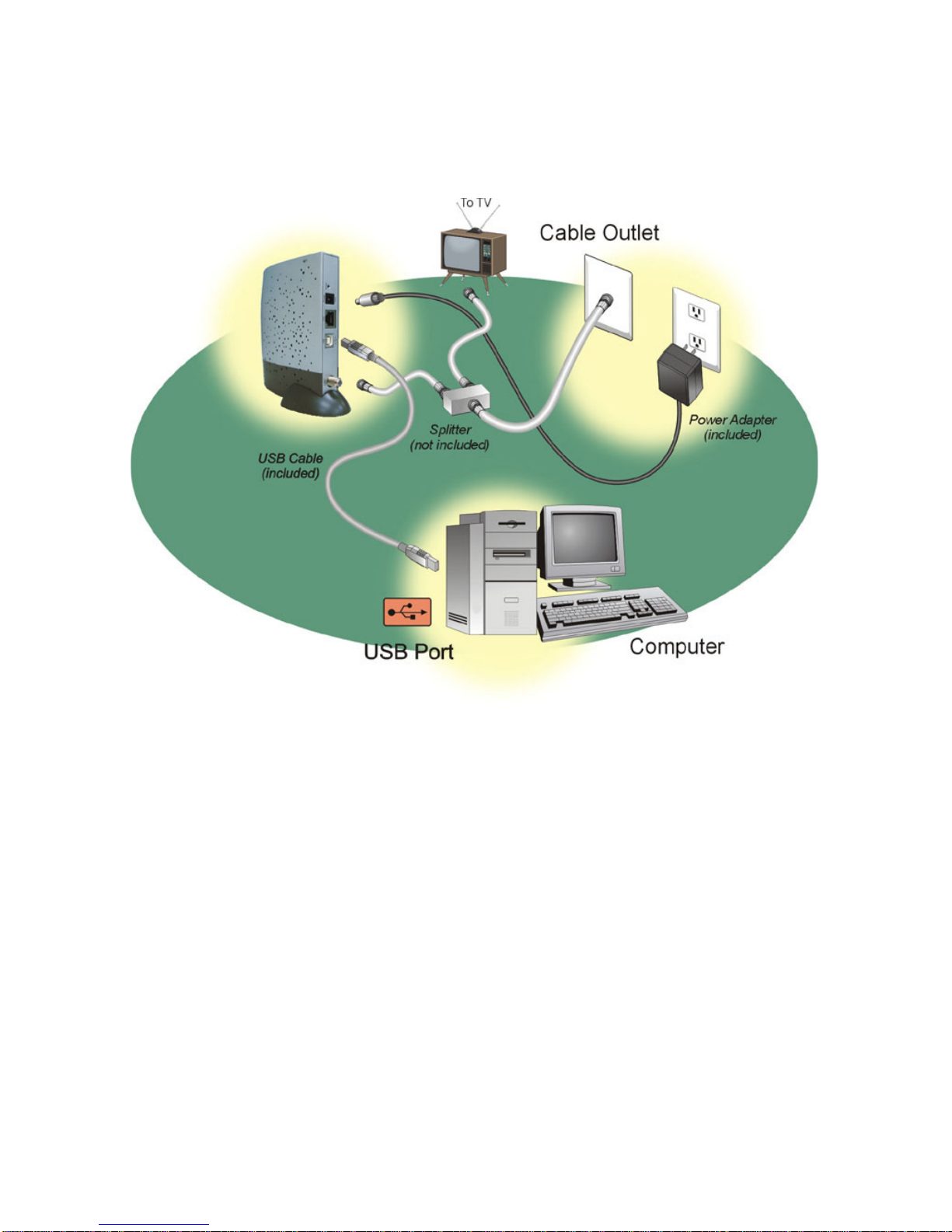

Using the USB port enables you to install the cable modem more quickly and
easily than connecting to the Internet using the Ethernet port, because you do
not have to install a network interface card (NIC) into your computer. The USB
port, however, only enables you to connect one computer to the cable modem.
See“Installing the Cable Modem Usingthe Ethernet Port”, or see“Installing the
CableModem Using theUSB Port” inthe following pages,for more information.








Full-featured compact, economical cable modem with Ethernet
and USB ports
DOCSIS 2.0-compliant
Capable of handling downstream data transmission speeds up to
38Mbps; upstream to 30Mbps
RJ-45 10/100BaseT Ethernet port provides traditional industry-
standard connection
USB port allows easy plug-and-play attachment to PCs with the
latest Microsoft Windows operating system.
ExtensiveSNMP management support: MIB-II,
Ethernet-likeMIB, Bridge MIB,Cable DeviceMIB,
Baselineprivacy InterfaceMIB, RF Interface MIB
Easy-to-read front panel LED’s clearly display network status and
activity

9

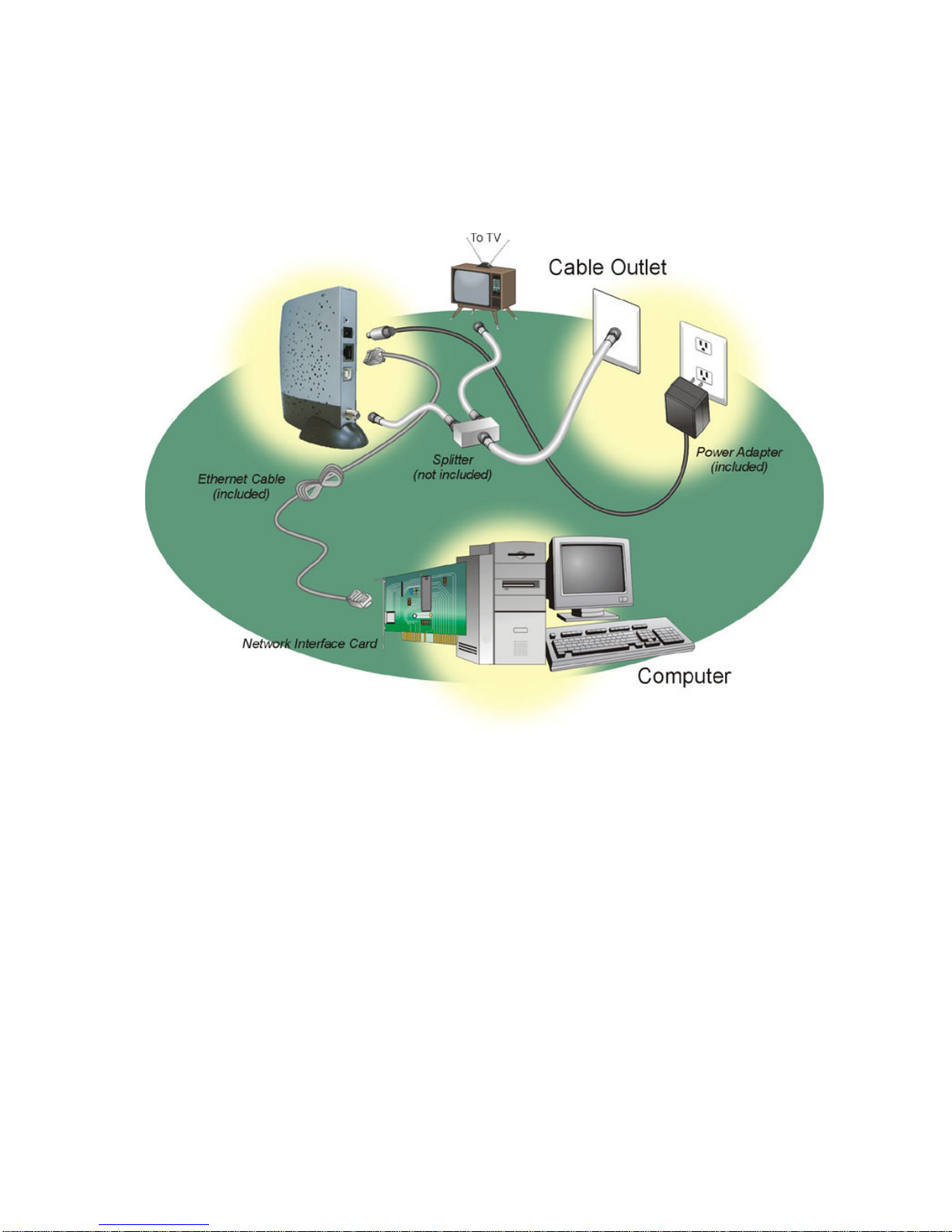

Installing the Cable Modem Using the Ethernet
Port
DCM-202

10
Installing the Cable Modem Using the Ethernet
Port
CAUTION! Be sure to read this entire User’s Manual from front to back in
sequencebeforeinstallingtheD-LinkDCM-202USB/EthernetBroadbandCable
Modem.
This chapter describes how to install the cable modem using the Ethernet port.
Using the Ethernet port enables you to use a single connection to the Internet
or use a hub to connect multiple computers to the cable modem. You can also
use multiple IP addresses from your cable operator when using the Ethernet
connection.See“InstallingtheCableModemUsingtheUSBPort”inthismanual
to set up the USB Connection.
You can use the Ethernet port to connect to the Internet with the following
operatingsystems: Windows 95, Windows 98,Windows 98SE,Windows 2000,
Windows Me, Windows NT, or Macintosh 7.6 (or later).
VerifytheTCP/IPProtocolConfiguration
Beforeinstalling themodem usingthe Ethernet setup, you must verify that your
computer has the TCP/IP protocol installed. Follow the procedure for your
operating system to verify or install the TCP/IP protocol.
Configuring TCP/IP on Windows 95, Windows 98, and
Windows Me
To configure TCP/IP on a computer with the Windows 95, Windows 98,
or Windows Me operating system:
1 Right-click the Network Neighborhood icon (Windows Me: the My Network
Places icon) on the Windows desktop and click Properties.
