digicon dGate UW900 User manual

dGate Product Manual Version 01
dGate SW
dGate UW

dGate Product Manual - Version 01
2
Revision Date Reviewer History
01 03/02/2022 • Ezequiel Kellerman
• Nicholas Hahn;
• Igor Cunha
• Leandro Dandolini
• New dGate manual
Copyright - Digicon S.A. Controle Eletrônico para Mecânica
All rights reserved. No part of this publication shall be reproduced, transmitted,
transcribed, led in a recovery system, or translated to any human or computer
language through electronic, magnetic, optical, chemical, or manual means, or
otherwise, without the express written permission of Digicon S.A.
Code: 069.31.275
Version: 01 - English
This manual was written by: Digicon S.A. Controle Eletrônico para Mecânica
Documentation Sector - EDS
“After the product’s lifespan, discard it according to the National Waste Policy.”

dGate Product Manual - Version 01
3
Revision Date Reviewer History
01 03/02/2022 • Ezequiel Kellerman
• Nicholas Hahn;
• Igor Cunha
• Leandro Dandolini
• New dGate manual
Obs.: If you wish to see the history of every version of this manual, get in touch with your representative or
with Digicon.
ATTENTION!: Digicon shall have the right to change its products’ characteristics
at any moment to adapt them to the most recent technological developments.
ATTENTION!: Digicon shall have the right to change the information contained
herein without prior notice.

dGate Product Manual - Version 01
4
Contents
1.Presentation ............................................................................................................7
2. Safety Instructions..................................................................................................8
2.1 Symbols .......................................................................................................8
2.2 Terminology .................................................................................................9
2.3 Risks .....................................................................................................9
2.3.1 Equipment unpacking risk ..............................................................10
2.3.2 Equipment installation risks............................................................10
2.3.3 Equipment use risks .......................................................................11
2.3.4 Equipment maintenance risks ........................................................12
2.3.5 Equipment cleaning process risks..................................................12
3. dGate’s Features..................................................................................................13
3.1 Functional description ................................................................................15
4. Unpacking, Installation, and Electric Connection .................................................17
4.1 Package opening .......................................................................................17

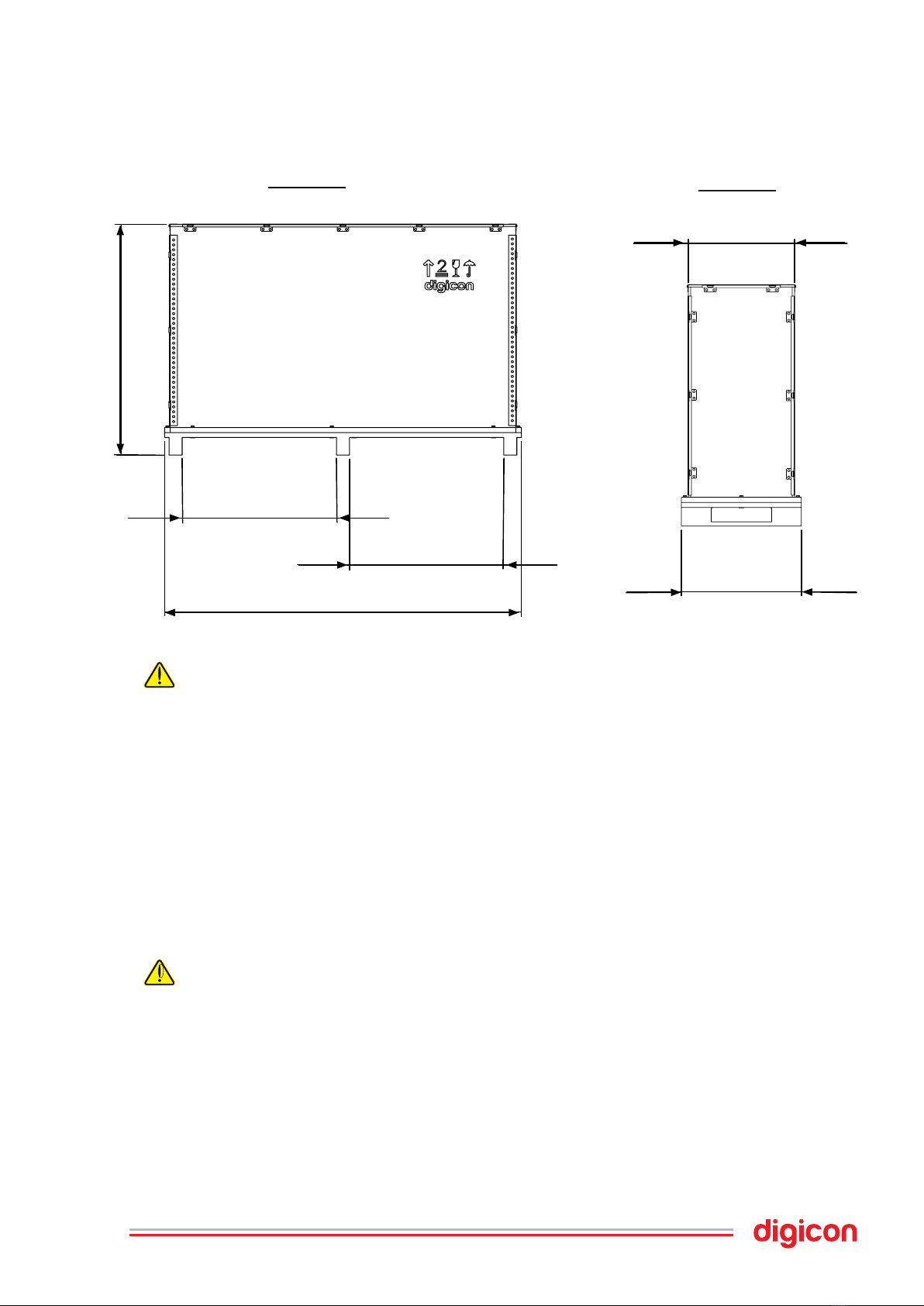

4.1.1 Package dimensions ......................................................................18
4.1.2 Necessary tools:.............................................................................18

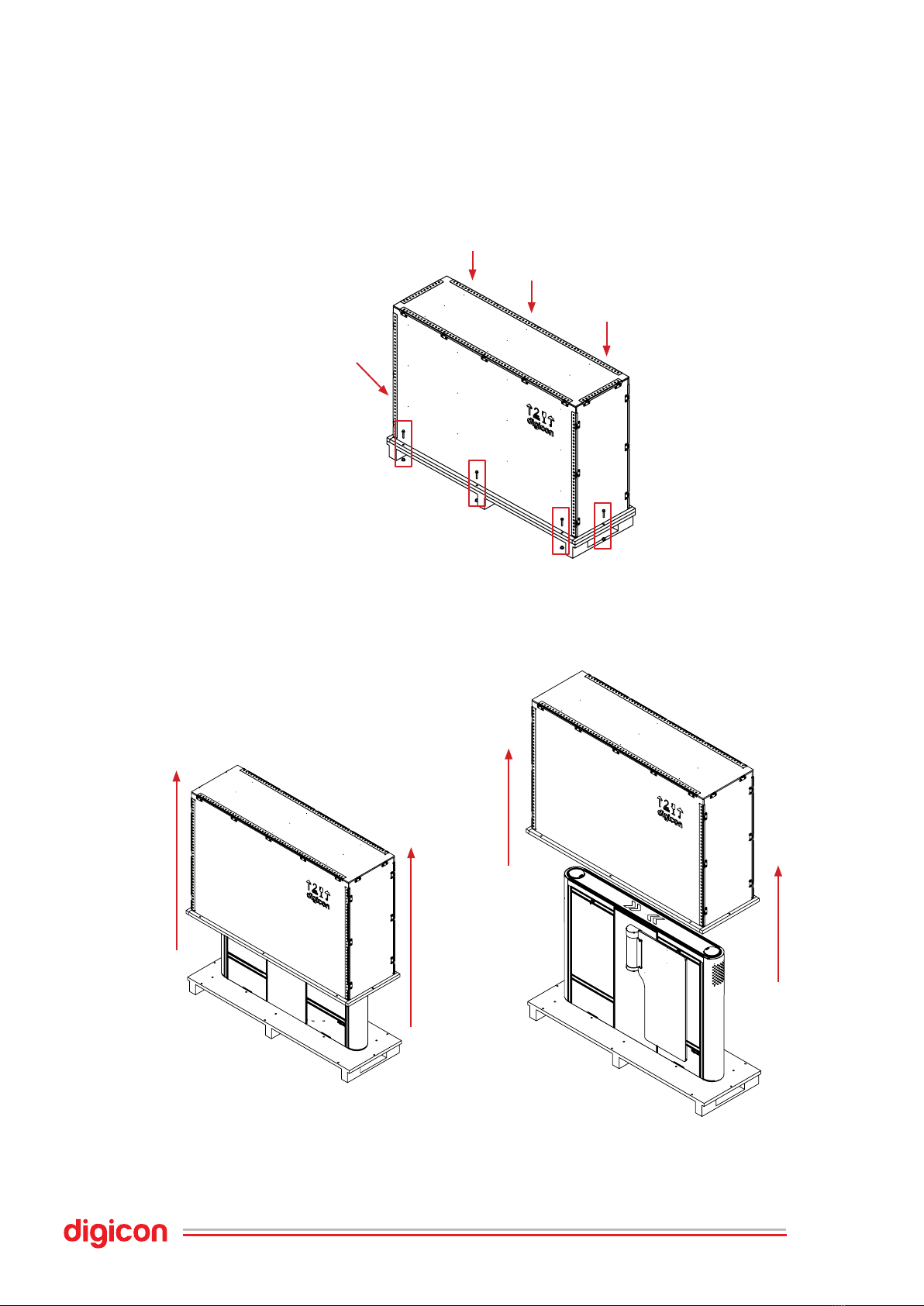

4.1.3 Steps to open the package:............................................................19
4.1.4 Key parts of the product .................................................................22
4.2 Installation..................................................................................................24
4.2.1 Before installing your dGate, check................................................24
4.2.2 Positioning and xation on the oor ...............................................25
4.3 Access to dGate after xation ....................................................................30
4.4 Electric connection.....................................................................................31
4.4.1 Electric panel..................................................................................31
5. Interconnections ...................................................................................................33
5.1 Basic wiring................................................................................................34
5.2 Connection to the electric network.............................................................37
5.3 Connection of the control signals...............................................................38

dGate Product Manual - Version 01
5
6. Identication of the Internal Parts and Functionalities..........................................41
6.1 MCP control board .....................................................................................41
6.2 Pictograms .................................................................................................42
6.3 Sensor barriers ..........................................................................................44
6.4 Antipanic ....................................................................................................45
6.5 Functionalities ............................................................................................46
6.5.1. Anti-crush protection system .........................................................46
6.5.2 Door speed conguration ..............................................................47
6.5.3 Access control conguration with open doors ...............................48
6.5.4 Anti-crush protection system ..........................................................48
6.5.5 Passage timeout............................................................................50
6.5.6 Passage direction detection ...........................................................51
6.5.7 User return detection......................................................................51
6.5.8 Idle user detection ..........................................................................52
6.5.9 Gate trespassing detection.............................................................53
6.5.10 “Tailgating” user detection ............................................................53
6.5.11 Asset safety zone denition ..........................................................54
6.5.12 Passage authorization accumulation............................................55
7. Optional Items ......................................................................................................56
7.1 Card collector kit ........................................................................................56
7.2 Digicon MCA board ....................................................................................57
8. Maintenance.........................................................................................................58
8.1 Door ...........................................................................................................58
8.1.1 Calibration routine ..........................................................................59
8.2 Troubleshooting .........................................................................................61
8.3 Preventive maintenance ............................................................................62
8.3.1 Preventive action table ...................................................................62

dGate Product Manual - Version 01
6
9. Technical Characteristics......................................................................................65
9.1 Dimensions ................................................................................................65
9.2 Other information .......................................................................................68
10. Cleaning .............................................................................................................69
10.1 Stainless steel maintenance and conservation........................................69
10.2 Polycarbonate (door) maintenance and conservation .............................71
11. Warranty and Customer Support ........................................................................73
Notes:...............................................................................................................74

dGate Product Manual - Version 01
7
1.Presentation
When innovation meets robustness and design meets trustworthiness, you have the best
solution in access control. Every detail of Digicon’s solution was made to bring innovation,
quality, and design to the access control market. dGate was born in result of an intense
research process of world trends and an exhaustive engineering work.
Find out more about our products accessing our website using the QR Code below:

dGate Product Manual - Version 01
8
2. Safety Instructions
2.1 Symbols
You are going to nd the symbols below in the Product Manual. They point to important
Attention and Careful notications regarding equipment safety, installation, operation,
and maintenance.
ATTENTION!: Describes something important of which the qualied technical
person and the user should be aware.
CAREFUL - RISK OF LESION/INJURY!: Describes risk situations that may
lead to lesions and/or injuries.
CAREFUL - RISK OF DEATH!: Describes high risk situations that may lead
to death. These cases are related to the interaction with the internal part of the
equipment, and it is advisable to employ a qualied technical person.
Read and keep the instructions of this manual: Read and keep this Product Manual
for future reference. Read carefully all safety, unpacking, installation, operation, and
maintenance instructions before operating this equipment.
Follow the instructions and the attention and careful notications: Follow all
installation, operation/use, and maintenance instructions. Pay close attention to all
attention, careful, and precaution notications in the operation instructions, as well
those attached to this equipment. The attention and careful notications are essential
for the user’s and the qualied technical person’s protection and for the equipment’s
use longevity.

dGate Product Manual - Version 01
9
2.2 Terminology
The terms dened below are used in this document. These denitions are based on
those found in the safety standards:
Qualied Technical Person: The term qualied technical person is applied to people
trained and qualied by Digicon and that are allowed to install, replace, or provide
technical assistance to its equipment. It is recommended that the qualied technical
person may use his/her experience, technical skills, and good practice to avoid
possible injuries to him/herself and to others due to risks that exist in restrict access
areas. It should be done to mitigate risks and to increase the equipment’s lifespan.
ATTENTION!: IInstallations and/or maintenance performed by an unqualied
technician can make the equipment’s warranty void.
User: This term is applied to an individual that is not a qualied technical person and
that uses the equipment.
2.3 Risks
The safety information and notications below are made available to protect you from
injuries and to avoid damaging the equipment.
Children and people that require assistance may be unable to identify the risks
associated to the use of the equipment and can get hurt or put themselves in life-
threatening situations.
Be attentive also to animals that are close to the equipment.

dGate Product Manual - Version 01
10
The risks with which you should be attentive in several situations are listed below.

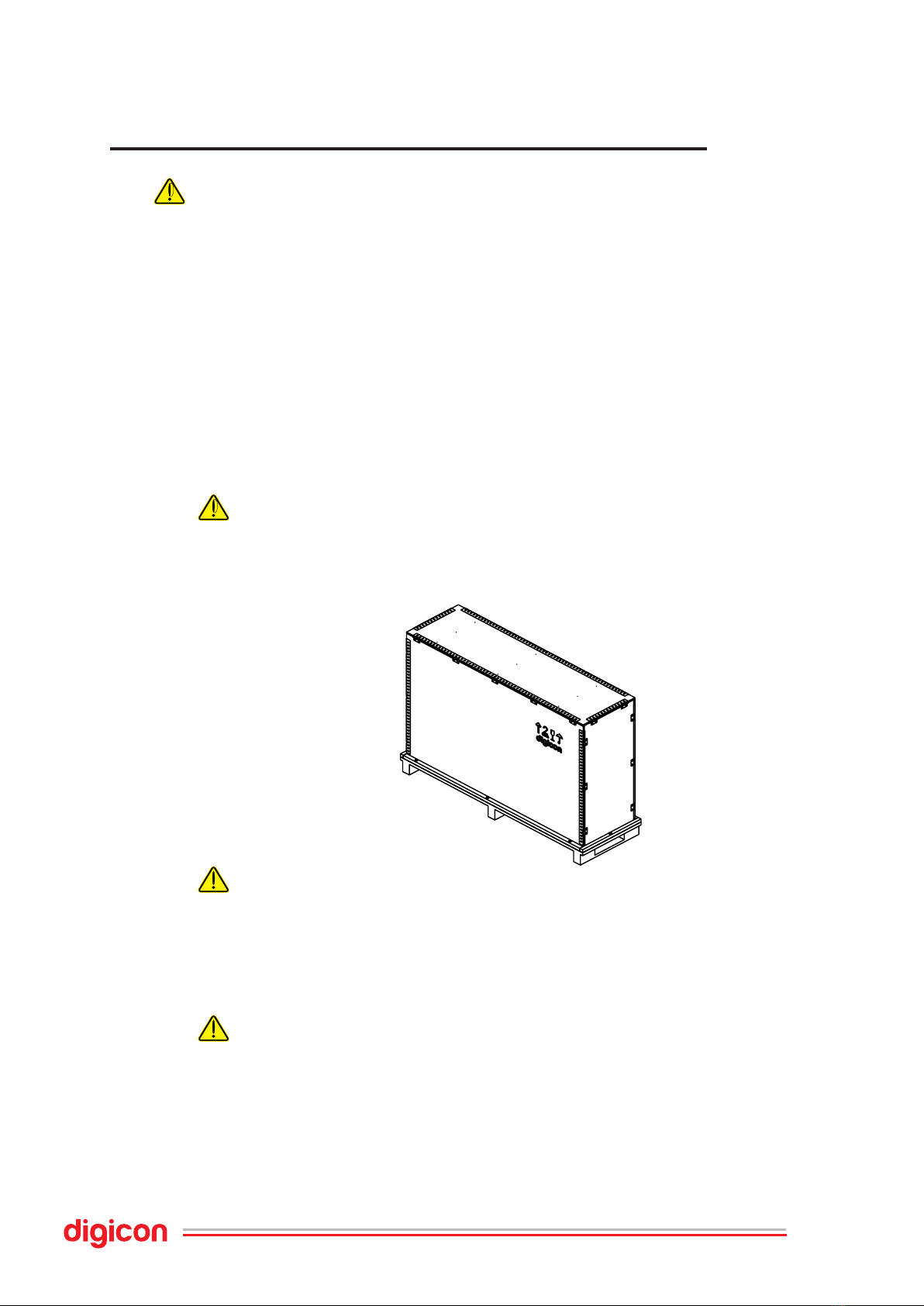

2.3.1 Equipment unpacking risk
ATTENTION!:
• Always use the proper tools;
• Always use the required PPEs (gloves, shoes, and safety goggles).
CAREFUL - RISK OF LESION/INJURY!:
• Be careful while handling the equipment package because it is made out of wood
and may have splinters;
• The package is heavy, so do not let it drop because it could cause injuries and
damage the equipment;
• Thin steel sheets are used to make the package and they can cause cuts and
wounds;
• Be careful while lifting the cover of the package because it can fall and cause
injuries and damage the equipment;
• To unscrew the equipment from the package’s base, remove the side glass doors.
Handle them carefully, placing them in a safe spot;
• Be careful with your hands and feet while removing the equipment from the
package’s base and positioning it on the installation spot
2.3.2 Equipment installation risks
ATTENTION!:
• All installation steps should be performed by a qualied technical person and
the proper tools and PPEs should be used;
• Before connecting it to the electrical grid, carefully inspect the installation.

dGate Product Manual - Version 01
11
CAREFUL - RISK OF LESION/INJURY!:
• Be careful while positioning this equipment on the installation site
because its size and weight can cause injuries;
• During the initial stage of operation, the doors can move. Leave the
passage area free to avoid them bumping objects and people.
CAREFUL - RISK OF DEATH!:
• This equipment works with dangerous voltages. To avoid being
shocked, the installation should be exclusively made by a qualied
technical person;
• Before performing any procedure, make sure that the power is o󰀨.
2.3.3 Equipment use risks
CAREFUL - RISK OF LESION/INJURY!:
• Careful! This is an access control equipment, and the doors can close
in some situations. If the doors bump into someone, it can cause
bruises and even fractures;
CAREFUL - RISK OF DEATH!:
• Children and people that require assistance should be
constantly supervised because they may be unable to
identify the risks associated to the use of the equipment and
can get hurt or put themselves in life-threatening situations.

dGate Product Manual - Version 01
12
2.3.4 Equipment maintenance risks
ATTENTION!:
• All maintenance steps should be done by a qualied technical person and the
proper tools and PPEs should be used
CAREFUL - RISK OF LESION/INJURY!:
• Take good care of your hands and ngers during the maintenance process
because the moving mechanisms of the door can cause serious injuries.
CAREFUL - RISK OF DEATH!:
• The equipment has several glass pieces. Always use safety goggles;
• Before performing any procedure, make sure that the power is o󰀨;
• Failing to observe the recommendations above can result in serious injuries
and in the risk of death.
2.3.5 Equipment cleaning process risks
ATTENTION!:
• Use all necessary PPEs during the cleaning process (gloves and safety
goggles).
CAREFUL - RISK OF LESION/INJURY!:
• Be careful during the cleaning process because the doors can close in some
situations. If the doors bump into someone, it can cause bruises and even
fractures;
• The side doors that grant access to the equipment and the upper covers are
made out of glass, so be careful not to push them too hard;
• In the cleaning chapter of this manual, there is a list of which products are
suitable to clean the equipment. Using the proper products protects the
equipment and the skin of those who clean it.

dGate Product Manual - Version 01
13
3. dGate’s Features
1. dGate has a motorized system to open and close the access doors, which are activated
once an approved user is identied and authorized to enter. A sensor system is employed
to identify and prevent unauthorized people from entering or the attempt of “tailgating,”
as well as to protect dGate’s users from harm.
2. Made out of high-durability stainless steel. Versions in carbon steel with epoxy painting
on request;
3. Models available with SW (Swing or pivot) doors, made out of 12 mm thick polycarbonate;
4. Side doors that open with keys to access the internal part of the equipment, facilitating
the access to its conguration and maintenance;
5. Specic microprocessor controller that allows you to congure a set of operational
parameters to optimize the passage ow, and the asset and personal safety;
6. dPower high-performance brushless motors enable the doors to move silently and
e󰀩ciently;
7. It has a congurable audible signal (Beep) for access control;
8. Detection system: ten infrared sensors to detect passage, and asset and user safety
functionalities;
9. Anti-crush system: the doors open when an obstacle is detected;
10.Antifraud system with audible notication and detection of attempt of “tailgating” user,
attempt of passage on the opposite direction, and attempt of passage without validation;
11. Direction control. The following access modes are allowed:
• Controlled access in the entrance and exit directions;
• Controlled access only in the entrance direction, free or locked exit;
• Controlled access only in the exit direction, free or locked entrance;
• Access locked in the entrance and exit directions;
• Free access in the entrance and exit directions.
12.Emergency opening: manual opening in case of power failure or automatic opening on
emergency alarm activation;

dGate Product Manual - Version 01
14
13.It has a specic internal space to integrate access control devices, identication systems
(tags, biometric, etc.), etc;
14.Full-range power supply (from 100 to 240Vca);
15.Low energy consumption in standby mode;
16.Upper operation pictogram expandable up to two RGB led modules of high brightness
and color control (request the conguration you desire at the moment of purchase);
17.Front orientation pictogram with RGB leds;
18.Microcontroller dedicated to motor control;
19.Door positioning control monitored by a magnetic encoder, free from mechanical wearing;
20.Side glass doors or, optionally, stainless steel doors;
21.It allows the installation of a proximity reader at the ends;
22.Available with the 2D barcode reader option;
23.Available with the biometric reader option;
24.Model available with 520 mm and 920 mm width passage to serve people with special
needs (PSN).

dGate Product Manual - Version 01
15
3.1 Functional description
dGate has a motorized system to open and close the access doors, which are activated
once a user is identied and authorized to enter. A sensor system is employed to identify
and prevent unauthorized people from entering or the attempt of “tailgating.” These
sensors also protect the users from harm.
The equipment’s operation mechanism is activated by a brushless permanent magnet
motor.
Since the motor does not employ a set of brushes to perform the electric activation,
there is no mechanical wearing of electric contacts, extending the motor’s lifespan.
To assemble a passage, you will always need two modules. On the right side, monitoring
the passage from the free area to the controlled area, there will be a Receiver-type
module; on the other side, on the left, there will mandatorily be a Transmitter-type
module or a Receiver/Transmitter module, if there is more than one passage.
(Controlled Area))
(Free Area)
Transmitter (T)
Receiver/Transmitter (RT)
Receiver (R)

dGate Product Manual - Version 01
16
Receiver (R): It is the side that has the receiving sensors and the electric panel, where
are installed: the interconnection board, the passage control module (MCP), the power
terminal strip (BN1), and the source module.
Transmitter (T): It is the side that has the transmitter sensors and the dGate
interconnection board. By default, all interconnection cables are installed in the
Transmitter side.
ATTENTION! - To assemble a full layout, with more than one passage, there
are hybrid door modules called RT (Receiver+Transmitter).
Receiver e Transmitter (RT): It is a module than has a Receiving side and a
Transmitting side. All sets described above in R and T are installed in this module.

dGate Product Manual - Version 01
17
4. Unpacking, Installation, and Electric Connection
ATTENTION! - This equipment should be installed only by qualied technical
persons. The installation should observe all local standards and regulations.
4.1 Package opening
Since the items in the package can vary (depending on what the client requested),
it is extremely important that you carefully visually check it before you begin the
installation and assembling process. All Digicon packages come with a checklist
to guide you in this inspection.
ATTENTION! - Check if the package is not damaged at the receipt of the
equipment. If it is, take pictures of it and send them to the transport company
responsible.
CAREFUL - RISK OF LESION/INJURY!: The package is heavy. It weights
around 140/150 kg. You will need to use the proper transportation equipment to
carry it, like a pallet truck;
CAREFUL - RISK OF LESION/INJURY!: Always use the necessary PPEs
(gloves, shoes, and safety goggles).

dGate Product Manual - Version 01
18
4.1.1 Package dimensions
ATTENTION! - The dGate package measures are illustrated in millimeters
4.1.2 Necessary tools:
• 1 medium-sized screwdriver (to unpack);
• 2 combination wrenches (or with ratchet) 17 mm;
• 1 combination wrench (or with ratchet) 13 mm;
• Safety gloves (PPE).
CAREFUL - RISK OF LESION/INJURY!: The package’s metallic parts can cut
the individuals handling it.
465
525
1175
707,50
707,50
1635
Side view Front view

dGate Product Manual - Version 01
19
4.1.3 Steps to open the package:
1. Unscrew the outer part of the box. There are three screws on each side, one
screw on the front, and another screw on the back, totaling eight hexagonal
screws.
2. Lift the cover of the box vertically. It ideally should be done by two people. Lift
until the cover is above the module.

dGate Product Manual - Version 01
20
3. Once the cover is removed, you will need to remove the side doors of the
module to access the screws attaching it to the bottom of the package (pallet).
The keys of the doors are in a package that comes with the user’s information
and orientation guide.
CAREFUL! - The side doors can be made out of glass, so handle them carefully
to avoid breaking them or hurt the technician or user.
