Oxgard CUBE C-04-s User manual

VOZROZHDENIE LLC
OKPD 2 26.30.50.110
TU 26.30.50-007-33120038-2017
APPROVED BY
VZR.235900.000 LU
TURNSTILE
CUBE С-04 MODEL
C-04-s, C-04-K, C-04-Ks, C-04-N, C-04-Ns, C-04-NK, C-04-NKs
VZR.235900.000 LB
LOGBOOK
40 sheets
2020

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
2
TABLE OF CONTENTS
Abbreviations .................................................................................................................................... 4
1General instructions................................................................................................................... 5
2Basic information....................................................................................................................... 6
3Basic technical data................................................................................................................... 8
4Individual features.................................................................................................................... 10
5Completeness........................................................................................................................... 11
5.1 Product components............................................................................................................. 11
5.2 Spare parts, tools, and accessories...................................................................................... 11
5.3 Limited-life products ............................................................................................................. 11
5.4 Operational documentation................................................................................................... 12
6Lifetime, service life and shelf life, manufacturer’s warranty ............................................... 13
6.1 Lifetime, service life and storage life..................................................................................... 13
6.2 Manufacturer’s warranty ....................................................................................................... 13
7Preservation ............................................................................................................................. 16
8Packing certificate.................................................................................................................... 17
9Acceptance certificate ............................................................................................................. 18
10 Product service record ............................................................................................................ 19
10.1 Acceptance and handover of the product ........................................................................... 20
10.2 Information on the product allocation during operation ....................................................... 20
11 Product running time record................................................................................................... 22
12 Maintenance record.................................................................................................................. 23
13 Recording work performed according to bulletins and instructions.................................... 24
13.1 Recording work performed according to bulletins ............................................................... 24
13.2 Recording work performed according to the customer’s instructions .................................. 24
14 In-service work......................................................................................................................... 26
14.1 Record of work performed.................................................................................................. 26
14.2 Special notes regarding operation and emergencies.......................................................... 27
14.3 Periodic monitoring of basic performance and technical characteristics.............................. 28
14.4 Information about claims .................................................................................................... 29
15 Storage...................................................................................................................................... 30
16 Repair........................................................................................................................................ 31
16.1 Summary of repair performed............................................................................................. 31
16.2 Data of acceptance tests.................................................................................................... 31
16.3 Acceptance and Warranty Certificate ................................................................................. 32

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
3
17 Special notes............................................................................................................................ 33
18 Information on disposal........................................................................................................... 35
19 Checking the product condition and maintaining the Logbook............................................ 36
20 Sale details ............................................................................................................................... 38
21 Information on installation....................................................................................................... 39

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
4
ABBREVIATIONS
The following abbreviations are used in this document:
LB —Logbook;
OM —Operation Manual;
IM —Installation Manual;
PSU —power supply unit;
CP —control panel;
ACS —access control system.

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
5
1 GENERAL INSTRUCTIONS
This Logbook (LB) applies to Oxgard Cube С-04 turnstile and its
modifications (hereinafter referred to as the product).
Before using the product, please read the Operation Manual
(VZR.235900.000 OM). The product shall be installed according to Installation
Manual (VZR.235900.000 IM).
The Logbook should be kept with the product at all times.
All entries in the Logbook should only be made in black ink, clearly and
accurately. Erasures, blots, and unauthenticated corrections are not allowed. All
corrections should be authenticated with signature and QCD stamp.
A person who accepted the product for use shall be responsible for
safekeeping of the Logbook and correctness of its completion.
The product shall be sent for repair together with the Logbook which
contains information on the number of running hours since the start of the product
operation, and along with Report on Technical Condition.
When transferring the product to another company, final summing records
of running time should be authenticated with the seal of the company which
transfers the product.
Persons responsible for the product during its operation and storage shall
regularly fill in relevant Logbook sections.
Note —The product operation generally includes its intended use, transportation,
storage, maintenance and repair.

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
6
2 BASIC INFORMATION

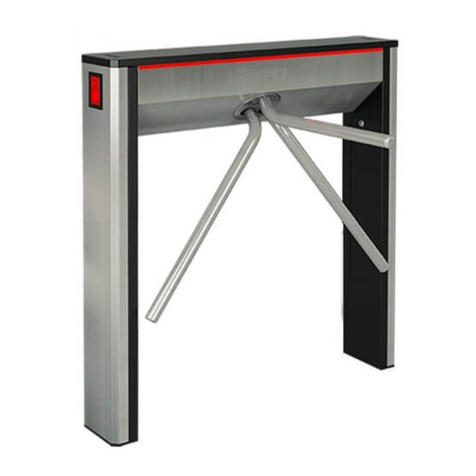

Oxgard Cube С-04 Turnstile is designed for control of authorized people
traffic, as well as for managing people passing and accessing the organization
through checkpoints.
Basic information is given in Table 1.
Table 1 –Basic information on the product
Product
Oxgard Cube С-04 Turnstile
Manufacturer
Vozrozhdenie LLC
Manufacturer address
192289, Russia, St. Petersburg, Sofiyskaya st., 66
Technical specifications
TU 26.30.50-007-33120038-2017
Product serial number
Date of manufacture
Software version
FW v.d.4
Declaration of Conformity (Eurasian
Economic Union)
PROMTEKHSTANDARD Certificate

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
7
Product modifications:
1) Cube C-04;
2) Cube C-04-s;
3) Cube C-04-K;
4) Cube C-04-Ks;
5) Cube C-04-N;
6) Cube C-04-Ns;
7) Cube C-04-NK;
8) Cube C-04-NKs.

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
8
3 BASIC TECHNICAL DATA
Basic technical data of the product are given in Table 2.
Table 2 –Basic technical data
Parameter
Value
Turnstile
Control panel (CP)
Overall dimensions (HxWxL), mm:
- in operating condition
- with folded arms
1000х950х735
1000х950х195
25х107х107
Weight, kg
50.0
0.5
Temperature range, °С:
- operation
- transportation and storage
+1...+40
+1...+40
+1...+40
+1...+40
Relative air humidity, %, max.
80
80
Width of formed passage, mm
565-595
Throughput, persons/min
30
Max. number of connected control panels, pcs.
2
Service life, years
8
8

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
9
Electrical characteristics of the product are given in Table 3.
Table 3 –Electrical characteristics
Parameter
Value
Turnstile
Control panel (CP)
Supply voltage (direct current), V:
- rated
- operating
12.0
11.0...13.0
12.0
11.0...13.0
Average current in standby mode*, A
1.5
Average current in passage mode*, A
1.5
Maximum current consumption*, A
3.0
Note —* values of current are given for rated supply voltage
The product inspection results are given in Table 4.
Table 4 –Product inspection
Date
Reason for
inspection
Accumulated
running time
since the
beginning of
operation
Inspection result
Position,
surname and
signature of
the person
performing
the
inspection
Maximum
consumed
current, A
Current in
standby
mode, A
Current in
passage
mode, A

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
10
4 INDIVIDUAL FEATURES
The product should be installed by qualified personnel in accordance with
Installation Manual (VZR.235900.000 IM).
The passage zones shall be arranged to allow recording of passages
during operation of the ASC controlled product and avoid unauthorized passages.
Note —The manufacturer reserves the right to change configuration, technical
characteristics and appearance of the product without further notice

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
11
5 COMPLETENESS
5.1 Product components
The product components are listed in Table 5.
Table 5 –Product components
Product designation
Product
Quantity
Serial number
Note
Turnstile
Cube С-04
1
Control panel (CP)
Praktika control panel
1
Power supply source*
1
Reader for PC*
1
Card collector*
1
Barrier section set*
Praktika barrier
1
5.2 Spare parts, tools, and accessories
Spare parts, tools, and accessories for the product are listed in Table 6.
Table 6 –Spare parts, tools, and accessories
Product designation
Product
Quantity
Serial number
Note
Keys
Keys for locks
4
-
Anchor with a screw*
FH 10/10 SK
6
-
Hex wrench*
S5 hex wrench
1
-
5.3 Limited-life products
Limited-life products are listed in Table 7.

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
12
Table 7 –Limited-life products
Product designation
Product
Quantity
Serial number
Note
Note —In Tables 5, 6, and 7: the product components marked with (*) are optional
5.4 Operational documentation
The scope of operational documentation is given in Table 8.
Table 8 –Operational documentation
Product designation
Product
Quantity
Serial number
Note
VZR.235900.000 LU
Approval sheet
1
-
VZR.235900.000 VE
List of operational
documents
1
-
VZR.235900.000 LB
Logbook
1
-
VZR.235900.000 OM
Operation Manual
1
-
VZR.235900.000 IM
Installation Manual
1
-

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
13
6 LIFETIME, SERVICE LIFE AND SHELF LIFE,
MANUFACTURER’S WARRANTY
6.1 Lifetime, service life and storage life
Assigned service life of the product is 8 years. During this period (after
warranty period expiration - under the contract), the supplier company undertakes
to provide service maintenance for the product operation:
1) assist the operating company in purchasing, repairing, and replacing faulty parts of the
product;
2) independently inform the operating company about purchased product components that
have been discontinued and replaced with more advanced ones;
3) where necessary, perform together with the operating company assessment of the
product component condition and develop measures to maintain its functionality;
4) perform work on the product improvement and development.
Lifetime and service life of product components shall be determined from
individual data sheets (logbooks).
These lifetime, service life and shelf life are valid subject to observance of
current operational documentation requirements by consumer.
6.2 Manufacturer’s warranty
The warranty period of the product is 24 months from the date of sale by
the manufacturer, provided that the consumer adheres to all the instructions given
in the Installation Manual and Operation Manual.
The date of sale is specified in the product Logbook. When the date of sale
is not available, the warranty period shall be calculated from the product
manufacture date as detailed in the Logbook.

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
14
When any problem occurs, please contact authorized dealer or the nearest
authorized service center. The warranty terms and conditions provide for a free-of-
charge replacement of parts, assemblies, units, etc., in which a manufacturing
defect is found. The warranty is provided if the product owner adheres to the
maintenance requirements of the Maintenance Manual.
The addresses of authorized dealers and service centers are listed in the
Operation Manual and are available at the website: www.oxgard.com
The warranty terms and conditions do not provide for transportation costs
and specialist’s visit to the product operation site for product connection, setup,
repair or for consulting purposes.
Post-warranty service is provided at the rates set by the service center. In
case of a non-warranty repair, the warranty period for replaced parts and
components is 3 months from the date of sending the fault-free product to the
buyer’s address.
All replaced parts, assemblies, units, etc. become the property of the
service center, which performed the warranty and post-warranty repairs of the
product.
All claims for quantity, completeness and appearance of the delivered
goods should be accepted by the manufacturer in writing no later than 5 (five)
business days from the date of goods receipt by the buyer. In case of non-
observance of the above term, claims for the delivered goods on the listed
grounds will not be accepted.

VZR.235900.000 LB

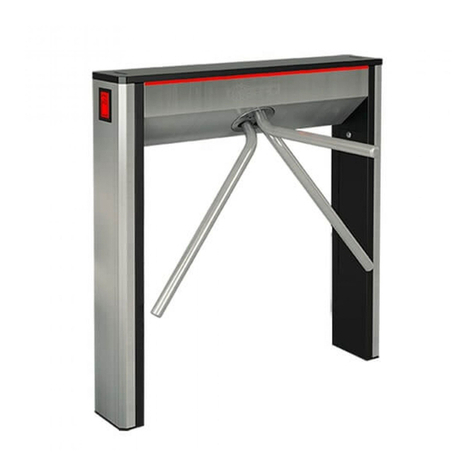

Cube С-04 Turnstile
Logbook
15
Service center has the right to refuse warranty repairs in the following
cases:
1) if there are defects resulting from the consumer’s violation of instructions given in the
Installation Manual VZR.235900.000 IM and the Operation Manual VZR.235900.000 OM;
2) if the product is used for purposes other than intended;
3) if there are signs that user has modified the product design;
4) if there is mechanical damage resulting from fire, impact or accident, etc.;
5) if there is mechanical damage resulting from operating the product in excess of the
operational limits and load characteristics specified by the manufacturer;
6) if there is electrical damage to the product’s parts and assemblies, resulting from
voltage surges in the mains, incorrect connections, incorrect power cable selection;
7) if there is electrical or any other damage to the product’s parts and assemblies due to
ingress of water and other liquids;
8) if there is damage related to small animals and insects;
9) if there are signs of self-repair undertaken anywhere other than in the authorized service
center, as well as defects resulting from the use of non-original spare parts;
10) if there are malfunctions caused by normal wear or expiry of service life of the product
components (consumables, fuses and other components).

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
16
7 PRESERVATION
Information on preservation is given in Table 9.
Table 9 –Preservation
Date
Work
Duration, years
Position, surname and
signature

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
17
8 PACKING CERTIFICATE
Oxgard Cube С-04 Turnstile ___, Serial number No.__________________
Packed by____________________________________________________________________
manufacturer name or code
according to the requirements stipulated in current technical documentation.
Packed by_________________ ______________________
___________________________
position personal signature printed name
___ _________ 20__

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
18
9 ACCEPTANCE CERTIFICATE
Oxgard Cube С-04 Turnstile ___ serial number _______________ has
been manufactured and accepted in accordance with mandatory requirements of
national standards, current technical documentation; and recognized as fit for
operation.
Head of QCD
QCD stamp
_________________/_______________/
___ ________20__
Grounds for delivery ________________________________
Head of the Organization
L.S.
_________________/_______________/
___ ________20__
Customer
L.S.
_________________/_______________/
___ ________20__

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
19
10 PRODUCT SERVICE RECORD
The product service record is detailed in Table 10.
Table 10 –Product service record
Date of
installation
Place of
installation
Date of
removal
Accumulated running time
Reason
for
removal
Signature of
the person
who performed
installation
(removal)
since the
beginning of
operation
since last
repair

VZR.235900.000 LB
Cube С-04 Turnstile
Logbook
20
10.1 Acceptance and handover of the product
Information on acceptance and handover of the product is given in Table
11.
Table 11 –Acceptance and handover of the product
Date
Product
condition
Date of removal
Organization, position and
signature
Note
who handed
over
who accepted
10.2 Information on the product allocation during operation
Information on the product allocation during operation is given in Table 12.
Table 12 –Information on the product allocation during operation
Product
(component) name
and designation
Position, surname
and initials
Grounds (name, number and date
of the document)
Note
Allocation
Deallocation
