1. Product purpose
Praktika-T-04 speedgate is designed for access control and pedestrian flow
management. The speedgate can be used at checkpoints at factories and
organizations, institutions, banks, schools, sports and entertainment facilities, shops,
railway stations, etc.
To ensure easy and quick passage of people it is recommended to install one
speedgate for every 500 people working in one shift.
2. Delivery set
Table 1. Delivery set
Item Qty, pcs.
Praktika
T
-
0
4(К)
speedgate 1
Remote control panel with cable 1
Hatch lock key 8
Datasheet 1
Installation guidelines 1
Operational manual 1.
SORMAT PFG LB 12-50* anchor 12
М12х60 DIN912(GOST 11738-84) hexagon screw * 12
Connecting cable PVA 2x1,5* 2
Units arrangement diagram * 1.
*-optional

Praktika T-04(K) speedgate 6
3. Basic specifications
Table 2 Basic specifications
Description Speedgate RC panel
Dimension of side unit with open wings
(mm) (HхWхL) 1140х1500х200
107х107х25
Dimension of side unit depending on
passage lane (mm)
660
900
1140х1500х500
1140х1500х620
107х107х25
Weight of side unit
depending on passage
lane, kg 660
900
110,0
113,0
0,5
Temperature range,
0
C
-operation
-transportation and storage
+1...+40
+1...+40
+1...+40
+1...+40
Atmosphere relative humidity, no more
than % 80 80
Throughput, people per minute 30
Card collector capacity (pcs.) ** More than 500
Max. number of connected RC panels, pcs 2
Lifetime, years 8 8

Operational manual 7
Table 3 Electrical specifications
Description Speedgate Card collector** RC panel
Supply voltage, V:
- nominal
- working
12,0
10,8...15,0
12,0
8…18,0
12,0
7,5...15,0
Average current
in standby
mode * A 0,4 0,2
Average current operational
mode * A 3,0
Maximal current of
1 side
unit*/***, A 5,0
Maximal current
of card
collector*, A 1,5
*- values mentioned at a nominal supply voltage
**-optional
***- to form a passage area required 2 side units, i.e. 2 power supply 12V 5A
The manufacturer reserves the right to change the packaging, specifications and appearance without notice
4. Product design
Speedgate housing
Speedgate housing is made of brushed stainless steel, wings are made of
tempered glass. The design of the speedgate can be equipped with an integrated card
collector. An access hatch is provided at the bottom of side units for access to PU,
RC and ACS cable holes (Fig. 1).

Praktika T-04(K) speedgate 8

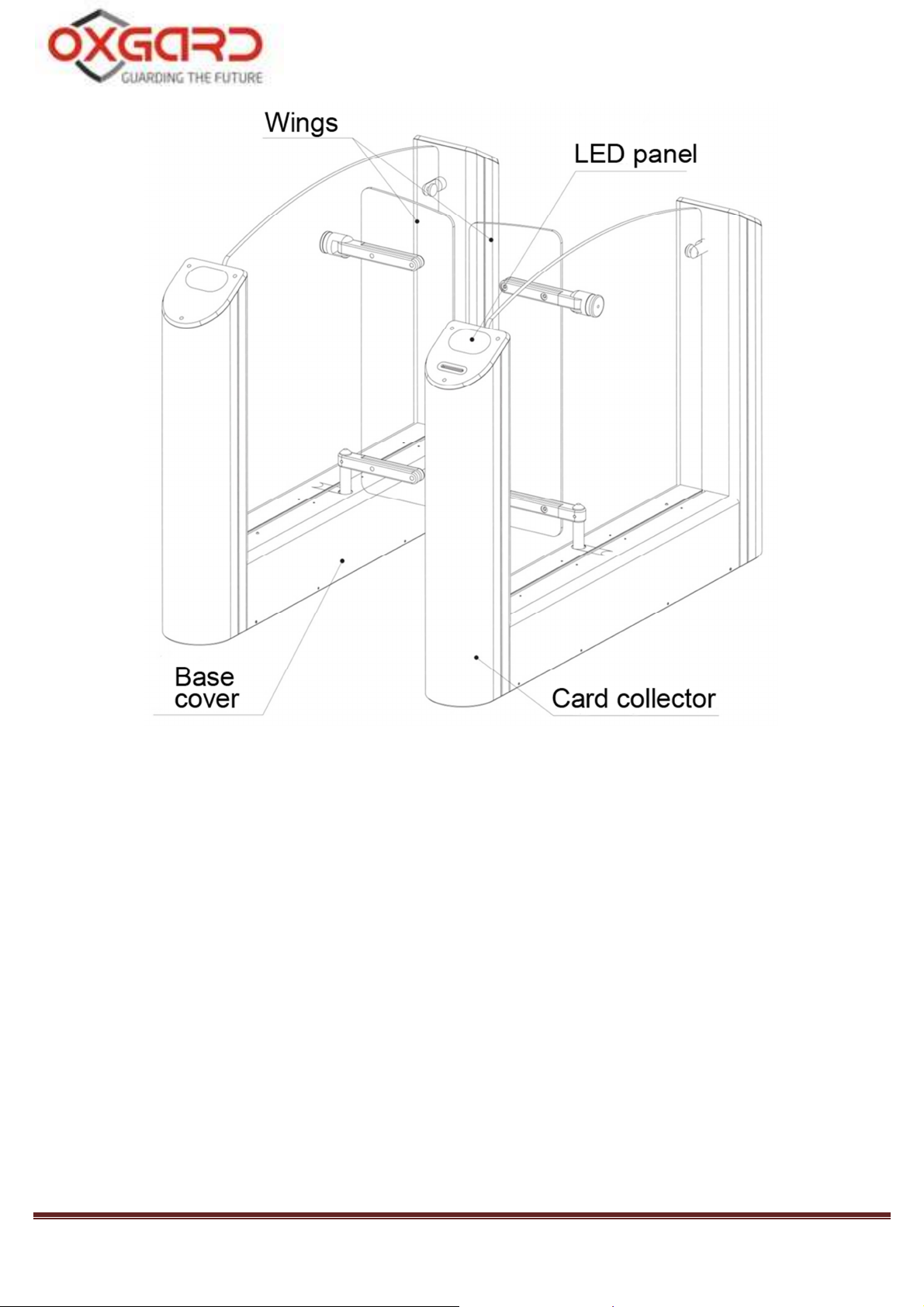

Fig. 1 General view of speedgate

Operational manual 9
LED panel
Display panel of the speedgate is made of artificial stone with an insertion made
of acrylic glass. Speedgate operating modes are displayed on the panel in the form of
mnemonic signs depicting authorization and non-authorization of passage (Fig. 2).

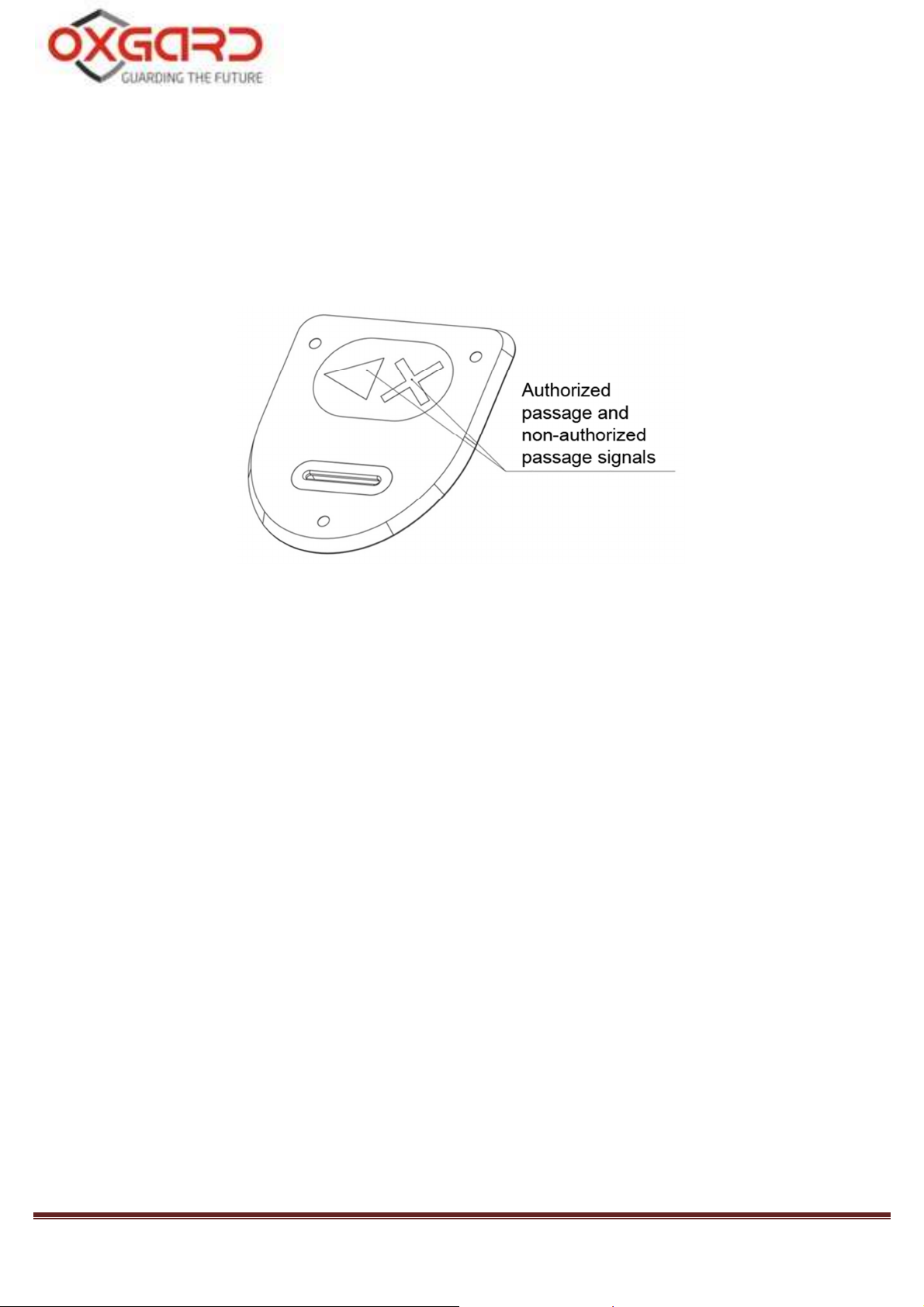

Fig. 2 General view of LED panel
Remote Control Panel
The housing of RC panel is made of polished stainless steel. On the front side
there are control buttons and LED indicators of RC operational modes (Fig. 3). The
standard supplied cable is 5 m long.

Praktika T-04(K) speedgate 10

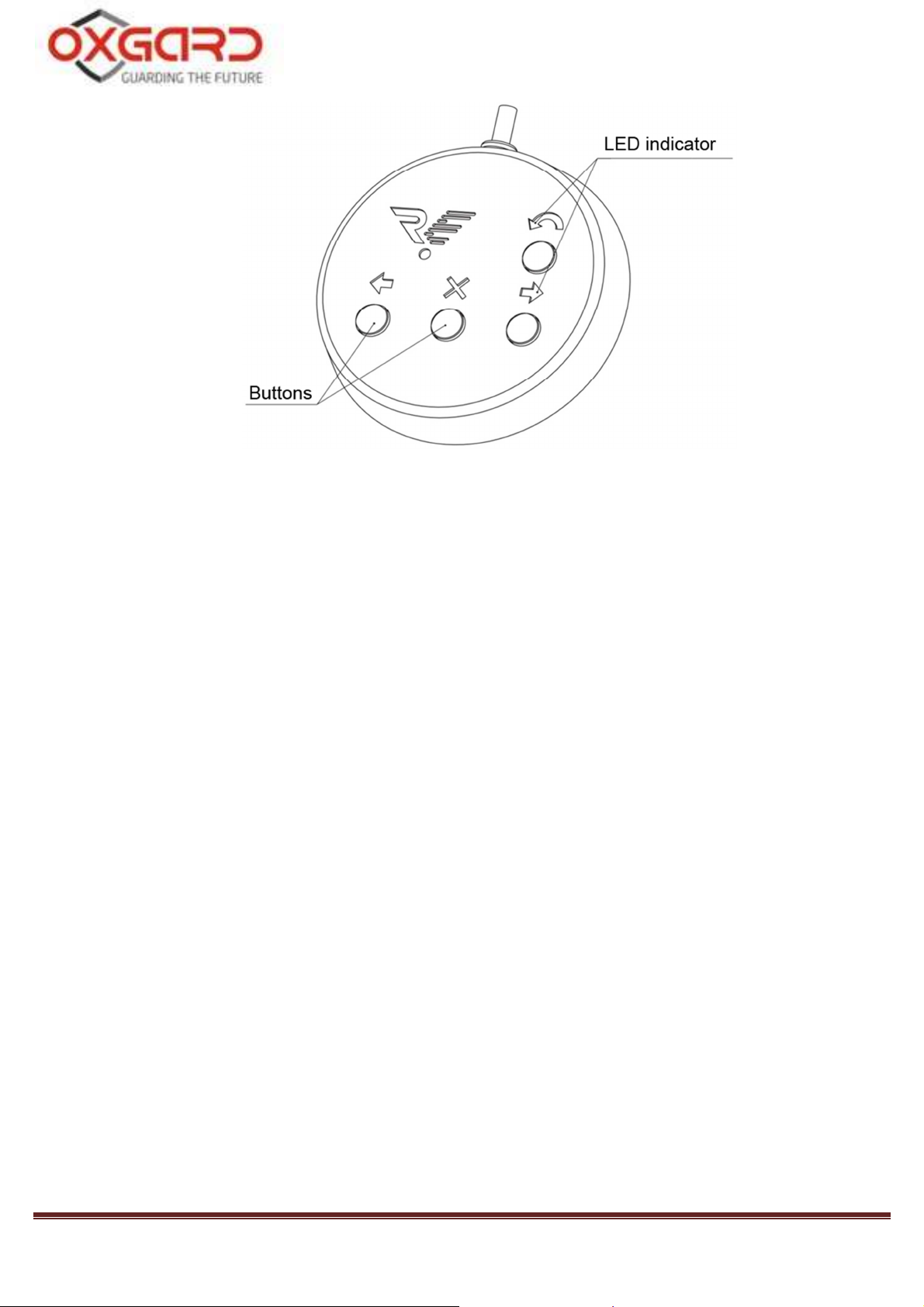

Fig. 3 General view of remote control
5. Transportation and storage
Speedgate in its original packaging shall be transported by air, by road and by
railroad with protection from direct exposure to rain and dust without range
limitation. It is allowed to stack boxes in 2 rows during transportation and storage if
Euro-pallets used. Keep the speedgate in dry (no moisture condensation) heated
places within +1 to + 40 °C temperature range. Avoid vapors of acids, alkalis, and
corrosive gases at the storage place. Storage of speedgate in the original package in a
dry unheated premises or closed transport containers is permitted for short periods,
no more than 3 days. Before startup, the speedgate must be kept in a room with
normal climate conditions for 12 hours after storage in unheated rooms.
Dimensions of container - 1280х800х1650 mm (HxWxL).

Operational manual 11
6. Safety requirements
CAUTION! Failure to comply with the safety requirements specified in this section
may result in damage to human life and health, total or partial loss of workability of
products and (or) auxiliary equipment.
CAUTION! Specific guidance on the use of the speedgate:
1. The sensors are installed in the stands of speedgate at a height of 820 mm.
Children shorter than 820 mm cannot be identified by the speedgate.
Children must be accompanied by adults in charge when passing through the
speedgate!
Baggage, carts, bags etc. cannot be identified by the speedgate.
2. If there is no distance in the passage between the two visitors, they might be
identified as one.
CAUTION! Installation of speedgate must be carried out by qualified personnel
according to the instructions.

Praktika T-04(K) speedgate 12
CAUTION! The producer disclaims any liability for damage to human life and
health, total or partial loss of workability of products and (or) auxiliary equipment for
non-compliance of the safety requirements specified in this section, as well as
terminate the product warranty.
IT IS NOT ALLOWED TO:
•Set the power supply inside the speedgate housing as this might lead to electric
shock to persons;
•Set the speedgate other than in dry and heated places;
•Impede or accelerate the speedgate wings;
•Apply chemically aggressive cleaning detergents (as pastes and liquids) to the
materials of the housing.
7. Description of card collector
7.1. Card collector purpose
Card collector (Fig. 4) is designed for collection and storage of proximity
access cards at the exit from the facility. Flexible logic of the controller allows the
integration of the card reader with any access control systems.

Operational manual 13
7.2. Product design

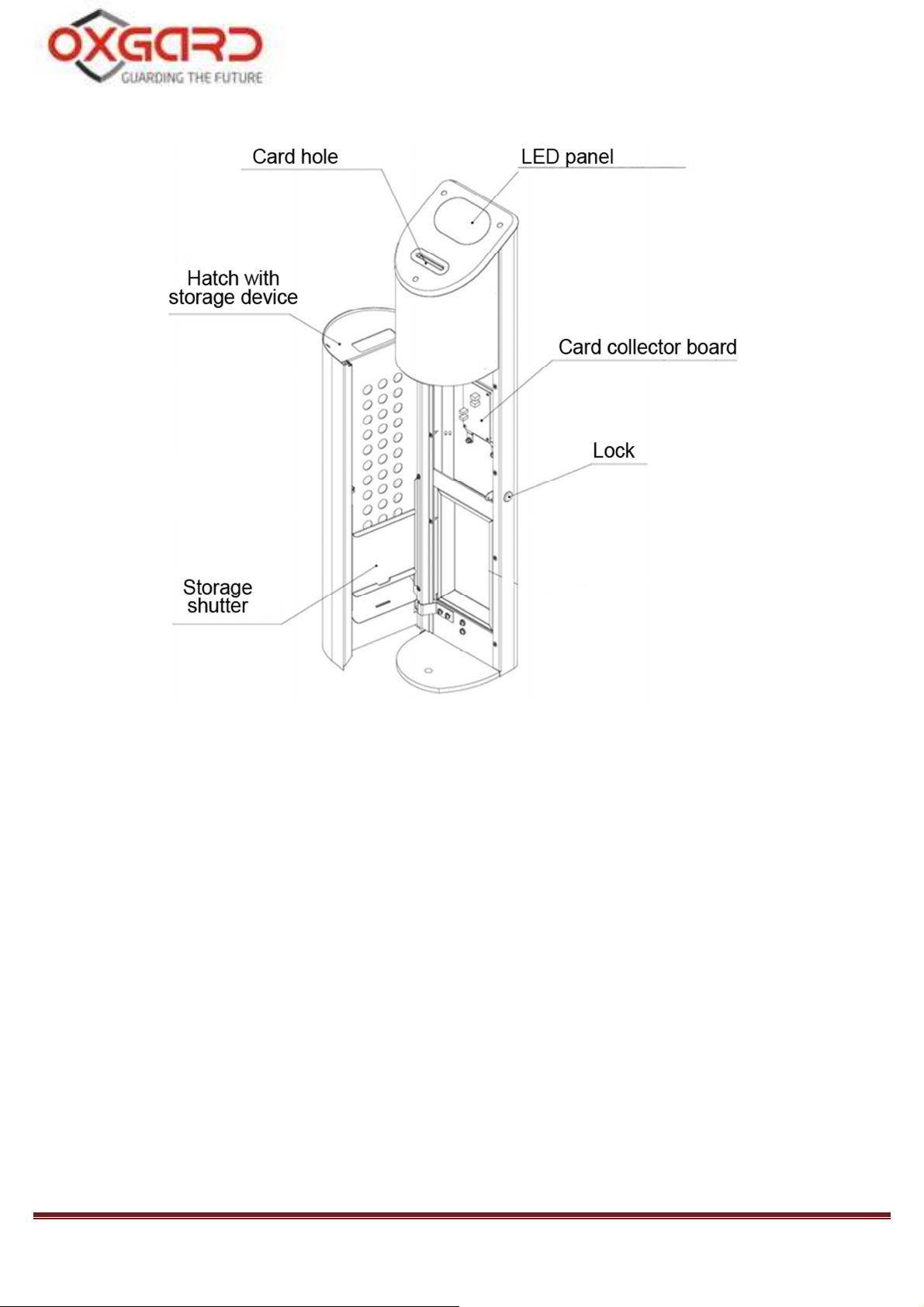

Fig 4. General view of the card collector
In front of the housing there is a hatch with lock for quick access to collected

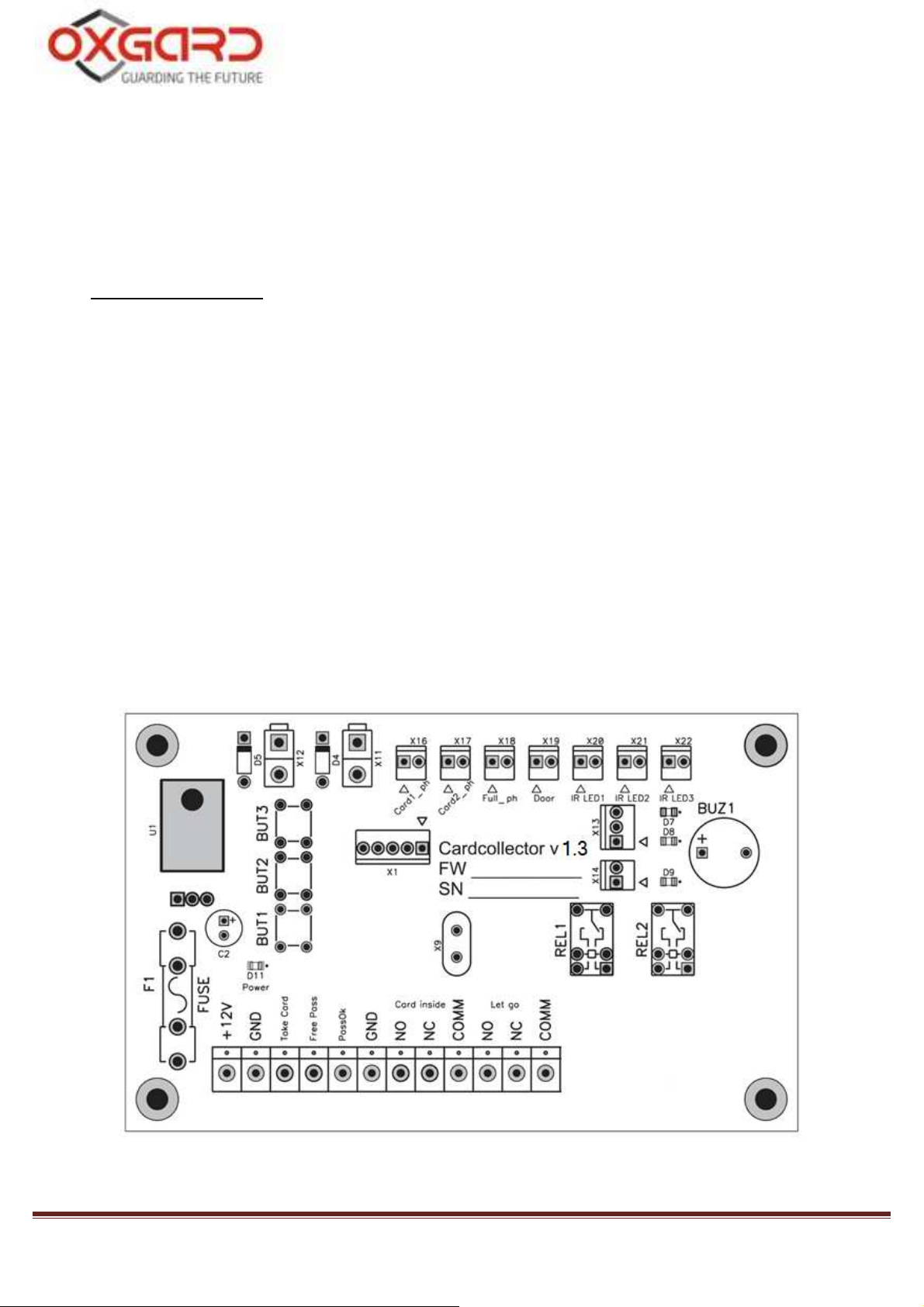

cards and to the board where PS, OD and ACS cables are connected. The hatch has
card storage device where more than 500 cards can be stored.
ATTENTION (!) Reader is not included in the delivery set. Customer can
choose reader model suitable for the existing system.
The reader is mounted on a universal adjustable bracket, located under the top
cover of the card collector. This solution provides maximum flexibility for
installation and connecting of the card collector.

Praktika T-04(K) speedgate 14
7.3. Removing guest cards from card collector
7.3.1. Open the hatch lock of card collector with a key (Fig. 4).
7.3.2. Put a bag to collect cards (not supplied) underneath storage device.
7.3.3. Lift the storage shutter to remove cards.
7.3.4. Lower the storage shutter and close the hatch with a key.
8. Speedgate operation
8.1. Turn on
Connect power supply units to 220V power network and turn them on. Wings
of speedgate will move to the starting position, the red cross will appear on LED
panels of the speedgate (Fig. 2) depicting non-authorization of passage. LED
indicator of button 2 on the RC panel will turn red (Fig. 3). The speedgate is ready
for operation.
8.2. Operating modes
The speedgate has several modes of operation. The desired mode is set by using
RC panel or proximity cards. Operational modes are displayed on the panel in the
form of mnemonic signs depicting authorization and non-authorization of passage.
8.3. Control with remote contron panel
General view of the RC panel is shown in Fig. 3. Each button is equipped with
the LED indicator displaying operation of the speedgate.

Operational manual 15
"Stop" mode
"Stop" mode is set when the speedgate is turned on. Wings are closed. Switch
from another mode to "Stop" is performed by pressing button 2, in this case LED
indicator above button 2 turns red. In this mode the passage is non-authorized in both
directions.
Single passage mode
Button 1 (3) turns on single passage mode to the left (right). This mode allowes
one pass to the left (right) with a subsequent changing to "Stop" mode. Green arrow
indicator turns on on the display showing a free passage to the left (right). Green
LED indicator on the RC panel turns on above the button corresponding to the
authorized passage and a red indicator - above button 2. If the passage is not
perfromed within 5 seconds, the speedgate switches to "Stop" automatically.

Praktika T-04(K) speedgate 16
Free passage mode
In order to swich to this mode press and hold button 1, then press button 3 and
release both buttons. In this mode an unlimited number of passages is allowed in both
directions. Arrows turn on in both directions. Green LED indicators on the RC panel
LED turn on above the button 1 and 3.
"Antipanic" mode
This mode is turned on by pressing button 4 while in any other mode. In this mode
the speedgate will open wings towards exit direction. Green indicator on the RC
panel will turn on button 4.
8.4. Adjustment of remote control panel
Speedgate can be set in various directions in relation to the user. In some cases it
is needed to reverse left / right passage buttons. This can be done by the following
operations:
• Power off the speedgate;
• Press and hold left (1) and right (3) buttons;
• Turn on the speedgate;
• Press button 2 while still holding buttons 1 and 3;
• Release buttons 1 and 3;
• Release button 2.
Now when you click left button passage will be allowed to the right and vice
versa. The current functions of the buttons are saved and do not reset when power is
turned off. In order to return to the initial modification re-do the above sequence.

Operational manual 17
8.5. Control with card collector
The card collector is set in the standby mode after power-up. It is necessary to
present access card to switch the mode.
Passage with permanent cards
When an authorized permanent visitor card is presented to the reader card
collector unlocks the speedgate for the time specified by ACS controller (depending
on the operating mode; for 5 seconds in pulse mode). During the specified time
interval other cards are not accepted. When the passage is performed or the specified
time interval is expired card collector switches into standby mode and can collect the
next card. Green arrow turns on on the LED panel, indicating the authorization of the
passage.
Passage with guest cards
Guest card shall be inserted into the card hole up to the stop otherwise it will be
ignored. In case the presented card is authorized, the card collector collects it and
then unlocks OD for 5 seconds.
Storage device is full
When the storage device is overfilled, the card collector stops collecting guest
cards and provides four short audio signals at intervals of 4 sec., the LED panel
flashes red cross indicator at an interval of 4 seconds. Audio signal lasts for 3
minutes; then red cross on LED display continues single blinks 1 time in 2 sec.

Praktika T-04(K) speedgate 18
Passages with permanent cards are performed normally. In order to switch the card
collector in the standard operating mode, remove cards from the storage device (see.
Article 7.3).
Emergency mode
During the operation of the card collector there might be a situation when a card or
a foreign object becomes jammed by shutter of the card collector. To resolve such
situations is an emergency mode.
•Open the hatch of the card collector using the key (Fig. 4);
•Press and hold BUT1 button on the board of the card collector (Fig. 5). When
the button is pressed shutter is open forcedly and a continuous audio signal is
performed;
•Remove the object that impedes the normal operation of the system;
•Release BUT1 button and close the hatch with a key.
Fig. 5. General view of board

Operational manual 19
Appendix 1. Troubleshooting for speedgate
Table 7. Troubleshooting for the speedgate
Fault Remedy
PS unit is connected, but
the speedgate does not
work
Check the connection cable;
Check the fuses on motherboard
RC panel does not work
Check the RC panel connection;
If +12 and GND contacts are connected
properly try to interchange positions of CL
and CH;
Appendix 2. Troubleshooting for card collector
LED(r/b) L7113 F3C
Optotransistor (y/b) L7113

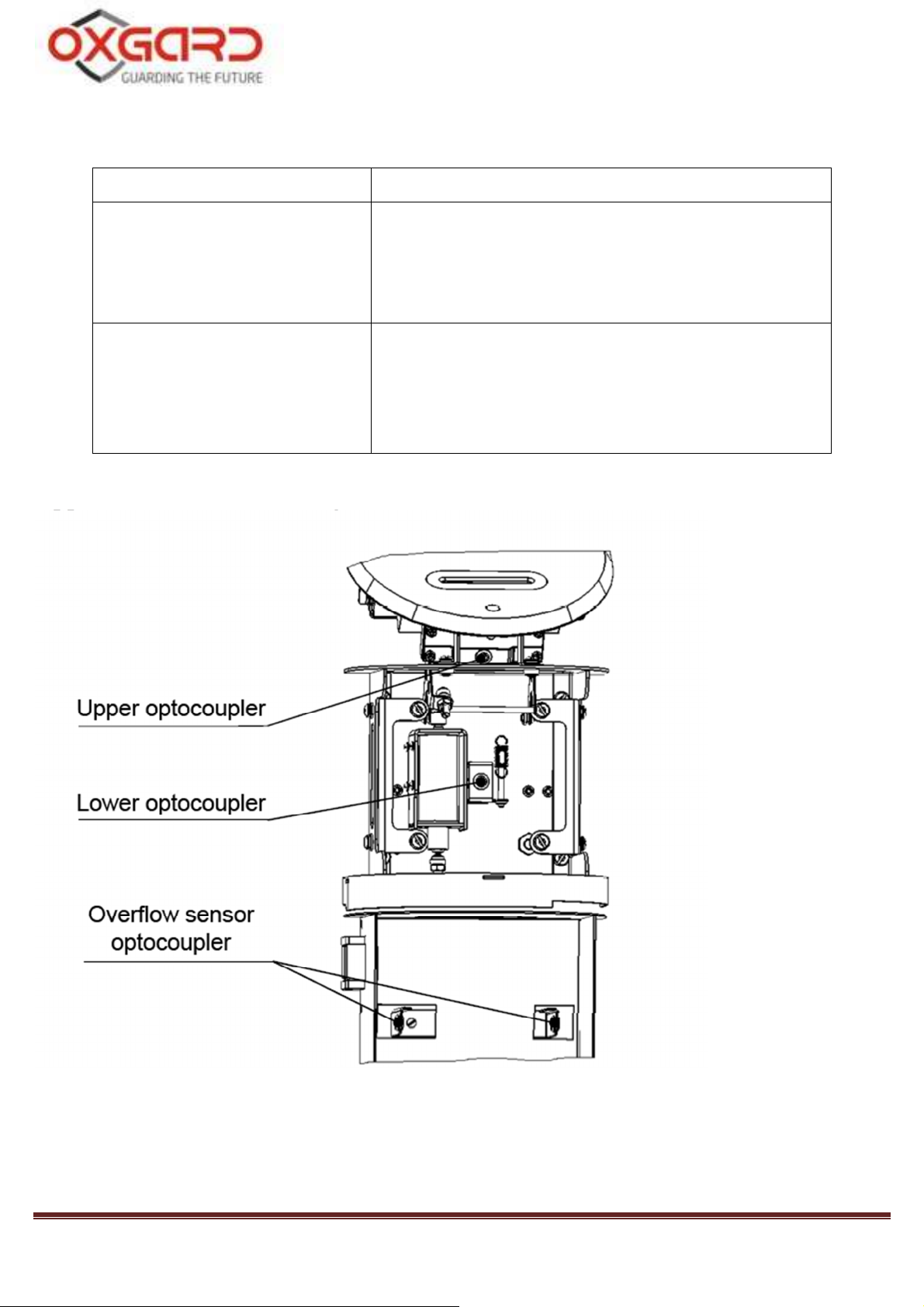

Fig 6. Location of optocouplers of card collector

Praktika T-04(K) speedgate 20
Table 8. Troubleshooting for the card collector
Fault Possible
causes Remedy
PS unit is connected,
but the card collector
does not work
Check the connection cable;
Check the fuse on board of the card collector;
Card collector
provides 4 audio
signals at intervals of
3 sec, red cross on the
LED panel flashes
every 4 seconds
(audio signals last for
3 minutes; then red
cross on the LED
display continues
single blinks 1 time in
2 sec.)
Storage
device is full
Act in accordance with article 7.3;
Overflow
sensor
( optocoupler
) is broken
(Fig. 6)
Check the condition of the cables and connectors;
If D9 LED on the board of the card collector does
not turn red – the fault is caused by the
malfunction of motherboard;
If D9 LED on the board of the card collector turns
red:
set the jumper on Full_ph connector - if LED D9
then goes off, the alarm stops, the Red Cross does
not blink – the fault is caused by defective
optocoupler;
Check the voltage at the connectors (without
removing the connectors, while holding down
BUT1 button):
1. Full_ph (Vtyp = 0,15 B; Vmax = 2,5 V):
- If V ≤2,5 In - all right;
- If V> 2,5 V – disaligment or LED and
phototransistor fault;
- If V = 5 V - the phototransistor or cable
are defective;
2. IR LED3 (Vtyp = 1,2 B):
- If V = 5 V - LED or cable defective;
