Dogtra 1800NC Series User manual

Copyright c 2003 Dogtra Company
1250 E. 223rd Street, Suite 119
Carson, CA 907 5
Tel :[phone]
Fax :[phone]
Web Site : www.dogtra.com
Toll Free:1-888-811-9111
REMOTE CONTROLLED
DOG TRAINING COLLARS
OWNER’S MANUAL
Web Site : www.dogtra.com

OVERVIEW
MAIN FEATURES
SAFETY
COLLAR PACKAGE CONTENTS
DESCRIPTION OF TRANSMITTER PARTS
BUTTON FUNCTION
DESCRIPTION OF COLLAR PARTS

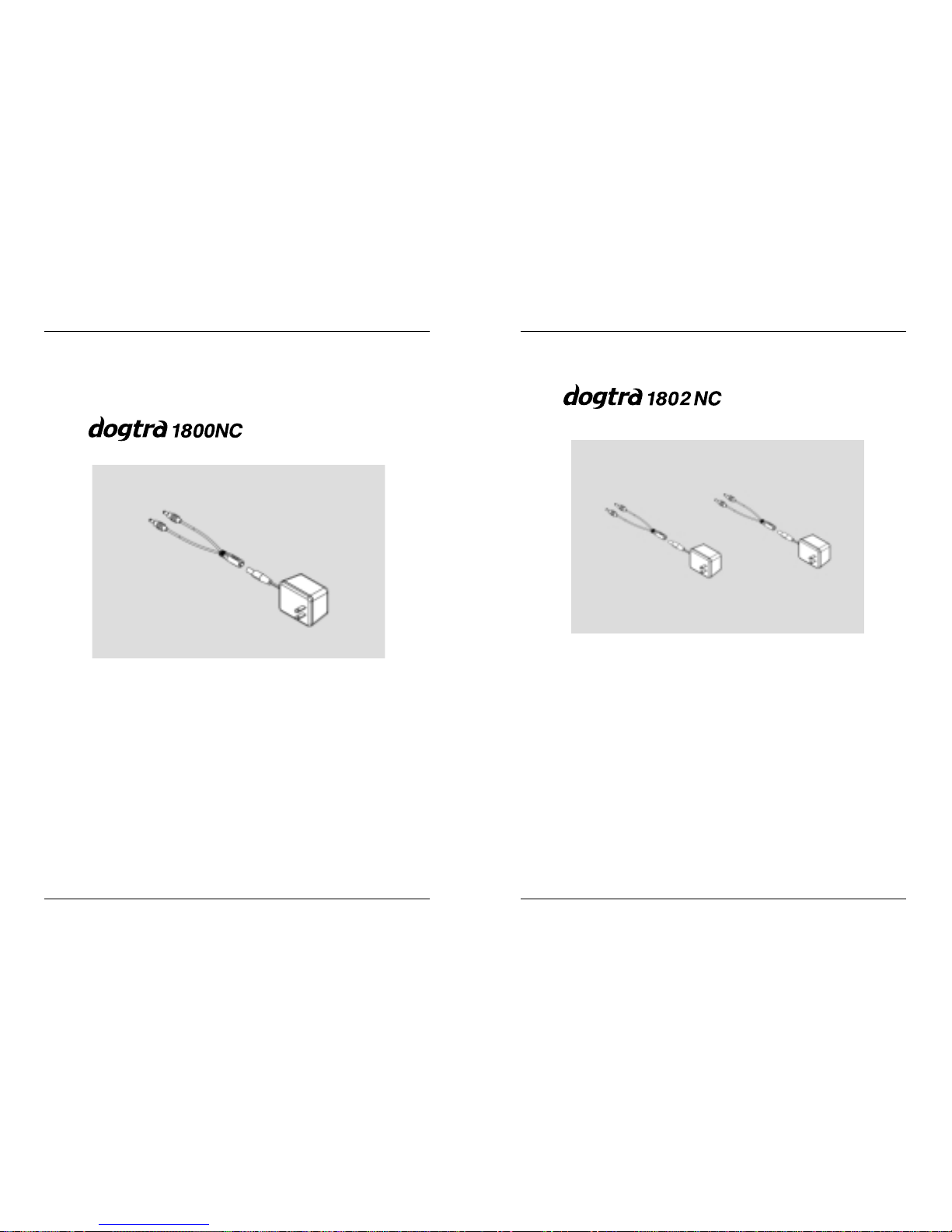

BATTERY CHARGER
CHARGING THE BATTERIES
TESTING YOUR
COLLARS
OPERATING INSTRUCTIONS
ACCESSORIES
WARRANTY AND REPAIR
INFORMATION
6
7
8
9
1
31
36
0
3
5
8
9
3
CONTENTS

Pressing the Constant button causes the
collar to emit electrical stimulation that stays
on for up to twelve seconds as long as the
button is held down. Constant stimulation is
used as a reserve high to stop unsafe behaviors
such as chasing animals or cars.
All collars come complete with a
handheld transmitter, dog collar with receiver,
battery charger, test light, operating
instructions manual and carrying case.
5
OVERVIEW OVERVIEW
training collars give you the
ability to communicate with your dog in a
timely manner even when the dog is far away
from you. This makes it much easier for the
dog to learn its lessons because late corrections
are very confusing to the dog.
remote collars offer two different
kinds of stimulation:
Pressing the Nick button causes a very
short single pulse of electrical stimulation.
It automatically shuts off in a fraction of a
second, no matter how long the button is held
down.
The Nick is used as a substitute for leash
corrections when the dog is off lead.
It is mild but motivating!
OVERVIEW

6
Easy-to-use transmitter.
All intensity level adjustments are made
from a digital dial on the transmitter. The
dial works like a rheostat, gradually
increasing the intensity with no jumps
between intensity levels.
Reliable stimulation effective for all types of
dogs no matter how heavy the coat.
The has a one-mile
range.
Waterproof collar receiver and transmitter.
No external antenna on the collar receiver.
User replaceable and rechargeable Ni-MH
batteries.
Over 3000 different identity codes to prevent
conflicts with other collars.
7
SAFETY
collars use state-of-the-art micro-
computer technology. Both the transmitter and
receiver have an automatic control which
limits the stimulus to twelve seconds when
used in the Constant mode and a fraction of
a second when used in the Nick mode.
A filtering system prevents reception from
sources other than your transmitter.
SAFETY
MAIN FEATURES
MAIN FEATURES

9

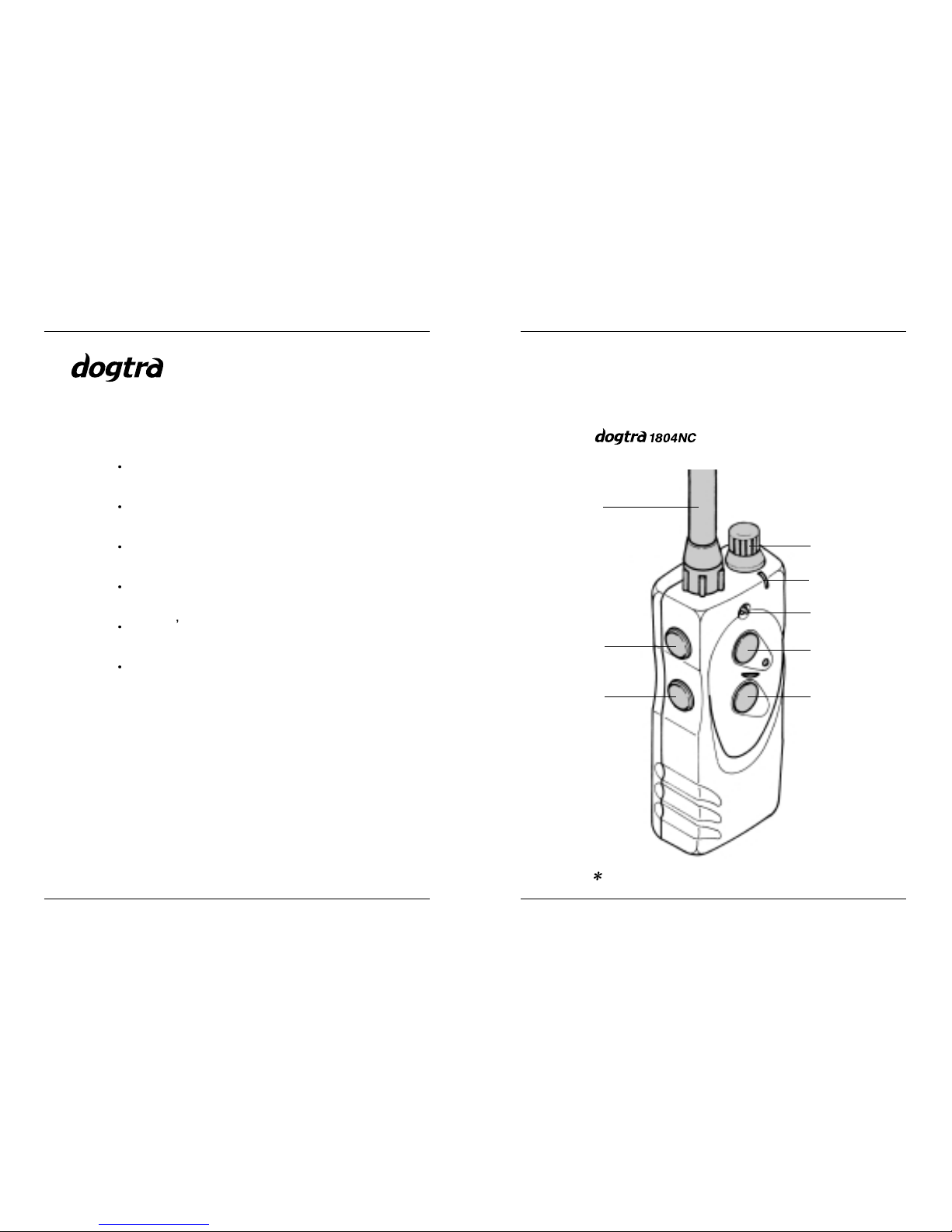

TRANSMITTER
DESCRI TION OF
TRANSMITTER ARTS
8
ACKAGE INCLUDES
Transmitter
Receiver

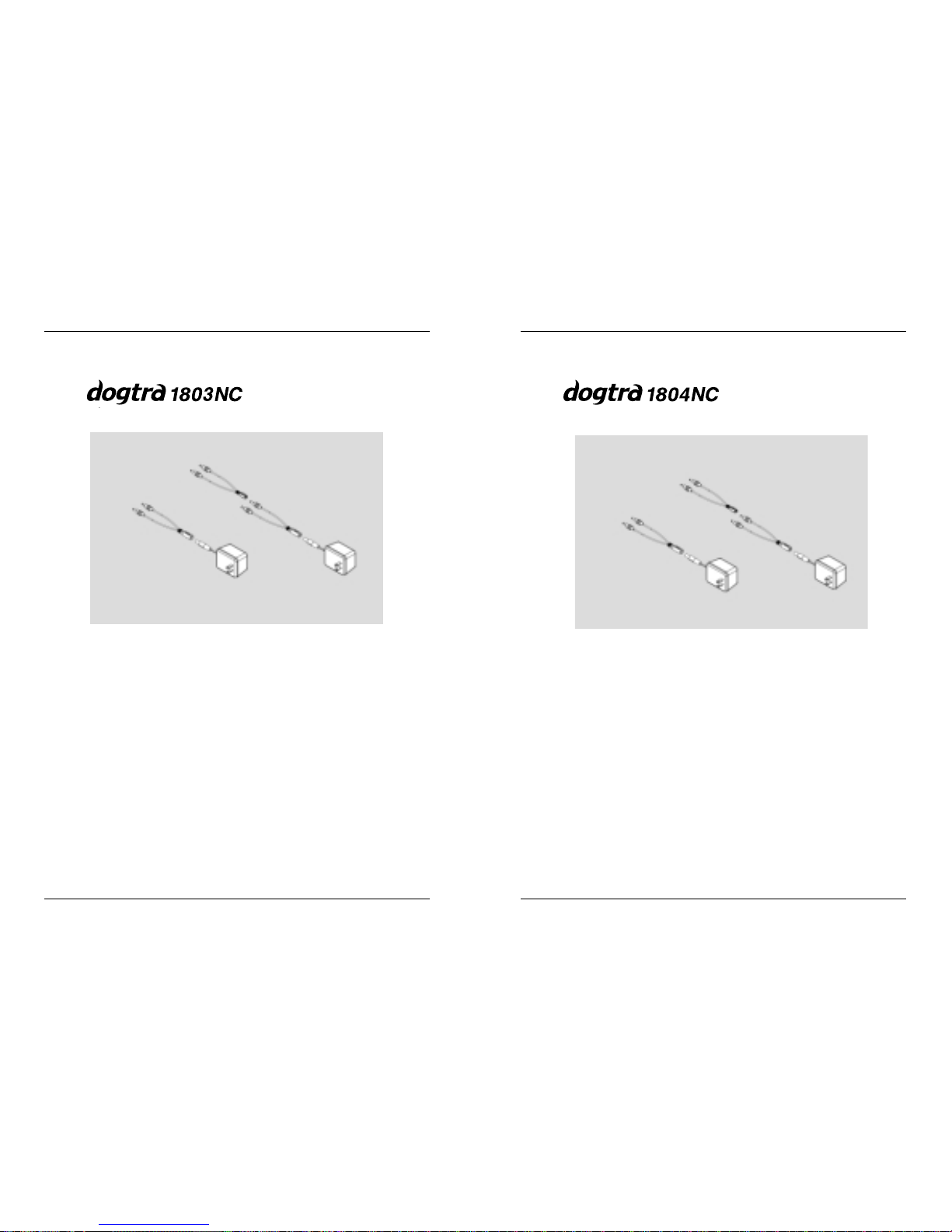

Battery charger and splitter cable
Test light
Owner s manual
Carrying case
COLLAR
ACKAGE CONTENTS
transmitter
Antenna
1-Dog Button 3-Dog Button
4-Dog Button
Intensity
Selection Dial
Indicator Light
Toggle Switch
(Nick Cont.)
2-Dog Button
indicates optional switch for 4 dog models

10
TRANSMITTER

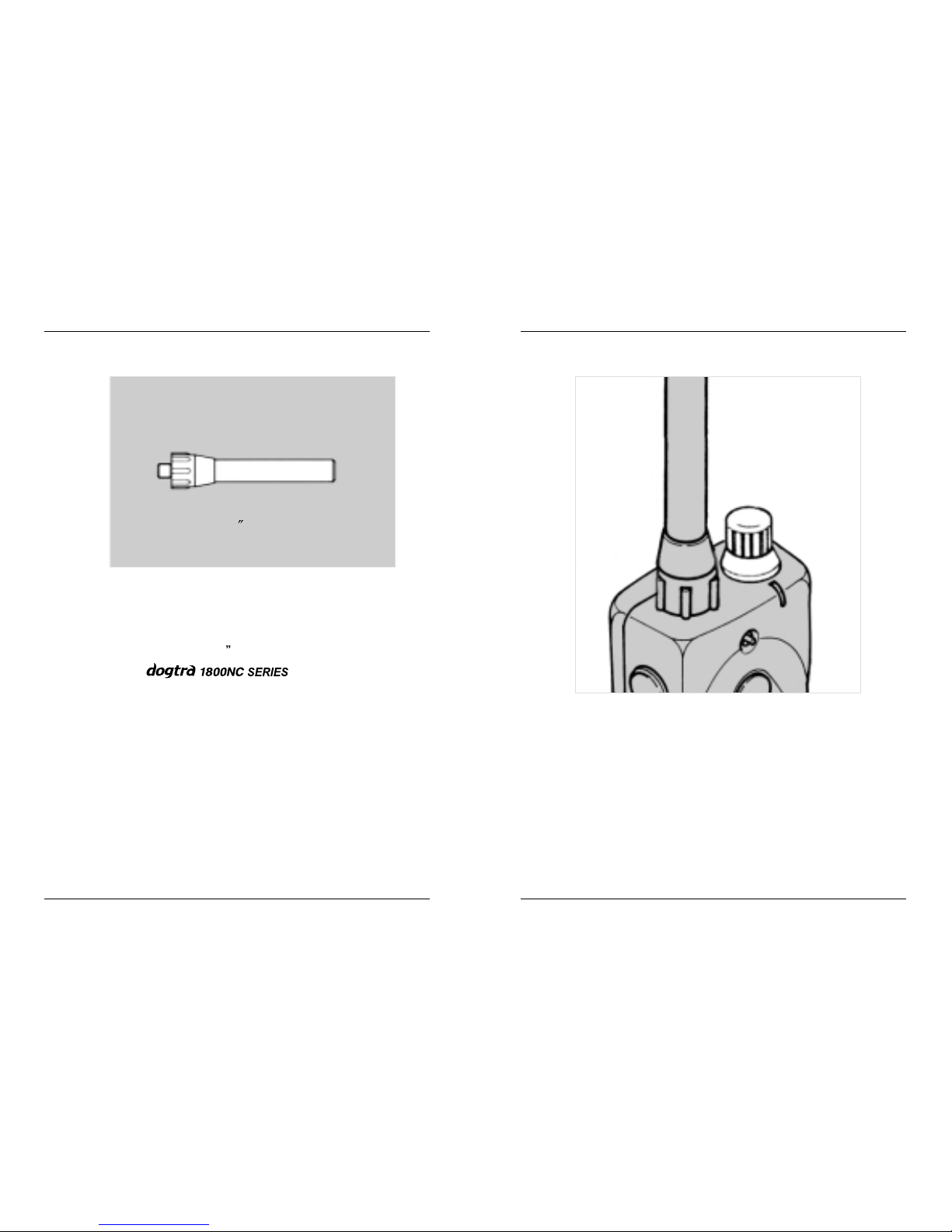

Transmitter Antenna
A heavy-duty antenna is supplied for use
on the transmitters.
The antenna should be screwed into the top of
the transmitter to ensure that the signals are sent
properly to the collar receiver and that maximum
range is attained.
4Antenna
11
TRANSMITTER
Intensity Selection Dial
The intensity selection dial is located on the
top of the transmitter. Number one is the lowest
level and number eight is the highest level.

12
TRANSMITTER

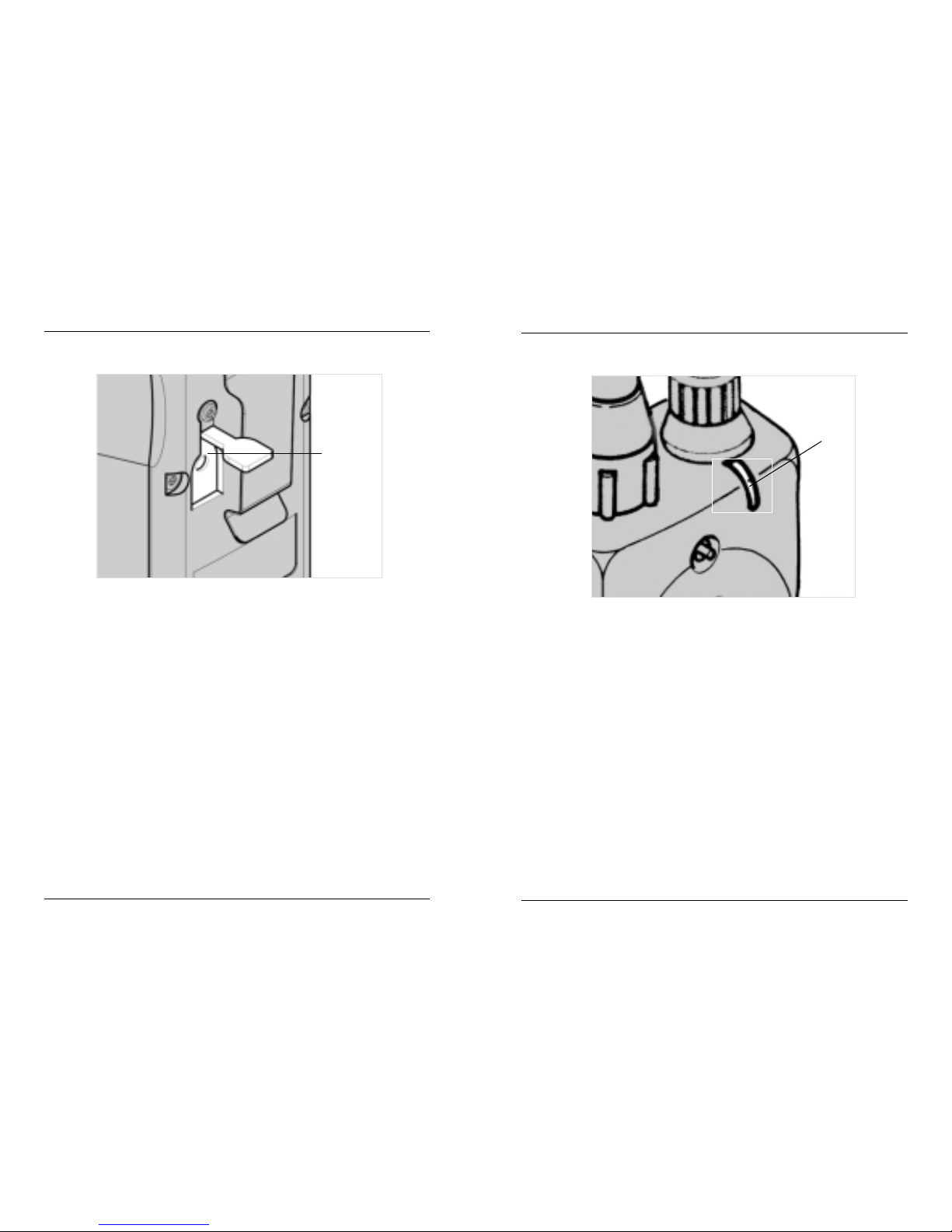

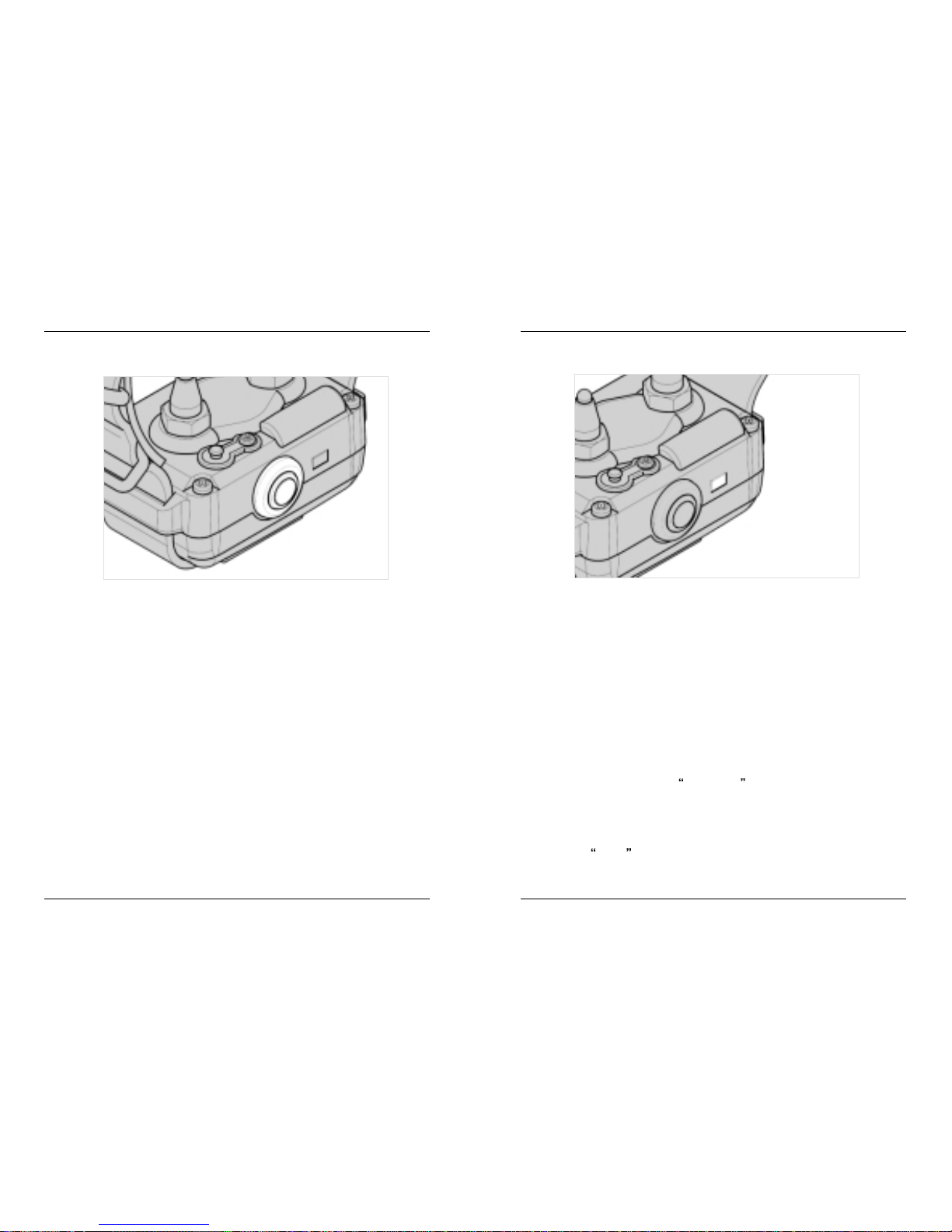

Transmitter Battery Char in Receptacle
Located on the backside of the transmitter,
the receptacle is covered by a rubber plug.
Insert one end of the battery charging cable
into the receptacle to charge the battery.
(See Battery Charging Procedure.)
After charging is completed, close the
receptacle with its rubber plug to prevent dirt
from getting inside.
Transmitter
Charging
Receptacle
13
TRANSMITTER
Transmitter Indicator Li ht (LED)
The transmitter indicator light is located by
the intensity selection dial.
When a button on the transmitter is pushed,
the red light comes on to indicate that the
transmitter is being activated.
If the indicator light emits a double blink
while the button is pressed, the battery needs to
be recharged.
LED

1
BUTTON FUNCTION
The transmitter for has two
buttons.
The top button gives Nick stimulation when
pressed. The bottom button gives Constant
stimulation for as long as you press the button for
up to twelve seconds.
BUTTON FUNCTION
15
BUTTON FUNCTION
Nick Button
When the Nick button is pushed, the
receiver emits an extremely short pulse of
electrical stimulation that automatically shuts
off no matter how long you leave your finger on
the button. The Nick is mild but motivating!
Constant Button
Pressing the Constant button gives
stimulation for up to twelve seconds, at which
time, the collar will turn off. The collar will
reactivate when you push the button again.
ONE-DOG MODELS
Nick
Cont.

16
BUTTON FUNCTION

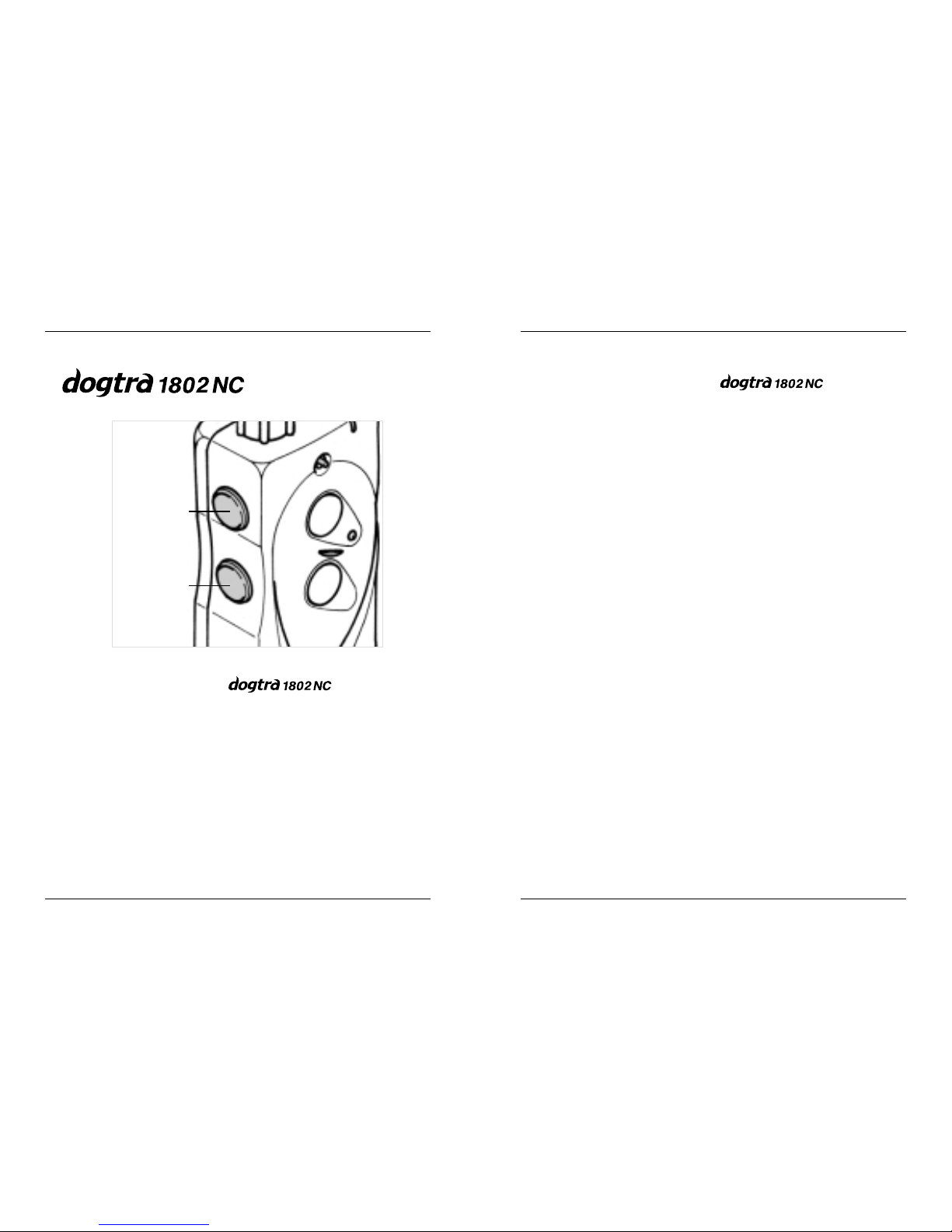

The transmitter for has two
buttons
The 1-dog(Gray) button operates the
stimulations to the black collar when pressed.
The 2-dog(Orange) button operates the
stimulations to the orange collar when pressed.
TWO-DOG MODELS
17
BUTTON FUNCTION
Selection Switch on the
The two-dog models have a toggle switch
on the face of the transmitter.
The toggle switch allows for selection of
either Nick or Constant.
Set the toggle switch on the Nick position
to select Nick stimulation and Constant to
select the Constant stimulation.
1-Dog
(Gray Button)
Nick
Cont.
2-Dog
(Orange Button)

18
BUTTON FUNCTION
On the nick position
When the 1-dog(gray) button is pushed,
the 1-dog(gray) receiver emits an extremely
short pulse of electrical stimulation that
automatically shuts off no matter how long
you leave your finger on the button.
The Nick is mild but motivating!
On the constant position
Pressing the 1-dog(gray) button gives
stimulation for up to twelve seconds, at which
time, the 1-dog(gray) collar will turn off.
The collar will reactivate when you push
the button again.
1-Dog Button
19
BUTTON FUNCTION
On the nick position
When the 2-dog(orange) button is
pushed, the 2-dog(orange) receiver emits an
extremely short pulse of electrical
stimulation to the orange collar.
On the constant position
Pressing the 2-dog(orange) button
gives stimulation for up to twelve seconds, at
which time, the 2-dog(orange) collar will
turn off.
2-Dog Button

20
BUTTON FUNCTION

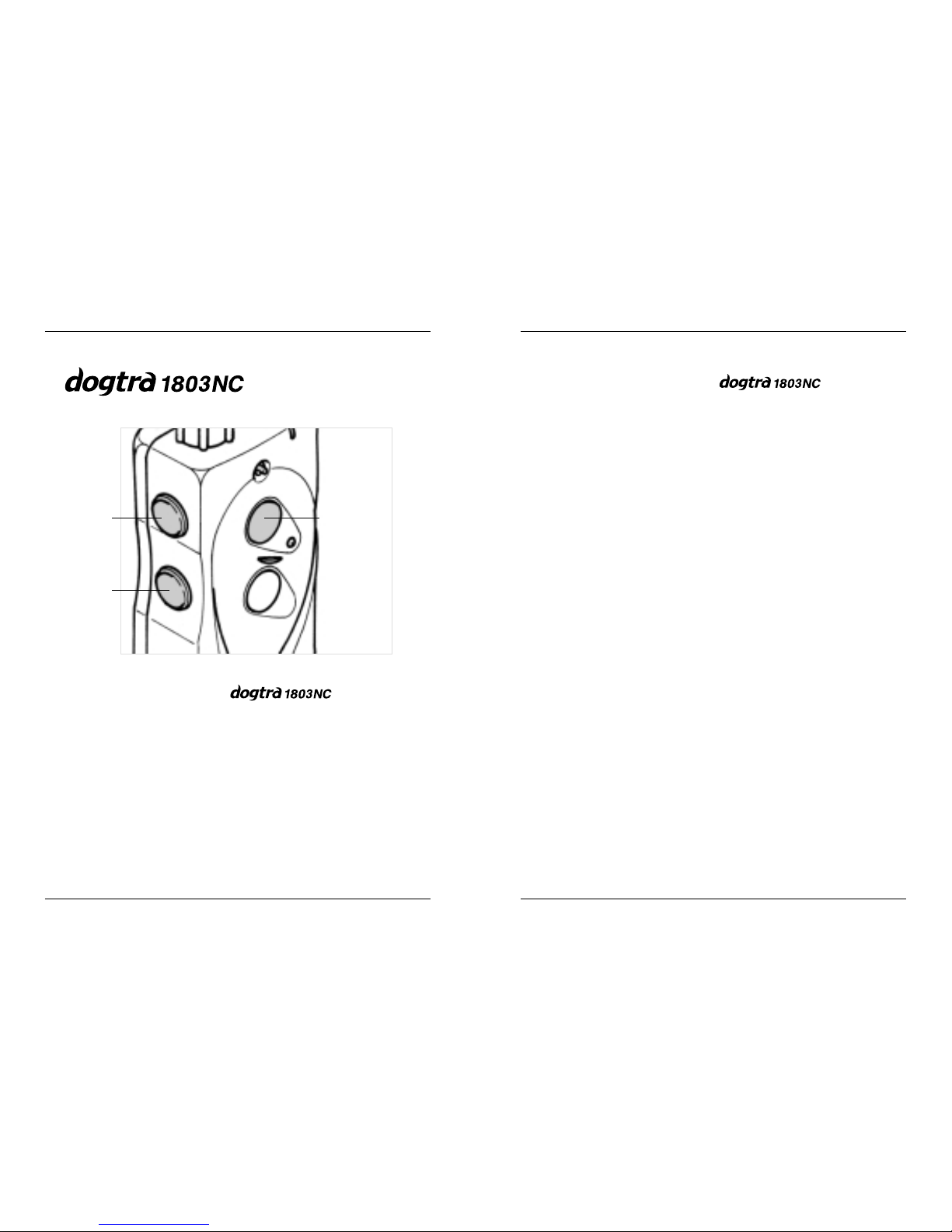

The transmitter for has three
buttons
The 1-dog(Gray) button operates the
stimulations to the Gray collar when pressed.
The 2-dog(Orange) button operates the
stimulations to the orange collar when pressed.
The 3-dog(Green) button operates the
stimulations to the green collar when pressed.
THREE-DOG MODELS
21
BUTTON FUNCTION
Selection Switch on the
The three-dog models have a toggle switch
on the face of the transmitter.
The toggle switch allows for selection of
either Nick or Constant.
Set the toggle switch on the Nick position
to select Nick stimulation and Constant to
select the Constant stimulation.
3-Dog
(Green Button)
1-Dog
(Gray Button)
2-Dog
(Orange Button)
Nick
Cont.

22
BUTTON FUNCTION
On the nick position
When the 1-dog(gray) button is pushed,
the 1-dog(gray) receiver emits an extremely
short pulse of electrical stimulation that
automatically shuts off no matter how long
you leave your finger on the button.
The Nick is mild but motivating!
On the constant position
Pressing the 1-dog(gray) button gives
stimulation for up to twelve seconds, at which
time, the 1-dog(gray) collar will turn off.
The collar will reactivate when you push
the button again.
1-Dog Button
23
BUTTON FUNCTION
On the nick position
When the 2-dog(orange) button is
pushed, the 2-dog(orange) receiver emits an
extremely short pulse of electrical
stimulation to the orange collar.
On the constant position
Pressing the 2-dog(orange) button
gives stimulation for up to twelve seconds, at
which time, the 2-dog(orange) collar will
turn off.
2-Dog Button

2
BUTTON FUNCTION
On the nick position
When the 3-dog(green) button is
pushed, the 3-dog(green) receiver emits an
extremely short pulse of electrical stimulation
to the green collar.
On the constant position
Pressing the 3-dog(green) button gives
stimulation for up to twelve seconds, at which
time, the 3-dog(green) collar will turn off.
3-Dog Button
25
BUTTON FUNCTION
The transmitter for has four
buttons
The 1-dog(Gray) button operates the
stimulations to the Gray collar when pressed.
The 2-dog(Orange) button operates the
stimulations to the orange collar when pressed.
The 3-dog(Green) button operates the
stimulations to the green collar when pressed.
The -dog(Blue) button operates the
stimulations to the green collar when pressed.
FOUR-DOG MODELS
3-Dog
(Green Button)
4-Dog
(Blue Button)
1-Dog
(Gray Button)
2-Dog
(Orange Button)
Nick
Cont.

26
BUTTON FUNCTION
27
BUTTON FUNCTION
On the nick position
When the 1-dog(gray) button is
pushed, the 1-dog(gray) receiver emits an
extremely short pulse of electrical
stimulation that automatically shuts off no
matter how long you leave your finger on
the button.
The Nick is mild but motivating!
On the constant position
Pressing the 1-dog(gray) button gives
stimulation for up to twelve seconds, at
which time, the 1-dog(gray) collar will turn
off.
The collar will reactivate when you push
the button again.
Selection Switch on the
The three-dog models have a toggle
switch on the face of the transmitter.
The toggle switch allows for selection of
either Nick or Constant.
Set the toggle switch on the Nick position
to select Nick stimulation and Constant to
select the Constant stimulation.
1-Dog Button

28
BUTTON FUNCTION
On the nick position
When the 2-dog(orange) button is
pushed, the 2-dog(orange) receiver emits an
extremely short pulse of electrical stimulation
to the orange collar.
On the constant position
Pressing the 2-dog(orange) button gives
stimulation for up to twelve seconds, at which
time, the 2-dog(orange) collar will turn off.
2-Dog Button
29
BUTTON FUNCTION
On the nick position
When the 3-dog(green) button is
pushed, the 3-dog(green) receiver emits an
extremely short pulse of electrical stimulation
to the green collar.
On the constant position
Pressing the 3-dog(green) button gives
stimulation for up to twelve seconds, at which
time, the 3-dog(green) collar will turn off.
3-Dog Button

31

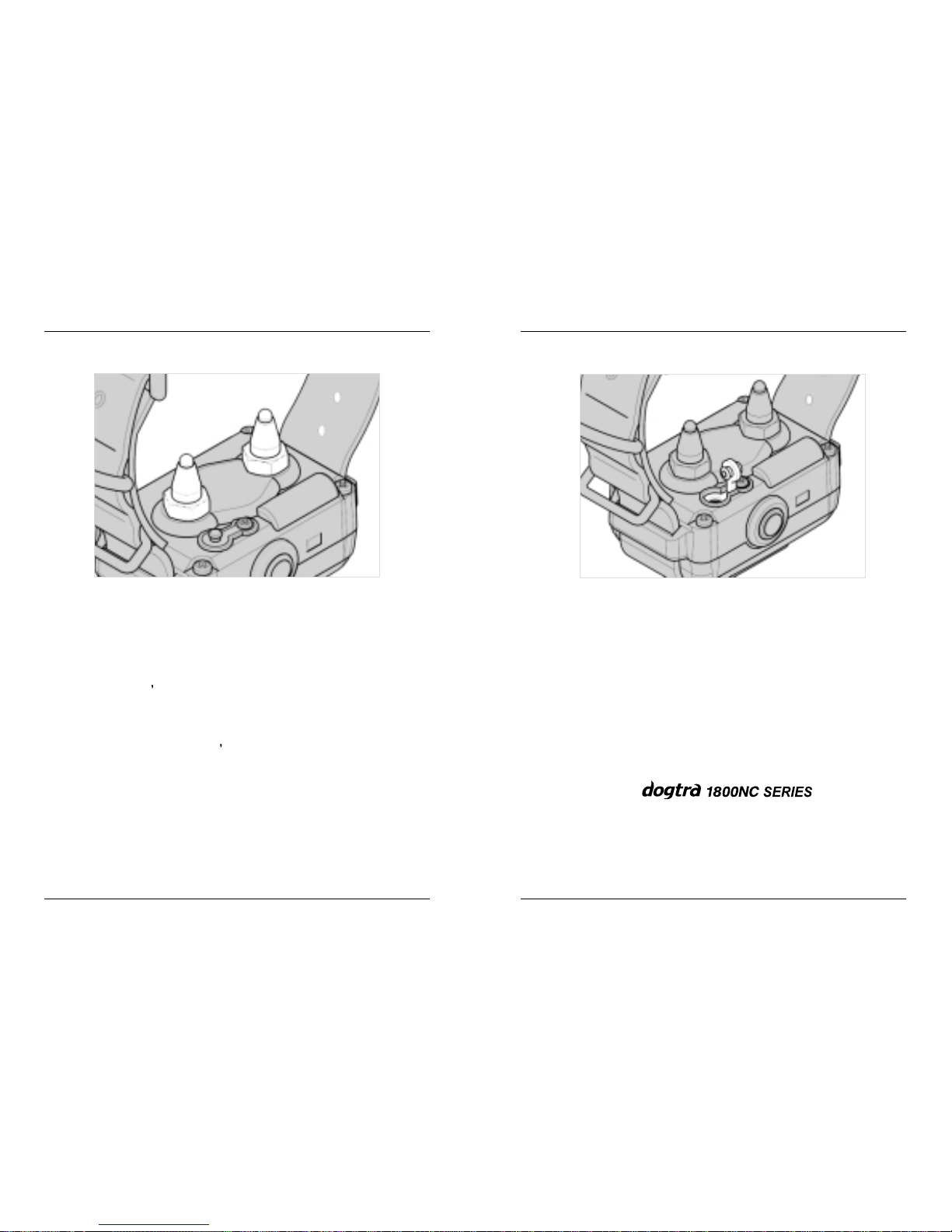

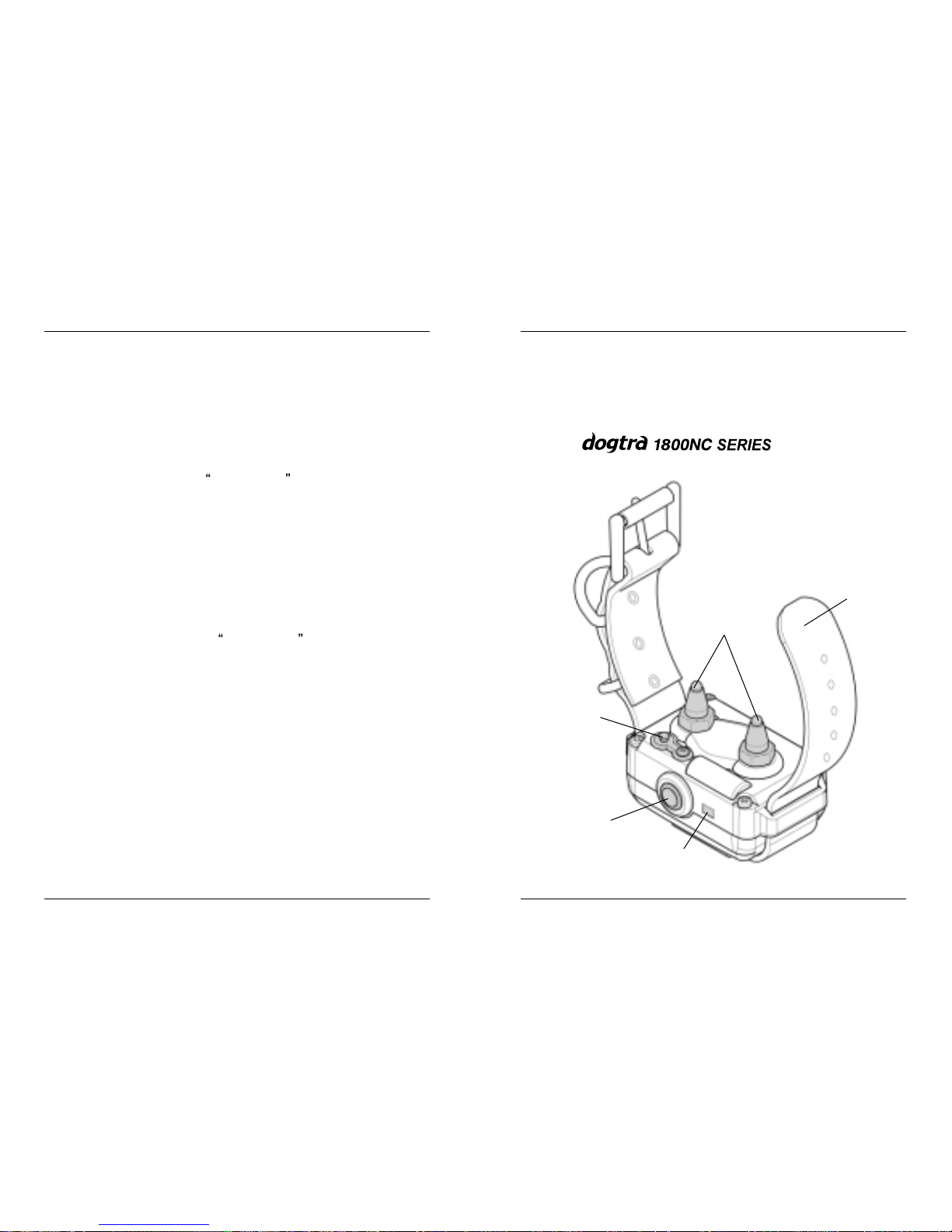

COLLAR
DESCRI TION OF
COLLAR ARTS
Collar
30
BUTTON FUNCTION
On the nick position
When the -dog(blue) button is pushed,
the -dog(blue) receiver emits an extremely
short pulse of electrical stimulation to the
green collar.
On the constant position
Pressing the -dog(blue) button gives
stimulation for up to twelve seconds, at which
time, the -dog(blue) collar will turn off.
4-Dog Button
Collay strap
Contact
Points
Indicator
Light
Power switch
ON/OFF
Push button
Battery Charging
Receptacle and
Cover

33
COLLAR
Receiver Indicator Li ht (LED)
Located on the front of the collar, the
indicator light comes on and blinks once every
2 seconds after the collar is turned on.
The blinking will change from a single flash
to a double flash when the collar needs to be
recharged.
When the Constant button on the
transmitter is pushed, the collar indicator light
will glow steadily for as long as you hold the
button down, for up to twelve seconds. When the
Nick button is pushed, the light comes on for a
fraction of a second.
32
COLLAR
ON/OFF Button
To turn the collar on, press the button on
the end of the receiver for one full second until
the light comes on.
To turn the collar off, hold the button down
for one full second until the red light goes off.
A delay has been built into the on/off switch
so that the dog cannot turn the collar off by
accident.

35
COLLAR
Receiver Battery Char in Receptacle
On the inside of the collar, next to the collar
strap, is a battery charging receptacle with a
rubber cover plug.
Internal Antenna
The has no
external antenna on the collar. The Antenna is
inside the collar receiver.
3
COLLAR
Contact Points
The collar should be fitted so that the
stainless steel contact points press firmly against
the dog s skin.
A loose fit can allow the collar to move
around on the dog s neck. When this happens the
contact points may rub the skin and cause
irritation. If the collar is too loose, electrical
contact will be inconsistent and your corrections
will be inconsistant also.

36
BATTERY CHARGER
The battery charger and charging cables allow
you to charge both the transmitter and receiver at
the same time.
The battery charger is designed for a 110 volt
wall outlet. (European 220 volt AC chargers and
12-volt field charger for your automobile are also
available).
BATTERY CHARGER
37
BATTERY CHARGER
Charging Cable
110 volt Charger
(One-Dog Unit)
The battery charger is designed for a 110 volt
wall outlet. (European 220 volt AC chargers and
12-volt field charger for your automobile are also
available).
To use the battery charger for the two-dog
unit, combine both sets of battery charging cables
as shown. This enables you to charge the
transmitter and both receivers at the same time.
110 volt Charger
(Two-Dog Unit)
Charging Cable
Charging Cable

38
BATTERY CHARGER
The battery charger is designed for a 110 volt
wall outlet. (European 220 volt AC chargers and
12-volt field charger for your automobile are also
available).
To use the battery chargers for the three-dog
unit, combine both sets of battery charging cables
as shown. This enables you to charge the
transmitter and three receivers.
110 volt Charger
110 volt Charger
(Three-Dog Unit)
Charging Cable Charging Cable
39
BATTERY CHARGER
The battery charger is designed for a 110 volt
wall outlet. (European 220 volt AC chargers and
12-volt field charger for your automobile are also
available).
To use the battery chargers for the four-dog
unit, combine both sets of battery charging cables
as shown. This enables you to charge the
transmitter and four receivers.
110 volt Charger 110 volt Charger
(Four-Dog Unit)
Charging Cable
Charging Cable
Charging Cable
