Dometic B1600 User manual

Operation, maintenance and installation manual
Libretto istruzioni per l’uso, la manutenzione e l’installazione
Betriebs-, Wartungs- und Installationsanleitung
Manuel d’utilisation, d’entretien et d’installation
Bedienings-, onderhouds- en installatiehandleiding
Manual de instrucciones para el uso, mantenimiento e instalación
Manual de instruções de uso, manutenção e instalação
Handbok för användning, underhåll och installation
Käyttö-, huolto- ja asennusohje
Bruks- vedlikeholds- og installasjonsanvisning
Betjenings-, vedligeholdelses- og installationsvejledning

©DOMETIC - 2007 All rights reserved - Printed in Italy
No part of this publication may be reproduced, copied or transmitted in any
form or by any means without prior written permission from DOMETIC.
Figures, descriptions, references and technical data in this manual are given
as mere example and are not binding.
In pursuing a policy of continual product and safety improvement, DOMETIC
reserves the right to make changes at any time without undertaking to give
prior notice or to update this manual every time.
Keep this document for future reference.

Warranty Validity
‘The product is warranted in accordance with the enforced Law and regulations implementing the Directive
1999/44/EC.
The Manufacturer s warranty does not extend to Product failures, defects or damage arising from and/or attribu-
table to a wrong installation.
The Consumer is entitled to let the Product be installed by an authorised dealer, not bound by Dometic.

1 General informations
1.1. Scope of the manual.............................................4
1.2. Manufacturer and air conditioner data plate......4
1.3. Description of the air conditioner..........................4
1.4. How to use the air conditioner....................................6
1.5. Description of the controls................................... 7
1.6. Technical data................................................ 10
1.7. Ordinary maintenance....................................11
2 Installation instructions
2.1. Packaging, unpacking and handling..............12
2.2. Preparing the roof opening........................13
2.3. Mounting the air conditioner...........................16
2.4. Electric connection......................................18
3 Troubleshooting, maintenance, recycling
3.1. Troubles, causes, solutions..............................19
3.2. Extraordinary maintenance..............................19
3.3. Recycling......................................................19
B1600 wiring diagram ..................................20
B2200 wiring diagram ..................................21
Spare part list B1600 - B2200............................22
Index Operation, Maintenance and
Installation manual
Air conditioner GB
I
D
F
Handleiding voor bediening,
onderhoud en installatie
Airconditioner NL
Manual de instrucciones para el uso, la manutención
y la instalación
Acondicionator E
Livrete de instruções para uso, manutenção
e instalação
Aparelho de ar condicionado P
Handbok för drift, underhåll och
installation
Luftkonditionering S
Käyttö-, huolto- ja
asennusohje
Ilmastointilaite FIN
Brukerveiledning og manual
til vedlikehold og installasjon
Airconditioner N
DK
Libretto istruzioni per l’uso, la manutenzione e
l’installazione
Condizionatore
Bedienungs- und
Wartungsanleitung
Klimaanlage
Mise en route, entretien et
installation
Climatiseur
Brugervejledning og manual
til vedligeholdelse og installation
Airconditioner

B1600 - B2200 4users ‘ instructions
GB
1.1. Scope of the manual
This manual has been made by the Manufacturer and it shall be regarded
as part of the air conditioner.
The information it contains, when complied with, ensures a correct and
efficient use of the air conditioner.
The first part of this manual is for users , the second one for qualified
technicians facing the installation of the air conditioner.
To draw the readers attention to special parts of the text, the following
symbols have been used:
This operation may result in dangers
Useful advice
Environment safety related information
1.2. Manufacturer and air conditioner data plate
1.3. Description of the air conditioner
This air conditioner has been designed and manufactured to be installed
onto vehicles (i.e. camping-cars, caravans, motorhomes) to improve the
temperature conditions. It supplies fresh and dehumidified air in summer
and warm air in winter without, in any case, replacing the heating system
of the vehicle. In both cases, temperature is set by the user.

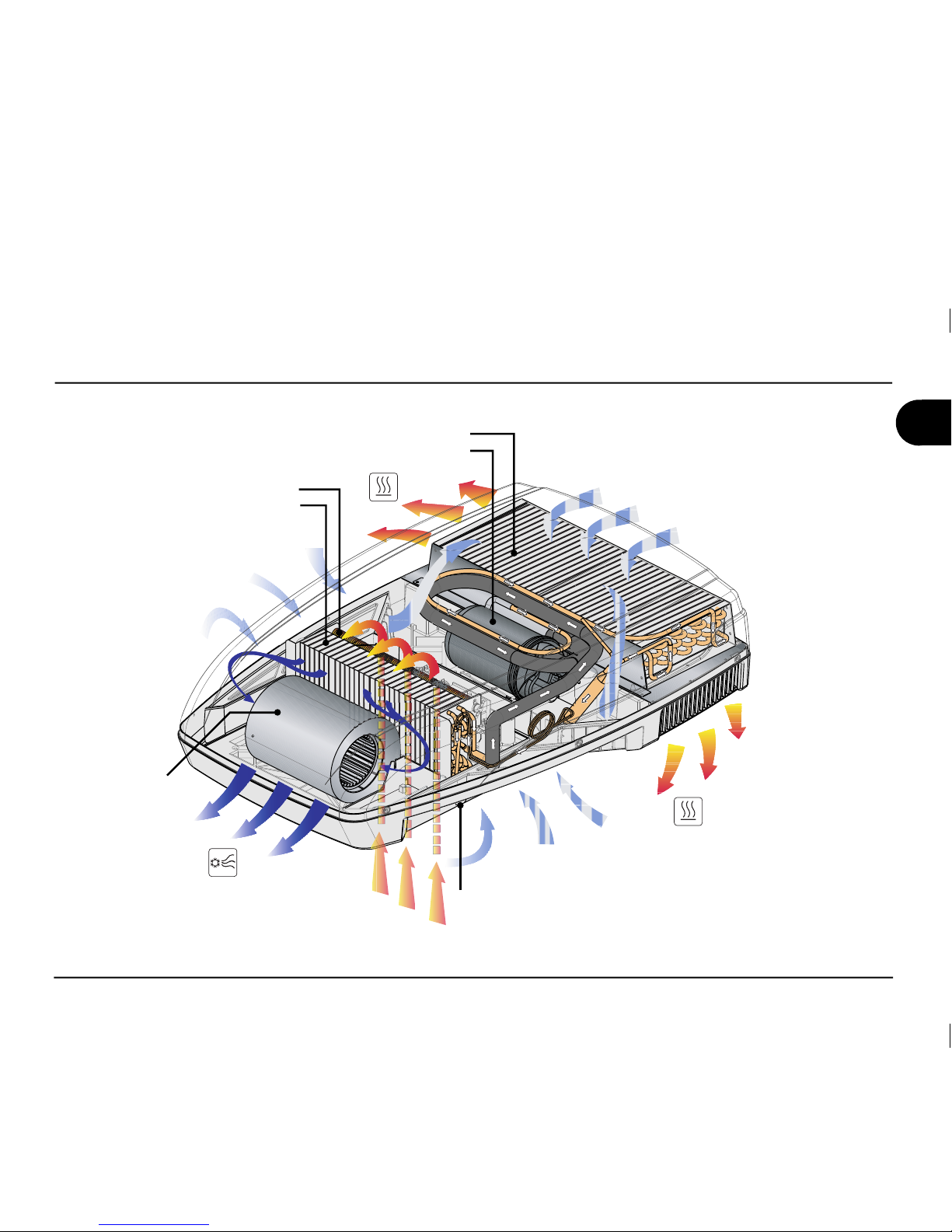

Fresh air - Running
The system is inclusive of: compressor ( a ), condenser ( b ), evapora-
tor ( d ) and refrigerant gas under pressure. According to the physical
state of the refrigerant gas -i.e. liquid or gaseous, it heats or cools the
components where it passes through.
Fan ( c ) forces the internal air through the cooled evaporator from where
it comes out cooled down and dehumidified.
This action, protracted over the time, reduces the temperature into
the vehicle.
Warm air - Running
Ambient air is forced by fan ( c ) into an electrical heating resistance
( e ) and then recirculated inside the vehicle.
1General informations
Manufacturer
Conformity marking
Model/Serial number
Year of manufacture
Technical data

users ‘ instructions B1600 - B2200
5
GB
general informations 1
Compressor (a)
Condenser (b)
Evaporator (d)
Resistance (e)
condensate draining
Fan (c)
Air drawn in from outside
Air drawn in from outside
warm air
discharged
conditioned air
drawn inside
the vehicle
Air drawn in from outside
warm air
discharged
air recirculated
inside the vehicle

B1600 - B2200 6users ‘ instructions
GB 1.4. How to use the air conditioner
The air conditioner performance can be improved by taking some
simple measures.
Improve the thermal insulation of the vehicle by closing any opening
and by covering any glassed surfaces with reflecting curtains.
Avoid opening doors and windows unnecessarily.
Select the most suitable temperature and speed.
Properly direct the air flaps.
To prevent troubles and minimise risks for people, take the following
precautions:
Do not obstruct the air inlets and outlets with cloths, paper or other
objects;
Do not introduce your hands or other objects into the openings;
Do not spray the air conditioner with water;
Keep flammable substances away from the air conditioner.
•
•
•
•
•
•
•
•
Adjusting the air direction
Position the air diffusing flaps to direct the air to the desired position. In order to balance the airflow it’s necessary to rotate the center knob in
anticlockwise, to choose the wished position and then rotate clockwise.
1 general informations

users ‘ instructions B1600 - B2200
7
GB
*
* (only for models equipped with resistance)

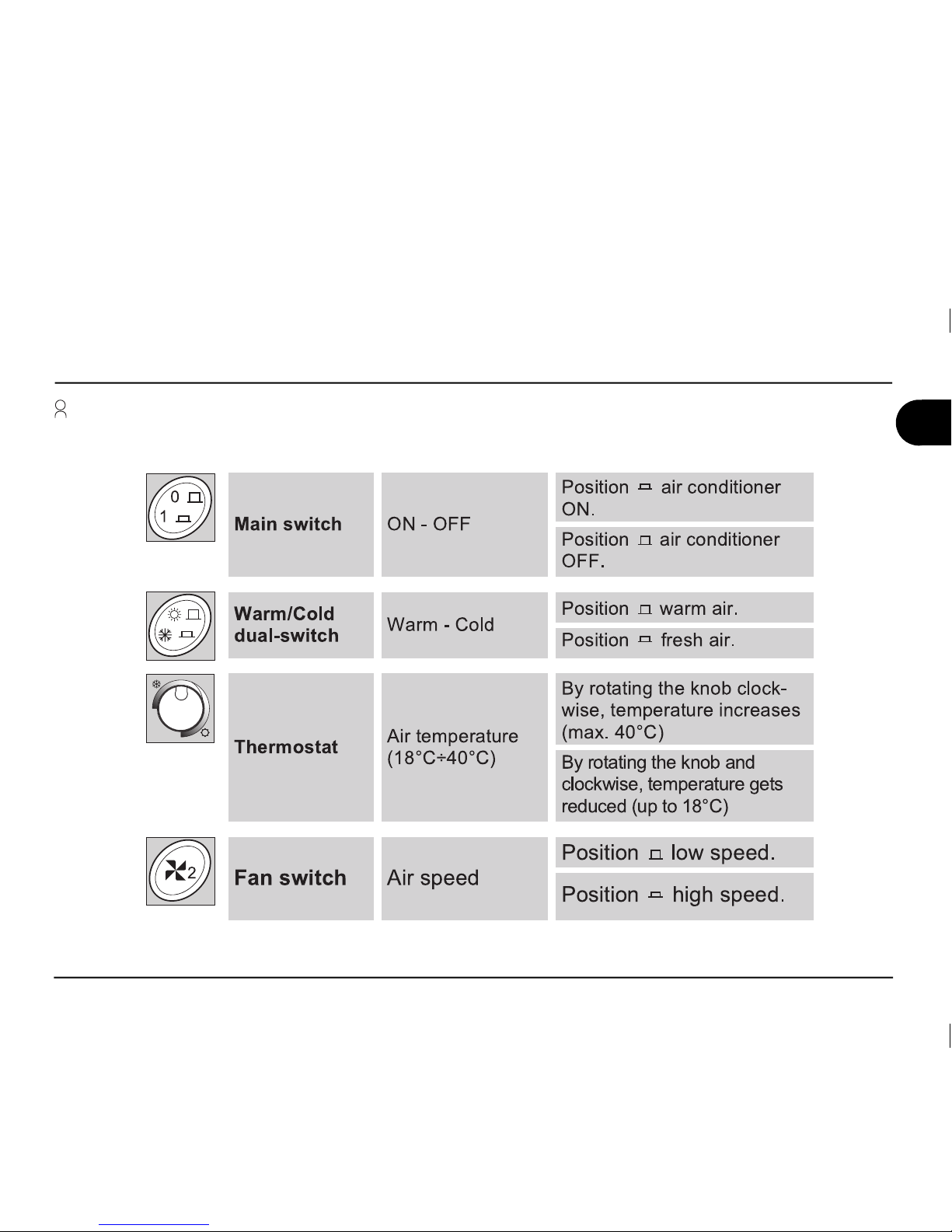

1.5.Description of the controls (B1600)

B1600 - B2200 8users ‘ instructions
GB
* (only for models equipped with resistance) - **(only for models equipped with light)
1.5.Description of the controls (B2200)
1 general informations
Remote control (B2200)
+
-
MODE
¡$
Clock
Room
Set
REMOTE CONTROL
Clock Display
UP (+)
Down (-)
Reset Button
Room
Temperature
Operation Mode
Display Window
Fan Speed Display
F°/C°
Low Battery
Light
Fan
Mode
ON/OFF
Set Point
CLOCK
TIMER
SET
SLEEP
I FEEL
ROOM
F°/C°
LIGHT
LIGHT
BUTTON DESCRIPTION
ON/OFF
Press the ON/OFF button to start the airconditioner.
When it’s OFF all the symbols are OFF, except the
clock and you can use the ROOM and the LIGHT
buttons.
F°/C°
F°/C°
Choose the temperature measurement unit between
Celsius (°C) or Fahrenheit (°F).
If temperature is displayed this function is enabled.
LIGHT
LIGHT
LIGHT**
Pressing the light key the light on the airconditioner
diffuser is switched on (if equipped) .The light button
works also when the remote control is off.
ROOM
ROOM
Pressing this button the room symbol is displayed
and the local temperature is displayed instead the
set point. Pressing the Room button an other time
the Room symbol disappear and the set point tem-
perature is displayed instead the local one.
This button works also when the remote control is off.
CLOCK
CLOCK
Pressing the “CLOCK” button for a time longer than
2 seconds, it is possible to modify the “TIME SET-
TING”, managing the UP (+) button or the DOWN
(-). Press the “SET” button to confirm the modifica-
tions. After 15 seconds the new set is confirmed in
any cases.
SET
SET
This button has two functions:
1) To confirm the TIME SETTING
2) To resend the actual operating setting
The RESET button erases all the configuration parameters to
default.

users ‘ instructions B1600 - B2200
9
GB
general informations 1
* (only for models equipped with resistance) - **(only for models equipped with light)

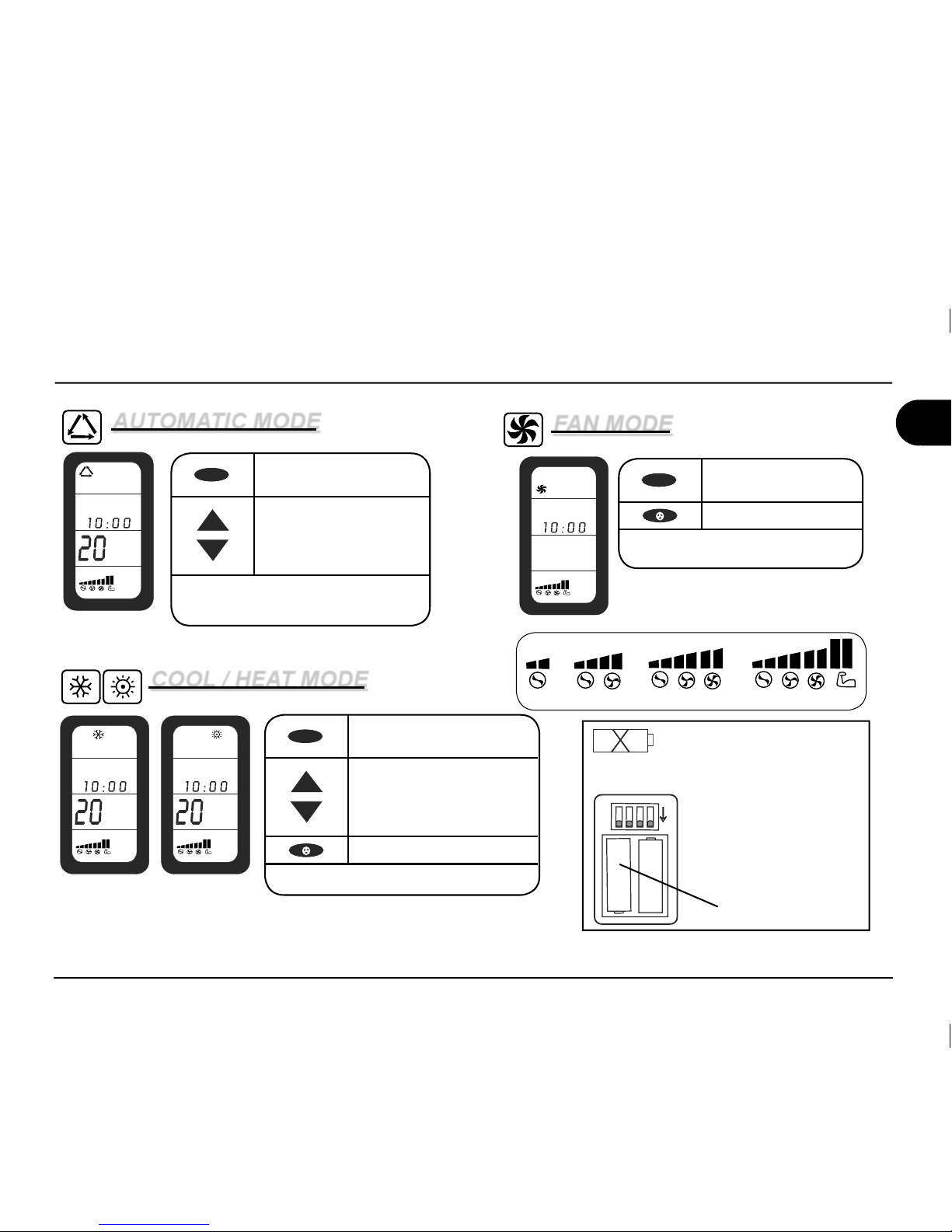

AUTOMATIC MODE
¡$
AUTO
COOL / HEAT MODE
FAN MODE
¡$ ¡$
30%%$ 30%%$ 30%%$ 30%%$
Available Fan speeds (Cool/Heat*/Fan Mode)
MODE
Press the MODE button.
Set to “AUTO”
+
-
Choose the Set Point
(16°C - 31°C)
In this mode the fan button is disabled.
You can use the LIGHT** and ROOM button.
MODE
Press the MODE button.
Set to “COOL” or “HEAT”*
+
-
Choose the Set Point
(16°C - 31°C)
Choose the Fan Speed
You can use the LIGHT** and ROOM
MODE
Press the MODE button.
Set to “FAN”
Choose the Fan Speed
You can use the LIGHT** and ROOM button.
Low battery
The low battery symbol will
appear in the display window
when the low battery condition
exists.
In this case after each
command, the “low voltage
symbol” flickers for 2 seconds.
In these 2 seconds the remote
control is not able to send other
commands.
BATTERY COMPARTMENT
ON BACK SIDE OF REMOTE
CONTROL
J1 J2 J3 J4
OFF OFF
Replace the batteries
2x1.5V AAA

B1600 - B2200 10 users ‘ instructions
GB
1 general informations
* according to EN 14511
1.6. Technical data
1.5.Description of the led state on the airdiffuser
LED
LED State Description
Off Airconditioner off
Orange Airconditioner on StandBy (switch ON - aiconditioner is waiting for
a command)
Green Airconditioner is running
Red (fixed) Anomaly - 230V power supply missing (12V
is present)
Red (1 flick) Anomaly - Malfunctioning of the E1 temperature probe (internal)
Red (2 flicks) Anomaly - Malfunctioning of the E2 temperature probe (external)
Description Unit Model
B1600 B2200
Refrigerant gas (type/quantity) see data plate
Refrigerating yield Watt/h 1500* 2050*
Cooling consumption W 650 910
Heating capacity W 800 1200
Electrical rating V-Hz 230-50 230-50
Protection degree IP X4 X4
Conditioned air volume m3/h 310 380
Max internal volume of the vehicle (insulated walls) m320 25
Weight Kg 30 34
235
650
310
min 30

users ‘ instructions B1600 - B2200
11
GB
general informations 1
1.7. Ordinary maintenance
Cleaning; periodically clean the air conditioner and remove dust with a dump cloth. When
necessary, use a mild detergent. Do not use petrol or solvents.
Checks; regularly check the air con-
ditioner and make sure that the water
outlet holes are not clogged.
Filters cleaning (1): periodically carry out this operation; wash the filters with a detergent solution and allow to dry before refitting.
Active carbon filter (2): It’s recomended to change the active carbon filters every year.
Petrol

B1600 - B2200 12 users ‘ instructions
GB
The air conditioner must be installed by skilled technicians. In addition to this requirement, the people making the unit installation must make sure
that the working conditions are safe for everybody concerned.
2.1. Packaging, unpacking and handling
Always follow the instructions printed on the packaging. Remove the air conditioner from its packaging and made sure that
it is not damaged.
Never use the rear air openings to lift the air conditioner
from its packaging
Move the air conditioner to the installation site under safe condi-
tions.
2 Installation instructions

users ‘ instructions B1600 - B2200
13
GB
Installation instructions 2
To install the air conditioner, the roof shall have an opening of suit-
able sizes. It is possible to use an existing air inlet or make a new
one.
According to the vehicle dimensions and depending on the air
conditioning needs, one or more units can be installed. The air
conditioner must be installed right in the middle with respect to the
vehicle Width and length.
Before installing the unit, make sure that the opening does not
interfere with the existing furnishing (lamps, wardrobes, doors,
curtains, etc.). This check allows for an easy mounting of the air
conditioner and a troublefree air circulation.
contact the vehicle manufacturer and make sure that the
roof structure can tolerate the static load and the stress tran-
smitted vehicle, especially under running conditions. Some-
times vehicle manufacturers previously arrange areas for the
unit installation weakening and/or electric cable from being
cut.
The air conditioner should preferably be installed on a
level plane. Maximum allowed inclination: 10°.
2.2. Preparing the roof opening

B1600 - B2200 14 users ‘ instructions
GB
Danger of electrical hazards.
Turn all power sources off

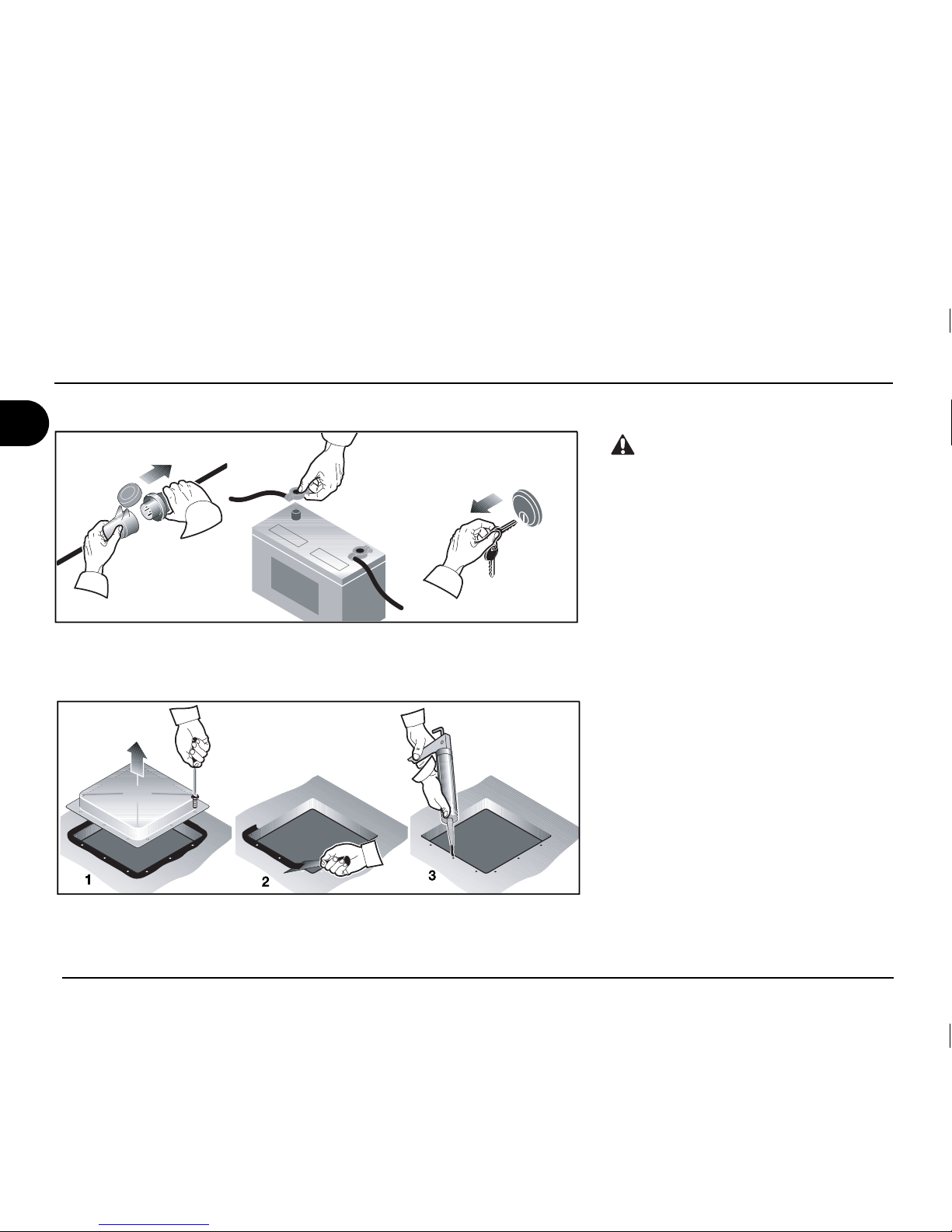

Using an existing opening
Remove the skylight cover.
Clean the installation opening all around
by removing any adhesive residues.
Fill any existing screw hole or deformation
with filler or silicone.
1.
2.
3.
2 Installation instructions

users ‘ instructions B1600 - B2200
15
GB
Installation instructions 2
New installation opening
Using the printed cardboard template sup-
plied with the unit, find the position and di-
mensions of the new opening.
Drill the four corners.
Cut by joining the previously made holes.
If necessary, mount a reinforcing wooden
frame.
1.
2.
3.
4.
Drill a hole for the
supply cables

B1600 - B2200 16 users ‘ instructions
GB 2.3. Mounting the air conditioner

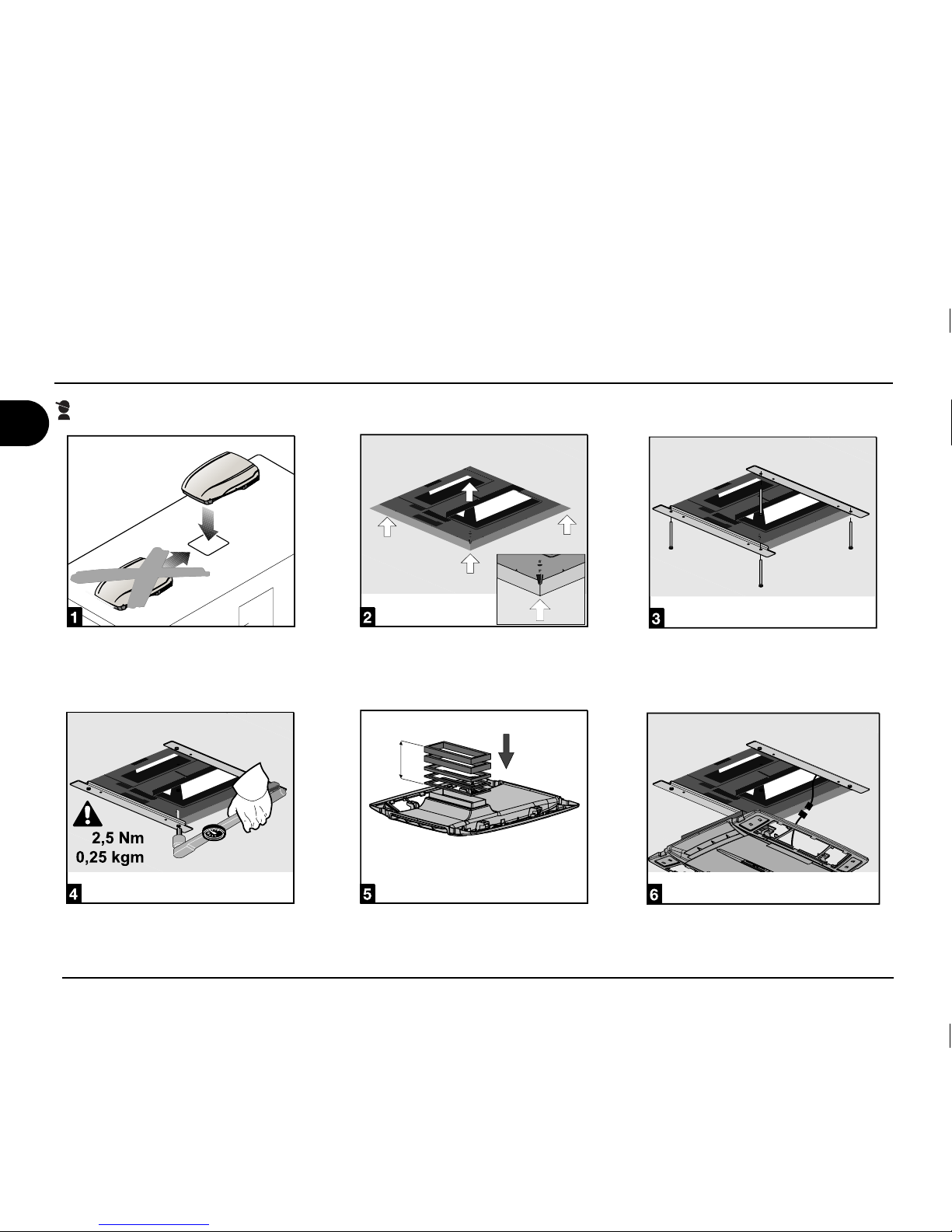

Set the air conditioner onto the roof ope-
ning. Never slide the air conditioner on
the roof, but lift when moving it.
Note: the conical pins under the base
must enter the roof openings.
Fix the air diffuser brackets to the base
using the 4 screws provided.
Always tighten to the recommended tor-
que wrench setting. Do not overtighten!
Mount the airdiffuser linking gaskets.
For correct thickness follow the table on
page 19.
Do the electrical connection as described
in paragraph 2.4.
2 Installation instructions

users ‘ instructions B1600 - B2200
17
GB
Installation instructions 2
Fix the cooling unit to the brackets using
the 4 screws provided.
Mount the filters in the order shown in
figure.
Mount the filters covers.
THICKNESS OF THE ROOF THICKNESS OF THE GASKET
to 30 mm 10 mm
from 30 to 35 mm 15 mm
from 35 to 40 mm 20 mm
from 40 to 45 mm 25 mm
from 45 to 50 mm 30 mm
from 50 to 55 mm 35 mm
from 55 to 60 mm 40 mm
from 60 to 65 mm 45 mm
from 65 to 70 mm 50 mm
from 70 to 75 mm 55 mm
from 75 to 80 mm 60 mm

B1600 - B2200 18 users ‘ instructions
GB 2.4. Electric connection
For the electric connections, always follow the national and local regulations
Arrange a specific electric system

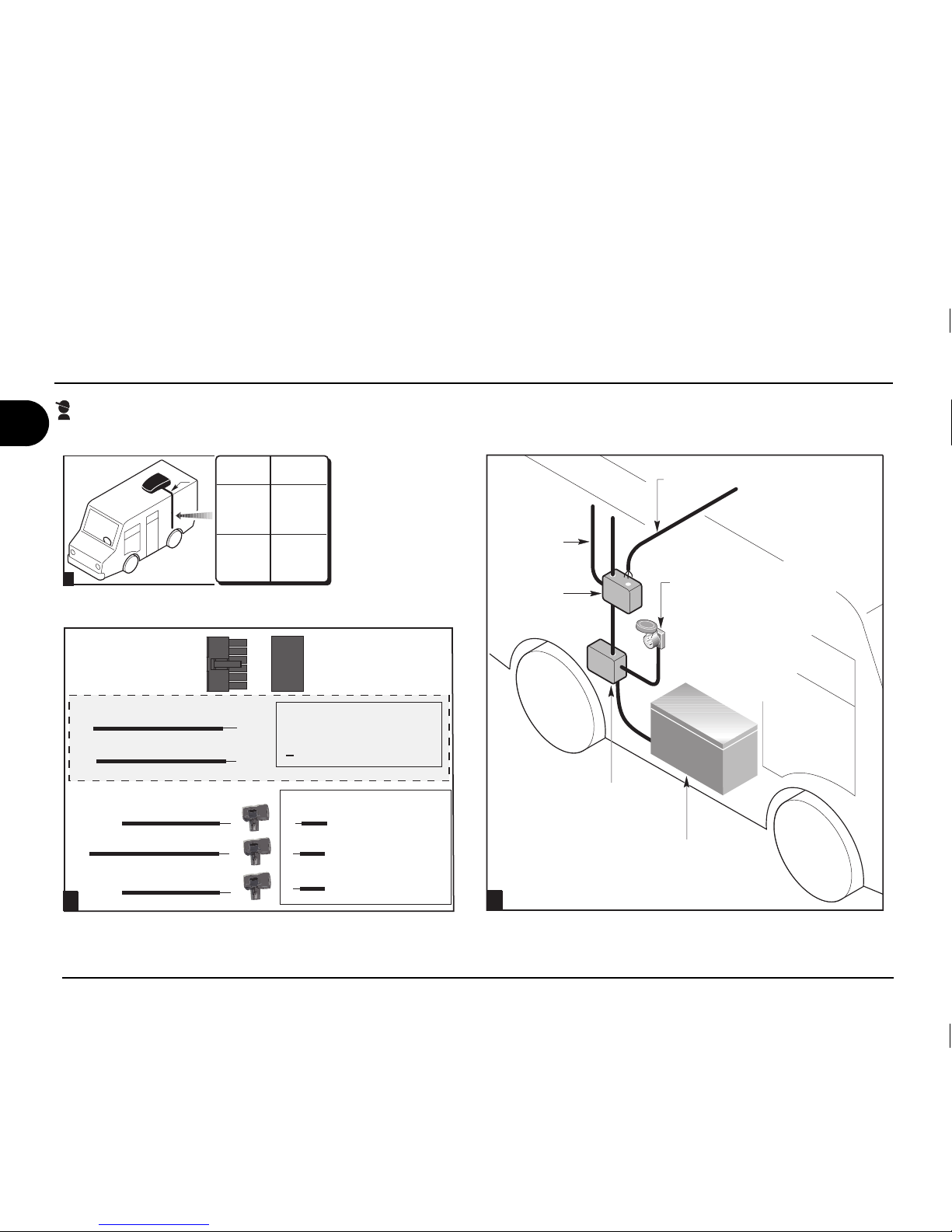

Connect the wires to the air conditioner. Connect the electric system to a circuit supplying the required power
(see technical data) and fitted with a good ground system.
B2200
3
r
e
w
opcirtcelE
rot
a
ren
e
g
hc
tiws
re
vo
e
gn
a
h
C
r
o
ta
r
ene
g
/sni
a
m
s
n
iamylppuS
suoiraV
sre
s
u
esuF
x
ob
ylp
pusrew
op
renoitidnocriA
htg
neL
)
m
(
n
oi
tcesss
o
rC
)m
m(
2
5
,
7<
5
,7>
5,1
5,2
L
1
2
12-pole connector
from airconditioner
base
12-pole connector on
the electronic device
inside airdiffuser
Red wire
Black wire
12V DC
Brown wire Brown wire
230V 50Hz
+ POLE BATTERY
- POLE BATTERY
Cyan wire Cyan wire
Green-Yellow wire Green-Yellow wire
2 Installation instructions

users ‘ instructions B1600 - B2200
19
GB
SOLUTION

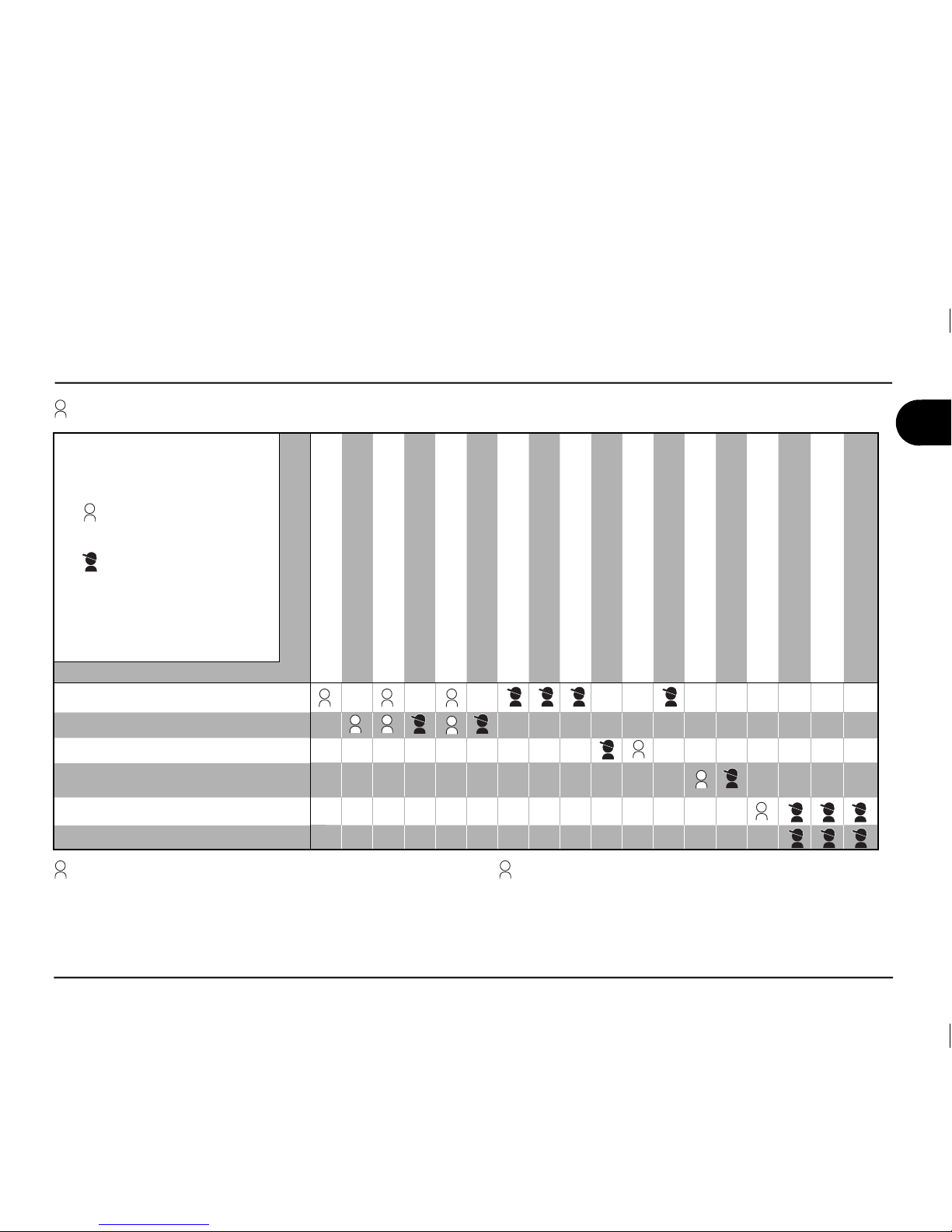

temperature less than 18°C temperature over 40°C check the set point temperature defective thermal protection switch wrongly positioned defective heating resistance refrigerant gas is not enough damaged compressor thermal exchange batteries are dirty defective internal fan air filter is clogged defective external fan water outlet holes are clogged damaged sealing gasket no power supply low power supply (less than 200V) defective capacitor defective thermal protection
CAUSA
the air conditioner does not cool sufficiently
the air conditioner does not heat enough
no air circulation into the vehicle
water leaks into the vehicle
the air conditioner does not start
the air conditioner stops running
Operations to be carried
out by the user
Operations to be carried out
by authorised personnel
3.1. Troubles, causes, solutions
3.2. Extraordinary maintenance
For the best performance of your air conditioner, have your dea-
ler/workshop clean it thoroughly before use:
thermal exchange batteries
water outlet holes are properly cleaned.
1.
2.
3.3. Recycling
Regarding disposal and recycling, follow the national or local
regulations. To this end, address to the authorised environment
bodies.
Troubleshooting, maintenance, recycling 3
