Dormakaba 630 Series User manual

E-730 Series
630 Series 750 Series 79E/RT/E7900 Series
Exit Device Operators
630/750/79E/RT/E7900 Series/
Generation E-730
Installation instructions
PK3677-T - 2018 - 09
EN

2 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
A- Checklist and Exploded Views 3
B- Introduction and Disclaimers 4
C- Prepare the Door For the Appropriate Exit Device 4
D- Install the Lock and the Exit Device 5
1. Install the Mortise 5
2. Install the Outside Lever on the Outside Housing 5
3. Install the Battery Holder 5
4. Install the Lock and Exit Device on the door 6
5. Install the lock and Exit Device with Messenger/Bluetooth on the door. 7
E- Test the Operation of the E-730 / 750 / 79E Lock 8
F- Program the E-730 / 750 / 79E Lock 9
G- Operating the Emergency Override 10
H- Test the operation of the 630 Lock 11
J- Installing the Mechanical Override 12
Parts and Tools List 12
1. Upon unpacking the Lock 13
2. Preparing the Outside Housing for the Installation of the Lever 13
3. Preparing the Lever Handle and Cylinder for Installation 14
4. Steps to attach the Lever Handle to the Lock Housing 14
5. Attaching the Lever Handle to the Lock 15
6. Verify the Attachment of the Lever Handle 16
7. Test the Movement of the Lever Handle 16
8. Test the Mechnical Override Function 17
9. Cover the Keyhole and Cylinder with Cap 17
10. How to Change Lock Cylinders 17
2018 dormakaba Canada Inc. All trademarks and registered trademarks are the property of their respective owners.
Table of contents

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 3
Each lockset for E-730/630/750/79E/E7900 includes:
(A) Outside lever handle
(B) Outside housing
(C) Gasket (when required)
(G) Exit Device (Included if ordered with lock operator)
(J) Battery holder with 3 AA batteries
Parts inside hardware bag:
(D) 1 x Spindle except for the following Exit Device which
have 3: Detex F10, Dorma F9300 and Precision21/22/
FL21/FL22
(E) 1 x Inside Adaptor Plate
(F) 3 x Mounting Screw 12-24 1/8” Hex
(H) 2 x Pan Head Screws 1/4” 28 X 3/4” for Yale
2 or 4 Pan Head Screws 10-24 X 3/4” for Detex,
Dorma, Von Duprin or 4 Flat Head screw 10-24 X
5/8” for Precision, Arrow
(K) 1 x Spanner-head Screw
(Q) 2 or 4 Flat Washer ⁄ OD for Detex Exit Device Only
Messenger / BLE Generation includes:
(S) Double enclosure.
(T) 2 X Pan Head Screws 8-32 X 1/2’’
Tools Required:
Safety glasses
5/16” (7.9mm) drill bit
1
/2” (13mm) drill bit
1” (25mm) drill bit
Drill
Awl or center punch
Hammer
Rubber mallet
Small flat screwdriver
Philips #2 screwdriver
Spanner screwdriver (No 6)
1
/8” Allen key
Adjustable square
Tape measure
Pencil
Tape
Cleaning supplies
(drop cloth, vacuum)
B
A
CD
E
F
Q
G
H
G
J
K
E
S-COVER
T
S-SUPPORT
W
W
S-SCREW
Mechanical Override Models ONLY:
(L) Cylinder Cap
(M) Cylinder Plug
(N) Outside Lever Handle
(O1) Adapter
(O2) Adapter & Screw
(P) Cylinder (for 630 series lock with cylinders keyed
different ONLY)
E7900 Messeger/BLE Generation includes:
(S) Battery/Antenna enclosure with spacer.
(T1) 2x Flat Head Screws 8-32 X ⁄''
(T2) 2x Flat Head Screws 8-32 X 1 ⁄''
(P) Cylinder (for 630 series lock with cylinders keyed
different ONLY)
Mechanical Override Models ONLY
L
P
M
N
** Dorma 9100/9300/9400/9500 Series are Panic Hardware only (not fire rated)
Dorma F9100/F9300/F9400/F9500 Series are Fire Rated Hardware
A Checklist

4 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
1) Choose from the DT kit the drilling template of the
lock for the exit device to be assembled on the door.
2) Mark the desired handle height on the edge of the
door. (see Fig.1)
3) Mark the backset vertical line on each side of
the door. Consult the exit device manufacturer’s
instructions for the correct backset. The backset
shown on the paper template is for reference only.
use exit device backset.
CAUTION
WARNING
IMPORTANT
Respect all applicable building codes regarding the
handle height of the lock and positioning of the bar.
4) Position the drilling template (attached in this
booklet) on the inside of the door aligning the door
handle height mark and backset vertical line mark
with the lines on the template. Mark the door for
the holes position.
5) Drill holes to diameters specified on the drilling
templates.
Drill the holes in the door required for the exit device
according to the manufacturer’s instructions.
CAUTION
WARNING
IMPORTANT
Drill from both sides of the door to prevent
unsightly damage. Refer to template for drill size
and depths
3 through holes
From the inside, counter bore
5/16 dia. X 3/4 deep
See Drilling Template
2 or 4 Holes
Backset Vertical Line
Inside of Door
3
4
Fig. 1
Fig. 2
B Introduction and disclaimers
C Prepare the door for the appropriate exit
device
CAUTION
WARNING
IMPORTANT
Please read and follow all directions carefully. These instructions are designed for use by maintenance
professionals or lock installers who are familiar with common safety practices and competent to
perform the steps described. dormakaba. is not responsible for damage or malfunction due to incorrect
installation, that may arise.
CAUTION
WARNING
IMPORTANT
Carefully inspect windows, doorframe, door, etc. to ensure that the recommended procedures will not
cause damage. dormakaba standard warranty does not cover damages caused by installation.
CAUTION
WARNING
IMPORTANT
Wear safety glasses when making the holes.

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 5
Three AA batteries should already be installed in the
battery holder (J). Insert the battery holder into the
outside housing and secure it using the 6-32 X 3/8”
spanner drive screw (K).
For de E7900 series lock, insert the 4 AA batteries into
the battery holder (J). Insert the battery holder into
the enclosure and secure it using the supplied screw
(K).
CAUTION
WARNING
IMPORTANT
If the lock makes a continuous buzzing noise or the
red LED lights continuously, reset the electronics by
removing the battery holder for ten seconds, then
reinsert it.
* For Mechanical Override Models refer to page 12.
Assemble the lever on the outside housing,
in the horizontal rest position appropriate
to the handing of the door as shown. Simply
push the lever onto the tube until it clicks
in place. If more force is required to engage
the handle, use a rubber mallet. Test the
attachment of the handle by pulling smartly
on it.
For mortise exit devices, install the mortise according to the manufacturer’s instructions.
A
1Install the Mortise (if applicable)
2Install the Outside Lever
3Install the Batteries
Access Hole
cutaway view
J
J
K
K
K
D Install the lock and the exit device
The lever is field reversible. If
the handing is incorrect, insert
a small pick or flat screwdriver
in the hole in the hub as shown.
Gently pry back the spring clip
inside the hub, and remove the
handle.
B

6 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
4.1 Insert the slotted end of the spindle (D) into the outside housing until it locks, at the correct posi-
tion for the exit device (see the document named ‘’ spindle position’’). The spindle can be removed
by pulling on it, and re-inserted if oriented incorrectly. Choose a spindle that engages by 1/8” mini-
mum in the exit device chassis and that it is not too long to bottom-out against the exit device
mechanism to jam the lock assembly, once it is tightened down.
4.2 Place the outside housing (B) on the door. (with gasket (C) if required)
4.3 Attach Adaptor Plate (E) to the lock (B) using 3 Flat Head screw (F)(12-24nc).
4.4 Attach the Exit Device chassis (G) to the Adaptor Plate (E) using 2 screws or 4 screws (H) depend-
ing on the Exit Device. For Detex only, use 2 or 4 Flat washers (Q).
4.5 Make sure the lock and the Exit Device are well aligned and then tighten screws.
4.6 Follow the manufacturer’s instructions to complete the installation of the exit device and the
appropriate strike.
HQ
D
C
B
G
Q
H
E
F
Fig. 3
4Install Lock & Exit Device on the door
D Install the lock and the exit device

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 7
W
W
W
W
H1
H2
S1
T
S-COVER
S-SUPPORT
S-SCREW
DC
B
Q
H
G
G
F
E
H3
Z
S-COVER
S-SCREW
S-SUPPORT
S-SCREWS
S-COVER
S-SUPPORT
Fig. 4 Fig. 5
5Install Lock & Exit Device with Messenger/Bluetooth or E7900 on
the door
5.1 Insert the slotted end of the spindle (D) into the outside housing until it locks, at the correct posi-
tion for the exit device (see the document named ‘’ spindle position’’). The spindle can be removed by
pulling on it, and re-inserted if oriented incorrectly. Choose a spindle that engages by ⁄” minimum in
the exit device chassis and that it is not too long to bottom-out against the exit device mechanism
to jam the lock assembly, once it is tightened down.
5.2 Pass wires (W) through the gasket (C) and the hole (H3). For the hollow doors, the wires shall pass
inside the door to come out from the hole (H2).
5.3 Place the outside housing (B) on the door. (with gasket (C) if required)
5.4 Attach adaptor plate (E) to the lock (B) using 3 flat head screw (F) (12-24unc) (for solid doors, make
sure that the wires are in the slot (S1)).
5.5 Attach the Exit Device chassis (G) to the Adaptor Plate (E) using 2 screws or 4 screws (H) depend-
ing on the Exit Device. For Detex only, use 2 or 4 Flat washers (Q)
5.6 Make sure the lock and the Exit Device are well aligned and then tighten screws.
5.7 Connect wires (W) to corresponding connectors and put the excess cables and connectors in the
hole (H2) on the door.
5.8 Install S-support with screws T in the adaptor plate
5.9 Put the cover s-cover as shown on fig.5, and put the screw s-screw.
5.10 Follow the manufacturer’s instructions to complete the installation of the exit device and the appro-
priate strike.
D Install the lock and the exit device (Continued)

8 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
EXIT DEVICE
SURFACE MOUN
T
VERTICALE ROD
ANTENNA
MODULE
MESSENGER
ANTENNA POSITION
BLE ANTENNA
POSITION
ANTENNA
MODULE
EXIT DEVICE
RIM, MORTISE,
CONCEALED ROD
MESSENGER
ANTENNA POSITION
BLE ANTENNA
POSITION
5Install Lock & Exit Device with Messenger/Bluetooth on the door
(continued)
D Install the lock and the exit device (Continued)

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 9
CAUTION
WARNING
IMPORTANT
Perform the following procedures in order, with the
door OPEN unless otherwise indicated.
1Panic Bar
Activate the panic bar. The latch bolt or rod
retracts fully.
2Outside Lever
Turn the outside lever downward. The latch bolt or
rod does not retract.
If the latch bolt or rod retracts, verify that the bat-
teries are properly installed.
If the lever feels tight (hard to turn, or does not
return easily to its horizontal rest position), check
the spindle length vs. the door thickness (the spin-
dle may be too long). Check that the slotted end of
the spindle is inserted in the lock housing hub, not
the exit device.
3Electronics and Card Reader
Test the lock’s response to keycards: a Test key-
card, a Grand Master keycard, and an Emergency
keycard.
Insert keycards as shown below, with the magnetic
stripe facing toward the door and to the left. For
79E, present cards to reader.
E Test the operation of the E-730/750/79E lock
(for 630 lock go to Section H) (For RT lock series, please refer to
system 6000 manual)
A Test the Lock Before Programming
Normal Entry: Use the Test keycard with the reader.
The red and green LEDs each flash once and then
the green LED flashes for four seconds.
Turn the outside lever downward while the green
LED is flashing. The latch or rod retracts fully.
Release the lever, then turn it again. The latch or rod
must not retract after the LED stops flashing with-
out first inserting the keycard.
B Lock Programming
Program the lock with its Common Area number
(exit devices are usually programmed as common
areas, see Reference Manual).
Use the Grand Master keycard with the reader. The
green LED flashes. Turn the outside lever down-
ward while the green LED is flashing. The latch or
rod retracts fully and the LED stops flashing after
4 seconds. Release the lever, then turn it again. The
latch or rod must not retract again without first
inserting the keycard.
C Emergency Keycard Access
Use the Emergency keycard with the reader. The
green LED flashes for 4 seconds. Then, turn the
outside lever downward. The latch or rod retracts
fully.
While standing outside the room, close the door and
ensure that it is properly latched. Open the door
using the Grand Master keycard using the same
procedure.

10 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
FDU
Program the lock using the FDU and the
E-760/770/790 communication cable (see Reference
Manual). If this is not a new installation but a
replacement of a single lock or a group of locks in
a property already equipped with the dormakaba
locking system, transfer the security information
from a neighbouring lock to the new lock by using
the Reset Addresses function (see Reference Manual
resetting lock addresses).
ATLAS
Program the lock using the M-Unit (Maintenance
Unit). Refer to ATLAS User Guide.
In the case of a replacement lock resetting the
addresses will ensure that all past lost and stolen
keycards remain cancelled in the new lock and will
set the addresses for the Section, Floor, Group,
Zone and Area sub-master level so that staff key-
cards in use at the property will have the same
pattern of access to the door as before. This step
makes the lock replacement transparent so that the
new lock accepts and rejects the same keycards as
the old lock.
Multihousing
Program the lock using the M-unit or EAMU FDU.
Refer to RezShield User Guide or FDU user Guide.
Aurora
Program the lock using the M-unit (Maintenance
Unit) or with command cards and Aurora software
using the Aurora software guide.
Enterprise
Program the lock using the PC M-unit (Maintenance
Unit) or with command cards and Enterprise soft-
ware using the Enterprise software guide.
F Program the E-730/750/79E/E7900 lock
(For 630 lock go to Section H) (For RT lock series, please refer to system 6000
manual) (E7900 see command card)

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 11
CAUTION
WARNING
IMPORTANT
If the lock will not respond to any keycard (includ-
ing the Emergency keycard), there are four options
that should be attempted to open the door. In
order, they are:
1. Verify the batteries, and replace them if they
are providing less than 4 Volts total. Use the
Emergency keycard.
2. Use the electronic override feature (requires
FDU and communication cable or ATLAS
M-Unit and IPM).
3. Use mechanical key if locking system has one
(see Section J, step 8).
4. Contact Technical Support for instructions on
using the drill point.
Electronic override using the FDU:
(For electronic override using ATLAS, please refer
to ATLAS user guide)
If the card reader fails, the E-730/630/750/79E
lock can be opened using the FDU (Front Desk
Unit). The lock must have been initialized by a
valid FDU from the hotel where it is installed (i.e.
with the correct internal and external hotel codes),
before the electronic override can be used.
There are two possible security levels:
Low security: IF an FDU with a software version
lower than V2.01 overrides the lock, the lock audit
records only the date and time.
High security: IF an FDU with version V2.01 or
higher software overrides the lock, the lock audit
records the FDU number, the Authorization key-
card number, the date and the time.
Hardware Required:
Front Desk Unit (FDU) and Communication Cable
Minimum Authorization Keycard Required:
Programming Authorization (PA)
G Operating the emergency override For RT lock series,
please refer to system 6000 manual. For multihousing refer to RezShield manual.
Steps to activate the E-730/630/750/79E
electronic override:
1. Insert the communication cable into the lock.
Wait 2 seconds, then connect the cable to the
serial port of the FDU.
CAUTION
WARNING
IMPORTANT
Some messages on the screen may differ depend-
ing on the FDU version, but the menu choices are
the same.
2. Press any key to activate the FDU, then swipe
a PA or higher keycard through the FDU. If the
green LED on the lock flashes once, disconnect
the cable from the Serial Port, wait 2 seconds,
and reconnect the cable.
Main Menu:
1 = Keycard
2 = Reset
?
3. Enter 8 to select the Programming Menu, then
press < >.
Program
1 = A lock
2 = Another FDU
?
4. Wait 2 seconds. Enter 1 to select the Lock
option, and press < >.
Enter Function
1 = Program Addresses
2 = Reset Addresses
?
5. Enter 7 to select the Override option, then
press < >.
Ready to perform anelectrical
override.
Strike a key, or C to quit
6. Wait 2 seconds, then press any key on the FDU
to activate the electronic override. The green
LED on the lock should light. The following mes-
sage should appear on the FDU screen immedi-
ately or within 2 seconds.
Trying to establish
communication

12 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
G Operating the emergency override For RT lock series,
please refer to system 6000 manual. For multihousing refer to RezShield manual.
(Continued)
H Test the operation of the 630 lock
(For 730/750/79E lock go to Section E)
Communication Successful
Press any key to continue
7. Open the door. You have only 4 seconds after
this message appears to open the door.
8. Remove the communication cable from the lock.
CAUTION
WARNING
IMPORTANT
If the lock will not respond to any keycard (includ-
ing the Emergency keycard), there are four options
that should be attempted to open the door. In
order, they are:
1Panic Bar
Activate the panic bar. The latch bolt or rod
retracts fully.
2Outside Lever
Turn the outside lever downward. The latch bolt
or rod does not retract.
If the latch bolt or rod retracts, verify that the
batteries are properly installed.
If the lever feels tight (hard to turn, or does
not return easily to its horizontal rest position),
check the spindle length vs. the door thickness
(the spindle may be too long). Check that the
slotted end of the spindle is inserted in the lock
housing hub, not the exit device.
3Electronic
A Programming
Program the lock with at least one user, using
the Oracode Maintenance Unit. Generate a valid
code for this user. (Recommendation: generate
a code that starts a day before today and fin-
ishes at least one day after installation/testing
date, in order to avoid check-in/check-out time
periods)
B Code entry and access
Enter the user code to validate complete lock
operation. Verify that the green LED flashes at
each key pressed and a longer green LED flash-
es at the end of the code entry. Turn the outside
lever. Make sure the latch bolt retracts fully.
Release the lever, wait for the lock to return to
the locked mode (default settings is 5 seconds
after unlocking), and then turn the lever again.
The latch bolt must not retract after the lock
has returned to locked mode, which is typically
5 seconds (max 15 sec.) after unlocking, without
first entering a valid user code.

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 13
(A) Lock housing
(B) Inside drive hub
(C) Nylon washer
(D) Spring washer
(Not for lever feel)
(E) Drive tube
(F) Lever catch
(G) Countersink
(H) Lever handle
(I) Cap
(J) Cylinder
(K) Cylinder plug
(L) Override shaft
(K1) Set Screw
Back
(A)
(H)
(E)
(B)
(D)
(F)
(I)
(J)
(K)
(K1)
(E)
(L)
(F)
(G)
(C)
Front
J Installation of the mechanical override
Parts and Tools List
Facing view of drive tube: (E)
Diagram of lock:
Tools Required:
(U) Cylinder (provided with lock) or equivalent (T) Small flat scewdriver (less that 1/8”)

14 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18

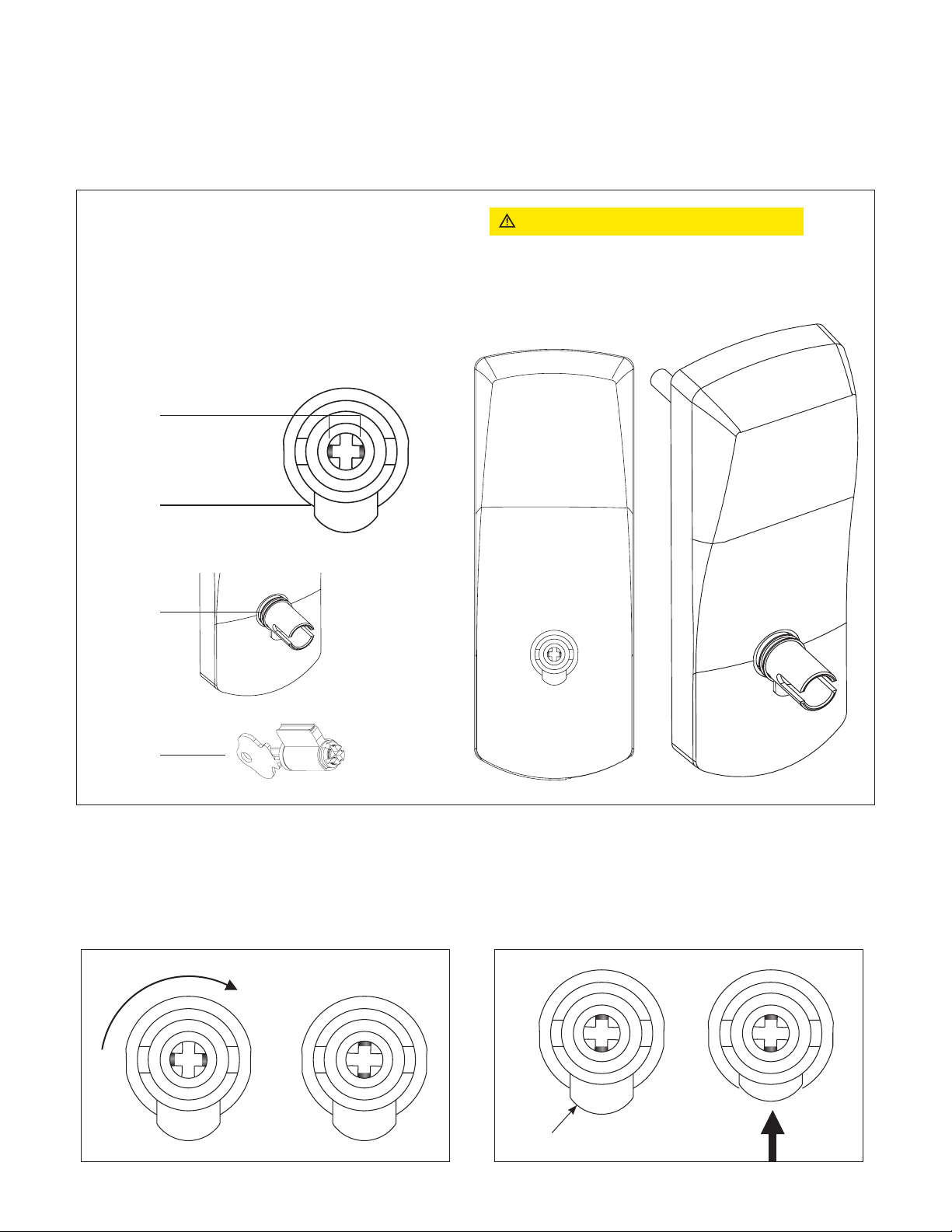

1. Insert the cylinder (D) or equivalent tool into
the override shaft and turn it 90º clockwise
so that the two small indents on the cross
are now vertically in line. (Fig.1)
2. Push in the lever catch firmly. (see Fig. 2)
(C)
(A)
(B)
(D)
Fig. 1 Fig. 2
lever catch
CAUTION
WARNING
IMPORTANT
Assemble the lever, cylinder and lock compo-
nents before affixing the entire unit to the
door.
(A) The small indents on the cross of the
override shaft in line horizontally
(B) The nylon washer and the spring washer
(not for lever feel) on the drive tube
(C) The lever catch in the out position
(D) Cylinder and 2 keys for 630 K/C included
in the hardware bag
1Upon unpacking, the lock housing with mechanical override should look
like the diagram below with:
2Preparing the outside housing for the installation of the lever handle

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 15
Fig. 5
Fig. 4
CAUTION
WARNING
IMPORTANT
If the Lever is Not Assembled with the key in
the position shown in Fig. 6 & Fig. 7, the inside
mechanism of the lock could be damaged if the
lever is rotated and forced.
6. Right-handed Lever handle: Turn the key
aprroximately 90º to 100º clockwise so that
it is in the vertical position and the counter-
sink is in the top position. (See Fig. 6)
Left-handed lever handle: Turn the key approx-
imately 90º to 100º clockwise so that it is in
the vertical position and the countersink is in
the bottom position. (See Fig. 7)
Fig. 6
countersink in the top position
Fig. 7
countersink in the bottom position
4. Put the cylinder plug into the lever (see Fig.4)
5. Making sure that the cylinder plug does not
fall out, insert the key into the cylinder. The
key will be horizontal. (See Fig. 5).
3Preparing the Lever Handle and
Cylinder for Installation
3. Insert the cylinder into the lever handle (see
Fig.3)
4Steps to attach the lever handle
to the lock housing
*NOTE: THE POSITION OF THE KEY IS VERY
IMPORTANT
CAUTION
WARNING
IMPORTANT
The key and the countersink must be in the
positions shown in Figs 6 & 7 before placing the
lever handle on the housing or the lever and the
override mechanism will not work.
Troubleshooting:
If you have assembled the lever and housing
with the key in the wrong position, the key will
get stuck. To remove the key, turn it so that it
is in the vertical position and insert a small flat
screwdriver (see page 15 Fig.17) into the hole
under the lever handle to push Lever Catch in
(see page11 Fig.2). Remove key. If it is still stuck,
turn the key 90º clockwise to the horizontal
position and push the Lever Catch in again with
the small screwdriver. Remove key.
Fig. 3

16 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
7. Fit the lever handle onto the drive tube. It
should rest approximately 1/16” from the
body of the housing. (See Fig. 8)
If it can’t be pushed that close to the hous-
ing, the lever catch is probably not pushed in.
Push it in.
If the lever catch is stuck, the override shaft
is in the wrong position. The two small
indents on the cross of the override shaft
must be vertically aligned as in fig. 2
8. Press the lever firmly against the hous-
ing while turning the key counterclockwise
(this applies to both right-handed and left-
handed locks) until it is in the horizontal
position. (Fig. 9)
Countersink in TOP Position
Countersink in
BOTTOM Position
CAUTION
WARNING
IMPORTANT
If it is not possible to turn the key counter-
clockwise to complete this step, the spring
washer (D, see page 10) may be too tense: (not
for lever feel)
Hit the lever carefully with a rubber mal-
let to loosen the spring washer. (you may
want to cover the lever handle with a cloth
or other material to protect the finish of the
metal)
9. Remove the key. The lock will look as
shown in Fig.10.
Gently check the rotation of the lever handle. It
should easily rotate approximately 45º.
Troubleshooting:
Right-handed Lock: Turn the lever handle clock-
wise without forcing it. If it stops at approxi-
mately 15º, it was not assembled correctly as
shown in step 4 (Fig. 6 & 7). Do not try to force
it to turn. Release the lever handle. Insert the
small screwdriver (T, page 10) into the small
hole on the underside of the lever handle and
push in the lever catch. Re-do steps 2, 3, 4 & 5.
Left-handed Lock: Turn the lever handle coun-
ter-clockwise without forcing. The drive hub
(Fig.14 page14) should not rotate when the
lever handle is turned. If it does, it was not
assembled correctly as shown in step 4 (Fig. 6
& 7). Release the lever handle. Insert the small
screwdriver (T, page 10) into the small hole on
the underside of the lever handle and push in
the lever catch. Re-do steps 2, 3, 4 & 5.
right-handed lock
left-handed lock
Fig. 10
right-handed lock
left-handed lock
Fig. 8
Fig. 9
right-handed lock
left-handed lock
5Attaching the Lever Handle to the Lock (with the key as shown in Fig. 6 & Fig. 7)

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 17
13. Turn the handle clockwise (for a right-
handed lock) or counter-clockwise (for a
left-handed lock)
14. Release the handle slowly. It should return
freely to its horizontal position. (Fig.11)
If applicable, to reduce the lever play, using
the 5/64 allen key (P1), tighten the set screw
(O1) while pushing the lever against the front
housing. Make sure the lever rotates properly
after tighting the set screw (O1).
CAUTION
WARNING
IMPORTANT
To verify that the lever handle has been correctly
attached to the housing:
10. Remove key
11. Insert a small flat screwdriver (tool T, page
10) into the hole on the underside of the
lever handle and push inthe lever catch.
12. Pull on the lever handle.
You should not be able to remove the lever
handle. If it comes off of the housing, you did
not assemble the lock correctly. Return to
steps 2, 3, 4 & 5 and make sure that the lever
looks like Fig. 10 and repeat this verification
process. (Step 6)
Fig. 11
CAUTION
WARNING
IMPORTANT
This test can only be performed when the lock is
not affixed to the door.
16. Without using the key, turn the lever han-
dle clockwise (for Right-handed locks) or
counter-clockwise (for Left-handed locks).
The inside drive hub should not rotate
when the handle turns. (Fig. 12)
17. With the lever handle in the horizontal
position, insert the key into the cylinder
and turn it clockwise until it stops. (This
applies to both Right and Left-handed
locks, see Fig.13)
18. Let go of the key, and again turn the lever
handle clockwise (for Right-handed locks) or
counter-clockwise (for Left-handed locks).
Now the inside drive hub should rotate in the
same direction as the lever handle when it is
turned. (Fig. 14)
Fig. 13
Fig. 14
inside drive hub
rotates
Fig. 12
inside drive hub does
not move
Fig. 10A
(P1) (01)
6Verify the Attachment of the Lever
Handle
7Test the Movement of the Lever
Handle (without the key cylinder)
6a Adjust the Lever feel
8Test the Mechanical Override
Function

18 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
22. The cap has a small groove on one edge
(to allow ease of removal) this should be
facing down. Insert bottom snap of cap
in handle hole below the cylinder. With a
small screwdriver, push top snap of cap
down while pushing the cap into place to
cover the keyhole (Fig. 15)
23. To remove the cap, insert a small flat
screwdriver into this groove and gen-
tly pry the cap off, being careful not to
damage it. (You may want to cover the
bottom of the lever to protect the finish
from being scratched through the process
of removing the cap). (Fig.16)
CAUTION
WARNING
IMPORTANT
Verify the functionality of the override after the
lock is installed on the door:
19. With the door open, insert key in cylinder
and turn it clockwise until it stops.
20. Let go of the key and turn the lever
handle (clockwise for right-handed and
counter-clockwise for left-handed locks).
The latch must retract.
21. Extend deadbolt and repeat the above
operation (turn key clockwise until it
stops), latch and deadbolt must retract
completely.
Fig. 16
Fig. 17
23a. Loosen the set screw (01) to free the
lever using Allen Key (P1) (Approx. 1/4
turn).
24. Remove the cap from the lever handle
(see step 23, Fig. 16).
25. Insert key.
26. Turn the key clockwise until it stops.
27. Release key.
28. Use a small flat screwdriver to push
in the lever catch through the small hole
underneath the lever handle (Fig. 17).
29. Pull the lever handle off of the lock
housing (be careful not to lose the cylin-
der plug).
30. Replace the old cylinder with the new
one in the lever handle. Only same
kind and same length of cylinder with
2 grooves in cross, in the end of the
cylinder plug could be used on the
E-730/630 Series locks. (Fig. 18)
Fig. 15
(I)
Hole below cylinder
Bottom snap (First)
Top snap (Second)
Push (Third)
Fig. 18
2 Grooves in cross
Fig. 16A
(P1)
(01)
8Test the Mechanical Override
Function (Continued)
10How to Change Lock Cylinders
9Cover the key Hole & Cylinder
with the Cap

Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18 19
31. Re-insert the cylinder plug (Fig. 19)
32. While holding the cylinder and plug in
place, insert the key
33. Turn the key approximately 100º clockwise
34. Repeat the steps 1 to 9 to attach the lever
handle to the lock housing. (see Fig. 20)
Fig. 19
Fig. 20
Right-handed lock
Left-handed lock
Preparing the lever handle for Best Removable
Core
F-5 Insert 6-pin Best adapter (thicker)
into 6-pin interchangeable core or
insert 7-pin Best adapter (thinner) into
7-pin interchangeable core. Insert the
adapter until it makes contact with
the removable core.
F-6 Using the control key, assemble the
removable core with its adapter into
the lever. Remove control key.
F-7 Insert the change key into the remov-
able core.
Follow the rest of instructions from step 3.5
of page 12
7 Pins
Thinner
Adapter
6 Pins
Thicker
Adapter
10How to Change Lock Cylinders
(continued)
CAUTION
WARNING
IMPORTANT
The Key Override itself does not retract the
latch or deadbolt. Do not use too much force
when turning the key as this may damage the
unit. To retract the latch, turn the key clockwise
until it stops, release the key and turn the lever
handle (H). See page 14
The lever handle must stay in the horizontal
position when turning the key (do not try to turn
the key while turning the handle) or the override
mechanism will not work.
Always keep the door open while install-
ing and verifying the functionality of the
E-730/630/750/79E/RT Series lock with the key-
card or key override. Do not close the door until
you are certain that you have installed the unit
correctly.

20 Exit Device Operators 630/750/79E/RT/E7900 Series/ Generation E-730 PK3677_T 10-18
Note for Contactless 79/RT/E7900 Series
customers:
Statement according to FCC part 15.105
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference
in a residential installation. This equipment
generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which
can be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equip-
ment and receiver.
• Consult the dealer or an experienced radio/
TV technician for help.
Statement according to FCC part 15.21
Modifications not expressly approved by dor-
makaba could void the user’s authority to
operate the equipment.
Statement according to FCC part 15.19
This device complies with part 15 of the
FCC rules and Industry Canada ICES-003.
Operation is subject to the following two con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre
le fonctionnement.
Lever handle and card reader for fire exit hard-
ware
Clasified by Underwriters Laboratories Inc.®
Intended for installation on mortise, rim or ver-
tical rod type devices.
