Dorner AquaGard 7350 Series User manual

For other service manuals visit our website at:
www.dorner.com/service_manuals.asp
DORNER MFG. CORP. INSIDE THE USA OUTSIDE THE USA
P.O. Box 20 • 975 Cottonwood Ave. TEL: [phone] TEL: [phone]
Hartland, WI 53029-0020 USA FAX: [phone] FAX: [phone]
851-683 Rev. B
7350 Series Support Stands
Installation, Maintenance & Parts Manual

Dorner Mfg. Corp. 2 851-683 Rev. B
7350 Series Support Stands
Table of Contents
Introduction ......................................................................... 2
Warnings - General Safety .................................................. 3
Product Description............................................................. 4
Specifications ...................................................................... 4
Support Stand Models...................................................... 4
Installation........................................................................... 5
Required Tools................................................................. 5
Recommended Installation Sequence.............................. 5
Stand Attachment To The Conveyor............................... 5
Horizontal Mount Stand - Straight Sections ................ 5
Pivot Mount Stand - Straight Sections......................... 6
Horizontal Mount Stand - Straight To Curve Section.. 7
Diagonal Brace Attachment.......................................... 8
Preventive Maintenance and Adjustment ............................ 9
Stand Height Adjustment ................................................. 9
Required Tools.............................................................. 9
Stands With Feet........................................................... 9
Stands With Casters.................................................... 10
Service Parts....................................................................... 11
Stand w/Feet or Casters.................................................. 11
Outrigger Stand w/Feet or Casters ................................. 12
Notes .................................................................................. 13
Return Policy...................................................................... 14
Introduction
Upon receipt of shipment:
• Compare shipment with packing slip. Contact factory
regarding discrepancies.
• Inspect packages for shipping damage. Contact carrier
regarding damage.
• Accessories may be shipped loose. See accessory instruc-
tions for installation.
Dorner’s Limited Warranty applies.
Dorner reserves the right to make changes at any time
without notice or obligation.
IMPORTANT
Some illustrations may show guards
removed. DO NOT operate equipment
without guards.

851-683 Rev. B 3 Dorner Mfg. Corp.
7350 Series Support Stands
Warnings - General Safety
A
WARNING
The safety alert symbol, black triangle with
white exclamation, is used to alert you to
potential personal injury hazards.
A
DANGER
Climbing, sitting, walking or riding on
conveyor will cause severe injury.
KEEP OFF CONVEYORS.
A
DANGER
DO NOT OPERATE CONVEYORS IN AN
EXPLOSIVE ENVIRONMENT.
A
DANGER
Supports marked with this symbol must be
anchored to the floor. Supports not anchored
to floor will tip, causing severe injury or
death.
SUPPORT MUST BE ANCHORED TO FLOOR.
A
WARNING
Exposed moving parts can cause severe
injury.
LOCK OUT POWER before removing guards
or performing maintenance.
A
WARNING
Loosening stand height or angle adjustment
screws may cause conveyor sections to drop
down, causing severe injury.
SUPPORT CONVEYOR SECTIONS PRIOR TO
LOOSENING STAND HEIGHT OR ANGLE
ADJUSTMENT SCREWS.
A
WARNING
Dorner cannot control the physical
installation and application of conveyors.
Taking protective measures is the
responsibility of the user.
When conveyors are used in conjunction
with other equipment or as part of a multiple
conveyor system, CHECK FOR POTENTIAL
PINCH POINTS and other mechanical
hazards before system start-up.

Dorner Mfg. Corp. 4 851-683 Rev. B
7350 Series Support Stands
Product Description
Refer to Figure 1 for typical stand components. Figure 1
Figure 1
Specifications
Support Stand Models
1 Support Stand
2 Casters
3 Diagonal Brace
1
3
2
735 WW
SS
UH
M
Width
Stand Type
Foot
Conveyor Type
F
LH
Maximum Top
of Belt
Minimum Top
of Belt

851-683 Rev. B 5 Dorner Mfg. Corp.
7350 Series Support Stands
Installation
Required Tools
• Level
• 17 mm wrench
• 24 mm wrench
• 30 mm wrench
Recommended Installation
Sequence
• Attach the stand(s) to the conveyor.
• Attach the diagonal bracing, if applicable.
• Adjust the stand height and level.
Stand Attachment To The Conveyor
Horizontal Mount Stand - Straight Sections
1. Properly support the conveyor or place the conveyor
upside down on a flat surface.
2. Attach the stand (Figure 2, item 1) to the conveyor
(Figure 2, item 2) and tighten the four bolts (Figure
2, item 3).
Figure 2
Figure 2
3. Repeat for other stands.
4. Adjust the stand height. Refer to “Stand Height
Adjustment” on page 9.
A
WARNING
Exposed moving parts can cause severe
injury.
LOCK OUT POWER before removing guards
or performing maintenance.
A
WARNING
Failure to secure screws (Figure 2, item 3)
may cause conveyor sections to drop down
causing severe injury.
TIGHTEN SCREWS (Figure 2, item 3) AFTER
ADJUSTMENT.
2
3
1

Dorner Mfg. Corp. 6 851-683 Rev. B
7350 Series Support Stands
Installation
Pivot Mount Stand - Straight Sections
1. Properly support the conveyor or place the conveyor
upside down on a flat surface.
2. For slotted brackets, loosen the two bracket bolts
(Figure 3, item 1) and adjust the bracket
(Figure 3, item 2) so that the top is at approximately the
same angle as the conveyor. Do not tighten the bolts.
Figure 3
Figure 3
3. Attach the bracket (Figure 4, item 1) to the conveyor
(Figure 4, item 2) and tighten the four bolts
(Figure 4, item 3).
Figure 4
Figure 4
4. Adjust the bracket angle on the slotted brackets
(Figure 5, item 1) to match the conveyor angle until the
legs are vertical and tighten the bolts (Figure 5, item 2).
Figure 5
Figure 5
5. Repeat steps 2 through 4 for the other stands.
6. Adjust the stand height. Refer to “Stand Height
Adjustment” on page 9.
1
2
2
3
1
A
WARNING
Failure to secure screws (Figure 5, item 2)
may cause conveyor sections to drop down
causing severe injury.
TIGHTEN SCREWS (Figure 5, item 2) AFTER
ADJUSTMENT.
2
1

851-683 Rev. B 7 Dorner Mfg. Corp.
7350 Series Support Stands
Installation
Horizontal Mount Stand - Straight To Curve
Section
1. Properly support the conveyor or place the conveyor
upside down on a flat surface.
2. When attaching stand (Figure 6, item 1) to curved
section on inside curve, make sure mounting hole on
stand (Figure 6, item 2) is to the outside of curve section
and head of bolt is on the inside of curve section.
Figure 6
Figure 6
3. When attaching stand (Figure 7, item 1) to curved
section on outside curve, make sure mounting hole on
stand is to the inside of curve section and head of bolt is
on the outside of curve section (Figure 7, item 2).
Figure 7
Figure 7
4. Connect the straight section (Figure 8, item 1) making
sure that the stand mounting hole (Figure 8, item 2) is to
the inside of the straight section on both sides.
Figure 8
Figure 8
5. Tighten bolts on both sides of sections (Figure 9, item 1).
Figure 9
Figure 9
6. Repeat as needed for other stands.
7. Adjust the stand height. Refer to “Stand Height
Adjustment” on page 9.
Figure 10
Figure 10
A
WARNING
Failure to secure screws may cause conveyor
sections to drop down causing severe injury.
TIGHTEN SCREWS AFTER ADJUSTMENT.
2
1
21
Outside
Curve
1
2
1
Inside
Curve
Inside
Curve
OUTSIDE CURVE
(see figure 7)
INSIDE
CURVE
(see figure 9)

Dorner Mfg. Corp. 8 851-683 Rev. B
7350 Series Support Stands
Installation
Diagonal Brace Attachment
1. Install the end of brace with non-threaded hole (Figure
11, item 1) onto the inside of the stand (Figure
11, item 2).
Figure 11
Figure 11
2. Secure the brace with a hex head bolt and nut
(Figure 11, item 3).
3. Attach the end of brace with threaded hole
(Figure 12, item 1) to the conveyor with hex head bolt
(Figure 12, item 2).
Figure 12
Figure 12
4. Repeat steps 1 through 3 for opposite leg.
5. Tighten all hardware.
1
2
3
2
1

851-683 Rev. B 9 Dorner Mfg. Corp.
7350 Series Support Stands
Preventive Maintenance and Adjustment
Stand Height Adjustment
Required Tools
• Level
• 17 mm wrench
• 24 mm wrench
• 30 mm wrench

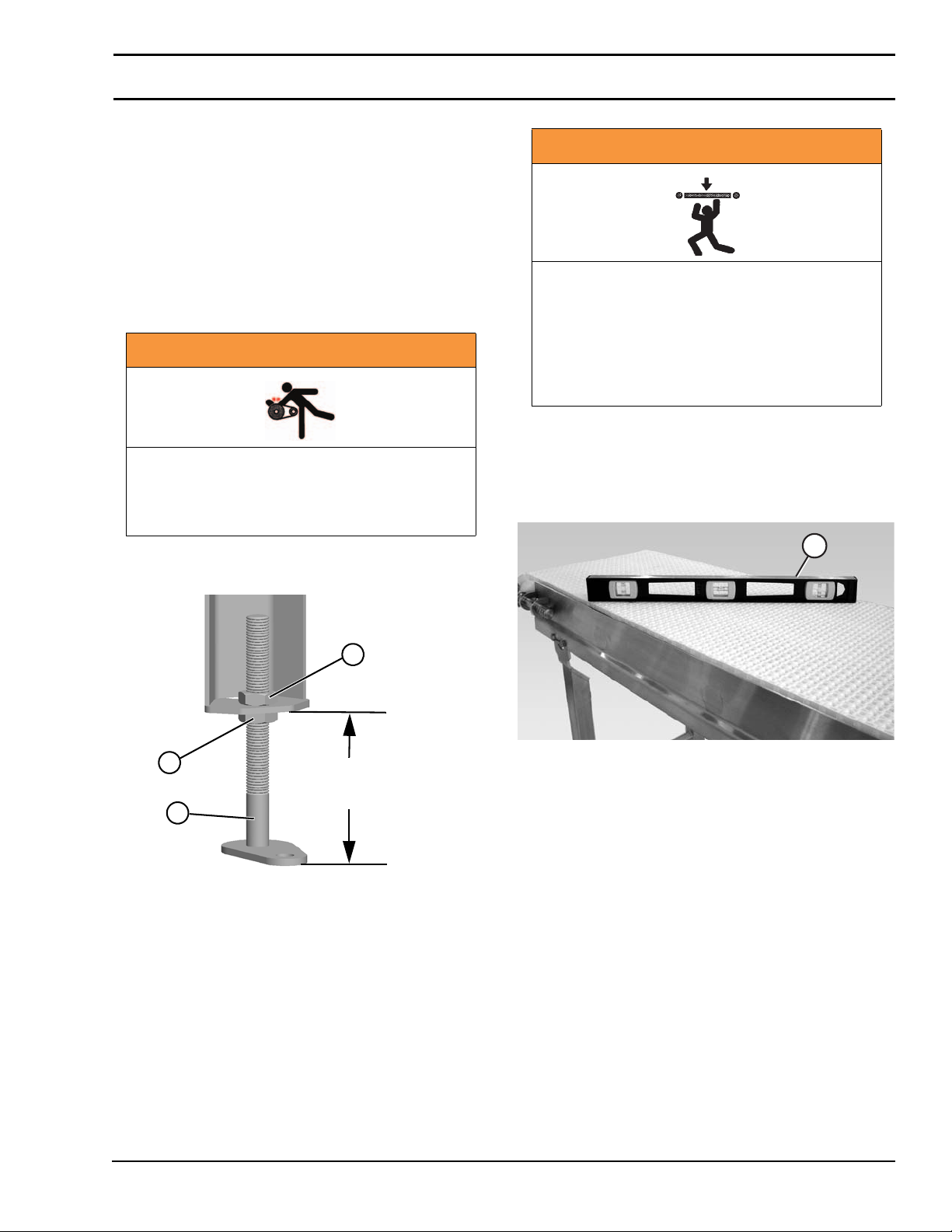

Stands With Feet
1. Loosen the upper nut (Figure 13, item 1) on the foot
stem (Figure 13, item 2).
Figure 13
Figure 13
2. Rotate the lower nut up or down (Figure 13, item 3) to
raise or lower the stand to the desired height.
3. Repeat steps 1 and 2 on the opposite stand leg.
4. Use a level (Figure 14, item 1) to verify that both stand
legs are the same height.
Figure 14
Figure 14
5. Tighten the upper nut (Figure 13, item 1) on the foot
stem (Figure 13, item 2) to secure each foot assembly.
A
WARNING
SEVERE HAZARD!
LOCK OUT POWER before removing guards
or performing maintenance. Exposed moving
parts can cause serious injury.
1
2
3Maximum
Height
6" (152 mm)
A
WARNING
SEVERE HAZARD!
DO NOT EXCEED THE MAXIMUM HEIGHT OF
6" (152 mm) from the floor to the bottom of
the stand.
Exceeding the maximum height will allow
parts to separate and may cause serious
injury.
1

Dorner Mfg. Corp. 10 851-683 Rev. B
7350 Series Support Stands
Preventive Maintenance and Adjustment
Stands With Casters
1. Loosen the upper nut (Figure 15, item 1) on the caster
stem (Figure 15, item 2).
Figure 15
Figure 15
2. Rotate the lower nut up or down (Figure 15, item 3) to
raise or lower the stand to the desired height.
3. Repeat steps 1 and 2 on the opposite stand leg.
4. Use a level (Figure 16, item 1) to verify that both stand
legs are the same height.
Figure 16
Figure 16
5. Tighten the upper nut (Figure 15, item 1)on the caster
stem (Figure 15, item 2) to secure each foot assembly.
A
WARNING
SEVERE HAZARD!
LOCK OUT POWER before removing guards
or performing maintenance. Exposed moving
parts can cause serious injury.
A
WARNING
SEVERE HAZARD!
DO NOT EXCEED THE MAXIMUM HEIGHT OF
10-1/2" (267 mm) from the floor to the bottom
of the stand.
Exceeding the maximum height will allow
parts to separate and may cause serious
injury.
1
2
3
Maximum
Height
10-1/2" (267 mm)
1

851-683 Rev. B 11 Dorner Mfg. Corp.
7350 Series Support Stands
Service Parts
Stand w/Feet or Casters
NOTE
For replacement parts other than those shown in this section, contact an authorized Dorner Service Center
or the factory. Key Service Parts and Kits are identified by the Performance Parts Kits logo . Dorner
recommends keeping these parts on hand.
1
3
5
10 4
6
7
8
9
2
3
4
5
5
11
Item Part Number Description
1 532212 Pivot Mounting Bracket Left Hand
(for angled conveyors)
2 532213 Pivot Mounting Bracket Right Hand
(for angled conveyors)
3 807-1821 Washer
4 961016MSS Hex Head Cap Screw, M10-1.5 x 16 mm
5 961012MSS Hex Head Cap Screw, M10-1.5 x 12 mm
6 532036 Foot Assembly
7 458309 Caster Assembly
8 39MB-LLL Bracing Assembly
(Includes Items 5, 9 and 10)
9 991001MSS Nut, M10-1.50
10 500287-LLLLL Bracing Bar
11 961020MSS Hex Head Cap Screw, M10-1.5 x 20 mm
LLLLL = Length in inches with 2 decimal places.
Length Example: Length = 95.25" LLLLL = 09525
LLL Length Formula
LLL = LLLLL - 125
100
with one decimal place
Example: LLL = 02175 - 125 = 20.5
100
LLL = 205
Item Part Number Description

Dorner Mfg. Corp. 12 851-683 Rev. B
7350 Series Support Stands
Service Parts
Outrigger Stand w/Feet or Casters
1
3
5
10 4
6
7
8
9
2
3
4
5
5
11
Item Part Number Description
1 532212 Pivot Mounting Bracket Left Hand
(for angled conveyors)
2 532213 Pivot Mounting Bracket Right Hand
(for angled conveyors)
3 807-1821 Washer
4 961016MSS Hex Head Cap Screw, M10-1.5 x 16 mm
5 961012MSS Hex Head Cap Screw, M10-1.5 x 12 mm
6 532036 Foot Assembly
7 458309 Caster Assembly
8 39MB-LLL Bracing Assembly
(Includes Items 5, 9 and 10)
9 991001MSS Nut, M10-1.50
10 500287-LLLLL Bracing Bar
11 961020MSS Hex Head Cap Screw, M10-1.5 x 20 mm
LLLLL = Length in inches with 2 decimal places.
Length Example: Length = 95.25" LLLLL = 09525
LLL Length Formula
LLL = LLLLL - 125
100
with one decimal place
Example: LLL = 02175 - 125 = 20.5
100
LLL = 205
Item Part Number Description

851-683 Rev. B 13 Dorner Mfg. Corp.
7350 Series Support Stands
Notes

851-683 Rev. B Printed in U.S.A.
Dorner Mfg. Corp. reserves the right to change
or discontinue products without notice. All
products and services are covered in
accordance with our standard warranty. All
rights reserved. © Dorner Mfg. Corp. 2009
DORNER MFG. CORP.
975 Cottonwood Ave., PO Box 20
Hartland, WI 53029-0020 USA
TEL [phone] (USA)
FAX [phone] (USA)
Internet: www.dorner.com
Outside the USA:
TEL [phone]
FAX [phone]
Return Policy
Returns must have prior written factory authorization or they will not be accepted. Items that are returned to Dorner without
authorization will not be credited nor returned to the original sender. When calling for authorization, please have the
following information ready for the Dorner factory representative or your local distributor:
1. Name and address of customer.
2. Dorner part number(s) of item(s) being returned.
3. Reason for return.
4. Customer's original order number used when ordering the item(s).
5. Dorner or distributor invoice number (if available, part serial number).
A representative will discuss action to be taken on the returned items and provide a Returned Goods Authorization (RMA)
number for reference. RMA will automatically close 30 days after being issued. To get credit, items must be new and
undamaged. There will be a return charge on all items returned for credit, where Dorner was not at fault. It is the
customer’s responsibility to prevent damage during return shipping. Damaged or modified items will not be accepted. The
customer is responsible for return freight.
Conveyors and conveyor accessories
Standard catalog conveyors 30%
MPB, 7200, 7300 Series, cleated and specialty belt 50%
AquaGard & AquaPruf Series conveyors non-returnable items
Engineered special products case by case
Drives and accessories 30%
Sanitary stand supports non-returnable items
Parts
Standard stock parts 30%
Plastic chain, cleated and specialty belts non-returnable items
Returns will not be accepted after 60 days from original invoice date. The return charge covers inspection, cleaning,
disassembly, disposal and reissuing of components to inventory. If a replacement is needed prior to evaluation of returned
item, a purchase order must be issued. Credit (if any) is issued only after return and evaluation is complete.
Dorner has representatives throughout the world. Contact Dorner for the name of your local representative. Our Customer
Service Teams will gladly help with your questions on Dorner products.
For a copy of Dorner's Warranty, contact factory, distributor, service center or visit our website at www.dorner.com.
For replacement parts, contact an authorized Dorner Service Center or the factory.
