Dorner MPB 2100 Series User manual

851-257 Rev. F
Installation, Maintenance
& Parts Manual
2100, 2200, 4100, 6100, MPB Series Top
Mount Drive Package for Standard Load 90°
Industrial 60 Hz Gearmotors
Table of Contents
Warnings −General Safety 2. . . . . . . . . . . . . . . . . . . .
Introduction 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Description 3. . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gearmotors 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2200 Belt Speeds 4. . . . . . . . . . . . . . . . . . . . . . . . . .
2100, 4100 & 6100 Belt Speeds 5. . . . . . . . . . . . . .
MPB Belt Speeds 6. . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Required Tools 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preventative Maintenance and Adjustment 10. . . . . . .
Required Tools 10. . . . . . . . . . . . . . . . . . . . . . . . . . .
Timing Belt Tensioning 10. . . . . . . . . . . . . . . . . . . .
Timing Belt Replacement 11. . . . . . . . . . . . . . . . . .
Drive or Driven Pulley Replacement 11. . . . . . . . . .
Gear Reducer Replacement 11. . . . . . . . . . . . . . . . .
Motor Replacement 13. . . . . . . . . . . . . . . . . . . . . . .
Service Parts 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top Mount Drive Package for Standard
Load 90_Industrial Gearmotors 15. . . . . . . . . . . . .
4100 Mounting Package 16. . . . . . . . . . . . . . . . . . .
Gearmotors 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Return Policy 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 2Dorner Mfg. Corp.

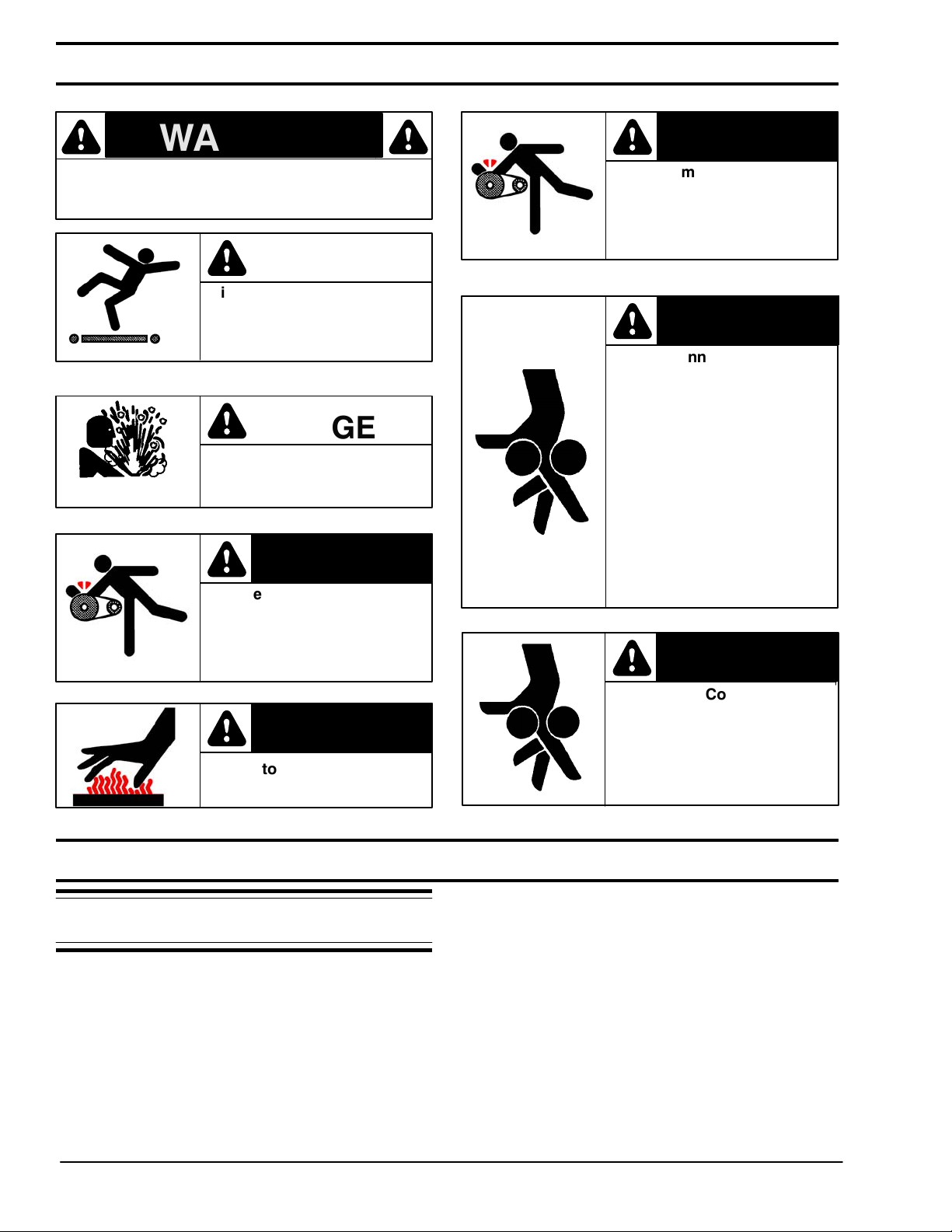

The safety alert symbol, black triangle with white
exclamation, is used to alert you to potential
personal injury hazards.
Ç
Ç
WARNING
Ç
Climbing, sitting, walking or
riding on conveyor will
cause severe injury.
KEEP OFF CONVEYORS.
DANGER
Ç
Ç
DANGER
Do NOT OPERATE
CONVEYORS IN AN
EXPLOSIVE ENVIRONMENT.
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
Ç
Ç
Gearmotors may be HOT.
DO NOT TOUCH Gearmotors.
WARNING
Ç
Exposed moving parts can
cause severe injury.
REPLACE ALL GUARDS
BEFORE RUNNING
CONVEYOR.
WARNING
Ç
Ç
Dorner cannot control the
physical installation and
application of conveyors.
Taking protective measures
is the responsibility of the
user.
When conveyors are used in
conjunction with other equip-
ment or as part of a multiple
conveyor system, CHECK
FOR POTENTIAL PINCH
POINTS and other mechani-
cal hazards before system
start-up.
WARNING
Ç
Ç
MPB Series Conveyors are
not reversible. Reversing
creates pinch points which
can cause severe injury.
DO NOT REVERSE MPB SE-
RIES CONVEYORS.
WARNING
Introduction
IMPORTANT: Some illustrations may show guards
removed. Do NOT operate equipment without guards.
Upon receipt of shipment:
DCompare shipment with packing slip. Contact factory
regarding discrepancies.
DInspect packages for shipping damage. Contact carrier
regarding damage.
DAccessories may be shipped loose. See accessory in-
structions for installation.
Dorner 2100 Series conveyors are covered by the following
patent numbers: 5131529, 5174435, and corresponding
patents and patent applications in other countries.
Dorner 4100 Series conveyors are covered by patent
number 3923148 and corresponding patents and patent
applications in other countries.
Dorner 2200, 6100 & MPB Series conveyors are
covered by patent number 5174435 and corresponding
patents and patent applications in other countries.
Dorner’s Limited Warranty applies.
Dorner reserves the right to make changes at any time
without notice or obligation.
Warnings −General Safety

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 3851-257 Rev. F
Refer to Figure 1 for typical components.
A Conveyor
B Mounting Bracket
C Gearmotor
D Timing Belt Tensioner
E Cover
F Timing Belt
G Drive Pulley
H Driven Pulley
Typical Components
Figure 1
A
B
C
D
E
F
G
H
Specifications
Gearmotor Mounting Package Models:
Example:
Language Code = U.S. English
Output Shaft Type = 90°Industrial
Gearmotor Type = Standard Load, Industrial
Mount Style = Top Mount
Conveyor Width Reference*
Mount Position = A, B, C or D
(see detail to the right)
DC
B
A
22 M T H S WW A −32 32
2 = 2100 Series Conveyor
22 = 2200 & MPB Series Conveyor
4 = 4100 Series Conveyor
6 = 6100 Series Conveyor
2P = MPB Series Conveyor
Belt Type: −= flat belt, A through J = cleated belt
Drive Pulley (see Table 2 & 3)
Driven Pulley (see Table 2 & 3)
* See “Ordering and Specifications” Catalog for details.
Table 1: Gearmotor Specifications
Single Phase Three Phase DC Variable Speed
Output Power 0.25 hp (0.19 kw)
Input Voltage 115 Volts A.C. 208 to 230/460 Volts A.C. 130 Volts D.C.
Input Frequency 60 Hz N/A
Input Current 5.0 Amperes 1.2 /0.6 Amperes 2.2 Amperes
Motor RPM 1725 2500
Gearmotor Ratios 5:1, 10:1, 20:1, 40:1, 60:1
Frame Size NEMA 42 CZ
Motor Type Totally Enclosed, Fan-cooled
Product Description

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 4Dorner Mfg. Corp.
NOTE: For belt speed other than those listed in Tables
2 −7, contact factory for details.
Table 2: Belt Speeds for Standard Load Fixed Speed 90560 Hz Gearmotors on 2200
Series Conveyors
Gearmotors Belt Speed Drive Driven
Part Number RPM In−lb N−mFt/min M/min
Drive
Pulley
Driven
Pulley
32M060HL4(vp)F(n) 29 226 25.5 6 1.8 19 32
32M060HL4(vp)F(n) 29 226 25.5 10 3.0 28 28
32M060HL4(vp)F(n) 29 226 25.5 16 4.9 44 28
32M040HL4(vp)F(n) 43 237 26.8 15 4.6 28 28
32M040HL4(vp)F(n) 43 237 26.8 24 7.3 44 28
32M020HL4(vp)F(n) 86 142 16.0 30 9.1 28 28
32M020HL4(vp)F(n) 86 142 16.0 48 14.6 44 28
32M010HL4(vp)F(n) 173 78 8.8 61 18.6 28 28
32M010HL4(vp)F(n) 173 78 8.8 95* 29.0* 44 28
32M010HL4(vp)F(n) 173 78 8.8 104* 31.7* 48 28
32M005HL4(vp)F(n) 345 41 4.6 121* 36.9* 28 28
32M005HL4(vp)F(n) 345 41 4.6 138* 42.1* 32 28
32M005HL4(vp)F(n) 345 41 4.6 176* 53.6* 32 22
32M005HL4(vp)F(n) 345 41 4.6 208* 63.4* 48 28
32M005HL4(vp)F(n) 345 41 4.6 242* 73.8* 44 22
32M005HL4(vp)F(n) 345 41 4.6 264* 80.5* 48 22
(vp) = voltage and phase (n) = Reversing Capability
11 = 115 V, 1-phase N = No Reversing switch
23 = 208−230/460 V, 3-phase R = With reversing switch
* = Nosebar transfers operate at maximum 77 Ft/min (23.5 M/min) belt speed
Table 3: Belt Speeds for Standard Load Variable Speed 905DC Gearmotors on 2200
Series Conveyors
Gearmotors Belt Speed Drive Driven
Part Number
RPM
In−lb
N−m
Ft/min
M/min
Drive
Pulley
Driven
Pulley
P
art
N
um
b
er
RPM
I
n−
lb
N
−m
F
t
/
m
i
n
M/
m
i
n
Pulley
Pulley
32M060HLD3DEN 42 198 22.4 1.8 – 14.0 0.5 – 4.6 28 28
32M060HLD3DEN 42 198 22.4 2.8 – 23.0 0.8 – 7.0 44 28
32M040HLD3DEN 63 163 18.4 2.6 – 22.0 0.8 – 6.7 28 28
32M020HLD3DEN 125 98 11.1 5.3 – 44.0 1.6 – 13.0* 28 28
32M010HLD3DEN 250 54 6.1 10.0 – 88.0* 3.2 – 27.0* 28 28
32M010HLD3DEN 250 54 6.1 17.0 – 138.0* 5.0 – 42.0* 44 28
32M005HLD3DEN 500 28 3.2 21.0 – 176.0* 6.4 – 54.0* 28 28
32M005HLD3DEN 500 28 3.2 33.0 – 276.0* 10.0 – 84.0* 44 28
* = Nosebar transfers operate at maximum 77 Ft/min (23.5 M/min) belt speed
Specifications

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 5851-257 Rev. F
Table 4: Belt Speeds for Standard Load Fixed Speed 90560 Hz Gearmotors on 2100
4100 & 6100 Series Conveyors
Gearmotors Belt Speed Drive Driven
Belt Speed
Drive
Pll
Driven
Pll
Part Number RPM Ft/min M/min Pulley Pulley
32M060HL4(vp)F(n) 29 6 1.8 19 32
32M060HL4(vp)F(n) 29 10 3.0 28 28
32M060HL4(vp)F(n) 29 16 4.9 44 28
32M040HL4(vp)F(n) 43 15 4.6 28 28
32M040HL4(vp)F(n) 43 24 7.3 44 28
32M020HL4(vp)F(n) 86 30 9.1 28 28
32M020HL4(vp)F(n) 86 48 14.6 44 28
32M010HL4(vp)F(n) 173 61 18.6 28 28
32M010HL4(vp)F(n) 173 95* 29.0* 44 28
32M010HL4(vp)F(n) 173 104* 31.7* 48 28
32M005HL4(vp)F(n) 345 121* 36.9* 28 28
32M005HL4(vp)F(n) 345 138* 42.1* 32 28
32M005HL4(vp)F(n) 345 176* 53.6* 32 22
32M005HL4(vp)F(n) 345 208* 63.4* 48 28
32M005HL4(vp)F(n) 345 242* 73.8* 44 22
32M005HL4(vp)F(n) 345 264* 80.5* 48 22
(vp) = voltage and phase (n) = Reversing Capability
11 = 115 V, 1-phase N = No Reversing switch
23 = 208−230/460 V, 3-phase R = With reversing switch
Table 5: Belt Speeds for Standard Load Variable Speed 905DC Gearmotors on 2100
4100 & 6100 Series Conveyors
Gearmotors Belt Speed Drive Driven
Part Number
RPM
In−lb
N−m
Ft/min
M/min
Drive
Pulley
Driven
Pulley
P
art
N
um
b
er
RPM
I
n−
lb
N
−m
F
t
/
m
i
n
M/
m
i
n
Pulley
Pulley
32M060HLD3DEN 42 198 22.4 1.8 – 14.0 0.5 – 4.6 28 28
32M060HLD3DEN 42 198 22.4 2.8 – 23.0 0.8 – 7.0 44 28
32M040HLD3DEN 63 163 18.4 2.6 – 22.0 0.8 – 6.7 28 28
32M020HLD3DEN 125 98 11.1 5.3 – 44.0 1.6 – 13.0* 28 28
32M010HLD3DEN 250 54 6.1 10.0 – 88.0* 3.2 – 27.0* 28 28
32M010HLD3DEN 250 54 6.1 17.0 – 138.0* 5.0 – 42.0* 44 28
32M005HLD3DEN 500 28 3.2 21.0 – 176.0* 6.4 – 54.0* 28 28
32M005HLD3DEN 500 28 3.2 33.0 – 276.0* 10.0 – 84.0* 44 28
Specifications

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 6Dorner Mfg. Corp.
Table 6: Belt Speeds for Standard Load Fixed Speed 90560 Hz Gearmotors on MPB
Series Conveyors
Gearmotors Drive Driven
Part Number RPM In−lb N−mFt/min M/min
Drive
Pulley
Driven
Pulley
32M060HL4(vp)FN 29 226 25.5 13 4.1 22 32
32M060HL4(vp)FN 29 226 25.5 20 6.0 28 28
32M040HL4(vp)FN 43 237 26.8 29 8.9 28 28
32M040HL4(vp)FN 43 237 26.8 44 13.4 48 32
32M020HL4(vp)FN 86 142 16.0 59 17.9 28 28
(vp) = voltage and phase (n) = Reversing Capability
11 = 115 V, 1-phase N = No Reversing switch
23 = 208−230/460 V, 3-phase R = With reversing switch
Table 7: Belt Speeds for Standard Load Variable Speed 905DC Gearmotors on MPB
Series Conveyors
Gearmotors Belt Speed Drive Driven
Part Number RPM In−lb N−m Ft/min M/min
Drive
Pulley
Driven
Pulley
32M060HLD3DEN 42 198 22.4 2.3−19 0.7−5.9 22 32
32M060HLD3DEN 42 198 22.4 3.4−28 1−8.6 22 32
32M060HLD3DEN 42 198 22.4 5.3−44 1.6−13 44 28
32M040HLD3DEN 63 163 18.4 5.1−42 1.6−12.9 28 28
32M020HLD3DEN 125 98 11.1 10−85 3−26 28 28
32M020HLD3DEN 125 98 11.1 15−127 4.7−39 48 32
32M010HLD3DEN 250 54 6.1 20−170* 6−52* 28 28
32M010HLD3DEN 250 54 6.1 31−255* 9−77* 48 32
* = Cleated and Sidewall Cleated belts operate at a maximum of 150 ft/min (45.7 m/min)
SpecificationsSpecifications

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 7851-257 Rev. F
Required Tools
DHex key wrenches:
2 mm, 2.5 mm, 3 mm, 5 mm
DStraight edge
DTorque wrench
Mounting
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
Ç
MPB Series Conveyors are
not reversible. Reversing
creates pinch points which
can cause severe injury.
DO NOT REVERSE MPB SE-
RIES CONVEYORS.
WARNING
Ç
Gearmotors must be
mounted as shown in
Figures 2 and 3.
Failure to do so creates pinch
points which can cause se-
vere injury.
WARNING

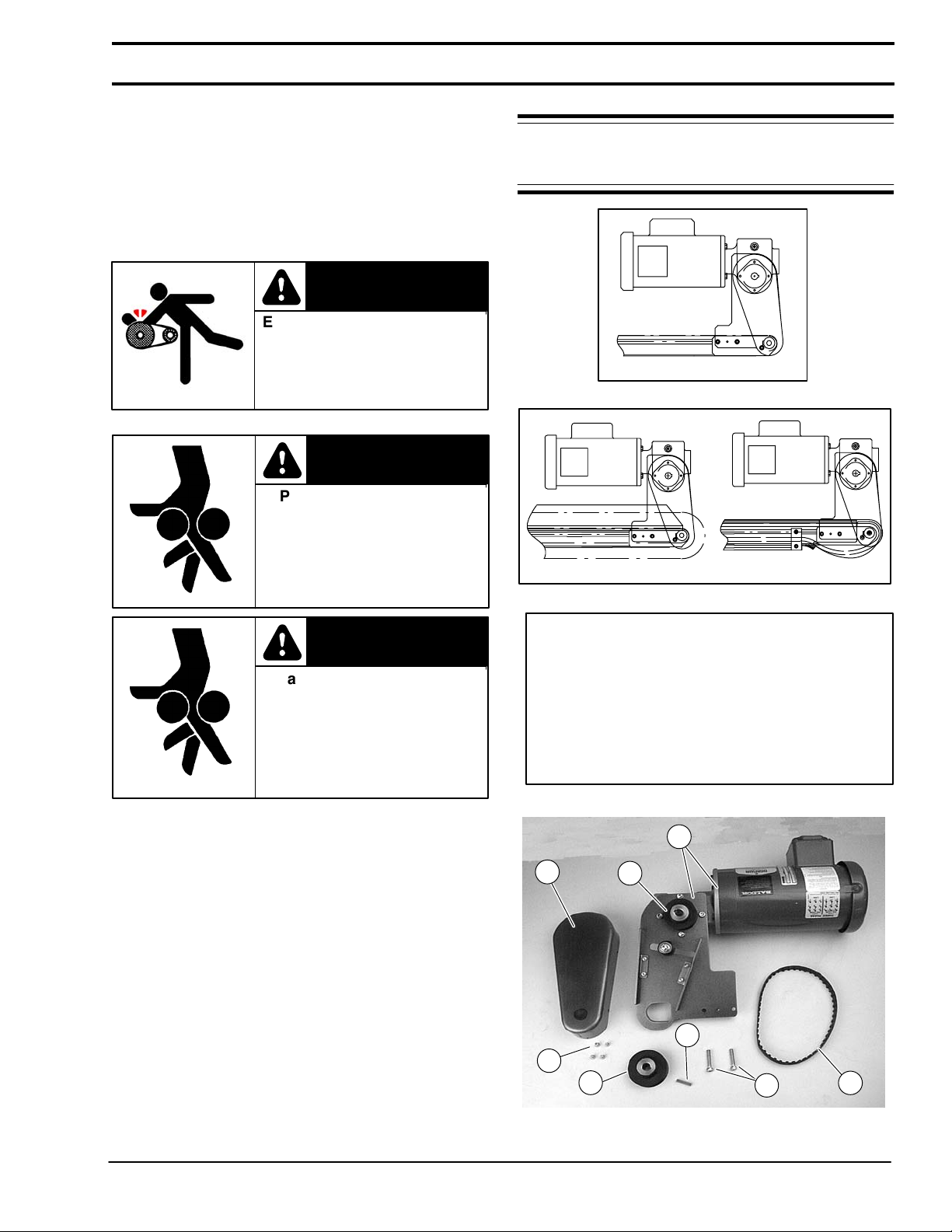

NOTE: Gearmotor position on Flat Belt conveyors
shown in Figure 2. Gearmotor position on Cleated
Belt and MPB Series conveyors shown in Figure 3.
Figure 2
Flat Belt Conveyor
Figure 3
Cleated Belt Conveyor MPB Series Conveyor
Installation Component List
I Top Mount Assembly
J Drive Pulley
K Cover
L M4 Socket Head Screws (4x)
M Driven Pulley
NKey
O M6 Socket Head Screws (2x)
P Timing Belt
1.Typical gearmotor components (Figure 4)
Figure 4
I
J
K
P
O
N
M
L
Installation

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 8Dorner Mfg. Corp.
NOTE: Flat belt mounting package shown above (Fig-
ure 4), cleated belt mounting package similar.
2.For your reference, the following figures show
gearmotor mounting configurations for various
conveyor series.
Figure 5 −2200 Series
Figure 6 −6100 Series
Figure 7 −4100 Series
Figure 8 −2100 Series
Figure 9 −MPB Series
Gearmotor
is mounted
to Head
Plate
Gearmotor
is mounted to
Drive Spacer
Gearmotor
is mounted
to Drive
Adapter
Plate
Gearmotor
is mounted
to Head
Plate
Gearmotor
is mounted
to Head
Plate
NOTE: Gearmotor may be operated in positions 1, 2
or 3 (Figure 10). Dependent on conveyor belt speed and
gearmotor type, position 2 may require a vibration
dampening bracket. Order 7018WW for 2200 and MPB
conveyors or 7019WW for 2100 and 6100 conveyors.
(WW = conveyor width). 4100 conveyors do not require
brackets.
Figure 10
1
2
3
3.If required, change gearmotor position by removing
four (4) screws (Q of Figure 11). Rotate gearmotor to
other position and replace screws (Q). Tighten to 103
in-lb (12 N−m).
Figure 11
Q
Q
Installation

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 9851-257 Rev. F
NOTE: 6100 conveyor shown, 2100, 2200, 4100 & MPB
similar.
4.Locate drive output shaft (R of Figure 12) and
remove two (2) screws (S).
Figure 12
R
S
5.Attach mount assembly (I of Figure 13) with screws
(O). Tighten to 80 in-lb (9 N−m).
Figure 13
T
O
I
Ç
Drive shaft keyway may be
sharp.
HANDLE WITH CARE.
WARNING
6.Install key (N of Figure 14).
7.Wrap timing belt (P) around driven pulley (M) and
drive pulley (J). Install driven pulley (M) onto
conveyor shaft.
Figure 14
N
J
P
M
8.Remove cam bearing and spacer (T of Figure 13).
Place the cam bearing and spacer (T of Figure 13)
next to the driven pulley (M). Ensure the flanges of
the driven pulley are aligned with the cam bearing.
Tighten driven pulley set screws (U). This will allow
for proper belt alignment while conveyor is in use.
Replace cam bearing and spacer (T).
Figure 15
M
U
T
Installation

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 10 Dorner Mfg. Corp.

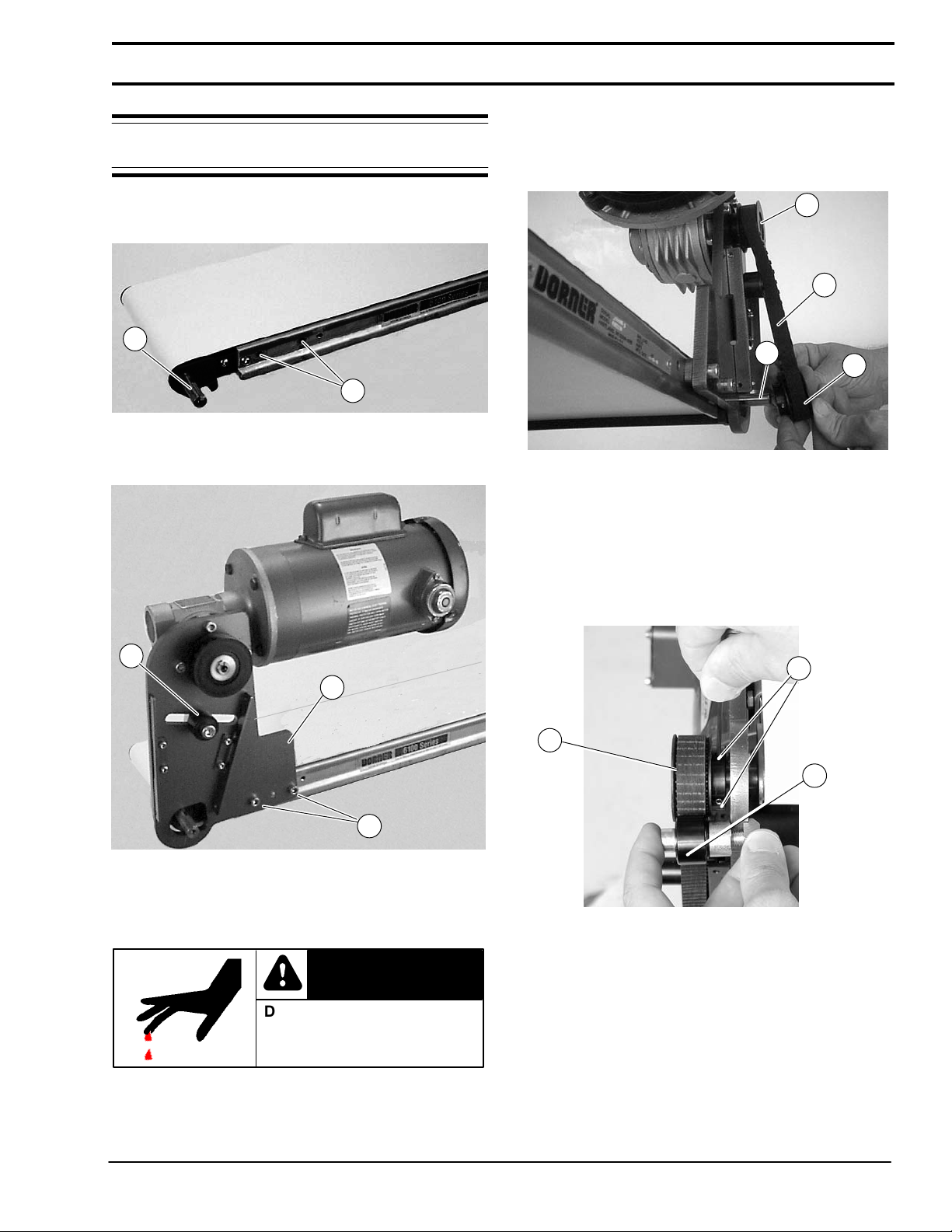

9.Depending on conveyor belt travel (direction 1 or 2 on
Figure 16), locate timing belt tensioner (V of Figure
16) as shown. Tension timing belt to obtain 0.125¨ (3
mm) deflection for 1.0 lb (456 grams) of force at timing
belt mid-point (W). Tighten tensioner screw to 103
in-lb (12 N−m).
Figure 16
1
W
W2
V
10.Install cover (K of Figure Figure 17) with four (4)
screws (L). Tighten to 35 in-lb (4 N−m).
Figure 17
K
L
L
Preventive Maintenance and Adjustment
Required Tools
DHex key wrenches
−2 mm, 2.5 mm, 3 mm & 5 mm
DAdjustable wrench (for hexagon head screws)
DStraight edge
DTorque wrench
Timing Belt Tensioning
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
1.Remove four (4) screws (L of Figure 17) and remove
cover (K).
2.Loosen tensioner (V of Figure 18).
Figure 18
V
3.Depending on conveyor belt travel (direction 1 or 2
on Figure 16), locate timing belt tensioner (V of
Figure 16) as shown. Tension timing belt to obtain
0.125¨ (3 mm) deflection for 1.0 lb (456 grams) of
force at timing belt mid-point (W). Tighten tensioner
screw to 103 in-lb (12 N−m).
4.Install cover (K of Figure 17) with four (4) screws
(L). Tighten to 35 in-lb (4 N−m).
Installation

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 11 851-257 Rev. F
Timing Belt Replacement
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
1.Remove four (4) screws (L of Figure 17) and remove
cover (K).
2.Loosen tensioner (V of Figure 18).
3.Remove timing belt (P of Figure 19).
NOTE: If timing belt does not slide over pulley
flange, loosen driven pulley set screws (U of Figure
19) and remove pulley with belt (P). For
re-installation, see steps 7 and 8 on page 9.
Figure 19
U
P
4.Install new timing belt.
5.Depending on conveyor belt travel (direction 1 or 2
on Figure 16), locate timing belt tensioner (V of
Figure 16) as shown. Tension timing belt to obtain
0.125¨ (3 mm) deflection for 1.0 lb (456 grams) of
force at timing belt mid-point (W). Tighten tensioner
screw to 103 in-lb (12 N−m).
6.Install cover (K of Figure 17) with four (4) screws
(L). Tighten to 35 in-lb (4 N−m).
Drive or Driven Pulley Replacement
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
1.Complete steps 1 through 3 of “Timing Belt
Replacement” section on page 11.
2.Loosen set screws and remove drive or driven pulley.
NOTE: If drive pulley (J of Figure 20) is replaced,
wrap timing belt around drive pulley and complete
step 3.
3.Complete steps 7 through 10 of “Installation”
section on pages 9 and 10.
Gear Reducer Replacement
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
1.Remove four (4) screws (L of Figure 17) and remove
cover (K).
2.Loosen tensioner (V of Figure 18).
3.Loosen drive pulley set screws (X of Figure 20).
Remove drive pulley (J) and timing belt (P).
Figure 20
J
P
X
Preventive Maintenance and Adjustment

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 12 Dorner Mfg. Corp.
4.Remove four (4) gear reducer mounting screws (Q
of Figure 21). Remove gearmotor.
Figure 21
Q
5.Remove four screws (Y of Figure 22). Detach motor
(Z) from gear reducer (AA). Retain motor output
shaft key (AB).
Figure 22
AA
AD
AB
Y
AE
AC
Y
Z
6.Remove two (2) screws (AC) and detach output
shaft cover (AD).
7.Remove gear reducer output shaft key (AE).
8.Loosen six (6) set screws (AF of Figure 23). Remove
drive shaft (AG) and key (AH).
Figure 23
AH
AG
AF
9.Apply grease (AI of Figure 24) to shaft.
Figure 24
AI
10.Replace the original shaft components into new gear
reducer (see Figure 23).
IMPORTANT: Be extremely careful when coupling
motor to gear reducer. Avoid misalignment and
forcing the connection causing possible permanent
gear reducer seal damage.
11.With key (AE of Figure 22) in keyway, slide motor
(Z) and gear reducer (AA) together. Install screws
(Y) and tighten.
Preventive Maintenance and AdjustmentPreventive Maintenance and Adjustment

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 13 851-257 Rev. F
NOTE: Gearmotor position on Flat Belt conveyors
shown in Figure 25. Gearmotor position on Cleated
Belt and MPB Series conveyors shown in Figure 26.
Figure 25
Flat Belt Conveyor
Figure 26
MPB Series Conveyor
Cleated Belt Conveyor
12.Install gearmotor to mounting bracket and tighten
screws (Q of Figure 21) to 103 in-lb (12 N−m).
NOTE: Drive pulley (J of Figure 20) is removed.
Wrap timing belt around drive pulley and complete
step 13.
13.Complete steps 7 through 10 of “Installation”
section on pages 9 and 10.
Motor Replacement
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
Ç
Hazardous voltage will
cause severe injury or
death.
LOCKOUT POWER BEFORE
before wiring.
DANGER
1.For single phase motor, unplug power cord from
outlet.
2.For three phase motor:
a. Loosen terminal box screws (AJ of Figure 27) and
remove cover (AK).
Figure 27
AK
AJ
b. Record wire colors connecting to wires 1, 2 and 3.
Loosen wire nuts and remove wires 1, 2 and 3.
c. Loosen cord grip and remove cord.
Preventive Maintenance and Adjustment

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 14 Dorner Mfg. Corp.
3.For DC variable speed motor, unplug motor cord at
disconnect (AL of Figure 28).
Figure 28
AL
4.Remove four screws (Y of Figure 29). Detach motor
(Z) from gear reducer (AA). Retain motor output
shaft key (AB).
Figure 29
Z
Y
AB AA
IMPORTANT: Be extremely careful when coupling
motor to gear reducer. Avoid misalignment and
forcing the connection causing possible permanent
gear reducer seal damage.
5.With key (AB of Figure 30) in keyway, slide motor
and gear reducer together. Install screws (Y) and
tighten.
Figure 30
AB
Y
6.Replace wiring:
DFor a single phase motor, reverse step 1 on page 13..
DFor a three phase motor, reverse step 2, on pages 13
and 14..
DFor a DC variable speed motor, reverse step 3 on this
page..
Preventive Maintenance and Adjustment

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 15 851-257 Rev. F
NOTE: For replacement parts other than those shown in this section, contact an authorized Dorner Service
Center or the factory.

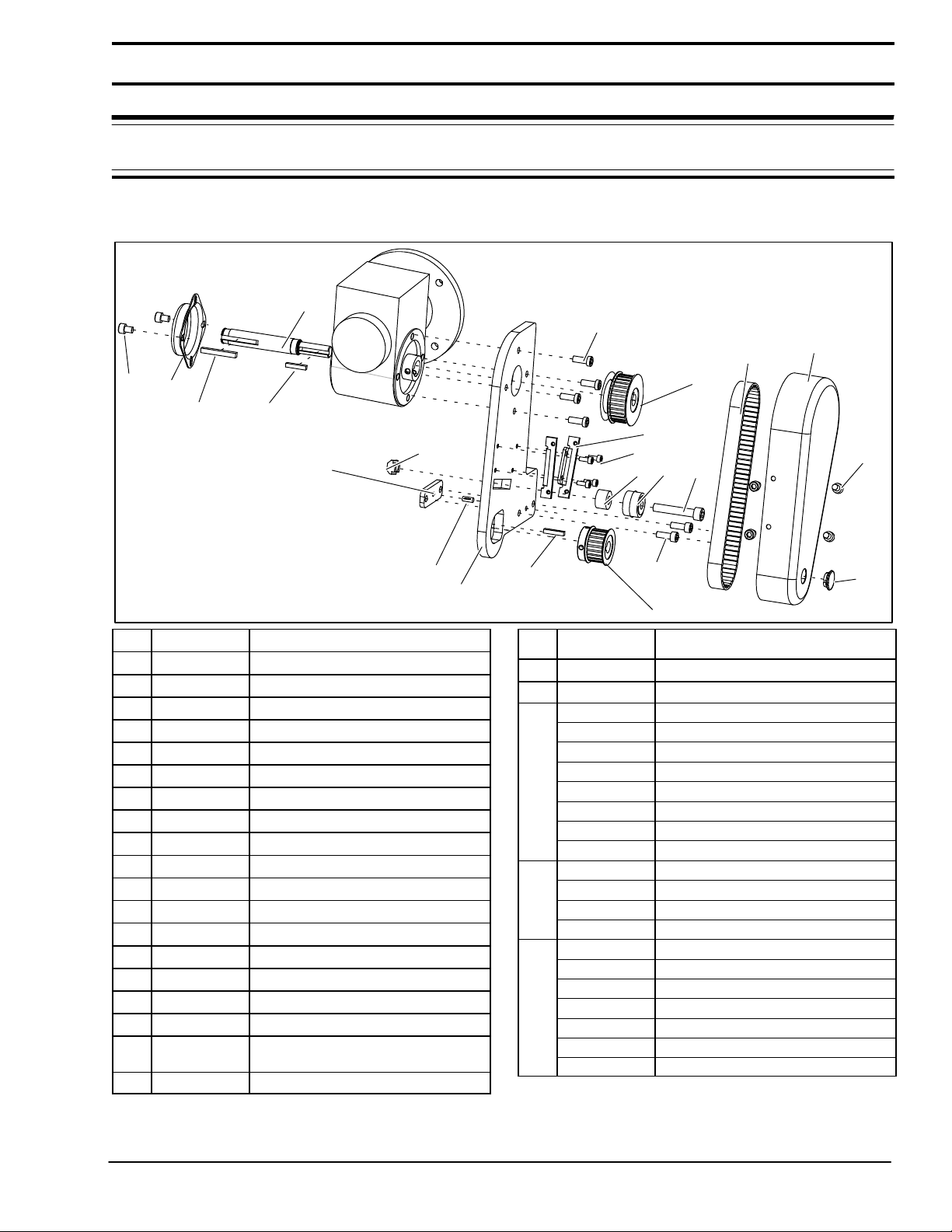

2100, 2200, 4100, 6100 Series and MPB Series Flat Belt Conveyors Top Mount Drive
Package for Standard Load 90_Industrial Gearmotors
1
2
3
4
5
6
10
13
18
9
8
14
16
17
7
19
12
15
11
22
21
20
19
Item Part Number Description
1 202390M Nut, Follower Cam
2 450444M Output Shaft 12mm
3 300139M Drive Bearing Shaft Cover
4 450027M Drive Spacer (for 6100 Conveyor)
5 450375M Mounting Bracket Cover
6 450376M Drive Guard
7 450443M Mounting Plate
242532 Mounting Plate (Flush Drive Only)
8 450445 Spacer
9 802−046 Bearing
10 807−226 Snap−out Plastic Plug
11 807−952 Groove Pin (for 6100 Conveyor)
12 912−084 Square Key .188” x 1.50”
13 920406M Socket Head Screw M4 x 6mm
14 920410M Socket Head Screw M4 x 10mm
15 920608M Socket Head Screw M6 x 8mm
16 920622M Socket Head Screw M6 x 22mm
920616M Socket Head Screw M6 x 16mm (4100
Conveyors)
17 920693M Socket Head Screw M6 x 16mm
920694M Socket Head Screw M6 x 20mm (6100 &
4100 Conveyors)
18 920845M Socket Head Screw M8 x 45mm
19 980422M Square Key 4mm x 22mm
20 814-104 Timing Belt, 15mm W x 450mm L
814-105 Timing Belt, 15mm W x 460mm L
814-065 Timing Belt, 15mm W x 475mm L
814-112 Timing Belt, 15mm W x 495mm L
814-101 Timing Belt, 15mm W x 500mm L
814-108 Timing Belt, 15mm W x 520mm L
814-064 Timing Belt, 15mm W x 535mm L
814-099 Timing Belt, 15mm W x 565mm L
21 450365MP Driven Pulley, 19Tooth
450366MP Driven Pulley, 22Tooth
450367MP Driven Pulley, 28Tooth
450368MP Driven Pulley, 32Tooth
22 450365MP Drive Pulley, 19Tooth
450366MP Drive Pulley, 22Tooth
450367MP Drive Pulley, 28Tooth
450368MP Drive Pulley, 32Tooth
450369MP Drive Pulley, 44Tooth
450370MP Drive Pulley, 48Tooth
450371MP Drive Pulley, 60Tooth
Service Parts

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
851-257 Rev. F 16 Dorner Mfg. Corp.

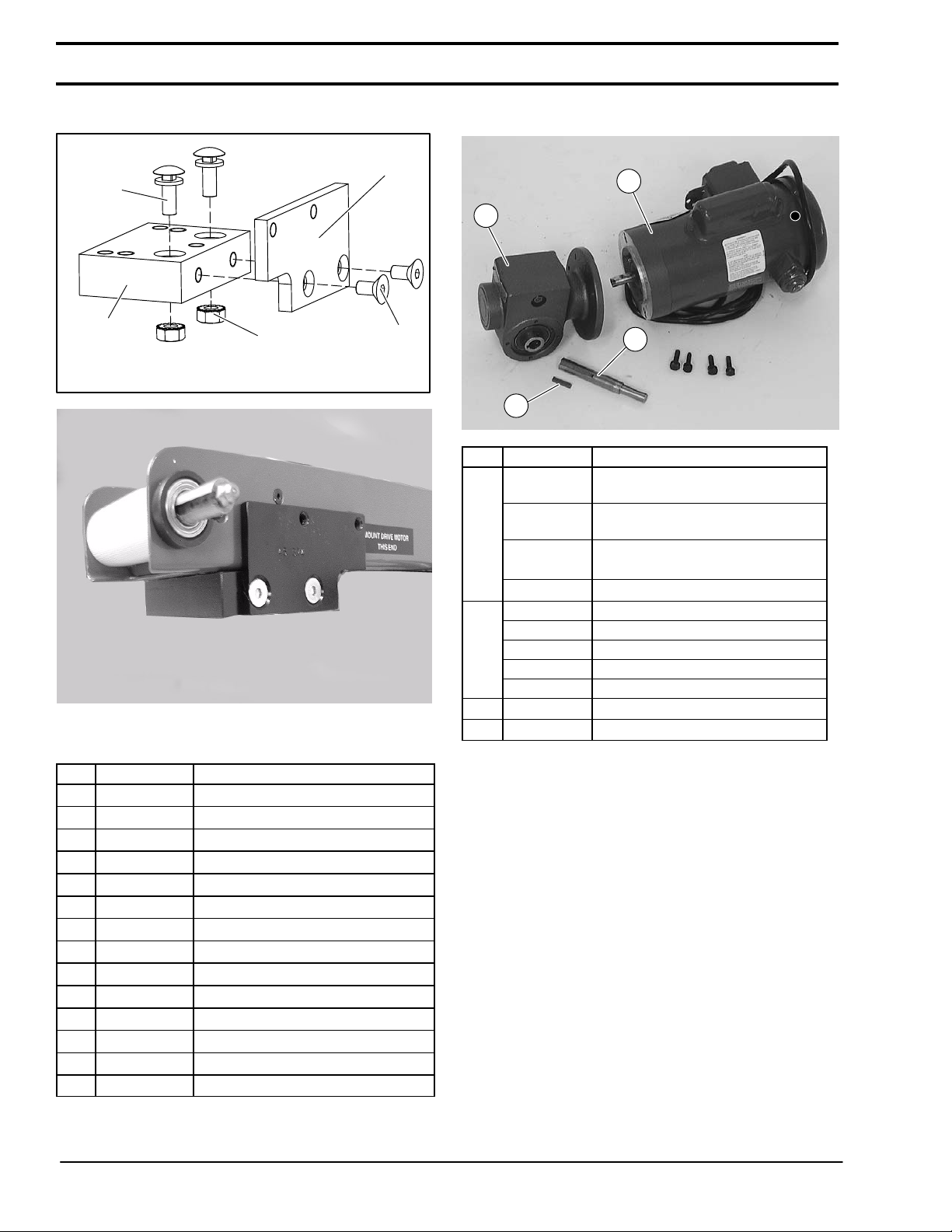

4100 Mounting Package
5
3
4
1
2
Figure 31
Mounting Package attached to a 4100 series conveyor.
Item Part Number Part Description
1 609486 Mounting Block 1” (25mm)
609487 Mounting Block 2” (51mm)
609488 Mounting Block 3” (76mm)
609479 Mounting Block 4” (102mm)
609480 Mounting Block 5” (127mm)
609481 Mounting Block 6” (152mm)
609482 Mounting Block 7” (178mm)
609483 Mounting Block 8” (203mm)
609484 Mounting Block 10” (254mm)
609485 Mounting Block 12” (305mm)
2 613602P Bolt & Flat Washer Assembly
3 450374 Drive Adapter Plate
4 910−126 Hex Nut with Lock Washer
5 930612M Flat Head Screw M6 x 12mm
Gearmotors
6
7
8
9
Item Part Number Part Description
6 826-328 Motor, 0.25 hp (0.19 Kw) 115/230 Volts,
60 Hz, 1-Phase
826-337 Motor, 0.25 hp (0.19 Kw) 115/230 Volts,
60 Hz, 1-Phase with Reversing
826-330 Motor, 0.25 hp (0.19 Kw)
208−230/460 Volts, 60 Hz, 3-Phase
826-332 Motor, 0.25 hp (0.19 Kw) 130 Volts DC
7 32M005HL Gear Reducer, 5:1, 42 CZ
32M010HL Gear Reducer, 10:1, 42 CZ
32M020HL Gear Reducer, 20:1, 42 CZ
32M040HL Gear Reducer, 40:1, 42 CZ
32M060HL Gear Reducer, 60:1, 42 CZ
8 450444M Gear Reducer Shaft
9 912−084 Key, Square, 0.188” x 1.5” L
Service Parts

2100, 2200, 4100, 6100, MPB Series Top Mount Drive Package for Standard Load 90°Industrial 60 Hz Gearmotors
Dorner Mfg. Corp. 17 851-257 Rev. F
Notes

No returns will be accepted without prior written factory authorization. When calling for authorization, please
have the following information ready for the Dorner Factory representative or your local distributor:
1. Name and address of customer.
2. Item(s) being returned.
3. Reason for return.
4. Customer’s original order number used when ordering the item(s).
5. Dorner or distributor invoice number.
A representative will discuss action to be taken on the Returned items and provide a Returned Goods
Authorization Number to reference.
There will be a 15% restocking charge on all new items returned for credit where Dorner was not at fault. These
will not be accepted after 60 days from original invoice date. The restocking charge covers inspection, cleaning,
disassembly, and reissuing to inventory.
If a replacement is needed prior to evaluation of returned item, a purchase order must be issued. Credit
(if any) is issued only after return and evaluation is complete.
Dorner has representatives throughout the world. Feel free to contact Dorner for the name of your local representative.
Our technical sales and service staff will gladly help with your questions on Dorner products.
For a copy of Dorner’s Limited Warranty, contact factory, distributor, service center or visit our website at
www.dorner.com
851-257 Rev. F Printed in U.S.A. 300
Dorner Mfg. Corp. reserves the right to change or
discontinue products without notice. All products and
services are covered in accordance with our standard
warranty. All rights reserved. Dorner Mfg. Corp. 2000
For replacement parts, contact an authorized
Dorner Service Center or the factory.
Return Policy
975 Cottonwood Ave. PO Box 20
Hartland, WI 53029 - 0020 USA
USA
TEL [phone] (USA)
FAX [phone] (USA)
Internet: www.dorner.com
Outside the USA:
TEL [phone]
FAX [phone]
DORNER MFG. CORP.
