Dorner 3200 Series User manual

851-522 Rev. B
Installation, Maintenance
& Parts Manual
3200 & LPZ Series
Side Mount 90 Degree Drive Package
for Light & Standard Load 60 Hz Gearmotors
Table of Contents
Warnings −General Safety 2. . . . . . . . . . . . . . . . . . . .
Introduction 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Description 3. . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gearmotors 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3200 Belt Speeds 5. . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Required Tools 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preventive Maintenance & Adjustment 6. . . . . . . . . . .
Required Tools 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear Reducer Replacement 6. . . . . . . . . . . . . . . . . .
Motor Replacement 8. . . . . . . . . . . . . . . . . . . . . . . .
Service Parts 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side Mount 90 Degree Drive Package 10. . . . . . . . .
Gearmotors 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Return Policy 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
851-522 Rev. B 2Dorner Mfg. Corp.
The safety alert symbol, black triangle with white
exclamation, is used to alert you to potential
personal injury hazards.
Ç
Ç
WARNING
Ç
Climbing, sitting, walking or
riding on conveyor will
cause severe injury.
KEEP OFF CONVEYORS.
DANGER
Ç
DANGER
Do NOT OPERATE
CONVEYORS IN AN
EXPLOSIVE ENVIRONMENT.
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
Ç
Gearmotors may be HOT.
DO NOT TOUCH Gearmotors.
WARNING
Ç
Ç
Exposed moving parts can
cause severe injury.
REPLACE ALL GUARDS
BEFORE RUNNING
CONVEYOR.
WARNING
Ç
Dorner cannot control the
physical installation and
application of conveyors.
Taking protective measures
is the responsibility of the
user.
When conveyors are used in
conjunction with other equip-
ment or as part of a multiple
conveyor system, CHECK
FOR POTENTIAL PINCH
POINTS and other mechani-
cal hazards before system
start-up.
WARNING
Introduction
IMPORTANT: Some illustrations may show guards
removed. Do NOT operate equipment without guards.
Upon receipt of shipment:
DCompare shipment with packing slip. Contact factory
regarding discrepancies.
DInspect packages for shipping damage. Contact carrier
regarding damage.
DAccessories may be shipped loose. See accessory in-
structions for installation.
Dorner 3200 Series conveyors are covered by patent
numbers 5156260, 5156261, 5203447, 5265714 and
patent applications in other countries.
Dorner LPZ Series conveyors are covered by patent
numbers 5156260, 5156261, 5203447, 5265714,
5875883 and patent applications in other countries.
Dorner’s Limited Warranty applies.
Dorner reserves the right to make changes at any time
without notice or obligation.
Dorner has convenient, pre−configured kits of Key Service
Parts for all conveyor products. These time saving kits are easy
to order, designed for fast installation, and guarantee you will
have what you need when you need it. Key Parts and Kits are
marked in the Service Parts section of this manual with the
Performance Parts Kits logo .
Warnings −General Safety

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
Dorner Mfg. Corp. 3851-522 Rev. B

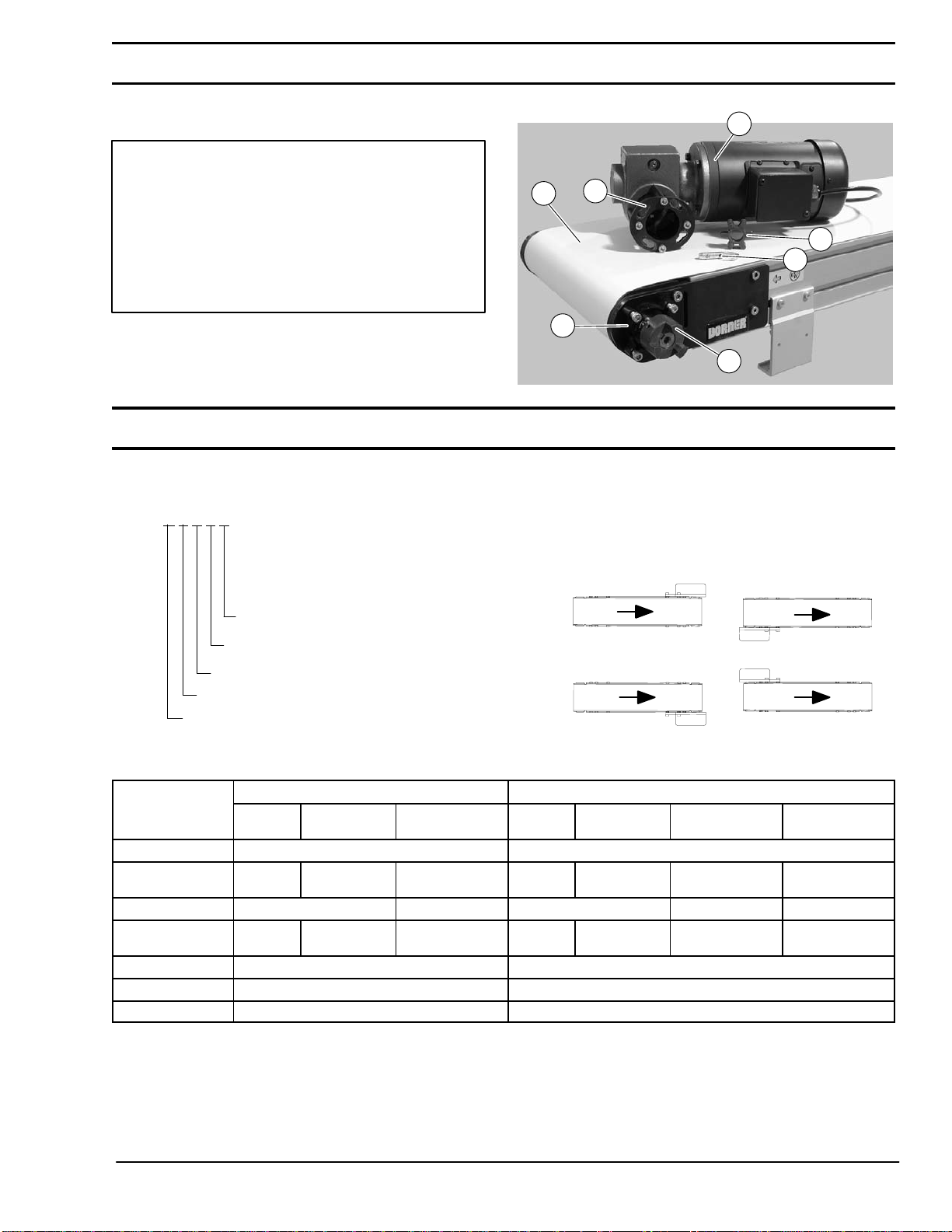

Refer to Figure 1 for typical components.
A Conveyor
B Mounting Bracket
C Gearmotor Assembly
D Spider Web Bushing
E Anti−Rotation Pin
F Coupling Half
Typical Components
Figure 1
A
C
B
E
B
D
F
Specifications
Gearmotor Mounting Package Models:
Example:
Language Code = U.S. English
Output Shaft Type = 905Industrial
Gearmotor Type: S = Standard Load
L = Light Load
Mount Style = Side Mount
Mount Position = A, B, C or D
(see detail to the right)
DC
B
A
32 M S H S A
Table 1: Gearmotor Specifications
Light Load Gearmotor Standard Load Gearmotor
Item Single-
Phase Three Phase DC Variable Speed
Single-
Phase Three Phase VFD Variable Speed
DC
Variable Speed
Output Power 0.25 hp (0.19 kw) 0.5 hp (0.37 kw)
Input Voltage 115VAC 208 – 230/460
VAC 130VDC 115VAC 208 – 230/460 VAC 230 VAC 90VDC
Input Frequency 60Hz N/A 60Hz 10 – 60Hz N/A
Input Current
(Amperes) 5.0 1.2/0.6 2.2 7.4 2.1 – 2/1 1.6 5.0
Gearmotor Ratios 5:1, 10:1, 20:1, 40:1, 60:1 5:1, 10:1, 20:1, 40:1, 60:1
Frame Size NEMA 42CZ NEMA 56C
Motor Type Totally enclosed, Fan cooled Totally enclosed, Fan cooled
Product Description

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
851-522 Rev. B 4Dorner Mfg. Corp.
Table 2: Belt Speeds for Fixed Speed 90560 Hz Gearmotors
Light Load Gearmotors Standard Load Gearmotors Belt Speed
Part Number
RPM
In-lb
N-m
Part Number
RPM
In-lb
N-m
Ft/min
M/min
P
art
N
um
b
er
RPM
I
n-
lb
N
-m
P
art
N
um
b
er
RPM
I
n-
lb
N
-m
F
t
/
m
i
n
M/
m
i
n
32M060HL4(vp)FN 29 226 25.5 32M060HS4(vp)FN 29 226 25.5 23 7.0
32M040HL4(vp)FN 43 237 26.8 32M040HS4(vp)FN 43 247 27.9 34 10.4
32M020HL4(vp)FN 86 142 16 32M020HS4(vp)FN 86 248 27.9 69 21.0
32M010HL4(vp)FN 173 78 8.8 32M010HS4(vp)FN 173 156 17.6 137 41.8
N/A N/A N/A N/A 32M005HS4(vp)FN 345 81 9.1 275 83.8
(vp) = voltage and phase
11 = 115 V, 1-phase
23 = 208 – 230/460 V, 3-phase
Table 3: Belt Speeds for Variable Speed 905DC Gearmotors
Light Load Gearmotors Standard Load Gearmotors Belt Speed
Part Number
RPM
In-lb
N-m
Part Number
RPM
In-lb
N-m
Ft/min
M/min
P
art
N
um
b
er
RPM
I
n-
lb
N
-m
P
art
N
um
b
er
RPM
I
n-
lb
N
-m
F
t
/
m
i
n
M/
m
i
n
32M060HLD3DEN 42 198 22.4 32M060HSD9DEN 42 198 22.4 4.0 – 33 1.2 – 10
32M040HLD3DEN 63 163 18.4 32M040HSD9DEN 63 215 24.3 6.0 – 50 1.8 – 15
32M020HLD3DEN 125 98 11.1 32M020HSD9DEN 125 196 22.1 12 – 100 3.6 – 30
32M010HLD3DEN 250 54 6.1 32M010HSD9DEN 250 108 12.2 24 – 200 7.3 – 61
N/A N/A N/A N/A 32M005HSD9DEN 500 56 12.2 48 – 398 15– 121
Table 4: Belt Speeds for Fixed Speed 905VFD Gearmotors
Standard Load Gearmotors Belt Speed
Part Number
RPM
In-lb
N-m
Ft/min
M/min
P
art
N
um
b
er
RPM
I
n-
lb
N
-m
F
t
/
m
i
n
M/
m
i
n
32M060HS423EN 29 226 25.5 2.3 – 22.9 0.7 – 7.0
32M040HS423EN 43 247 27.9 3.4 – 34.3 1.0 – 10.5
32M020HS423EN 86 248 27.9 6.9 – 68.6 2.1 – 20.9
32M010HS423EN 173 156 17.6 13.7 – 137.3 4.2 – 41.9
32M005HS423EN 345 81 9.1 27.5 – 274.6 8.4 – 83.7
NOTE: For belt speed other than those listed, contact
factory for details.
SpecificationsSpecifications

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
Dorner Mfg. Corp. 5851-522 Rev. B
Required Tools
DHex key wrenches:
2 mm, 2.5 mm, 3 mm, 5 mm
DTorque wrench
Mounting
Ç
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
Installation Component List
C Gearmotor Assembly
D Spider Web Bushing
EAnti−rotation pin
1.Typical components (Figure 2)
Figure 2
C
E
D
NOTE: Gearmotor may be operated in positions 1, 3
or 4 (Figure 3).
Figure 3
13
4
2.Install spider bushing (D of Figure 4) in three jaw
coupling (G).
Figure 4
D
G
3.Rotate conveyor belt and attached conveyor cou-
pling (H of Figure 5) to align with gearmotor
coupling (I).
Figure 5
I
H
4.Slide mounting screws (J of Figure 6) through slots
(K) in gearmotor bracket (L). Rotate gearmotor
assembly into desired position.
InstallationInstallation

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
851-522 Rev. B 6Dorner Mfg. Corp.
Figure 6
K
J
L
5.Tighten screws (J of Figure 7) to 146 in−lbs (16.5
N−m) and install anti rotation pin (E).
Figure 7
J
E
Preventive Maintenance and Adjustment
Required Tools
DHex key wrenches:
2 mm, 2.5 mm, 3 mm, 5 mm
DAdjustable wrench (for hexagon head screws)
DStraight edge
DTorque wrench
Gear Reducer Replacement
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING

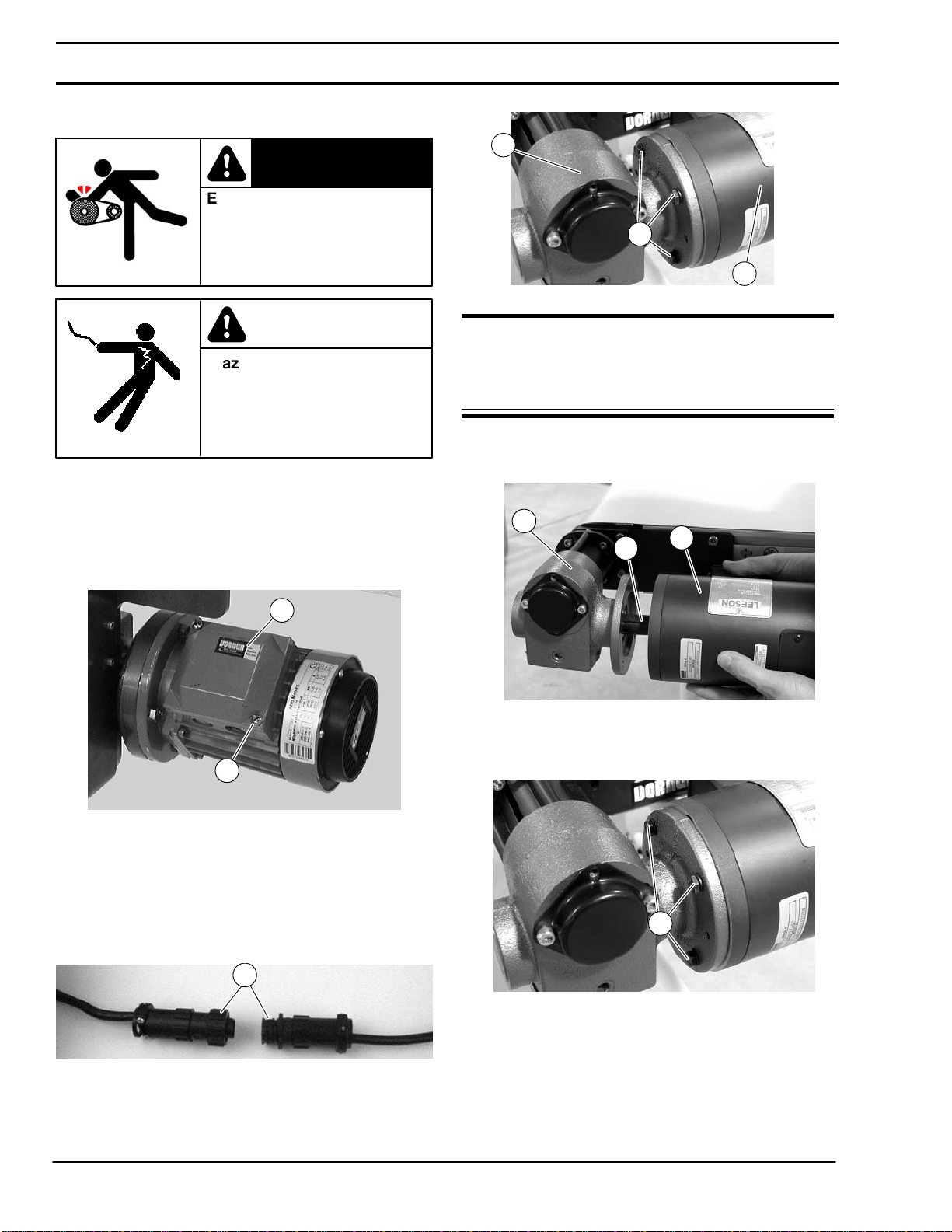

1.Remove two (2) screws (M of Figure 8) and remove
drive shaft cover (N).
Figure 8
M
N
2.Loosen the four (4) coupling lock screws (J of Figure
9), remove anti rotation pin (E). Rotate and remove
gearmotor assembly.
Figure 9
E
J
3.Remove the four (4) coupling spacer screws (O of
Figure 10) and remove the coupling guards (P).
Figure 10
O
O
P
4.Remove four screws (Q of Figure 11). Detach motor
(R) from gear reducer (S). Retain motor output shaft
key (T).
Installation

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
Dorner Mfg. Corp. 7851-522 Rev. B
Figure 11
R
S
M
N
T
U
Q

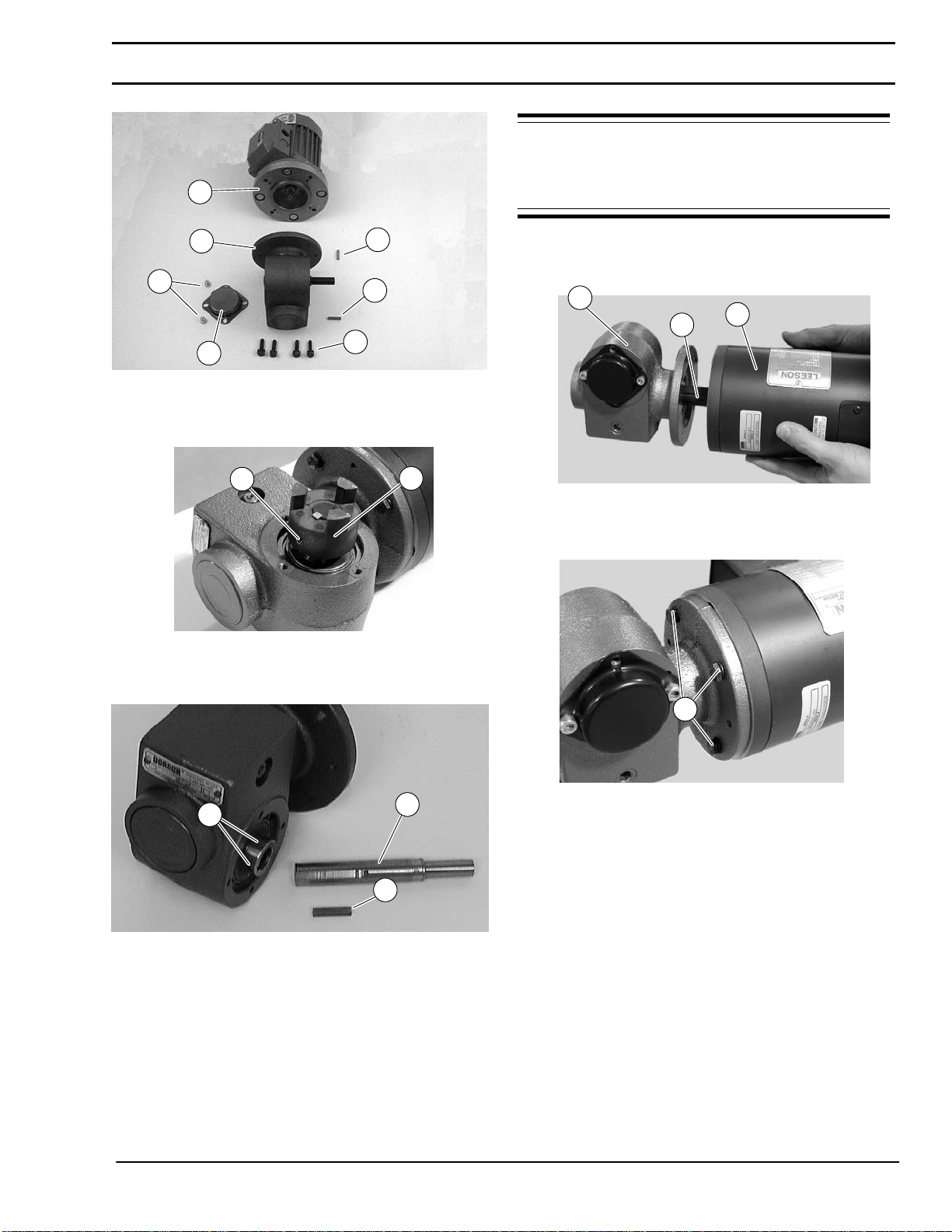

5.Loosen set screw (V of Figure 12) and remove 3 jaw
coupling (W).
Figure 12
VW
6.Loosen set screws (X of Figure 13) and remove gear
reducer output shaft (Y) and key (U).
Figure 13
XY
U
7.Insert the new shaft (Y of Figure 13) and key (U) into
new gear reducer. Tighten set screws (X) to 35 in-lb
(4 N−m).
8.Install cover (N of Figure 8) and tighten two (2)
screws (M) to 50 in−lbs (5.6 N−m).
IMPORTANT: Be extremely careful when coupling
motor to gear reducer. Avoid misalignment and
forcing the connection causing possible permanent
gear reducer seal damage.
9.With key (T of Figure 14) in keyway, slide motor (R)
and gear reducer (S) together.
Figure 14
R
T
S
10.Install screws (Q of Figure 15) and tighten to 65
in−lbs (7.3N−m).
Figure 15
Q
11.Install 3 jaw coupling (W of Figure 12) and tighten
set screw (V) to 45 in−lbs (5 N−m).
12.Install coupling spacer (P of Figure 10) to gearmotor
(S) and tighten screws (O) to 110 in-lb (12 N−m).
13.Complete steps 2 through 5 of “Mounting” section
beginning on page 5.
Preventive Maintenance and Adjustment

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
851-522 Rev. B 8Dorner Mfg. Corp.
Motor Replacement
Ç
Exposed moving parts can
cause severe injury.
LOCK OUT POWER before
removing guards or
performing maintenance.
WARNING
Ç
Ç
Hazardous voltage will
cause severe injury or
death.
LOCK OUT POWER
BEFORE WIRING.
DANGER
1.For single phase motor, unplug power cord from
outlet.
2.For three phase and VFD variable speed motor:
a.Loosen terminal box screws (Z of Figure 16) and
remove cover (AA).
Figure 16
Z
AA
b.Record wire colors on terminals 1, 2 and 3. Loosen
wire nuts and remove wires 1, 2 and 3.
c.Loosen cord grip and remove cord.
3.For DC variable speed motor, unplug motor cord at
disconnect (AB of Figure 17).
Figure 17
AB
4.Remove four (4) screws (Q of Figure 18). Detach
motor (R) from gear reducer (S). Retain motor
output shaft key (T of Figure 19).
Figure 18
R
S
Q
IMPORTANT: Be extremely careful when coupling
motor to gear reducer. Avoid misalignment and
forcing the connection causing possible permanent
gear reducer seal damage.
5.With key (T of Figure 19) in keyway, slide motor (R)
and gear reducer together.
Figure 19
R
T
S
6.Install screws (Q of Figure 20) and tighten to 65
in−lbs (7.3N−m).
Figure 20
Q
7.Replace wiring:
DFor a single phase motor, reverse step 1 on this page.
DFor a three phase or VFD variable speed motor, re-
verse step 2 on this page.
DFor a DC variable speed motor, reverse step 3 on this
page.
Preventive Maintenance and AdjustmentPreventive Maintenance and Adjustment

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
Dorner Mfg. Corp. 9851-522 Rev. B
Notes

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
851-522 Rev. B 10 Dorner Mfg. Corp.
NOTE: For replacement parts other than those
shown on this page, contact an authorized Dorner
Service Center or the factory. Key Service Parts and
Kits are identified by the Performance Parts Kits
logo. Dorner recommends keeping these parts on
hand.

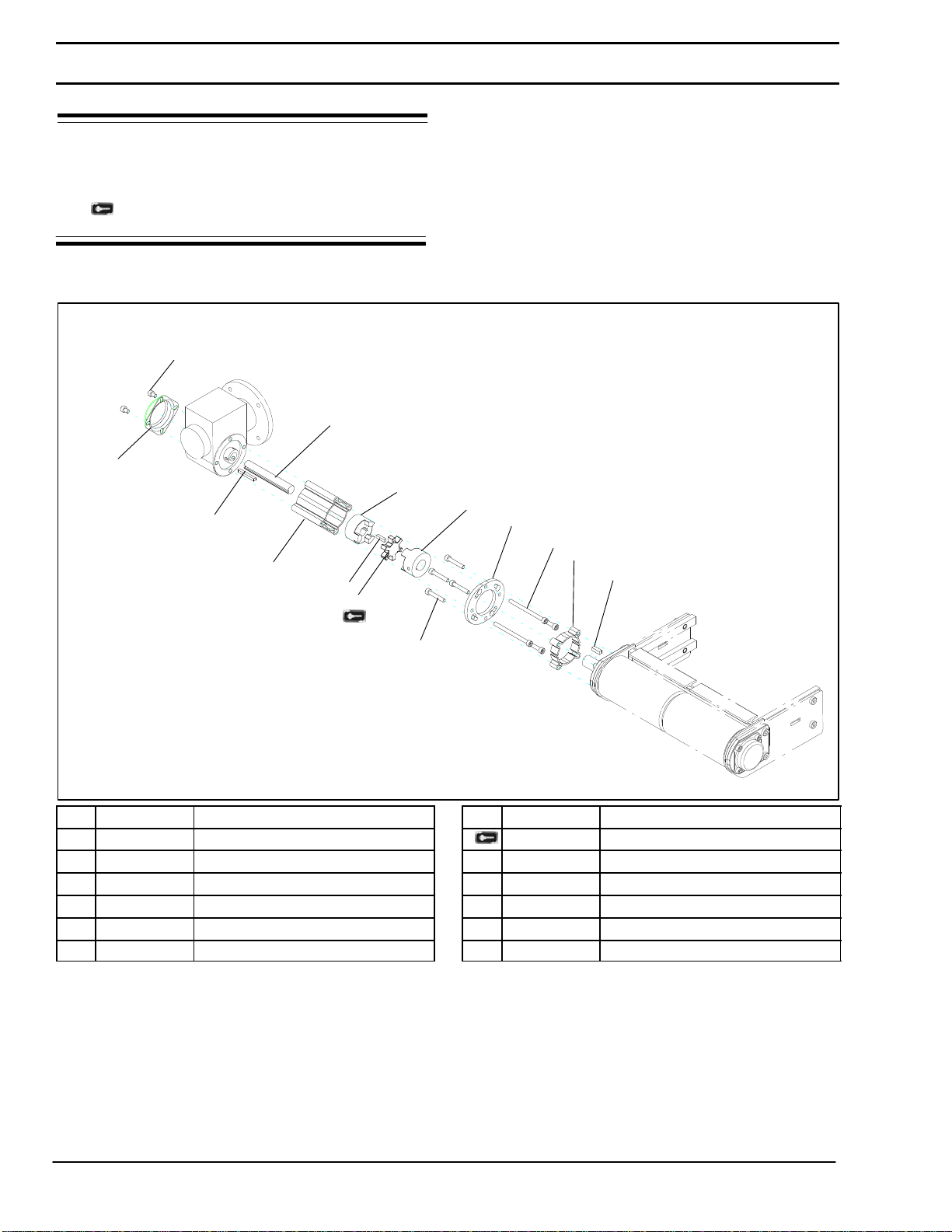

3200 Series Conveyors Side Mount Drive Package for Standard Load 90_Industrial
Gearmotors
1
2
3
4
5
6
10
11
12
13
8
7
9
9
Item Part Number Description
1 300139 Bearing Shaft Cover
2 301092 Short Side Drive Guard
3 301093 Long Side Drive Guard
4 301094 Drive Side Mounting Ring
5 301095 5/8” Side Drive Shaft
6 807−1140 20mm 3 Jaw Coupling
7 807−1141 5/8” 3 Jaw Coupling
8 807−1143 3 Jaw Rubber Spider
9 912−084 Square Key
10 920608M Socket Head Screw M6 x 8mm
11 920635M Socket Head Screw M6 x 35mm
12 920680M Socket Head Screw M6 x 80mm
13 980632M Square Key
Service Parts

3200 & LPZ Series Side Mount 90 Degree Drive Package for Light & Standard Load 60 Hz Gearmotors IMPM
Dorner Mfg. Corp. 11 851-522 Rev. B

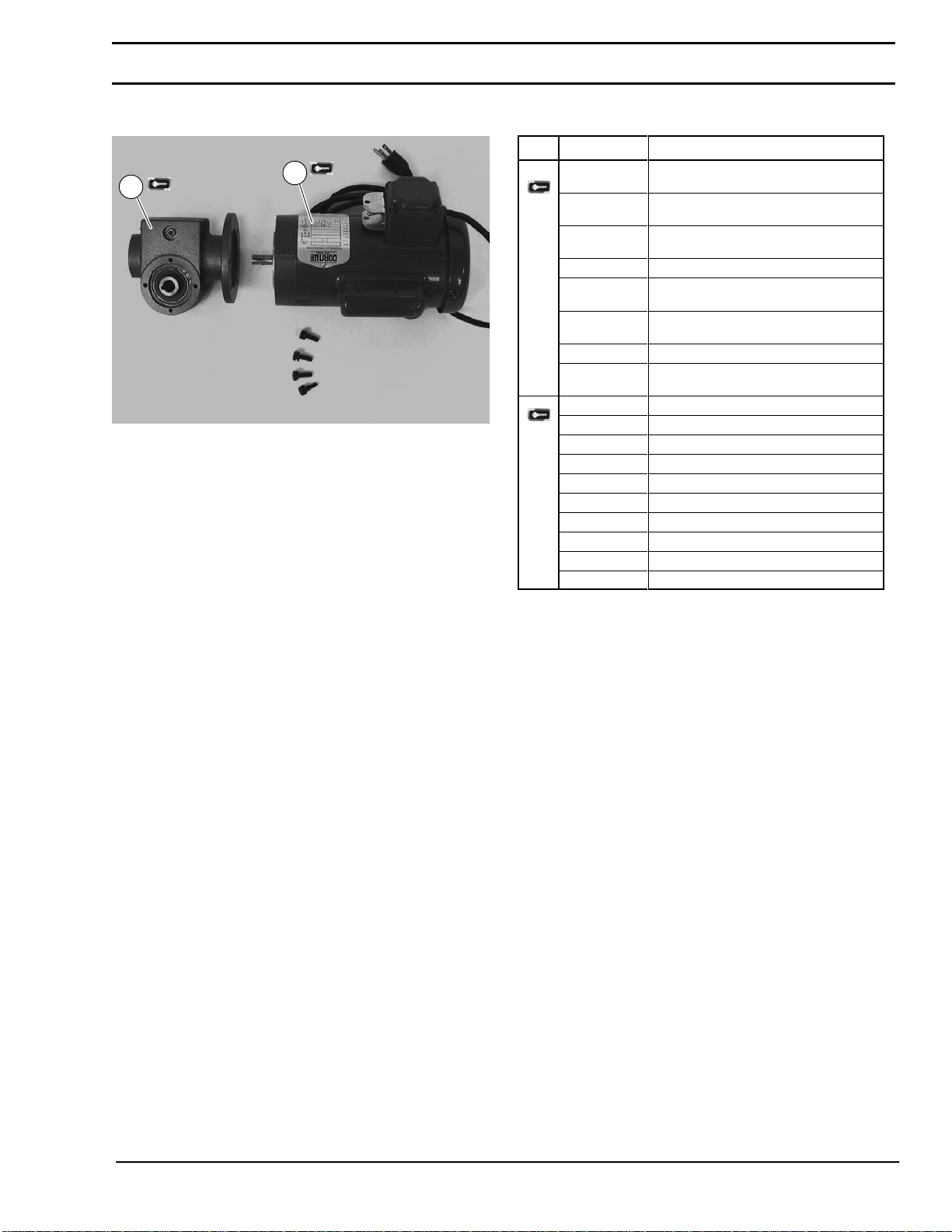

3200 Standard Load 90_Industrial Gearmotors
Figure 21
2
1
Item Part No. Part Description
1 62MS411FN Motor, 0.25hp (0.19Kw), 115/230 Volts,
60 Hz, 1-Phase
62MS411FR Motor, 0.25hp (0.19Kw), 115/230 Volts,
60 Hz, 1-Phase with Reversing
62MS423 Motor, 0.25hp (0.19Kw),
208−230/460 Volts, 60 Hz, 3-Phase
62MSD3DEN Motor, 0.25hp (0.19Kw), 130 VDC
62MH411FN Motor, 0.5hp (0.37Kw), 115/230 Volts, 60Hz,
1−Phase
62MH423 Motor, 0.5hp (0.37Kw)
208−230/460 Volts, 60Hz, 3 Phase
62MHD9DEN Motor, 0.5hp (0.37Kw), 90VDC
32MS423EN Motor, 0.5hp (0.37Kw), 230 Volts,
3 Phase Inverter Duty
2 32M005HL Gear Reducer, 5:1, NEMA 42CZ
32M010HL Gear Reducer, 10:1, NEMA 42CZ
32M020HL Gear Reducer, 20:1, NEMA 42CZ
32M040HL Gear Reducer, 40:1, NEMA 42CZ
32M060HL Gear Reducer, 60:1, NEMA 42CZ
32M005HS Gear Reducer, 5:1, NEMA 56C
32M010HS Gear Reducer, 10:1, NEMA 56C
32M020HS Gear Reducer, 20:1, NEMA 56C
32M040HS Gear Reducer, 40:1, NEMA 56C
32M060HS Gear Reducer, 60:1, NEMA 56C
Service Parts

975 Cottonwood Ave. PO Box 20
Hartland, WI 53029-0020 USA
No returns will be accepted without prior written factory authorization. When calling for authorization, please
have the following information ready for the Dorner Factory representative or your local distributor:
1. Name and address of customer.
2. Item(s) being returned.
3. Reason for return.
4. Customer’s original order number used when ordering the item(s).
5. Dorner or distributor invoice number.
A representative will discuss action to be taken on the Returned items and provide a Returned Goods
Authorization Number to reference.
There will be a 15% restocking charge on all new items returned for credit where Dorner was not at fault. These
will not be accepted after 60 days from original invoice date. The restocking charge covers inspection, cleaning,
disassembly, and reissuing to inventory.
If a replacement is needed prior to evaluation of returned item, a purchase order must be issued. Credit
(if any) is issued only after return and evaluation is complete.
Dorner has representatives throughout the world. Feel free to contact Dorner for the name of your local representative.
Our technical sales and service staff will gladly help with your questions on Dorner products.
For a copy of Dorner’s Limited Warranty, contact factory, distributor, service center or visit our website at
www.dorner.com.
851-522 Rev. B Printed in U.S.A.
Dorner Mfg. Corp. reserves the right to change or
discontinue products without notice. All products and
services are covered in accordance with our standard
warranty. All rights reserved. Dorner Mfg. Corp. 2000
USA
TEL [phone] (USA)
FAX [phone] (USA)
Internet: www.dorner.com
Outside the USA:
TEL [phone]
FAX [phone]
DORNER MFG. CORP.
Return Policy
