Dräger Alcotest 3820 3
Safety-related information
3
en
1 Safety-related information
Before using this product, carefully read the Instructions for Use.
Strictly follow the Instructions for Use. The user must fully understand
and strictly observe the intended instructions. Use the product only
for the purposes specified in the Intended use section of this
document.
Do not dispose of the Instructions for Use. Ensure that it is retained
and appropriately used by the product user.
Comply with all local and national rules and regulations associated
with this product.
Only trained and competent personnel are permitted to inspect,
repair and service the product (contact DrägerService or dealer).
Do not use a faulty or incomplete product. Do not modify the product.
Notify Dräger in the event of any component fault or failure.
2 Conventions used in this document
2.1 Definitions of alert icons
The following alert icons are used in this document to provide and
highlight areas of the associated text that require a greater awareness
by the user. A definition of the meaning of each icon is as follows:
WARNING
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.

Description
4
en
2.2 Typographical conventions
This symbol indicates information which facilitates the use of the
product.
3 Description

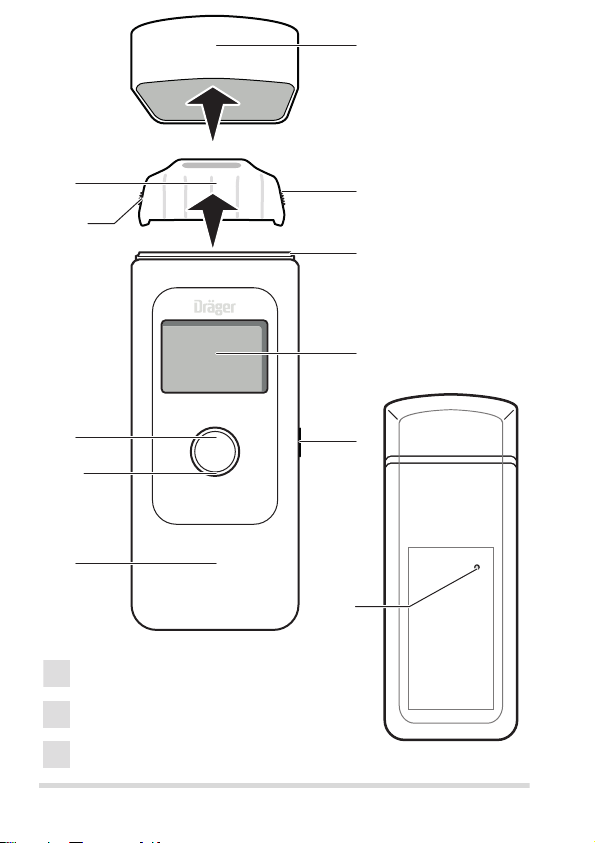

3.1 Product overview
1 Breath-alcohol analyzer
2LEDring
3 Button
4 Grip zone on mouthpiece
5 Mouthpiece
6 Safety cap
7 Mouthpiece receptacle
8 Display
9 USB connection (Important: Not for charging the device, for
Service only)
10 Loudspeaker (Important: No reset button)
3.2 Intended Use
The Dräger Alcotest®38201) is used for measuring the alcohol
concentration in the breath of a human. The measurement is used as
an indication for alcohol intoxication. Based on the measurement
results, no therapeutic or legal measures should be initiated.
1) Alcotest is a registered trademark of Dräger.

Dräger Alcotest 3820 5
Use
5
en
4Use
WARNING
Small parts of the device can come loose and be swallowed.
►Keep the device out of reach of children under the age of 3.
4.1 Prerequisites
The instrument is factory-calibrated when delivered. If the calibration
date has exceeded 12 months, the instrument should be
professionally adjusted, e.g. by DrägerService.
Optional: If the calibration date has been exceeded, a warning
message is displayed after the startup screen. Confirm the warning
message with a short press on the button or wait some seconds to
continue.
After the last alcohol intake, wait approx. 15 minutes before a
measurement is carried out. Residual alcohol that is still in the mouth
may cause incorrect measuring values. This may also occur by
aromatic drinks (e.g. fruit juices), alcoholic mouth sprays, medicines
and drops, as well as by burping and vomiting. Rinsing the mouth with
water or non-alcoholic drinks does not replace the wait time!

Use
6
en
4.2 Initial start-up
A quick setup process (wizard) starts when the instrument is switched
on for the first time. The following settings are accessible using the
wizard:
Language
Date format
Date
Time format
Time
Measuring unit
Language
A cursor pre-selects one language in the list. Press briefly on the
button to change the position of the cursor in order to select your
needed language. If the cursor selects the right language please hold
the button for approx. 2 seconds to confirm.
Date
A cursor pre-selects the day of the date. Press briefly on the button to
change the day until the actual day is shown. Please hold the button
for approx. 2 seconds to confirm the day. Please continue with the
month and the year in the same way: short press to change and long
press to confirm.
Time format
A cursor pre-selects a time format. Press briefly on the button to
change the position of the cursor in order to select your needed time
format. If the cursor selects the needed time format please hold the
button for approx. 2 seconds to confirm.
Time
A cursor pre-selects the hours of the time. Press briefly on the button
to change the hour until the actual hour is shown. Please hold the
button for approx. 2 seconds to confirm the hour. Please continue with

Dräger Alcotest 3820 7
Use
7
en
the minutes in the same way: short press to change and long press to
confirm.
Measurement unit
A cursor pre-selects a measurement unit in the list. Press briefly on the
button to change the position of the cursor in order to select your
needed measurement unit. If the cursor selects the needed
measurement unit, please hold the button for approx. 2 seconds to
confirm.
After the setup wizard is finished, the display shows Welcome and
continues with READY for tests.
The Alcotest® 3820 is now adjusted to your settings and is ready for
breath tests.
Of course these and further settings can be adjusted in the device
menu (see section 4.6 on page 9).
4.3 Carrying out a breath sample
A new mouthpiece must be inserted for each person who provides
a breath test.
For hygiene reasons, hold the mouthpiece only on the grip zones.
Do not allow any high alcohol concentrations on the sensor, e.g.
by rinsing the mouth with a high proof alcohol shortly before the
measurement, as this will shorten the service life of the sensor.
Procedure
1. Remove the safety cap from the top of the device.
2. Insert a new mouthpiece (order no. 83 25 250) in the mouthpiece
receptacle (see section 3.1 on page 4).
For hygiene reasons, hold the mouthpiece only on the grip zones.

Use
8
en
3. If the device is switched off, keep the button pressed for approx.1
second until the startup screen is displayed.
4. After approx. 4 seconds, a READY screen is displayed. The
instrument is ready to use.
5. Take a deep breath and blow evenly and without interruption into
the mouthpiece.
Do not block the outlet of the mouthpiece.
You have to blow a volume of 1.3 liter and at least 1.6 seconds for
a valid test. If blowing normally, this will take 2-3 seconds A
continuous tone sounds simultaneously and stops, when the test
parameters are fulfilled and the device has taken the sample.
The test result is displayed after 3 to 60 seconds (depending on the
instrument‘s temperature and the measured concentration).
In case of a negative alcohol test, 0,00 will be displayed. In case of a
positive alcohol test, the measured alcohol level will be displayed.
To prepare a new measurement, press the button briefly. After a short
recovery time, (see section 8 on page 16) READY will be displayed
and the device is ready to use again.
4.4 Switching off the Instrument
The instrument will switch off after pressing the button for approx.
3 seconds. A switch off count down will be shown as well. If the
display is off, stop pressing the button. Otherwise the device will
be switched on again.
The instrument automatically switches off after 120 seconds
without any activity.
Switching off the instrument does not reduce the waiting period
until it is ready to take a measurement!

Dräger Alcotest 3820 9
Use
9
en
4.5 Removing the mouthpiece
1. Pull the mouthpiece upwards out of the mouthpiece receptacle by
holding it on the grip zones on the left and right side.
2. Dispose of the mouthpiece in accordance with local regulations.
4.6 Settings
To enter the device menu, the device has to be switched on and has
to show READY.
1. Briefly press the button. A menu symbol and text Menu are
displayed.
2. Briefly press the button again within approx. 3 seconds to enter
the menu. If the button is not pressed a second time, the
instrument will return to READY.
The instrument will exit the menu after 120 seconds, if the button isn‘t
pressed.
In the main menu all menu options are listed one below the other. To
select a menu option, mark the respective menu option with the
cursor by briefly pressing the button several times to toggle through
the menu until the cursor is at the intended position. Afterwards hold
the button for 2 seconds to enter the submenu.
The following table provides an overview of the menu options and
about how to use them:
Menu option Description Interaction instruction
Measuring Option to leave the menu
and to go back to the
READY screen to
perform a test.
Hold the button for 2
seconds to leave the
menu.

Use
10
en
Results Overview of the last 10
tests performed on the
device (incl. result, date,
time, test ID). There is
one test displayed per
screen.
Briefly press the
button to navigate
through the test result
list.
Hold the button for 2
seconds to leave the
submenu.
Device Info Serial no and part no of
the device
Hold the button for 2
seconds to leave the
submenu.
Next Service Overview, in how many
days the device…
should get serviced,
should be adjusted
and should get an
accuracy check.
Hold the button for 2
seconds to leave the
submenu.
Menu option Description Interaction instruction

Dräger Alcotest 3820 11
Use
11
en
Date & Time Date, time as well as
date format (yyyy/mm/
dd, yyyy-mm-dd, mm/dd/
yyyy, dd.mm.yyyy) and
time format (12h, 24h)
can be adjusted.
The submenu can be left
via the Back option.
Select an option by
moving the cursor to
the option by briefly
pressing the button.
Afterwards, enter this
option by holding the
button for 2 seconds.
Change a setting or a
set number by briefly
pressing the button
(e.g. shifting the time).
Confirm a selection by
holding the button for
2 seconds.
Select the Back
option and hold the
button for 2 seconds
to leave the submenu.
Contrast The display contrast can
be adjusted within 5
levels.
Change the setting by
briefly pressing the
button.
Hold the button for 2
seconds to confirm the
setting and leave the
submenu.
Speaker Any acoustical signals of
the device can be turned
off or to a volume of 50%
or 100%.
Change the setting by
briefly pressing the
button.
Hold the button for 2
seconds to confirm the
setting and leave the
submenu.
Menu option Description Interaction instruction

Use
12
en
Language The language of the
display can be adjusted.
Change the set
language by briefly
pressing the button.
Hold the button for 2
seconds to confirm the
setting and leave the
submenu.
Measurement
unit
The measurement unit
for the alcohol test
results can be adjusted
within the following
options: %, ‰, g/L, mg/
100 mL, mg%, mg/mL,
mg/L, μg/100 mL, μg%,
μg/L, g/210 L.
Change the
measurement unit by
briefly pressing the
button.
Hold the button for 2
seconds to confirm the
setting and leave the
submenu.
Software
Version
Software version and
part number are
displayed.
Hold the button for 2
seconds to leave the
submenu.
Menu option Description Interaction instruction

Dräger Alcotest 3820 13
Troubleshooting
13
en
5 Troubleshooting
An error message is displayed in the event of an instrument fault.
The number that appears below the message is used for service
functions. If the fault remains after switching the instrument on and off
several times, contact DrägerService or your dealer.
Fault / message Cause Remedy
Instrument cannot
be switched on.
Battery empty. Contact DrägerService
or dealer.
Volume too low /
sample invalid.
Test subject is blowing
intermittently or not
hard or long enough.
Blow more strongly
and without
interruptions into the
mouthpiece.
Instrument outside
temperature range
Instrument too hot or
too cold.
Allow the instrument to
cool down or become
warmer.
↑↑↑
(Measuring range
Exceeded)
Measuring range
exceeded. Residual
mouth alcohol may
cause incorrect
measuring values.
There must be an
interval of at least
15 minutes after
alcohol has been taken
into the mouth (see
section 4.1 on page 5).
To repeat test, press
the button.
Volume too small Breath sample volume
too small.
Repeat breath sample.
Volume too large Measuring range
exceeded. Repeat breath sample.
Sample interruption Irregular outward
breath, abrupt end or
intake
Repeat breath test.

Troubleshooting
14
en
Fault number Instrument fault Switch the instrument
off and on again. If the
fault remains, contact
DrägerService or
dealer.
… DAYS
Until next service!
In … days next service
is needed. Contact DrägerService or dealer for device
service.
...DAYS
Service expired!
Since … days service
is needed. Contact DrägerService or dealer for device
service.
Fault / message Cause Remedy

Dräger Alcotest 3820 15
Maintenance
15
en
6 Maintenance
Calibration
Dräger recommends a device calibration every 12 months, because of
the sensor drift the uncertainty of measurement increases over
months. Instrument calibration and maintenance should only be
carried out by authorized persons, e.g. DrägerService.
The last 30 days before next service is needed, a day count down will
be shown as information in the display after switching on the device.
Please confirm this information with the button. It shall remind you that
the device needs to be serviced in the next days. After the service
date, the device starts to count up how many days it is over the
requested service. This information can be confirmed by pressing the
button as well.
Cleaning
Do not immerse in fluids and avoid contact of fluids with the
connections. Do not use any cleaning agents containing alcohol or
solvents. Wipe down the instrument with a disposable cloth.
7 Disposal
This product must not be disposed of as household waste. This is
indicated by the adjacent icon. You can return this product to Dräger
free of charge. For information please contact the national marketing
organizations and Dräger.

Technical data
16
en
8 Technical data
Measuring principle
Electrochemical sensor
Measuring range
Breath alcohol 0.000 to 0.500 g/210L
Blood alcohol concentration 0.000 to 0.500% BAC
Small values will be shown as
0.000
0.000 to 0.0063 g/210L
Ethanol mass per blood volume or mass at 20°C / 68 °F and
1013 hPa.
For the above data, a conversion factor of 2100 is used for breath
and blood alcohol concentration data.
Units of measure
%, ‰, g/L, mg/100 mL, mg%, mg/mL, mg/L, μg/100 mL, μg%, μg/L, g/210 L
Ambient conditions
During operation -5°C to +50°C / +23°F to +122 °F
10 to 100 % rel. hum.
(non-condensing)
600 to 1300 hPa
During storage -20°C to +70°C / -4°F to +158 °F
Sampling
Respiratory volume >1.3 L (default)
Minimum flow rate >10 L/min (default)
Minimum blow time >1.6 s (default)

Dräger Alcotest 3820 17
Technical data
17
en
Measurement accuracy
Standard deviation of the repeatability with ethyl alcohol standard
up to 0.50 mg/L 0.008 mg/L
≥0.50 mg/L 1.7% of the measured value
up to 0.100 % BAC 0.0017 % BAC or
≥0.100 % BAC 1.7% of the measured value
whichever value is higher
Sensitivity drift
Typically 0.4 % of the measured value per month
Wait time for measurement readiness following a previous
measurement with:
0.25 mg/L 20 s 0.050 % BAC 20 s
0.50 mg/L 40 s 0.100 % BAC 40 s
1.00 mg/L 80 s 0.200 % BAC 80 s
>1.50 mg/L 120 s >0.300 % BAC 120 s
Calibration
every 12 months
Dimensions
2 “ x 5.2 “ x 1.1 “(W x H x D)
Weight
approx. 120g / 4.2 oz

Technical data
18
en
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Power supply
1 x 3 V CR123A
The battery is designed for the service life of the instrument with
average use.
Protection class
IP 52
CE markings
Electromagnetic compatibility (Directive 2014/30/EU).
Configuration possible, see name plate

Dräger Alcotest 3820 19
Consignes de sécurité
19
fr
1 Consignes de sécurité
Veuillez lire attentivement la notice d'utilisation du produit avant
de l'utiliser.
Veuillez respecter exactement les instructions de la notice
d'utilisation. L'utilisateur devra parfaitement comprendre ces
instructions et les exécuter très précisément. Le produit ne peut être
utilisé que conformément à son domaine d'application.
Veuillez ne pas jeter la notice d'utilisation. Veuillez vérifier qu'elle
est conservée et utilisée correctement par l'utilisateur de ce produit.
Veuillez respecter les réglementations locales et nationales
applicables à ce produit.
Seul le personnel compétent et muni de la formation adéquate
est autorisé à contrôler, réparer et entretenir le produit (veuillez
contacter DrägerService ou votre revendeur).
Veuillez ne pas utiliser de produits défectueux ou incomplets.
Veuillez ne pas modifier le produit.
Veuillez informer Dräger en cas de défaut ou de panne de
quelconque composant.
2 Conventions utilisées dans ce document
2.1 Signification des symboles d'avertissement
Les symboles d'avertissement suivants sont utilisés dans ce
document pour signaler et mettre en avant les textes d'avertissement
associés auxquels l'utilisateur doit prêter une attention particulière.
Les icônes sont définies comme suit :
AVERTISSEMENT
Signale une situation potentiellement dangereuse qui, si elle n'est pas
évitée, pourrait entraîner des blessures graves ou mortelles.

Description
20
fr
2.2 Conventions typographiques
Ce symbole précède une information destinée à faciliter
l'utilisation de l'appareil.
3 Description
3.1 Aperçu du produit
1 Alcootest
2 Anneau LED
3Touche
4 Zone de préhension sur l'embout buccal
5 Embout buccal
6 Capot de protection
7 Logement de l'embout buccal
8Écran
9 Port USB (important: réservé au service, ne sert pas à recharger
l'appareil)
10 Haut-parleur (important: pas de touche réinitialisation)
3.2 Domaine d'application
L'alcootest Dräger Alcotest®38201) sert à mesurer la concentration
d'alcool dans l'haleine humaine. Cette mesure est destinée à
déterminer le taux d'alcoolisation des personnes testées. Elle ne
devrait en aucun cas servir de base à des soins thérapeutiques ni à
des mesures juridiques.
1) Alcotest est une marque déposée de Dräger.
