DREAMS DAWSON OTTOMAN SOUND BED with O.S.B. User manual

IMPORTANT OTTOMAN SAFETY WARNINGS
IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE
You must ensure that the mattress is on the bed frame before operating the
lift mechanism – Failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access
the storage area.
Always ensure that the ottoman is FULLY opened before accessing the
storage area.
Do not exceed the maximum weight as specified in the table below:
Two person
assembly
1.5 hour approx
assembly time
MK2 230329
DAWSON OTTOMAN
SOUND BED with O.S.B.
SINGLE SIZE
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
Bed Bed Size Min Weight (kg) Max Weight (kg)
Dawson Single 15 40

•Use caution when operating, always use the handle when lifting.
•Note: This bed uses a pressurised mechanism.
•To be operated by adults only.
•Please ensure that children and pets are kept away from the bed when
operating the lift mechanism.
•Keep children and pets away from the storage area.
•Do not overload the internal storage base.
•Do not stand inside the internal storage area of the bed.
•Before removing the mattress secure the frame to ensure it does not open
unexpectedly.
•Do not attempt to lie on the mattress when the ottoman is in the raised
position.
•When lifting the ottoman, remove all bedding except the fitted sheet.
IMPORTANT OTTOMAN SAFETY WARNINGS Cont.
Dawson Ottoman Sound Bed - Assembly guide - Page 2
Don’t lift without mattress
WARNING!HAZARD - DO NOT REACH INTO THE SPACE BELOW!
WARNING!HAZARD - DO NOT REACH INTO THE SPACE BELOW!
Ensure mattress is on before lifting
SAFETY WARNING
PLEASE DO NOT ALLOW CHILDREN
OR PETS INSIDE THE STORAGE AREA.
SAFETY WARNING
PLEASE BE CAREFUL WHEN LIFTING.
ONLY LIFT WITH MATTRESS ON TOP.
TO BE OPERATED BY ADULTS ONLY.
WARNING: ONLY USE THE HANDLE TO LIFT &
LOWER THE BED FRAME TO
AVOID TRAPPING FINGERS!
TO AVOID ACCIDENTS
TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME
MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS
WARNING! HAZARD-DO NOT REACH INTO THE SPACE BELOW!
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
Note: Be very careful what you
store under the bed - the top of an
item like a suitcase or a box must
not touch the slats or they may be
damaged. Maximum storage
height is 24.5 cm.

Read all the instructions before using your Ottoman bed-frame and save the instruction booklet for future reference.
Ottoman Support Bar (O.S.B.)
For optimal safety during operation, always ensure the O.S.B. is engaged when accessing the
ottoman storage area.
Ottoman Beds - Important Safety Features
1 . Always raise the ottoman slat-frame to it's highest position before using the storage area.
Locate the end of the O.S.B and insert into the fixed retaining bracket on the bed frame.
2 . When you are ready to lower the ottoman platform, return the O.S.B to its original parking position.
3 . Always ensure that the O.S.B is in position when the ottoman is open, this prevents injury, or
damage to the product.
Location of the O.S.B
End-lift :
O.S.B is on
the left
side of
the bed.
Side-lift: O.S.B is on
either the left side or
right side of the footend.
WARNING! Risk of Entrapment
oThe pistons on the ottoman bed frame can support a maximum load (evenly spread) as indicated in
the Minimum and Maximum load table, on Page 1 of this Assembly Instruction.
oOverloading the sleeping platform may contribute to damage to the product resulting in potential
serious injury.
oDo not sit on the mattress whilst the platform is in motion or is in the raised position.
oUsers should only get in and out of bed when platform is in the flat (horizontal) position.
WARNING! HAZARD-DO NOT REACH INTO THE SPACE BELOW!
!
your comfort and safety. Please take time to look at these instruction as they will help remind you how to
operate your ottoman bed safely.
Here’s a few things you need to remember;
Pistons are already assembled in their correct orientation – this improves piston performance and
durability.
“Break in ” the piston seals on first use by raising & lowering the platform at least five times.
Recommended mattress weights - do not exceed the maximum relevant weight specified on the
Assembly Instruction.
Ottoman support bar – always engage the support bar when accessing the ottoman storage area.
Dawson Ottoman Sound Bed - Assembly guide - Page 3
L.
R.

Dawson Ottoman Sound Bed - Assembly guide - Page 4
Assembly tips
Before you begin, it’s best to identify all parts and fittings to build your bed.
We advise laying these out on the floor to check you have everything, and
familiarising yourself before building.
Help and support
At Dreams, it’s our mission to give the whole nation a great night’s sleep - this
means that the quality of our products is of utmost importance to us. If there
are any issues with your product or any missing parts, please contact our Help
Centre on 0800 652 6750, where a member of our team will be happy to help.
(For customers based in Northern Ireland, please call 028 9050 8300)
Safety and care
It’s really important to ensure children and animals are kept away from the
assembly area, as there are small components used in this bed which could
present a choking hazard. All plastic and wrapping materials should also be
To keep your little ones busy, there is a colouring page inside the back cover.
Recycling
Please ensure that packaging is disposed of in a safe and environmentally
friendly way, and recycle where possible. Our assembly instructions are
printed on recycled paper. Please keep your assembly instructions safe
to refer back to in the future.
We recommend that you build your new bed in the room you’d like it to be
located - this will help prevent any risk of damage to your newly built bed
whilst moving it.
Top tip
Thank You
Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you
your best ever night’s sleep. Before you begin building your bed, please take a moment to read
through the instructions and make sure that you've got all the relevant parts listed on the following
pages.

A
B
C
D
E
F x2
G
H
K x4
L
I
J
Dawson Ottoman Sound Bed - Assembly guide - Page 5
HEADEND
FOOTEND
FABRIC HAND
STRAP
Parts
Important information
The bed you have purchased comes with an Ottoman lift up base, please follow the instructions
below in the current order. Before you begin building your bed, please take a moment to read
through the instructions and make sure that you've got all the relevant parts listed on the
following pages.
Stereo Sound System
The Dawson Sound Bed is fitted with a 2.0 stereo speaker system mounted in the headboard.
With the hardware kit packed in Carton 2, one shall find the Transformer power lead in a box
labeled (L) ; this is the part number of the item. Please retrieve this and put on one side.
The electrical connection should be done last so assemble the bed and then follow Stage 14.
0 1 2 3 4 5 6 7 8 9 1010 11 12 13 14 15 16 17 18cm
1
1
1
1
1
2
A. Headboard
B. Footboard
C. Side rail - left
D. Side rail - right
E.
Slat frame support rail
F.Angled corner brackets
1
1
1
BoxQtyCode Description BoxQtyCode Description
3
2
2
3
3
3
3
3
3
3
3
1
2
4
Parts list
H.
Transformer Power Lead - 2mt
I.
Mattress stopper
J.
Cross bar
K.
G.
1
Metal Slat Frame
L.
M.
N.
P.
Storage base boards
Base board support rails (wood)
Ottoman support bar PACK (O.S.B.)
3
3
3
1
1
Ottoman support bar
Fixed retaining bracket - side rail
Parking bracket - slat-frame 1
M
N
P

Cross head screwdriverTape measure
Tools required
Dawson Ottoman Sound Bed - Assembly guide - Page 6
Hardware needed for fitting metal slat frame,
Packed in side rail pack 3 - hardware pack (E)
i x2
e x6 g x6
h x2
Flanged lock-nuts (M8)
for gas-lift pistons
Nut for M8 bolts
Metal Connection Plates
Spring washer for M8 bolts
j x8
Flat washer for M8 bolts
b x12 c x20
Bolts (M8x50mm) for
fitting metal slat frame
(E) to gas-lift mechanisms &
fitting slat frame support rail
(I) to footboard (B)
Bolts (M8x20mm) for
fitting metal connection plates
(h) and cross bar (G) to metal
slat frame (E)
f x1
Spanner for M8 nuts
Spring washer for M8 bolts Flat washer for M8 bolts
b x20 c x20a x20
Bolts (M8x30mm) for fitting
side rails (C&D) to headboard
& footboard (A&B)
d x1
Allen Key for M8 bolts
Fittings
Please check you have all the parts listed below with your product:
Hardware needed for fixing wings to headboard and assembling the bed
Packed in headboard pack 3 - hardware pack (A)
m x5
b x5 c x5
Bolts (M8x25mm) for fitting
ottoman support bar
Flat washer for M8 bolts
M x1
P x1
N x1
Spring washer for M8 bolts
Hardware needed for fixing ottoman support bar (O.S.B) to the slat frame
Packed in the side rail carton, inside Pack 2 - hardware pack ( C)
Ottoman Support Bar
Fixed retaining bracket
- side rail Parking bracket - slat frame

A
B
Dawson Ottoman Sound Bed - Assembly guide - Page 7
a
x8
b
x8
c
x8
10mm
a
c
b
b x4
a x4
c
x4
b x4
a x4
c x4
A
B
C
D
a
x4
b
x4
c
x4
d
x1
a
cb
d
A
B
C
&
D
90%
90%
d
1 Prepare the bed for assembly - use pack 'A'
2Fit the side rails (C & D).

B
B
Dawson Ottoman Sound Bed - Assembly guide - Page 8
a
x8
b
x8
c
x8
d
x1
a x4
c x4
b x4
D
90%
d
x1
K
100%
Make certain the
bed is squared up
as shown in the
diagram then
tighten all bed
assembly bolts
100%.
3Fit the two angled corner brackets (F).
C
F
4Fit the base board support rails (K).
K x4

Dawson Ottoman Sound Bed - Assembly guide - Page 9
5
6
J
J
Carefully fit the storage base boards (J).
c
x8
d
x1
j
x2
c x2
j x2
I
Fit slat frame support rail (I) to
footboard using two bolts (j) & flat
washers (c).
Using Allen Key (d) tighten 100%.
Fit the slat frame support rail (I)

Dawson Ottoman Sound Bed - Assembly guide - Page 10
7
g
b
c
g
b
c
h
i)
ii)
iii)
c
dx1
x6
g
x2
h
Fitting position for cross bar (G) is clearly
labeled. Pass bar through metal slat frame
between first & second slat. Carefully open
the frame.
F
I
T
C
R
O
S
S
B
A
R
H
E
R
E
bx6
Ease the upper fixing plates on the
cross bar onto top of the slat frame
side tubes. Through the plates into the
threaded inserts, loosely fit using two
sets of bolts (g, b & c).
Making sure the frame is flat then
using Allen key (d) tighten all six
bolts 100%.
x6
E
G
G
Using four bolt sets (g, b & c) fit the
two metal connection plates (h)
screwing into the threaded inserts on
top of the frame.
Do not tighten any bolts yet.

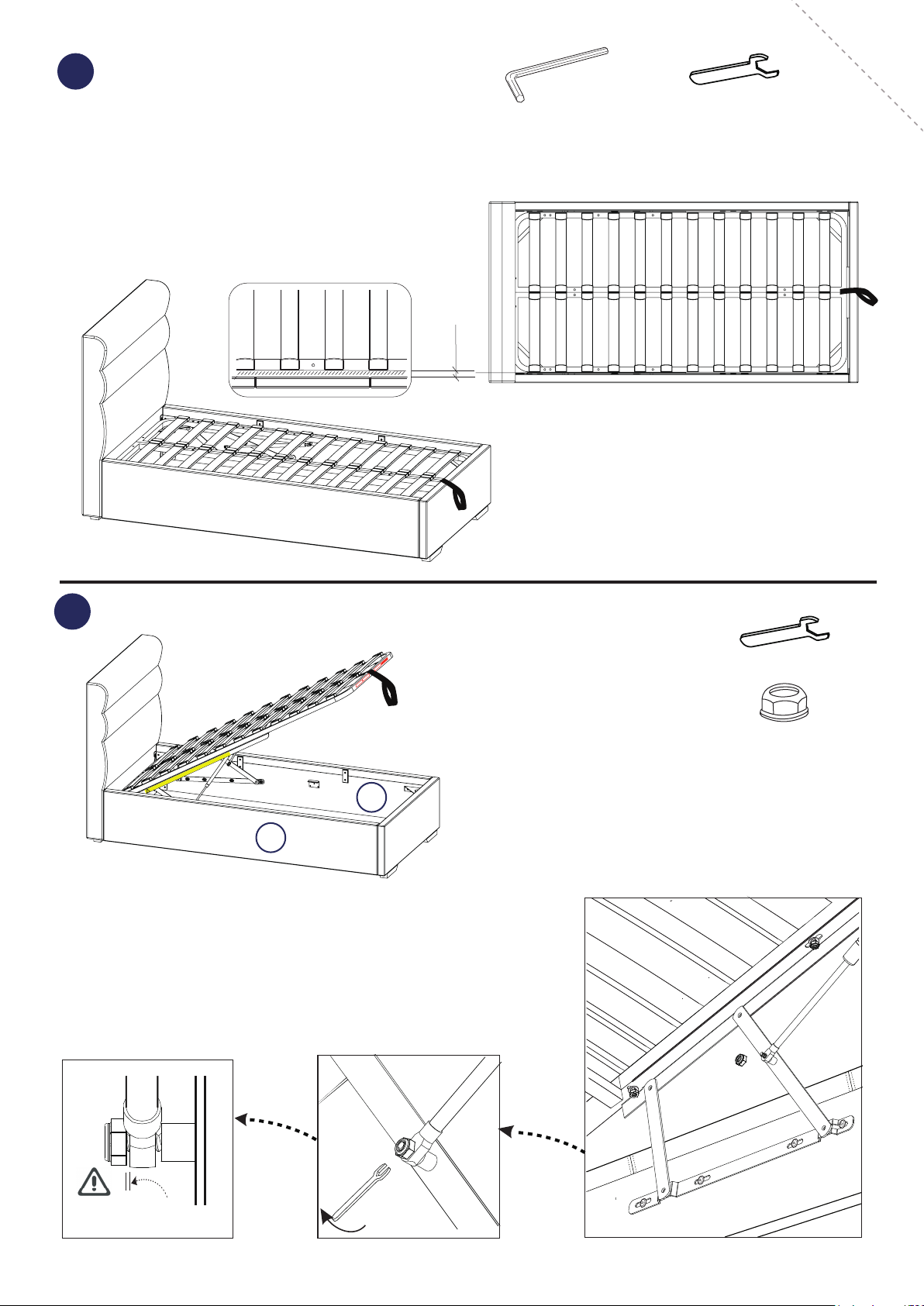

Prepare the metal slat frame (E).

Dawson Ottoman Sound Bed - Assembly guide - Page 11
8
ii)
i) Un-tie the hinge mechanism,
and take out the transit block.
Hold bars forward
Slat Frame Support Bar
c
x12
j
x6
b
x6
f
x1
e
x6
d
x1
iii) With help from an assistant, lift slat frame
(E) onto slat frame support bars aligning first
set of holes on slat frame with first set of holes
in the support bars (nearest to headboard).
iv) Using three bolt sets on each side
(j, c, c, b & nut e) loosely fix the slat frame to
the support bars.
Do not tighten fully yet.
C D
&
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
Fit the metal slat-frame.
Bolt into the centre of long holes
j
c
cb
e
f
d
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!

8mm
Dawson Ottoman Sound Bed - Assembly guide - Page 12
10
Carefully lay frame down making sure there
is an even gap all round as in the sketch.
Hold frame securely then tighten all six bolt
sets 100% using spanner (f) & allen key (d).
f
x1
d
x1
SMALL GAP
f
i
(X)
(Y)
i
9
f
x1
i
x2
During this next step, the assistant should hold up the slat
frame. On side rails (C&D) slide gas-lift piston stems (X)
onto the axles (Y) then fit the flanged lock-nuts (i).
Tighten nuts with spanner (f) - but do not over-tighten.
A small gap is needed so stems can move freely - this is
important - see sketch below left.
D
WARNING!HA ZARD - DO NOT REACH INTO THE SPACE BELOW!
Fit the gas-lift piston stems to the lower axles.
Align the slat frame.
C

Dawson Ottoman Sound Bed - Assembly guide - Page 13
11 Fit the mattress stopper (H).
12
c
m
b
c
m
b
N
P
M
c
m
b
b
x5
c
x5
d
x1
m
x5
The bolts should be in the centre of the
long holes and one may need to slide
the inner bar and the bracket, up or
down so the bottom of the O.S.B stem
just touches the surface - better to do
this AFTER the mattress is fitted.
90%
ii)
i)
iii)
100%
100%
To underneath of the slat frame, fit the parking
bracket (P). This is used to safely keep the
support bar out of the way when not in use. Use
one bolt set (m, b & c) - please make sure the
bracket is fitted the correct way round as
shown. Screw into the threaded insert on the
underside of the frame.
To underneath of the slat frame, fit
the O.S.B. support bar (M) as shown.
Using two bolt sets (m, b & c), screw
the bolts into into the threaded inserts
on the underside of the frame.
Please do tighten 100% yet.
Fit the fixed retaining bracket (N)
to the side rail using two bolt sets
(m, b, & c). Screw the bolts into
the threaded inserts on the side
rail. Make certain the bracket is
level and at the correct height.
Please do not tighten 100% yet.
Unpack the contents of the Ottoman Support Bar
(O.S.B.) from it's carton - this is packed inside Pack 3.
iv)
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
Push the mattress
stopper (H) into the end
of the metal slat frame,
the legs should go all the
way through the upper &
lower metal sections.

Dawson Ottoman Sound Bed - Assembly guide - Page 13
10
100%
Parking position
Setting the inner stem of the support bar (M),
adjust the inner stem to the correct length.
Set the inner stem to the correct length so the end just touches
the retaining bracket - it needs to touch to hold it in position.
Adjust the retaining bracket (N) so
the stem end scrapes the surface.
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!

Electrical Connection for Stereo System
Connect power supply plug
(L) to your wall socket..
For safety, this must be an
earthed supply.
Note that the power supply to the 2.0 stereo system is a
maximum of 5 Volts - for safety, only use the power supply
supplied with the bed.
Connect the LV connector on the power lead (L) to the
connector (X) underneath the headboard.
Make certain the jack-plug is firmly pushed all the way into
the socket. Switch on the power and the system will be live.
Make certain the volume on your device is set mid-way then
search using the Bluetooth function.
Search for " MY BT " and once a connection is made, operate
using the controls on your smart device.
As your device connects one should hear a voice saying
'pairing' if this is the first time connected or 'paired' if
connected before.
X
Trouble shooting
If you do not hear the voice -
check all the power connections.
Note that there are no controls in
the sound system itself and there
are no user serviceable parts.
In the event of a problem, please
contact Customer Services for
help or advice call; 0800 652 6750.
(For customers based in Northern
Ireland, please call 028 9050 8300)
Connector for the power lead is
on the bottom of the headboard.
Dawson Ottoman Sound Bed - Assembly guide - Page 15
14
L

Dawson Ottoman Sound Bed - Care and maintenance guide - Page 16
Care and maintenance
Here are some tips to keep your new bed in tip-top condition
Cleaning
To clean your new bed, we'd advise using a warm damp cloth or if fabric, remove
dust using a low suction vacuum cleaner.
Please do not use abrasive chemicals or bleach as this may damage the product.
Checking and moving
Periodically we recommend you check that the screws or fixtures haven't become
loose over time. To move your new bed, we recommend lifting it where possible, as
dragging or pushing it could cause damage to the legs or flooring.
Wood
Please note each of our wooden pieces are unique, meaning that markings and
shade can vary slightly between beds. Over a period of time, the wood might
lighten or fade slightly due to light exposure.
Fabric
Please note depending on the lighting, positioning and surroundings of your
period of time, the colour might lighten or fade slightly due to light exposure.
Metal
Metal tends to be more resilient to everyday wear and tear. We recommend to
gently dust your metal furniture and keep it dry to maintain its look.
Thank you for shopping with us - we hope you have a
great night's sleep.
L
W
H
5
15
5
37.5
3.5
Overall Dimensions (LWH cm)
211.5 x 104 x 113
Internal Dimensions (LWH cm)
193 x 92 x 24.5
Distance between slats (cm)
9
Ottoman Piston Rating
600N
Slat Dimensions (LWH cm)
45 x 5.3 x 0.9
34
Floor to top
of slat
3.5
Top of slat to
top of side rail
Technical Specifications

Little dreamers
Keep the little ones entertained while
you assemble your new purchase.
