DREAMS Jay User manual

Bed Bed Size Min Weight (kg) Max Weight (kg)
Double 20 50
King
Super King
20
20
50
50
IMPORTANT OTTOMAN SAFETY WARNINGS
IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE
You must ensure that the mattress is on the bed frame before operating the
lift mechanism – Failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access
the storage area.
Always ensure that the ottoman is FULLY opened before accessing the
storage area.
Do not exceed the maximum weight as specified in the table below:
Jay
Metal Slat Frame
Two person
assembly
1.5 hour approx
assembly time
Jay Ottoman Bed
MK1 230327
with O.S.B.
WARNING!HAZARD - DO NOT REACH INTO THE SPACE BELOW!

Don’t lift without mattress Ensure mattress is on before lifting
•Use caution when operating, always use the handle when lifting.
•Note: This bed uses a pressurised mechanism.
•To be operated by adults only.
•Please ensure that children and pets are kept away from the bed when
operating the lift mechanism.
•Keep children and pets away from the storage area.
•Do not overload the internal storage base.
•Do not stand inside the internal storage area of the bed.
•Before removing the mattress secure the frame to ensure it does not open
unexpectedly.
•Do not attempt to lie on the mattress when the ottoman is in the raised
position.
•When lifting the ottoman, remove all bedding except the fitted sheet.
IMPORTANT OTTOMAN SAFETY WARNINGS Cont.
WARNING!HAZARD- DO NOT REACH INTO THE SPACEBELOW!
WARNING!HAZARD- DO NOT REACH INTO THE SPACEBELOW!
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
SAFETY WARNING
PLEASE DO NOT ALLOW CHILDREN
OR PETS INSIDE THE STORAGE AREA.
SAFETY WARNING
PLEASE BE CAREFUL WHEN LIFTING.
ONLY LIFT WITH MATTRESS ON TOP.
TO BE OPERATED BY ADULTS ONLY.
WARNING: ONLY USE THE HANDLE TO LIFT &
LOWER THE BED FRAME TO
AVOID TRAPPING FINGERS!
TO AVOID ACCIDENTS
TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME
MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS
Note: Be very careful what you
store under the bed -the top of
an item, like a suitcase or a box
must not touch the slats or they
may be damaged. Maximum
storage height is 315mm .
WARNING!HAZARD - DO N OT REACH INTO THE SPACE BELOW!
Jay Ottoman Bed - Assembly guide - Page 2

Read all the instructions before using your Ottoman bed-frame and save the instruction booklet for future reference.
Ottoman Support Bar (O.S.B.)
For optimal safety during operation, always ensure the O.S.B. is engaged when accessing the
ottoman storage area.
Ottoman Beds - Important Safety Features
1 . Always raise the ottoman slat-frame to it's highest position before using the storage area.
Locate the end of the O.S.B and insert into the fixed retaining bracket on the bed frame.
2 . When you are ready to lower the ottoman platform, return the O.S.B to its original parking position.
3 . Always ensure that the O.S.B is in position when the ottoman is open, this prevents injury, or
damage to the product.
Location of the O.S.B
End-lift
:
O.S.B is on
the left
side of
the bed.
Side-lift: O.S.B is on either
the left side or right side of
the footend.
WARNING! Risk of Entrapment
oThe pistons on the ottoman bed frame can support a maximum load (evenly spread) as indicated in
the Minimum and Maximum load table, shown on Page 1 in this Assembly Instruction.
oOverloading the sleeping platform may contribute to damage to the product resulting in potential
serious injury.
oDo not sit on the mattress whilst the platform is in motion or is in the raised position.
oUsers should only get in and out of bed when platform is in the flat (horizontal) position.
WARNING! HAZARD-DO NOT REACH INTO THE SPACE BELOW!
!
your comfort and safety. Please take time to look at these instruction as they will help remind you how to
operate your ottoman bed safely.
Here’s a few things you need to remember;
Pistons are already assembled in their correct orientation – this improves piston performance and
durability.
“Break in ” the piston seals on first use by raising & lowering the platform at least five times.
Recommended mattress weights - do not exceed the maximum relevant weight specified on the
Assembly Instruction.
Ottoman support bar – always engage the support bar when accessing the ottoman storage area.
Jay Ottoman Bed - Assembly guide - Page 3
L.
R.

Jay Ottoman Bed - Assembly guide - Page 4
Assembly tips
Before you begin, it’s best to identify all parts and fittings to build your bed.
We advise laying these out on the floor to check you have everything, and
familiarising yourself before building.
Help and support
At Dreams, it’s our mission to give the whole nation a great night’s sleep - this
means that the quality of our products is of utmost importance to us. If there
are any issues with your product or any missing parts, please contact our Help
Centre on 0800 652 6750, where a member of our team will be happy to help.
(For customers based in Northern Ireland, please call 028 9050 8300)
Safety and care
It’s really important to ensure children and animals are kept away from the
assembly area, as there are small components used in this bed which could
present a choking hazard. All plastic and wrapping materials should also be
To keep your little ones busy, there is a colouring page inside the back cover.
Recycling
Please ensure that packaging is disposed of in a safe and environmentally
friendly way, and recycle where possible. Our assembly instructions are
printed on recycled paper. Please keep your assembly instructions safe
to refer back to in the future.
We recommend that you build your new bed in the room you’d like it to be
located - this will help prevent any risk of damage to your newly built bed
whilst moving it.
Top tip
Thank You
Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you
your best ever night’s sleep. Before you begin building your bed, please take a moment to read
through the instructions and make sure that you've got all the relevant parts listed on the following
pages.

Jay Ottoman Bed - Assembly guide - Page 5
1
1
1
1
1/2
A. Headboard
B.
C.
D.
E.
F. 2
1
1
1
4
2
2
2
4
2
1
2
2
G.
H.
M. 1
3A
3A
1 3A
3A
1 3A
I. Met al Slat Frame
Double or King Size
ytQ xoBCode Description ytQ xoBCode Description
Parts list
Footboard
Side Rail - Left
Side Rail - Right
Support Brackets
Double & King/Super King
Angled Corner Brackets
Side Rail Cross Bar
Fabric Base Cover
J. Gas Lift Piston for Slat Frame
K. Mattress Stopper
L. Cross Bar
2
2
2
1
1
Metal Slat Frame
Only for Super King Size
Ottoman support bar PACK (O.S.B.)
Ottoman support bar
Fixed retaining bracket - side rail
Parking bracket - slat-frame
O.
P.
Q. 1
A
B
C
D
E
F
F
I
H
K
J
J
LGH
M
O
PQ
Parts
Important information
The bed you have purchased comes with an Ottoman lift up base, please follow the instructions below
in the current order. Before you begin building your bed, please take a moment to read through the
instructions and make sure that you've got all the relevant parts listed on the following pages.
0 1 2 3 4 5 6 7 8 9 1010 11 12 13 14 15 16 17 18cm

Jay Ottoman Bed - Assembly guide - Page 6
Spring Washer for M8 bolt
a
Flat Washer for M8 bolt
Spring Washer for M8 bolt Flat Washer for M8 bolt
b c
d x1
h x4 i x6 j x1
Allen Key for M8 bolt
Flanged lock-nuts M8
for gas-lift pistons Nuts for M8 bolts Spanner for M8 nut
g x2
Metal Connection Plates
Bolts (M8x30mm)
Fitting side rails (C&D) to
headboard & footboard (A&B)
e x6
b x12 c x18
Bolts (M8x50mm)
Fitting metal slat frame (I or M)
to gas-lift mechanisms
e
Bolts (M8x50mm) fitting
support block (p) to
side rail cross bar (G)
Cross head screwdriverTape measure
Tools required
m x5
b x5 c x5
Bolts (M8x25mm) for fitting
ottoman support bar
Flat washer for M8 bolts
O x1
Q x1
P x1
Spring washer for M8 bolts
Hardware needed for fixing ottoman support bar (O.S.B) to the slat frame
packed in the side rail carton, inside Pack 2 - hardware pack (C )
Ottoman Support Bar
Fixed retaining bracket
- side rail Parking bracket - slat frame
Double & King x28
Super King x30
Double & King x26
Double & King x1
Super King x2
Double & King x1
Super King x2
Double & King x29
Super King x32
f x6
Bolts (M8x20mm) for
fitting metal connection plates
(g) and cross bar (L) to metal
slat frame (I or M)
p
Support block
for side rail
cross bar (G).
Fittings

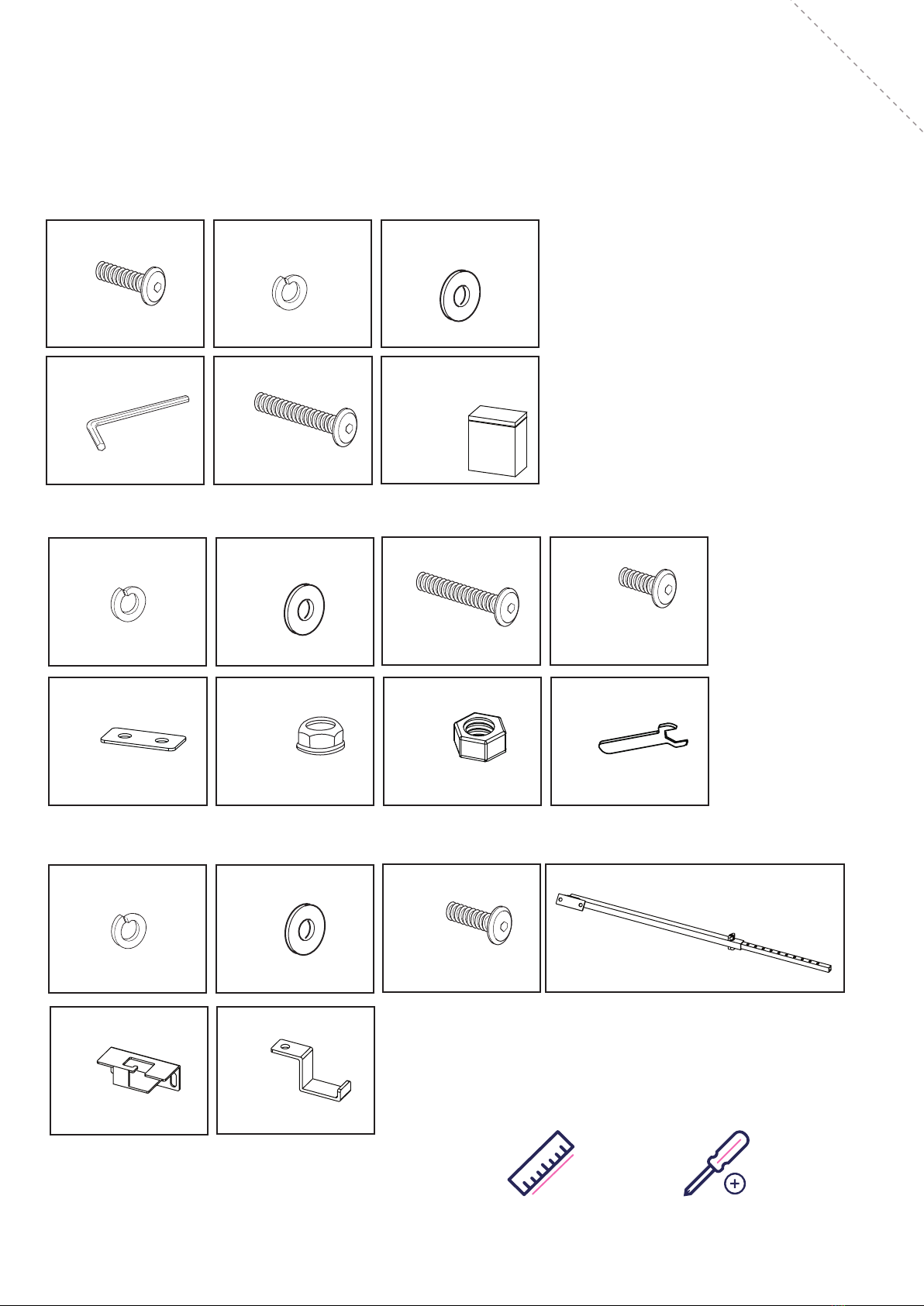

Please check you have all the fittings listed below with your product:
Hardware needed for fixing side rails to headboard & footboard
Packed in side rail carton, inside Pack 2 - hardware pack (A)
Hardware needed for fixing metal slat frame
Packed in ottoman carton, inside Pack 3A - hardware pack (B)

Jay Ottoman Bed - Assembly guide - Page 7
a
x6
b
x6
c
x6
d
x1
a
x1
Double & King
Super King x2
2
Prepare headboard & footboard for assembly.
b
x8
x1
1
10mm
a
c
b
E
B
B
A
A
a x2
c x2
x10
x12
Double & King
Super King
x10
x12
Double & King
Super King
d
c
10mm
a
c
b
Fit both side rails to headboard & footboard, tighten all bolts 90%.
90%
a
cb
d
A
C
&
D
A
B
C
DB
a
cb
d
C
&
D
90%

Jay Ottoman Bed - Assembly guide - Page 8
a
x8
b
x8 c
x8
d
x1
3Fit the angled corner brackets and tighten all bolt sets 90%.
a
c
d
b
F
C
D
&B
Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.
4
Slat Frame Support Bar
h
j
hx2
jx1

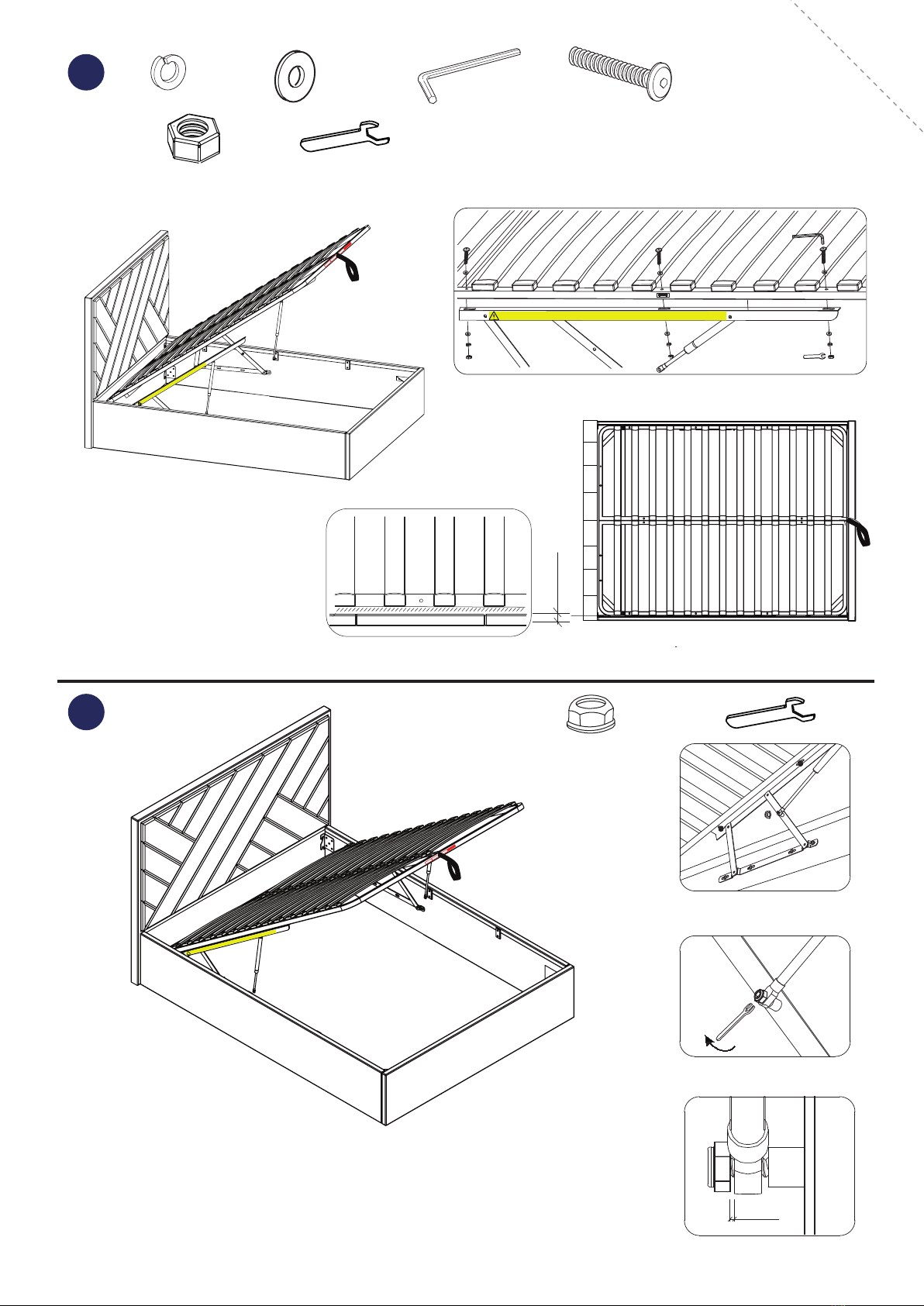

WARNING!HA ZARD - DO N OT REACH INTO THE SPACE BELOW!
