DTS XM 1200 SPOT User manual

XM 1200 SPOTXM 1200 SPOT
GB
User Manual Rel 1.1

Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia
non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo
documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso
scritto della DTS .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di
design a ciascun proprio prodotto. DTS non assume alcuna responsabilità sull'uso o sull'applicazione dei
prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be copied,
photocopied or reproduced, in part or completely, without prior written consent from DTS.
DTS reserves the right to make any aesthetic, functional or design modifications to any of its products
without prior notice. DTS assumes no responsibility for the use or application of the products or circuits
described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou partiellement,
sans le consentement préalable de DTS.
DTS se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles ou de
design, sans préavis, à chacun de ses produits. DTS décline toute responsabilité sur l'utilisation ou sur
l'application des produits ou des circuits décrits.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y controladas.
Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes. Todos los derechos han
sido reservados y este documento no puede ser copiado, fotocopiado o reproducido, total o
parcialmente, sin previa autorizaciónescrita de DTS.
DTS se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter estético,
funcional o de diseño a cada producto suyo. DTS no se asume responsabilidad de ningún tipo sobre la
utilización o sobre la aplicació
n de los productos o de los circuitos descritos.
ARC 1200
XM 1200 SPOT
2

INDEX:
1- TECHNICAL FEATURES 4
2- IMPORTANT SAFETY INFORMATION 5
2.1 Fire prevention
2.2 Prevention of electric shock
2.3 Protection against ultraviolet radiation
2.4 Safety
2.5 Level of protection against the penetration of solid and liquid matter
3- MOUNTING THE LAMPS 6
3.1 Lamp alignment
4- VOLTAGE AND FREQUENCY 7
5- INSTALLATION 7
5.1 Safety chain
5.2 Protection against liquids
5.3 Movement
5.4 Risk of fire
5.5 Forced ventilation
5.6 Ambient temperature
6- MAINS CONNECTION 8
6.1 Protection
7- DMX SIGNAL CONNECTION 8
7.1 DMX Addresses
7.2 Selecting the DMX address

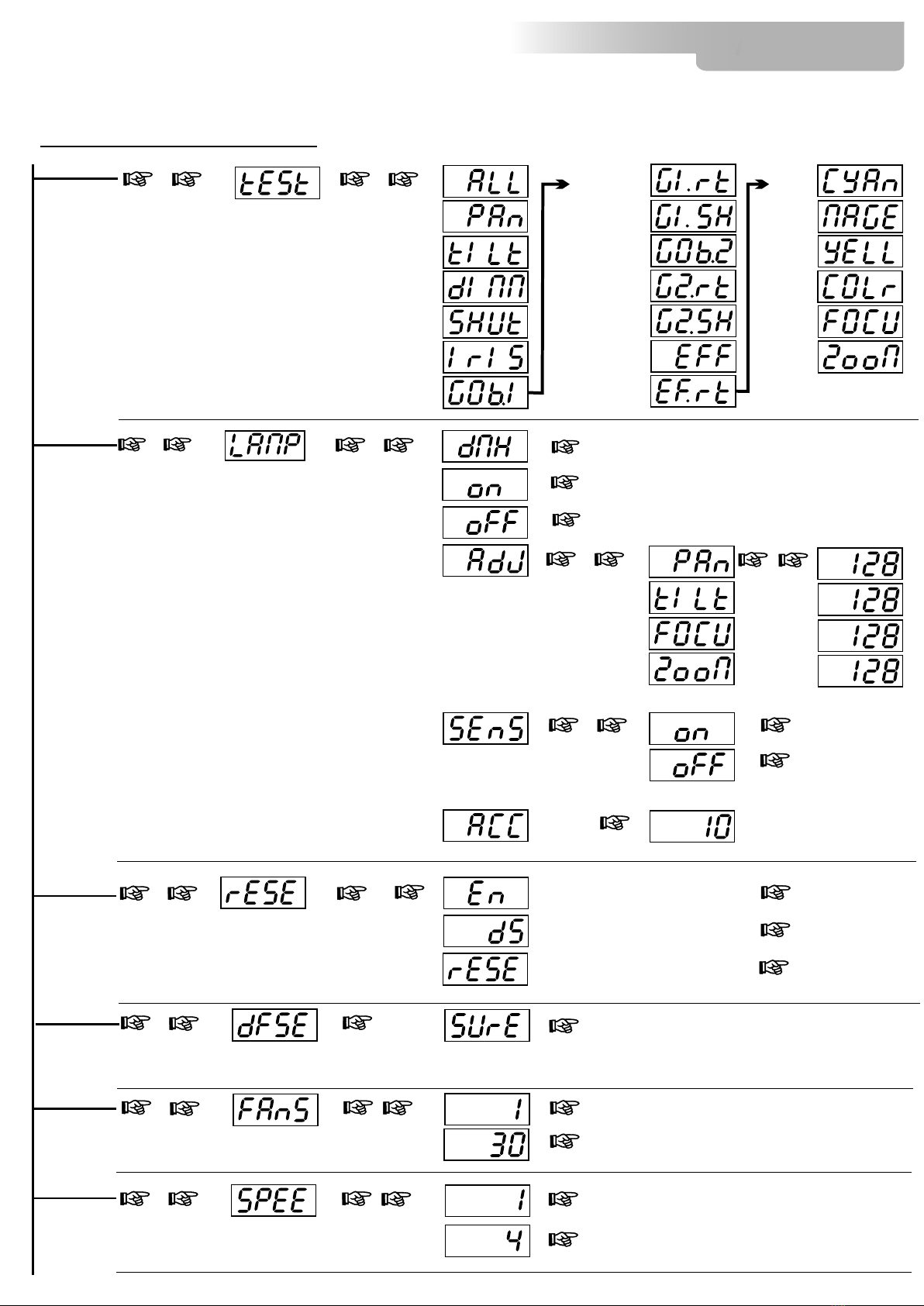

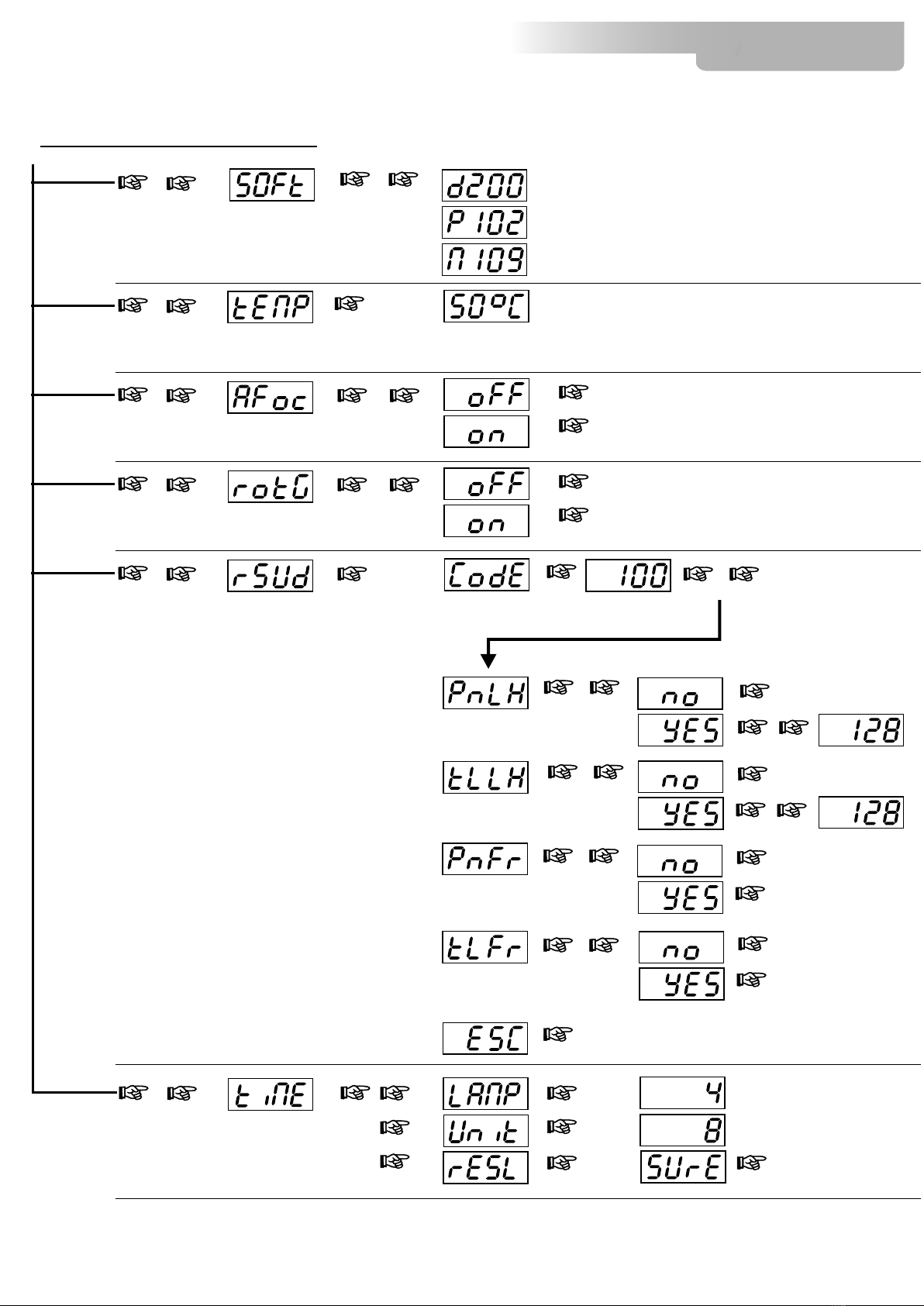

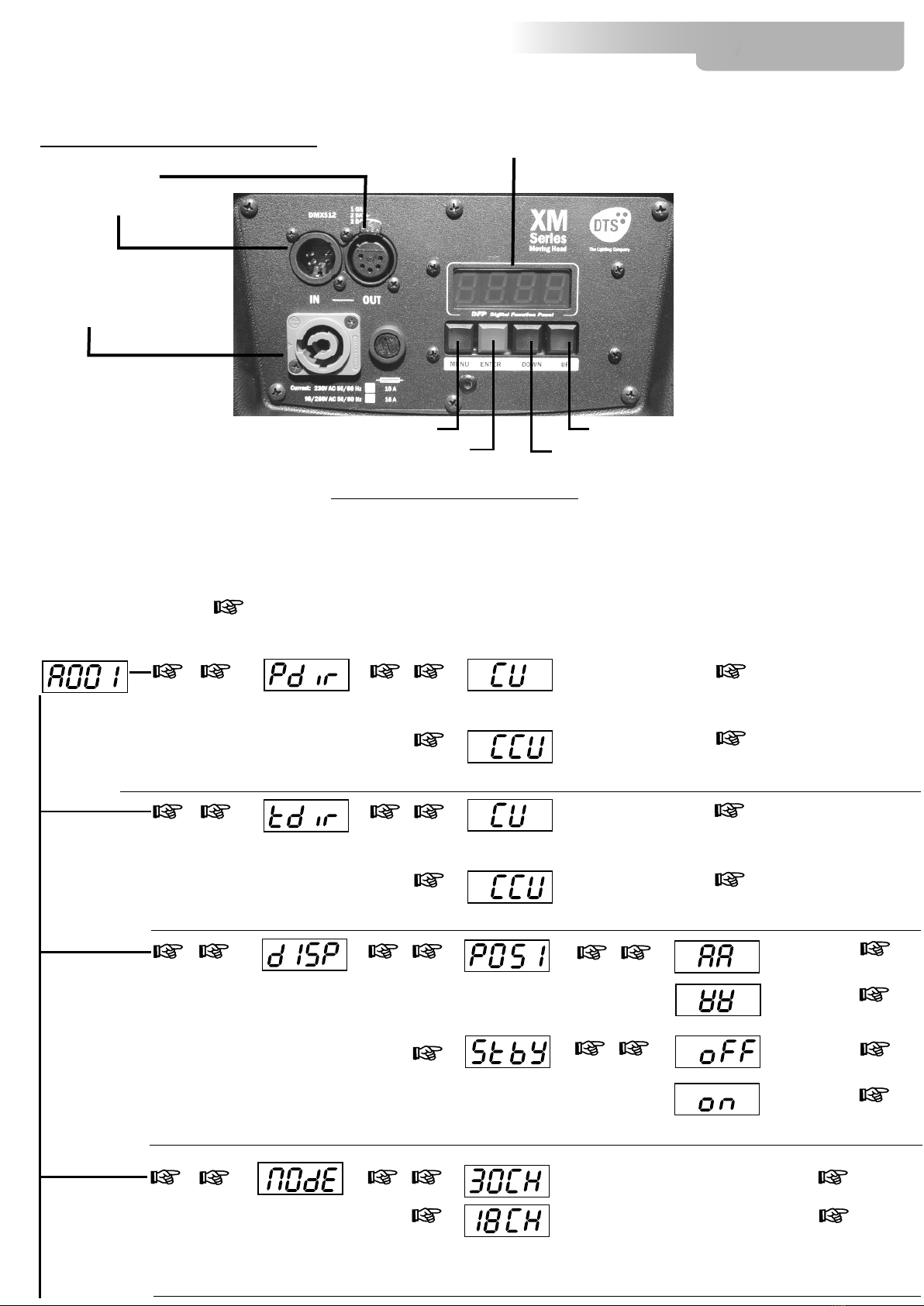

8- DISPLAY FUNCTIONS 11

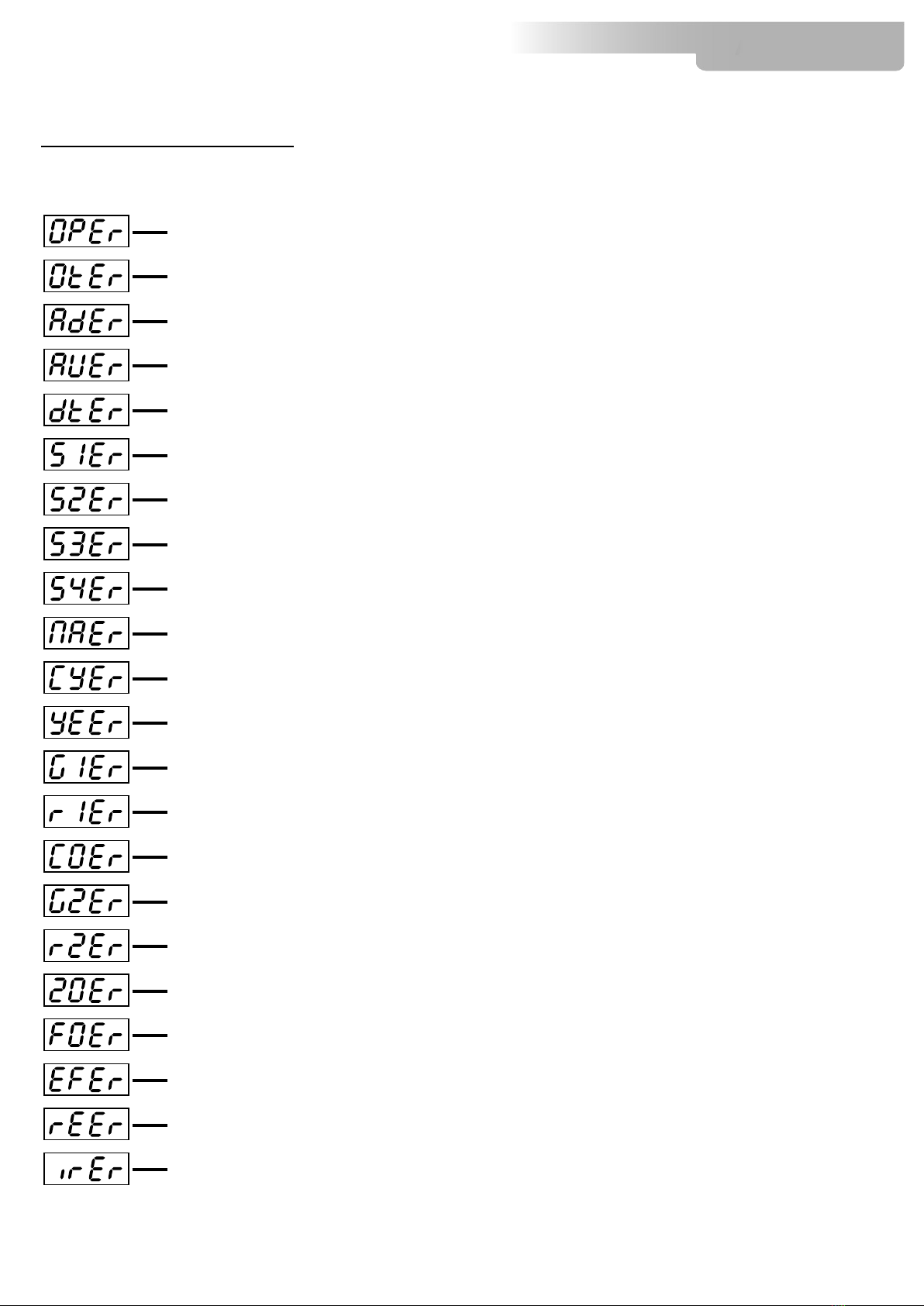

9- ERROR MESSAGES 14

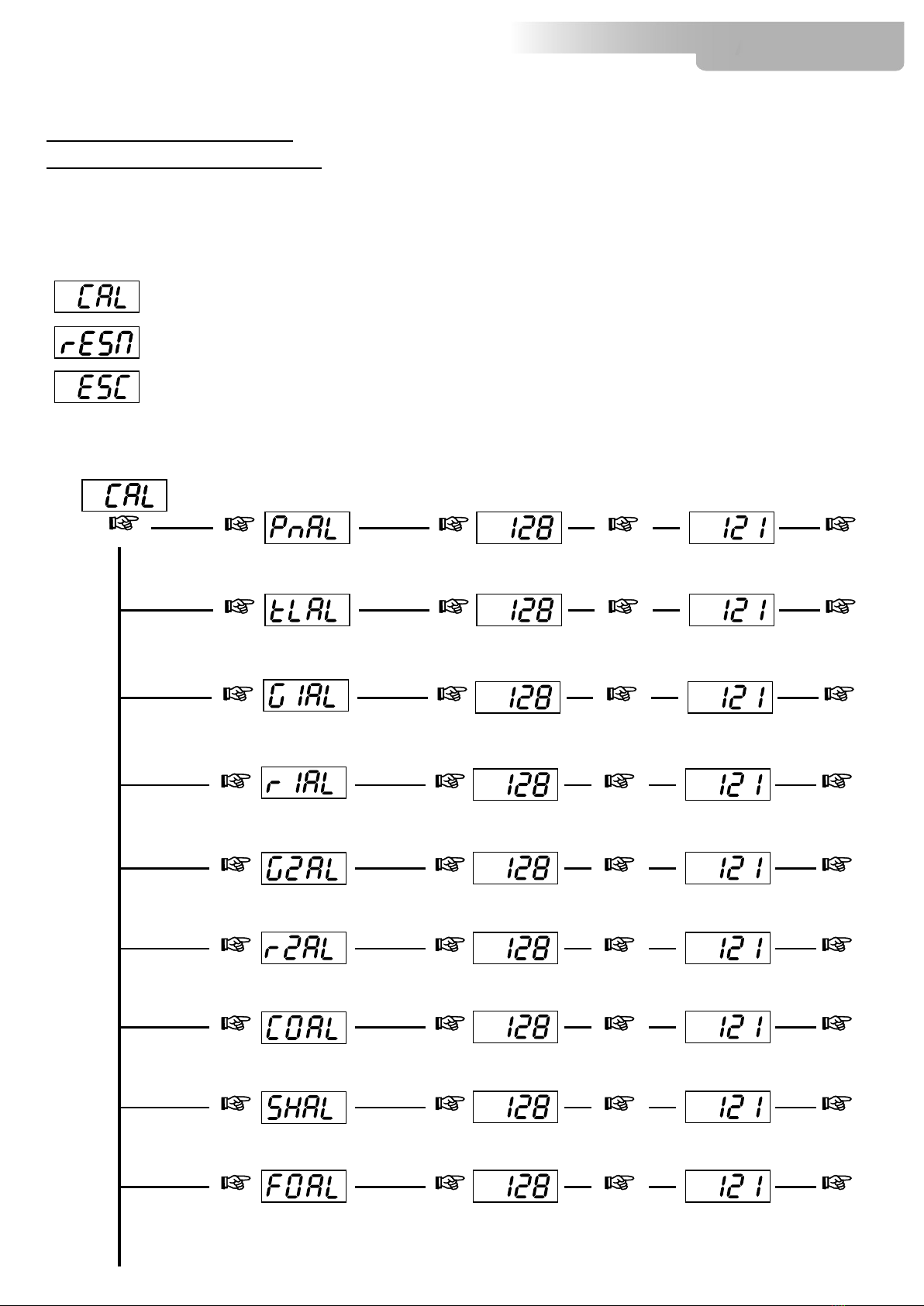

10- HIDDEN MENU 15

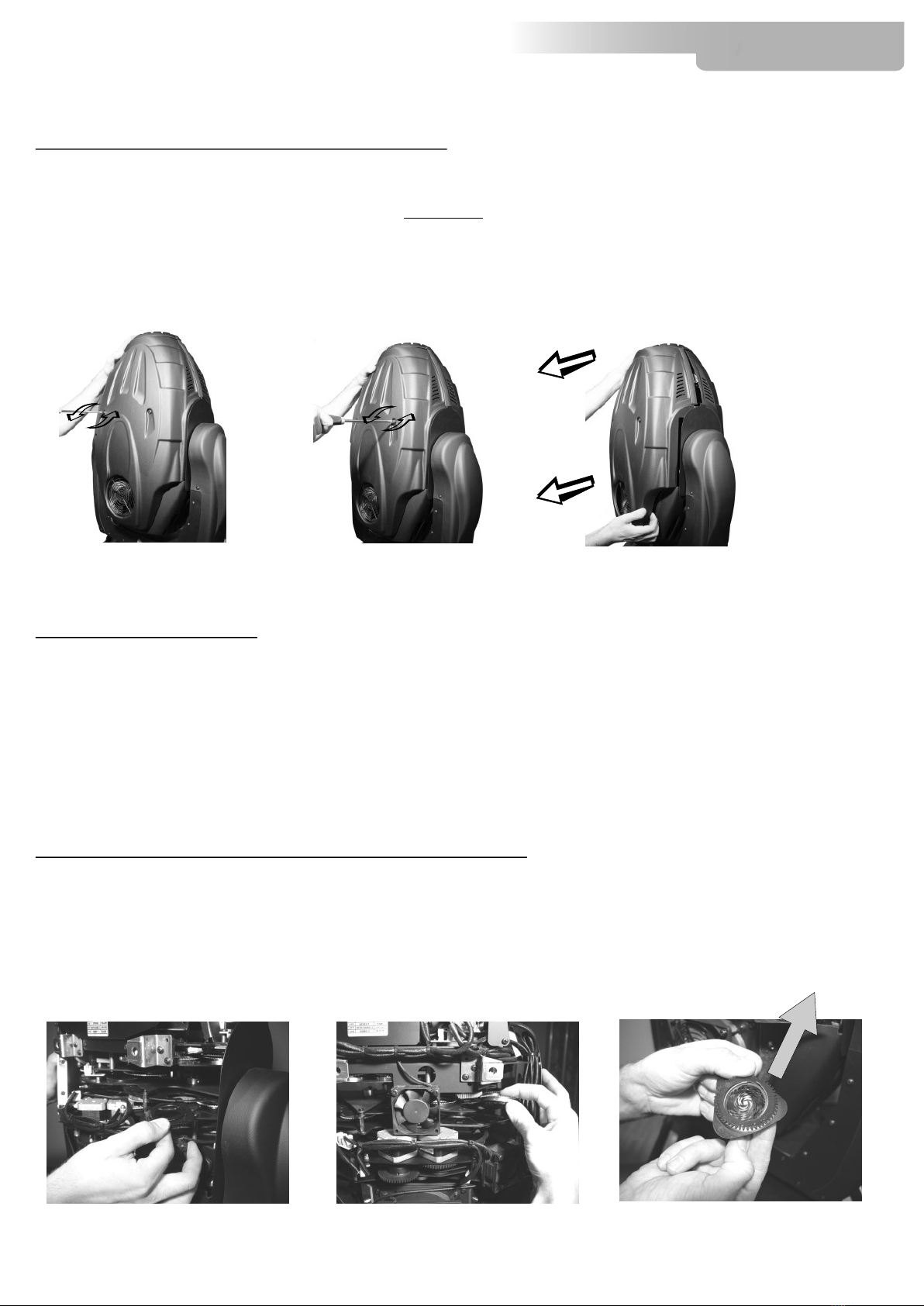

11- OPENING UP THE PROJECTOR HOUSING 17
12- REPLACING GOBOS
13- PERIODIC CLEANING 18
13.1 Lenses and reflectors
13.2 Fans and air passages
13.3 Periodic controls

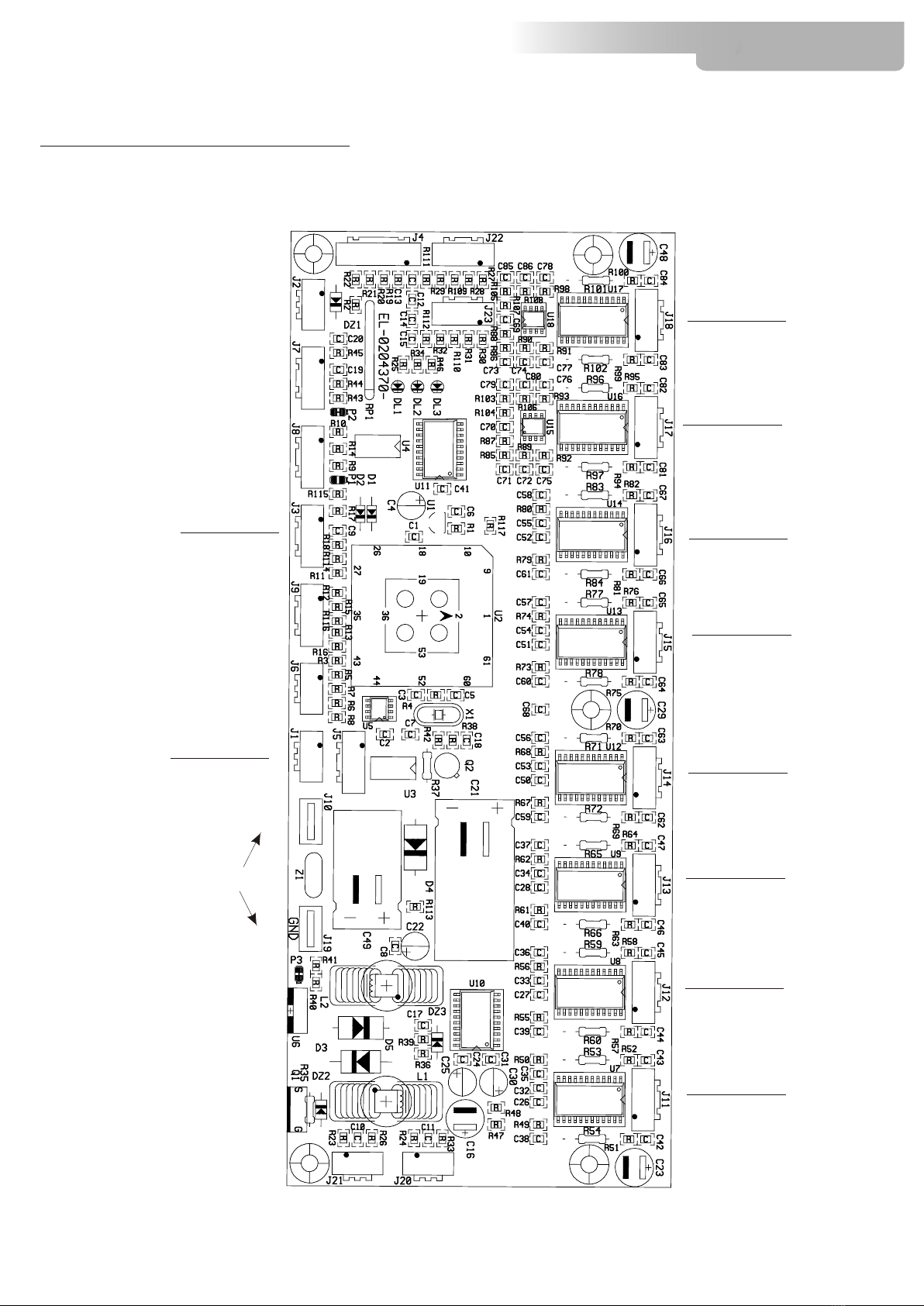

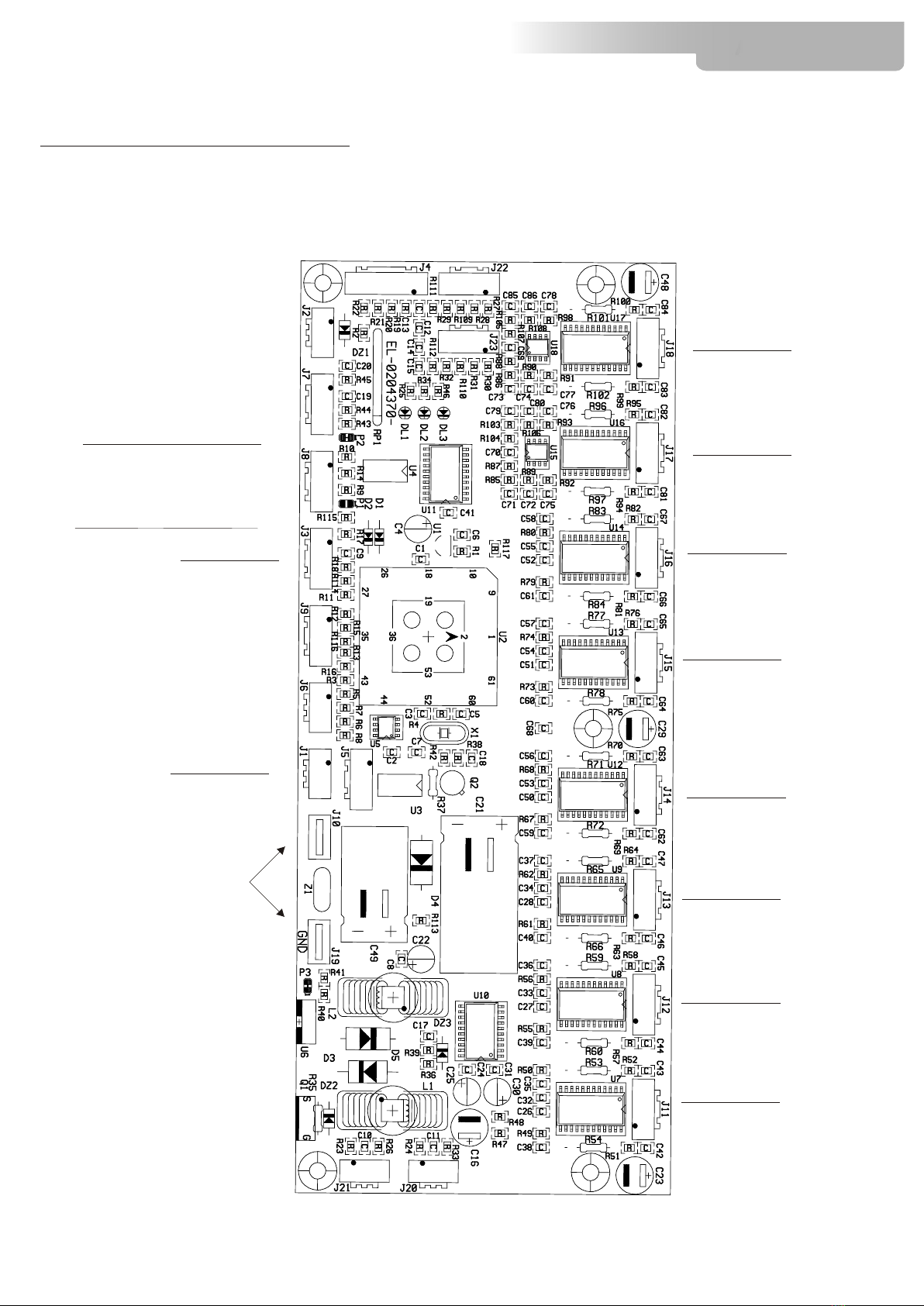

14- CONTROL MOTORS CARD 19
15- DISPLAY CARD 21
16-PAN & TILT CARD
17- LAMP ON-OFF CONTROL CARD
18-CABLES RESEND CARD
19- DMX PROTOCOL 22
ARC 1200
XM 1200 SPOT
3

ARC 1200
XM 1200 SPOT
4
1- TECHNICAL FEATURES
The XM 1200 Spot is fitted with a Philips MSR 1200/SA discharge lamp
(GY22 lampholder base), with a colour temperature of 5,600 °K and a luminous flux of
96,000 Lumens.
Duration is 750 hours, with replacement recommended before 1000 hours
Other recommended lamps: Osram HTI 1200W/SE PP; GE Lighting CSR1200W SA
The unit incorporates:
Motorized Focus system
13°-31° motorized Zoom with auto-focus
Dimmer (emitted light is controlled by progressive and linear dimming).
Shutter (instantaneous shutter opening/closure)
Strobe: mechanical strobe effect (frequency variable from 0.86 flashes/sec to 6.6
flashes/sec).
Motorized iris
2 gobo wheels (6 indexable 16 bit gobos + open each)
CMY linear colour mixing system
Colour wheel (7 colours + open)
3 rotating prisms
Frost
Electronic or magnetic ballast
Pan: 540° in 5.6 seconds (8 or 16 bit) with auto repositioning system
Tilt: 270° in 4.3 seconds (8 or 16 bit) with auto repositioning system
USITT Standard DMX 512 input
4 -eight digit- LED display with 4 buttons
Power Supply: 190-245 V (50/60 Hz).
Power consumption: 1300 W.
Energy saving function is automatic when the fixture is blacked out.
The XM 1200 Spot is also available with a magnetic ballast, with selectable power supply
(220/230/240 V). Power consumption is 1300 W.
Remote Lamp on/off via DMX
Net weight: 44 Kg (with electronic ballast); 54 Kg (with magnetic ballast).
Packaging Dimensions (LxWxH)
890x600x510mm
Weight: 54 Kg (with electronic ballast)
64 Kg with magnetic ballast

530 mm
610 mm
0
70 mm
410 mm
870 mm
500 mm

2- IMPORTANT SAFETY INFORMATION
2.1 Fire prevention:
-XM1200 fit a Philips 1200W MSR/SA.
-Other recommended lamps are: Osram HTI 1200W/SE PP; GE Lighting CSR1200W SA
The use of any other alternative lamp is not recommended and will null and void the fixture's warranty.
-Never locate the fixture on any flammable surface.
-Minimum distance from flammable materials: 1 m.
-Minimum distance from the closest illuminable surface: 1 m.
-Replace any blown or damaged fuses only with those of identical value. Refer to the wiring diagram if
there is any doubt.
-Connect the projector to mains power via a thermal magnetic circuit breaker.
2.2 Prevention of electric shock:
-High voltage is present inside the unit. Unplug the unit prior to performing any function which involves
touching the inside of the moving head, including lamp replacement.
-The level of technology inherent in the XM1200 requires the assistance of specialised personnel for all
servicing.Please refer to an authorised DTS service centre.
-A good earth connection is essential for proper functioning of the projector.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
2.3 Protection against ultraviolet radiation:
-Never turn on the lamp if any of the lenses, filters or ABS coveringis damaged. Their respective
shielding functions will only operate efficiently if they are in perfect working order.
-Never look directly the lamp when it is on.
2.4 Safety:
-The projector should always be installed with bolts, clamps and other tools that are capable of
supporting the weight of the unit.
-Always use a second safety chain to sustain the weight of the unit in case of the failure of the main
fixing point.
-The external surface of the unit, at various points, may exceed 70°C. Never handle the unit until at
least 10 minutes have elapsed since the lamp was turned off.
-Always replace the lamp if any physical damage is evident.
-Never install the fixture in an enclosed area lacking sufficient air flow. The ambient temperature should
not exceed 40°C.
-A hot lamp may explode, so always wait for at least 10 minutes prior to attempting to replace the lamp.
-Always wear suitable hand protection when handling the lamp.
2.5 Level of protection against the penetration of solid and liquid matter:
-The projector is classified as an ordinary appliance and its protection level against the penetration of
solid and liquid matter is IP 20. XM1200 uses Philips 1200 MSR/SA lamp with GY 22 socket.
The temperature inside the projector can reach 250° C after just 5 minutes, but it can get as high as
350° C. Always check that the lamp is cold before attempting to remove it. In any case, only open the
unit 10 minutes after it has been turned off
ARC 1200
XM 1200 SPOT
5
