Dynojet Power Vision User manual

POWER VISION
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
IPV3-2501C
1 POWER VISION
1 REFLASH HARNESS
1 USB CABLE
2VELCRO
2DYNOJET DECAL
PARTS LIST
Installation Guide for: PV3-2501C
Model Coverage:
2018 Can-Am X3 900 HO
2017-2022 Can-Am X3 Turbo
2017-2021 Can-Am X3 Turbo R
2020 Can-Am X3 Turbo RR

2 CAN-AM X3 INSTALLATION GUIDE IPV3-2501C
INTRODUCTION
INSTALLING THE POWER VISION

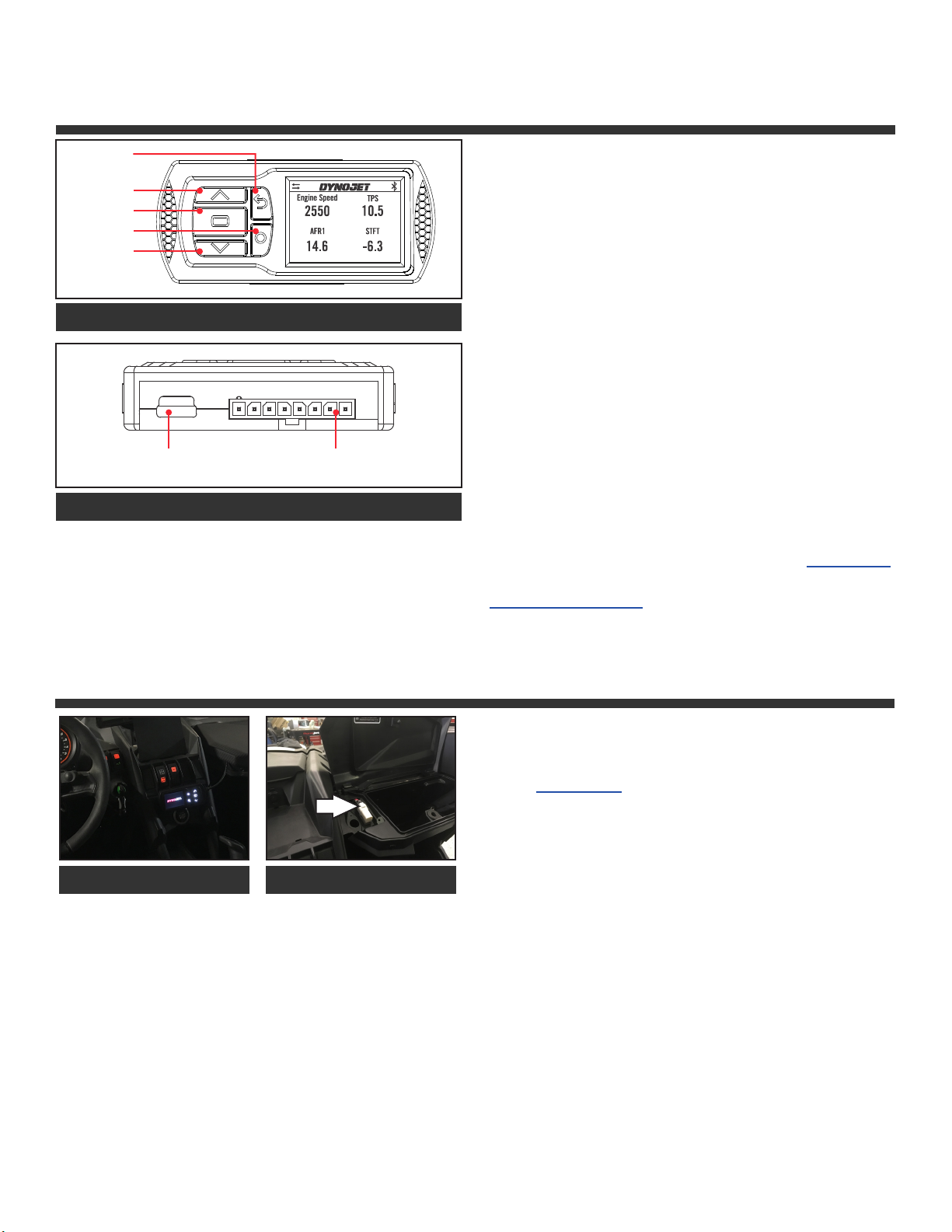

POWER VISION OVERVIEW—SIDE VIEW
SCROLL
USB CABLE PORT
CONNECT TO COMPUTER
DIAGNOSTIC CABLE PORT
CONNECT TO VEHICLE
POWER VISION OVERVIEW—FRONT VIEW
HOME/LOG
SCROLL
ENTER
RETURN
1 Secure the Power Vision to the vehicle using the supplied
Velcro . Make sure the Power Vision will not interfere with
the operation and steering of the vehicle.
Visit dynojet.com for an array of mounting solutions for
your Power Vision.
Note: The Power Vision does not need to be mounted
to the vehicle, however, the Power Vision provides
a window into your vehicle. Mount the Power Vision
to your dashboard and gain access to customizable
full-color gauge screens, along with data logging and
troubleshooting screens.
2 Attach the diagnostic cable to the diagnostic port on the
Power Vision and to the diagnostic port on the vehicle.
Maverick X3 Models: located under the glove box lid.
Note: Remove the diagnostics port holder and insert the
Power Vision cable to hold the cable securely in place.
3 Affix the supplied CARB E.O. label to a conspicuous area.
Next to the original emissions label is a good location. On
many of these models this is on the downtube of the frame.
Make sure to clean the surface before attaching.
DIAGNOSTIC PORTINSTALL POWER VISION
Thank you for purchasing the Power Vision from Dynojet
Research. At Dynojet, our mission is to make every ride
the ultimate ride. The Power Vision allows you to tune
your stock ECU to achieve optimal performance from
your vehicle.
The Power Vision is the device to interface between
your computer and the vehicle ECU. Use the buttons
to navigate the device menus, make selections, cycle
through the four full-color available gauge screens, and
log data. Connect to the diagnostic port to flash a tune;
use the USB connection to interface between the Power
Vision and your computer.
Make your Power Vision device yours; display the
channels you want to see with four user-customizable
full-color gauge screens. Make the Power Vision your
window into your vehicle; secure the Power Vision to
your dashboard or handlebars to monitor any desired
set of gauges such as Throttle Position, Engine Speed,
and more. Wideband Air:Fuel Ratio and integrated belt
temperature can be added as channels to the PV3’s
monitors by adding the accessories available at dynojet.com.
For state of the art technical support, please visit
dynojet.zendesk.com.

3
GETTING STARTED
Use the Tune File Wizard to prepare your Power Vision
device with the stock (stk) and tune (djt) files needed to
flash your vehicle.
1 Connect the Power Vision to the vehicle.
2 Turn the key on. The Power Vision will scan for files.
There are three possible file states:
File State 1: No compatible tune or stock files.
File State 2: No compatible tune files.
File State 3: All required files found.
3 Gauges are displayed.
Connect the Power Vision to the
vehicle diagnostic port to collect
ECU information. Turn the key on.
File State 2:
Go to tunes.dynojet.com/ to
download tune files.
File State 3:
All required files found. The Power
Vision is ready to flash a tune to the
connected vehicle.
File State 1:
Go to tunes.dynojet.com/ to
download stock and tune files.
FLASHING YOUR VEHICLE
The Power Vision must be paired to the connected vehicle ECU
to function properly.
Note: Once paired to the vehicle ECU, the Power Vision will
not work on another vehicle without purchasing a tune
license.
1 From the Main Menu, select Flash Tune.
2 Select the tune file (.djt) and press Enter to view the Tune Info.
Note: The Dynojet tune file (.djt) is a tune file which is
different (better than stock performance or the necessary
file when bolting on an exhaust, for example); the stock file
(.stk) is the direct duplicate of what the OEM shipped.
3 Press Enter to accept the tune, or restore the ECU to original
stock (.stk) file, and pair the Power Vision to the vehicle.
Note: Pair to vehicle will only happen on the first flash.
4 Press Enter to pair and lock the Power Vision to the ECU and to
begin the flash. Do not turn off the key switch or disconnect the
Power Vision during the flash.
5 After the flash is complete, turn the key off and wait 45 seconds
before turning the key back on to start.

4 CAN-AM X3 INSTALLATION GUIDE IPV3-2501C
This menu allows you to read and clear diagnostic trouble
codes.
1 To read codes, select Vehicle Tools>Diagnostics>Active
Codes.
2 To clear codes, select Vehicle Tools>Diagnostics>Clear
Codes.
VEHICLE TOOLS
VEHICLE INFORMATION
DIAGNOSTICS
DELETE DATA LOGS
VIEWING THE DIAGNOSTIC CODES
This menu allows you to view the device status (paired/not
paired), VIN #, Model ID, ECU serial number, tune compat, and
checksum compat.
Select Vehicle Tools>Vehicle Information.
VEHICLE TOOLS
VEHICLE INFORMATION
DIAGNOSTICS
DELETE DATA LOGS
VIEWING THE VEHICLE INFORMATION
RESTORING THE ECU
This menu allows you to restore the ECU. Use Restore ECU if
the device does not complete the flash or if your vehicle will
not start.
Select Vehicle Tools>Restore ECU.
CONFIGURING GAUGES
Make your Power Vision device yours; display the channels
you want to see with four user-customizable full-color gauge
screens. Each gauge screen has four configurable channels.
Monitor channels such as Wideband, AFR, Boost, and integrated
belt temperature sensor. Sample gauges shown here; for
a complete list of monitors available, open the tune file in
Power Core or scroll through the gauges on the device when
configuring or selecting channels for the list of options.
1 From the Main Menu, select Device Tools>Configure Gauges.
2 Select a gauge screen and press Enter.
3 Select a channel and press Enter.
4 Select a channel from the list and press Enter.
5 Select the precision or units for that channel and press Enter.
6 Continue setting up the remaining channels as desired.
7 Continue configuring the remaining gauge screens as desired.

5
LOGGING DATA
DELETING DATA LOGS
This menu allows you to delete data logs.
1 Select Vehicle Tools>Delete Data Log.
2 Select a specific log to delete or select *Delete All Logs*.
VEHICLE TOOLS
DIAGNOSTICS
DELETE DATA LOGS
RESTORE ECU
VIEWING THE DEVICE INFORMATION
This menu allows you to view the device firmware version,
serial number, and stock code.
Select Device Tools>Device Information.
DEVICE INFORMATION
DYNOJET POWER VISION
FW VERSION: 4.12.8299.20956
SERIAL NUMBER: 00073231
STOCK CODE: 76125080
The Power Vision is a powerful logging tool to diagnose running issues.
Use the Power Vision to log all vehicle operating data and review the
data in the Power Core software. Troubleshoot an issue such as knock,
speed/RPM limitation, throttle blade closure and more by keeping the
Power Vision mounted to view and record channels.
1 Press the Log button to begin logging. The Power Vision
screen will illuminate a bright red banner across the top when
logging.
2 Press the Log button again to stop logging.
3 Use the Power Core software to view log files.
Snapshot Log: Press and hold the Log button for two
seconds to record the previous two minutes of operating time.
REFORMATTING THE DISK
This menu allows you to reformat the disk and erase all data.
Select Device Tools>Reformat Disk.

6 CAN-AM X3 INSTALLATION GUIDE IPV3-2501C
EXPORT DIAGNOSTICS
This menu allows you to create a BIN file containing device
information used by Dynojet Tech Support.
1 Select Device Tools>Export Diagnostics.
2 If requested by Dynojet Tech Support, connect your Power
Vision to a computer and email the BIN file to
[e-mail].
USING THE POWER VISION UPDATE CLIENT
This stand alone application will launch the Update Client
allowing you to update your Power Vision with the latest
firmware, retrieve additional tunes, or restore the Power Vision to
the original Dynojet factory settings.
1 Connect the Power Vision to your computer using the included
USB cable.
2 Navigate to the POWERVISION drive attached to your computer
and run the Update.exe file.
3 Click Update to load the current firmware. If the Update button is
grayed out, your Power Vision already has the latest firmware.
4 Click Restore to reload all original Dynojet tune and stock files.
5 Click Get Tunes to open the Dynojet Tune Finder. Follow the
instructions to Upload your PV_Info.txt file and retrieve new tunes.
6 Click Manual Firmware Update to navigate to and load a version
of firmware already saved on your computer.
Firmware Version: 4.12.8299.20956 S/N: PV00073231
Help 1.0.3.0
Manual Firmware Update
Restore Get Tunes
CHANGING THE SETTINGS
UPDATING THE DEVICE
UPDATE DEVICE
PV3_4.12.8299.20956.dfu
This menu allows you to update the device with the latest
firmware.
1 Go to www.dynojet.com.
2 From the top navigation menu, select Support>Downloads.
3 Click Power Vision 3.
4 Click the Firmware drop-down and download the Power Vision
3 Firmware for CanAm.
5 Save the file to your device.
6 Select Device Tools>Update Device.
This menu allows you to rotate the screen allowing you to
change the orientation of the Power Vision device along with
adjusting the screen brightness. Turn the brightness up and
make your screen pop!
Select Device Tools>Settings>Rotate Screen to flip the
screen.
Select Device Tools>Settings>Brightness to change the
screen brightness.
