Eaton Green Motion Building User manual

Green Motion Building and Green Motion Fleet
commissioning guide
Eaton Green Motion

ii GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY
The information, recommendations, descriptions and safety notations in this document are based on Eaton Corporation’s
(“Eaton”) experience and judgment and may not cover all contingencies. If further information is required, an Eaton sales
office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in
appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.
THERE ARE NO UNDERSTANDINGS, AGREEMENTS, WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES
OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, OTHER THAN THOSE SPECIFICALLY SET OUT IN ANY
EXISTING CONTRACT BETWEEN THE PARTIES. ANY SUCH CONTRACT STATES THE ENTIRE OBLIGATION OF EATON. THE
CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES.
In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or
otherwise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to
damage or loss of use of equipment, plant or power system, cost of capital, loss of power, additional expenses in the
use of existing power facilities, or claims against the purchaser or user by its customers resulting from the use of the
information, recommendations and descriptions contained herein. The information contained in this manual is subject to
change without notice.
NOTICE
IF YOU PROCURED GMEV40CMC1B-WC OR GMEV80CMC1B-WC MODELS WITH EATON CHARGING
NETWORK MANAGER (CNM) SOFTWARE SUBSCRIPTION AND EATON SUPPLIED SIM CARD FOR
CELLULAR CONNECTIVITY, THEN YOU DO NOT NEED TO FOLLOW INSTRUCTIONS OUTLINED IN
THIS DOCUMENT. ONCE POWERED, YOUR EV CHARGE STATION WILL AUTOMATICALLY CONNECT
TO EATON CNM.

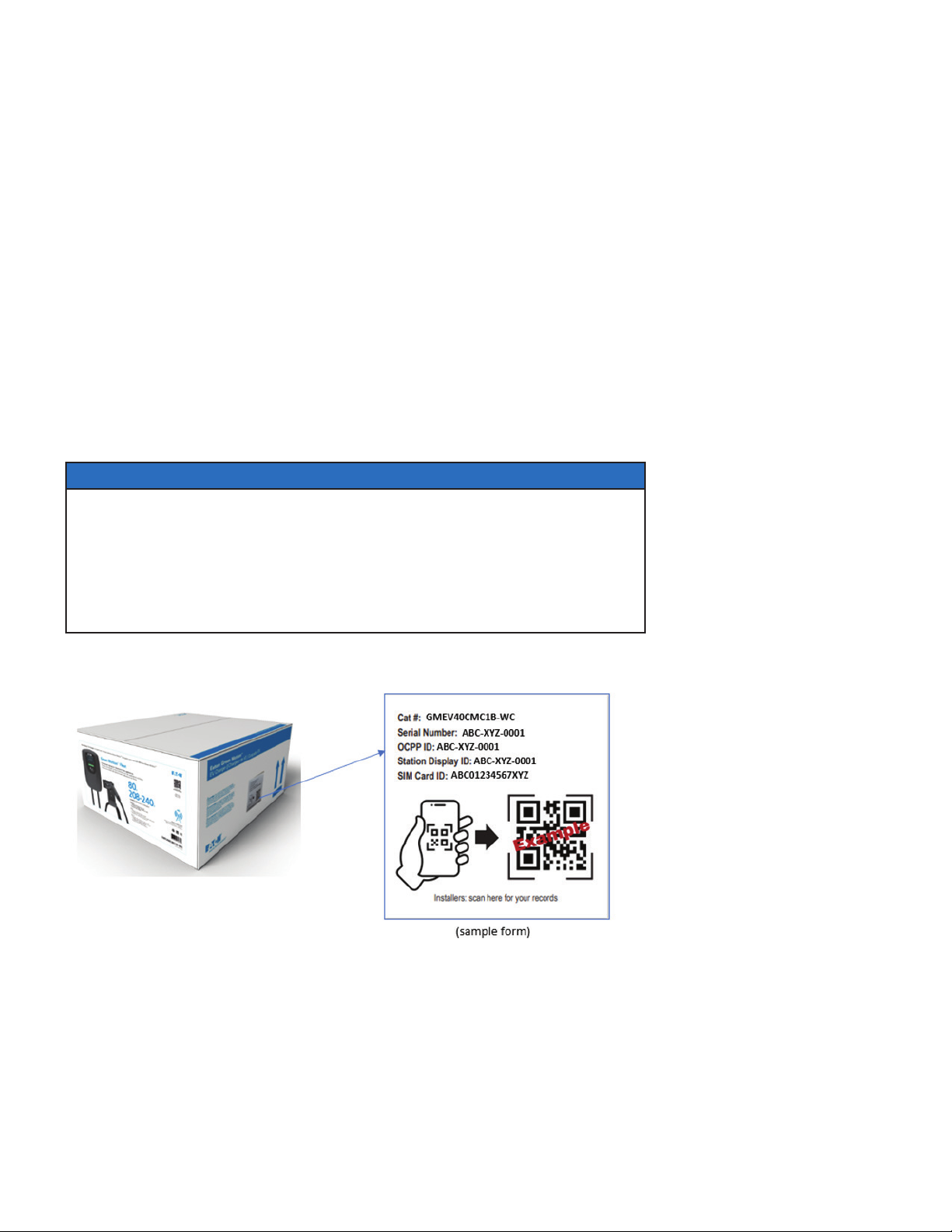

YOU NEED SERIAL NUMBER, OCPP ID, AND STATION DISPLAY ID TO CLAIM AN EV CHARGE STATION
WITHIN THE EATON CNM. THIS INFORMATION CAN BE FOUND ON THE SHIPPING LABEL AFFIXED TO
THE UNIT BOX—SEE IMAGE BELOW. REFER TO SITE HOST GUIDE FOR CLAIMING INSTRUCTIONS.

iii
Eaton Green Motion
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
Contents
1.0 DOCUMENT OVERVIEW ................................................................. 1
2.0 EV CHARGE STATION COMMISSIONING VIA WI-FI ........................................... 3
3.0 EV CHARGE STATION COMMISSIONING VIA ETHERNET ..................................... 5
4.0 EV CHARGE STATION COMMISSIONING VIA CELLULAR (NON-EATON SIM) ..................... 6
5.0 EV CHARGE STATION IN NON-CNM (NON-NETWORK) MODE ................................. 8
6.0 EV CHARGE STATION COMMISSIONING TO A THIRD-PARTY (NON-EATON) CNM SOFTWARE....... 9
7.0 UPDATE EV CHARGE STATION LCD DISPLAY LANGUAGE (ENGLISH/FRENCH/SPANISH) ...........10
8.0 EV CHARGE STATION COMMISSIONING TOOL INSTALL AND SETUP ...........................11

1
1.0 Document overview
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
1.0 Document overview
For scenarios other than the ones mentioned in the “NOTICE” on the previous page, refer to
this document for instructions on how to use Eaton’s EV charge station Commissioning Tool
to connect Green Motion™ Building and Green Motion Fleet (EV charging station) to Eaton
CNM software. Additionally, this document provides instructions to operate your EV charge
station in a non-CNM (non-network) mode. The table below outlines the EV charge station
model numbers and connectivity options.
Model number Description Connectivity to CNM
GMEV40CME1B-WC 9.6 kW AC Level 2 charger, 240 Vac, 40 A Wi-Fi, Ethernet
GMEV40CMC1B-WC 9.6 kW AC Level 2 charger, 240 Vac, 40 A 4G, Ethernet
GMEV80CME1B-WC 19.2 kW AC Level 2 charger, 240 Vac, 80 A Wi-Fi, Ethernet
GMEV80CMC1B-WC 19.2 kW AC Level 2 charger, 240 Vac, 80 A 4G, Ethernet
Figure 1. Green Motion Building/Fleet (EV charge station)

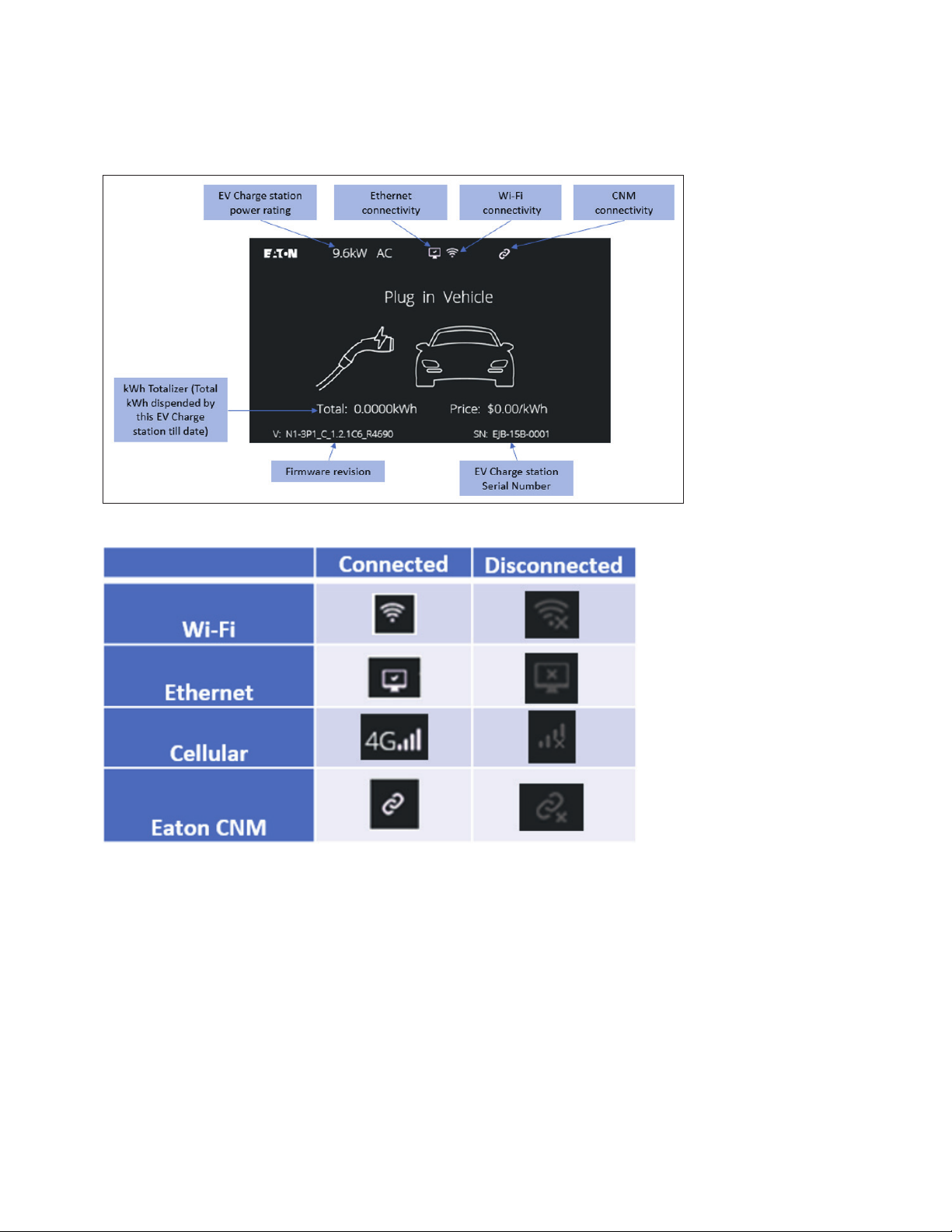

The LCD screen example below shows home screen of an EV charge station
with various icons.
Figure 2. Green Motion Building charger (GMEV40CMC1B-WC Ethernet and cellular)
LCD home screen

2
1.0 Document overview
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
Figure 3. Green Motion Building charger (GMEV40CME1B-WC Ethernet and Wi-Fi)
LCD home screen
Figure 4. LCD icons indicating status
ote:N Instructions on how to install this EV charger Commissioning Tool and connect to the
EV charge station are provided in Section 8.0. You will need a laptop or a computer
with Windows®8/10/11 and an RJ45 (Ethernet) cable.

3
2.0 EV charge station commissioning via Wi-Fi
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
2.0 EV charge station commissioning via Wi-Fi
Model numbers GMEV40CME1B-WC and GMEV80CME1B-WC support Wi-Fi. To use
Wi-Fi for Eaton CNM connectivity, users are required to use the Eaton EV charger
Commissioning Tool.
The Eaton EV charge station currently supports only 2.4 GHz Wi-Fi.

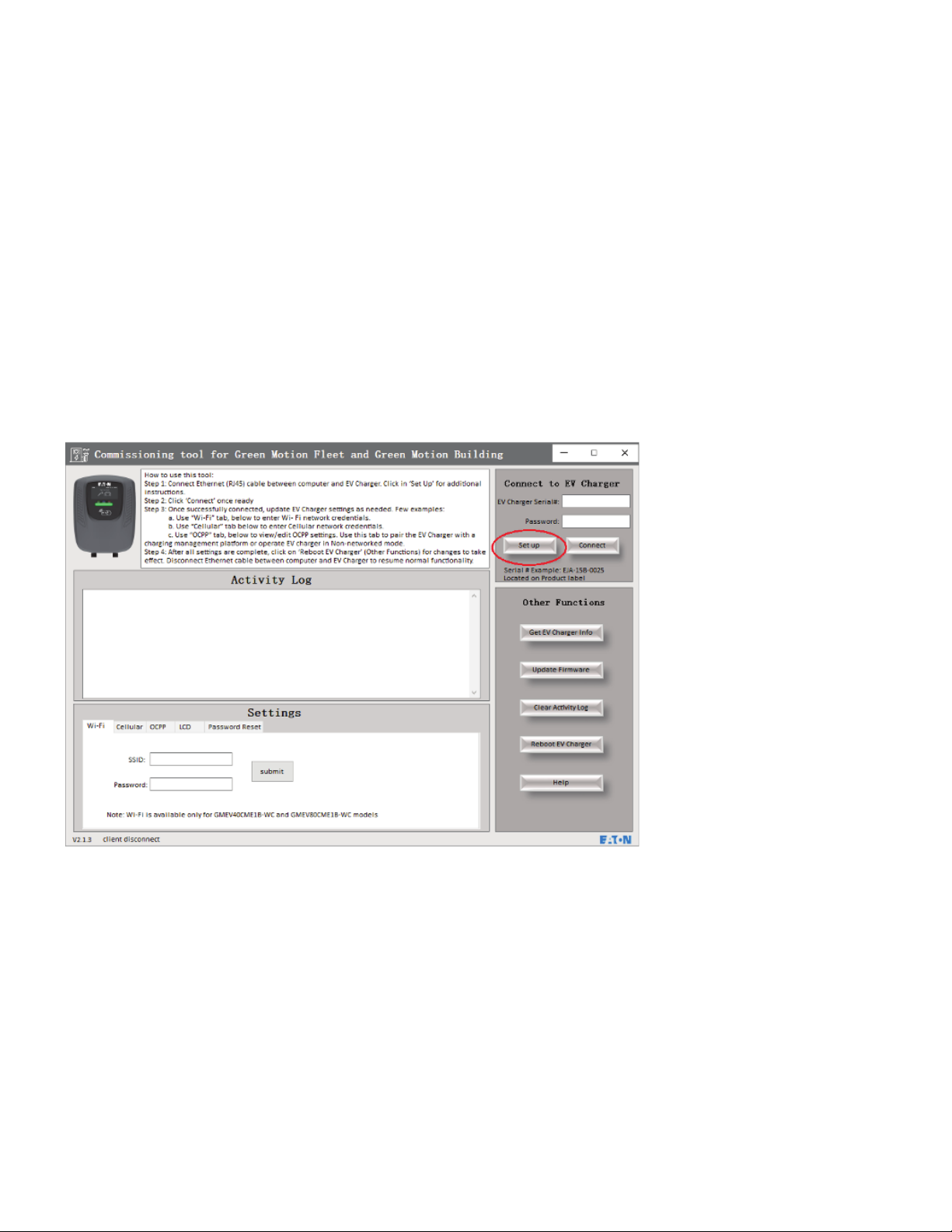

Figure 5. EV charge station commissioning with Wi-Fi

4
2.0 EV charge station commissioning via Wi-Fi
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
Follow the steps below to enable Wi-Fi:
1. Connect the EV charge station to the Commissioning Tool per instructions in Section 8.0.

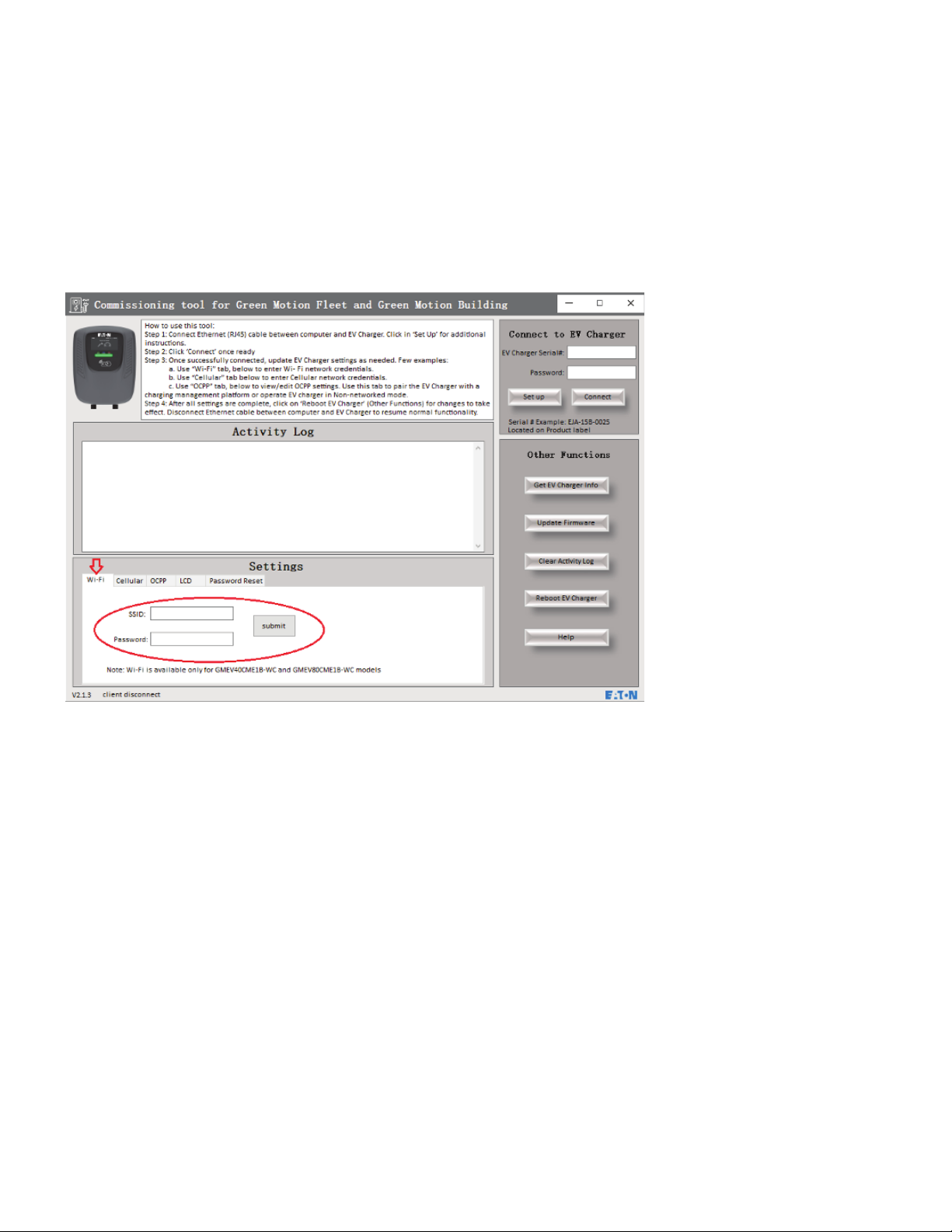

2. When the EV charger is connected to the Commissioning Tool, go to Settings -> Wi-Fi.
Type the SSID and password of the Wi-Fi network you wish to connect and click Submit.
3. Confirm that the EV charge station received these credentials in the Activity Log.

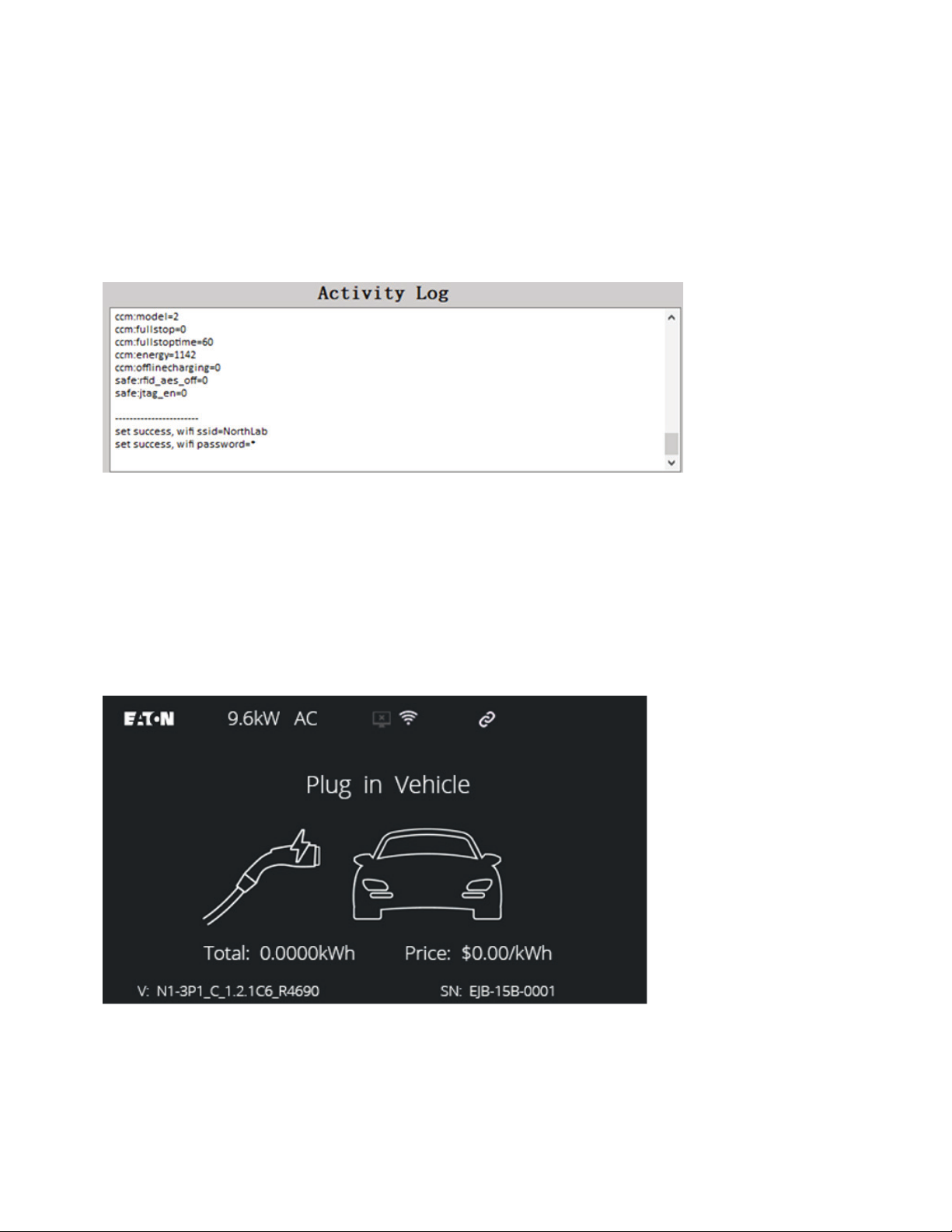

Figure 6. Activity Log showing the successful transfer of Wi-Fi credentials
4. Reboot the EV charge station through the Commissioning Tool (Other Functions ->
Reboot EV charge station).
5. Disconnect the EV charge station from the Commissioning Tool by disconnecting the
RJ45 (Ethernet) cable.
Once the EV charge station powers up, it will connect to the Wi-Fi router and subsequently
to the Eaton CNM. The image below shows the EV charge station is connected to a local
Wi-Fi connection and the Eaton CNM.
Figure 7. LCD screen of EV charge station connected to Eaton CNM via Wi-Fi

5
3.0 EV charge station commissioning via Ethernet
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
3.0 EV charge station commissioning via Ethernet
All Green Motion Building and Green Motion Fleet model numbers support Ethernet
connection. When an Ethernet (RJ45) cable with valid internet connection is plugged
in, the EV charge station will automatically attempt to connect to the Eaton CNM. LCD
screen icons indicate both an Ethernet connection and an Eaton CNM connection.
Please note that an Ethernet connection will take priority over the cellular connection.
NOTICE
PLEASE ENABLE DHCP ON THE ROUTER SUPPORTING THE ETHERNET CONNECTION.
Figure 8. LCD screen of EV charge station connected to Eaton CNM via Ethernet

6
4.0 EV charge station commissioning via cellular (non-Eaton SIM)
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
4.0 EV charge station commissioning via cellular (non-Eaton SIM)
Model numbers GMEV40CMC1B-WC and GMEV80CMC1B-WC have a 4G module. As
indicated earlier, these model numbers ship with an SIM card supplied by Eaton’s CNM.
If you wish to use a different SIM card, you need to follow the instructions provided
to carefully disassemble the EV charge station and replace the SIM card.
Green Motion Building and Green Motion Fleet stations have Quectel EC25-AFX 4G module
and support Verizon, AT&T, and T-Mobile networks. Please contact your SIM card provider to
confirm that the SIM card is approved to be used with these EV charge stations.
When an activated SIM card is placed in the EV charge station, follow the steps below to
commission the EV charge station.
1. Connect the EV charge station to the Commissioning Tool per instructions in Section 8.0.
2. Go to Settings -> Cellular.
3. Update the APN information for the new SIM and click Submit. Contact your SIM card
provider for this information.
Figure 9. EV charge station commissioning via cellular
4. Reboot the EV charge station via the Commissioning Tool (Other Functions ->
Reboot EV Charge station).
5. Disconnect the EV charge station from the Commissioning Tool by disconnecting the
RJ45 (Ethernet) cable.

7
4.0 EV charge station commissioning via cellular (non-Eaton SIM)
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
When the EV charge station powers up, it will attempt to establish cellular connectivity with
the carrier network. Once successfully connected to the cellular network, it will attempt to
connect with the Eaton CNM. “Cellular” and “Eaton CNM” icons will be illuminated on the
display when successful connections are established.

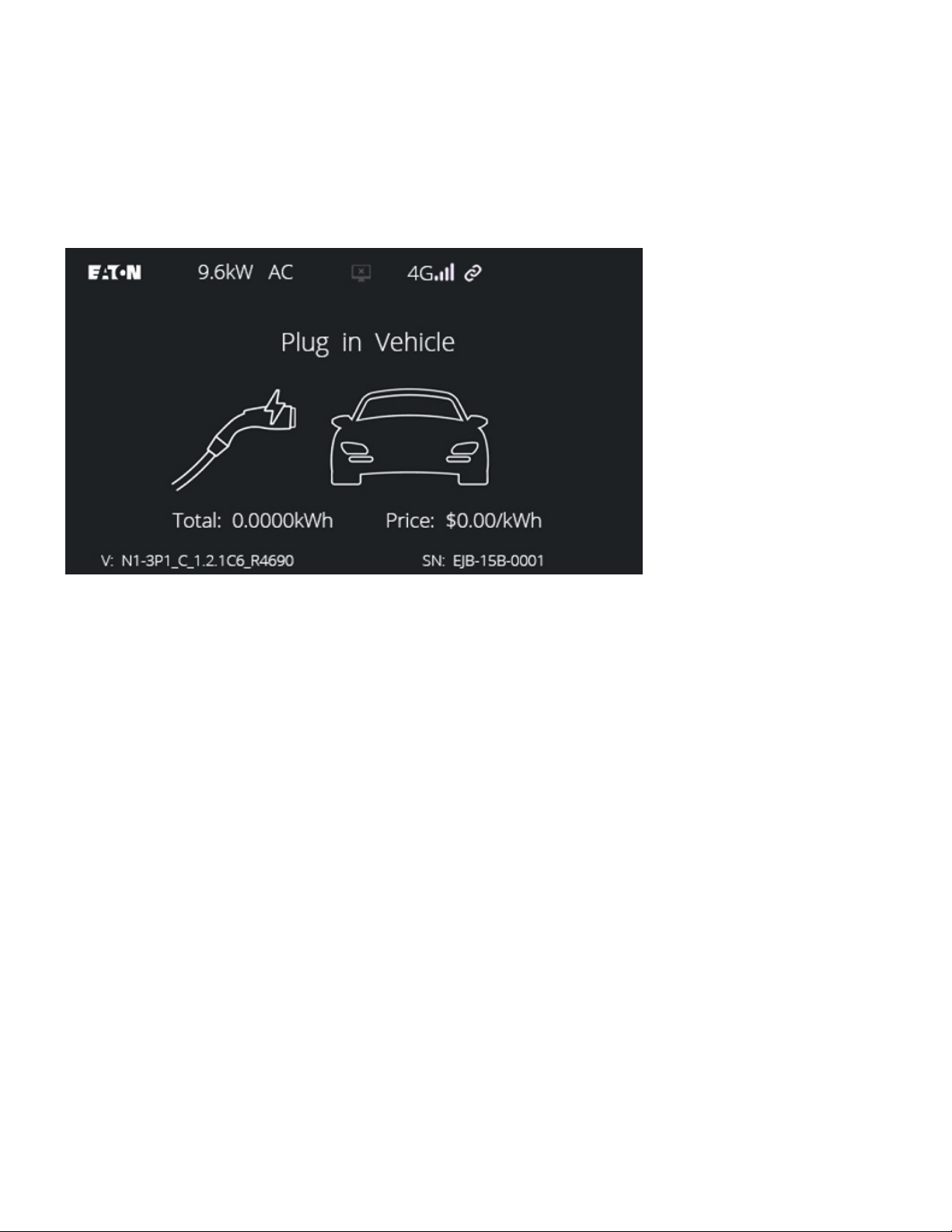

Figure 10. LCD screen of EV charge station connected to Eaton CNM via cellular

8
5.0 EV charge station in non-CNM (non-network) mode
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
5.0 EV charge station in non-CNM (non-network) mode
Follow the instructions below to configure the EV charge station to operate in a non-CNM
(non-network) mode. In this mode, EV charge stations will have no access control. They are
free and open to any driver who connects their vehicle. EV drivers with physical access to
the EV charge station will be able to initiate a charge session.
1. Connect the EV charge station to the Commissioning Tool per instructions in Section 8.0.
2. Go to Settings -> OCPP.
3. Click on Operate in Non-network (Free) Mode.
Figure 11. EV charge station set up in non-network (free) mode
4. Reboot the EV charge station via the Commissioning Tool (Other Functions ->
Reboot EV Charge station).
5. Disconnect the EV charge station from the Commissioning Tool by disconnecting the
RJ45 (Ethernet) cable.
The EV charge station is now available in non-network mode.

9
6.0 EV charge station commissioning to a third-party (non-Eaton) CNM software
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
6.0 EV charge station commissioning to a third-party (non-Eaton)
CNM software
Follow the instructions below to commission the EV charge station to a non-Eaton CNM
software.
1. Connect the EV charge station to the Commissioning Tool per instructions in Section 8.0.
2. Go to Settings -> OCPP.
3. Enter the OCPP server, authentication key, and certification details. Please contact your
CNM software provider for these details.
Figure 12. EV charge station set up in non-Eaton CNM software
4. Reboot the EV charge station via the Commissioning Tool (Other Functions ->
Reboot EV Charge station).
5. Disconnect the EV charge station from the Commissioning Tool by disconnecting the
RJ45 (Ethernet) cable.
Please contact your CNM software provider to claim the EV charge station.

10
7.0 Update EV charge station LCD display language (English/French/Spanish)
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
7.0 Update EV charge station LCD display language
(English/French/Spanish)
Follow the instructions below to change the LCD display language on your EV charge station.
1. Connect the EV charge station to the Commissioning Tool per instructions in Section 8.0.
2. Go to Settings -> LCD.
3. Select the desired language. Click Submit.
4. Reboot the EV charge station via the Commissioning Tool (Other Functions ->
Reboot EV Charge station).
5. Disconnect the EV charge station from the Commissioning Tool by disconnecting the
RJ45 (Ethernet) cable.
When the EV charge station is powered up, the LCD display language will be updated.

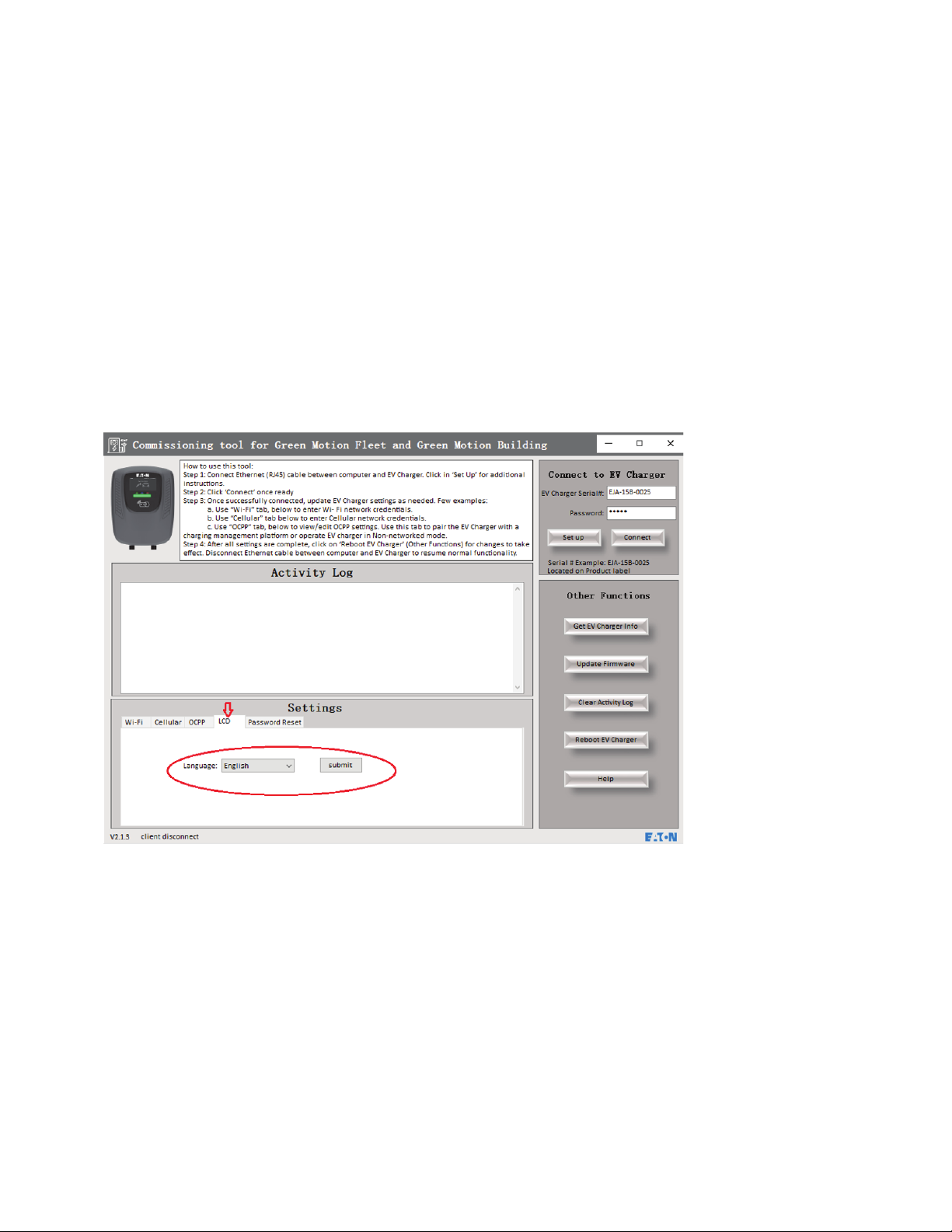

Figure 13. Change the LCD display language on your EV charge station

11
8.0 EV charge station Commissioning Tool install and setup
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
8.0 EV charge station Commissioning Tool install and setup
Eaton’s EV charge station Commissioning Tool is available on Eaton’s product website for
Green Motion Building and Green Motion Fleet, under the Resources section.
Necessary tools:
• Laptop or computer with Windows 8/10/11 and RJ45 (Ethernet) port
• RJ45 (Ethernet) cable
Follow the below steps to install and use the EV charge station Commissioning Tool.
8.1 Install the EV charge station Commissioning Tool
Download the EV charge station Commissioning Tool on your computer and open the tool.
(Note that the setup instructions are also displayed when you click the Set Up button on the
Commissioning Tool.)
Figure 14. EV charge station Commissioning Tool setup

12
8.0 EV charge station Commissioning Tool install and setup
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com

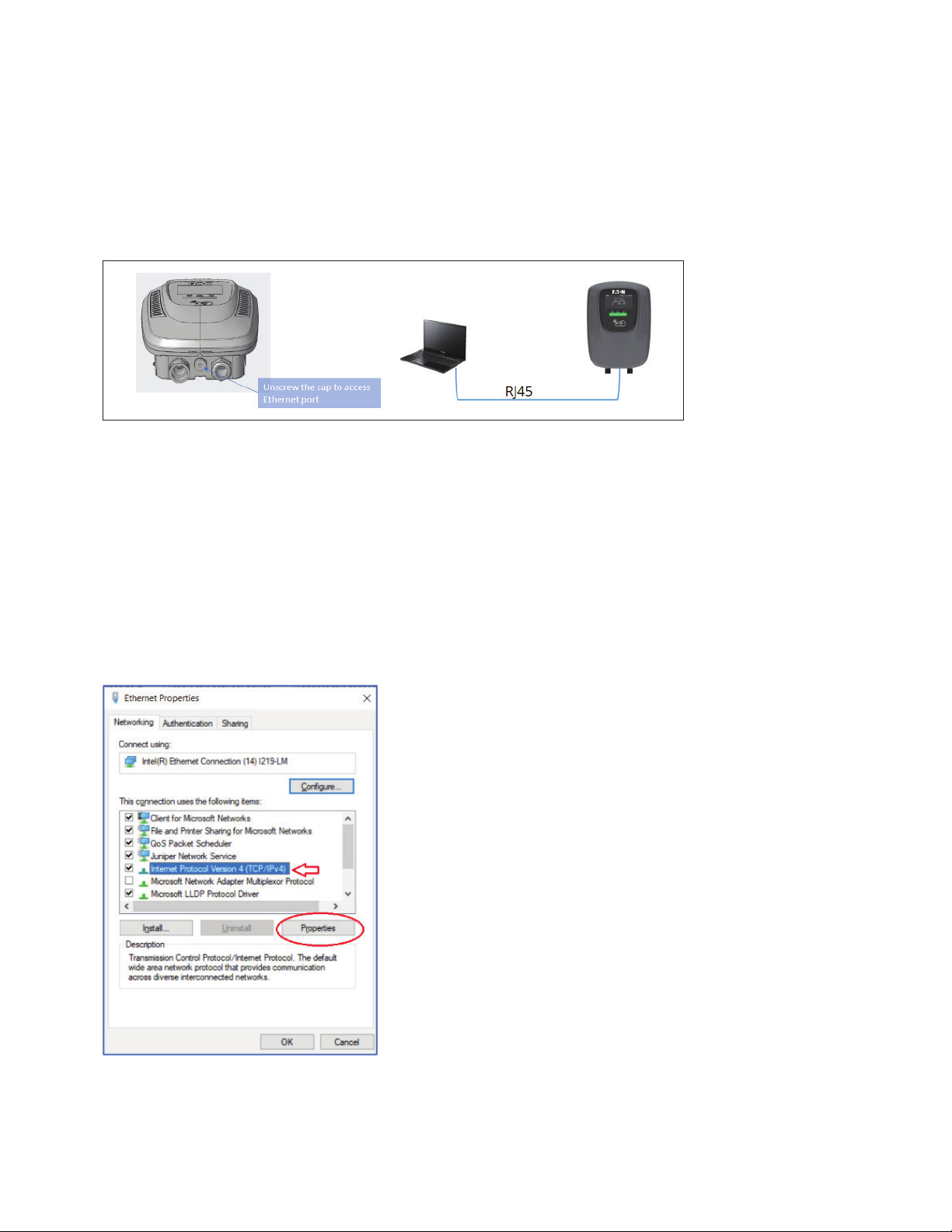

8.2 Connect your computer to the EV charge station
Use an Ethernet cable to safely connect your computer and the EV charge station. The
Ethernet port is accessible at the bottom surface of the EV charge station. Once connected,
the Ethernet icon on the EV charge station LCD will turn ON.
Figure 15. Use Ethernet cable to connect computer with EV charge station
8.3 Update TCP/IP settings on your computer
ote:N These instructions are also displayed in detail when you click the Set Up button
on the Commissioning Tool.
ote:N If your computer is on a company network, please contact your IT department
for assistance.
1. Access the TCP/IP settings from your computer’s Control Panel -> Network and Internet
-> Network and Sharing Center -> Change Adapter Settings.
2. Right click on the ‘Ethernet’ connection (connected to EV charge station) and select
Ethernet Properties -> Networking Tab -> Internet Protocol Version 4 (TCP/IPv4).
Select this setting and click Properties. See image below.
Figure 16. Ethernet connection properties

13
8.0 EV charge station Commissioning Tool install and setup
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
3. Update the IP addresses as shown in the red box below and select OK.
Figure 17. IP address updates
4. You are now ready to connect the EV charge station Commissioning Tool to the
EV charge station.
ote:N Users may see a firewall setting pop up. Check the settings as shown and click
Allow Access.
Figure 18. Firewall setting to allow access to Commissioning Tool

14
8.0 EV charge station Commissioning Tool install and setup
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
ote:N If you are still unable to connect your computer to the EV charge station, please
check the firewall list and add “eaton green motion building and fleet commissioning
tool. Exe” to the Allow list.

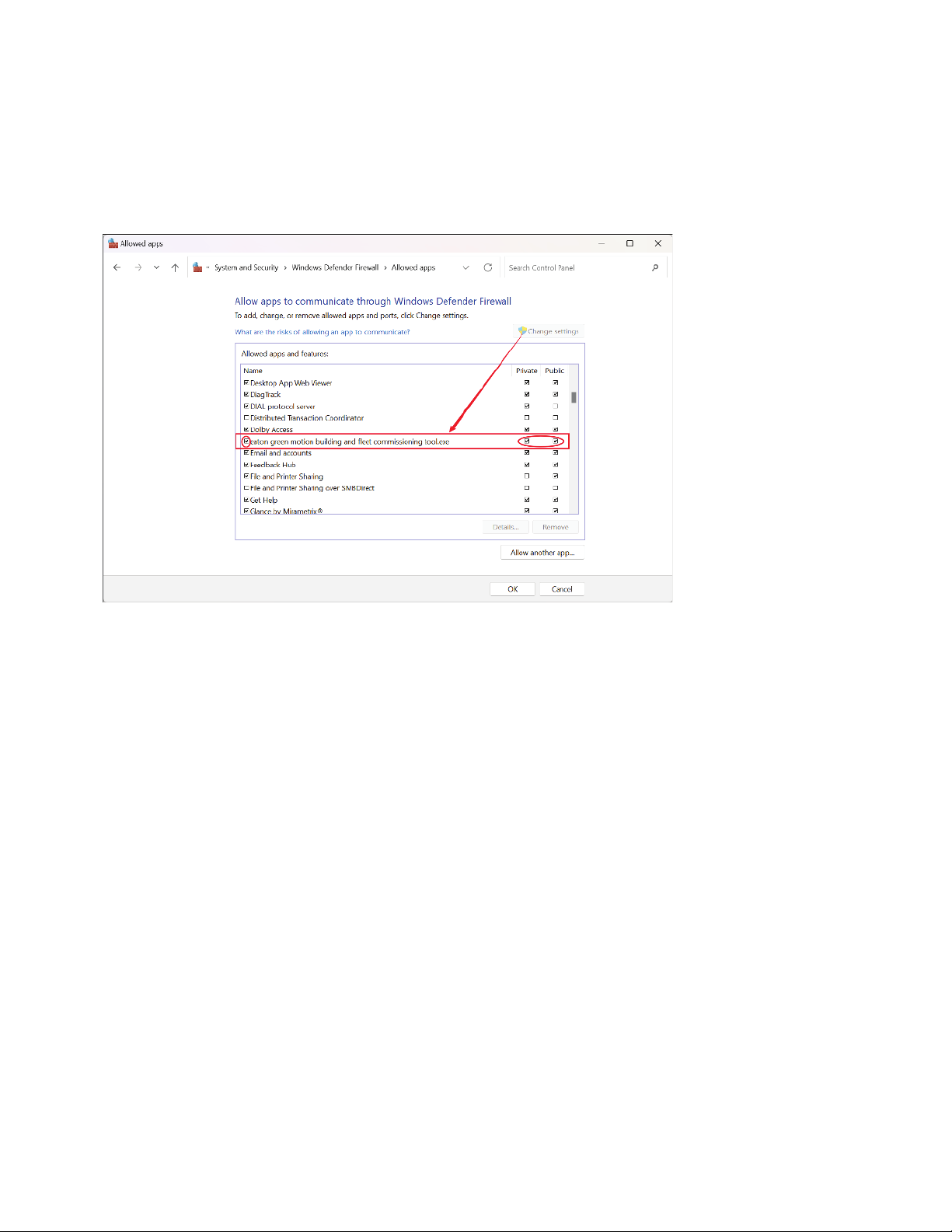

Figure 19. Add EV charge station Commissioning Tool to Allow list

15
8.0 EV charge station Commissioning Tool install and setup
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
8.4 Log in and connect Commissioning Tool to EV charge station
1. To connect to the EV charge station, you will need the EV charge station serial number,
which is found on a QR code sticker attached to the EV charge station. Default
password to log in is “eaton”. It is recommended that this default password be
updated to a stronger password upon installation.
2. Click Connect. A message indicating a successful connection will appear in the
Activity Log.
Figure 20. Connecting EV charge station to Commissioning Tool

16
8.0 EV charge station Commissioning Tool install and setup
GREEN MOTION BUILDING AND GREEN MOTION FLEETCOMMISSIONING GUIDE IL191013EN June 2023 www.eaton.com
Figure 21. EV charge station serial number
3. Users will be forced to update the default password to a stronger password. Strong
password requirements are mentioned under Settings -> Password Reset tab.
Once connected, you will be able to update various EV charge station settings available
under the Settings menu.

Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2023 Eaton
All Rights Reserved
Printed in USA
Publication No. IL191013EN / Z27625
June 2023
Eaton is a registered trademark.
All trademarks are property
of their respective owners.
Instructions to change password or reset to default password
If you remember your password:
1. Follow the steps described in 8.1 through 8.4 to connect the EV charge station
Commissioning Tool to the EV charge station. Update the password under the Settings ->
Password Reset tab.
2. Click Disconnect and reconnect with the updated password.
If you DO NOT remember your password:
You can reset to default password (default password: eaton) by following the steps below.
1. Follow the steps described in 8.1 through 8.3 to connect your computer and the
EV charge station.
2. Open the EV charge station Commissioning Tool.
3. Go to Settings -> Password Reset tab. Click Reset Password to Default.
4. Click OK on the pop-up window.
5. Wait for the “Authentication success!(recovery)” message on the Activity Log.
Figure 22. Activity Log showing EV charge station ready for power cycle
6. Within 15 minutes, power cycle the EV charge station by tripping and resetting the circuit
breaker powering the EV charge station.
7. You can now connect to the EV charge station with the default password (eaton).
8. You will be required to update the password to a stronger password.
This concludes the commissioning instructions.
8.0 EV charge station Commissioning Tool install and setup
